1. To Design Bicycle Hazard / Indicator Lights

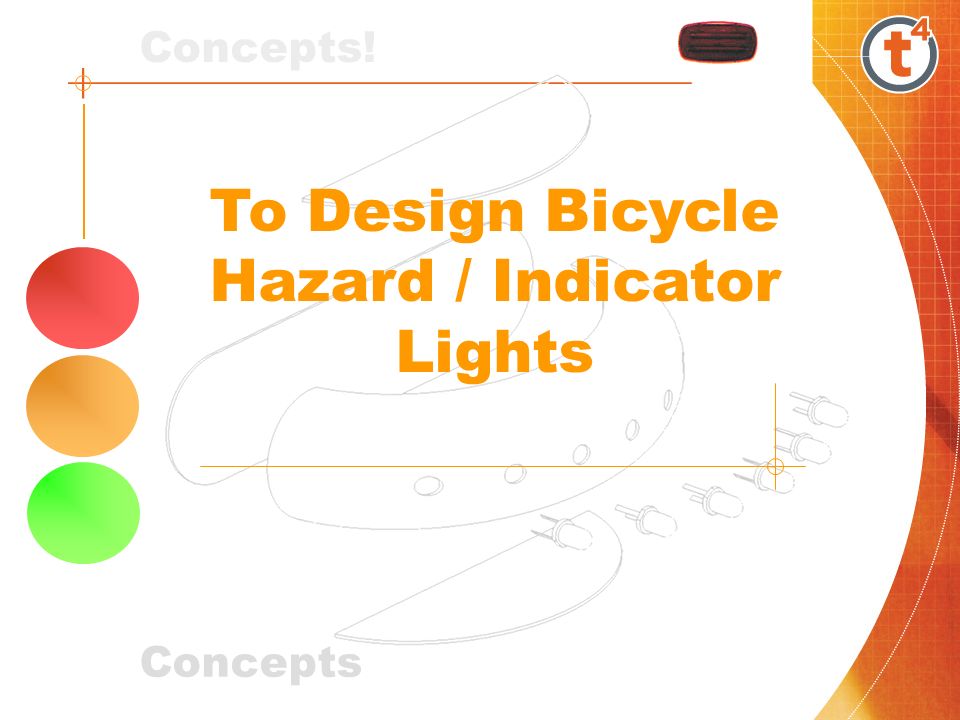

2. To Design Bicycle Hazard / Indicator Lights Concepts! Concepts

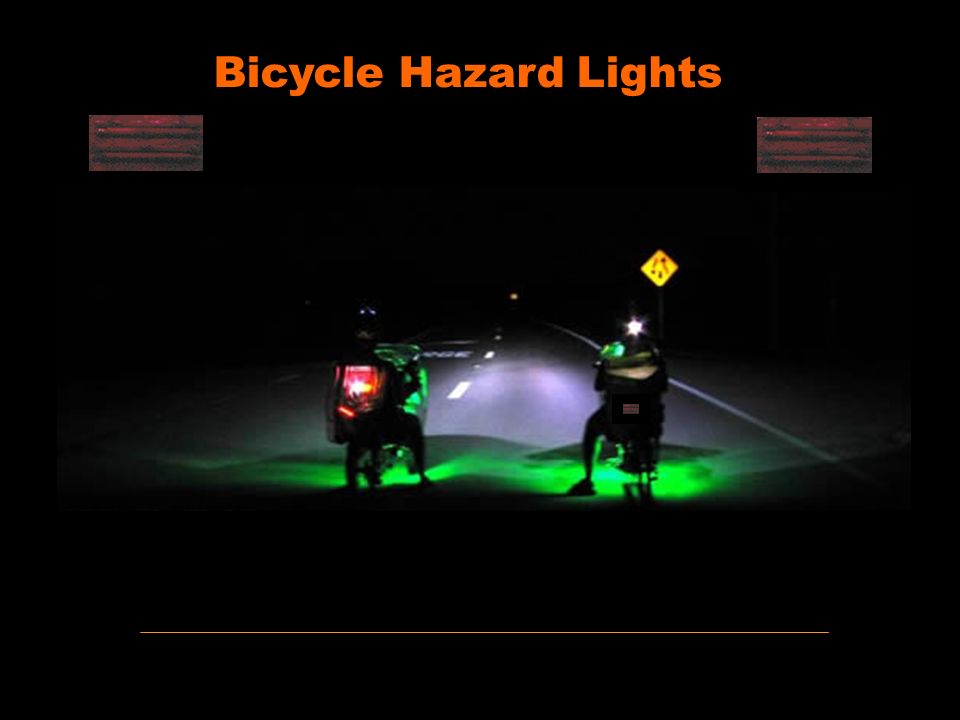

3. Bicycle Hazard Lights

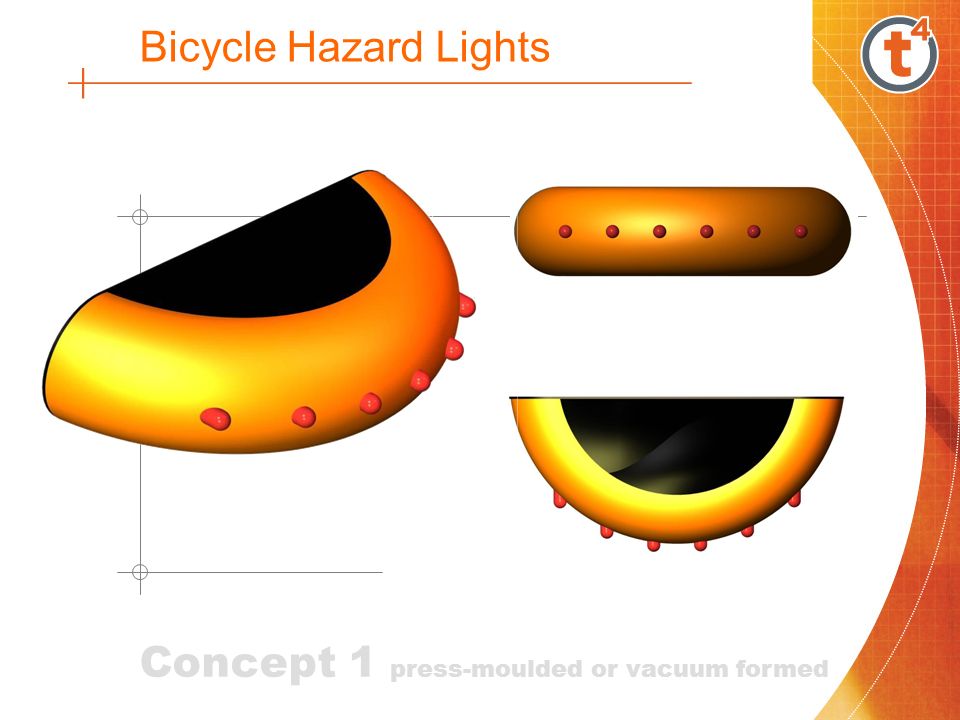

4. Concept 1 press-moulded or vacuum formed

5. Bicycle Hazard Lights

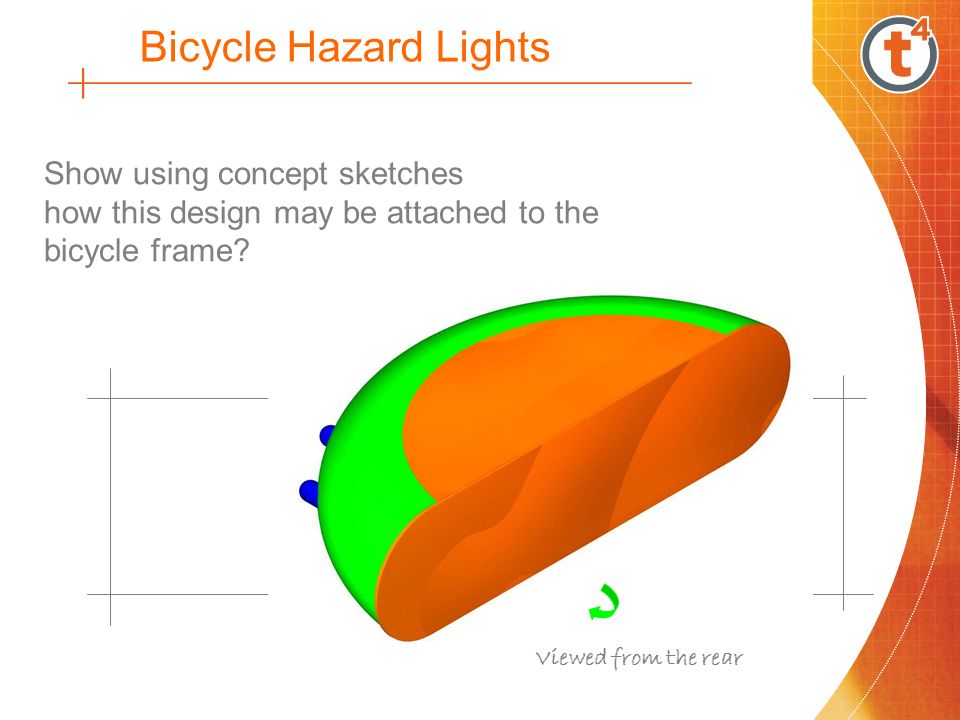

6. Show using concept sketches how this design may be attached to the bicycle frame? Viewed from the rear Bicycle Hazard Lights

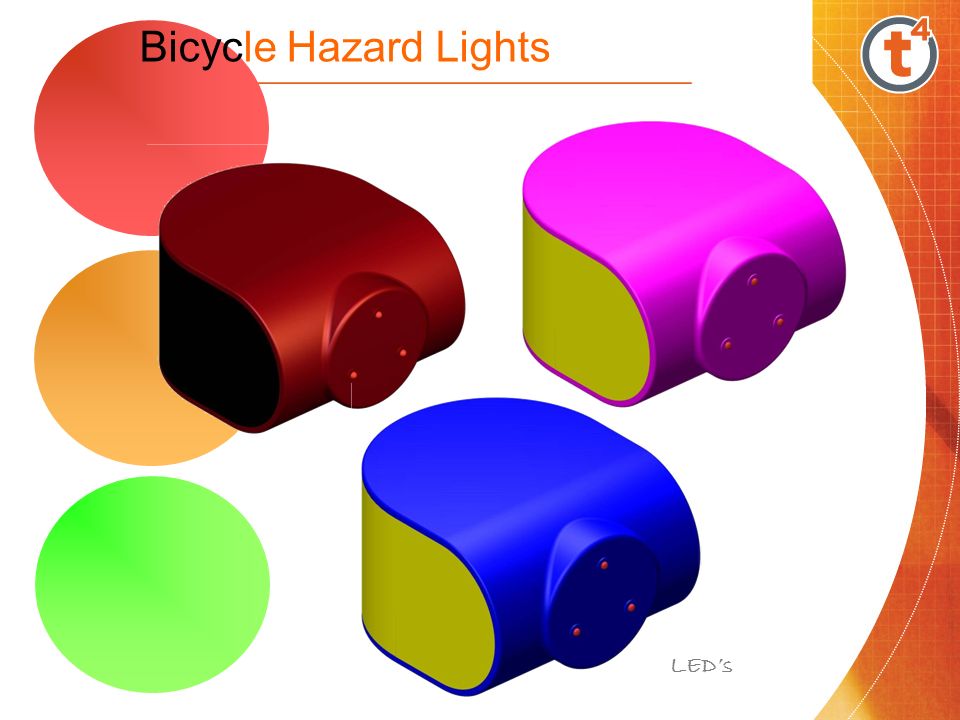

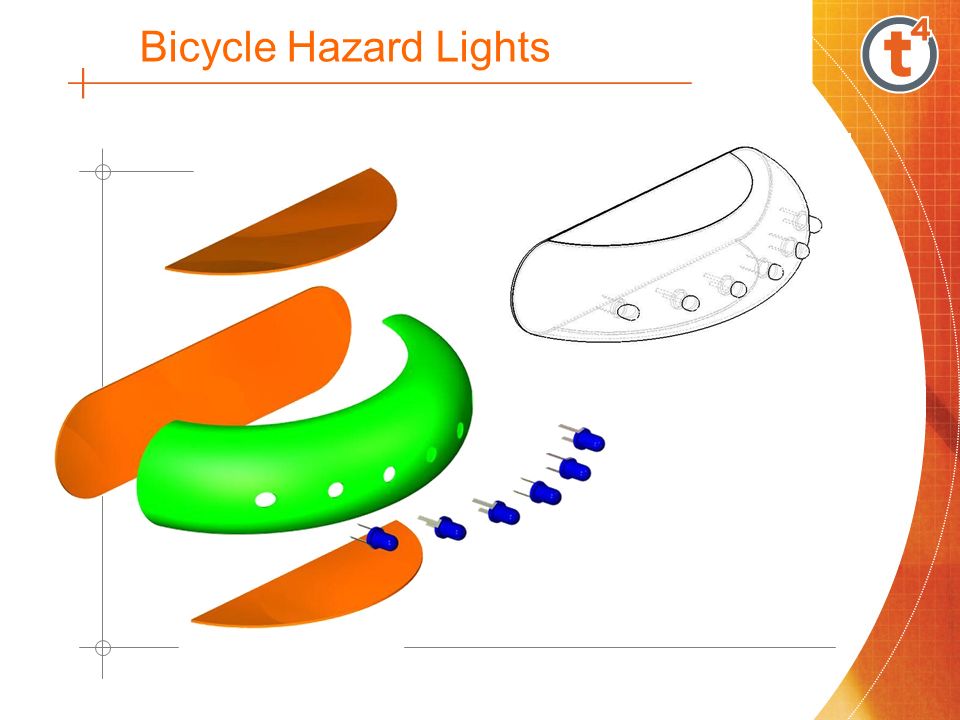

7. LED’s Bicycle Hazard Lights

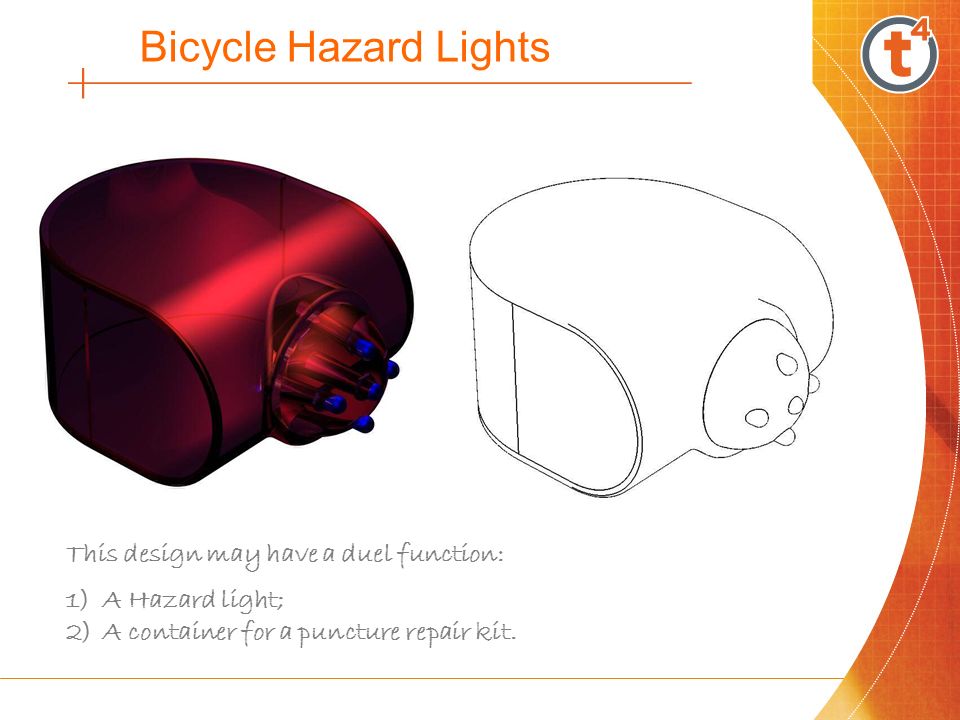

10. This design may have a duel function: 1)A Hazard light; 2)A container for a puncture repair kit.

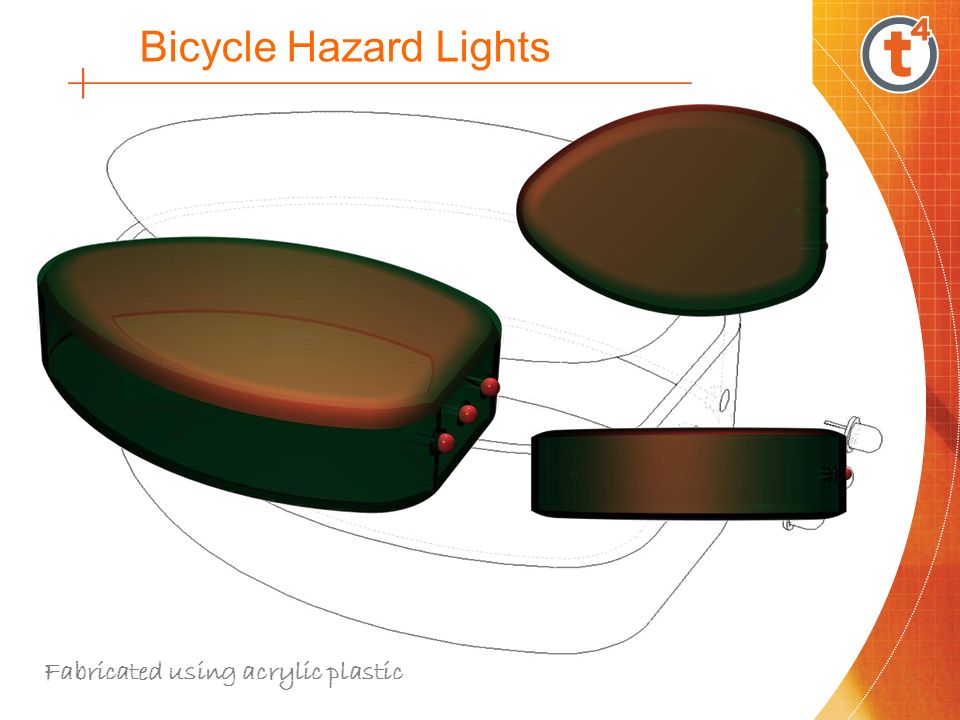

11. Bicycle Hazard Lights Fabricated using acrylic plastic

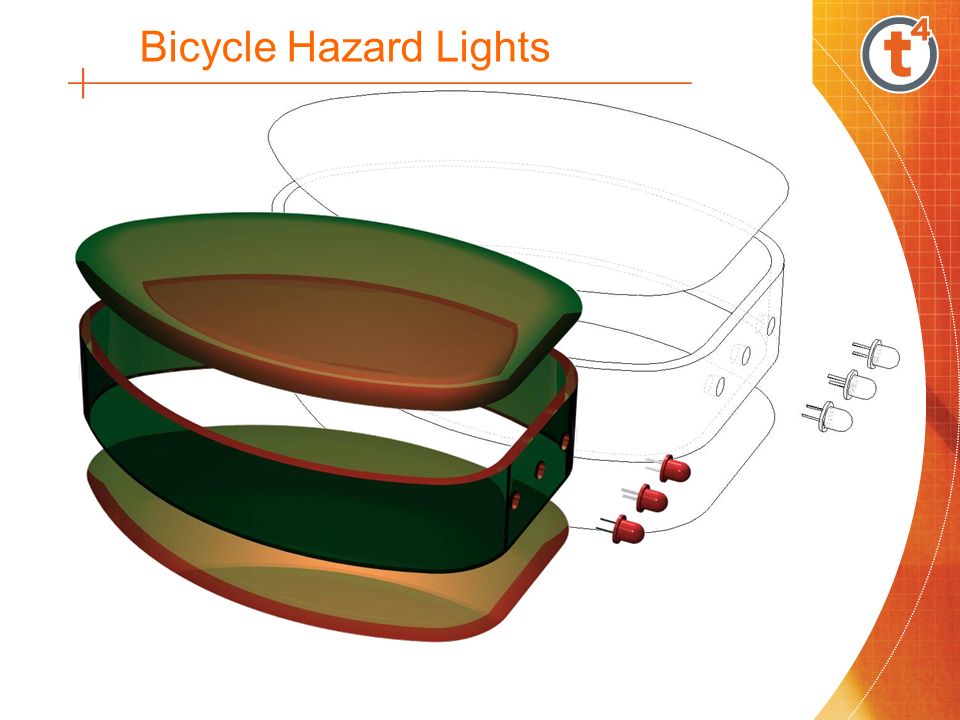

12. Bicycle Hazard Lights

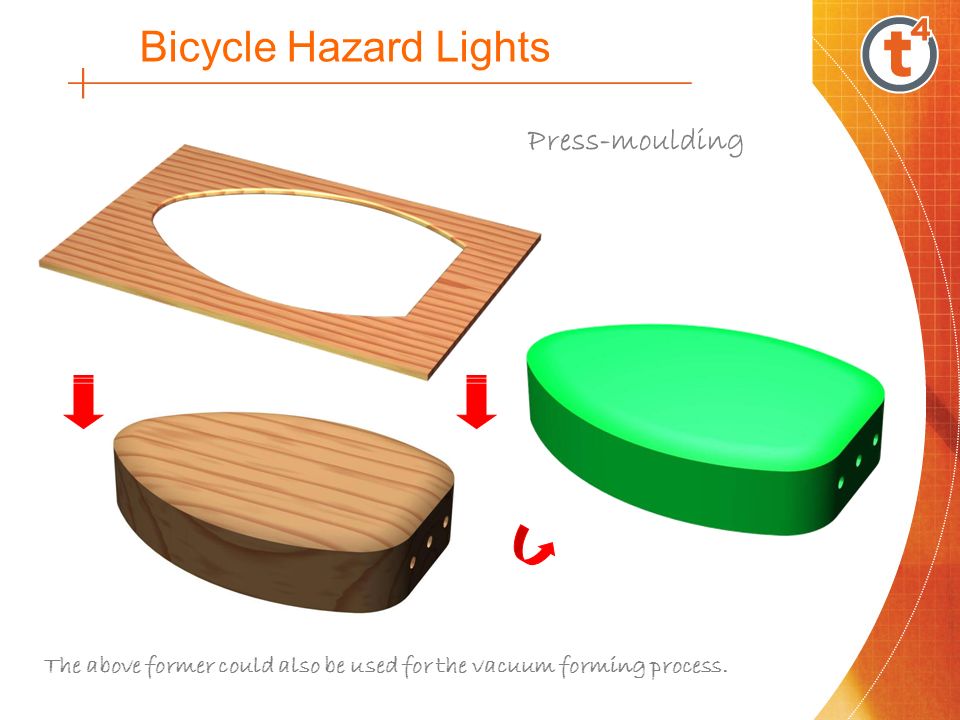

13. Press-moulding The above former could also be used for the vacuum forming process.

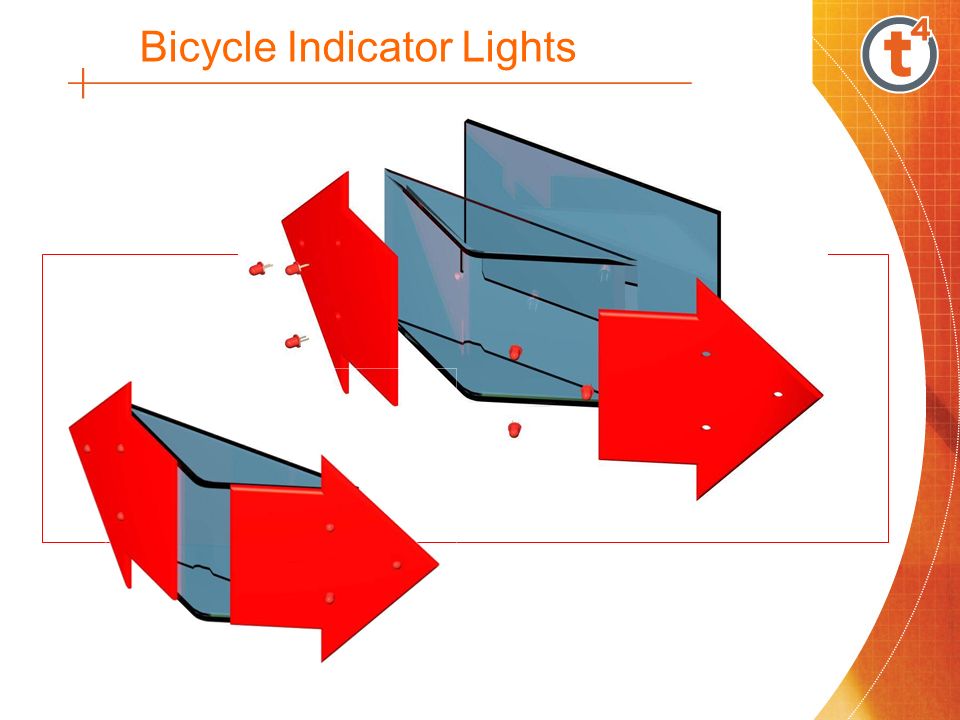

14. Bicycle Indicator Lights

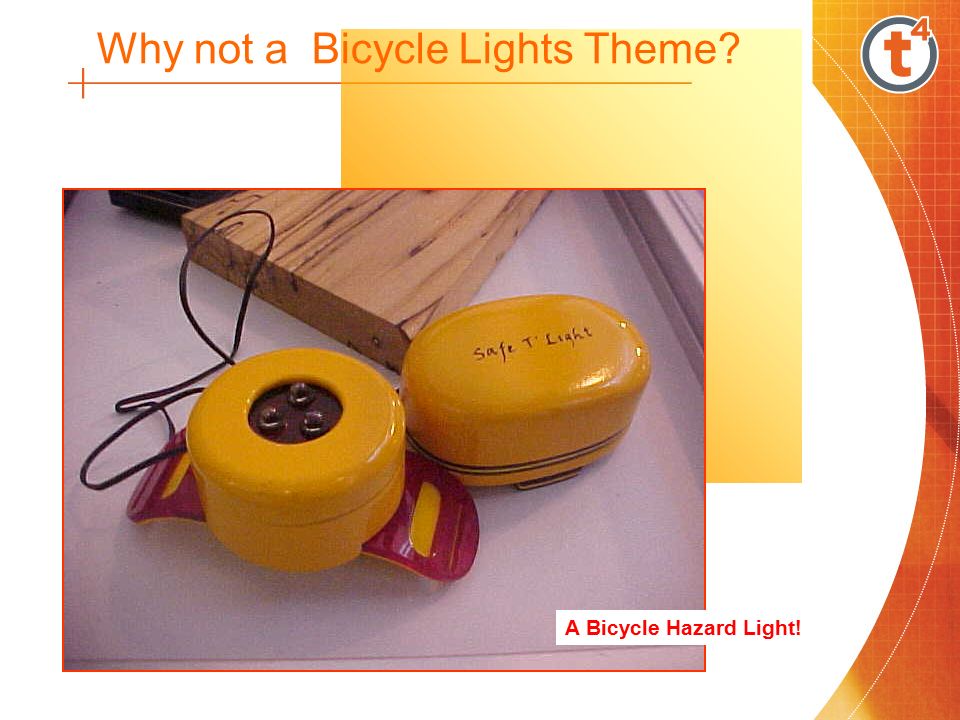

15. Why not a Bicycle Lights Theme? A Bicycle Hazard Light!

16. 555 Astable Circuit Bicycle Indicators Concept fabricated In acrylic plastic

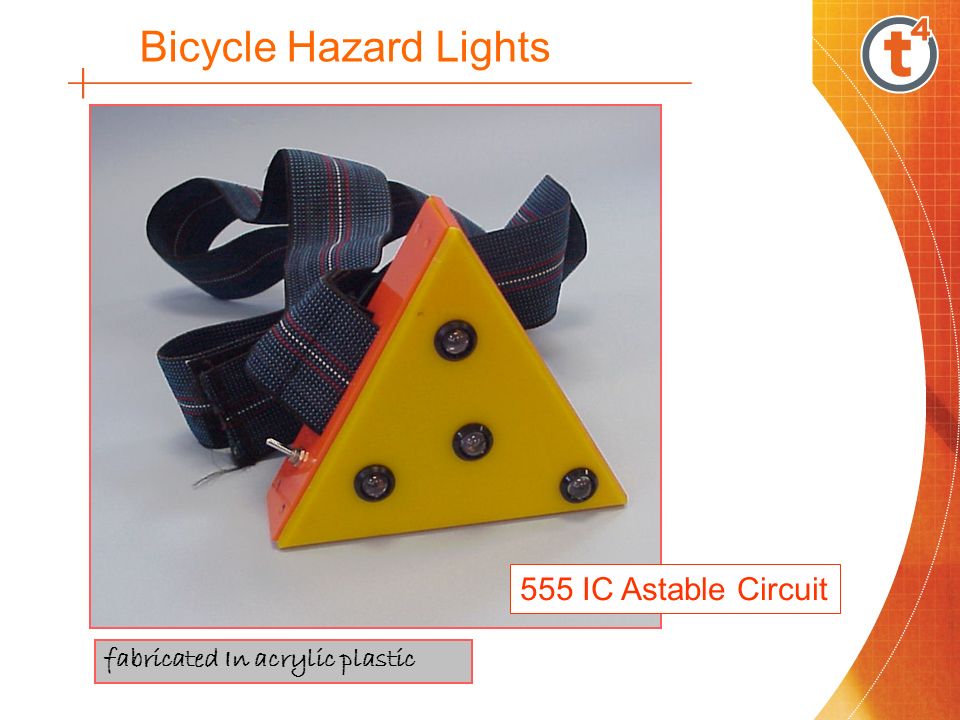

17. Bicycle Hazard Lights 555 IC Astable Circuit fabricated In acrylic plastic

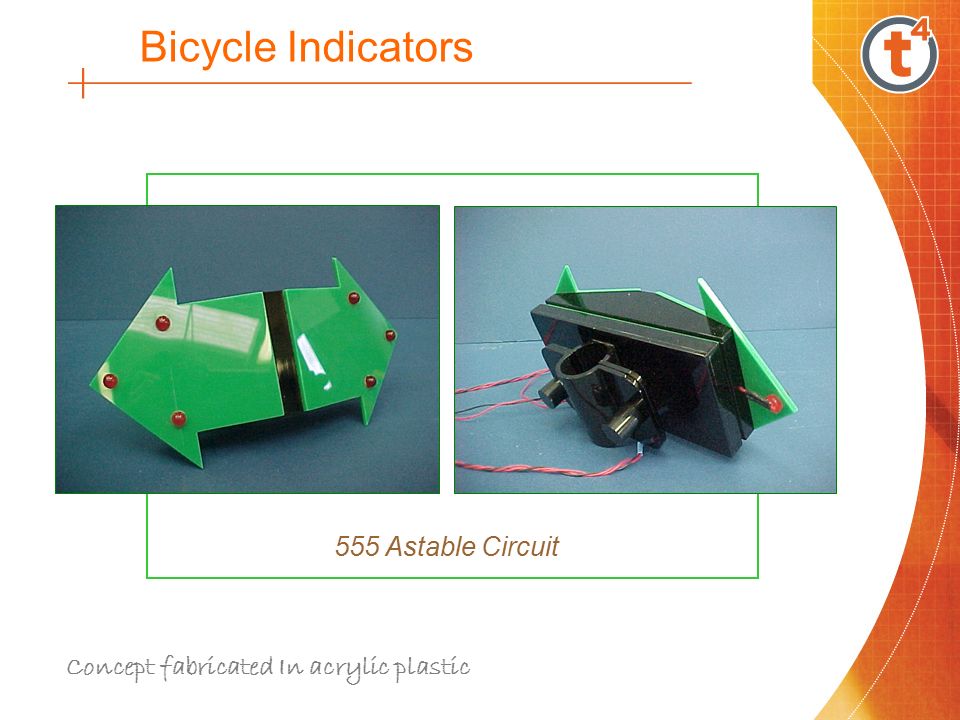

18. Bicycle Indicators This concept was fabricated In acrylic plastic

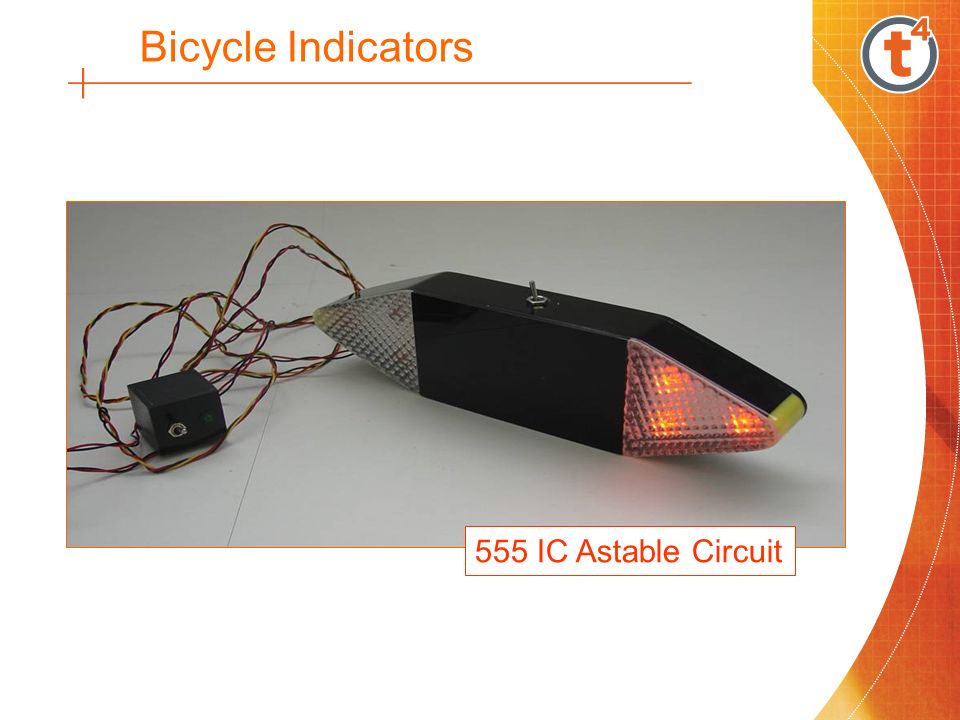

19. Bicycle Indicators 555 IC Astable Circuit

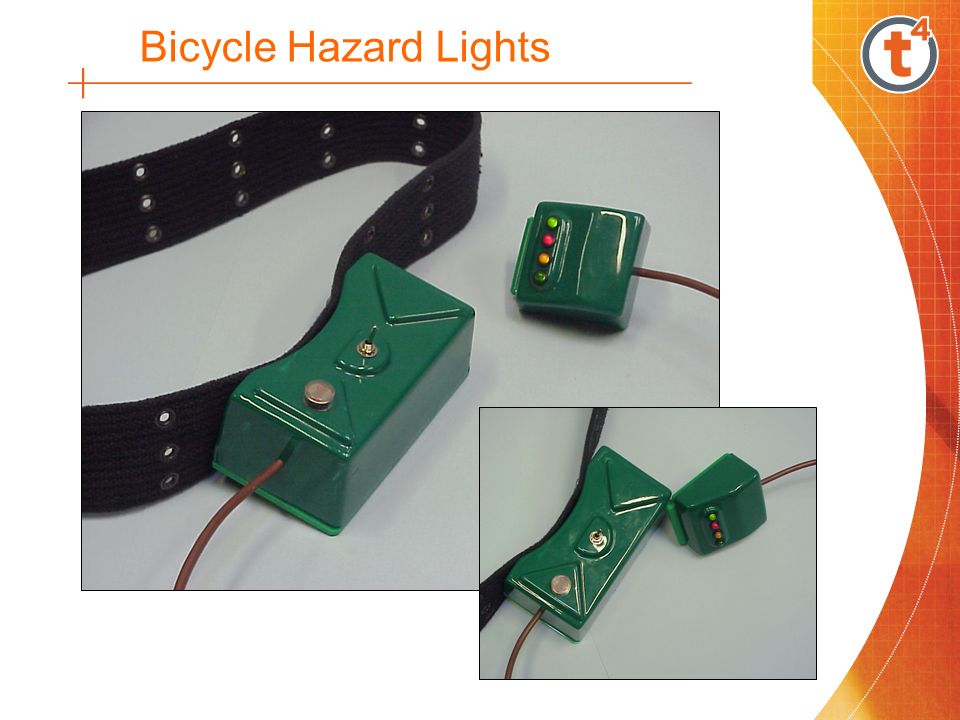

20. Bicycle Hazard Lights

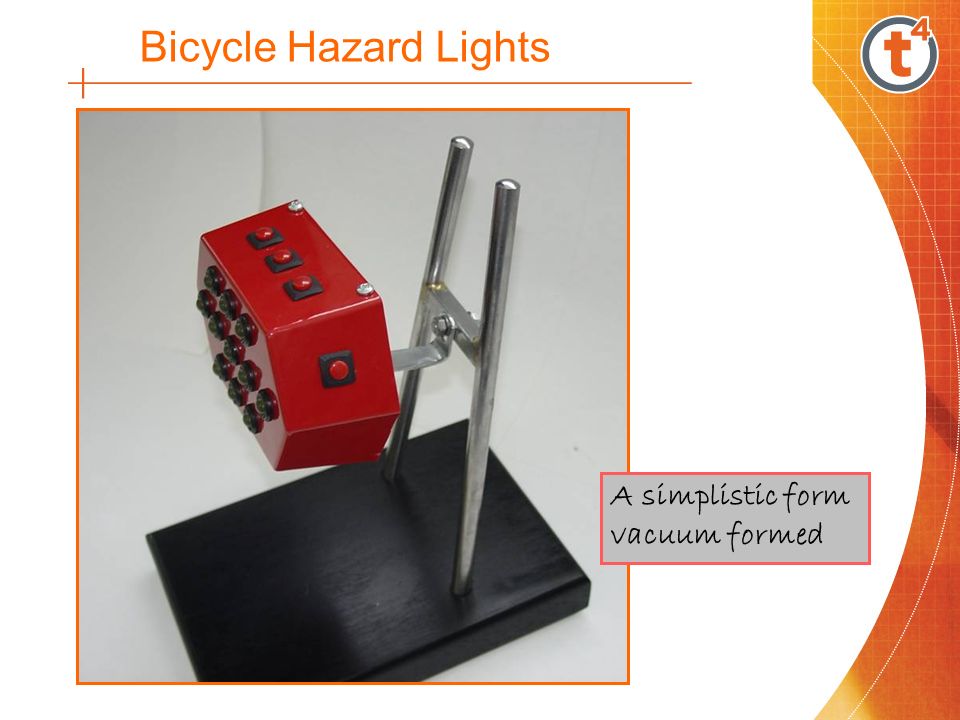

21. A simplistic form vacuum formed
