1. Buddy Scheduling in Distributed Scientific Applications on SMT Processors Nikola Vouk December 20, 2004 In Fulfillment of Requirement for Master’s of Science at NCSU

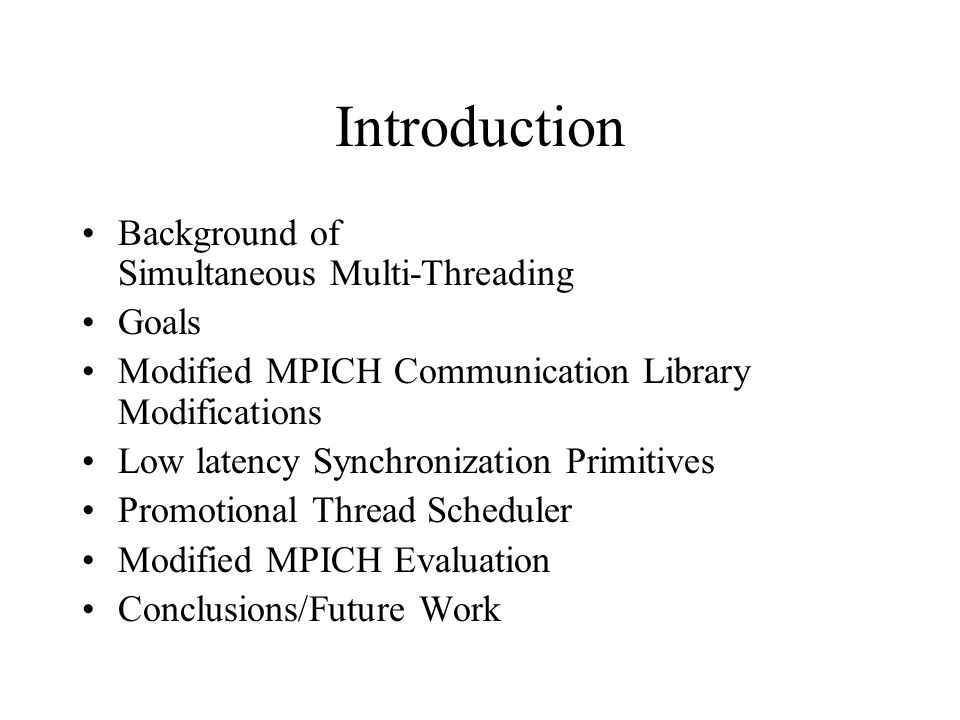

2. Introduction Background of Simultaneous Multi-Threading Goals Modified MPICH Communication Library Modifications Low latency Synchronization Primitives Promotional Thread Scheduler Modified MPICH Evaluation Conclusions/Future Work

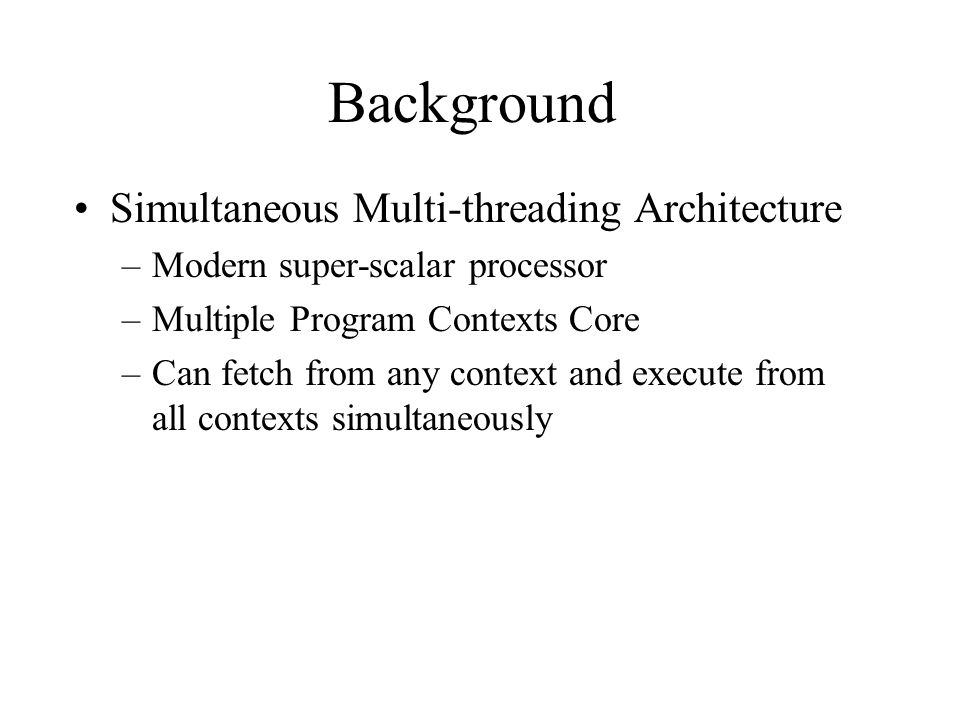

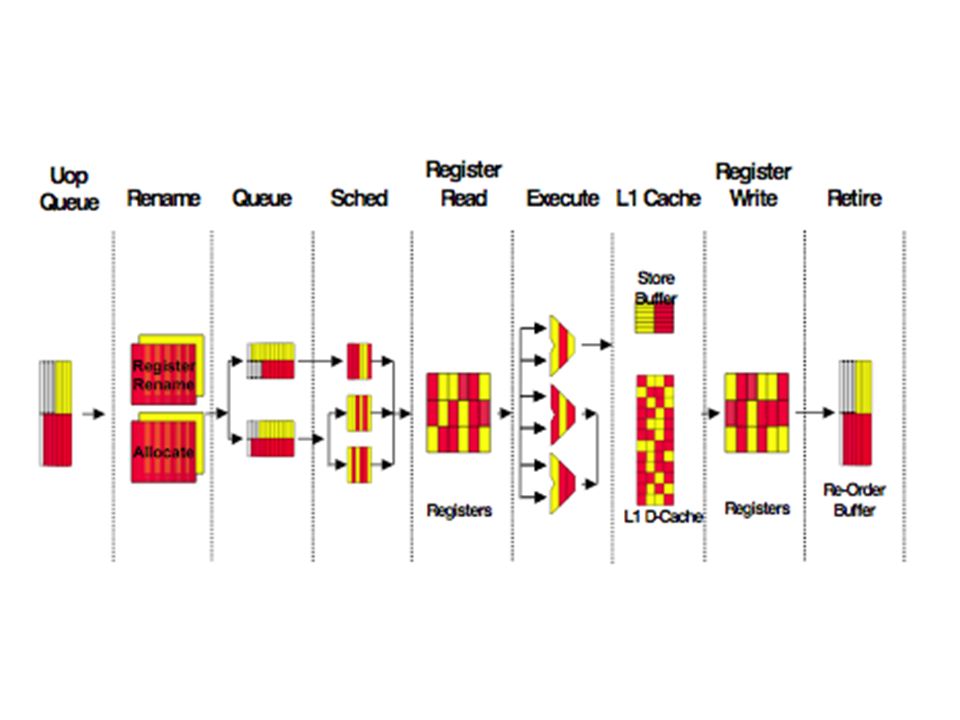

3. Background Simultaneous Multi-threading Architecture –Modern super-scalar processor –Multiple Program Contexts Core –Can fetch from any context and execute from all contexts simultaneously

5. Problems –Not enough TLP in programs to fully utilize modern processors –Increase in TLP through multiple threads –On average faster

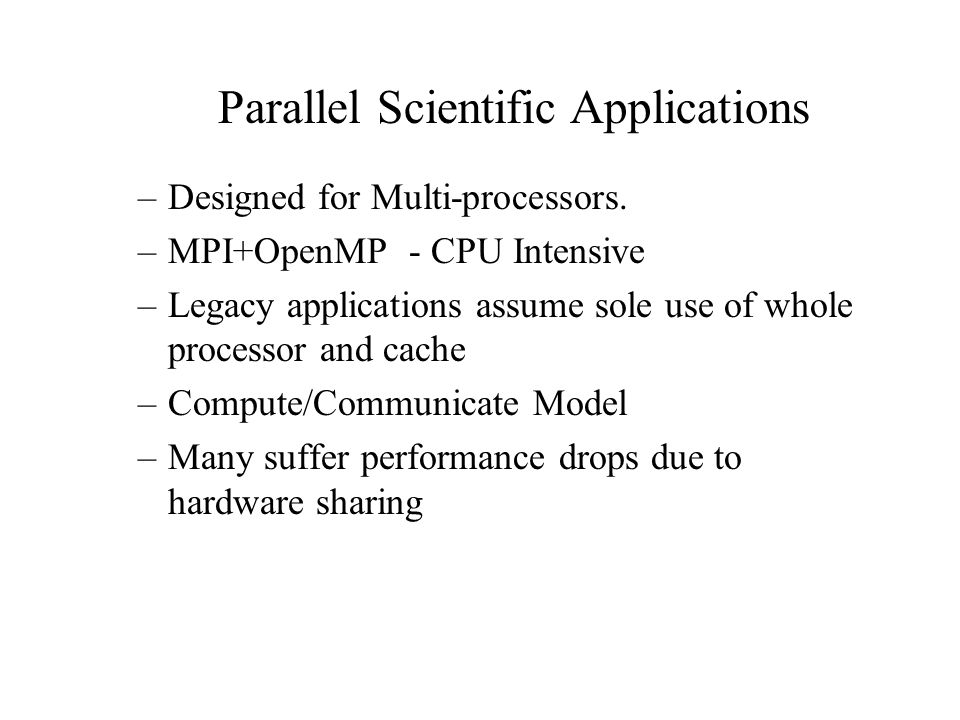

6. –Designed for Multi-processors. –MPI+OpenMP - CPU Intensive –Legacy applications assume sole use of whole processor and cache –Compute/Communicate Model –Many suffer performance drops due to hardware sharing Parallel Scientific Applications

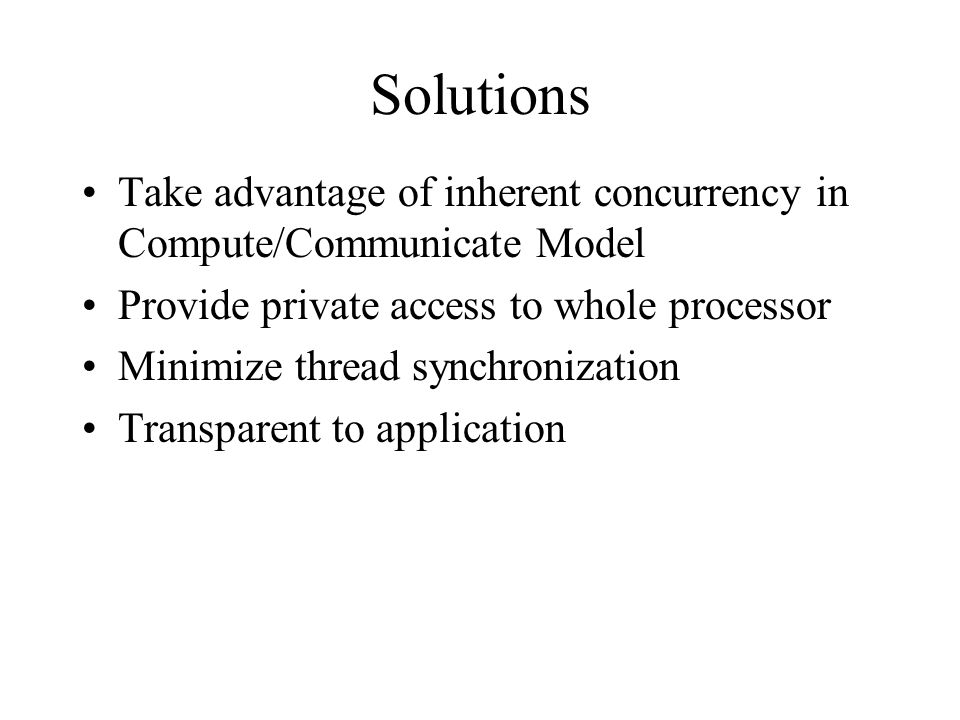

7. Solutions Take advantage of inherent concurrency in Compute/Communicate Model Provide private access to whole processor Minimize thread synchronization Transparent to application

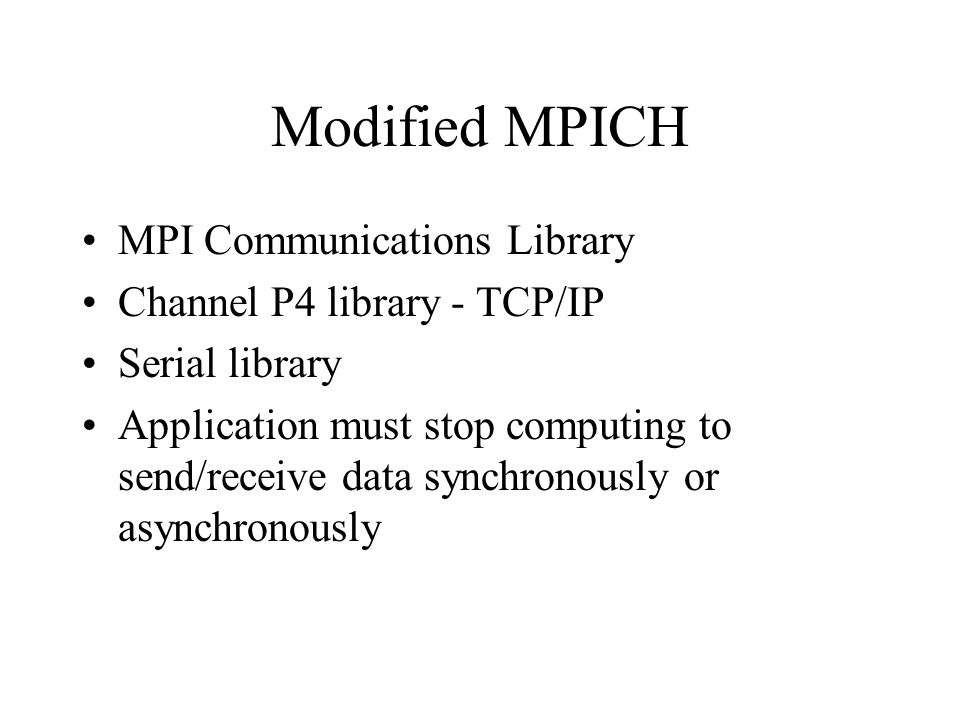

8. Modified MPICH MPI Communications Library Channel P4 library - TCP/IP Serial library Application must stop computing to send/receive data synchronously or asynchronously

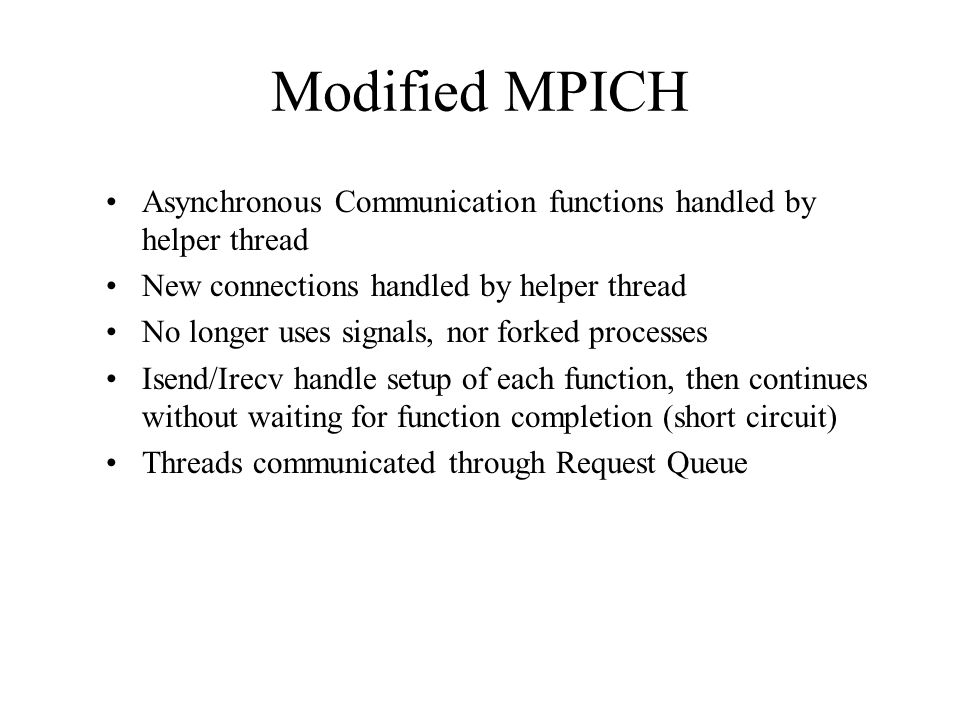

9. Modified MPICH Asynchronous Communication functions handled by helper thread New connections handled by helper thread No longer uses signals, nor forked processes Isend/Irecv handle setup of each function, then continues without waiting for function completion (short circuit) Threads communicated through Request Queue

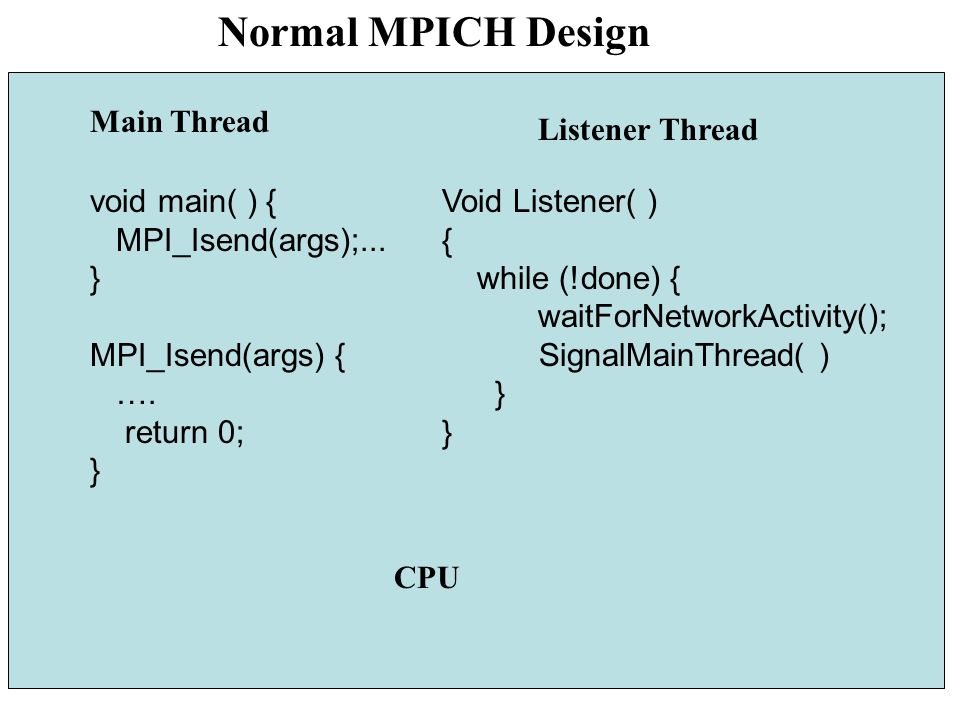

10. Normal MPICH Design Void Listener( ) { while (!done) { waitForNetworkActivity(); SignalMainThread( ) } CPU void main( ) { MPI_Isend(args);... } MPI_Isend(args) { …. return 0; } Main Thread Listener Thread

11. Modified MPICH DESIGN SMT Threadvoid SMT_LOOP( ) { while (! done) { do { checktForRequest(); checkForNetwork(); } while (no_request); action = dequeueRequest( ) retvalue = action->function(args); } MPI_Isend_SMT( args ) {..... return 0; } CPU 2 CPU 1 void main() { MPI_Isend(args);... } MPI_Isend(args) { return enqueue(args); } Primary/Master Thread Helper Thread

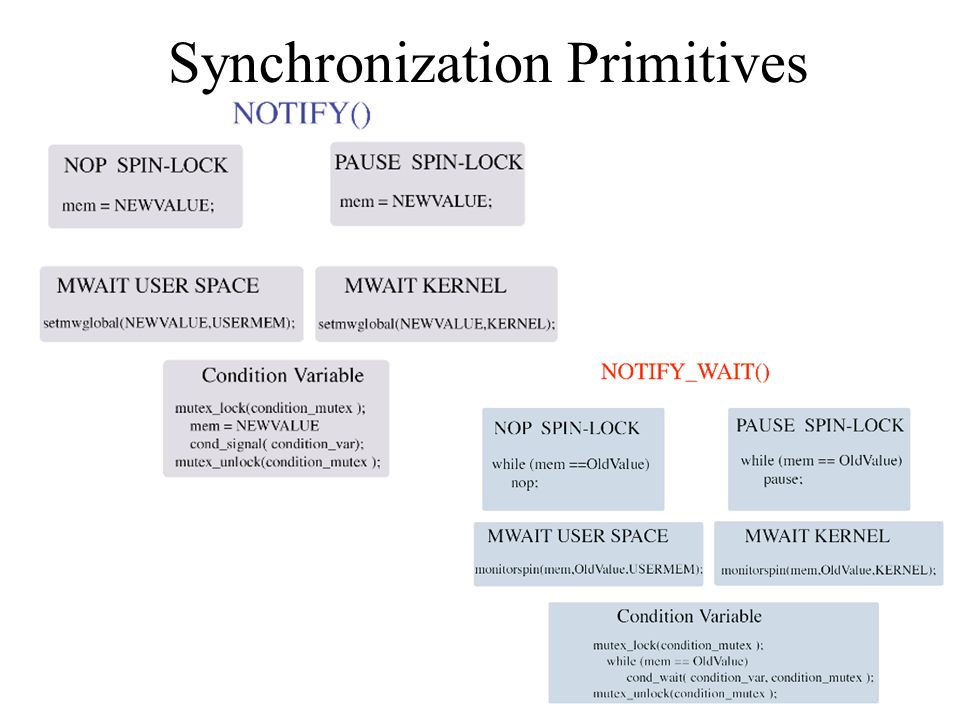

13. Synchronization Primitives

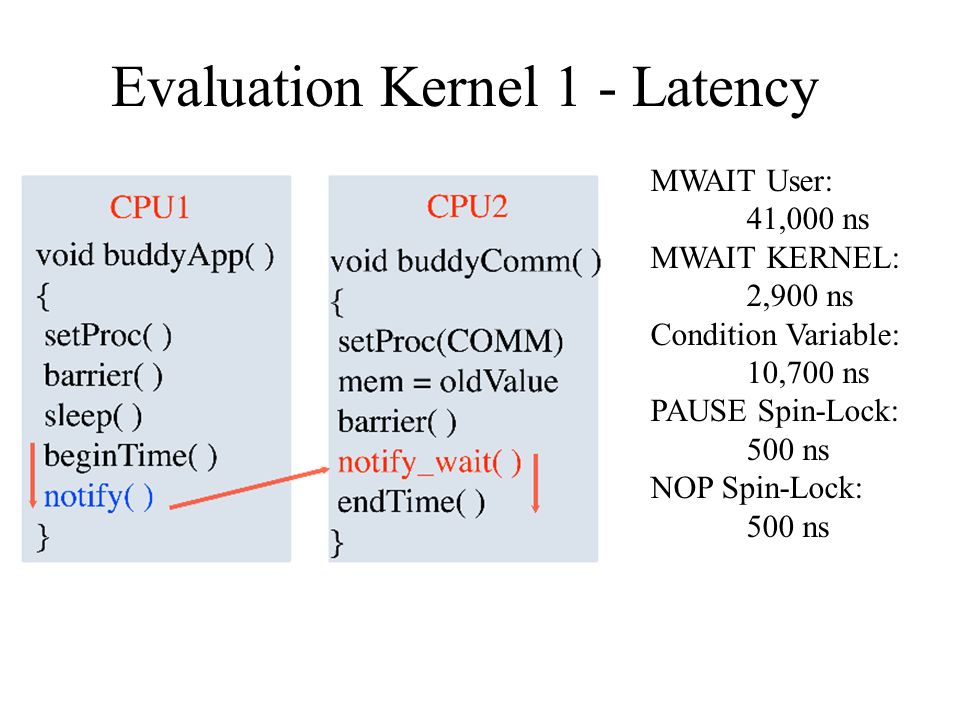

14. Evaluation Kernel 1 - Latency MWAIT User: 41,000 ns MWAIT KERNEL: 2,900 ns Condition Variable: 10,700 ns PAUSE Spin-Lock: 500 ns NOP Spin-Lock: 500 ns

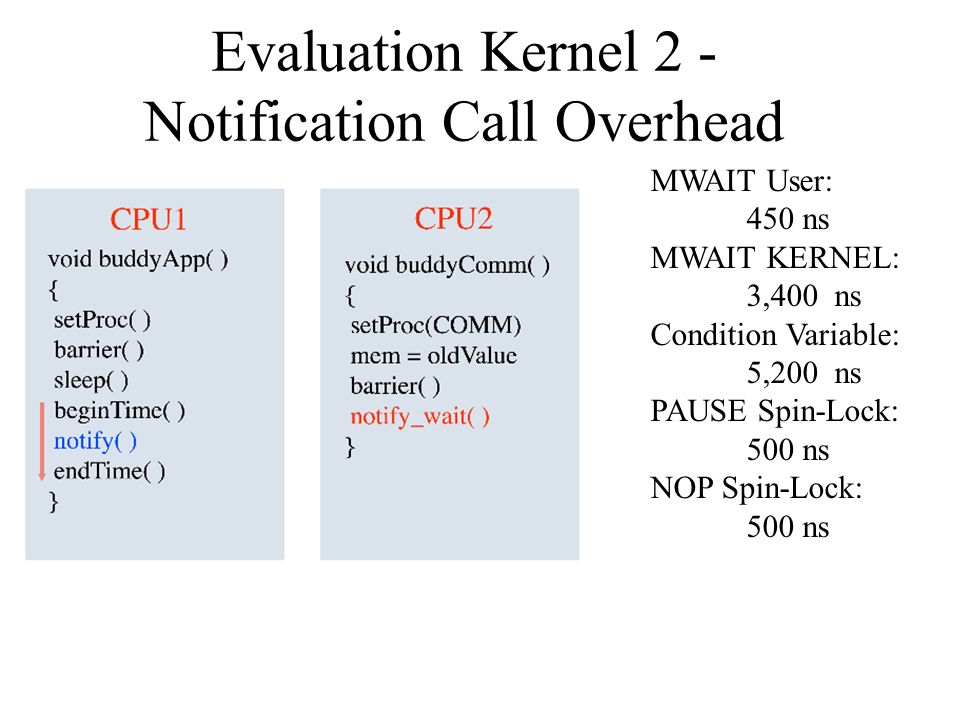

15. Evaluation Kernel 2 - Notification Call Overhead MWAIT User: 450 ns MWAIT KERNEL: 3,400 ns Condition Variable: 5,200 ns PAUSE Spin-Lock: 500 ns NOP Spin-Lock: 500 ns

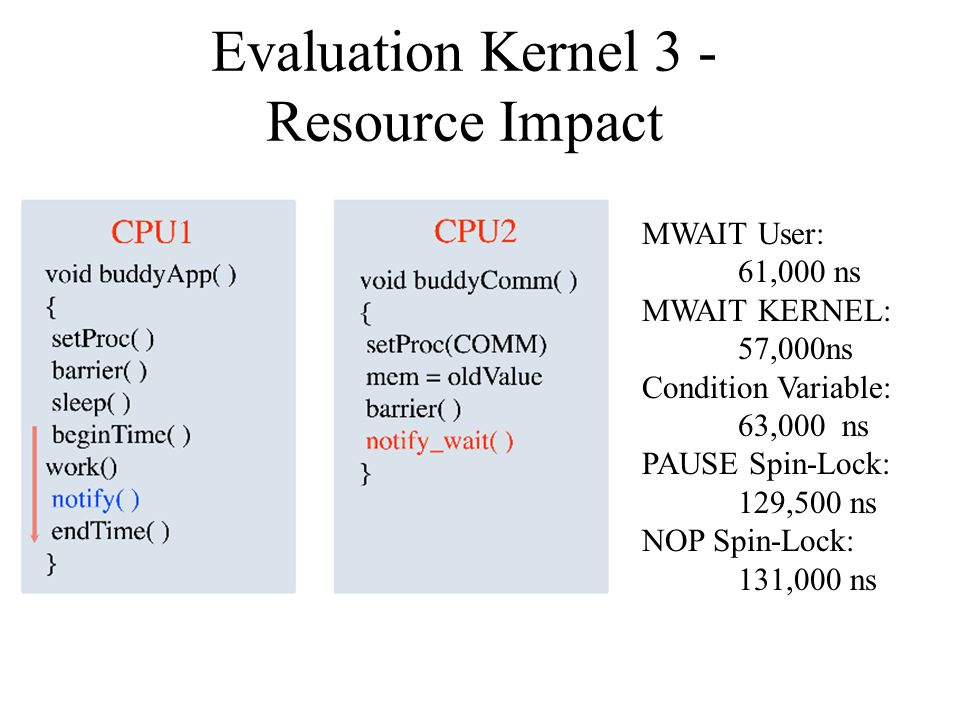

16. Evaluation Kernel 3 - Resource Impact MWAIT User: 61,000 ns MWAIT KERNEL: 57,000ns Condition Variable: 63,000 ns PAUSE Spin-Lock: 129,500 ns NOP Spin-Lock: 131,000 ns

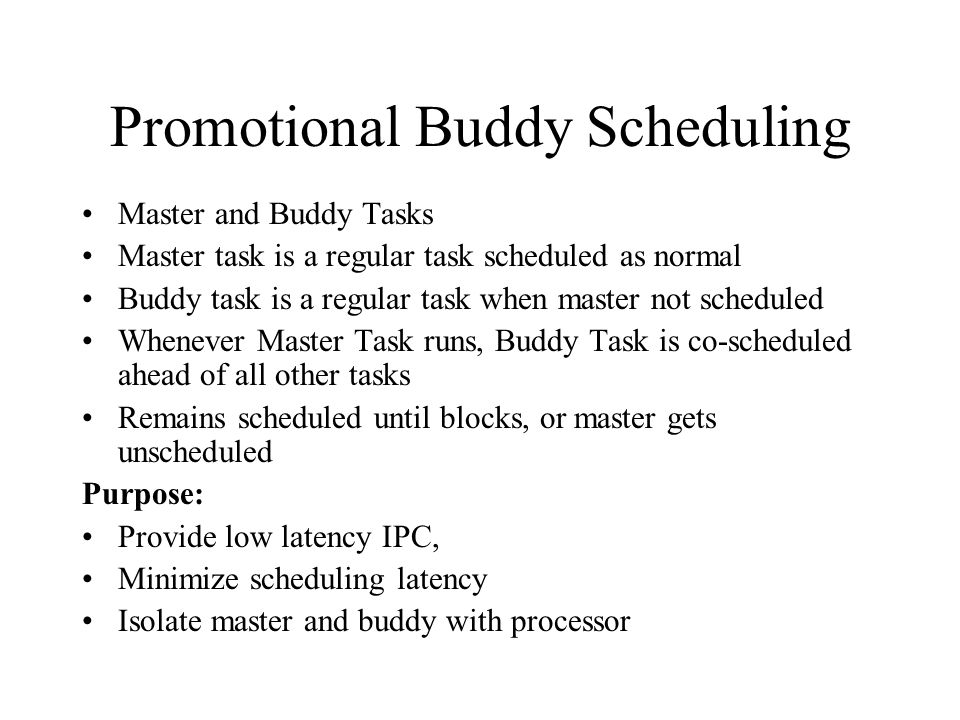

17. Promotional Buddy Scheduling Master and Buddy Tasks Master task is a regular task scheduled as normal Buddy task is a regular task when master not scheduled Whenever Master Task runs, Buddy Task is co-scheduled ahead of all other tasks Remains scheduled until blocks, or master gets unscheduled Purpose: Provide low latency IPC, Minimize scheduling latency Isolate master and buddy with processor

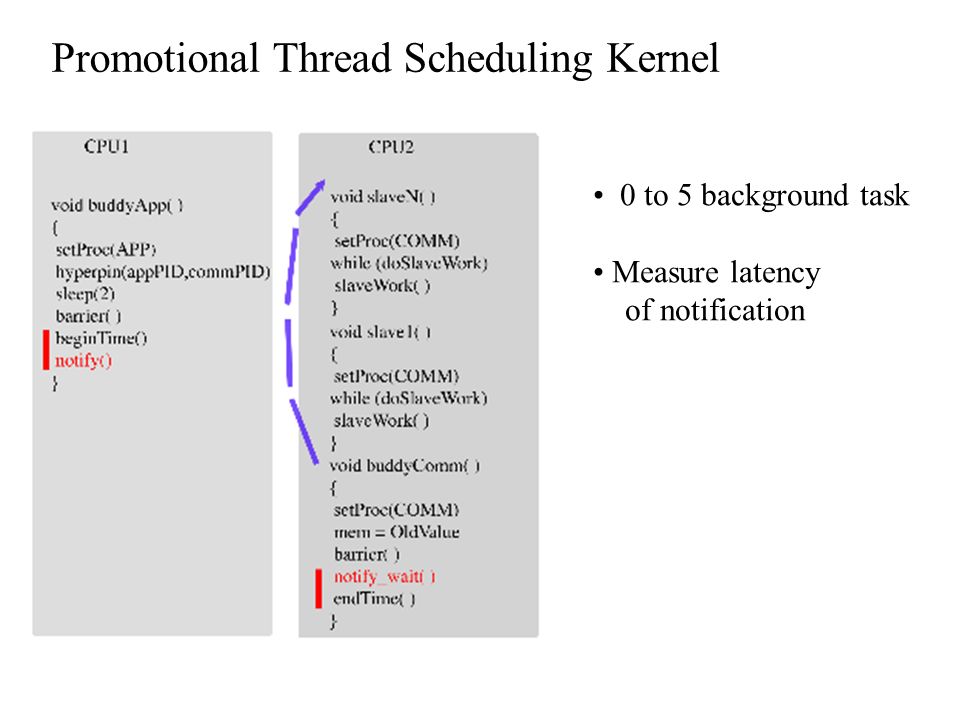

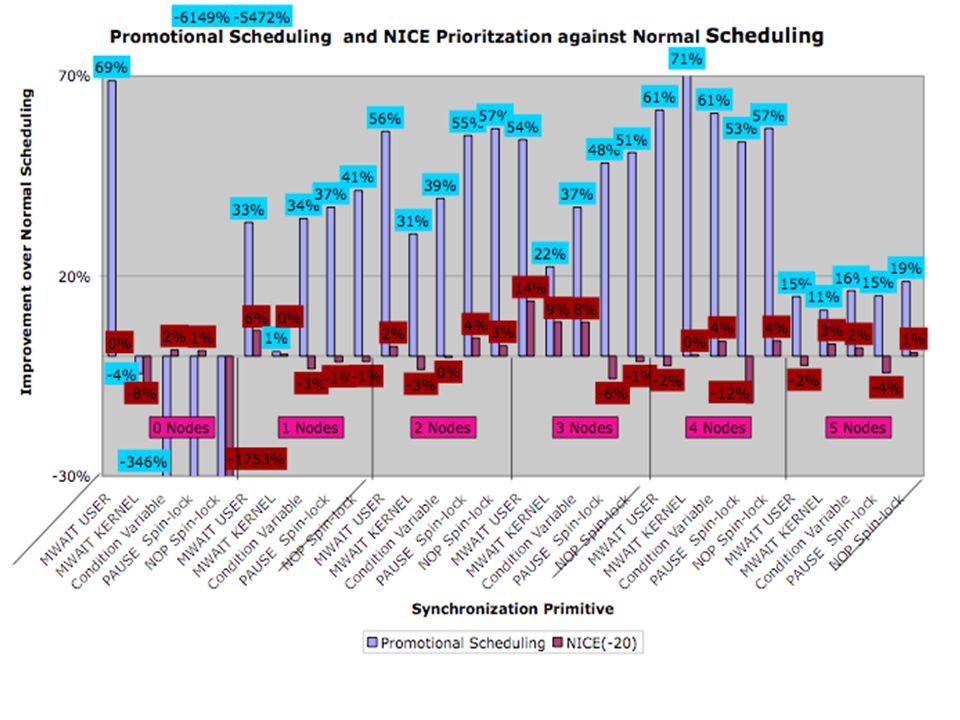

18. Promotional Thread Scheduling Kernel 0 to 5 background task Measure latency of notification

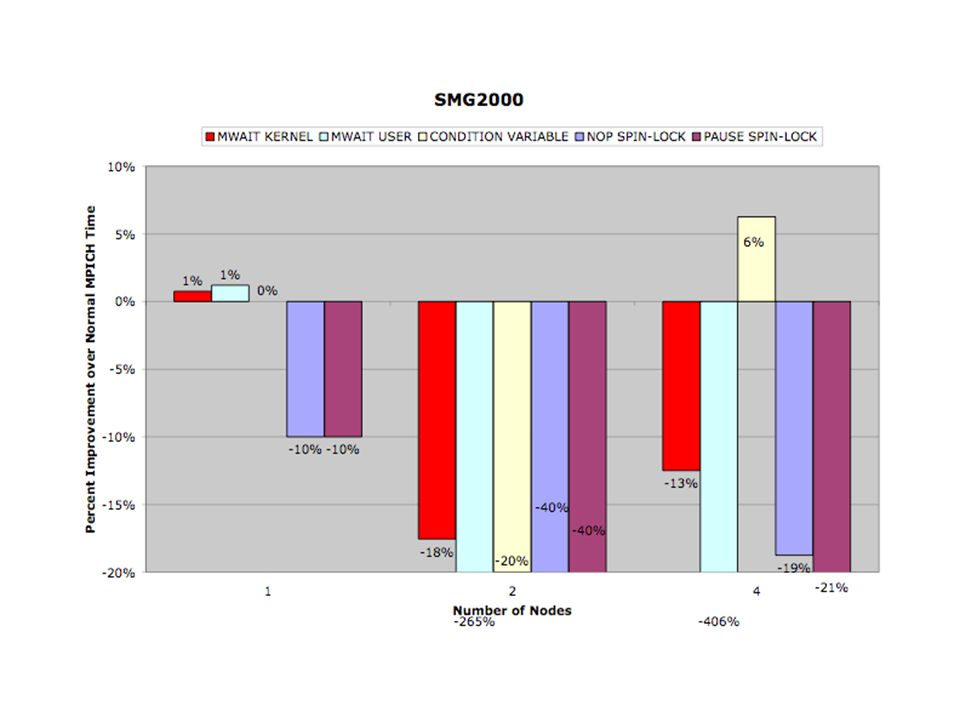

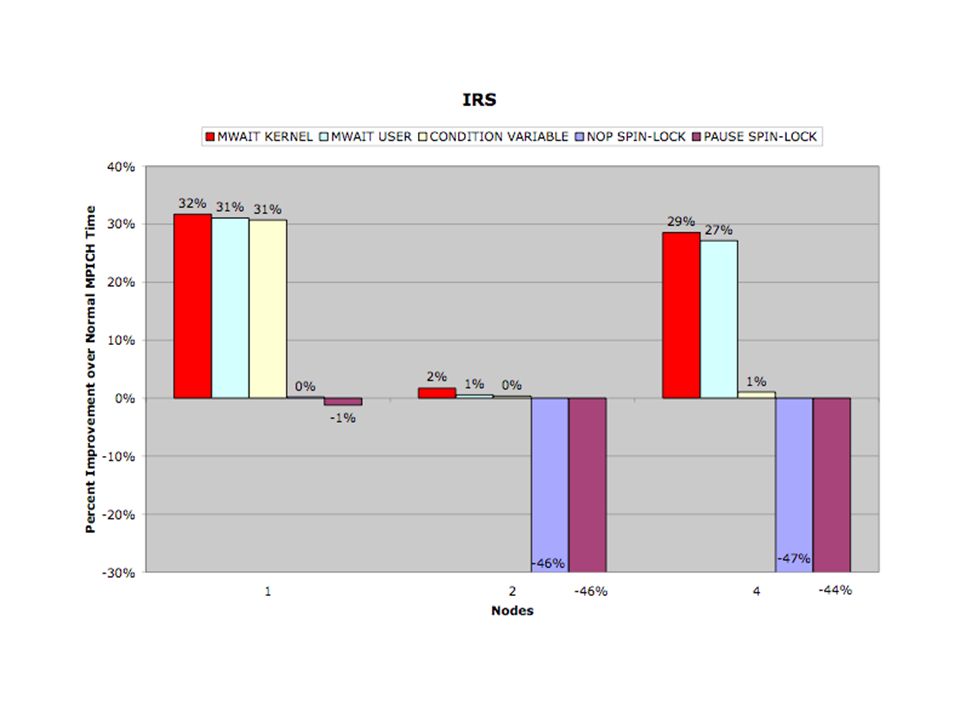

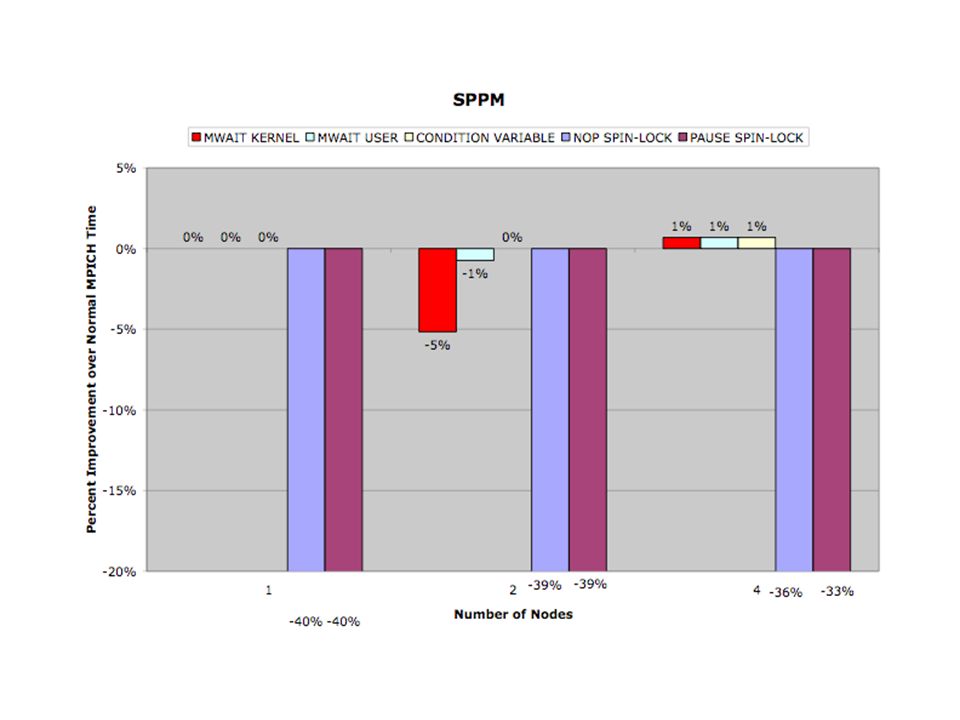

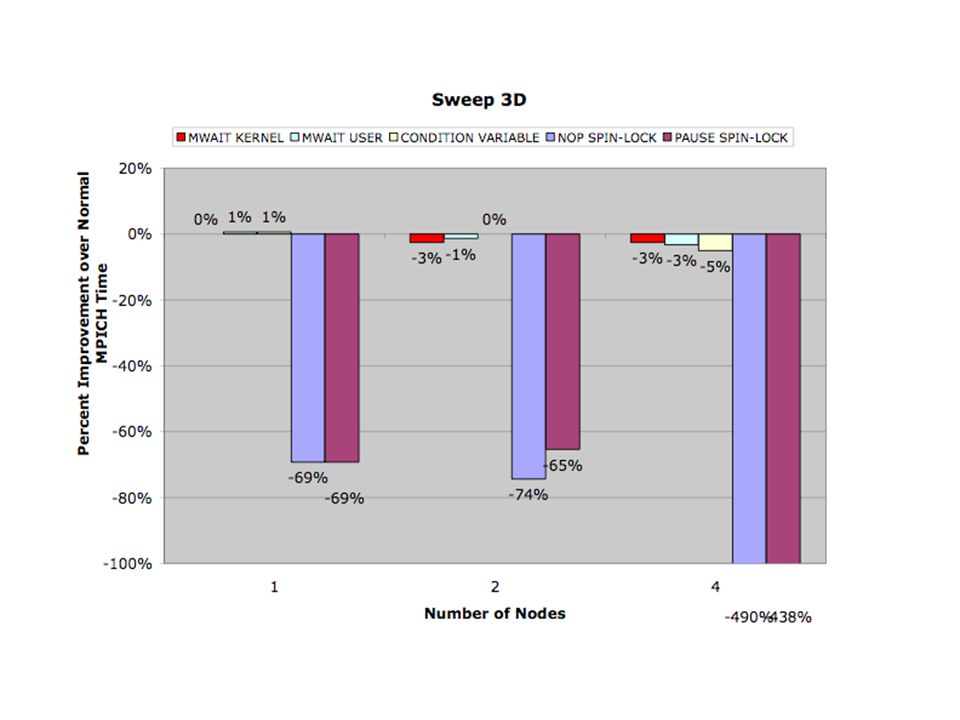

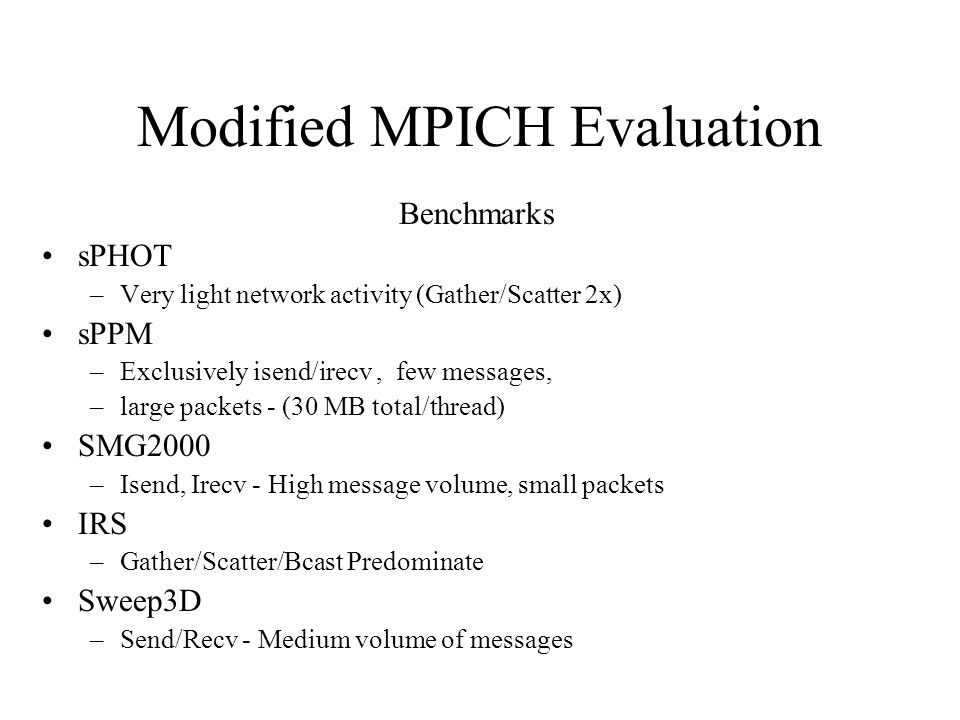

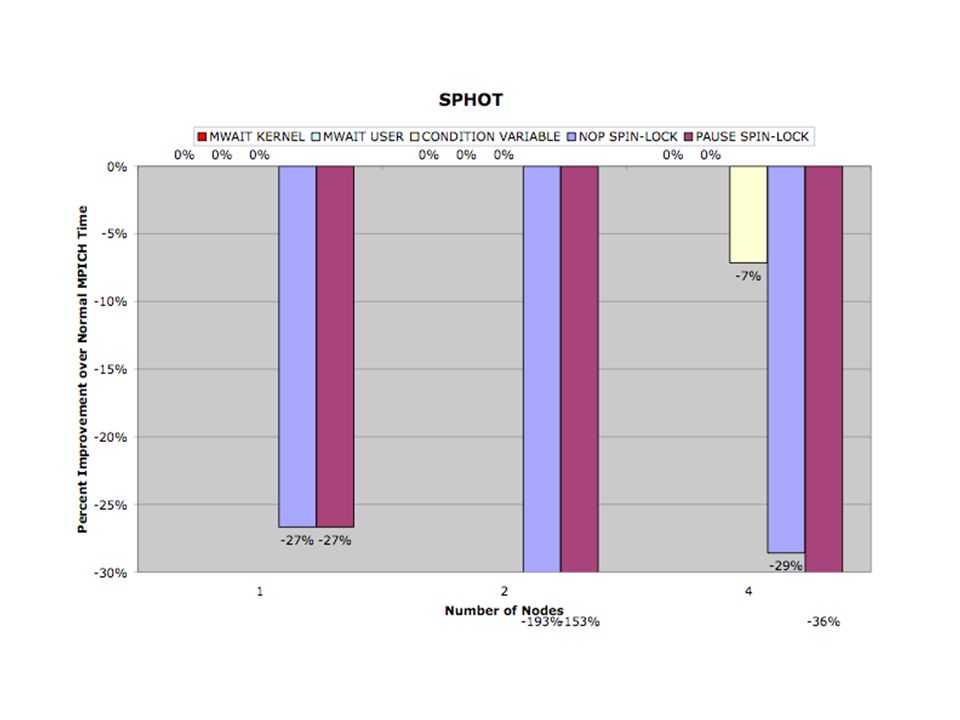

20. Modified MPICH Evaluation Benchmarks sPHOT –Very light network activity (Gather/Scatter 2x) sPPM –Exclusively isend/irecv, few messages, –large packets - (30 MB total/thread) SMG2000 –Isend, Irecv - High message volume, small packets IRS –Gather/Scatter/Bcast Predominate Sweep3D –Send/Recv - Medium volume of messages

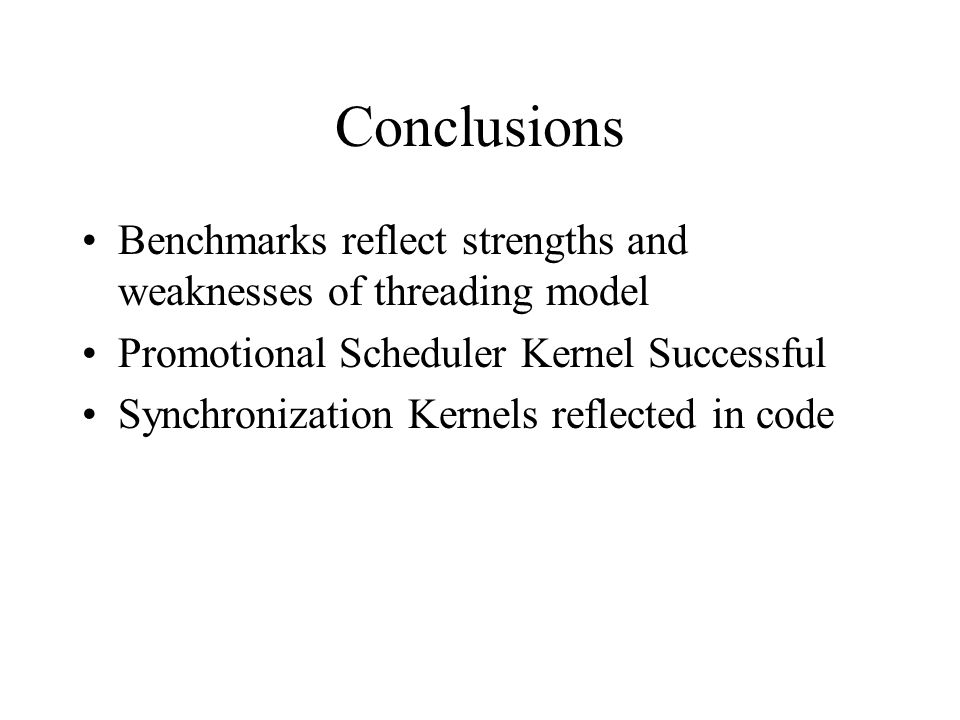

29. Conclusions Benchmarks reflect strengths and weaknesses of threading model Promotional Scheduler Kernel Successful Synchronization Kernels reflected in code

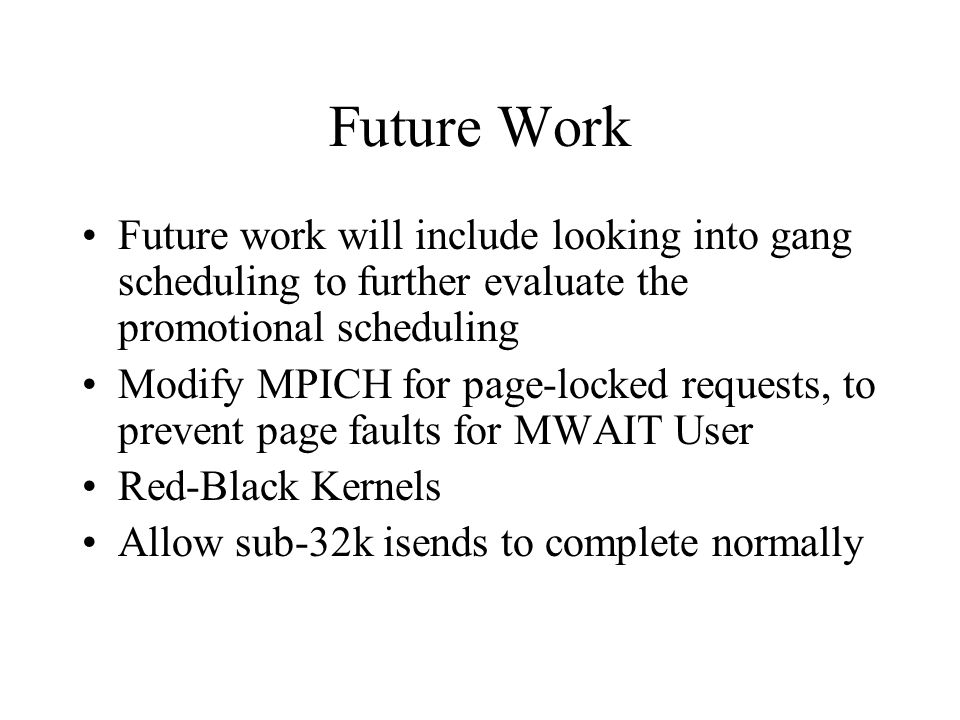

30. Future Work Future work will include looking into gang scheduling to further evaluate the promotional scheduling Modify MPICH for page-locked requests, to prevent page faults for MWAIT User Red-Black Kernels Allow sub-32k isends to complete normally
