1. Lecture 11 Data Structures, Algorithms & Complexity Introduction Dr Kevin Casey BSc, MSc, PhD kevin.casey@gcd.ie GRIFFITH COLLEGE DUBLIN

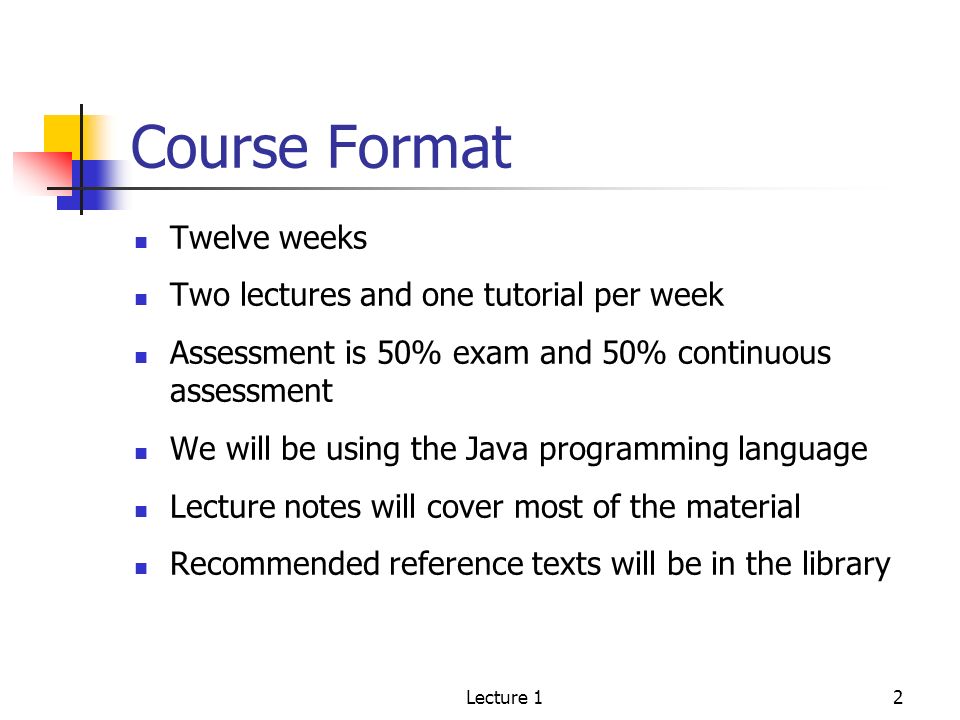

2. Lecture 12 Course Format Twelve weeks Two lectures and one tutorial per week Assessment is 50% exam and 50% continuous assessment We will be using the Java programming language Lecture notes will cover most of the material Recommended reference texts will be in the library

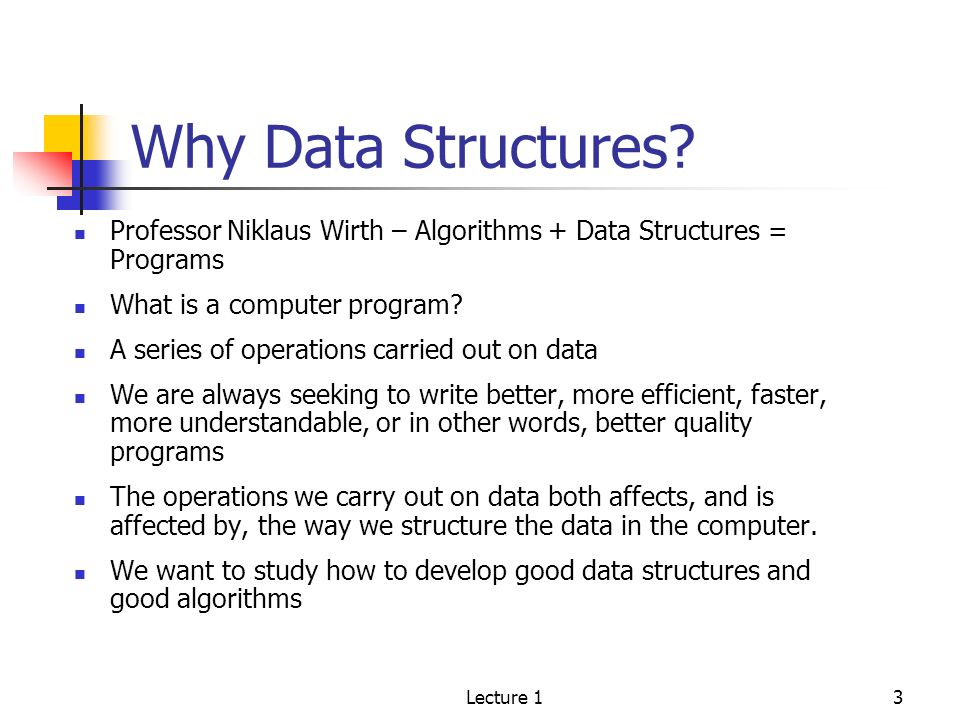

3. Lecture 13 Why Data Structures? Professor Niklaus Wirth – Algorithms + Data Structures = Programs What is a computer program? A series of operations carried out on data We are always seeking to write better, more efficient, faster, more understandable, or in other words, better quality programs The operations we carry out on data both affects, and is affected by, the way we structure the data in the computer. We want to study how to develop good data structures and good algorithms

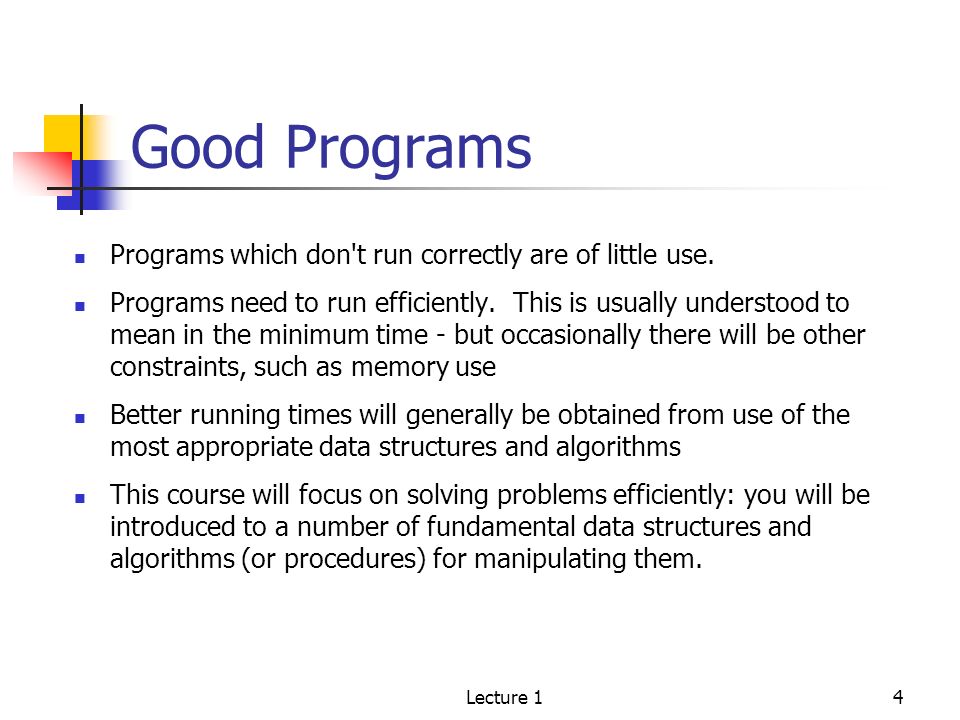

4. Lecture 14 Good Programs Programs which don't run correctly are of little use. Programs need to run efficiently. This is usually understood to mean in the minimum time - but occasionally there will be other constraints, such as memory use Better running times will generally be obtained from use of the most appropriate data structures and algorithms This course will focus on solving problems efficiently: you will be introduced to a number of fundamental data structures and algorithms (or procedures) for manipulating them.

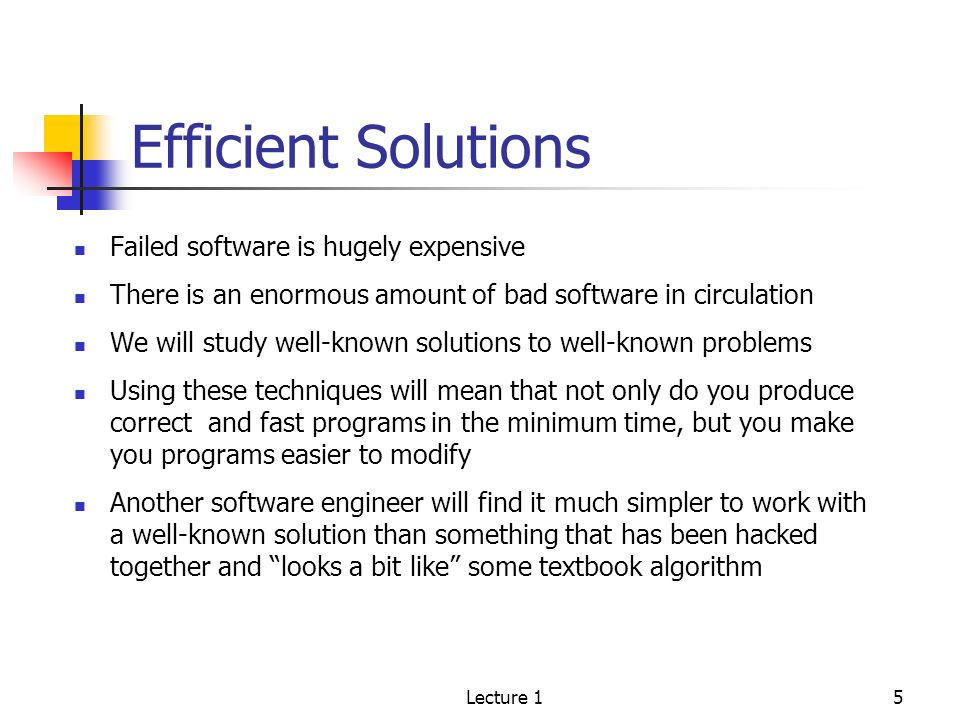

5. Lecture 15 Efficient Solutions Failed software is hugely expensive There is an enormous amount of bad software in circulation We will study well-known solutions to well-known problems Using these techniques will mean that not only do you produce correct and fast programs in the minimum time, but you make you programs easier to modify Another software engineer will find it much simpler to work with a well-known solution than something that has been hacked together and “looks a bit like” some textbook algorithm

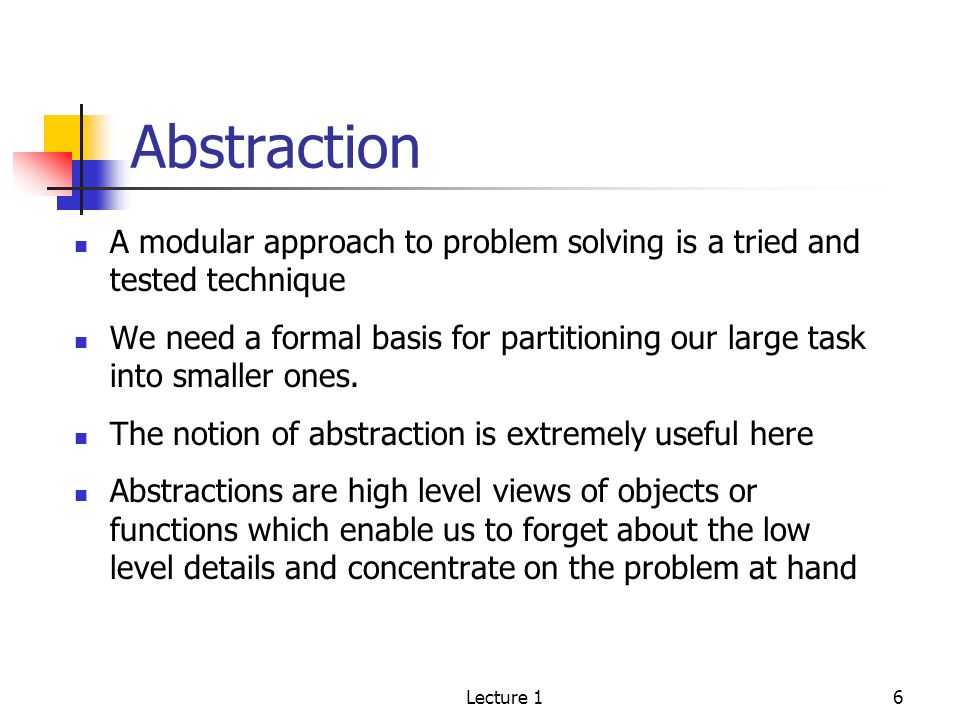

6. Lecture 16 Abstraction A modular approach to problem solving is a tried and tested technique We need a formal basis for partitioning our large task into smaller ones. The notion of abstraction is extremely useful here Abstractions are high level views of objects or functions which enable us to forget about the low level details and concentrate on the problem at hand

7. Lecture 17 Example What data is important in order to solve the problem at hand? We wish to store information in relation to a person. What is important? Name? Gender? Social Security Number? Eye colour? It depends on the application If developing a medical diagnostic system we will ‘abstract’ particular data that is of use. If developing a Student information system for the college we will ‘abstract’ different data. The view we take is called an ‘abstraction’.

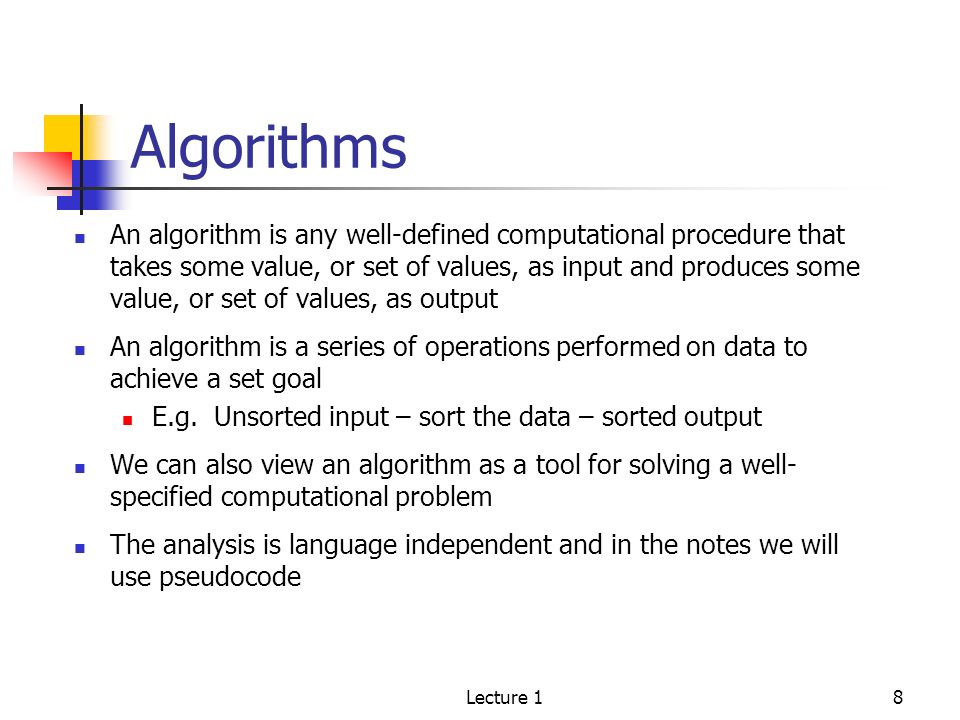

8. Lecture 18 Algorithms An algorithm is any well-defined computational procedure that takes some value, or set of values, as input and produces some value, or set of values, as output An algorithm is a series of operations performed on data to achieve a set goal E.g. Unsorted input – sort the data – sorted output We can also view an algorithm as a tool for solving a well- specified computational problem The analysis is language independent and in the notes we will use pseudocode

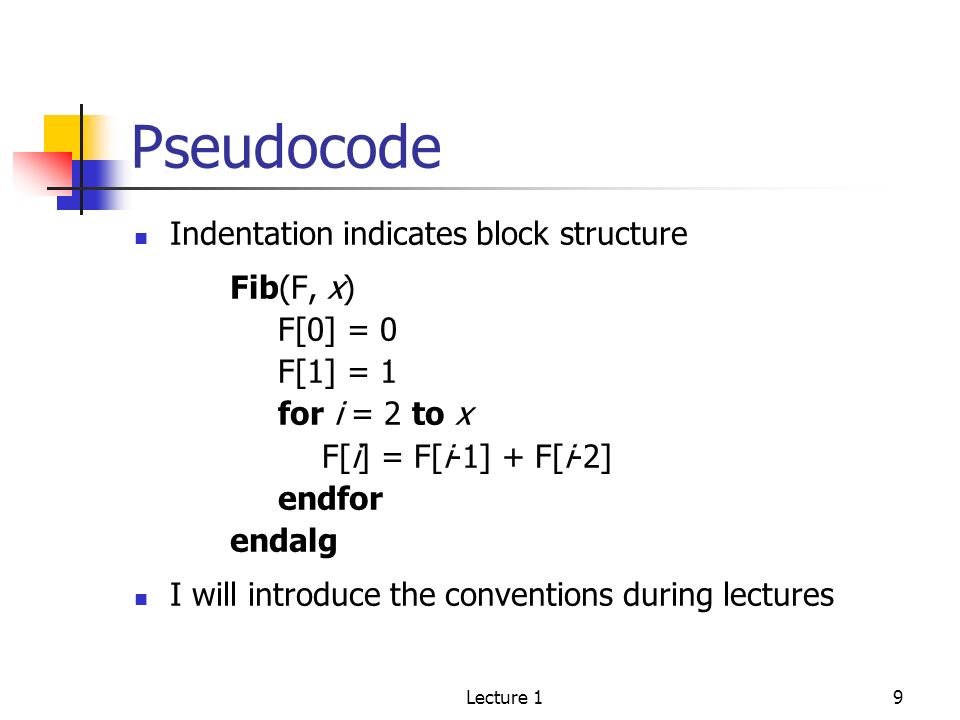

9. Lecture 19 Pseudocode Indentation indicates block structure Fib(F, x) F[0] = 0 F[1] = 1 for i = 2 to x F[i] = F[i-1] + F[i-2] endfor endalg I will introduce the conventions during lectures

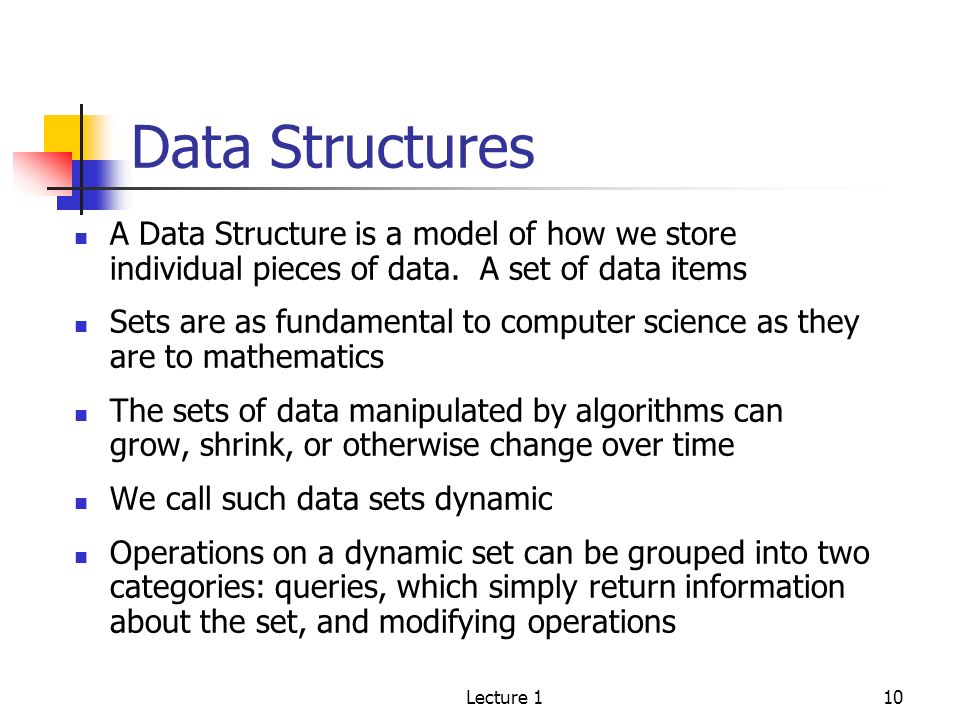

10. Lecture 110 Data Structures A Data Structure is a model of how we store individual pieces of data. A set of data items Sets are as fundamental to computer science as they are to mathematics The sets of data manipulated by algorithms can grow, shrink, or otherwise change over time We call such data sets dynamic Operations on a dynamic set can be grouped into two categories: queries, which simply return information about the set, and modifying operations

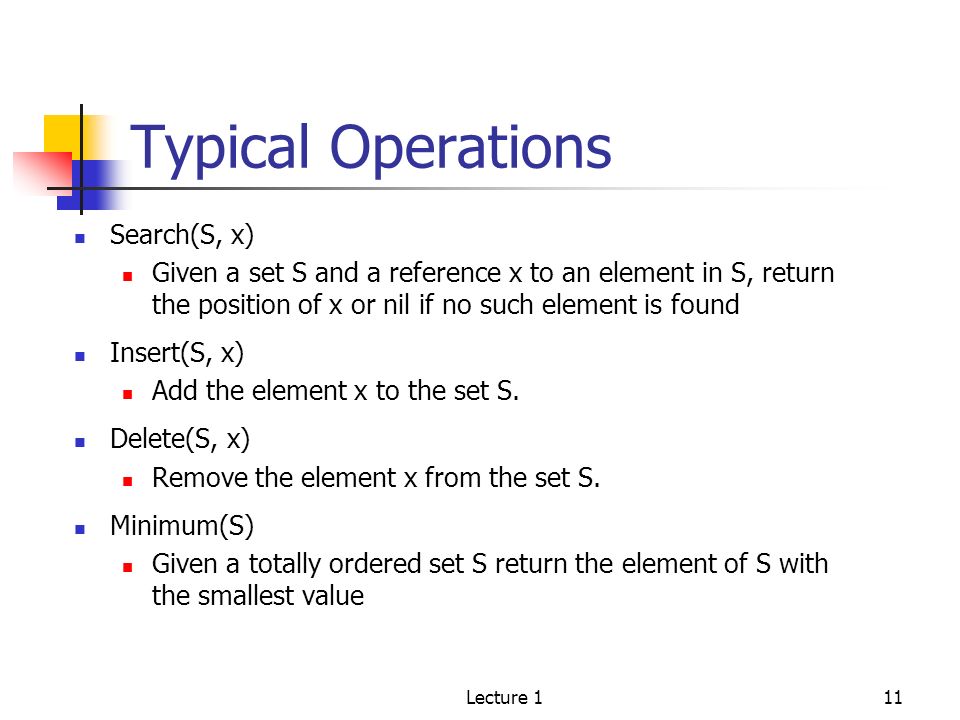

11. Lecture 111 Typical Operations Search(S, x) Given a set S and a reference x to an element in S, return the position of x or nil if no such element is found Insert(S, x) Add the element x to the set S. Delete(S, x) Remove the element x from the set S. Minimum(S) Given a totally ordered set S return the element of S with the smallest value

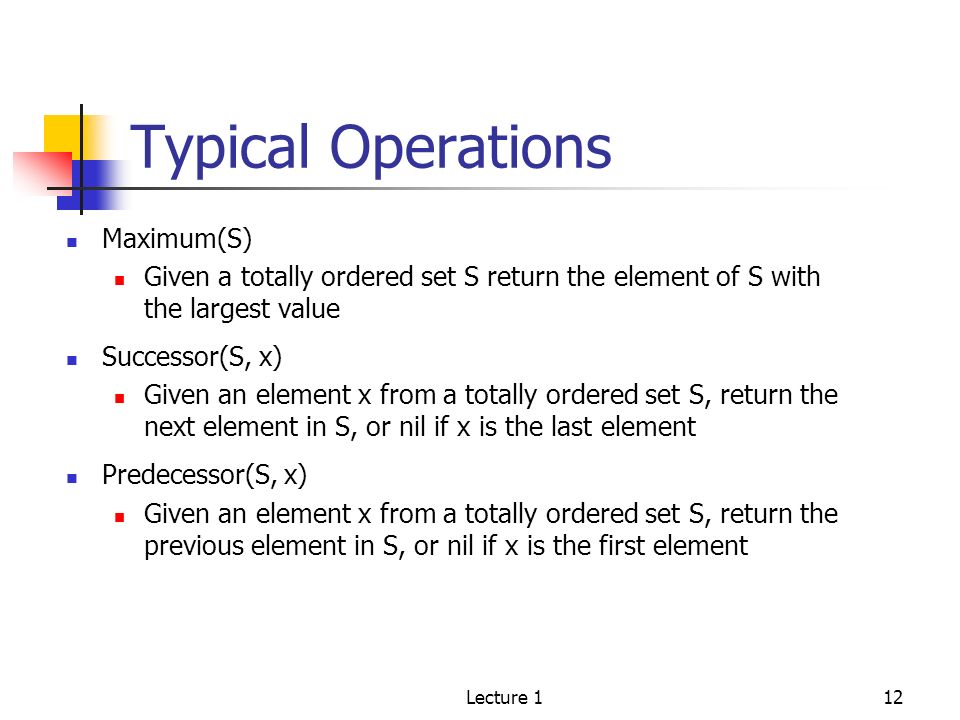

12. Lecture 112 Typical Operations Maximum(S) Given a totally ordered set S return the element of S with the largest value Successor(S, x) Given an element x from a totally ordered set S, return the next element in S, or nil if x is the last element Predecessor(S, x) Given an element x from a totally ordered set S, return the previous element in S, or nil if x is the first element

13. Lecture 113 Operations on Data Structures Why are we interested in whether an operation queries the set, or modifies the set? We have looked at these operations in the Abstract. What do they mean in particular situations? E.g. The data set of BSc students. How would we apply each of the operations outlined? Are there other issues we need to consider?

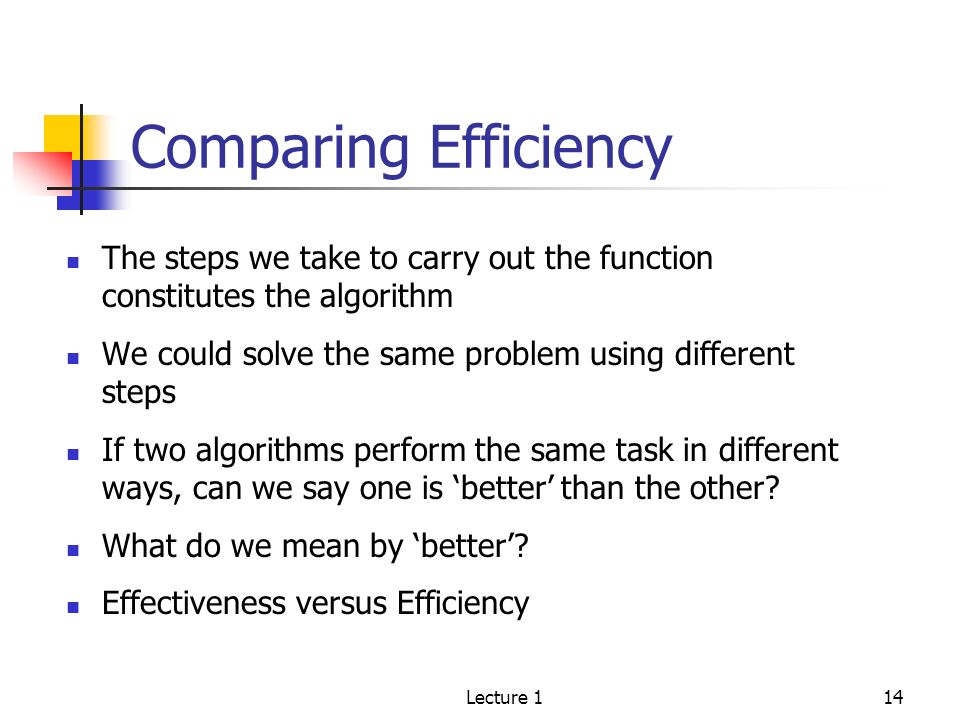

14. Lecture 114 Comparing Efficiency The steps we take to carry out the function constitutes the algorithm We could solve the same problem using different steps If two algorithms perform the same task in different ways, can we say one is ‘better’ than the other? What do we mean by ‘better’? Effectiveness versus Efficiency

15. Lecture 115 Questions This module interested in questions. How we decide what data we need? How we decide to store that data? How we manipulate that data to achieve certain results? How we decide on the ‘best’ way to manipulate the data? How we compare different answers to the above.

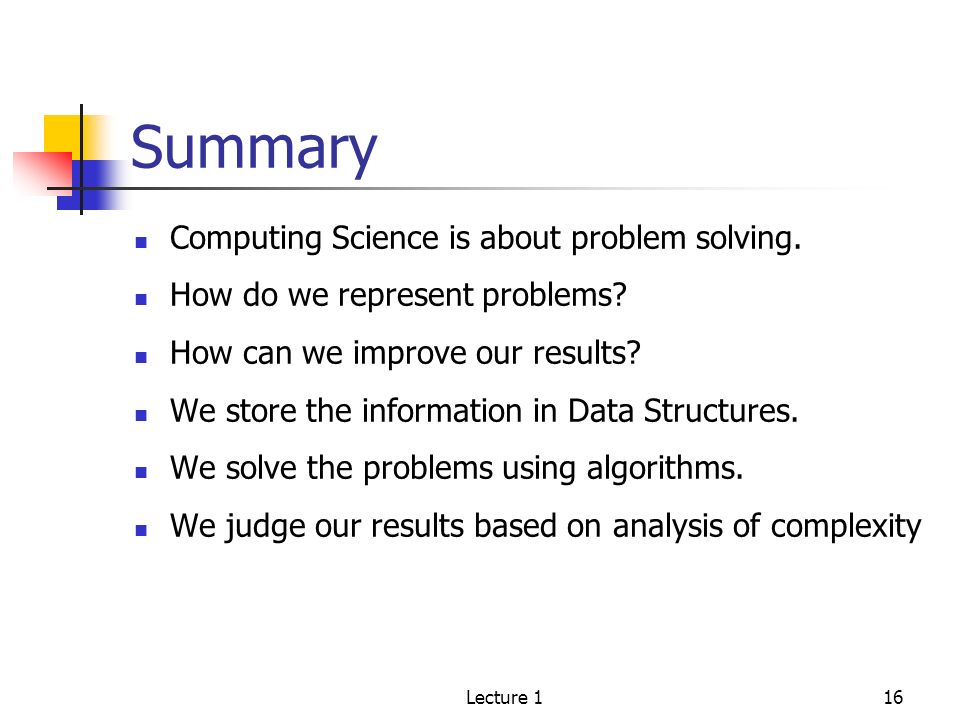

16. Lecture 116 Summary Computing Science is about problem solving. How do we represent problems? How can we improve our results? We store the information in Data Structures. We solve the problems using algorithms. We judge our results based on analysis of complexity
