2. Security Design with Claims- Based Authentication Israel Vega, Nathan Miller OSP431

6. Identity and access control is messy Security is complicated S P A CL I MS

7. SharePoint Federation Gateway Augmentation OUT Mapped Claims ClaimType = Value

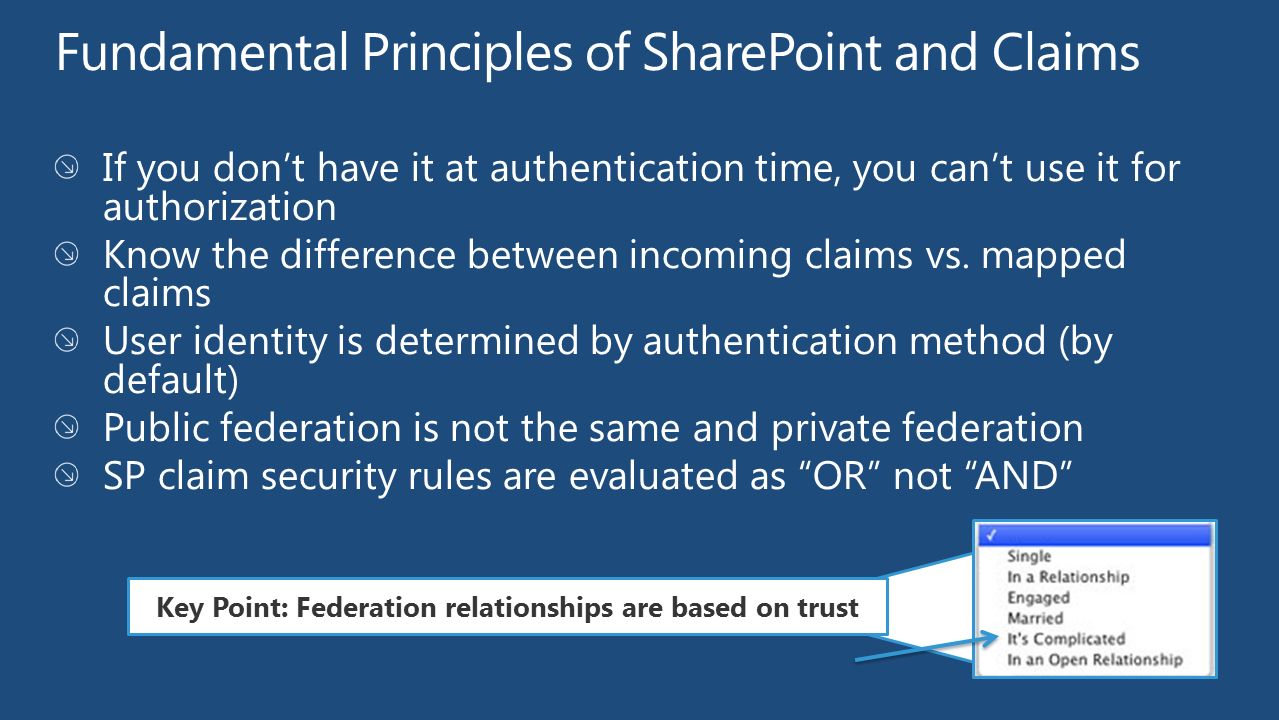

9. Key Point: Federation relationships are based on trust

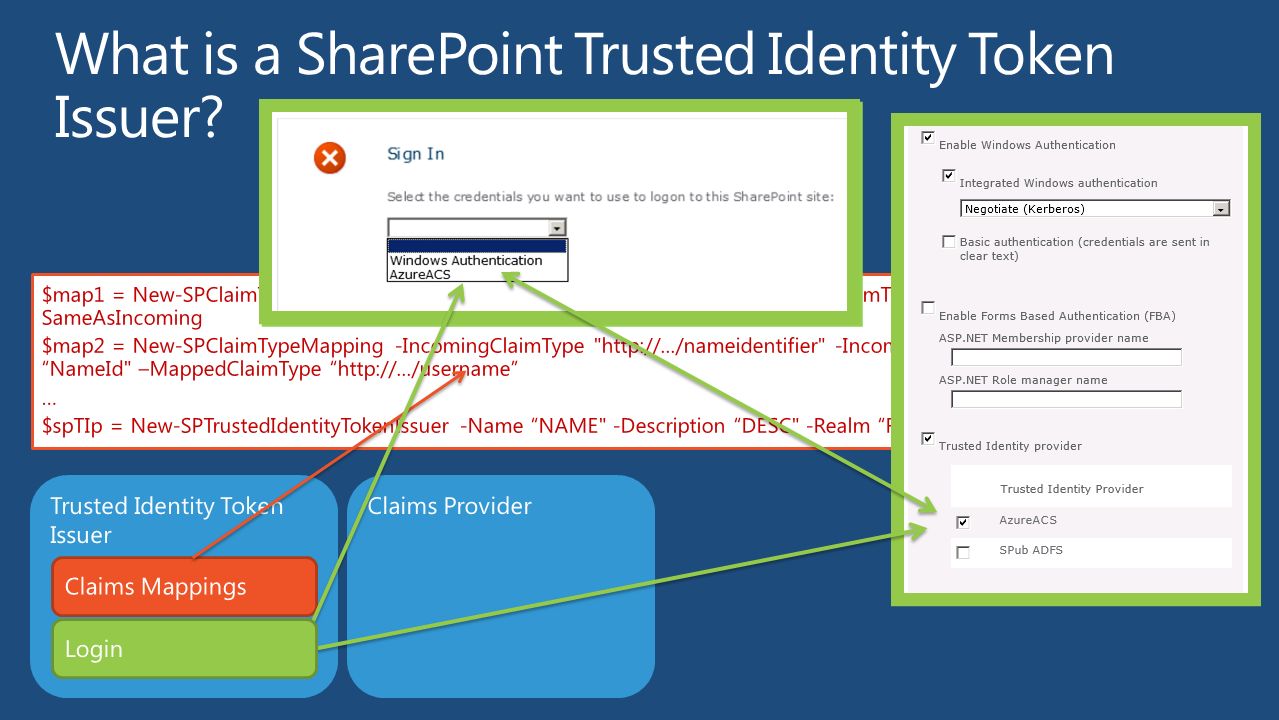

10. Trusted Identity Token Issuer Claims Provider Claims Mappings $map1 = New-SPClaimTypeMapping -IncomingClaimType "http://.../upn" -IncomingClaimTypeDisplayName "UPN" - SameAsIncoming $map2 = New-SPClaimTypeMapping -IncomingClaimType "http://.../nameidentifier" -IncomingClaimTypeDisplayName “NameId" –MappedClaimType “http://.../username” … $spTIp = New-SPTrustedIdentityTokenIssuer -Name “NAME" -Description “DESC" -Realm “REALM” -ClaimsMappings $map1 …" Login

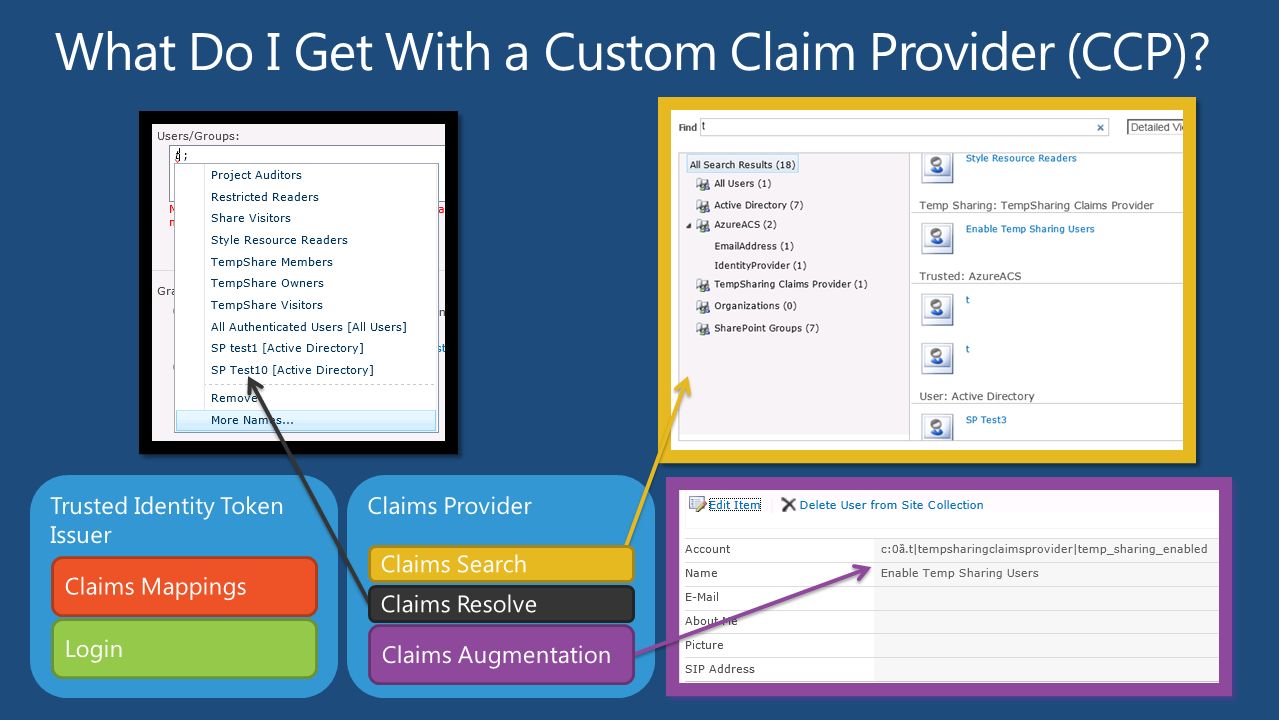

11. Claims ProviderTrusted Identity Token Issuer Claims Mappings Login Claims Search Claims Resolve Claims Augmentation

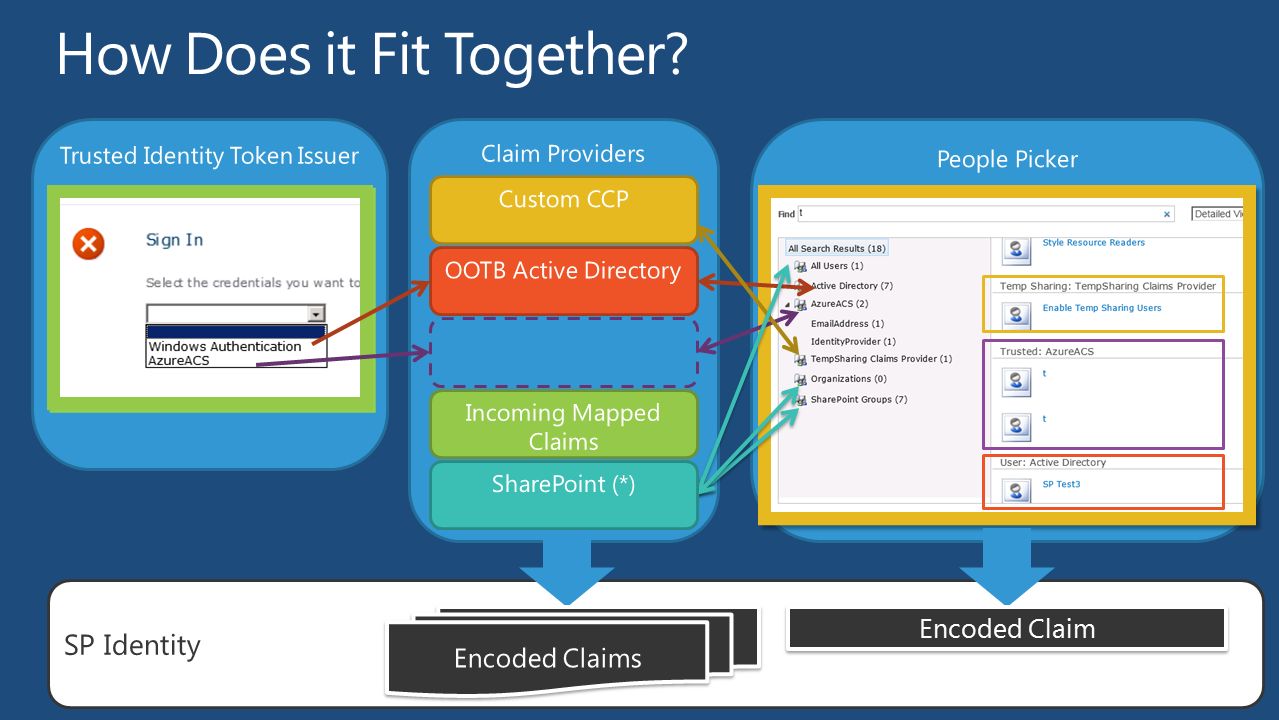

12. SP Identity People Picker Trusted Identity Token Issuer Claim Providers Encoded Claim Encoded Claims Custom CCP OOTB Active Directory SharePoint (*) Incoming Mapped Claims

13. Associating a CCP to a Zone $webAppUrl = "" $webAppZone= "" $claimProviderName = "" write-host "Getting the web application urls to configure" $altUrls = Get-SPAlternateURL write-host "Getting the claim provider" $claimProvider = Get-SPClaimProvider -Identity $claimProviderName foreach($altUrl in $altUrls) { if ($altUrl.Zone -eq $webAppZone) { $wa = Get-SPWebApplication $altUrl.PublicUrl write-host "Registering claim provider [$claimProviderName] for ["$webAppUrl"] on the zone ["$webAppZone"]" $waIISSettings = $wa.GetIisSettingsWithFallback($webAppZone) $waIISSettings.ClaimsProviders.Add($claimProvider) $wa.Update() }

14. Claim Encodings DisplayNameMappedClaimTypeEncoded String Authentication methodhttp://.../authenticationmethod c:0 ǹ.t|testadfs|authentication method E-Mail Addresshttp://schemas.xmlsoap.org/.../emailaddress c:0 5.t|testadfs|e-mail address Primary SIDhttp://schemas.microsoft.com.../primarysid c:0 ).t|testadfs|primary sid Windows account namehttp://.../windowsaccountname c:0 ǻ.t|testadfs|windows account name ASCII Decimal Code 504ASCII Decimal Code 507Reserved Claim Type

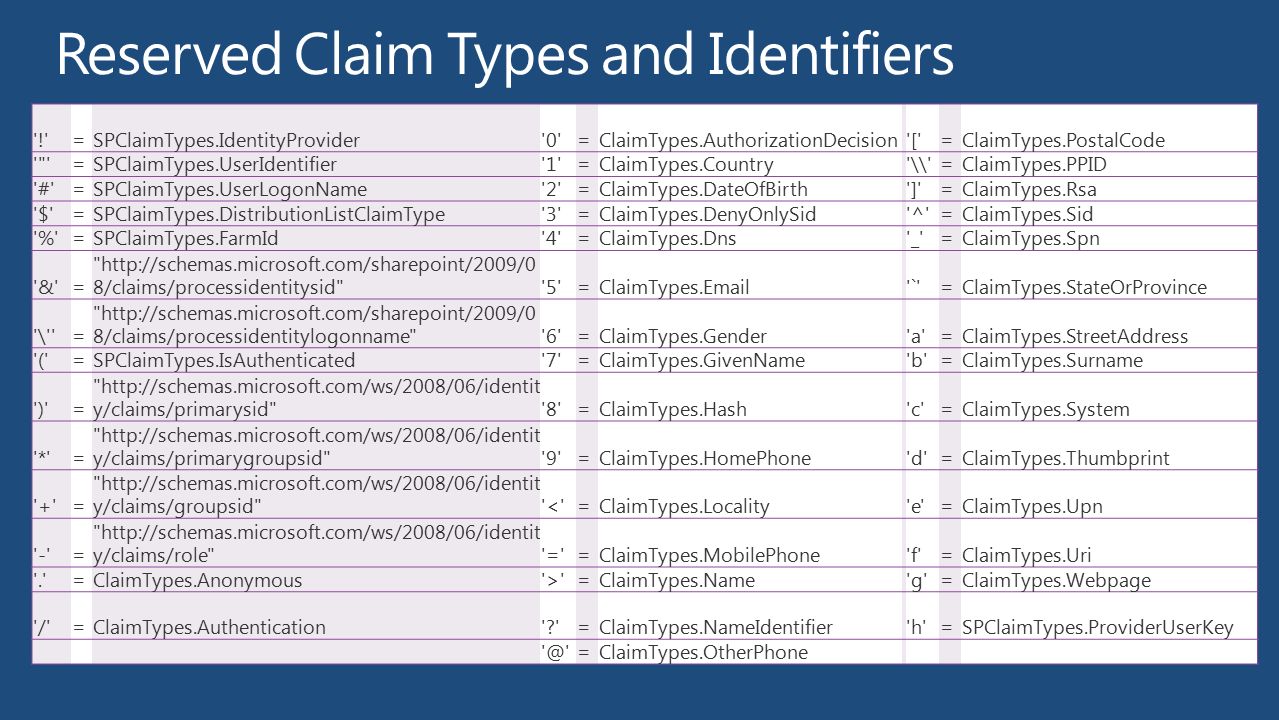

15. '!'=SPClaimTypes.IdentityProvider'0'=ClaimTypes.AuthorizationDecision'['=ClaimTypes.PostalCode '"'=SPClaimTypes.UserIdentifier'1'=ClaimTypes.Country'\\'=ClaimTypes.PPID '#'=SPClaimTypes.UserLogonName'2'=ClaimTypes.DateOfBirth']'=ClaimTypes.Rsa '$'=SPClaimTypes.DistributionListClaimType'3'=ClaimTypes.DenyOnlySid'^'=ClaimTypes.Sid '%'=SPClaimTypes.FarmId'4'=ClaimTypes.Dns'_'=ClaimTypes.Spn '&'= "http://schemas.microsoft.com/sharepoint/2009/0 8/claims/processidentitysid"'5'=ClaimTypes.Email'`'=ClaimTypes.StateOrProvince '\''= "http://schemas.microsoft.com/sharepoint/2009/0 8/claims/processidentitylogonname"'6'=ClaimTypes.Gender'a'=ClaimTypes.StreetAddress '('=SPClaimTypes.IsAuthenticated'7'=ClaimTypes.GivenName'b'=ClaimTypes.Surname ')'= "http://schemas.microsoft.com/ws/2008/06/identit y/claims/primarysid"'8'=ClaimTypes.Hash'c'=ClaimTypes.System '*'= "http://schemas.microsoft.com/ws/2008/06/identit y/claims/primarygroupsid"'9'=ClaimTypes.HomePhone'd'=ClaimTypes.Thumbprint '+'= "http://schemas.microsoft.com/ws/2008/06/identit y/claims/groupsid"'<'=ClaimTypes.Locality'e'=ClaimTypes.Upn '-'= "http://schemas.microsoft.com/ws/2008/06/identit y/claims/role"'='=ClaimTypes.MobilePhone'f'=ClaimTypes.Uri '.'=ClaimTypes.Anonymous'>'=ClaimTypes.Name'g'=ClaimTypes.Webpage '/'=ClaimTypes.Authentication'?'=ClaimTypes.NameIdentifier'h'=SPClaimTypes.ProviderUserKey '@'=ClaimTypes.OtherPhone

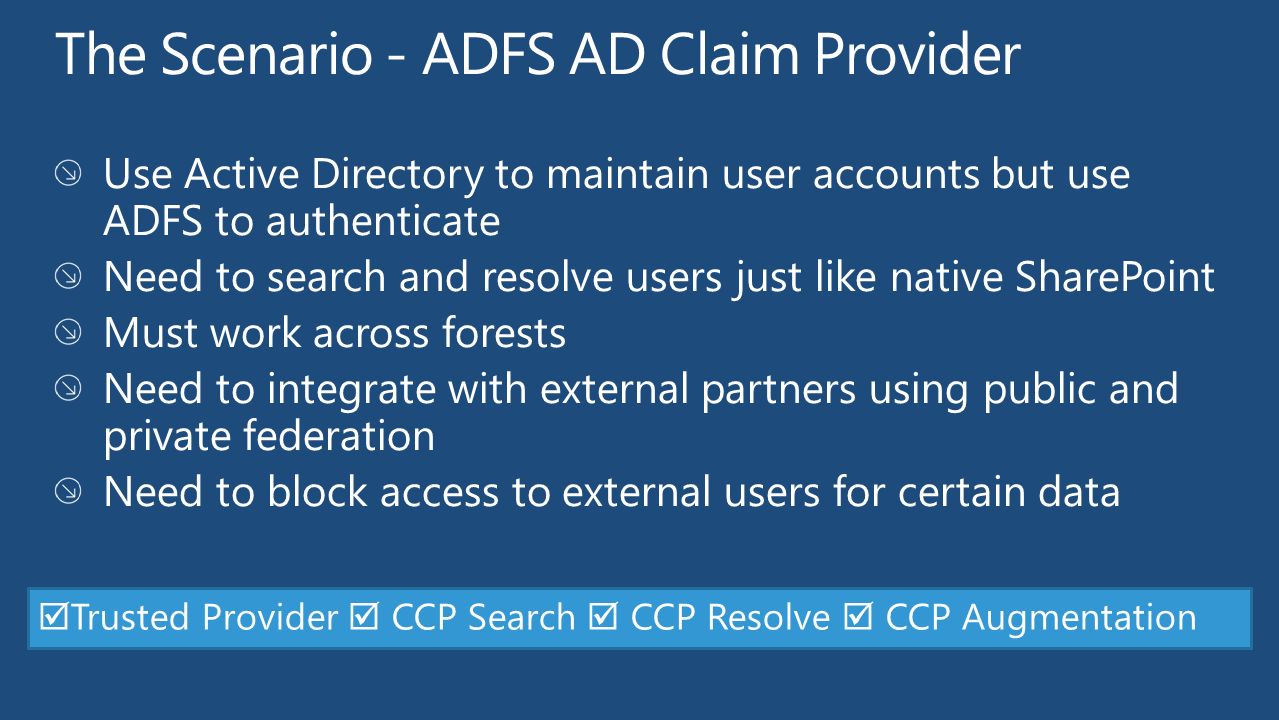

16.  Trusted Provider  CCP Search  CCP Resolve  CCP Augmentation

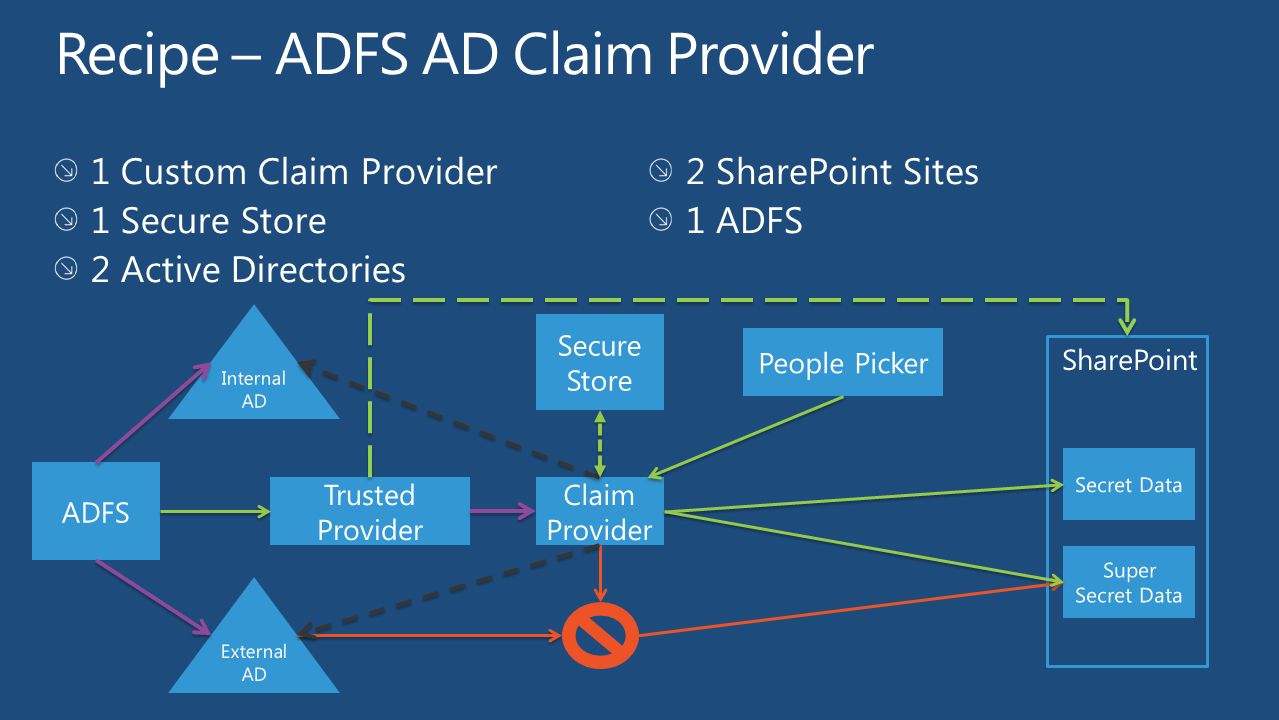

17. Internal AD External AD Secure Store ADFS Trusted Provider Claim Provider SharePoint Secret Data Super Secret Data People Picker

18. Demo Nephophobia (cloud fear, cloud phobia, fear of clouds, phobia of clouds) ADFS/AD Claim Provider

19. From/ToClassicWindows ClaimsFBASAML Claims Classic  Windows Claims  FBA  SAML Claims   = Requires IMigrateUserCallBack Today’s talk

20. Code Snippets The penguin is the only bird who can swim, but cannot fly Claims Migration Scenarios

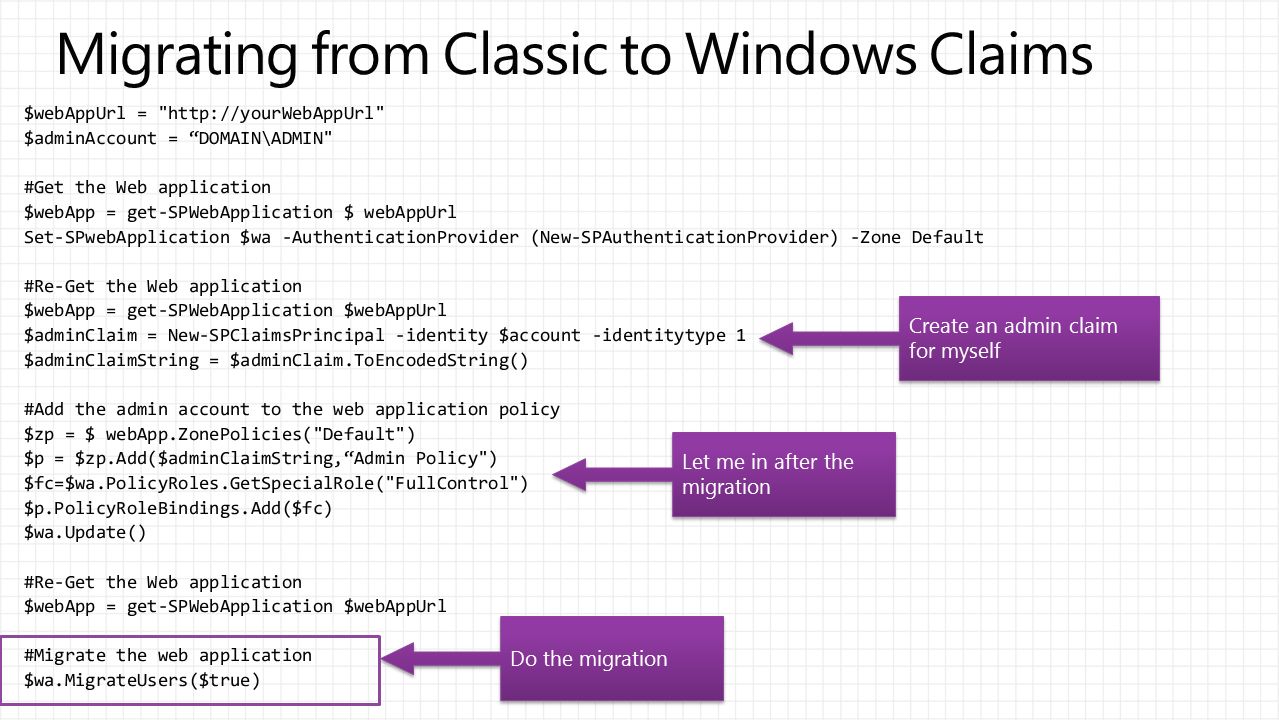

21. Migrating from Classic to Windows Claims $webAppUrl = "http://yourWebAppUrl" $adminAccount = “DOMAIN\ADMIN" #Get the Web application $webApp = get-SPWebApplication $ webAppUrl Set-SPwebApplication $wa -AuthenticationProvider (New-SPAuthenticationProvider) -Zone Default #Re-Get the Web application $webApp = get-SPWebApplication $webAppUrl $adminClaim = New-SPClaimsPrincipal -identity $account -identitytype 1 $adminClaimString = $adminClaim.ToEncodedString() #Add the admin account to the web application policy $zp = $ webApp.ZonePolicies("Default") $p = $zp.Add($adminClaimString,“Admin Policy") $fc=$wa.PolicyRoles.GetSpecialRole("FullControl") $p.PolicyRoleBindings.Add($fc) $wa.Update() #Re-Get the Web application $webApp = get-SPWebApplication $webAppUrl #Migrate the web application $wa.MigrateUsers($true) Create an admin claim for myself Let me in after the migration Do the migration

22. Migrated Content DB Classic Web App Permanent Web App Classic Content DB 1) Copy DB 4) Copy Migrated DB 2) Mount to “DUMMY” Web App 3) Migrate with IMigrateUserCallback Temporary Web App Classic Content DB 5) Mount to “REAL” Web App

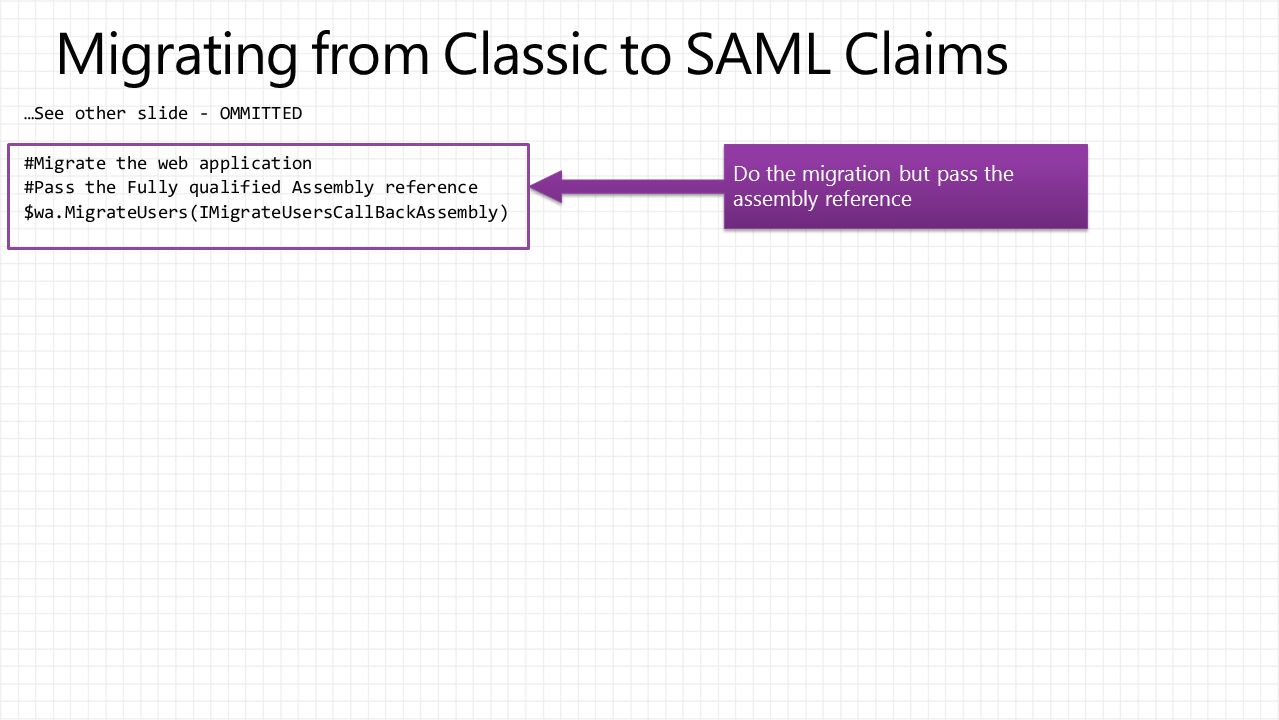

23. Migrating from Classic to SAML Claims …See other slide - OMMITTED #Migrate the web application #Pass the Fully qualified Assembly reference $wa.MigrateUsers(IMigrateUsersCallBackAssembly) Do the migration but pass the assembly reference

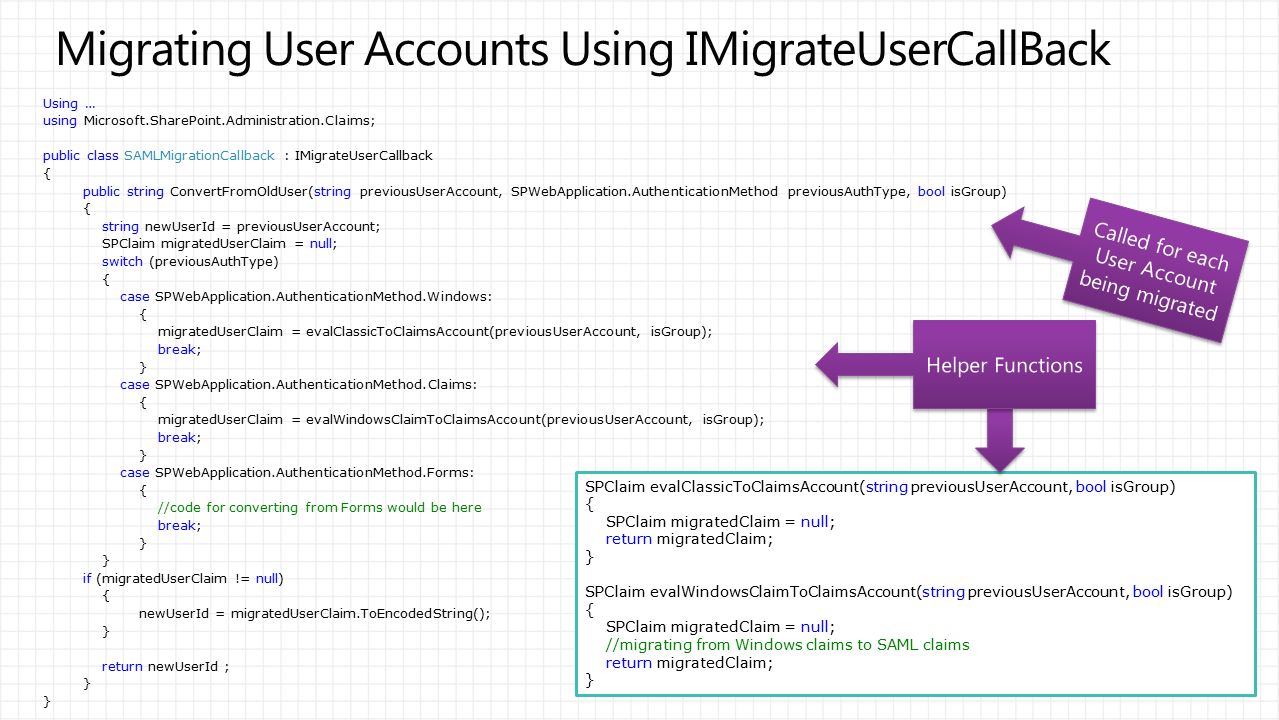

24. Migrating User Accounts Using IMigrateUserCallBack Using … using Microsoft.SharePoint.Administration.Claims; public class SAMLMigrationCallback : IMigrateUserCallback { public string ConvertFromOldUser(string previousUserAccount, SPWebApplication.AuthenticationMethod previousAuthType, bool isGroup) { string newUserId = previousUserAccount; SPClaim migratedUserClaim = null; switch (previousAuthType) { case SPWebApplication.AuthenticationMethod.Windows: { migratedUserClaim = evalClassicToClaimsAccount(previousUserAccount, isGroup); break; } case SPWebApplication.AuthenticationMethod.Claims: { migratedUserClaim = evalWindowsClaimToClaimsAccount(previousUserAccount, isGroup); break; } case SPWebApplication.AuthenticationMethod.Forms: { //code for converting from Forms would be here break; } if (migratedUserClaim != null) { newUserId = migratedUserClaim.ToEncodedString(); } return newUserId ; } SPClaim evalClassicToClaimsAccount(string previousUserAccount, bool isGroup) { SPClaim migratedClaim = null; return migratedClaim; } SPClaim evalWindowsClaimToClaimsAccount(string previousUserAccount, bool isGroup) { SPClaim migratedClaim = null; //migrating from Windows claims to SAML claims return migratedClaim; }

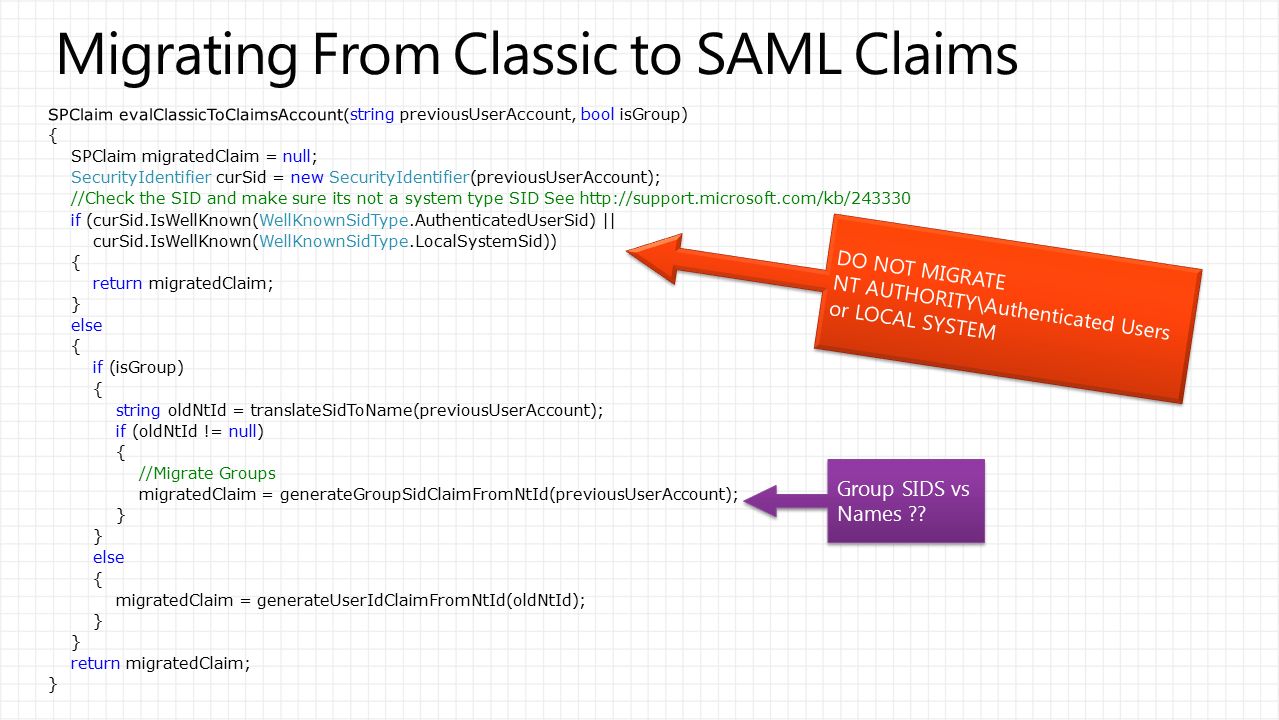

25. Migrating From Classic to SAML Claims SPClaim evalClassicToClaimsAccount(string previousUserAccount, bool isGroup) { SPClaim migratedClaim = null; SecurityIdentifier curSid = new SecurityIdentifier(previousUserAccount); //Check the SID and make sure its not a system type SID See http://support.microsoft.com/kb/243330 if (curSid.IsWellKnown(WellKnownSidType.AuthenticatedUserSid) || curSid.IsWellKnown(WellKnownSidType.LocalSystemSid)) { return migratedClaim; } else { if (isGroup) { string oldNtId = translateSidToName(previousUserAccount); if (oldNtId != null) { //Migrate Groups migratedClaim = generateGroupSidClaimFromNtId(previousUserAccount); } else { migratedClaim = generateUserIdClaimFromNtId(oldNtId); } return migratedClaim; } DO NOT MIGRATE NT AUTHORITY\Authenticated Users or LOCAL SYSTEM DO NOT MIGRATE NT AUTHORITY\Authenticated Users or LOCAL SYSTEM Group SIDS vs Names ??

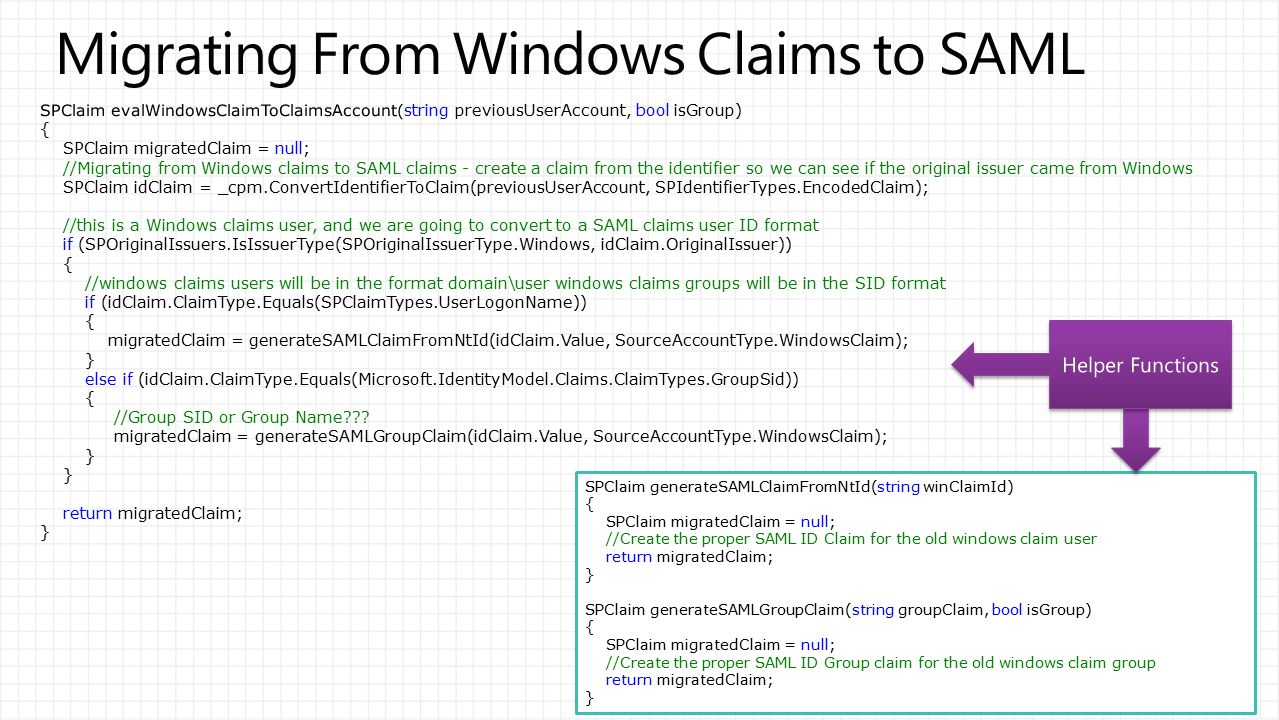

26. Migrating From Windows Claims to SAML SPClaim evalWindowsClaimToClaimsAccount(string previousUserAccount, bool isGroup) { SPClaim migratedClaim = null; //Migrating from Windows claims to SAML claims - create a claim from the identifier so we can see if the original issuer came from Windows SPClaim idClaim = _cpm.ConvertIdentifierToClaim(previousUserAccount, SPIdentifierTypes.EncodedClaim); //this is a Windows claims user, and we are going to convert to a SAML claims user ID format if (SPOriginalIssuers.IsIssuerType(SPOriginalIssuerType.Windows, idClaim.OriginalIssuer)) { //windows claims users will be in the format domain\user windows claims groups will be in the SID format if (idClaim.ClaimType.Equals(SPClaimTypes.UserLogonName)) { migratedClaim = generateSAMLClaimFromNtId(idClaim.Value, SourceAccountType.WindowsClaim); } else if (idClaim.ClaimType.Equals(Microsoft.IdentityModel.Claims.ClaimTypes.GroupSid)) { //Group SID or Group Name??? migratedClaim = generateSAMLGroupClaim(idClaim.Value, SourceAccountType.WindowsClaim); } return migratedClaim; } SPClaim generateSAMLClaimFromNtId(string winClaimId) { SPClaim migratedClaim = null; //Create the proper SAML ID Claim for the old windows claim user return migratedClaim; } SPClaim generateSAMLGroupClaim(string groupClaim, bool isGroup) { SPClaim migratedClaim = null; //Create the proper SAML ID Group claim for the old windows claim group return migratedClaim; }

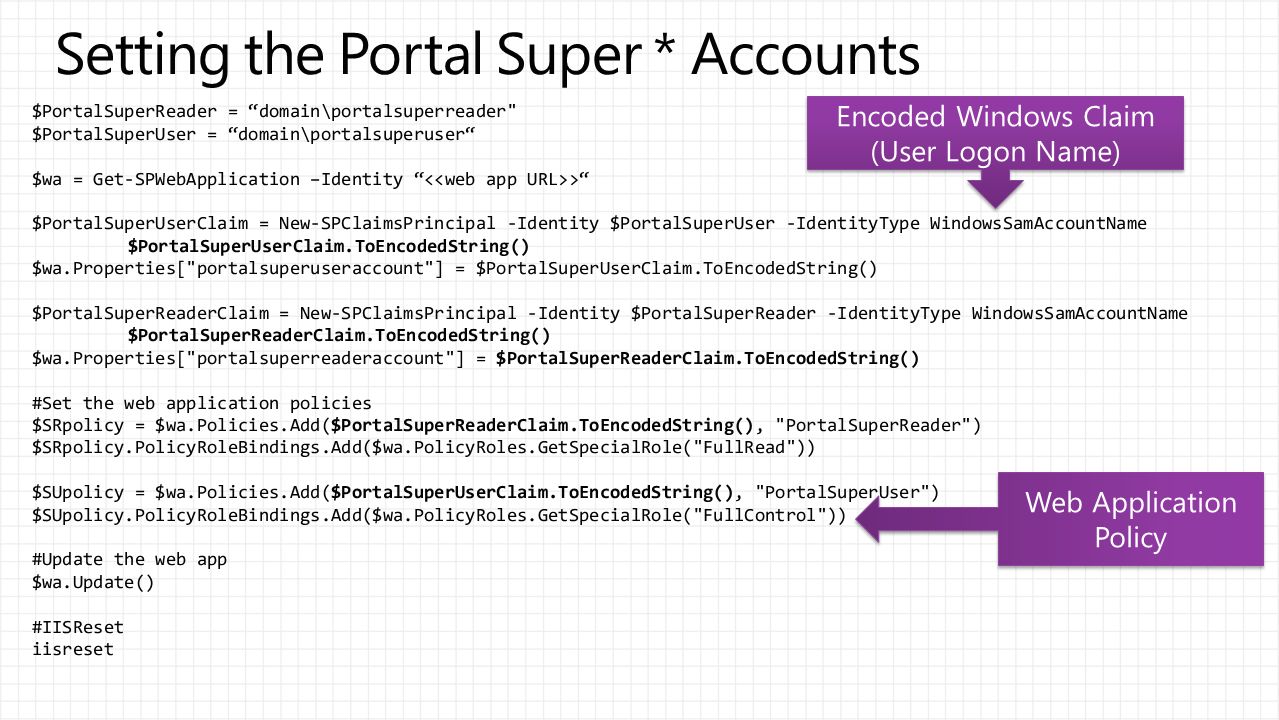

29. Setting the Portal Super * Accounts $PortalSuperReader = “domain\portalsuperreader" $PortalSuperUser = “domain\portalsuperuser“ $wa = Get-SPWebApplication –Identity “ >“ $PortalSuperUserClaim = New-SPClaimsPrincipal -Identity $PortalSuperUser -IdentityType WindowsSamAccountName $PortalSuperUserClaim.ToEncodedString() $wa.Properties["portalsuperuseraccount"] = $PortalSuperUserClaim.ToEncodedString() $PortalSuperReaderClaim = New-SPClaimsPrincipal -Identity $PortalSuperReader -IdentityType WindowsSamAccountName $PortalSuperReaderClaim.ToEncodedString() $wa.Properties["portalsuperreaderaccount"] = $PortalSuperReaderClaim.ToEncodedString() #Set the web application policies $SRpolicy = $wa.Policies.Add($PortalSuperReaderClaim.ToEncodedString(), "PortalSuperReader") $SRpolicy.PolicyRoleBindings.Add($wa.PolicyRoles.GetSpecialRole("FullRead")) $SUpolicy = $wa.Policies.Add($PortalSuperUserClaim.ToEncodedString(), "PortalSuperUser") $SUpolicy.PolicyRoleBindings.Add($wa.PolicyRoles.GetSpecialRole("FullControl")) #Update the web app $wa.Update() #IISReset iisreset

30. Fun with Claims Reindeers like to eat bananas The value of Claims Based AuthN and AuthZ

31.  Trusted Provider  CCP Search  CCP Resolve  CCP Augmentation

33. It is possible to lead a cow upstairs but not upstairs Profile Claim Provider

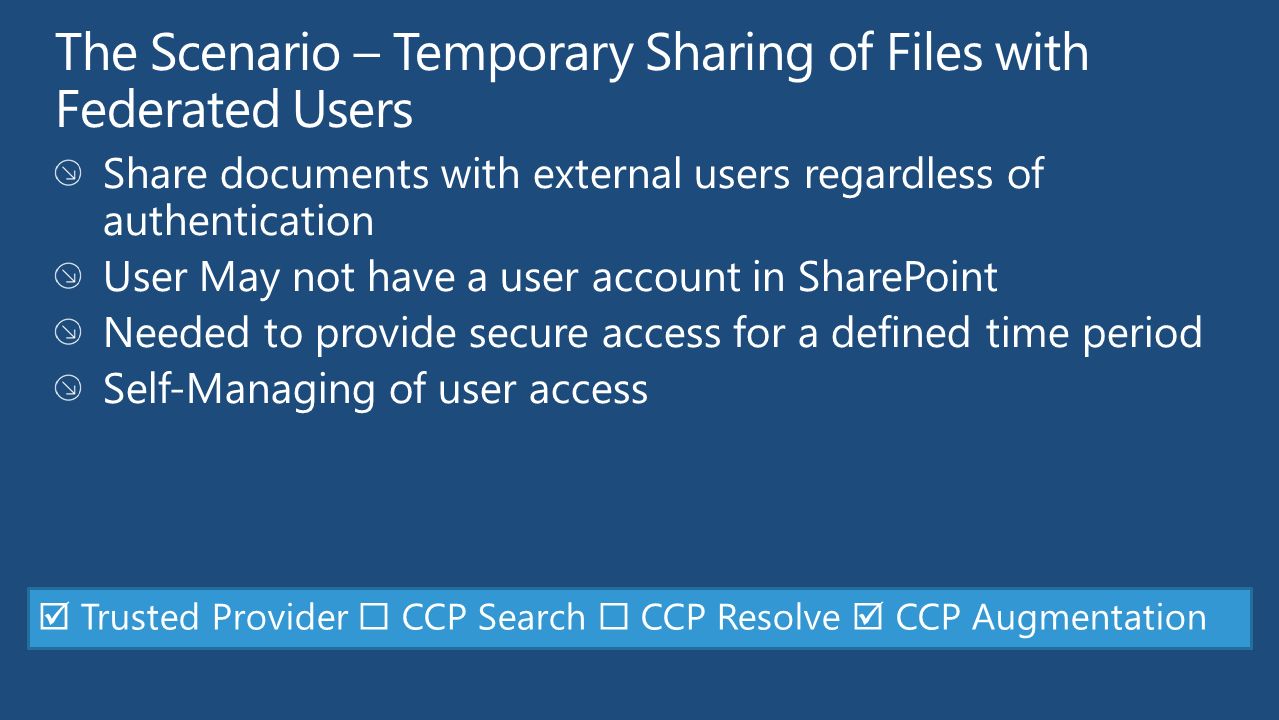

34.  Trusted Provider  CCP Search  CCP Resolve  CCP Augmentation

35. Sharing Token Claim

37. Demo The sentence "The quick brown fox jumps over a lazy dog." uses every letter of the alphabet! TempShare Claim Provider

38. * http://blogs.technet.com/b/speschka/archive/2011/03/29/how-to-get-all-user-claims-at-claims-augmentation-time-in- sharepoint-2010.aspx

41. AZR78-HOL | Introduction to Access Control Service SIA01-TLC | Microsoft Identity and Access Find us later at: SharePoint TLC Booth Ask the Experts

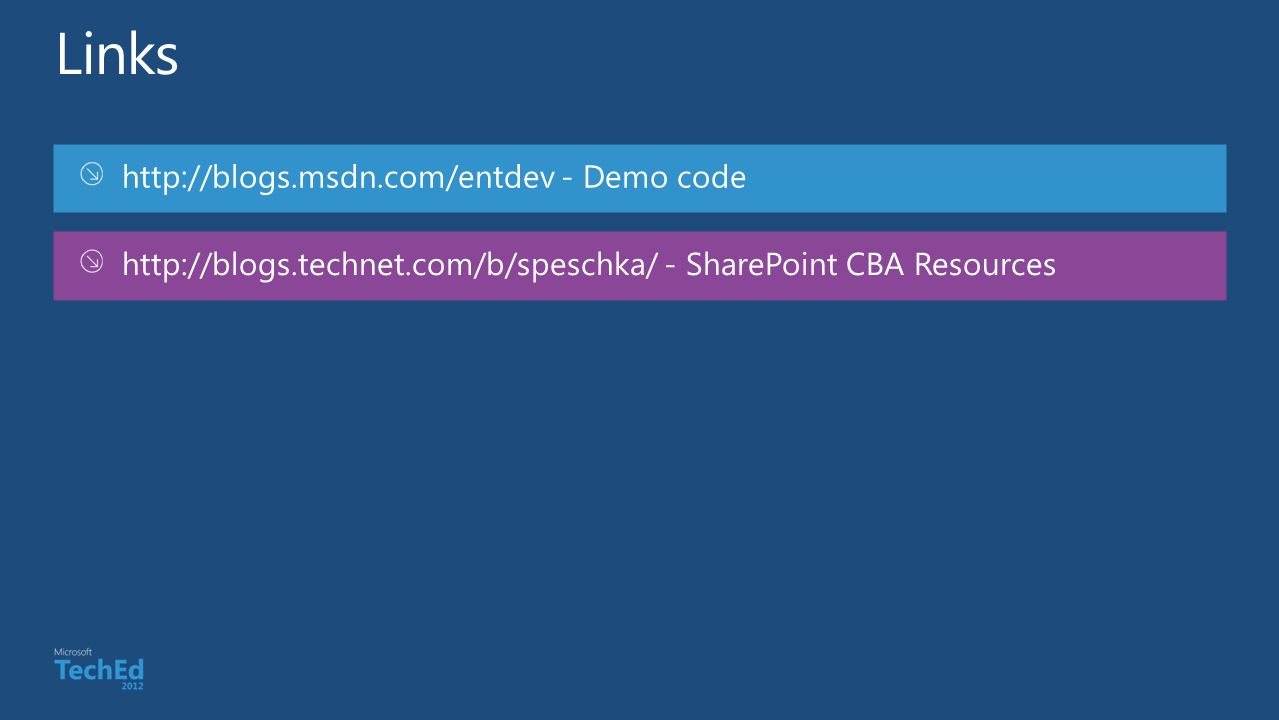

42. http://blogs.msdn.com/entdev - Demo code http://blogs.technet.com/b/speschka/ - SharePoint CBA Resources
