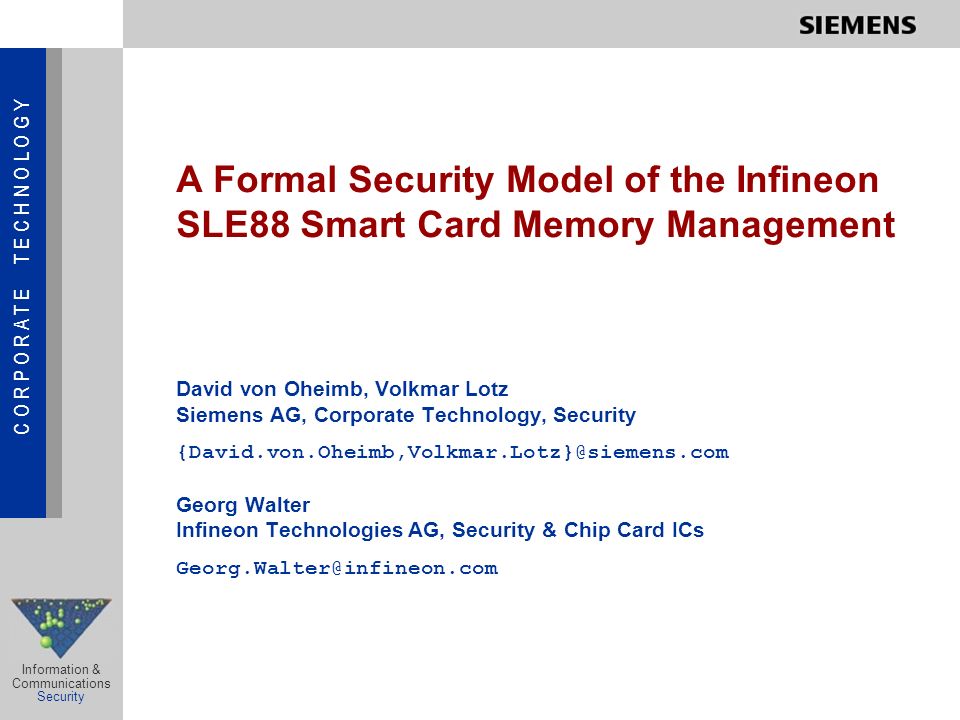

1. C O R P O R A T E T E C H N O L O G Y Information & Communications Security A Formal Security Model of the Infineon SLE88 Smart Card Memory Management David von Oheimb, Volkmar Lotz Siemens AG, Corporate Technology, Security {David.von.Oheimb,Volkmar.Lotz}@siemens.com Georg Walter Infineon Technologies AG, Security & Chip Card ICs Georg.Walter@infineon.com

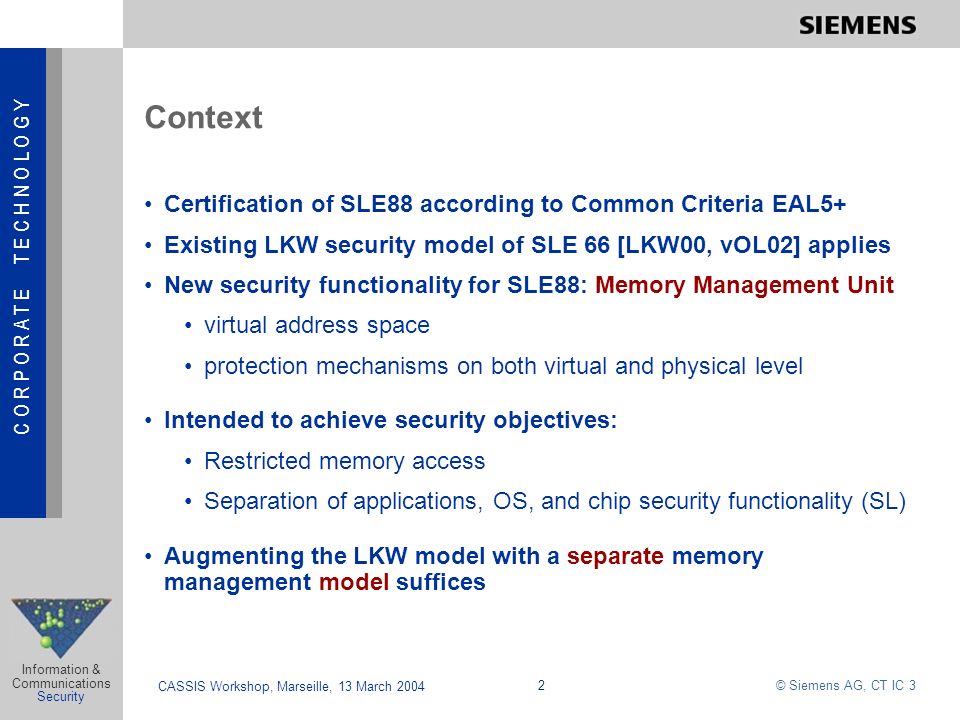

2. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 2 Context Certification of SLE88 according to Common Criteria EAL5+ Existing LKW security model of SLE 66 [LKW00, vOL02] applies New security functionality for SLE88: Memory Management Unit virtual address space protection mechanisms on both virtual and physical level Intended to achieve security objectives: Restricted memory access Separation of applications, OS, and chip security functionality (SL) Augmenting the LKW model with a separate memory management model suffices

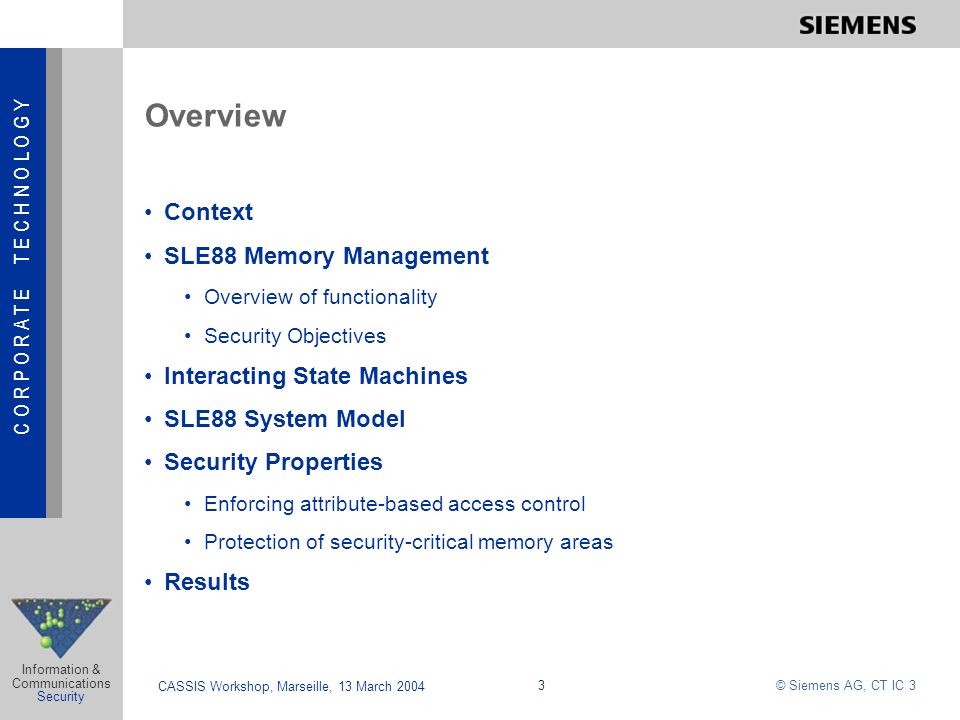

3. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 3 Overview Context SLE88 Memory Management Overview of functionality Security Objectives Interacting State Machines SLE88 System Model Security Properties Enforcing attribute-based access control Protection of security-critical memory areas Results

4. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 4 Address Space  EAR DPPAD 053123 DP 0 5 21  BPF 0SL 1PSL/HAL 2OS 3..15reserved 16..255 regular VEA Virtual Effective Address PEAPhysical Effective Address PTPage Table PP Page Pointer VEA PEA DP Displacement PADPackage Address EAREffective Access Right BPFBlock Protection Field PT PP privileged

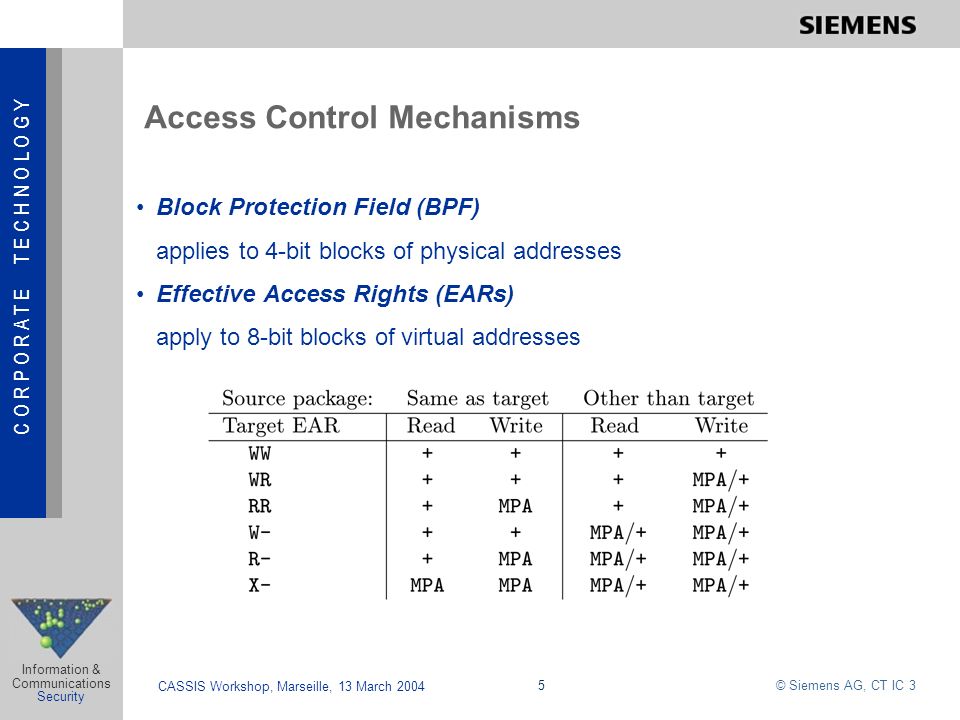

5. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 5 Access Control Mechanisms Block Protection Field (BPF) applies to 4-bit blocks of physical addresses Effective Access Rights (EARs) apply to 8-bit blocks of virtual addresses

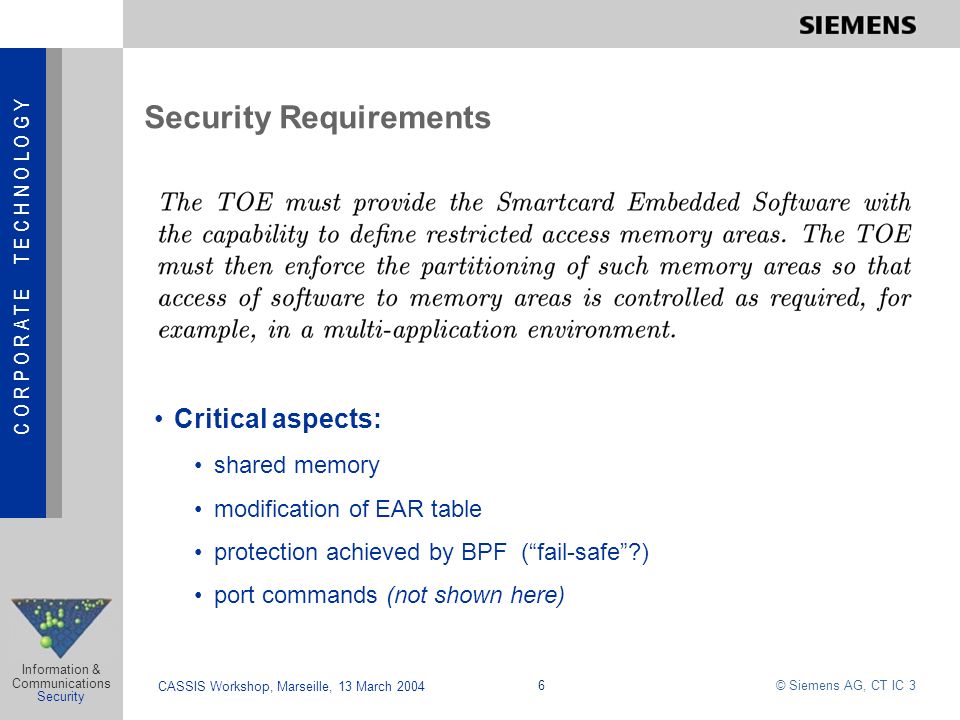

6. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 6 Security Requirements Critical aspects: shared memory modification of EAR table protection achieved by BPF (“fail-safe”?) port commands (not shown here)

7. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 7 state transitions (maybe non-deterministic) buffered I/O simultaneously on multiple connections finite trace semantics modular (hierarchical) parallel composition Interacting State Machines (ISMs)

8. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 8 Generic ISMs: global/shared state Dynamic ISMs: changing availability and communication Ambient ISMs: mobility with constrained communication Dynamic Ambient ISMs: combination Extensions to ISM concepts (generic) ISMs AmbISMs dISMs dAmbISMs

9. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 9 AutoFocus: CASE tool for graphical specification and simulation syntactic perspective graphical documentation type and consistency checks Isabelle/HOL: powerful interactive theorem prover semantic perspective textual documentation validation and correctness proofs AutoFocus drawing  Quest file  Isabelle theory file Within Isabelle: ism sections  standard HOL definitions Tool support

10. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 10 ISM representation in AutoFocus System Structure Diagram: Client/Server State Transition Diagram: working thread

11. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 11 Basic ISMs in Isabelle/HOL

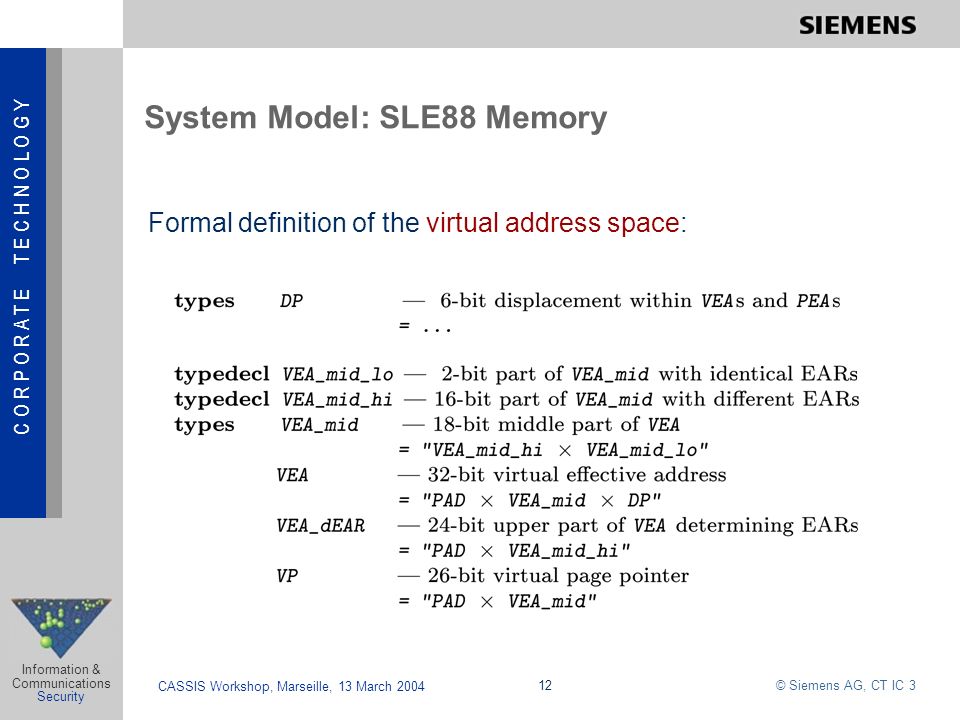

12. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 12 System Model: SLE88 Memory Formal definition of the virtual address space:

13. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 13 System Model: State Formal definition of the system state: physical memory address translation access control settings execution state

14. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 14 System Model: Inputs and Outputs

15. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 15 System Model: Memory Access Auxiliary function for checking access control conditions Request for access mode at virtual address va in state s returns Ok, if: va is mapped to a physical address access is (privileged or) permitted according to EAR table BPF is consistently assigned (or special access by SL)

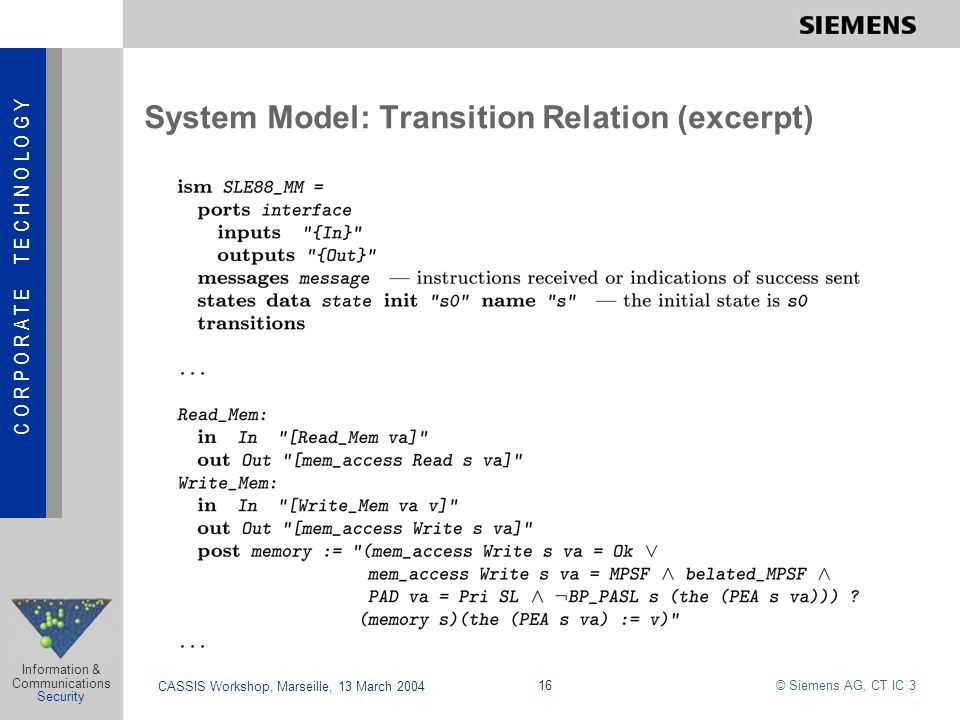

16. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 16 System Model: Transition Relation (excerpt)

17. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 17 Security Properties (1): “Granted Accesses Do Respect EAR Settings” PT_map PEAVEA WW WR Consistency of EARs: In case of non-injective PT_map, the effective protections is determined by weakest EAR Conflicts are possible Should aliasing be prohibited? Solution: Define consistency requirements on EARs: all WW or all RR Property only holds in case of EAR consistency

18. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 18 Security Properties (2): “Protection of SL Memory” Required axioms (assumptions): Initial state satisfies requirements on BPF and initial EAR values Benign behaviour of SL (correct setting of BPF values, page table entries, and EAR table entries) Used lemmas (invariants): SL parts of page table and EAR table can only be modified by SL EARs referring to SL are always set in a way that access by non-SL packages is denied For SL memory areas, the BPF tag is always set

19. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 19 Conclusion Identification: necessary assumptions on initial state and behaviour of SL Analysis: effects of non-injective address mappings Analysis: role of block protection fields (BPF) Proof: security functionality is adequate to satisfy security requirements (on abstract level of specification) Proof: security specification is consistent (with some additional arguments referring to consistency of HOL) Security model satisfies all requirements of ADV_SPM.2 and thus contributes to EAL5 certification Effort: 2 person months

20. C O R P O R A T E T E C H N O L O G Y Information & Communications Security Thank you for your attention! Questions?

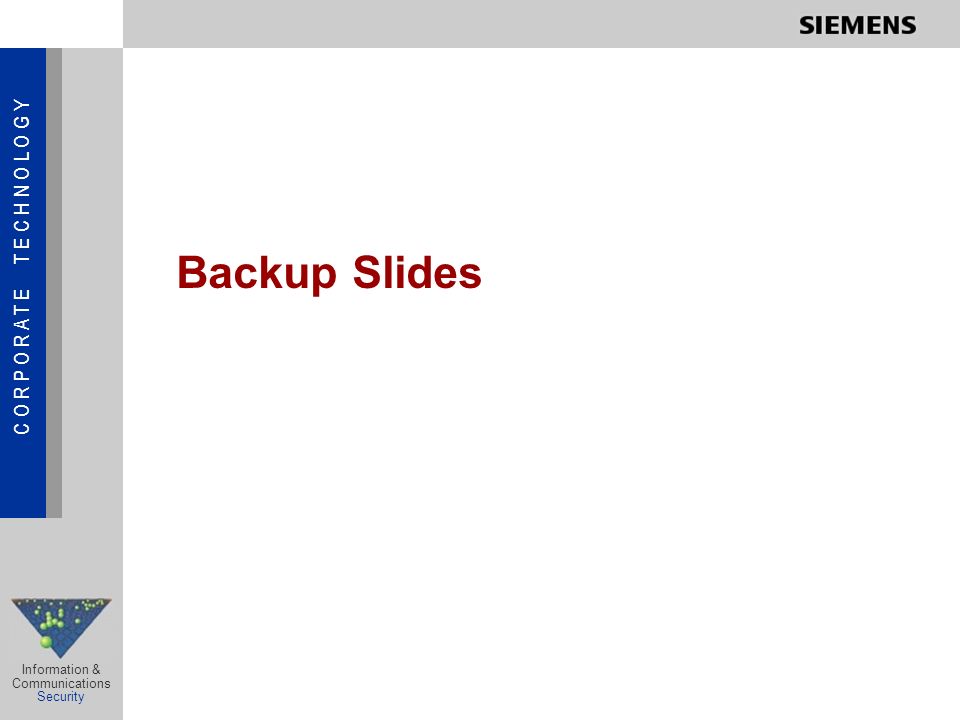

21. C O R P O R A T E T E C H N O L O G Y Information & Communications Security Backup Slides

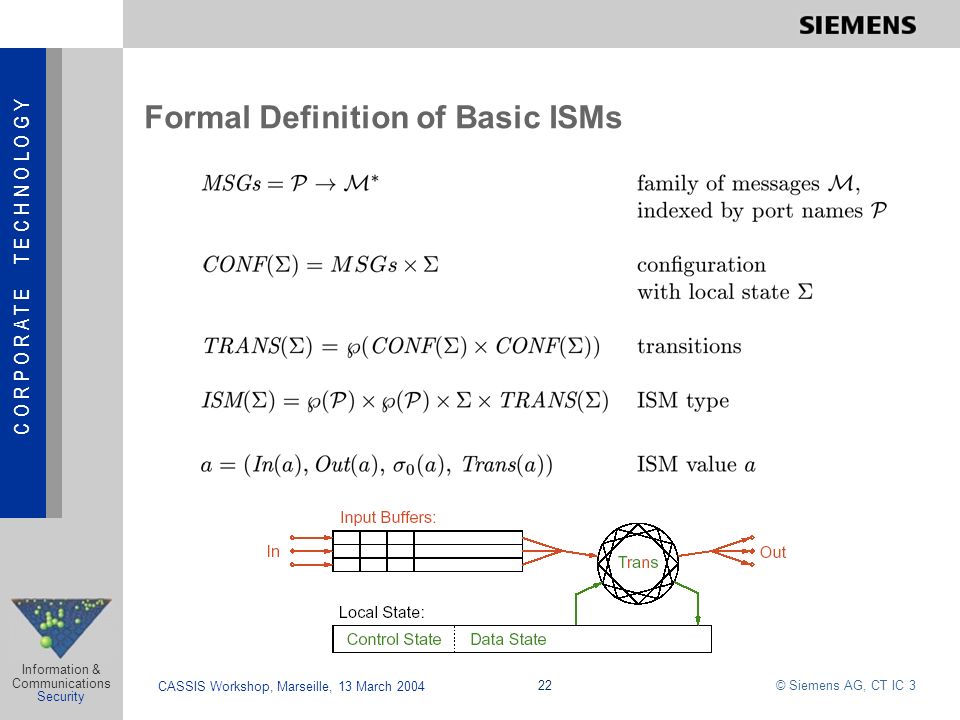

22. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 22 Formal Definition of Basic ISMs

23. C O R P O R A T E T E C H N O L O G Y Information & Communications Security Open runs

24. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 24 Parallel Runs (Interaction)

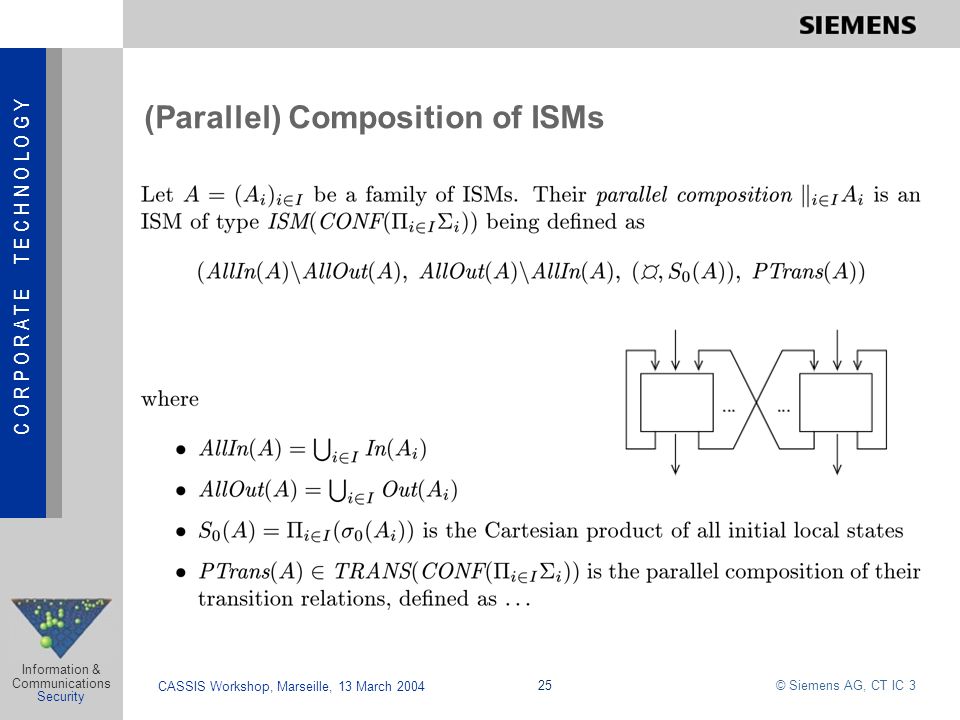

25. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 25 (Parallel) Composition of ISMs

26. C O R P O R A T E T E C H N O L O G Y Information & Communications Security Parallel State Transition Relation

27. C O R P O R A T E T E C H N O L O G Y © Siemens AG, CT IC 3 Information & Communications Security CASSIS Workshop, Marseille, 13 March 2004 27 Results on BPF Prohibits access of non-SL packages to SL through alternative access paths Allows to grant exclusive access of SL to other memory areas Achieves write protection of SL memory areas in case of traps being delayed Is not a “fail-safe” mechanism in case of inappropriate EARs for SL memory!
