1. ITK Introduction and Overview Spring 2006

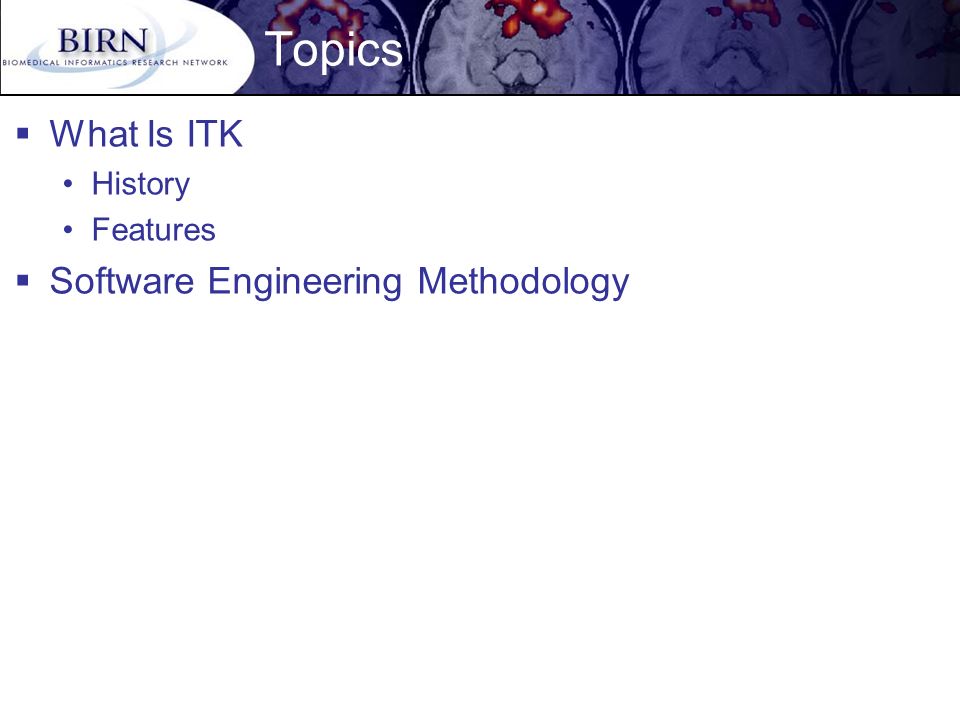

2. Topics  What Is ITK History Features  Software Engineering Methodology

3. ITK History  Sponsored by the National Library of Medicine as part of the Visible Human Project  Original Contract was Approximately $10 Million over 3 years All dedicated to Implementing Existing Algorithms  Currently Only Maintenance Funding from NLM (mostly to Kitware)  Ongoing Development by User Community  ITK is a Major Part of the NA-MIC Kit

4. Why ITK  Provide a Standard Implementation of State of the Art Segmentation and Registration Algorithms  BSD Style Licensing Compatible with Commercialization and Academic Research  Modern Object Oriented Design  Cross Platform Windows, Mac, Linux, Irix, AIX, Solaris…  Run-Time Efficiency Multi-threaded, Generic (Templated)  Carefully Engineered for Stability Regression Testing Documentation

5. ITK in Practice  ITK Only Recently Added Direction Cosine Information to Images Supported in Most I/O Not Supported in Most Filters or Registration  C++ Learning Curve Very Steep  Generic Programming Means Very Little Run Time Flexibility Code is Compiled to Support Just One Data Type

6. Mr. ITK  Many of the following ITK slides were developed by Luis Ibanez of Kitware  Once you see Luis’ role in ITK, you’ll know that the following is more than appropriate Image courtesy Kitware, Inc.

7. Scope of ITK Image Processing Segmentation Registration No Graphical User Interface (GUI) No Visualization

8. ITK Sponsors The National Science Foundation The National Institute for Dental and Craniofacial Research The National Institute of Neurological Disorders and Stroke

9. ITK Developers

10. * indicates a subcontractor.

11. ITK by the Numbers March 2000 – First code check-in 1300 – # of nightly builds 1062 – tests run nightly 41 – # of platforms ( software + hardware ) 700 – # of classes 1600 – # of files with code

12. ITK by the Numbers 400K – # of lines of code 100K – # of lines of test code 35K – # of lines of examples 150K – # of lines of Applications 240 – weekly t-cons 50 – unique developers

13. ITK by the Numbers 1032 – # of users subscribed to the mailing-list 400 – # of emails posted monthly to the users-list 819 – # of pages in the Software Guide PDF document 1800 – # of monthly hits to the URL of the Software Guide PDF 1900 – # of monthly hits to the URL of the Tutorial PDF 2400 – # of monthly hits to the source code files (.zip +.tar.gz)

14. Example ITK Program #include "itkImage.h" #include "itkImageFileReader.h" #include "itkGradientMagnitudeImageFilter.h" int main( int argc, char **argv ) { typedef itk::Image ImageType; typedef itk::ImageFileReader ReaderType; typedef itk::GradientMagnitudeImageFilter< ImageType,ImageType> FilterType; ReaderType::Pointer reader = ReaderType::New(); FilterType::Pointer filter = FilterType::New(); reader->SetFileName( argv[1] ); filter->SetInput( reader->GetOutput() ); filter->Update(); return 0; }

15. Documentation Resources http://www.itk.org/ItkSoftwareGuide.pdf Follow the link Alphabetical List Follow the link Groups Post to the insight-users mailing list http://www.itk.org/Doxygen/html/index.html

19. The ITK Software Guide is freely available as a PDF document at www.itk.org/ ItkSoftwareGuide.pdf Its paper version can be ordered from Amazon.com and from Kitware’s e-store. www.itk.org/

20. Useful Code in ITK  Coding Infrastructure  I/O  Numerics Based on VNL (Vision Numerics Library)  Image Processing Convolutions, Non-Linear, Anisotropic…  Segmentation  Registration

21. ITK Basics C++ Generic Programming Data Pipeline Multi-threading Streaming Exceptions Events / Observers Tcl, Python and Java wrapping

22. Generic Programming Example: STL Standard Template Library Abstraction of Types and Behaviors std::vector

23. itk::Image itk::Image, 2 >

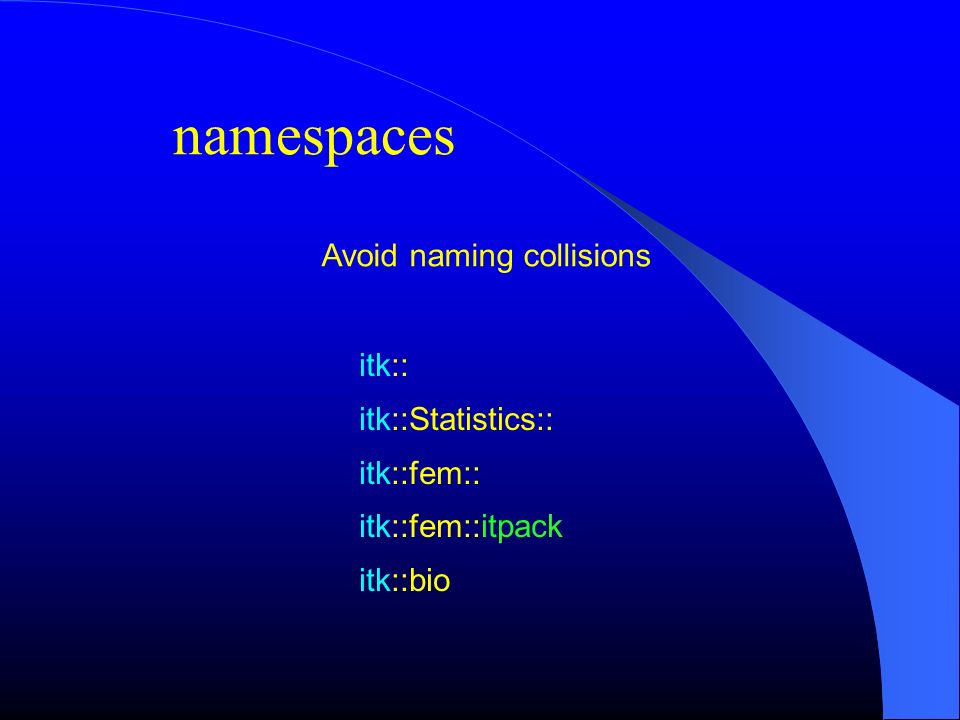

24. namespaces Avoid naming collisions itk:: itk::Statistics:: itk::fem:: itk::fem::itpack itk::bio

25. Your favorite keyword typedef typedef itk::Image ImageType typedef itk::ImageFilter FilterType otherwise... itk::ImageFilter, Image > FilterType

26. Smart Pointers Object Smart Pointer counter=0counter=1counter=2counter=3 Self - Delete

27. SmartPointers typedef itk::Image ImageType typedef itk::ImageFilter FilterType FilterType::Pointer filter = FilterType::New(); ImageType::Pointer image = filter->GetOutput(); NO NEED FOR filter->Delete(); Pointer notation filter->Update();

28. Const Correctness Knowing constancy is Insight. Not knowing constancy leads to disaster. Tao Te Ching, XVI. Lao Tsu

29. Const Smart Pointers typedef itk::Image ImageType typedef itk::ImageFilter FilterType FilterType::Pointer filter = FilterType::New(); ImageType::ConstPointer image = filter->GetOutput(); Can only invoke “const” methods image->GetSpacing (); Compiler error for “non-const” methods image->SetSpacing ( spacing );

30. Creating an Image typedef itk::Image ImageType ImageType::Pointer image = ImageType::New(); ImageType::SizeType size; size[ 0 ] = 512;// x direction size[ 1 ] = 512;// y direction size[ 2 ] = 50;// z direction ImageType::IndexType start; start[ 0 ] = 0; // x direction start[ 1 ] = 0; // y direction start[ 2 ] = 0; // z direction

31. Creating an Image ImageType::RegionType region; region.SetSize( size ); region.SetIndex( start ); image->SetRegions( region ); image->Allocate(); image->FillBuffer( 0 ); ImageType::SpacingType spacing; spacing[ 0 ] = 0.83; // x direction spacing[ 1 ] = 0.83; // y direction spacing[ 2 ] = 2.15; // z direction image->SetSpacing( spacing );

32. Output Image Streaming Filter Processing Large Images Input Image

33. Image Regions LargestPossibleRegion BufferedRegion RequestedRegion

34. Data Pipeline Image Filter Image Filter Image Filter

35. Simple Image IO Image File ImageFileReader Image Filter Image File ImageFileWriter

36. CustomImageIO Simple Image IO Image File ImageFileReader Image PNGImageIO VTKImageIODICOMImageIOGIPLImageIO MetaImageIOAnalyzeImageIO Loadable Factories

37. #include “itkImage.h” #include “itkImageFileReader.h” #include “itkImageFileWriter.h” typedef itk::Image ImageType; typedef itk::ImageFileReader ReaderType; typedef itk::ImageFileWriter WriterType; ReaderType::Pointer reader = ReaderType::New(); WriterType::Pointer writer = WriterType::New(); reader->SetFileName( “inputImage.dcm” ); // DICOM writer->SetFileName( “outputImage.hdr” ); // Analyze writer->SetInput( reader->GetOutput() ); writer->Update(); Simple Image IO

38. Segmentation Overview Region Growing – ConfidenceConnected – ConnectedThreshold – IsolatedConnected Watersheds Level Sets – FastMarching – ShapeDetection – GeodesicActiveContours – ThresholdSegmentation – CannySegmentationLevelSet

39. Example: Confidence Connected Seed Point + Radius Intensity Mean Lower bound Upper bound X Multiplier Standard Deviation

40. /** /class ConfidenceConnectedImageFilter * /brief Segment pixels with similar statistics using connectivity * * This filter extracts a connected set of pixels whose pixel * intensities are consistent with the pixel statistics of a seed * point. The mean and variance across a neighborhood (8-connected, * 26-connected, etc.) are calculated for a seed point. Then * pixels connected to this seed point whose values are within * the confidence interval for the seed point are grouped. The * width of the confidence interval is controlled by the "Multiplier" * variable (the confidence interval is the mean plus or minus * the "Multiplier" times the standard deviation). If the intensity * variations across a segment were gaussian, a "Multiplier" setting * of 2.5 would define a confidence interval wide enough to capture * 99% of samples in the segment. * * After this initial segmentation is calculated, the mean and * variance are re-calculated. All the pixels in the previous * segmentation are used to calculate the mean the standard deviation * (as opposed to using the pixels in the neighborhood of the seed * point). The segmentation is then recalculted using these refined * estimates for the mean and variance of the pixel values. This * process is repeated for the specified number of iterations. * Setting the "NumberOfIterations" to zero stops the algorithm * after the initial segmentation from the seed point. * */

41. typedef itk::Image ImageType; typedef itk::ConfidenceConnectedImageFilter FilterType; FilterType::Pointer filter = FilterType::New(); filter->SetMultiplier( 1.5 ); filter->SetNumberOfIterations( 5 ); filter->SetInitialNeighborhoodRadius ( 2 ); filter->SetReplaceValue( 255 ); FilterType::IndexType index; index[0] = 123; index[1] = 235; filter->SetSeed( index ); filter->SetInput( reader->GetOutput() ); writer->SetInput( filter->GetOutput() ); writer->Update() Confidence Connected

42. Registration Overview Image Resampling Registration Framework Multi-Modality Multi-Resolution Deformable registration

43. Components Fixed Image Moving Image Metric Transform Interpolator Optimizer Registration Method

44. Image Metrics Mean Squares Normalized Correlation Mean Reciprocal Square Difference Mutual Information - Viola-Wells - Mattes - Histogram based - Histogram normalized

45. Transforms Translation Scaling Rotation Rigid3D Rigid2D Affine BSplines Splines: TPS, EBS, VS

46. Optimizers Gradient Descent Regular Step Gradient Descent Conjugate Gradient Levenberg-Marquardt One plus One Evolutionary Algorithm

47. Interpolators Nearest Neighbor Linear BSpline

48. ITK Software Methodology  Based on “Best Practices” for Distributed Development  Built on Open Source Tools  Adopted by NA-MIC

49. NA-MIC National Alliance for Medical Image Computing http://na-mic.org NAMIC Software Process Dan Blezek Jim Miller Bill Lorensen

50. National Alliance for Medical Image Computing http://na-mic.org Extreme Programming

51. National Alliance for Medical Image Computing http://na-mic.org NAMIC Process Light weight Based on Extreme Programming –High intensity cycle Design Test Implement –Supported with web-enabled tools –Automated testing integrated with the software development

52. National Alliance for Medical Image Computing http://na-mic.org Software Process Design Process Coding Standards Testing Bug Tracker Communication –Mailing lists, Discussion forum, Wiki –Tcons Documentation Releases

53. National Alliance for Medical Image Computing http://na-mic.org Design Process Take the time to design a good API Plan for future use Plan for future extension Two routes –Code something, check it in Others will tear it down & make it better –Put together a strawman Solicit ideas, implement

54. National Alliance for Medical Image Computing http://na-mic.org Coding Standards Follow the package’s rules ITK has certain coding standards –Style guidelines –Naming conventions –Macros

55. National Alliance for Medical Image Computing http://na-mic.org Testing If it isn’t tested, it’s broken. Tests –Ensure your code works –Documents expected results –Others free to change

56. National Alliance for Medical Image Computing http://na-mic.org Bug Tracker Bugs assigned / taken by developers Tracks progress to releases Captures feature requests Communication mechanism

57. National Alliance for Medical Image Computing http://na-mic.org Documentation Doxygen –Automatic API documentation –Algorithm references –Implementation details Books / Manuals –Insight Book

58. National Alliance for Medical Image Computing http://na-mic.org Communication Email lists Discussion forum Wiki Tcon

59. National Alliance for Medical Image Computing http://na-mic.org Extreme Programming Compression of standard analyze, design, implement, test cycle into a continuous process

60. National Alliance for Medical Image Computing http://na-mic.org Daily Testing Is The Key Testing anchors the development process (Dart) Developers monitor the testing dashboard constantly Problems are identified and fixed immediately Developers receive e-mail if they “Break the Build”

61. National Alliance for Medical Image Computing http://na-mic.org Daily rhythm Design, implement algorithm write regression test check it in Dart takes over Code is updated, built, tested Guilty parties are blamed Debug/Fix Build breakers are notified Work on cleaning up dashboard Repeat

62. National Alliance for Medical Image Computing http://na-mic.org Dart Testing Reports Dashboards Central site for state of the system –Updates –Builds –Test –Coverage

63. National Alliance for Medical Image Computing http://na-mic.org

65. Someone broke the build!

66. National Alliance for Medical Image Computing http://na-mic.org

67. The Big Bat of Quality

68. National Alliance for Medical Image Computing http://na-mic.org Bill “Yogi” Lorensen

69. Conculsion: ITK for BIRN  For BIRN Developers Nice set of imaging code Open and freely reusable  For the BIRN Community Benchmark of multi-site collaboration on large-scale engineering effort
