1. MACHINE VISION Machine Vision System Components ENT 273 Ms. HEMA C.R. Lecture 1.

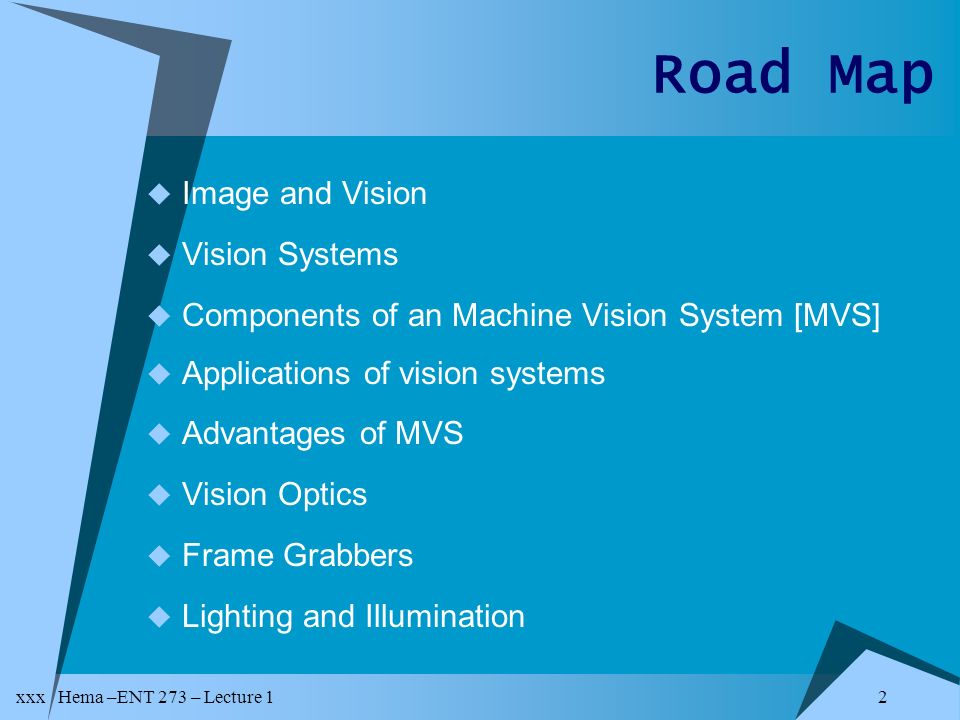

2. xxx Hema –ENT 273 – Lecture 1 2 Road Map  Image and Vision  Vision Systems  Components of an Machine Vision System [MVS]  Applications of vision systems  Advantages of MVS  Vision Optics  Frame Grabbers  Lighting and Illumination

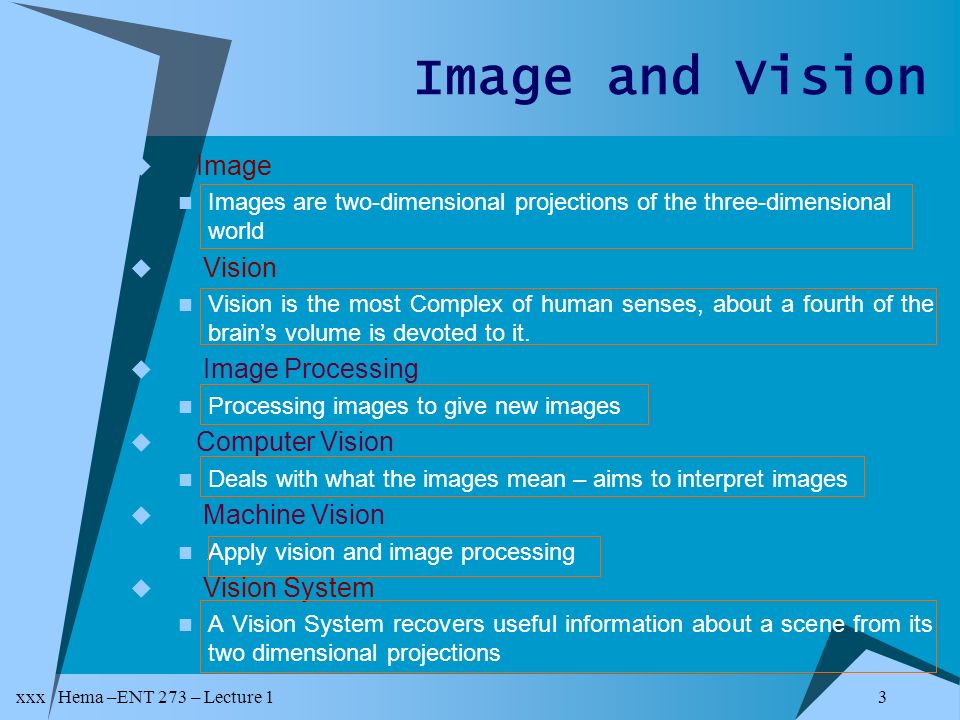

3. xxx Hema –ENT 273 – Lecture 1 3 Image and Vision  Image Images are two-dimensional projections of the three-dimensional world  Vision Vision is the most Complex of human senses, about a fourth of the brain’s volume is devoted to it.  Image Processing Processing images to give new images  Computer Vision Deals with what the images mean – aims to interpret images  Machine Vision Apply vision and image processing  Vision System A Vision System recovers useful information about a scene from its two dimensional projections

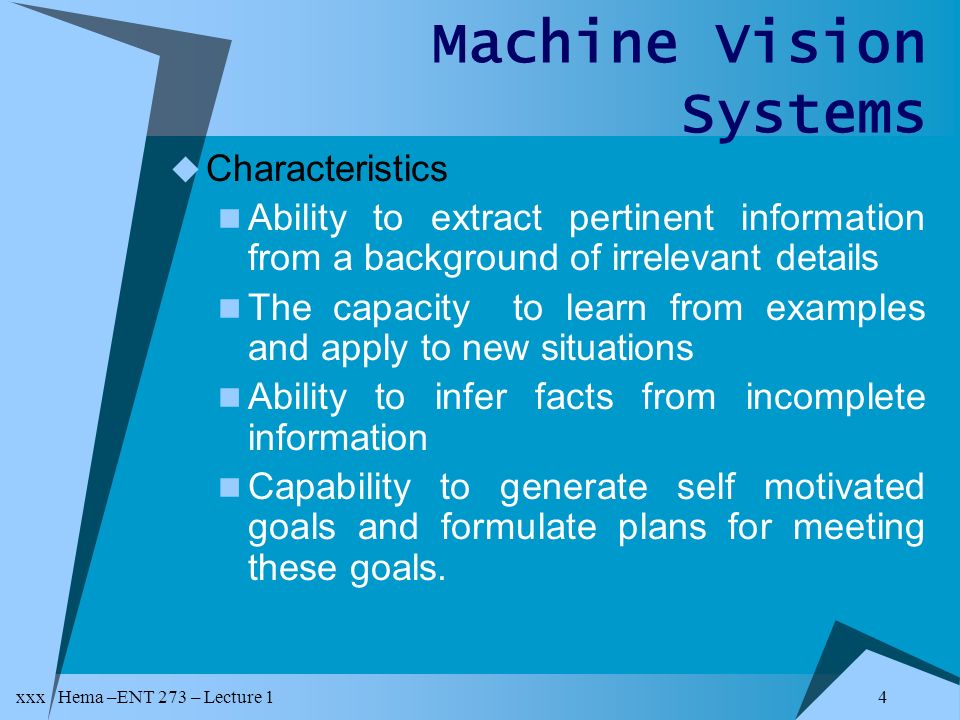

4. xxx Hema –ENT 273 – Lecture 1 4 Machine Vision Systems  Characteristics Ability to extract pertinent information from a background of irrelevant details The capacity to learn from examples and apply to new situations Ability to infer facts from incomplete information Capability to generate self motivated goals and formulate plans for meeting these goals.

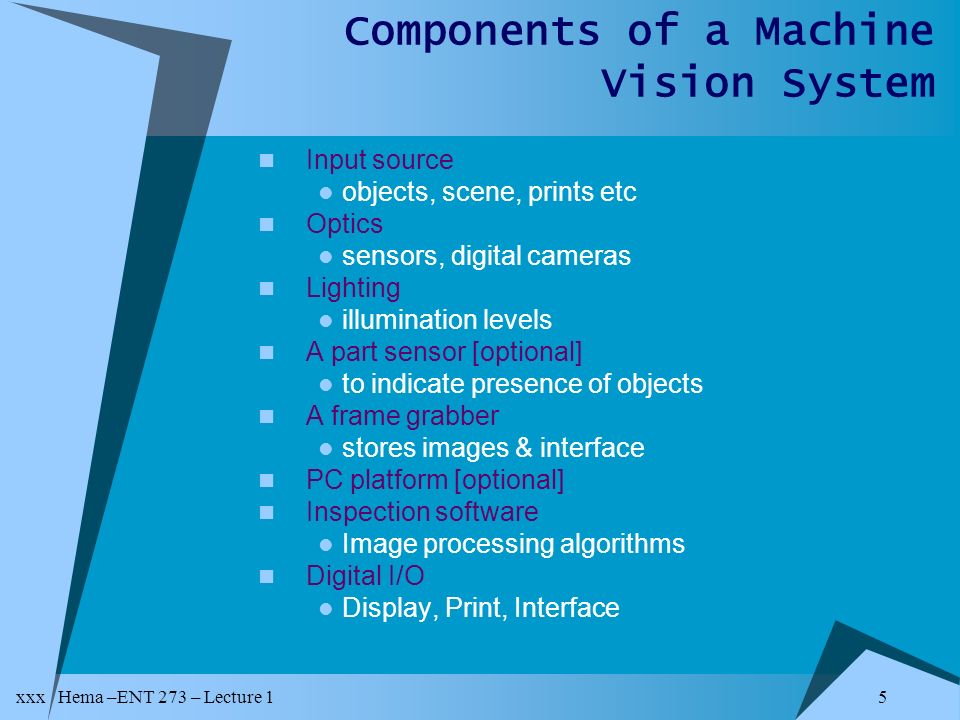

5. xxx Hema –ENT 273 – Lecture 1 5 Components of a Machine Vision System Input source objects, scene, prints etc Optics sensors, digital cameras Lighting illumination levels A part sensor [optional] to indicate presence of objects A frame grabber stores images & interface PC platform [optional] Inspection software Image processing algorithms Digital I/O Display, Print, Interface

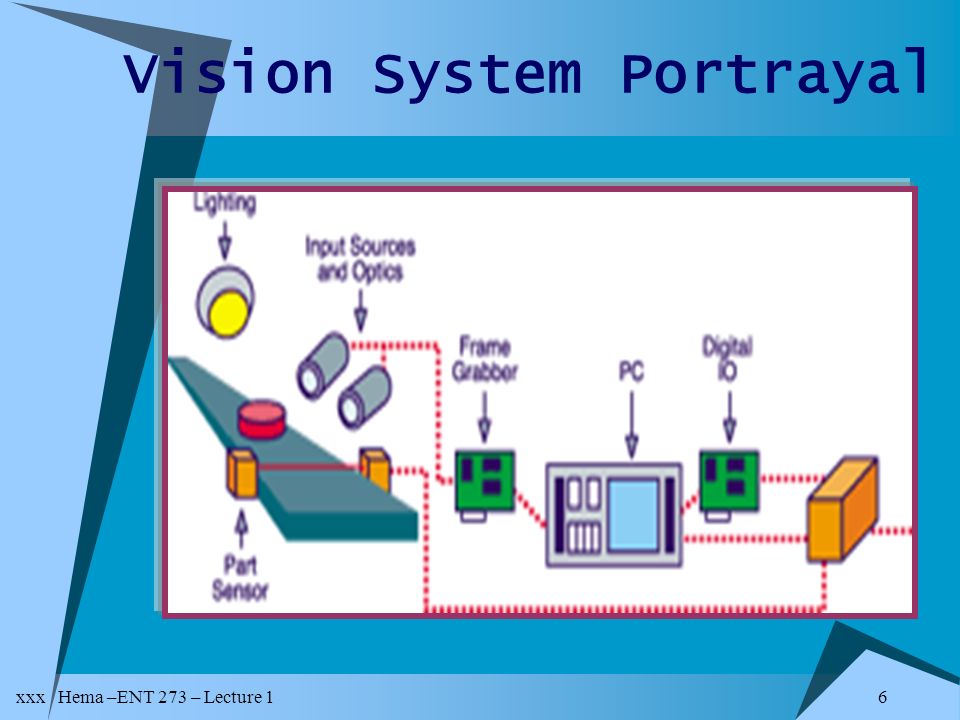

6. xxx Hema –ENT 273 – Lecture 1 6 Vision System Portrayal

7. xxx Hema –ENT 273 – Lecture 1 7 Operations to be performed by MVS  Describe images, objects and physical world Mathematical models of image and objects and knowledge representation  Image Processing Improves image for human and computer consumption, highlight / extract relevant feature  Segmentation Extract features such a edge, regions, surfaces etc.  Pattern Recognition Classify the images  Measurement Analysis Measure features on the object  Image Understanding Locate objects in the image, classify them and build 3D models The Ultimate Aim of a Vision System is to recognize objects within a image

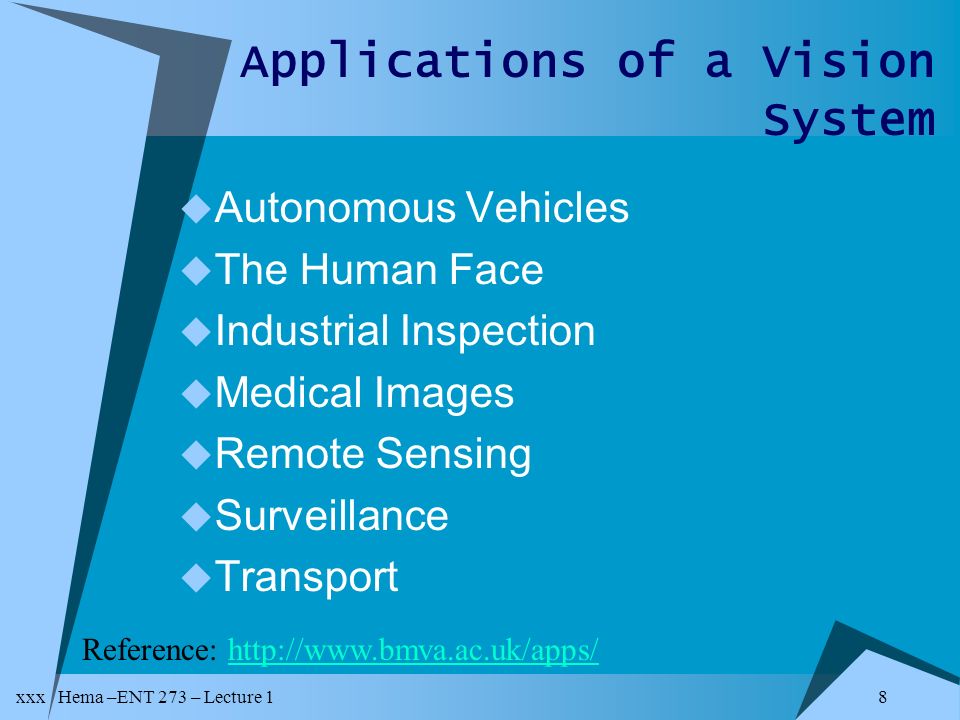

8. xxx Hema –ENT 273 – Lecture 1 8 Applications of a Vision System  Autonomous Vehicles  The Human Face  Industrial Inspection  Medical Images  Remote Sensing  Surveillance  Transport Reference: http://www.bmva.ac.uk/apps/http://www.bmva.ac.uk/apps/

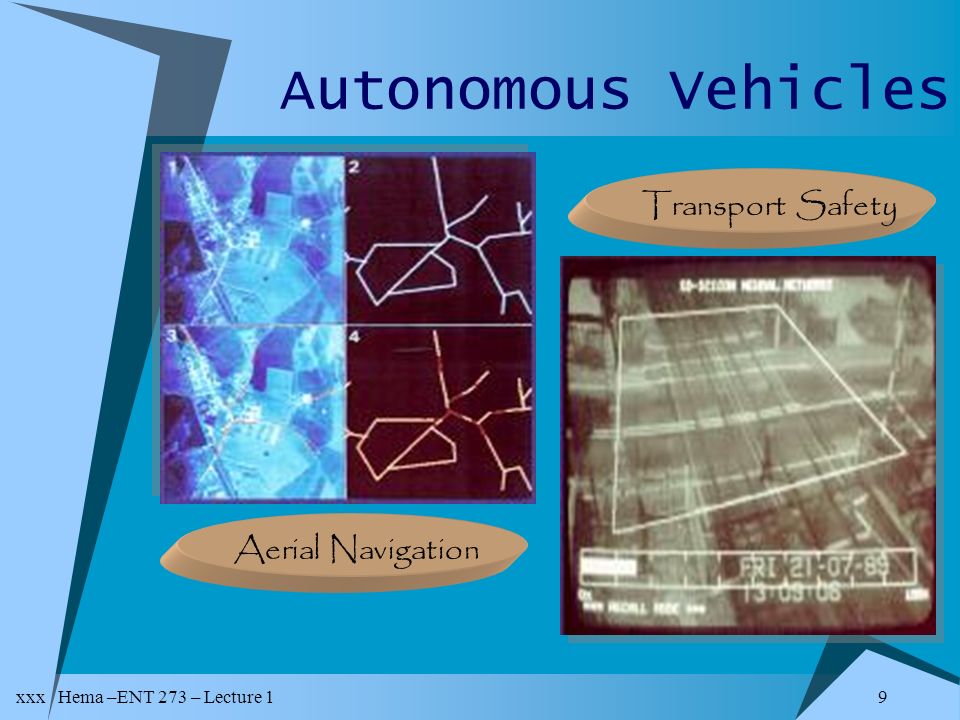

9. xxx Hema –ENT 273 – Lecture 1 9 Autonomous Vehicles Aerial NavigationTransport Safety

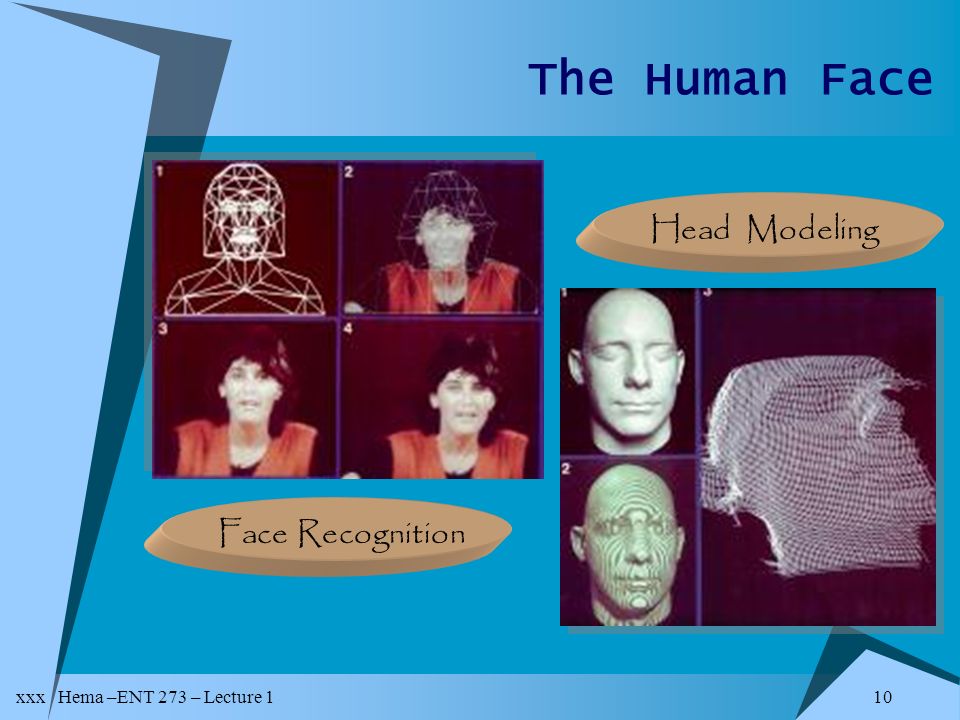

10. xxx Hema –ENT 273 – Lecture 1 10 The Human Face Head ModelingFace Recognition

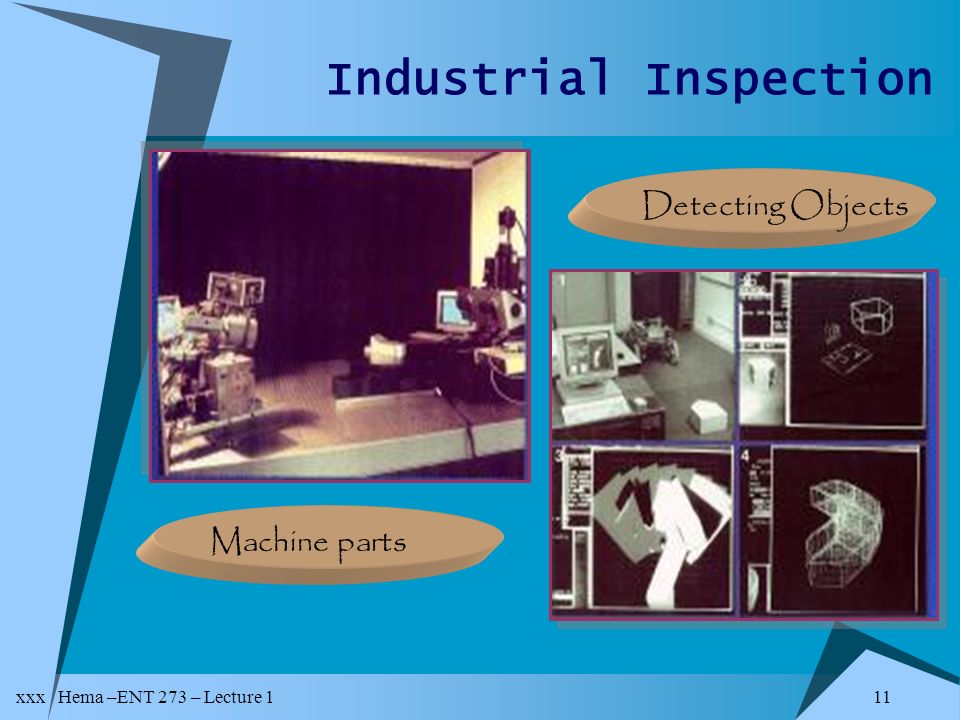

11. xxx Hema –ENT 273 – Lecture 1 11 Industrial Inspection Detecting ObjectsMachine parts

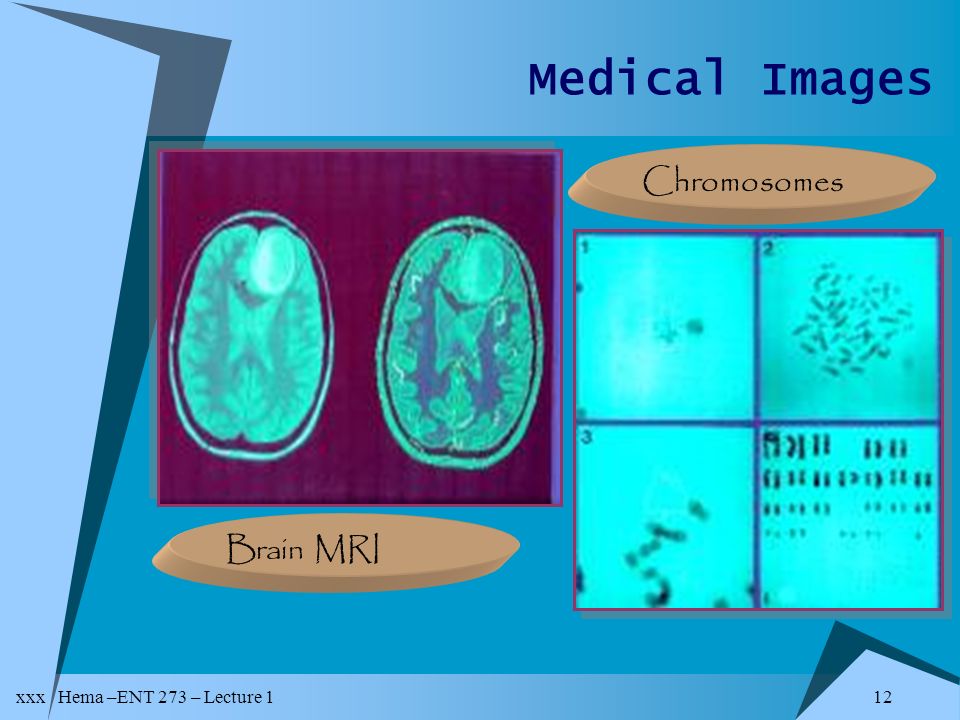

12. xxx Hema –ENT 273 – Lecture 1 12 Medical Images ChromosomesBrain MRI

13. xxx Hema –ENT 273 – Lecture 1 13 Remote Sensing Crop Classification Land Management

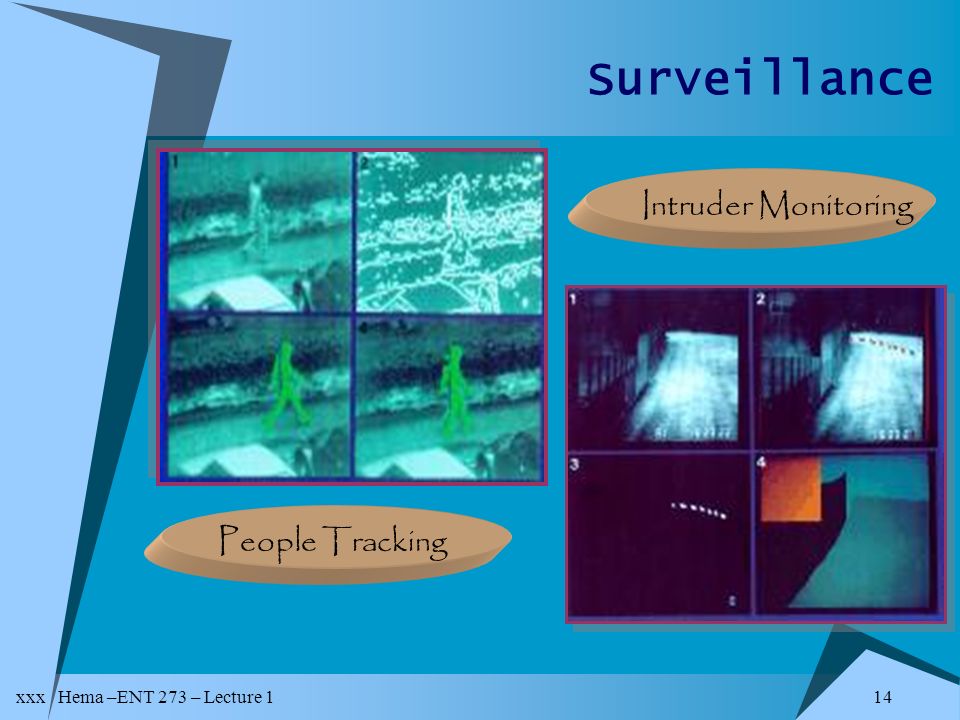

14. xxx Hema –ENT 273 – Lecture 1 14 Surveillance Intruder MonitoringPeople Tracking

15. xxx Hema –ENT 273 – Lecture 1 15 Transport Hema –ENT 496 – Lecture 1 Number PlateTraffic Control

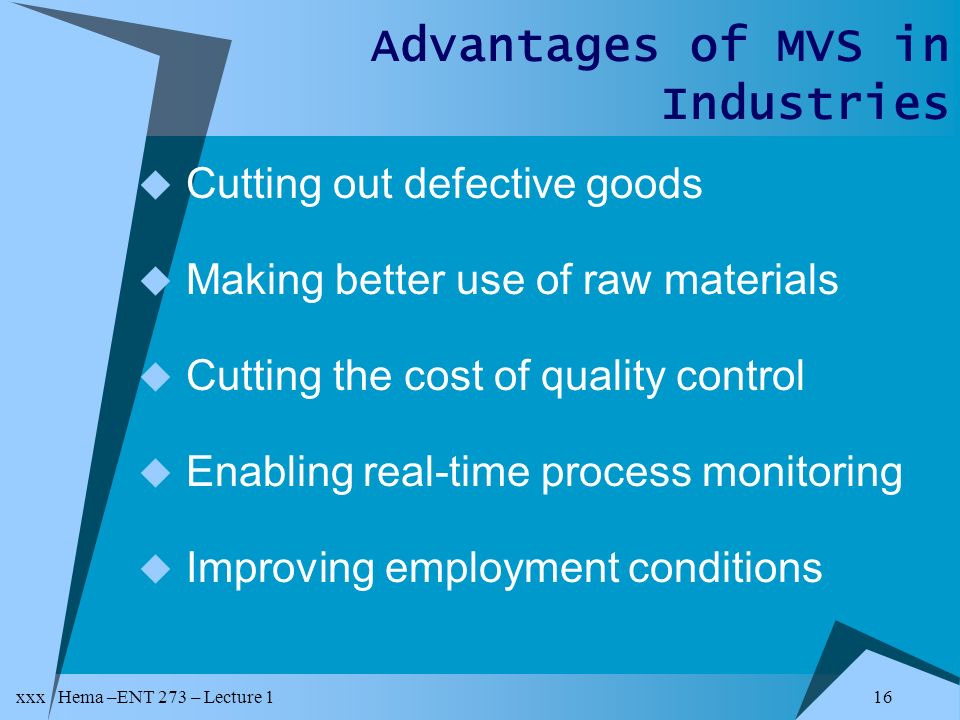

16. xxx Hema –ENT 273 – Lecture 1 16 Advantages of MVS in Industries  Cutting out defective goods  Making better use of raw materials  Cutting the cost of quality control  Enabling real-time process monitoring  Improving employment conditions

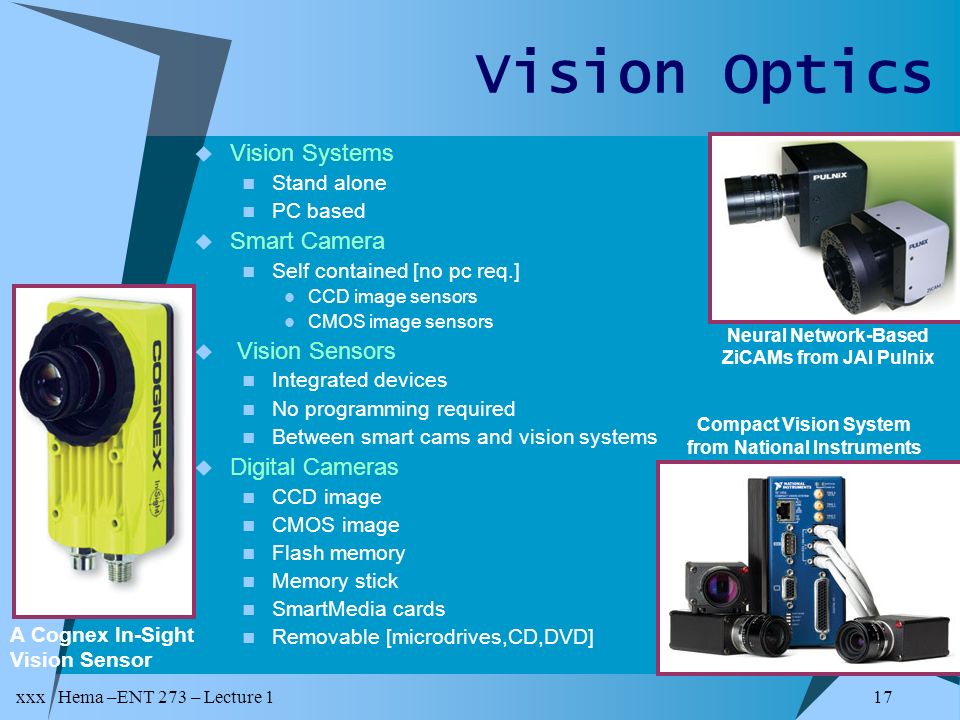

17. xxx Hema –ENT 273 – Lecture 1 17  Vision Systems Stand alone PC based  Smart Camera Self contained [no pc req.] CCD image sensors CMOS image sensors  Vision Sensors Integrated devices No programming required Between smart cams and vision systems  Digital Cameras CCD image CMOS image Flash memory Memory stick SmartMedia cards Removable [microdrives,CD,DVD] Vision Optics Neural Network-Based ZiCAMs from JAI Pulnix Compact Vision System from National Instruments A Cognex In-Sight Vision Sensor

18. xxx Hema –ENT 273 – Lecture 1 18 Imaging Sensors  Image sensors convert light into electric charge and process it into electronic signals  Image Sensors Charge Coupled Device CCD All pixels are devoted to light capture Output is uniform High image quality Used in cell phone cameras Complementary Metal Oxide Semiconductor CMOS Pixels devoted to light capture are limited Output is not uniform High Image quality Used in professional and industrial cameras

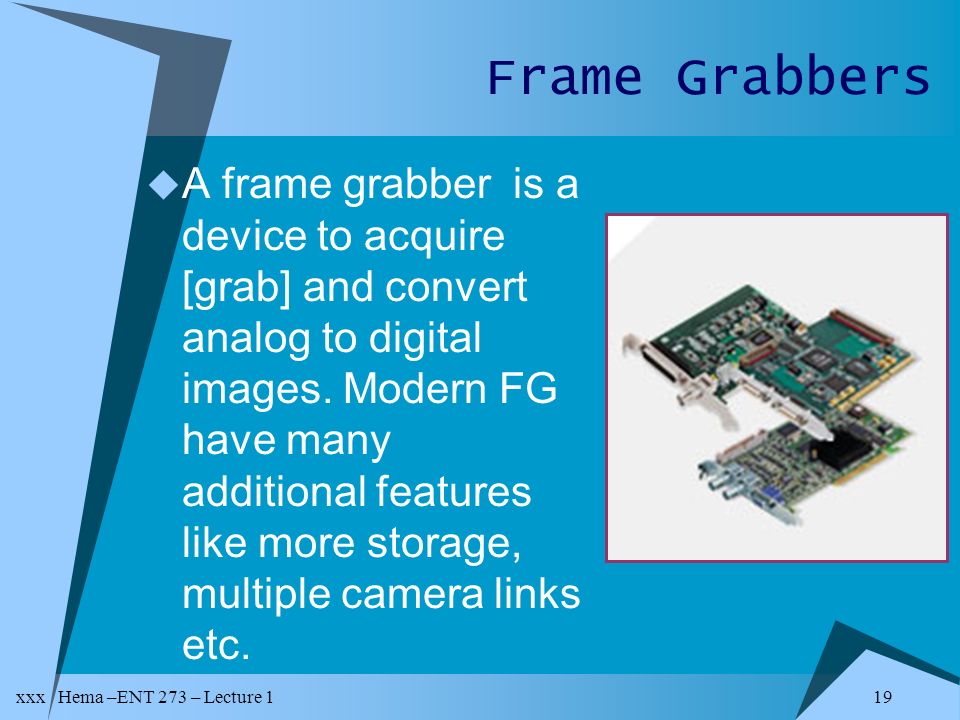

19. xxx Hema –ENT 273 – Lecture 1 19 Frame Grabbers  A frame grabber is a device to acquire [grab] and convert analog to digital images. Modern FG have many additional features like more storage, multiple camera links etc.

20. xxx Hema –ENT 273 – Lecture 1 20 Frame Grabbers  A typical frame grabber consists of a circuit to recover the horizontal and vertical synchronization pulses from the input signal; An analog to digital converter a colour decoder circuit, a function that can also be implemented in software some memory for storing the acquired image (frame buffer) a bus interface through which the main processor can control the acquisition and access the data.

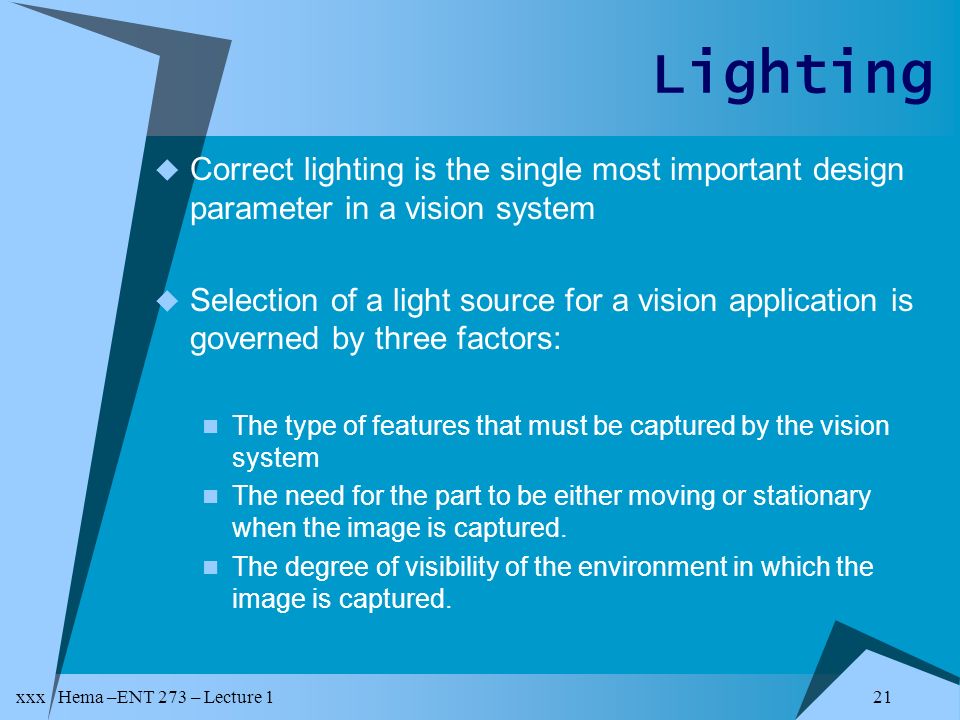

21. xxx Hema –ENT 273 – Lecture 1 21 Lighting  Correct lighting is the single most important design parameter in a vision system  Selection of a light source for a vision application is governed by three factors: The type of features that must be captured by the vision system The need for the part to be either moving or stationary when the image is captured. The degree of visibility of the environment in which the image is captured.

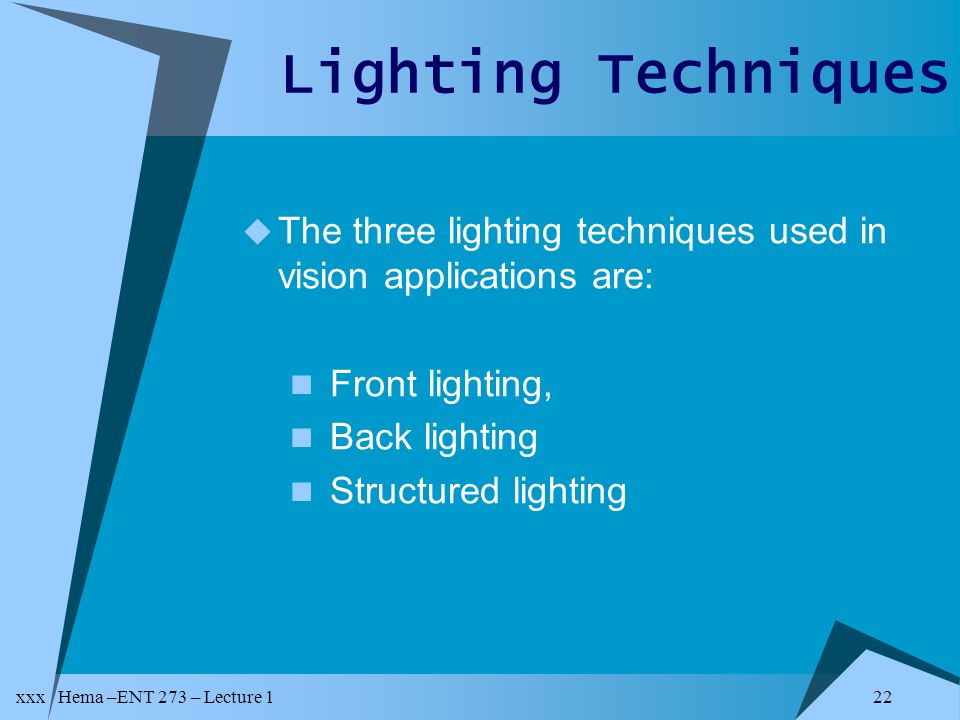

22. xxx Hema –ENT 273 – Lecture 1 22 Lighting Techniques  The three lighting techniques used in vision applications are: Front lighting, Back lighting Structured lighting

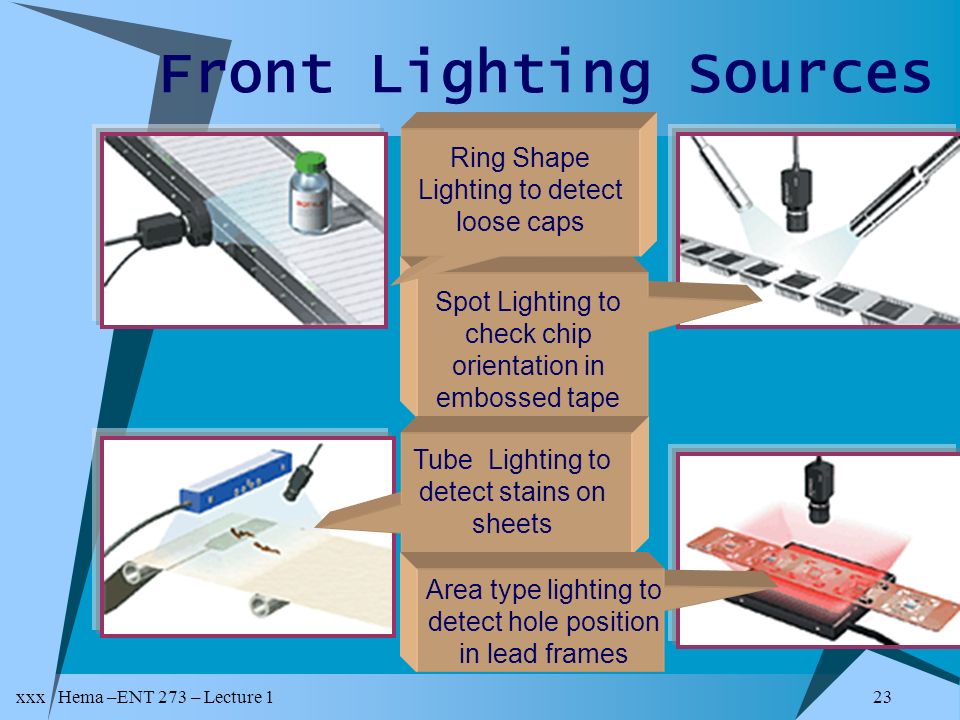

23. xxx Hema –ENT 273 – Lecture 1 23 Front Lighting Sources Spot Lighting to check chip orientation in embossed tape Ring Shape Lighting to detect loose caps Tube Lighting to detect stains on sheets Area type lighting to detect hole position in lead frames

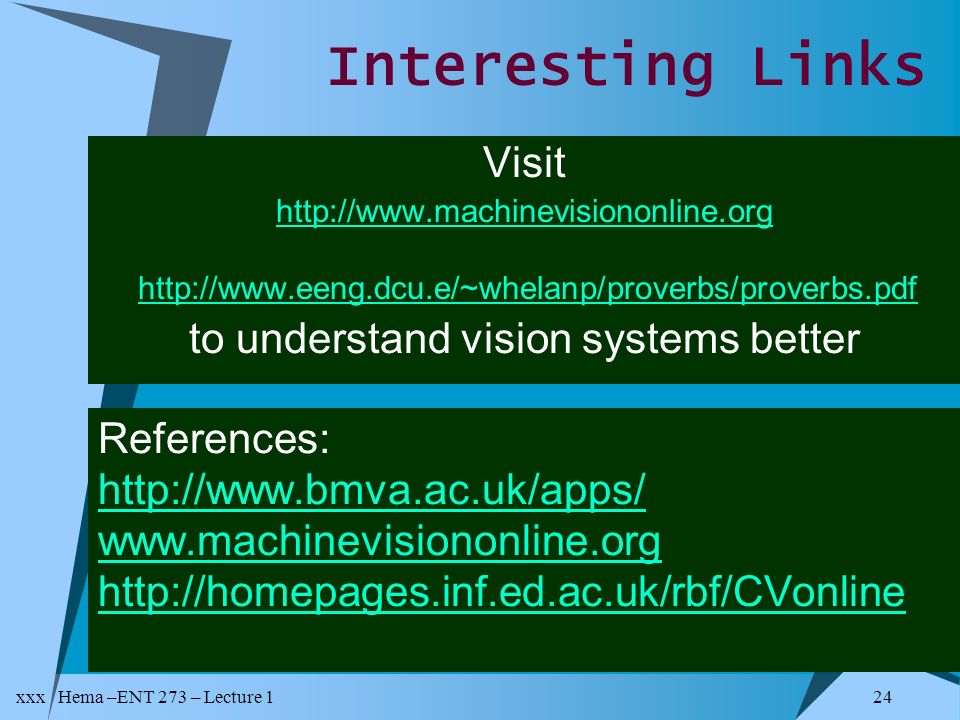

24. xxx Hema –ENT 273 – Lecture 1 24 Visit http://www.machinevisiononline.org http://www.eeng.dcu.e/~whelanp/proverbs/proverbs.pdf to understand vision systems better Interesting Links References: http://www.bmva.ac.uk/apps/ www.machinevisiononline.org http://homepages.inf.ed.ac.uk/rbf/CVonline http://www.bmva.ac.uk/apps/ www.machinevisiononline.org http://homepages.inf.ed.ac.uk/rbf/CVonline

25. Machine Vision End of Lecture 1
