1. Advanced Functional Programming Tim Sheard 1 Lecture 14 Advanced Functional Programming Tim Sheard Oregon Graduate Institute of Science & Technology Lecture 14: Dynamic Programming and Parsers Dynamic programming Memoization and lazy arrays Parsing – String based Parsing – Array based

2. Advanced Functional Programming Tim Sheard 2 Lecture 14 Thursday’s Lecture Due to the visit of Robert Giegerich, Thursday’s lecture will be a guest lecture. Thursday, February 27, 2003 at 11:00 am AB401 Pair Algebras: A (***)-Lecture on Dynamic Programming Note change in time and place from regular lecture!

3. Advanced Functional Programming Tim Sheard 3 Lecture 14 Reminder Final Projects This is due Thursday Feb. 27, 2003 –Hand it to me at the Giegerich lecture, or put it in my mailbox by the end of the day A project is a small programming exercise of your choice which utilizes some advanced feature of Haskell. You must define your own project – a 1 page description of what you will do. Good project descriptions outline the task, the procedure used, perhaps even some of the data structures. Good projects can lead to papers and publications.

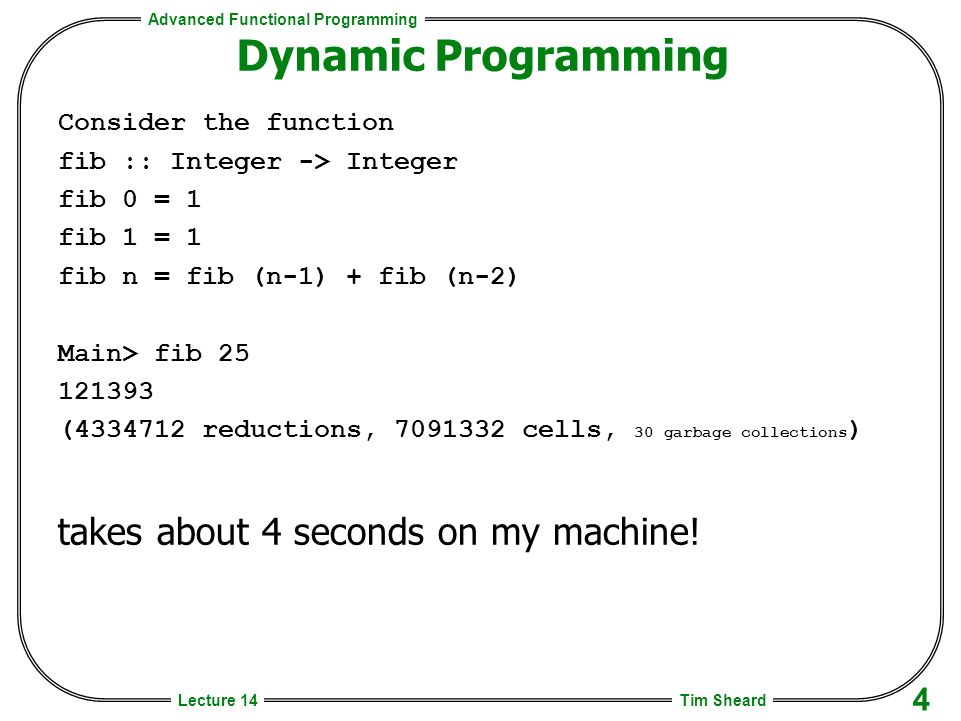

4. Advanced Functional Programming Tim Sheard 4 Lecture 14 Dynamic Programming Consider the function fib :: Integer -> Integer fib 0 = 1 fib 1 = 1 fib n = fib (n-1) + fib (n-2) Main> fib 25 121393 (4334712 reductions, 7091332 cells, 30 garbage collections ) takes about 4 seconds on my machine!

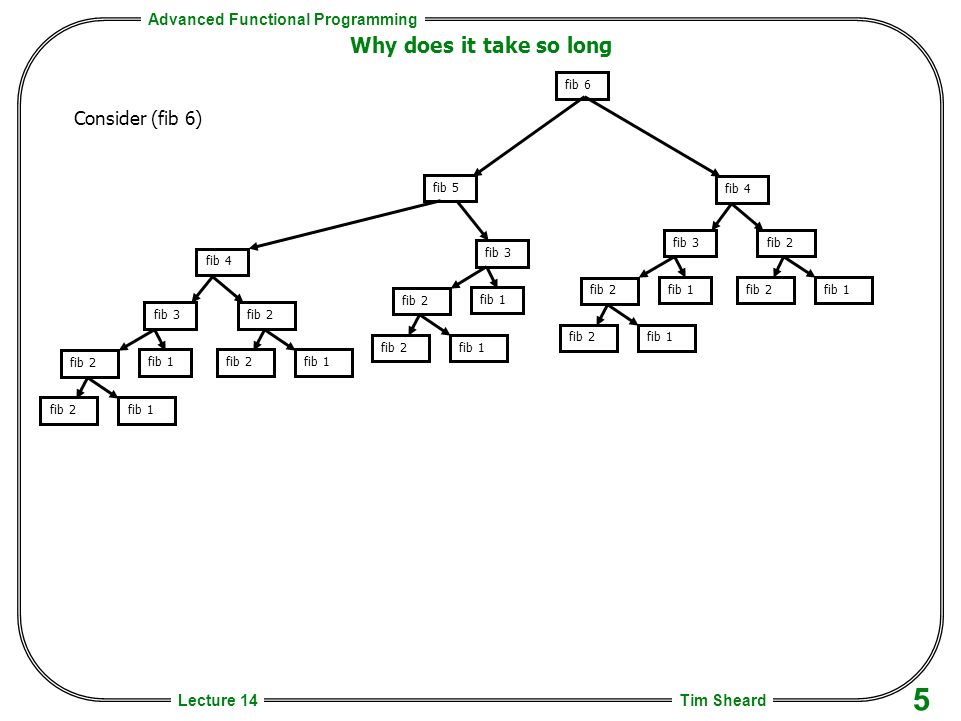

5. Advanced Functional Programming Tim Sheard 5 Lecture 14 Why does it take so long Consider (fib 6) fib 6 fib 5 fib 4 fib 2 fib 1 fib 3 fib 2 fib 1 fib 3 fib 2 fib 1 fib 4 fib 2 fib 1 fib 3 fib 2 fib 1

6. Advanced Functional Programming Tim Sheard 6 Lecture 14 Recursion does the trick fix f = f (fix f) g fib 0 = 1 g fib 1 = 1 g fib n = fib (n-1) + fib (n-2) fib1 = fix g

7. Advanced Functional Programming Tim Sheard 7 Lecture 14 Taming the duplication fib2 :: Integer -> Integer fib2 z = f z where table = array (0,z) [ (i, f i) | i <- range (0,z) ] f 0 = 1 f 1 = 1 f n = (table ! (n-1)) + (table ! (n-2)) Main> fib2 25 121393 (3299 reductions, 4603 cells) Result is instantaeous on my machine

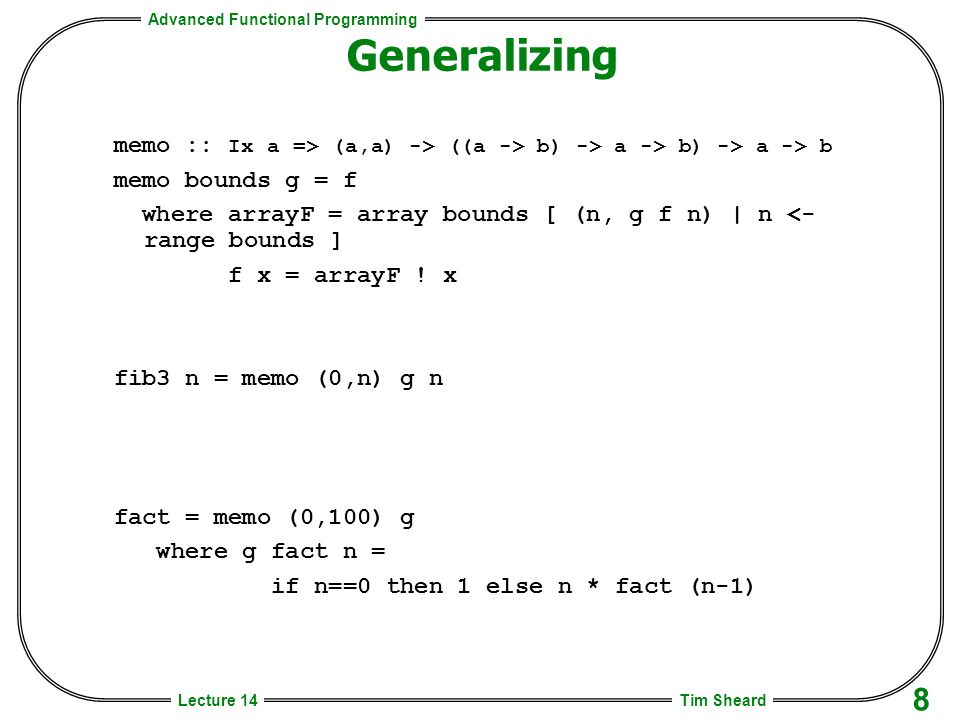

8. Advanced Functional Programming Tim Sheard 8 Lecture 14 Generalizing memo :: Ix a => (a,a) -> ((a -> b) -> a -> b) -> a -> b memo bounds g = f where arrayF = array bounds [ (n, g f n) | n <- range bounds ] f x = arrayF ! x fib3 n = memo (0,n) g n fact = memo (0,100) g where g fact n = if n==0 then 1 else n * fact (n-1)

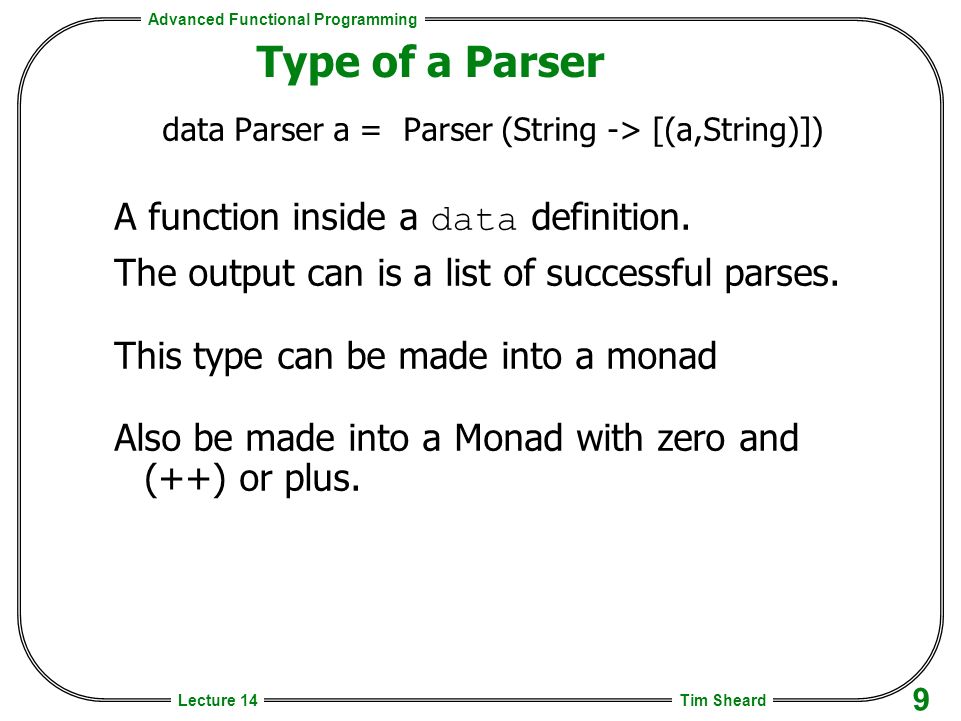

9. Advanced Functional Programming Tim Sheard 9 Lecture 14 Type of a Parser data Parser a = Parser (String -> [(a,String)]) A function inside a data definition. The output can is a list of successful parses. This type can be made into a monad Also be made into a Monad with zero and (++) or plus.

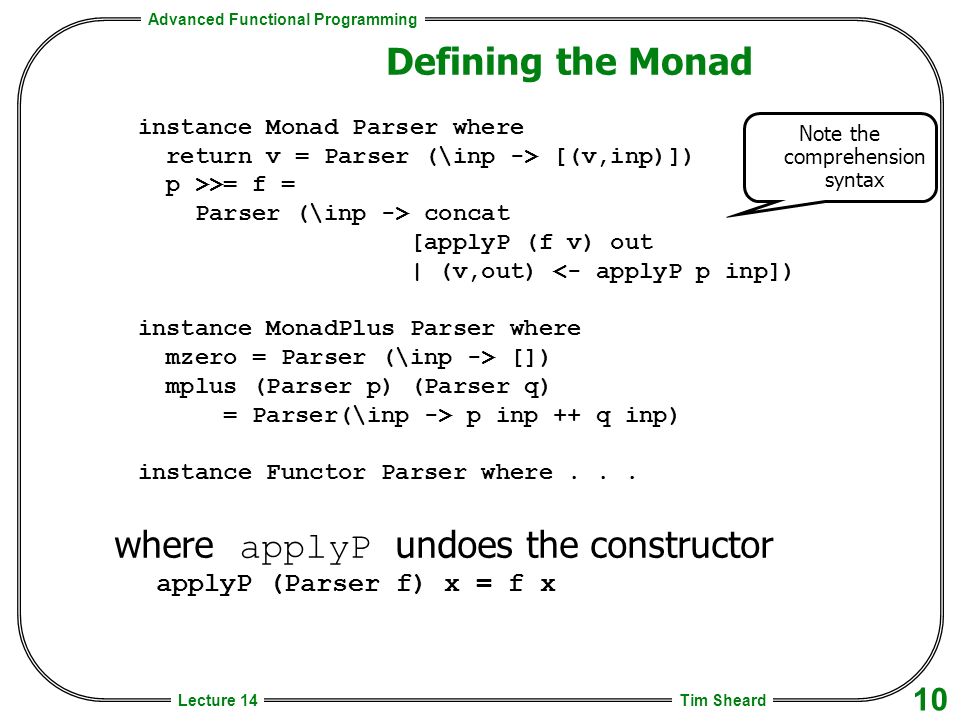

10. Advanced Functional Programming Tim Sheard 10 Lecture 14 Defining the Monad instance Monad Parser where return v = Parser (\inp -> [(v,inp)]) p >>= f = Parser (\inp -> concat [applyP (f v) out | (v,out) <- applyP p inp]) instance MonadPlus Parser where mzero = Parser (\inp -> []) mplus (Parser p) (Parser q) = Parser(\inp -> p inp ++ q inp) instance Functor Parser where... where applyP undoes the constructor applyP (Parser f) x = f x Note the comprehension syntax

11. Advanced Functional Programming Tim Sheard 11 Lecture 14 Typical Parser Because the parser is a monad we can use the Do syntax. do { x1 <- p1 ; x2 <- p2 ;... ; xn <- pn ; f x1 x2... Xn }

12. Advanced Functional Programming Tim Sheard 12 Lecture 14 Running the Parser Running Parsers papply :: Parser a -> String -> [(a,String)] papply p = applyP (do {junk; p}) junk skips over white space and comments. We'll see how to define it later

13. Advanced Functional Programming Tim Sheard 13 Lecture 14 Simple Primitives applyP :: Parser a -> String -> [(a,String)] applyP (Parser p) = p item :: Parser Char item = Parser (\inp -> case inp of "" -> [] (x:xs) -> [(x,xs)]) sat :: (Char -> Bool) -> Parser Char sat p = do {x <- item; if p x then return x else mzero} ? papply item "abc" [('a',"bc")]

14. Advanced Functional Programming Tim Sheard 14 Lecture 14 Examples ? papply item "abc" [('a',"bc")] ? papply (sat isDigit) "123" [('1',"23")] ? parse (sat isDigit) "abc" []

15. Advanced Functional Programming Tim Sheard 15 Lecture 14 Useful Parsers char :: Char -> Parser Char char x = sat (x ==) digit :: Parser Int digit = do { x <- sat isDigit ; return (ord x - ord '0') } lower :: Parser Char lower = sat isLower upper :: Parser Char upper = sat isUpper

16. Advanced Functional Programming Tim Sheard 16 Lecture 14 Examples char x = sat (x ==) ? papply (char 'z') "abc" [] ? papply (char 'a') "abc" [('a',"bc")] ? papply digit "123" [(1,"23")] ? papply upper "ABC" [('A',"BC")] ? papply lower "ABC" []

17. Advanced Functional Programming Tim Sheard 17 Lecture 14 More Useful Parsers letter :: Parser Char letter = sat isAlpha Can even use recursion string :: String -> Parser String string "" = return "" string (x:xs) = do {char x; string xs; return (x:xs) } Helps define even more useful parsers identifier :: Parser String identifier = do {x <- lower ; xs <- many alphanum ; return (x:xs)} What do you think many does?

18. Advanced Functional Programming Tim Sheard 18 Lecture 14 Examples ? papply (string "tim") "tim is red" [("tim"," is red")] ? papply identifier "tim is blue" [("tim"," is blue")] ? papply identifier "x5W3 = 12" [("x5W3"," = 12")]

19. Advanced Functional Programming Tim Sheard 19 Lecture 14 Choice -- 1 parser or another Note that the ++ operator (from MonadPlus) gives non-deterministic choice. instance MonadPlus Parser where (Parser p) ++ (Parser q) = Parser(\inp -> p inp ++ q inp) Sometimes we’d like to prefer one choice over another, and take the second only if the first fails We don’t we need an explicit sequencing operator because the monad sequencing plays that role.

20. Advanced Functional Programming Tim Sheard 20 Lecture 14 Efficiency force :: Parser a -> Parser a force p = Parser (\ inp -> let x = applyP p inp in (fst (head x), snd (head x)) : (tail x) ) Deterministic Choice (+++) :: Parser a -> Parser a -> Parser a p +++ q = Parser(\inp -> case applyP (p `mplus` q) inp of [] -> [] (x:xs) -> [x])

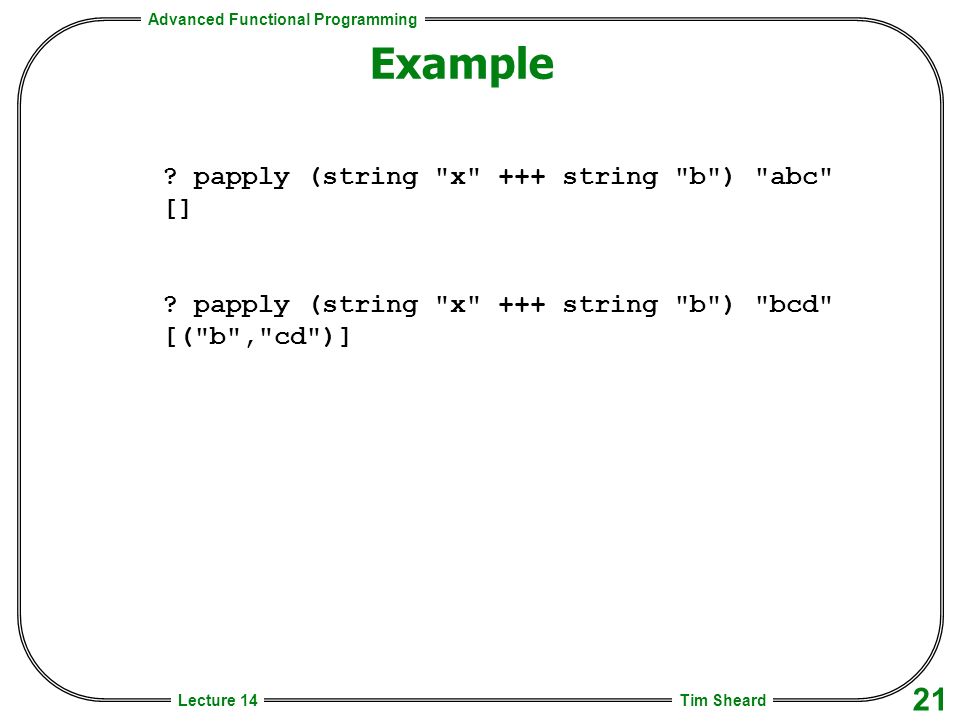

21. Advanced Functional Programming Tim Sheard 21 Lecture 14 Example ? papply (string "x" +++ string "b") "abc" [] ? papply (string "x" +++ string "b") "bcd" [("b","cd")]

22. Advanced Functional Programming Tim Sheard 22 Lecture 14 Sequences (more recursion) many :: Parser a -> Parser [a] many p = force (many1 p +++ return []) many1 :: Parser a -> Parser [a] many1 p = do {x <- p ; xs <- many p ; return (x:xs)} sepby :: Parser a -> Parser b -> Parser [a] p `sepby` sep = (p `sepby1` sep) +++ return [] sepby1 :: Parser a -> Parser b -> Parser [a] p `sepby1` sep = do { x <- p ; xs <- many (do {sep; p}) ; return (x:xs) }

23. Advanced Functional Programming Tim Sheard 23 Lecture 14 Example ? papply (many (char 'z')) "zzz234" [("zzz","234")] ? papply (sepby (char 'z') spaceP) "z z z 34" [("zzz"," 34")]

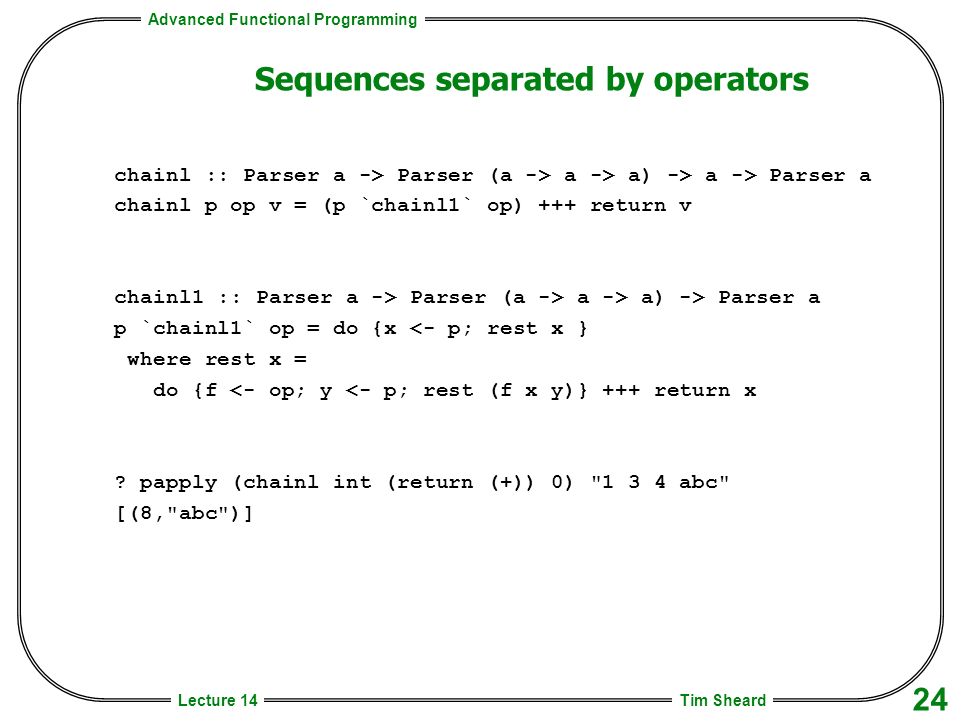

24. Advanced Functional Programming Tim Sheard 24 Lecture 14 Sequences separated by operators chainl :: Parser a -> Parser (a -> a -> a) -> a -> Parser a chainl p op v = (p `chainl1` op) +++ return v chainl1 :: Parser a -> Parser (a -> a -> a) -> Parser a p `chainl1` op = do {x <- p; rest x } where rest x = do {f <- op; y <- p; rest (f x y)} +++ return x ? papply (chainl int (return (+)) 0) "1 3 4 abc" [(8,"abc")]

25. Advanced Functional Programming Tim Sheard 25 Lecture 14 Tokens and Lexical Issues spaceP :: Parser () spaceP = do {many1 (sat isSpace); return ()} comment :: Parser () comment = do{string "--"; many (sat p); return ()} where p x = x /= '\n' junk :: Parser () junk = do {many (spaceP +++ comment); return ()} A Token is any parser followed by white space or a comment token :: Parser a -> Parser a token p = do {v <- p; junk; return v}

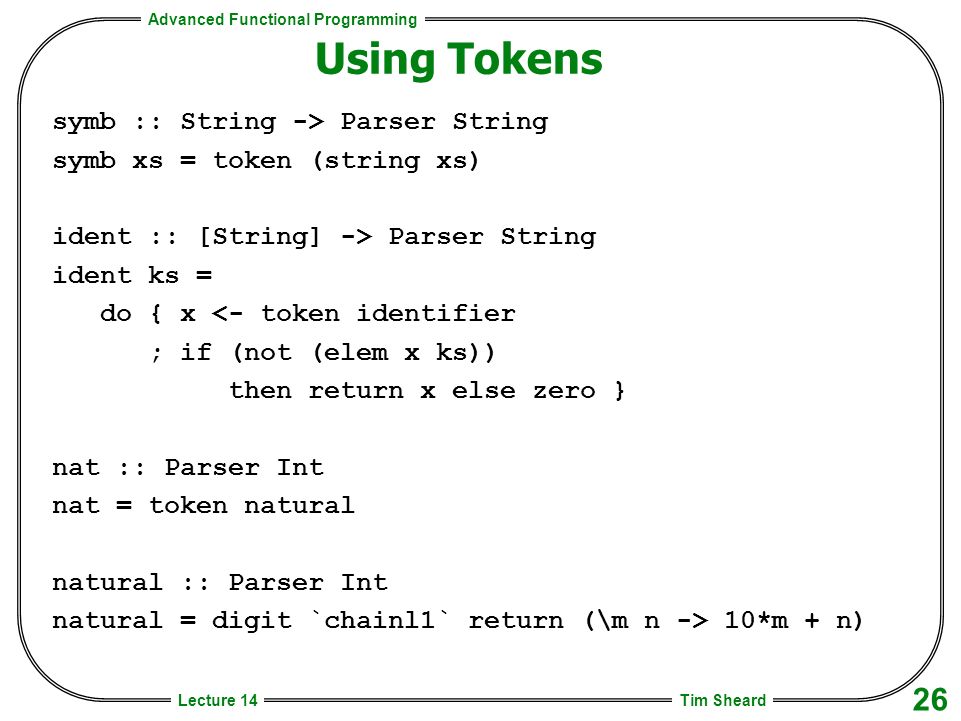

26. Advanced Functional Programming Tim Sheard 26 Lecture 14 Using Tokens symb :: String -> Parser String symb xs = token (string xs) ident :: [String] -> Parser String ident ks = do { x <- token identifier ; if (not (elem x ks)) then return x else zero } nat :: Parser Int nat = token natural natural :: Parser Int natural = digit `chainl1` return (\m n -> 10*m + n)

27. Advanced Functional Programming Tim Sheard 27 Lecture 14 Example ? papply (token (char 'z')) "z 123" [('z',"123")] ? papply (symb "tim") "tim is cold" [("tim","is cold")] ? papply natural "123 abc" [(123," abc")] ? papply (many identifier) "x d3 23" [(["x"]," d3 23")] ? papply (many (token identifier)) "x d3 23" [(["x", "d3"],"23")]

28. Advanced Functional Programming Tim Sheard 28 Lecture 14 More Parsers int :: Parser Int int = token integer integer :: Parser Int integer = (do {char '-’ ; n <- natural ; return (-n)}) +++ nat

29. Advanced Functional Programming Tim Sheard 29 Lecture 14 Example: Parsing Expressions data Term = Add Term Term | Sub Term Term | Mult Term Term | Div Term Term | Const Int addop:: Parser(Term -> Term -> Term) addop = do {symb "+"; return Add} +++ do {symb "-"; return Sub} mulop:: Parser(Term -> Term -> Term) mulop = do {symb "*";return Mult} +++ do {symb "/"; return Div}

30. Advanced Functional Programming Tim Sheard 30 Lecture 14 Constructing a Parse tree expr :: Parser Term addop :: Parser (Term -> Term -> Term) mulop :: Parser (Term -> Term -> Term) expr = term `chainl1` addop term = factor `chainl1` mulop factor = (do { n <- token digit ; return (Const n)}) +++ (do {symb "(“ ; n <- expr ; symb ")“ ; return n}) ? papply expr "5 abc" [(Const 5,"abc")] ? papply expr "4 + 5 - 2" [(Sub (Add (Const 4) (Const 5))(Const 2),[])]

31. Advanced Functional Programming Tim Sheard 31 Lecture 14 Array Based Parsers type Subword = (Int,Int) newtype P a = P (Array Int Char -> Subword -> [a]) unP (P z) = z emptyP :: P () emptyP = P f where f z (i,j) = [() | i == j] notchar :: Char -> P Char notchar s = P f where f z (i,j) = [z!j | i+1 == j, z!j /= s] charP :: Char -> P Char charP c = P f where f z (i,j) = [c | i+1 == j, z!j == c]

32. Advanced Functional Programming Tim Sheard 32 Lecture 14 anychar :: P Char anychar = P f where f z (i,j) = [z!j | i+1 == j] anystring :: P(Int,Int) anystring = P f where f z (i,j) = [(i,j) | i <= j] symbol :: String -> P (Int,Int) symbol s = P f where f z (i,j) = if j-i == length s then [(i,j)| and [z!(i+k) == s!!(k-1) | k <-[1..(j-i)]]] else []

33. Advanced Functional Programming Tim Sheard 33 Lecture 14 Combinators infixr 6 ||| (|||) :: P b -> P b -> P b (|||) (P r) (P q) = P f where f z (i,j) = r z (i,j) ++ q z (i,j) infix 8 <<< ( c) -> P b -> P c (<<<) f (P q) = P h where h z (i,j) = map f (q z (i,j)) infixl 7 ~~~ (~~~) :: P(b -> c) -> P b -> P c (~~~) (P r) (P q) = P f where f z (i,j) = [f y | k <- [i..j], f <- r z (i,k), y <- q z (k,j)]

34. Advanced Functional Programming Tim Sheard 34 Lecture 14 run :: String -> P b -> [b] run s (P ax) = ax (s2a s) (0,length s) s2a s = (array bounds (zip [1..] s)) where bounds = (1,length s) instance Monad P where return x = P(\ z (i,j) -> if i==j then [x] else []) (>>=) (P f) g = P h where h z (i,j) = concat[ unP (g a) z (k,j) | k <- [i..j], a <- f z (i,k)]

35. Advanced Functional Programming Tim Sheard 35 Lecture 14 Examples p1 = do { symbol "tim"; c <- anychar ; symbol "tom"; return c} ex4 = run "tim5tom" p1 ex5 = run "timtom" p1 Main> ex4 "5" (1808 reductions, 2646 cells) Main> ex5 "" (1288 reductions, 1864 cells)
