1. Getting Started With the Dukane Document Camera

2. The Anatomy of a Dukane Document Camera AC In VGA Out Composite Video USB DVI Out DC Out Control Pad Lamp Lens

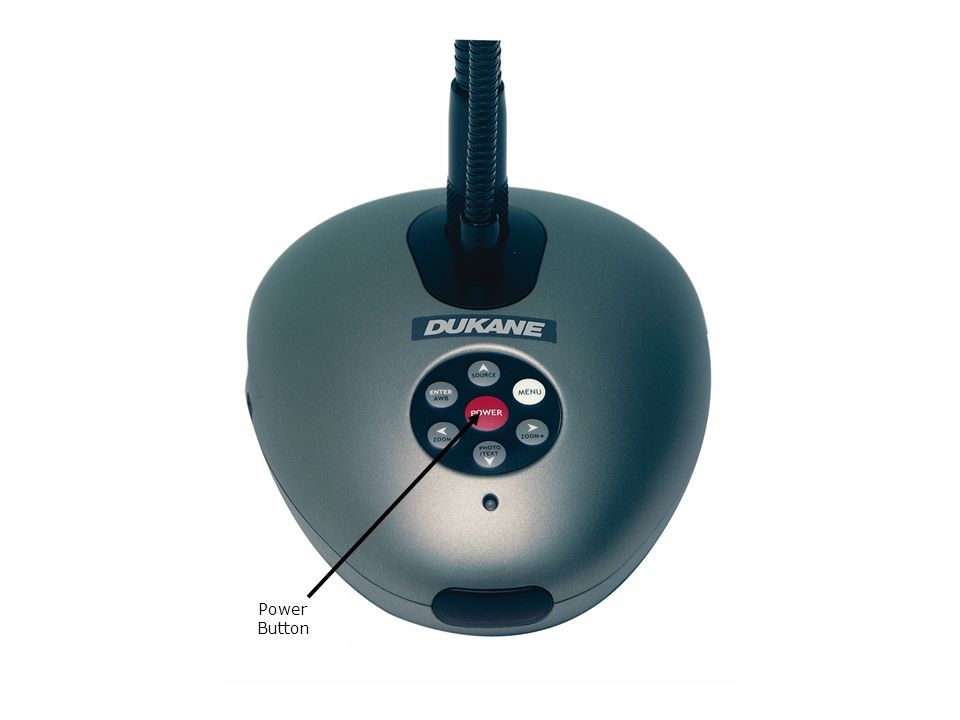

3. Power Button

4. Getting Started 1. Connect the VGA cord to the presentation workstation plate.

5. 2. Plug the pronged end of the power cord into the grey wall power outlet. Getting Started

6. 3. Plug the opposite end of the VGA cord (a) into the “VGA Out” socket on the back of the Dukane Document Camera base. Also, plug the opposite end of the AC power cord (b) into the “AC In” socket on the back of the Dukane Document Camera base. Getting Started (a) (b)

7. 4. Press the power button to turn on the Dukane Document Camera. A light on the base turns from red to blue. The lamp will turn on. Getting Started Power Button Note: Using the room media remote control, turn on the data projector to the correct input channel (125).

8. 5. Place a document under the lens. Getting Started Note: Turn the lens to focus the image

9. 6. Use the Zoom in and Zoom out buttons as necessary. Getting Started Zoom Out Zoom In

10. 7. For more information, download the official User Guide.User Guide

11. Getting Started With the Dukane Document Camera
