Cube World Demystified!!
2

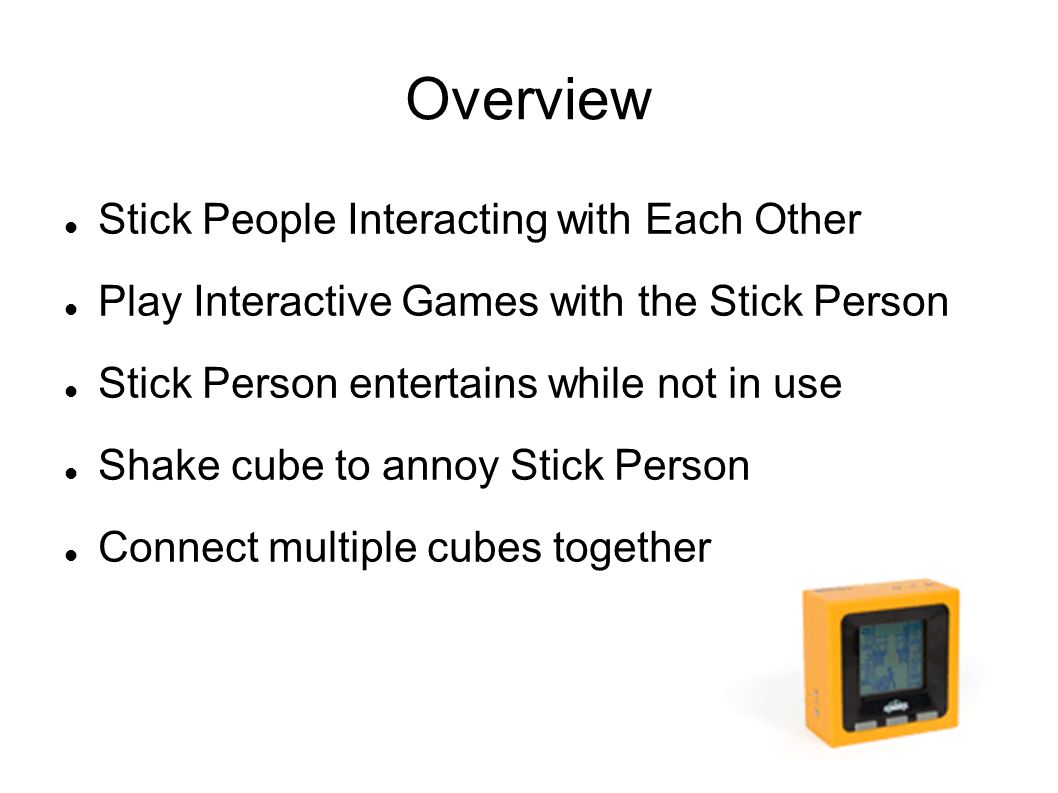

Overview Stick People Interacting with Each Other Play Interactive Games with the Stick Person Stick Person entertains while not in use Shake cube to annoy Stick Person Connect multiple cubes together
3
Motherboard Diagram
4
Input Breakdown Motion Sensor (75040 REV.A 76138800) Movement of metal ball inside a hollow sphere causes vibration, activating a piezoelectric plate. Internal Sensor communicates to Stick Person of current orientation(doesn't work for multiple cubes connected together)
5
Input Breakdown Panel Buttons Sound – Mutes/unmutes speaker On/Play – Power On/Starts interactive game High Score – Displays high score Reset Button It resets the cube's animation to a preset.
6
Output Breakdown Speaker 32 Ohm, 0.25W, Diameter = 1.25” LCD Screen 1” x 1” Square Display Monochrome 32 x 32 pixels resolution
7
I/O Diagram
8
Brains CPU, RAM, Flash Memory Operates graphics display Responds to motion sensor magnetic connections on sides input panel buttons, reset button Handles communications between other cubes
9
Questions??
