1. Lecture 1, 7/21/2005Natural Language Processing1 CS60057 Speech &Natural Language Processing Autumn 2007 Lecture 3 27 July 2007

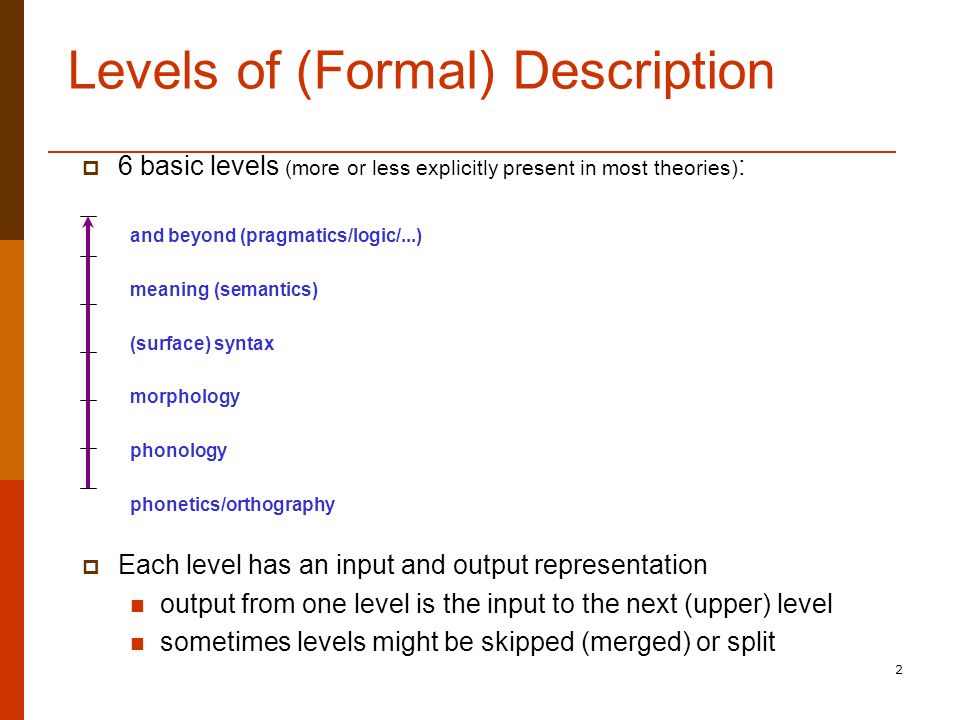

2. 2 Levels of (Formal) Description  6 basic levels (more or less explicitly present in most theories) : and beyond (pragmatics/logic/...) meaning (semantics) (surface) syntax morphology phonology phonetics/orthography  Each level has an input and output representation output from one level is the input to the next (upper) level sometimes levels might be skipped (merged) or split

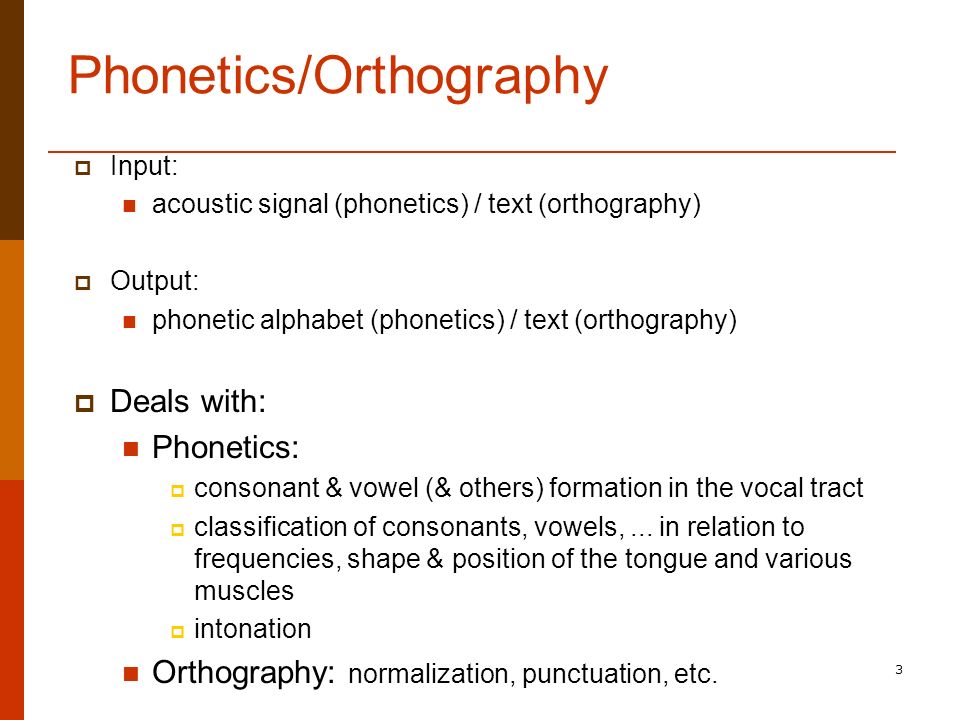

3. 3 Phonetics/Orthography  Input: acoustic signal (phonetics) / text (orthography)  Output: phonetic alphabet (phonetics) / text (orthography)  Deals with: Phonetics:  consonant & vowel (& others) formation in the vocal tract  classification of consonants, vowels,... in relation to frequencies, shape & position of the tongue and various muscles  intonation Orthography: normalization, punctuation, etc.

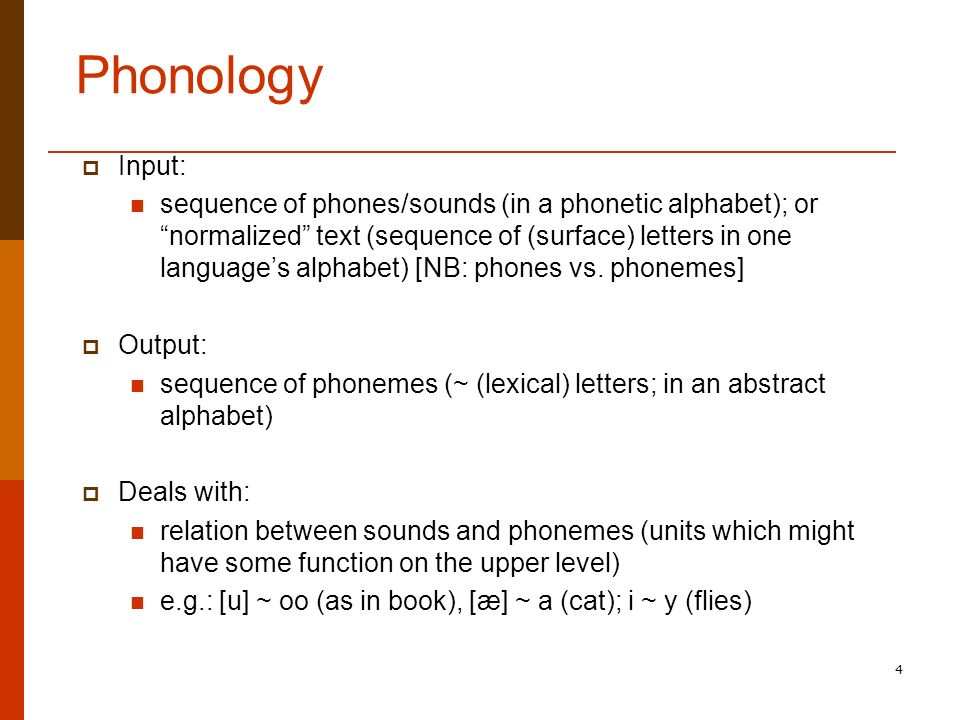

4. 4 Phonology  Input: sequence of phones/sounds (in a phonetic alphabet); or “normalized” text (sequence of (surface) letters in one language’s alphabet) [NB: phones vs. phonemes]  Output: sequence of phonemes (~ (lexical) letters; in an abstract alphabet)  Deals with: relation between sounds and phonemes (units which might have some function on the upper level) e.g.: [u] ~ oo (as in book), [æ] ~ a (cat); i ~ y (flies)

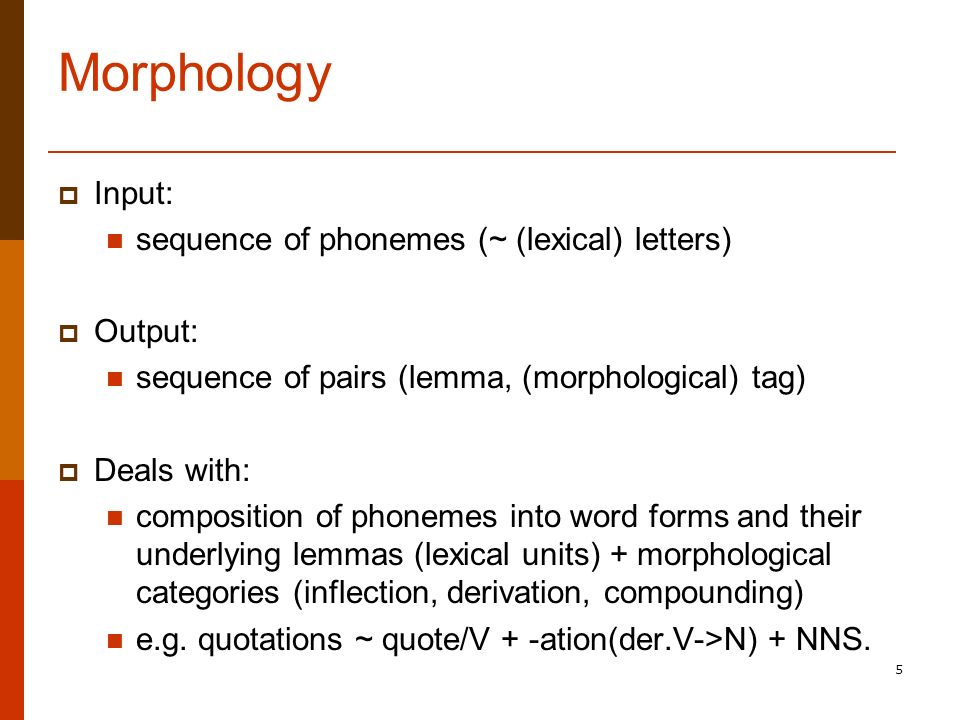

5. 5 Morphology  Input: sequence of phonemes (~ (lexical) letters)  Output: sequence of pairs (lemma, (morphological) tag)  Deals with: composition of phonemes into word forms and their underlying lemmas (lexical units) + morphological categories (inflection, derivation, compounding) e.g. quotations ~ quote/V + -ation(der.V->N) + NNS.

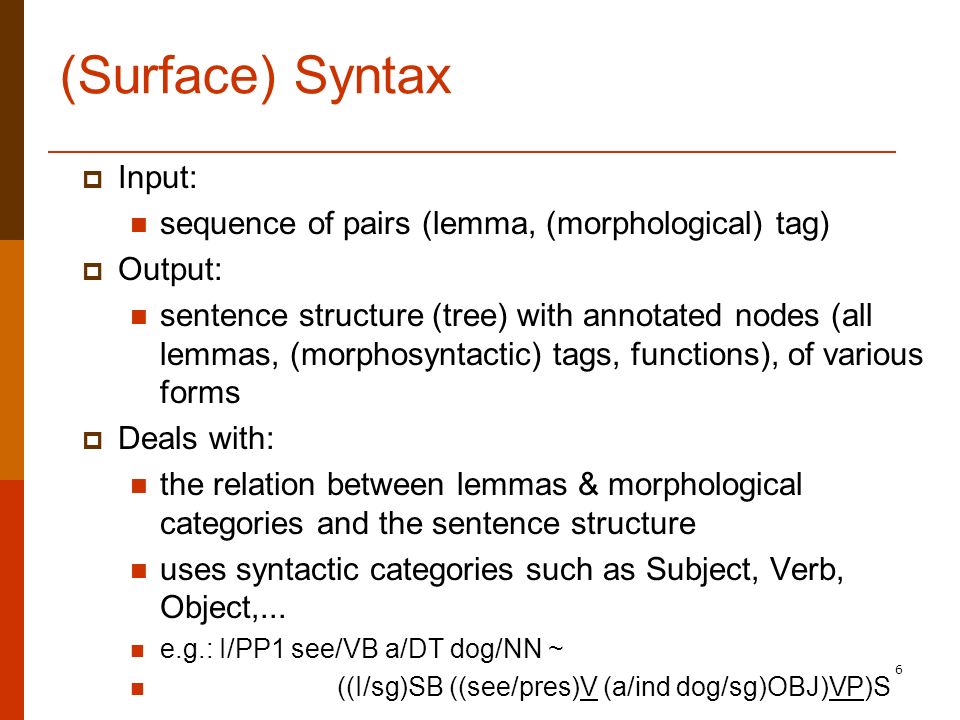

6. 6 (Surface) Syntax  Input: sequence of pairs (lemma, (morphological) tag)  Output: sentence structure (tree) with annotated nodes (all lemmas, (morphosyntactic) tags, functions), of various forms  Deals with: the relation between lemmas & morphological categories and the sentence structure uses syntactic categories such as Subject, Verb, Object,... e.g.: I/PP1 see/VB a/DT dog/NN ~ ((I/sg)SB ((see/pres)V (a/ind dog/sg)OBJ)VP)S

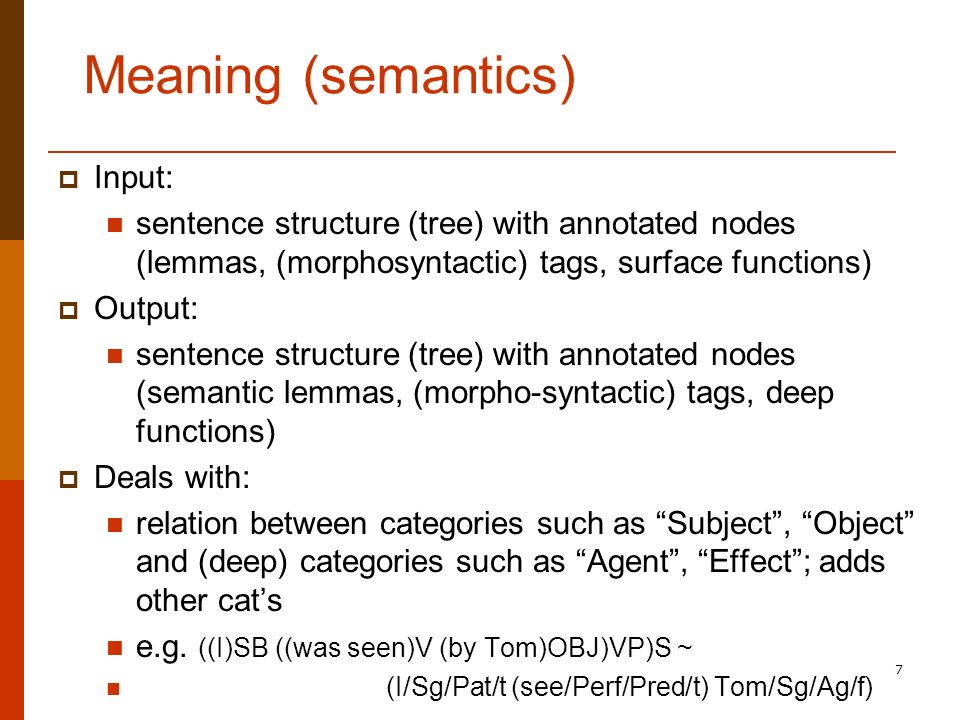

7. 7 Meaning (semantics)  Input: sentence structure (tree) with annotated nodes (lemmas, (morphosyntactic) tags, surface functions)  Output: sentence structure (tree) with annotated nodes (semantic lemmas, (morpho-syntactic) tags, deep functions)  Deals with: relation between categories such as “Subject”, “Object” and (deep) categories such as “Agent”, “Effect”; adds other cat’s e.g. ((I)SB ((was seen)V (by Tom)OBJ)VP)S ~ (I/Sg/Pat/t (see/Perf/Pred/t) Tom/Sg/Ag/f)

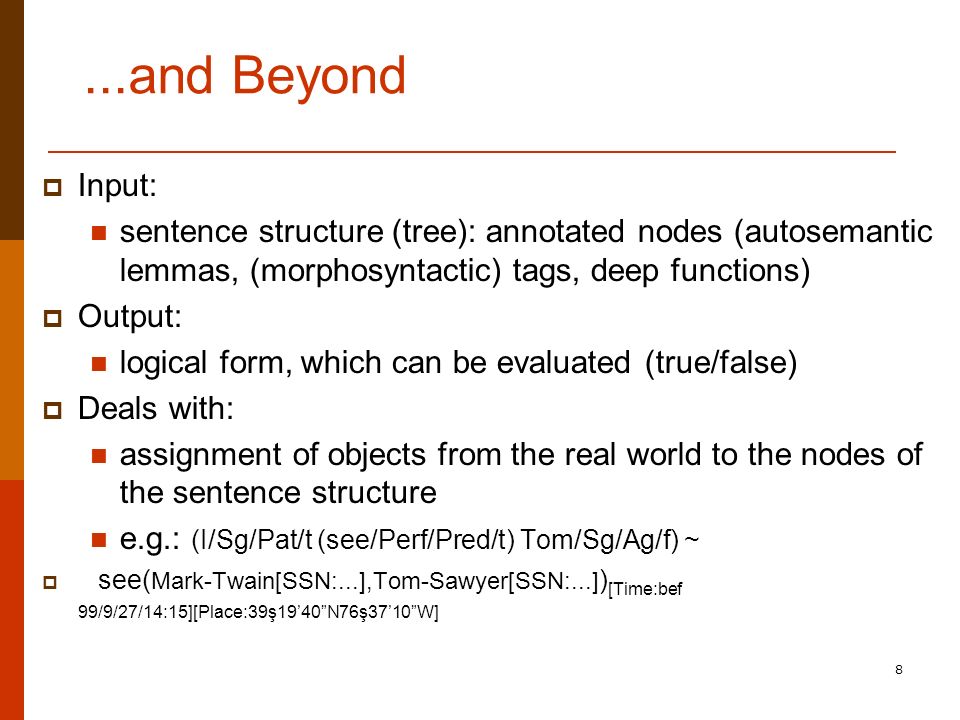

8. 8...and Beyond  Input: sentence structure (tree): annotated nodes (autosemantic lemmas, (morphosyntactic) tags, deep functions)  Output: logical form, which can be evaluated (true/false)  Deals with: assignment of objects from the real world to the nodes of the sentence structure e.g.: (I/Sg/Pat/t (see/Perf/Pred/t) Tom/Sg/Ag/f) ~  see( Mark-Twain[SSN:...],Tom-Sawyer[SSN:...] ) [Time:bef 99/9/27/14:15][Place:39ş19’40”N76ş37’10”W]

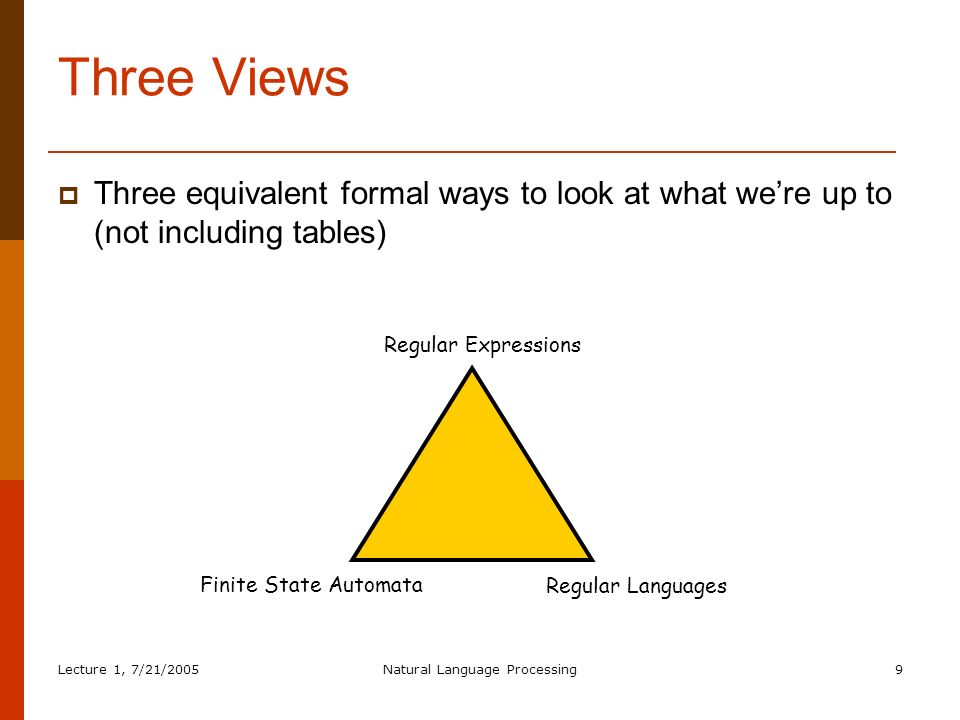

9. Lecture 1, 7/21/2005Natural Language Processing9 Three Views  Three equivalent formal ways to look at what we’re up to (not including tables) Regular Expressions Regular Languages Finite State Automata

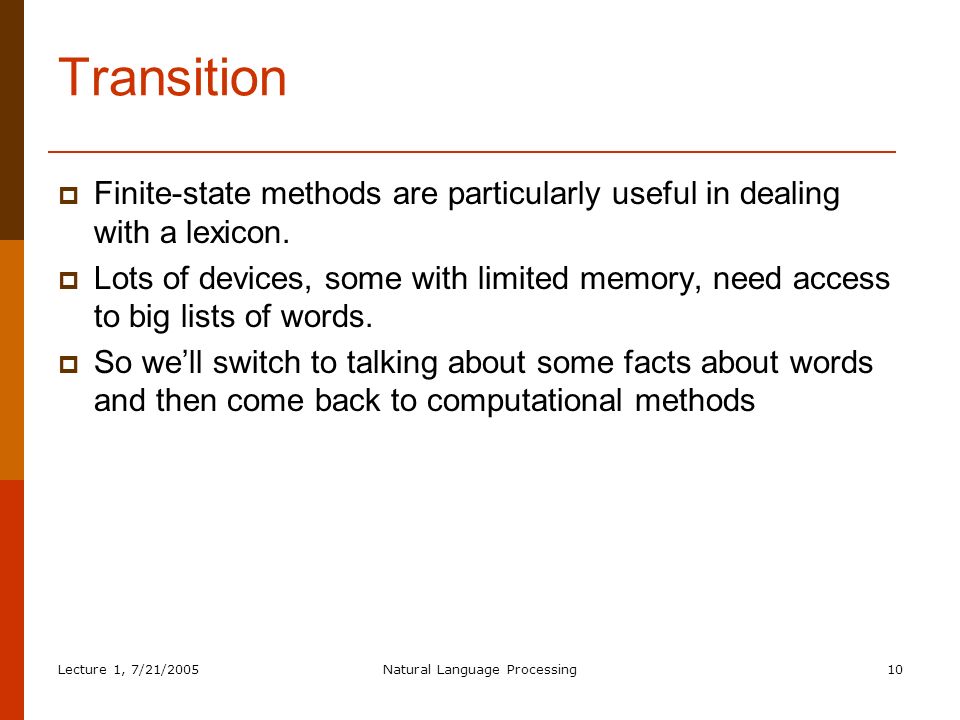

10. Lecture 1, 7/21/2005Natural Language Processing10 Transition  Finite-state methods are particularly useful in dealing with a lexicon.  Lots of devices, some with limited memory, need access to big lists of words.  So we’ll switch to talking about some facts about words and then come back to computational methods

11. Lecture 1, 7/21/2005Natural Language Processing11 MORPHOLOGY

12. Lecture 1, 7/21/2005Natural Language Processing12 Morphology  Morphology is the study of the ways that words are built up from smaller meaningful units called morphemes (morph = shape, logos = word)  We can usefully divide morphemes into two classes Stems: The core meaning bearing units Affixes: Bits and pieces that adhere to stems to change their meanings and grammatical functions  Prefix: un-, anti-, etc  Suffix: -ity, -ation, etc  Infix: are inserted inside the stem  Tagalog: um + hingi  humingi  Circumfixes – precede and follow the stem  English doesn’t stack more affixes.  But Turkish can have words with a lot of suffixes.  Languages, such as Turkish, tend to string affixes together are called agglutinative languages.

13. Lecture 1, 7/21/2005Natural Language Processing13 Surface and Lexical Forms  The surface level of a word represents the actual spelling of that word. geliyorum eats cats kitabım  The lexical level of a word represents a simple concatenation of morphemes making up that word. gel +PROG +1SG eat +AOR cat +PLU kitap +P1SG  Morphological processors try to find correspondences between lexical and surface forms of words. Morphological recognition/ analysis – surface to lexical Morphological generation/ synthesis – lexical to surface

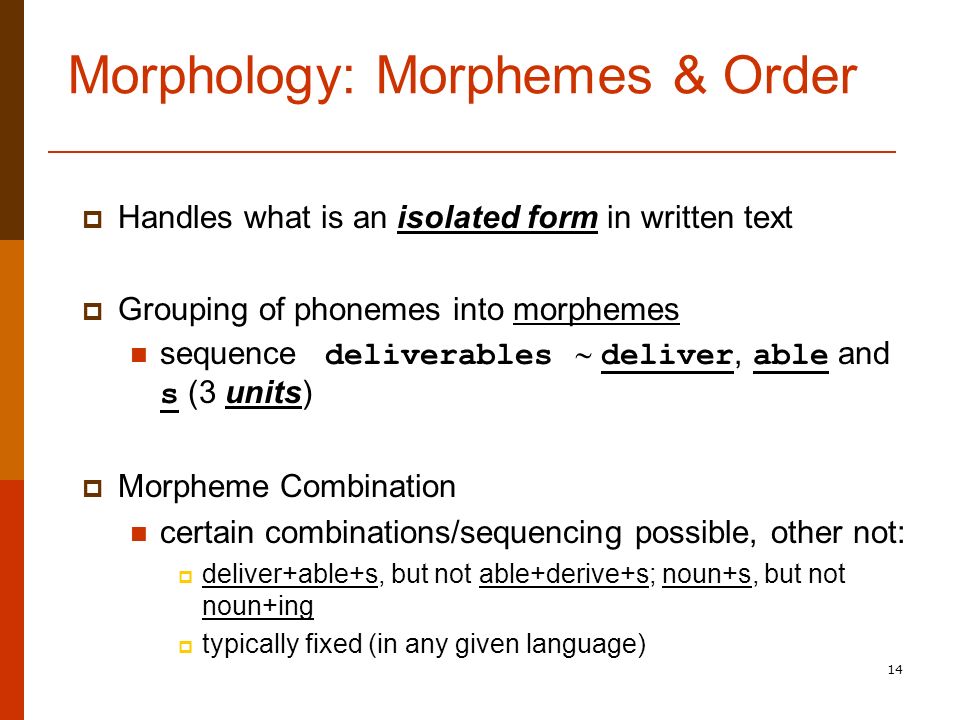

14. 14 Morphology: Morphemes & Order  Handles what is an isolated form in written text  Grouping of phonemes into morphemes sequence deliverables  deliver, able and s (3 units)  Morpheme Combination certain combinations/sequencing possible, other not:  deliver+able+s, but not able+derive+s; noun+s, but not noun+ing  typically fixed (in any given language)

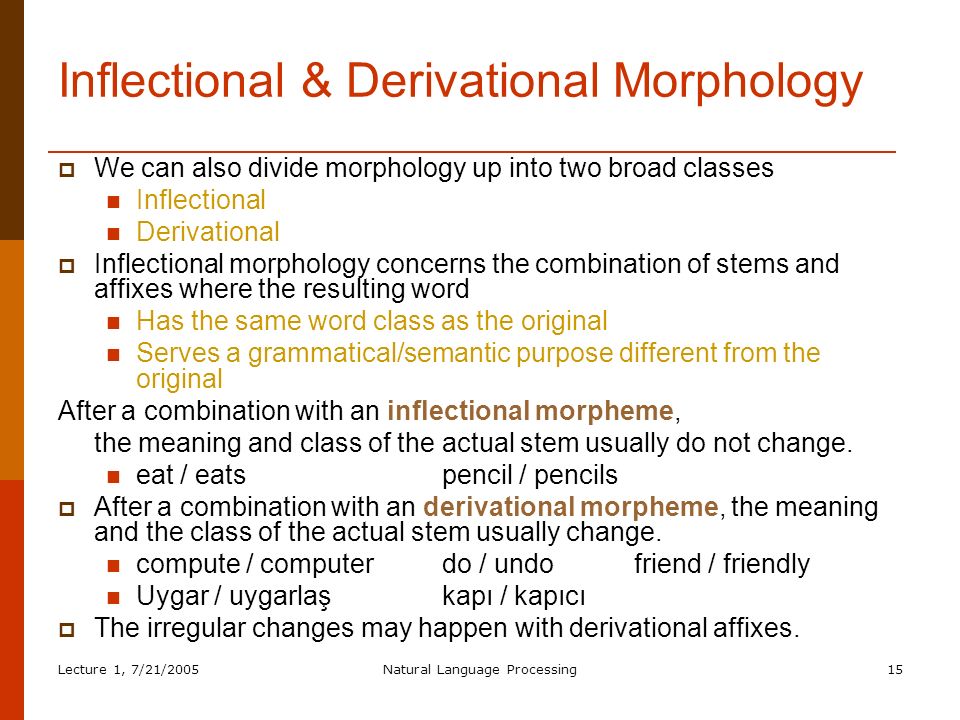

15. Lecture 1, 7/21/2005Natural Language Processing15 Inflectional & Derivational Morphology  We can also divide morphology up into two broad classes Inflectional Derivational  Inflectional morphology concerns the combination of stems and affixes where the resulting word Has the same word class as the original Serves a grammatical/semantic purpose different from the original After a combination with an inflectional morpheme, the meaning and class of the actual stem usually do not change. eat / eats pencil / pencils  After a combination with an derivational morpheme, the meaning and the class of the actual stem usually change. compute / computer do / undo friend / friendly Uygar / uygarlaşkapı / kapıcı  The irregular changes may happen with derivational affixes.

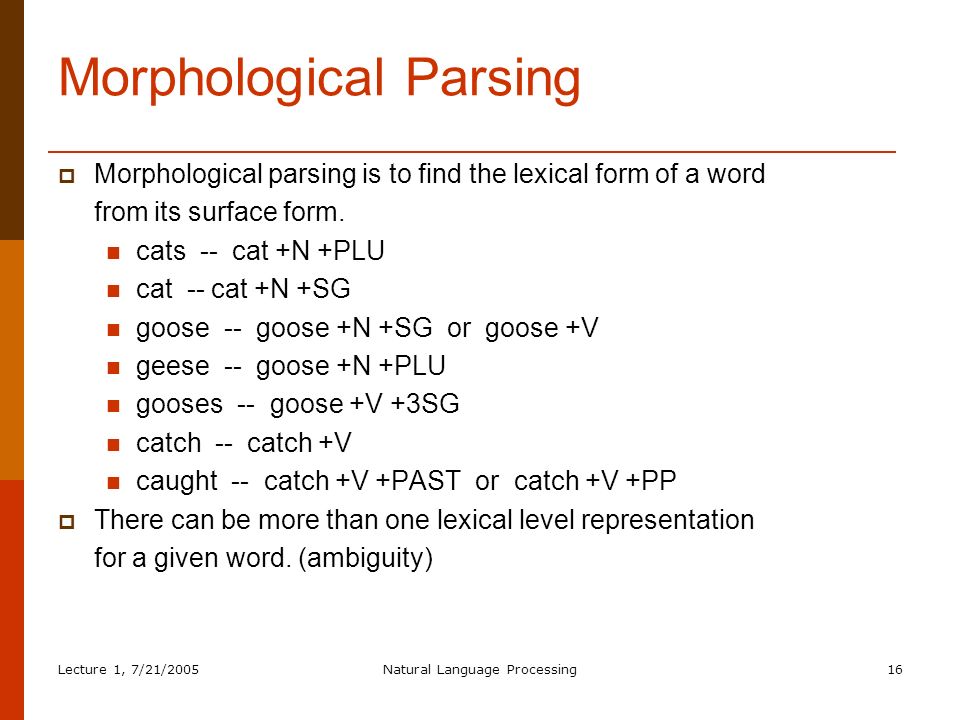

16. Lecture 1, 7/21/2005Natural Language Processing16 Morphological Parsing  Morphological parsing is to find the lexical form of a word from its surface form. cats -- cat +N +PLU cat -- cat +N +SG goose -- goose +N +SG or goose +V geese -- goose +N +PLU gooses -- goose +V +3SG catch -- catch +V caught -- catch +V +PAST or catch +V +PP  There can be more than one lexical level representation for a given word. (ambiguity)

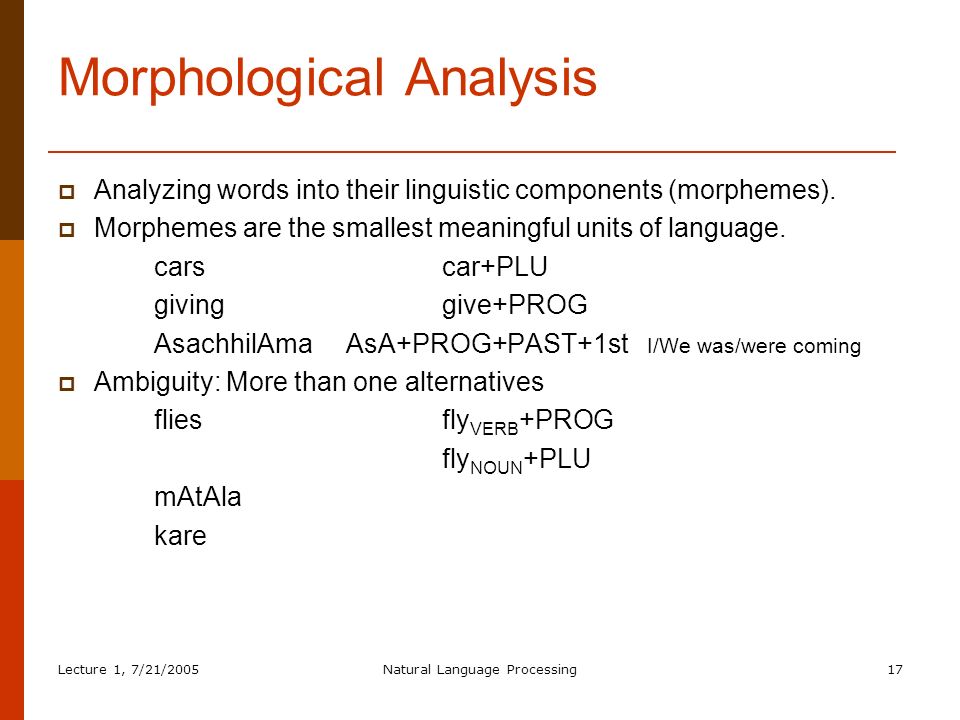

17. Lecture 1, 7/21/2005Natural Language Processing17 Morphological Analysis  Analyzing words into their linguistic components (morphemes).  Morphemes are the smallest meaningful units of language. carscar+PLU givinggive+PROG AsachhilAmaAsA+PROG+PAST+1st I/We was/were coming  Ambiguity: More than one alternatives fliesfly VERB +PROG fly NOUN +PLU mAtAla kare

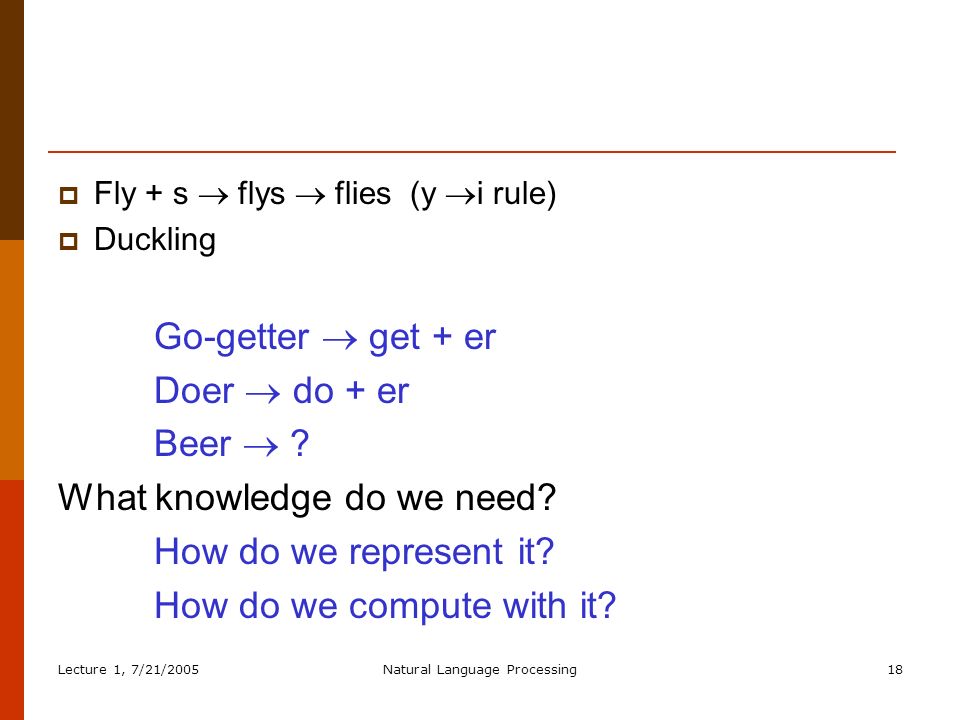

18. Lecture 1, 7/21/2005Natural Language Processing18  Fly + s  flys  flies (y  i rule)  Duckling Go-getter  get + er Doer  do + er Beer  ? What knowledge do we need? How do we represent it? How do we compute with it?

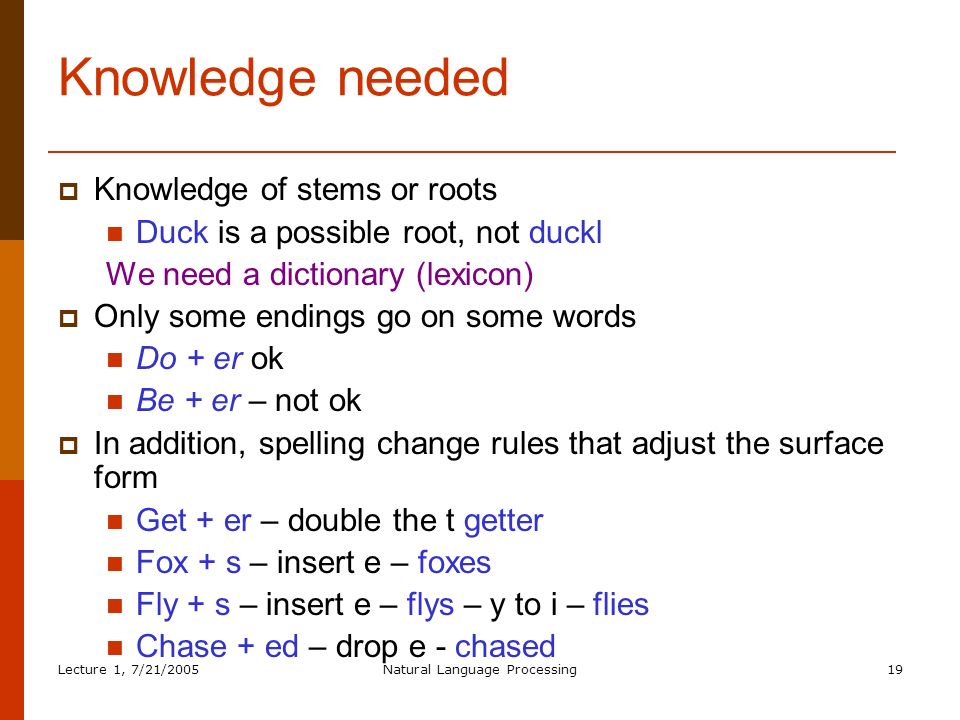

19. Lecture 1, 7/21/2005Natural Language Processing19 Knowledge needed  Knowledge of stems or roots Duck is a possible root, not duckl We need a dictionary (lexicon)  Only some endings go on some words Do + er ok Be + er – not ok  In addition, spelling change rules that adjust the surface form Get + er – double the t getter Fox + s – insert e – foxes Fly + s – insert e – flys – y to i – flies Chase + ed – drop e - chased

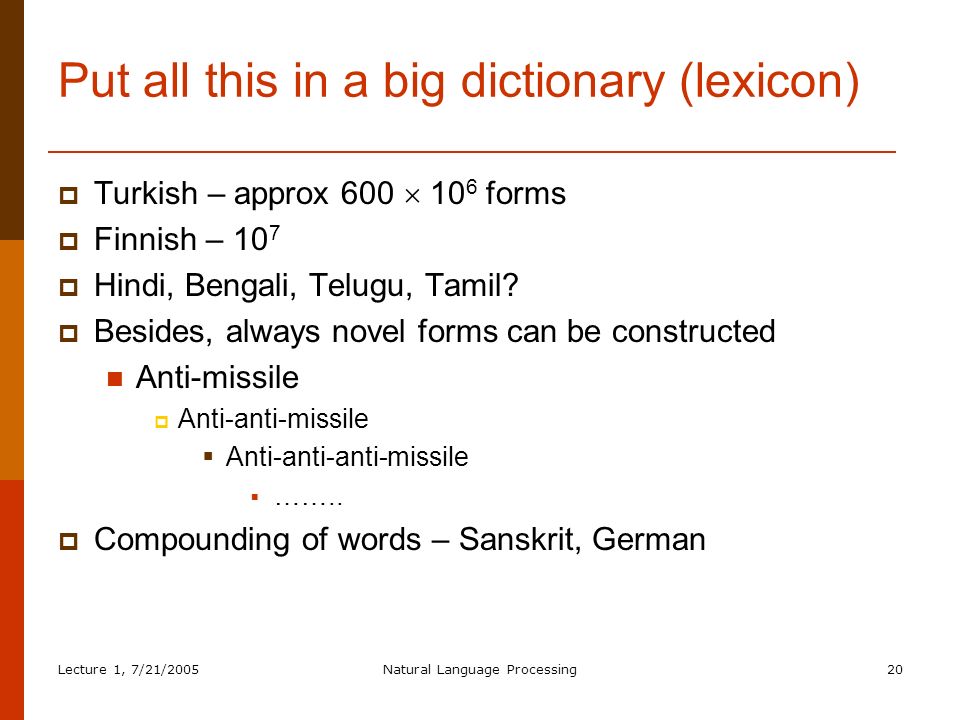

20. Lecture 1, 7/21/2005Natural Language Processing20 Put all this in a big dictionary (lexicon)  Turkish – approx 600  10 6 forms  Finnish – 10 7  Hindi, Bengali, Telugu, Tamil?  Besides, always novel forms can be constructed Anti-missile  Anti-anti-missile  Anti-anti-anti-missile  ……..  Compounding of words – Sanskrit, German

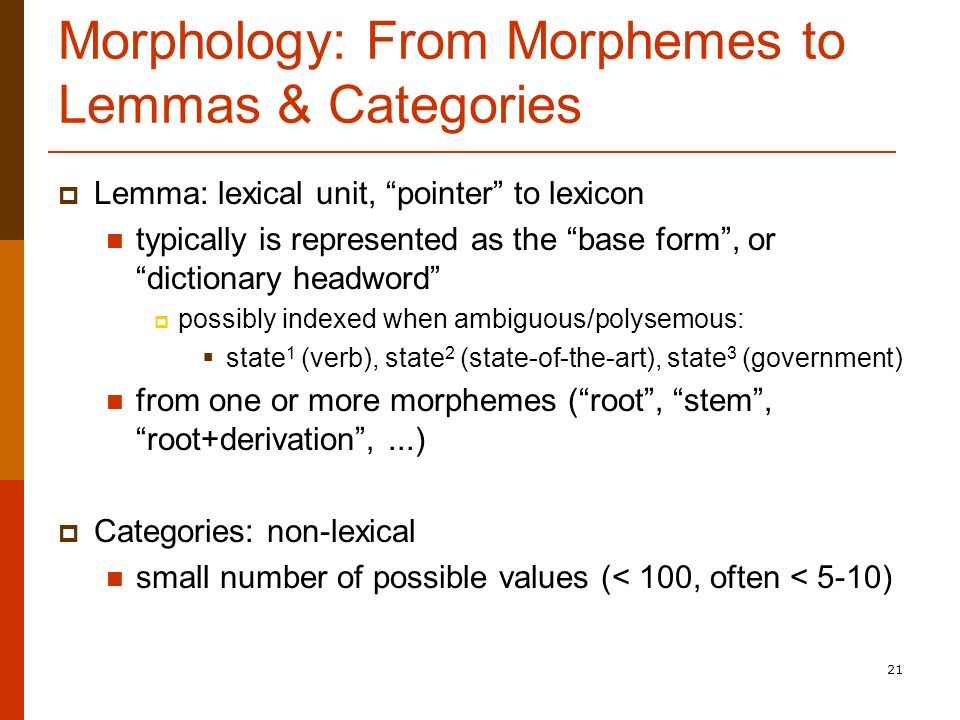

21. 21 Morphology: From Morphemes to Lemmas & Categories  Lemma: lexical unit, “pointer” to lexicon typically is represented as the “base form”, or “dictionary headword”  possibly indexed when ambiguous/polysemous:  state 1 (verb), state 2 (state-of-the-art), state 3 (government) from one or more morphemes (“root”, “stem”, “root+derivation”,...)  Categories: non-lexical small number of possible values (< 100, often < 5-10)

22. 22 Morphology Level: The Mapping  Formally: A +    2 (L,C 1,C 2,...,Cn) A is the alphabet of phonemes (A + denotes any non-empty sequence of phonemes) L is the set of possible lemmas, uniquely identified C i are morphological categories, such as:  grammatical number, gender, case  person, tense, negation, degree of comparison, voice, aspect,...  tone, politeness,...  part of speech (not quite morphological category, but...) A, L and C i are obviously language-dependent

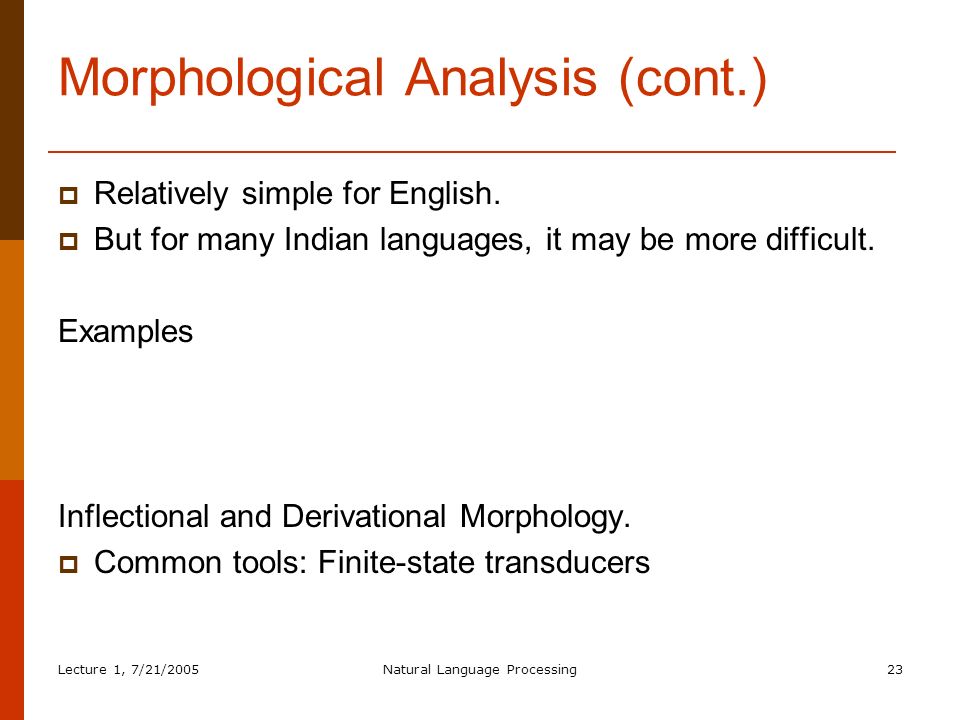

23. Lecture 1, 7/21/2005Natural Language Processing23 Morphological Analysis (cont.)  Relatively simple for English.  But for many Indian languages, it may be more difficult. Examples Inflectional and Derivational Morphology.  Common tools: Finite-state transducers

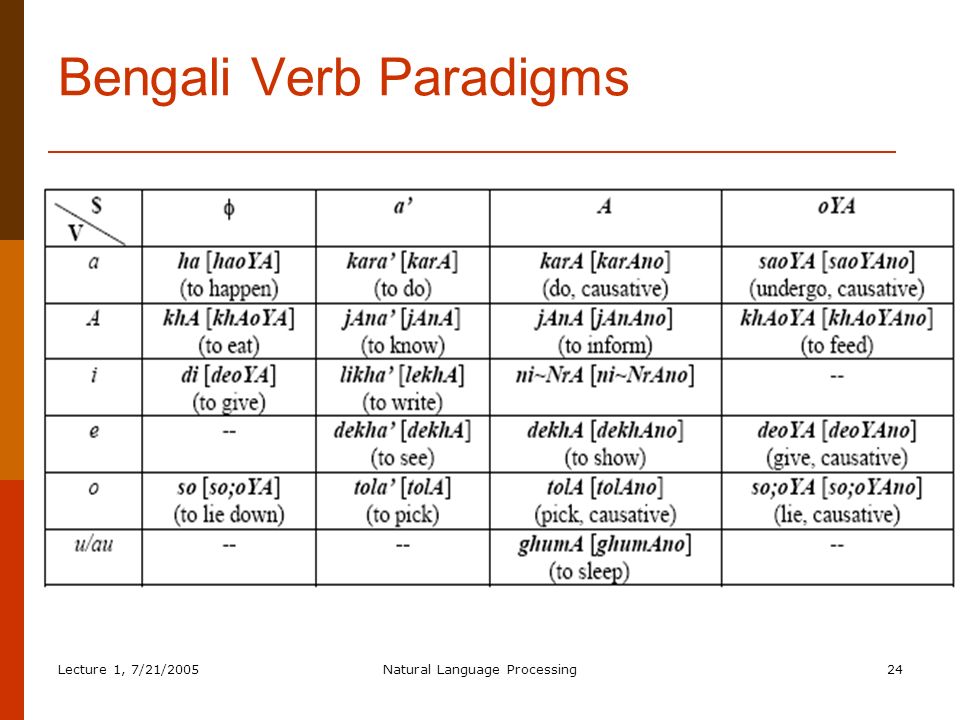

24. Lecture 1, 7/21/2005Natural Language Processing24 Bengali Verb Paradigms

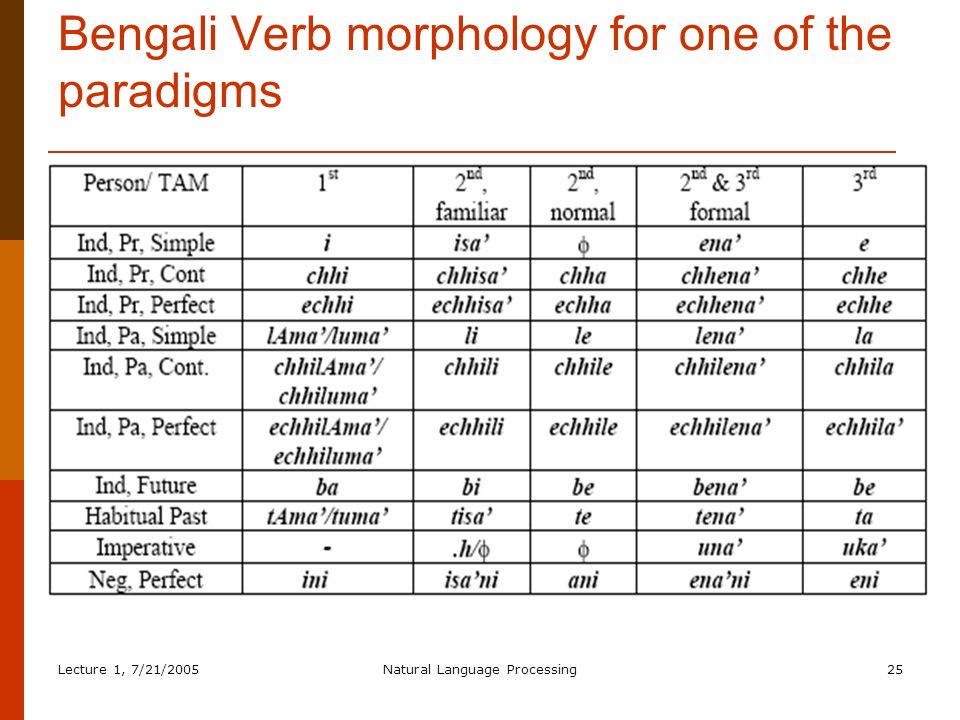

25. Lecture 1, 7/21/2005Natural Language Processing25 Bengali Verb morphology for one of the paradigms

26. Lecture 1, 7/21/2005Natural Language Processing26

27. Lecture 1, 7/21/2005Natural Language Processing27

28. Lecture 1, 7/21/2005Natural Language Processing28 Finite State Machines  FSAs are equivalent to regular languages  FSTs are equivalent to regular relations (over pairs of regular languages)  FSTs are like FSAs but with complex labels.  We can use FSTs to transduce between surface and lexical levels.

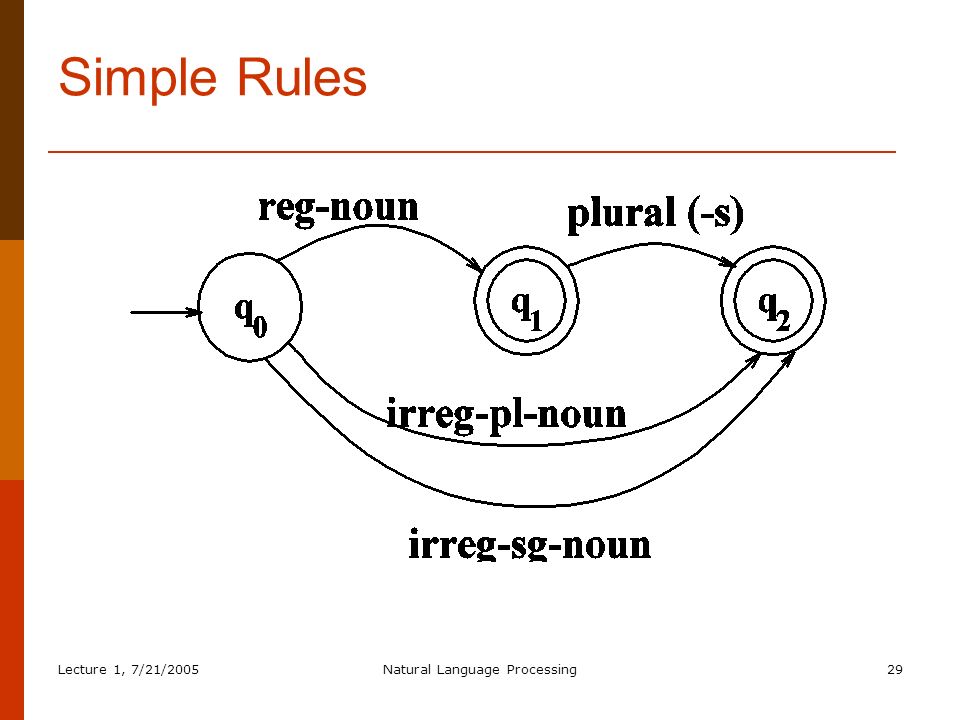

29. Lecture 1, 7/21/2005Natural Language Processing29 Simple Rules

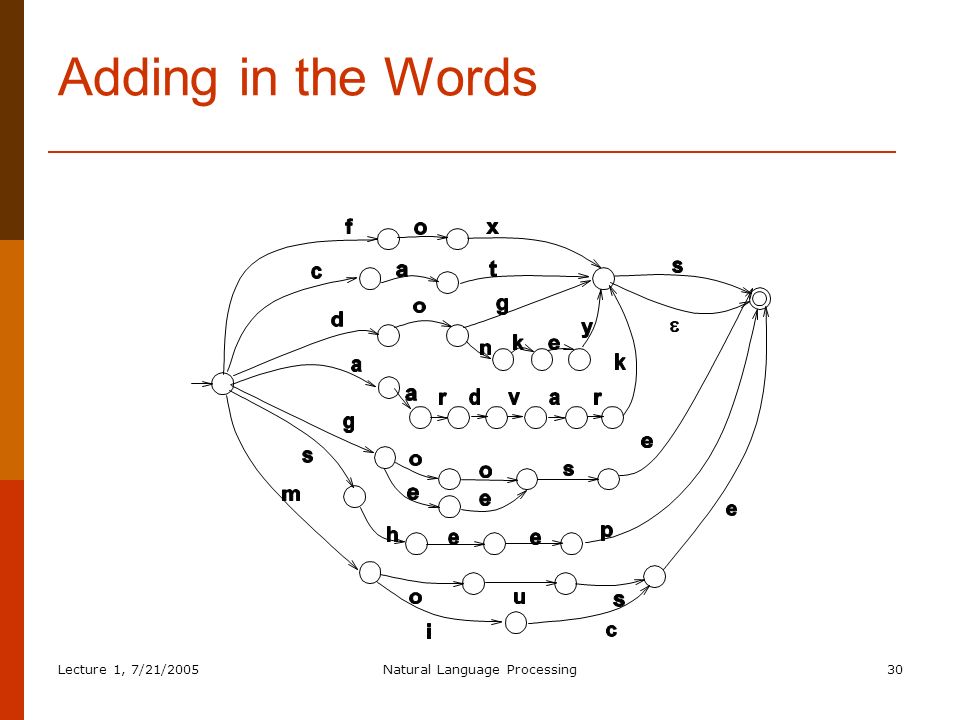

30. Lecture 1, 7/21/2005Natural Language Processing30 Adding in the Words

31. Lecture 1, 7/21/2005Natural Language Processing31 Derivational Rules

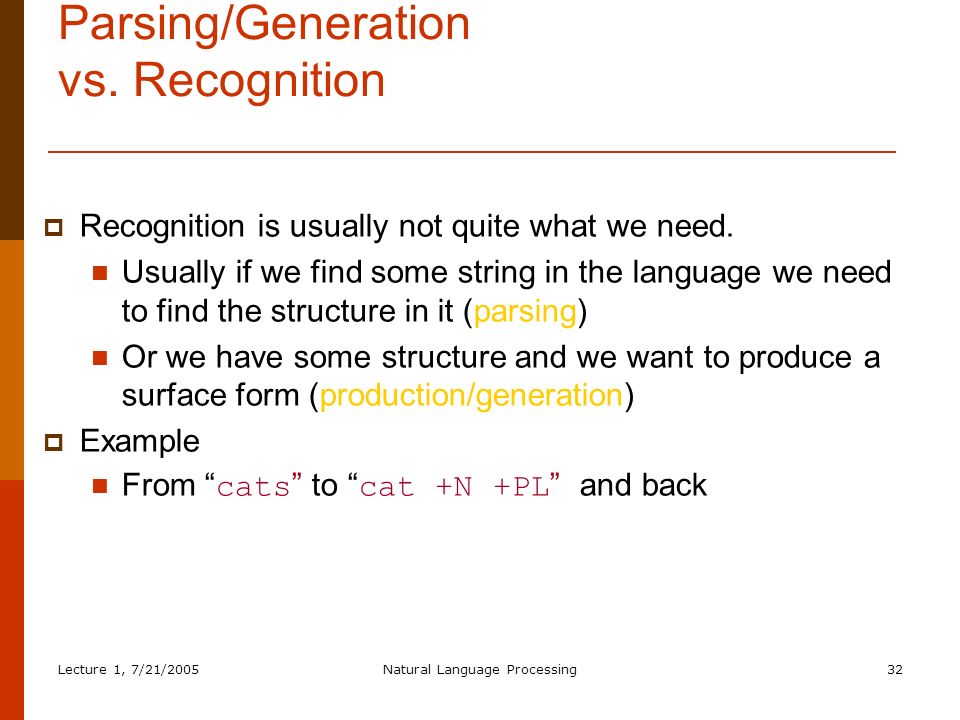

32. Lecture 1, 7/21/2005Natural Language Processing32 Parsing/Generation vs. Recognition  Recognition is usually not quite what we need. Usually if we find some string in the language we need to find the structure in it (parsing) Or we have some structure and we want to produce a surface form (production/generation)  Example From “ cats ” to “ cat +N +PL ” and back

33. Lecture 1, 7/21/2005Natural Language Processing33 Morphological Parsing  Given the input cats, we’d like to output cat +N +Pl, telling us that cat is a plural noun.  Given the Spanish input bebo, we’d like to output beber +V +PInd +1P +Sg telling us that bebo is the present indicative first person singular form of the Spanish verb beber, ‘to drink’.

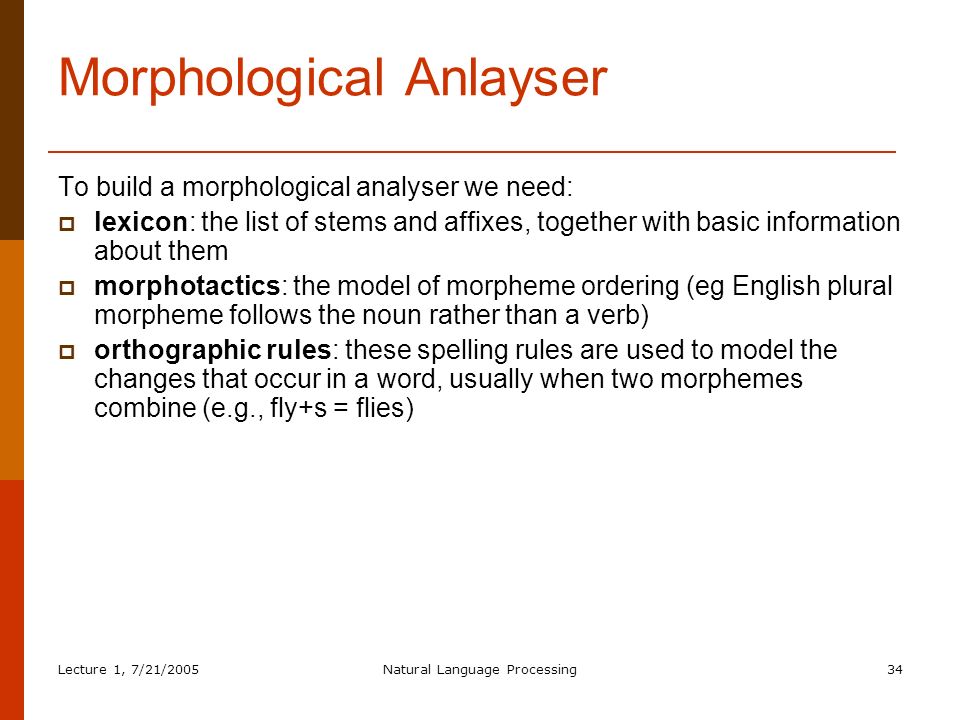

34. Lecture 1, 7/21/2005Natural Language Processing34 Morphological Anlayser To build a morphological analyser we need:  lexicon: the list of stems and affixes, together with basic information about them  morphotactics: the model of morpheme ordering (eg English plural morpheme follows the noun rather than a verb)  orthographic rules: these spelling rules are used to model the changes that occur in a word, usually when two morphemes combine (e.g., fly+s = flies)

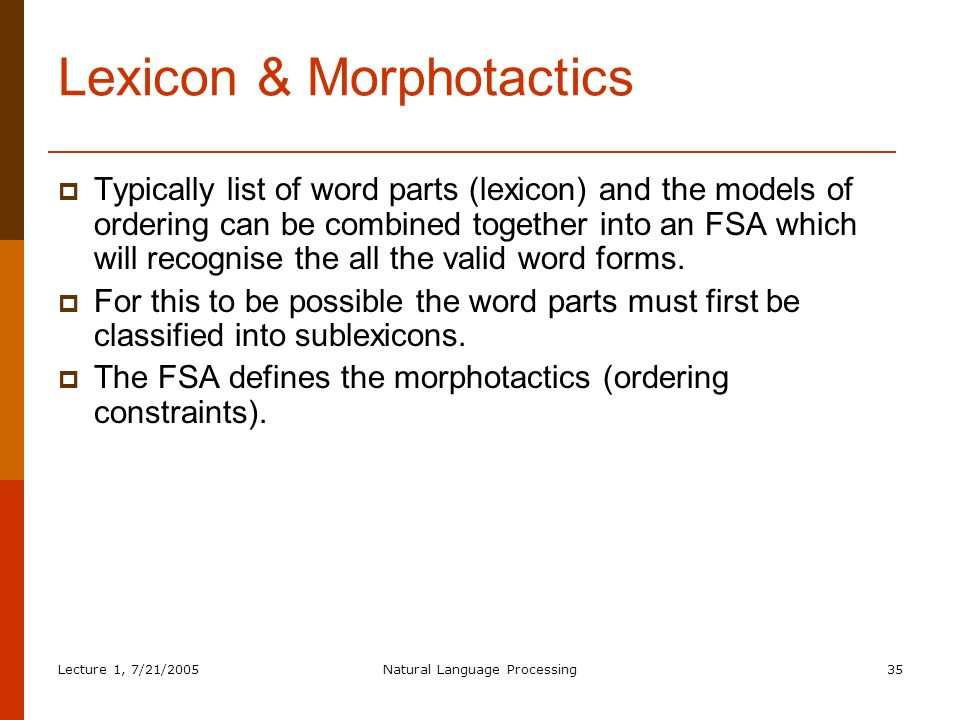

35. Lecture 1, 7/21/2005Natural Language Processing35 Lexicon & Morphotactics  Typically list of word parts (lexicon) and the models of ordering can be combined together into an FSA which will recognise the all the valid word forms.  For this to be possible the word parts must first be classified into sublexicons.  The FSA defines the morphotactics (ordering constraints).

36. Lecture 1, 7/21/2005Natural Language Processing36 Sublexicons to classify the list of word parts reg-nounirreg-pl-nounirreg-sg-nounplural catmicemouse-s foxsheep geesegoose

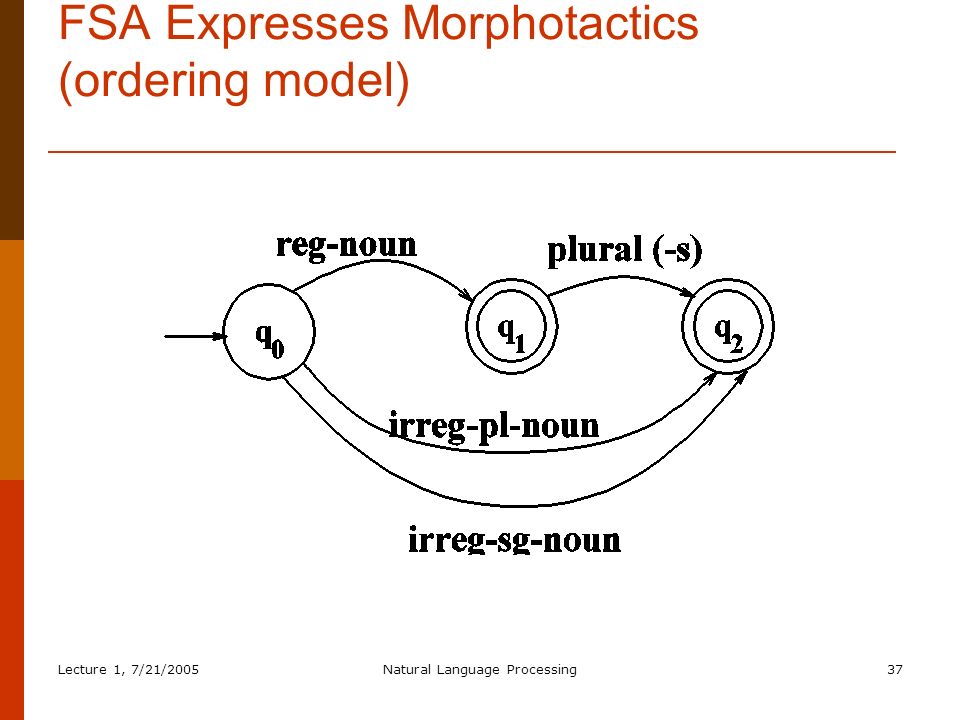

37. Lecture 1, 7/21/2005Natural Language Processing37 FSA Expresses Morphotactics (ordering model)

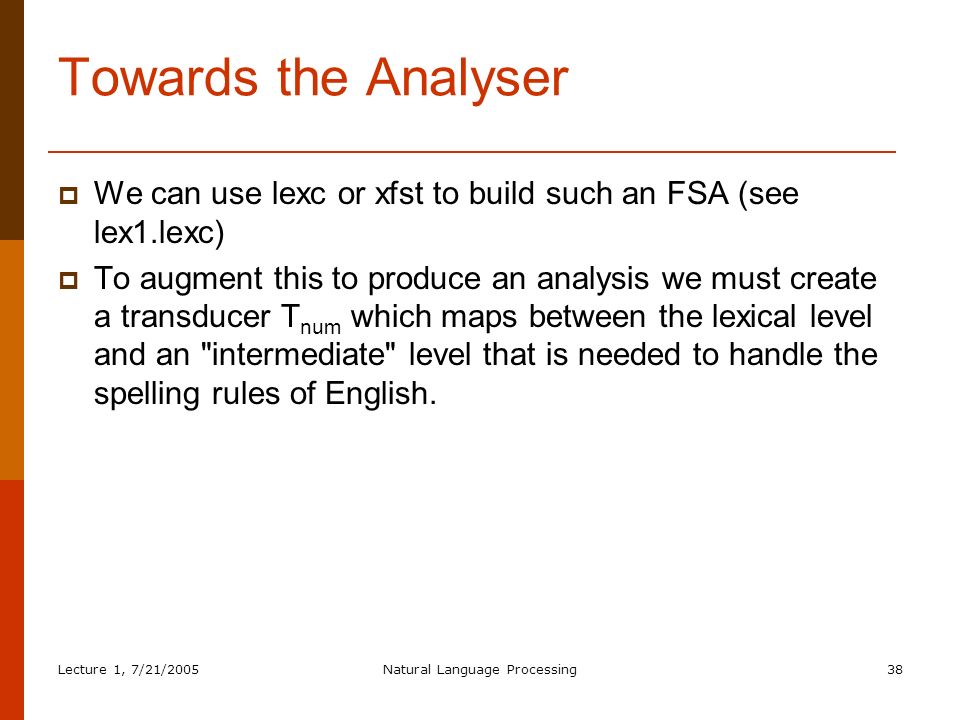

38. Lecture 1, 7/21/2005Natural Language Processing38 Towards the Analyser  We can use lexc or xfst to build such an FSA (see lex1.lexc)  To augment this to produce an analysis we must create a transducer T num which maps between the lexical level and an "intermediate" level that is needed to handle the spelling rules of English.

39. Lecture 1, 7/21/2005Natural Language Processing39 Three Levels of Analysis

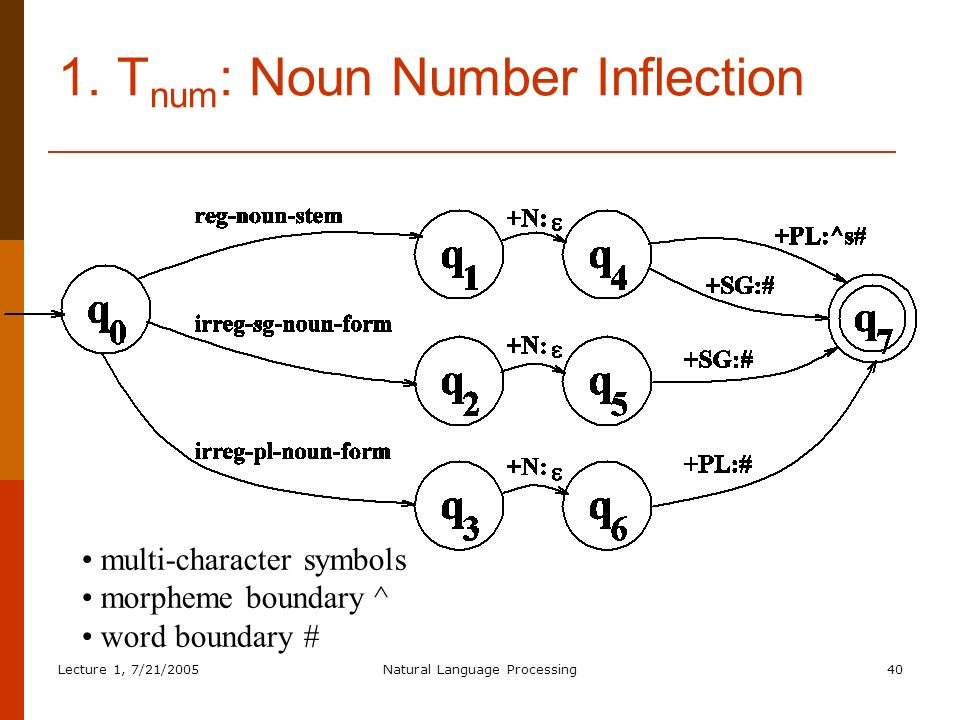

40. Lecture 1, 7/21/2005Natural Language Processing40 1. T num : Noun Number Inflection multi-character symbols morpheme boundary ^ word boundary #

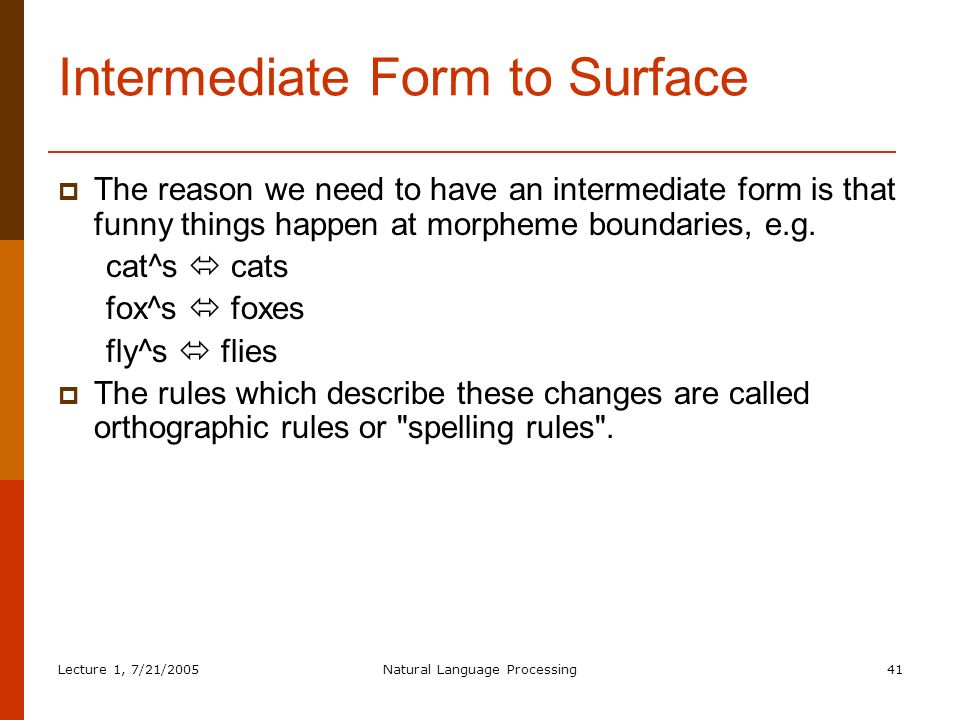

41. Lecture 1, 7/21/2005Natural Language Processing41 Intermediate Form to Surface  The reason we need to have an intermediate form is that funny things happen at morpheme boundaries, e.g. cat^s  cats fox^s  foxes fly^s  flies  The rules which describe these changes are called orthographic rules or "spelling rules".

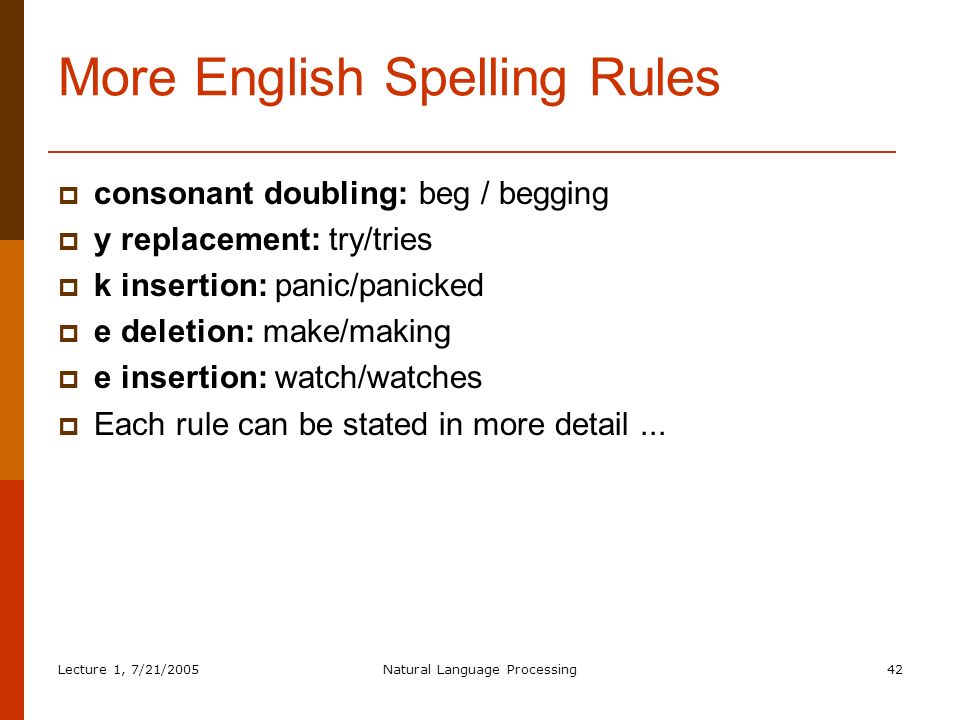

42. Lecture 1, 7/21/2005Natural Language Processing42 More English Spelling Rules  consonant doubling: beg / begging  y replacement: try/tries  k insertion: panic/panicked  e deletion: make/making  e insertion: watch/watches  Each rule can be stated in more detail...

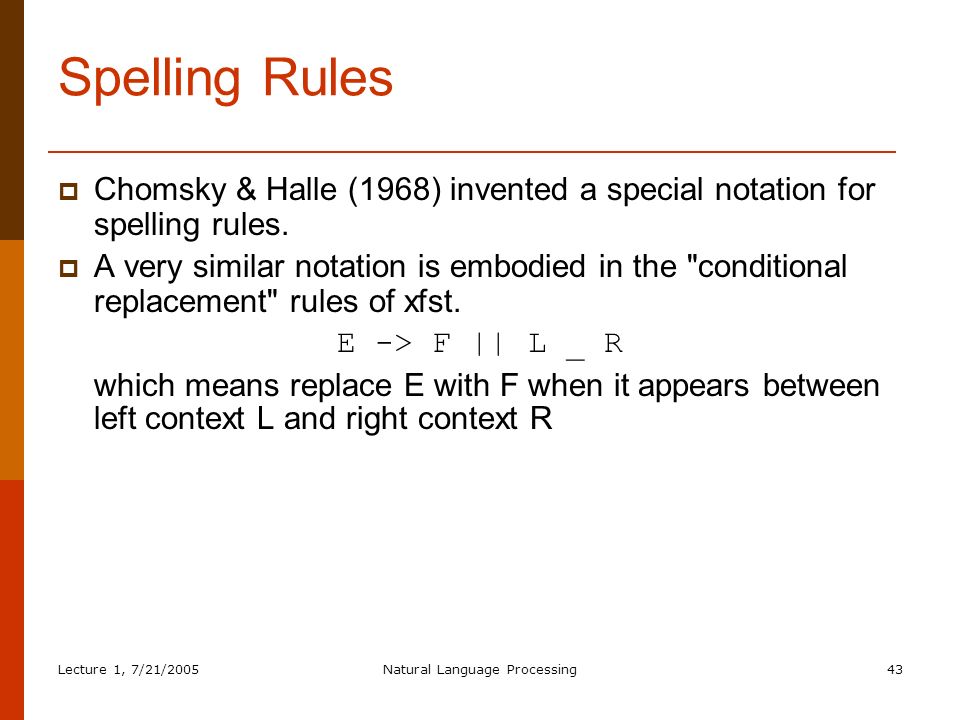

43. Lecture 1, 7/21/2005Natural Language Processing43 Spelling Rules  Chomsky & Halle (1968) invented a special notation for spelling rules.  A very similar notation is embodied in the "conditional replacement" rules of xfst. E -> F || L _ R which means replace E with F when it appears between left context L and right context R

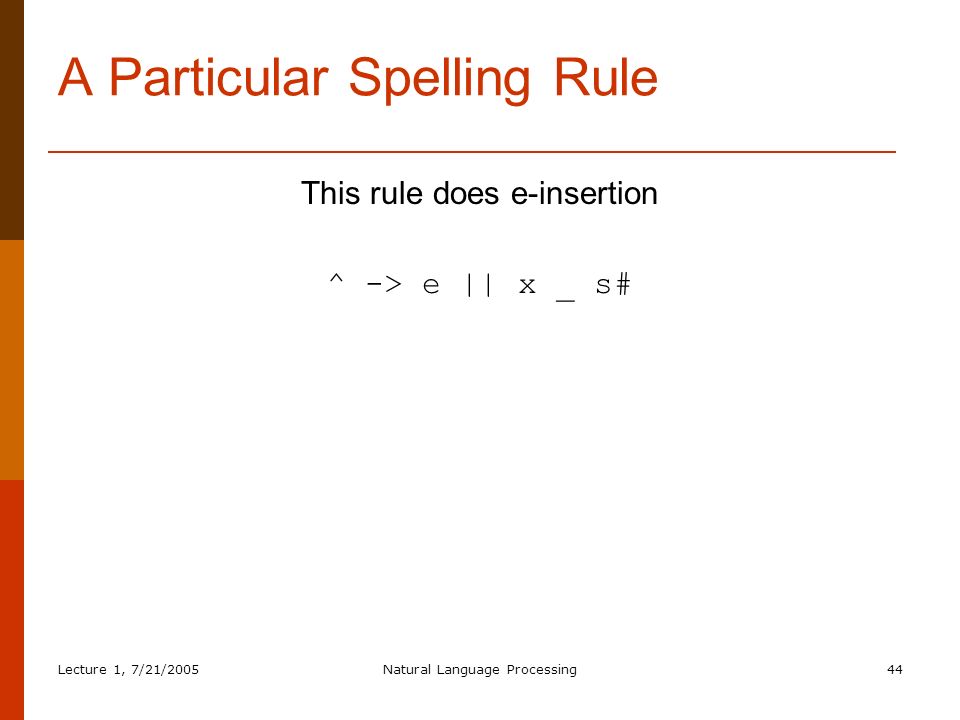

44. Lecture 1, 7/21/2005Natural Language Processing44 A Particular Spelling Rule This rule does e-insertion ^ -> e || x _ s#

45. Lecture 1, 7/21/2005Natural Language Processing45 e insertion over 3 levels The rule corresponds to the mapping between surface and intermediate levels

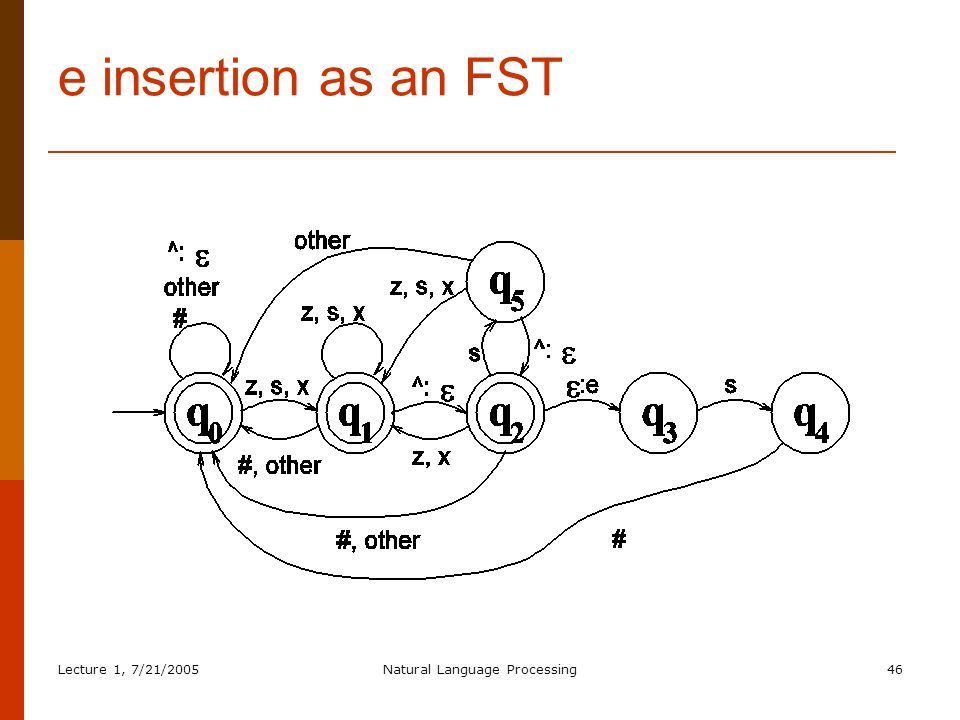

46. Lecture 1, 7/21/2005Natural Language Processing46 e insertion as an FST

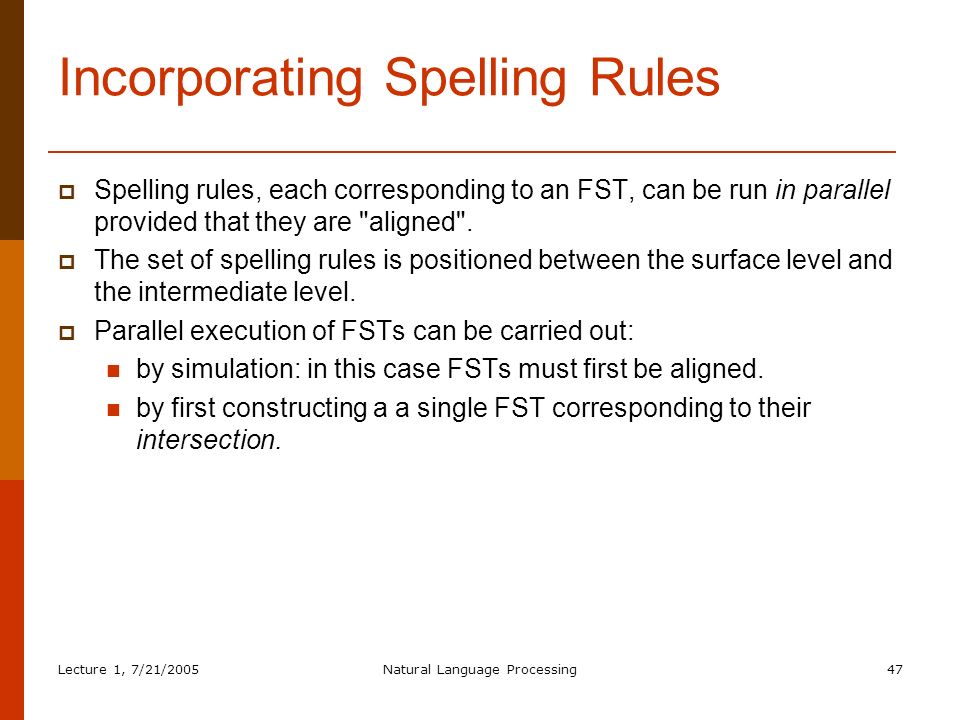

47. Lecture 1, 7/21/2005Natural Language Processing47 Incorporating Spelling Rules  Spelling rules, each corresponding to an FST, can be run in parallel provided that they are "aligned".  The set of spelling rules is positioned between the surface level and the intermediate level.  Parallel execution of FSTs can be carried out: by simulation: in this case FSTs must first be aligned. by first constructing a a single FST corresponding to their intersection.

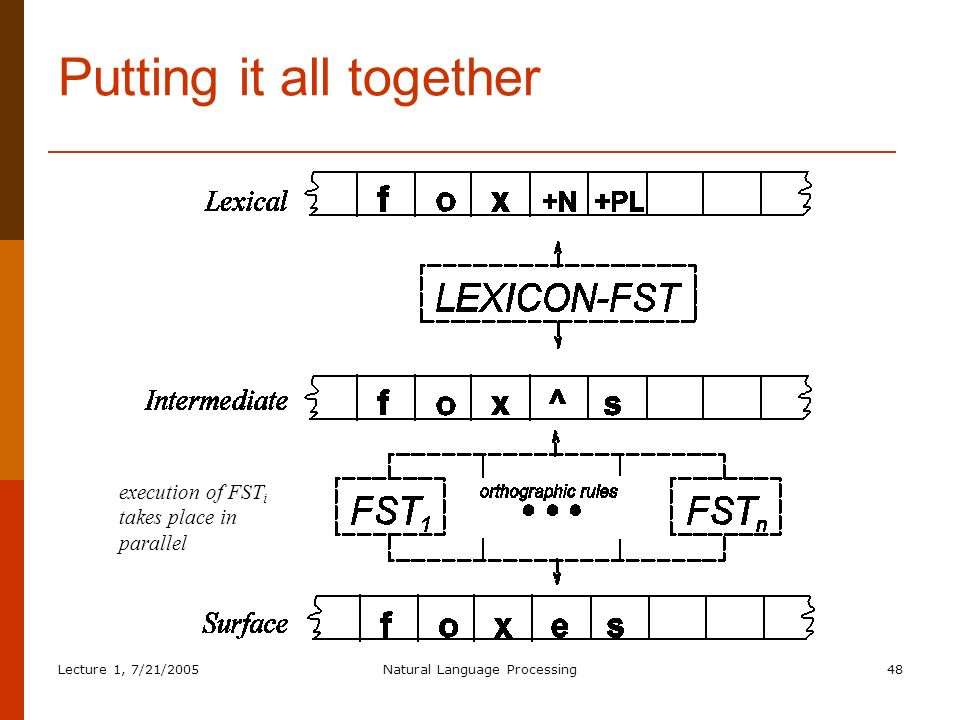

48. Lecture 1, 7/21/2005Natural Language Processing48 Putting it all together execution of FST i takes place in parallel

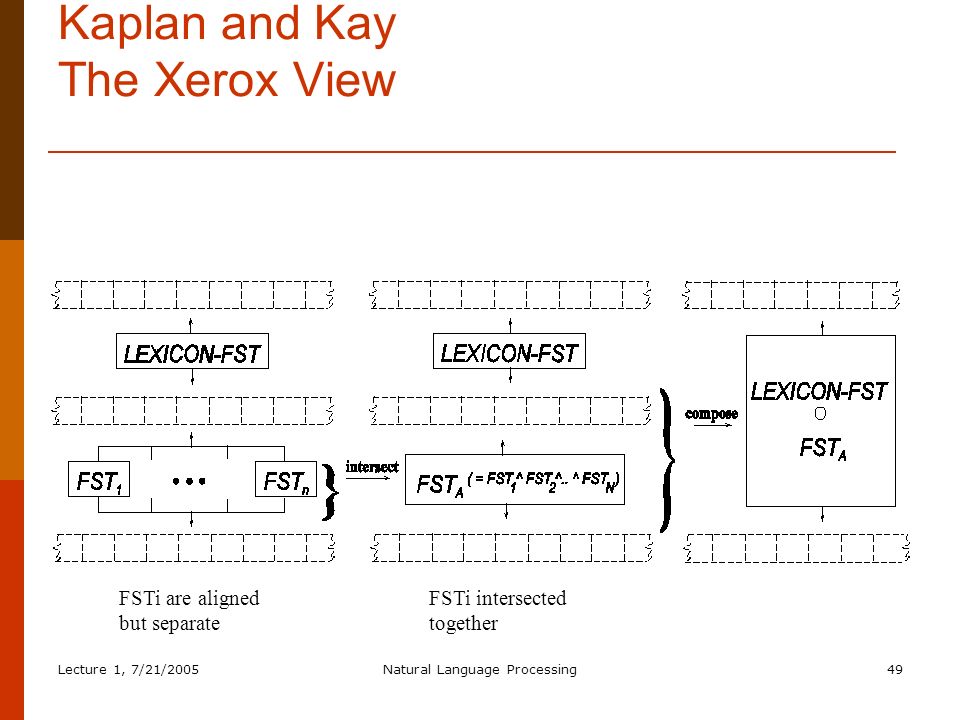

49. Lecture 1, 7/21/2005Natural Language Processing49 Kaplan and Kay The Xerox View FSTi are aligned but separate FSTi intersected together

50. Lecture 1, 7/21/2005Natural Language Processing50 Finite State Transducers  The simple story Add another tape Add extra symbols to the transitions On one tape we read “ cats ”, on the other we write “ cat +N +PL ”, or the other way around.

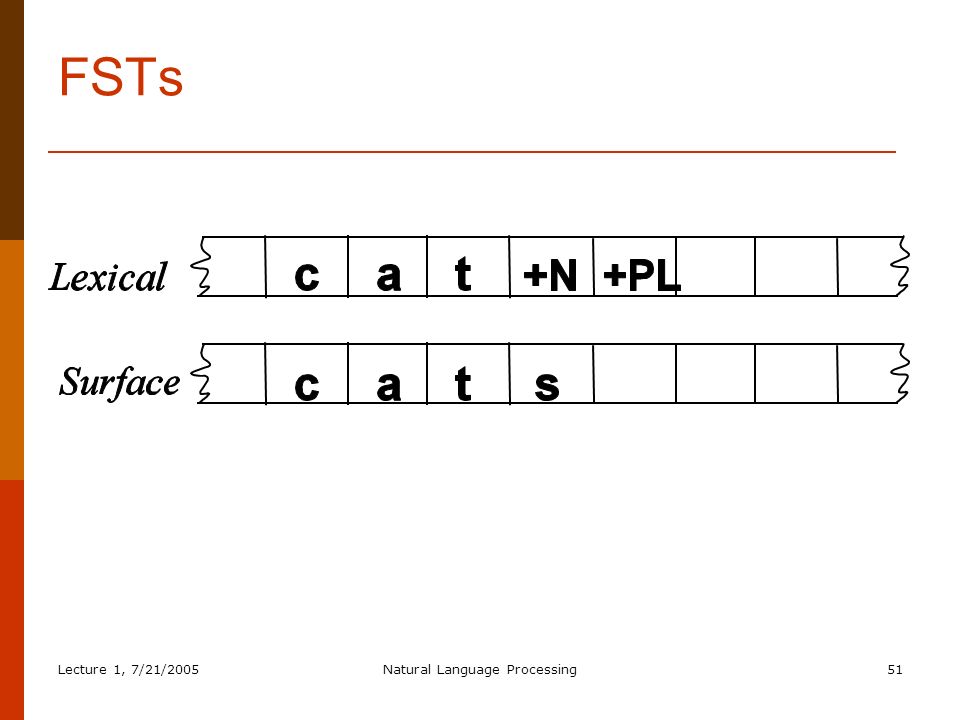

51. Lecture 1, 7/21/2005Natural Language Processing51 FSTs

52. Lecture 1, 7/21/2005Natural Language Processing52 English Plural surfacelexical catcat+N+Sg catscat+N+Pl foxesfox+N+Pl micemouse+N+Pl sheepsheep+N+Pl sheep+N+Sg

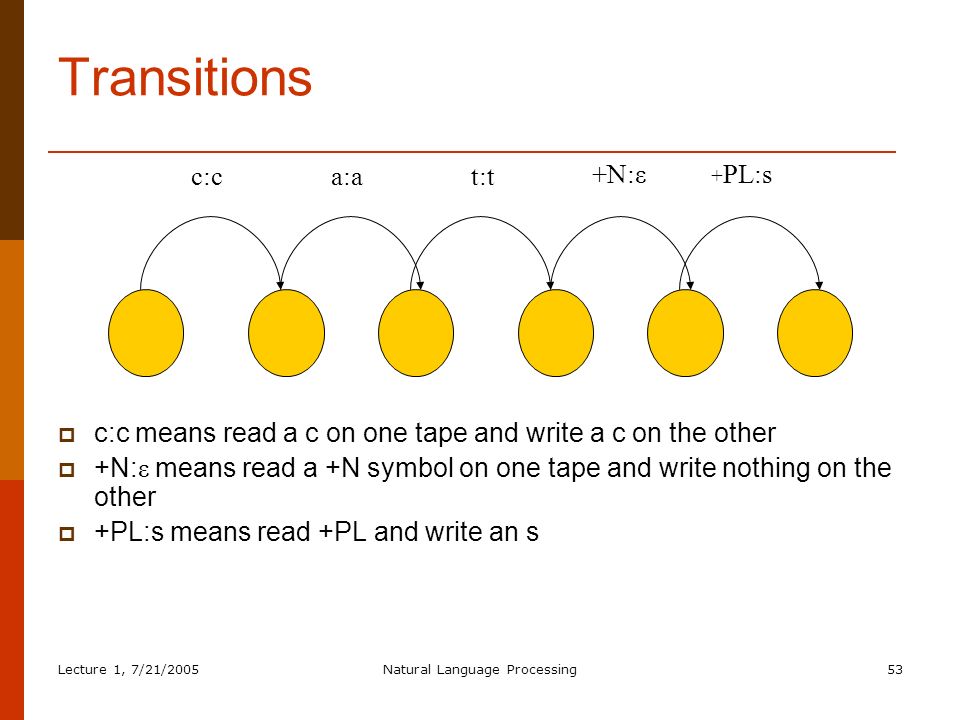

53. Lecture 1, 7/21/2005Natural Language Processing53 Transitions  c:c means read a c on one tape and write a c on the other  +N: ε means read a +N symbol on one tape and write nothing on the other  +PL:s means read +PL and write an s c:ca:at:t +N:ε + PL:s

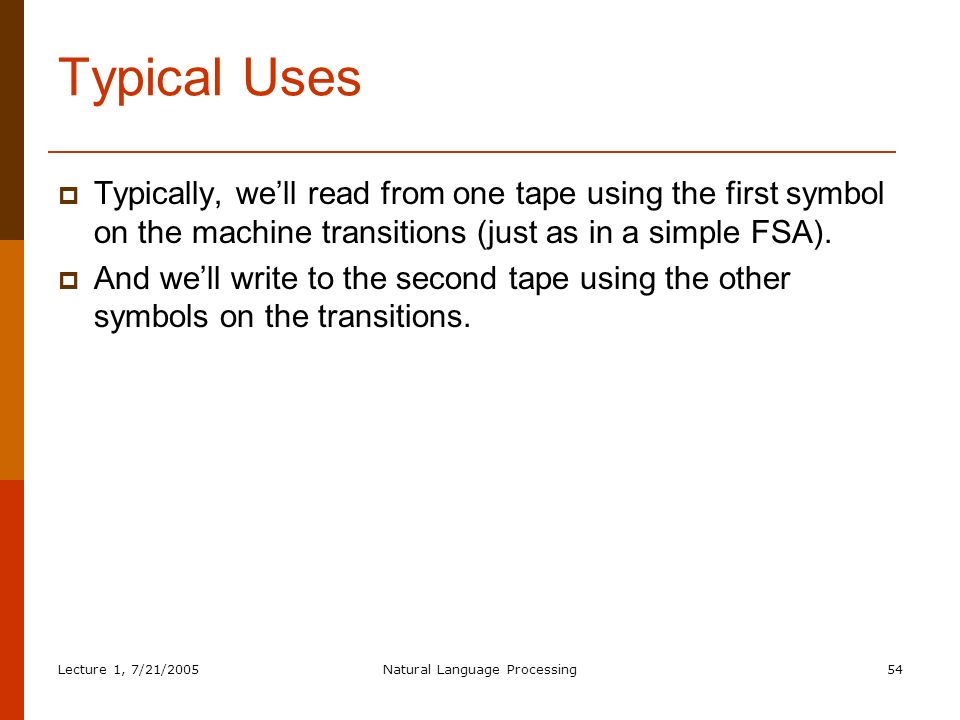

54. Lecture 1, 7/21/2005Natural Language Processing54 Typical Uses  Typically, we’ll read from one tape using the first symbol on the machine transitions (just as in a simple FSA).  And we’ll write to the second tape using the other symbols on the transitions.

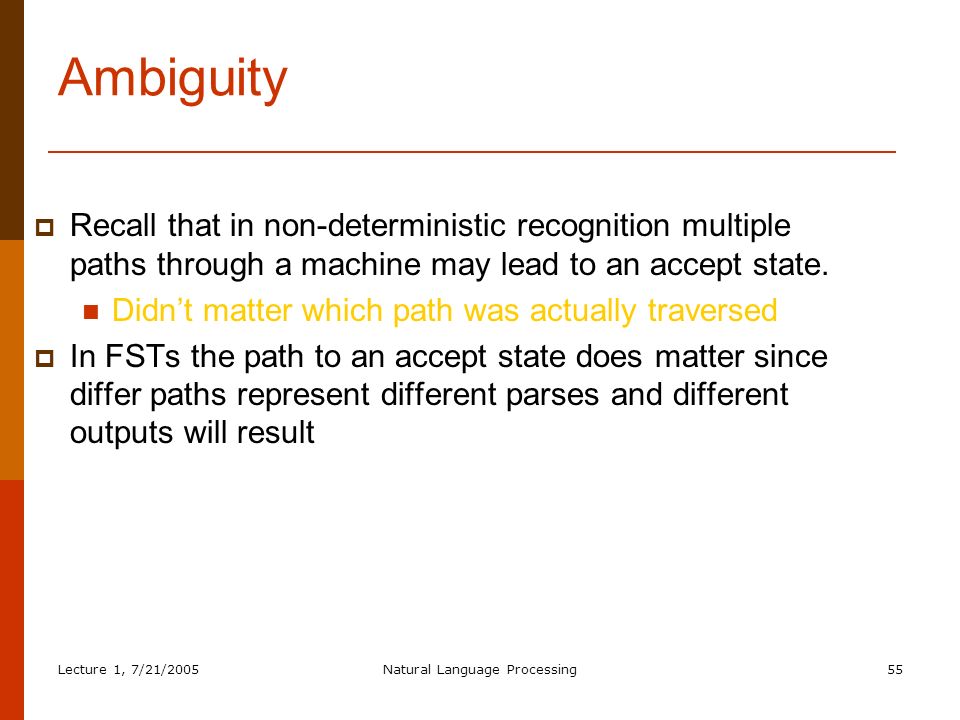

55. Lecture 1, 7/21/2005Natural Language Processing55 Ambiguity  Recall that in non-deterministic recognition multiple paths through a machine may lead to an accept state. Didn’t matter which path was actually traversed  In FSTs the path to an accept state does matter since differ paths represent different parses and different outputs will result

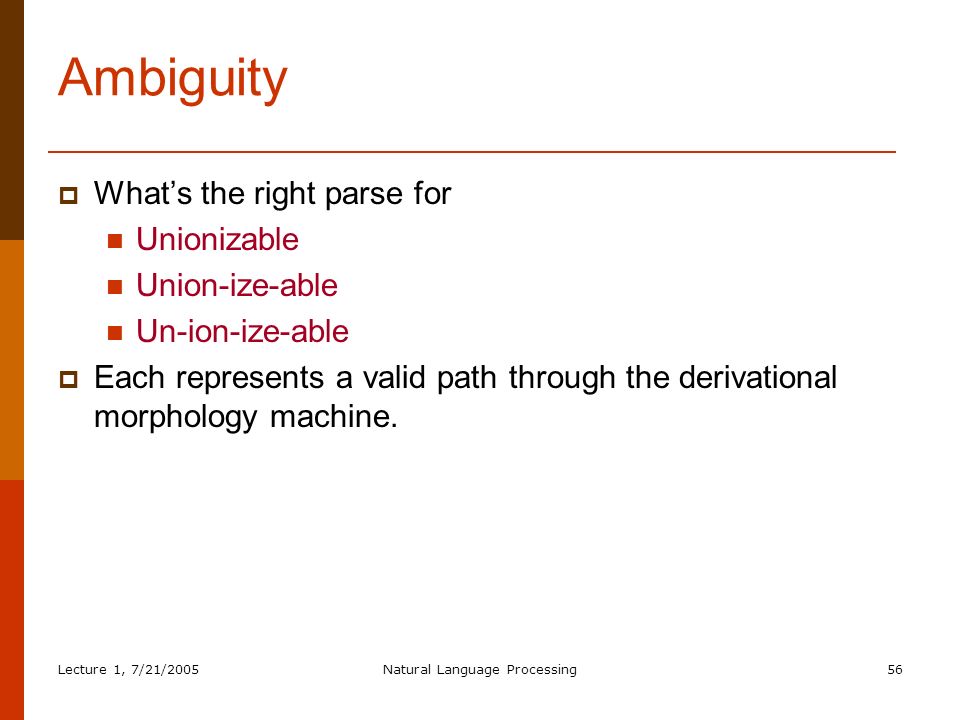

56. Lecture 1, 7/21/2005Natural Language Processing56 Ambiguity  What’s the right parse for Unionizable Union-ize-able Un-ion-ize-able  Each represents a valid path through the derivational morphology machine.

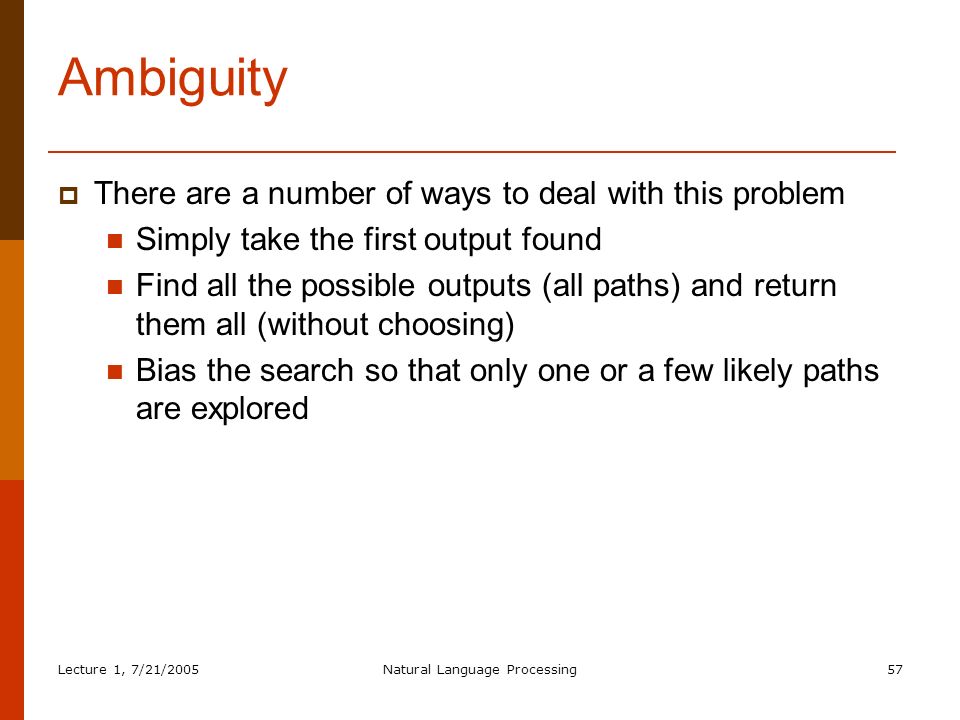

57. Lecture 1, 7/21/2005Natural Language Processing57 Ambiguity  There are a number of ways to deal with this problem Simply take the first output found Find all the possible outputs (all paths) and return them all (without choosing) Bias the search so that only one or a few likely paths are explored

58. Lecture 1, 7/21/2005Natural Language Processing58 The Gory Details  Of course, its not as easy as “ cat +N +PL ” “ cats ”  As we saw earlier there are geese, mice and oxen  But there are also a whole host of spelling/pronunciation changes that go along with inflectional changes Cats vs Dogs Fox and Foxes

59. Lecture 1, 7/21/2005Natural Language Processing59 Multi-Tape Machines  To deal with this we can simply add more tapes and use the output of one tape machine as the input to the next  So to handle irregular spelling changes we’ll add intermediate tapes with intermediate symbols

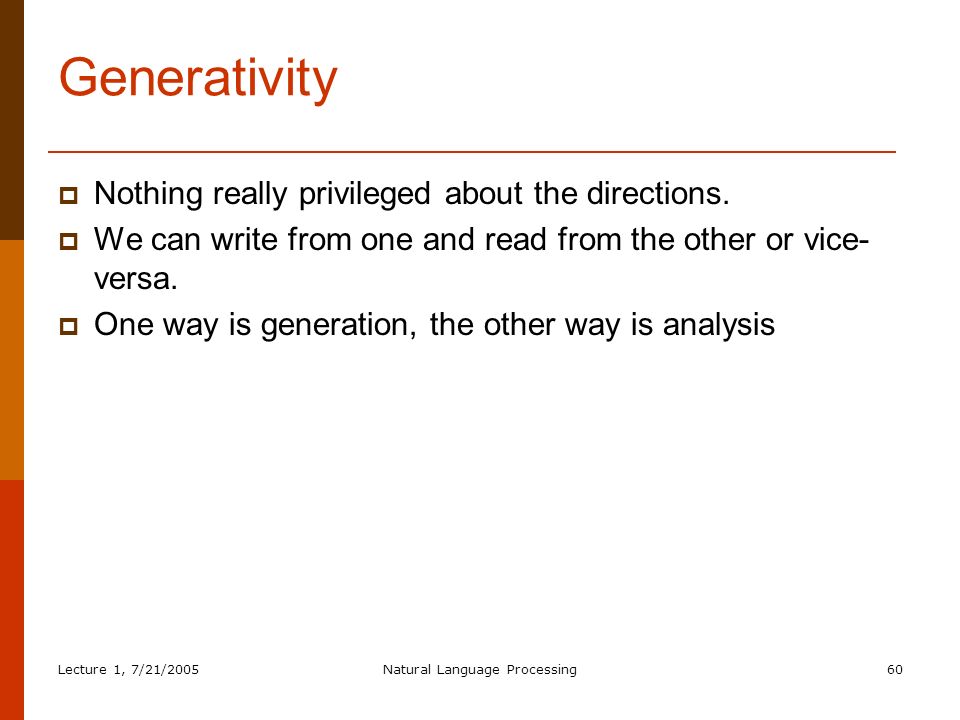

60. Lecture 1, 7/21/2005Natural Language Processing60 Generativity  Nothing really privileged about the directions.  We can write from one and read from the other or vice- versa.  One way is generation, the other way is analysis

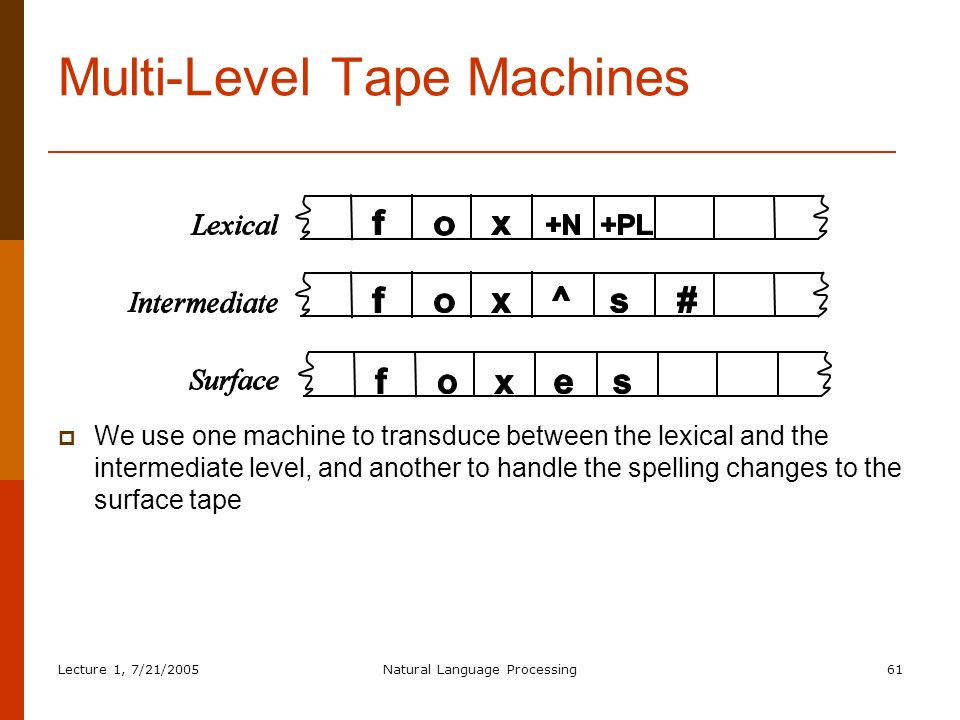

61. Lecture 1, 7/21/2005Natural Language Processing61 Multi-Level Tape Machines  We use one machine to transduce between the lexical and the intermediate level, and another to handle the spelling changes to the surface tape

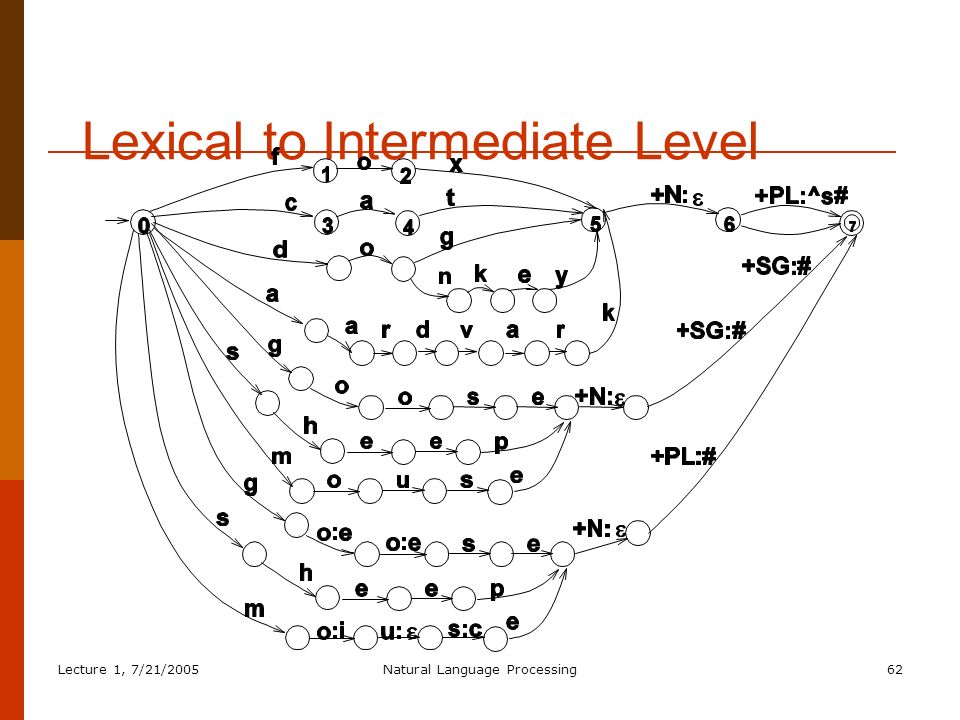

62. Lecture 1, 7/21/2005Natural Language Processing62 Lexical to Intermediate Level

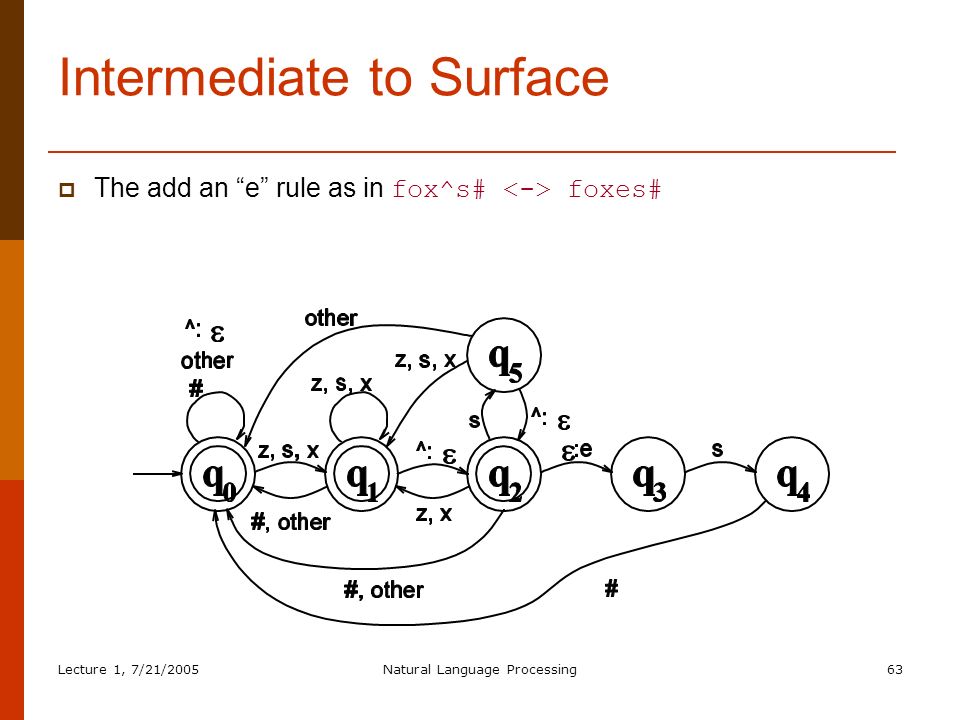

63. Lecture 1, 7/21/2005Natural Language Processing63 Intermediate to Surface  The add an “e” rule as in fox^s# foxes#

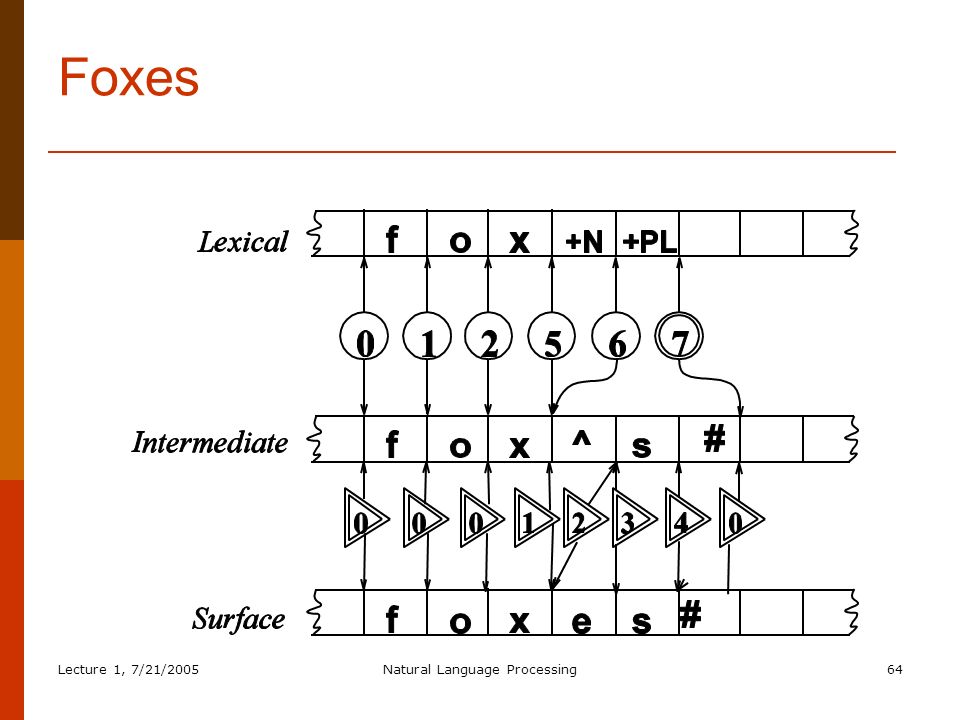

64. Lecture 1, 7/21/2005Natural Language Processing64 Foxes

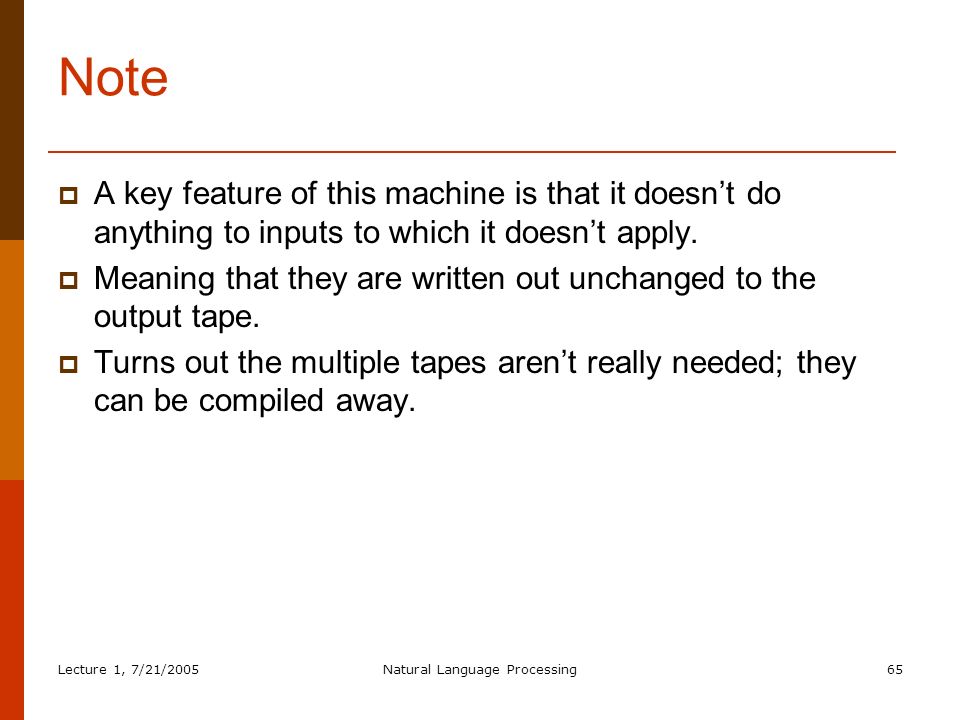

65. Lecture 1, 7/21/2005Natural Language Processing65 Note  A key feature of this machine is that it doesn’t do anything to inputs to which it doesn’t apply.  Meaning that they are written out unchanged to the output tape.  Turns out the multiple tapes aren’t really needed; they can be compiled away.

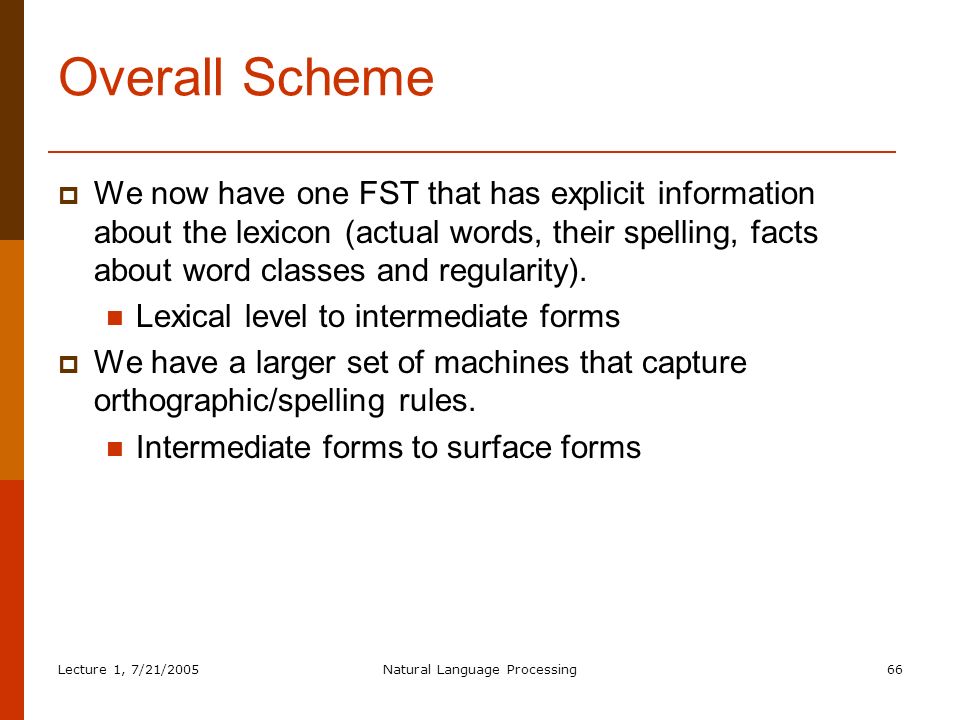

66. Lecture 1, 7/21/2005Natural Language Processing66 Overall Scheme  We now have one FST that has explicit information about the lexicon (actual words, their spelling, facts about word classes and regularity). Lexical level to intermediate forms  We have a larger set of machines that capture orthographic/spelling rules. Intermediate forms to surface forms

67. Lecture 1, 7/21/2005Natural Language Processing67 Overall Scheme
