1. Plastic By: Emyle Robertson

2. Where’d the name come from?  Plastic comes from the Greek word plastikos, meaning ‘able to be molded.’

3. Petroleum Plastics 1. Petroleum is drilled and transported to a refinery. 2. Crude oil and natural gas are refined into ethane, propane, hundreds of other petrochemical products and, of course, fuel for your car. 3. Ethane and propane are "cracked" into ethylene and propylene, using high-temperature furnaces.

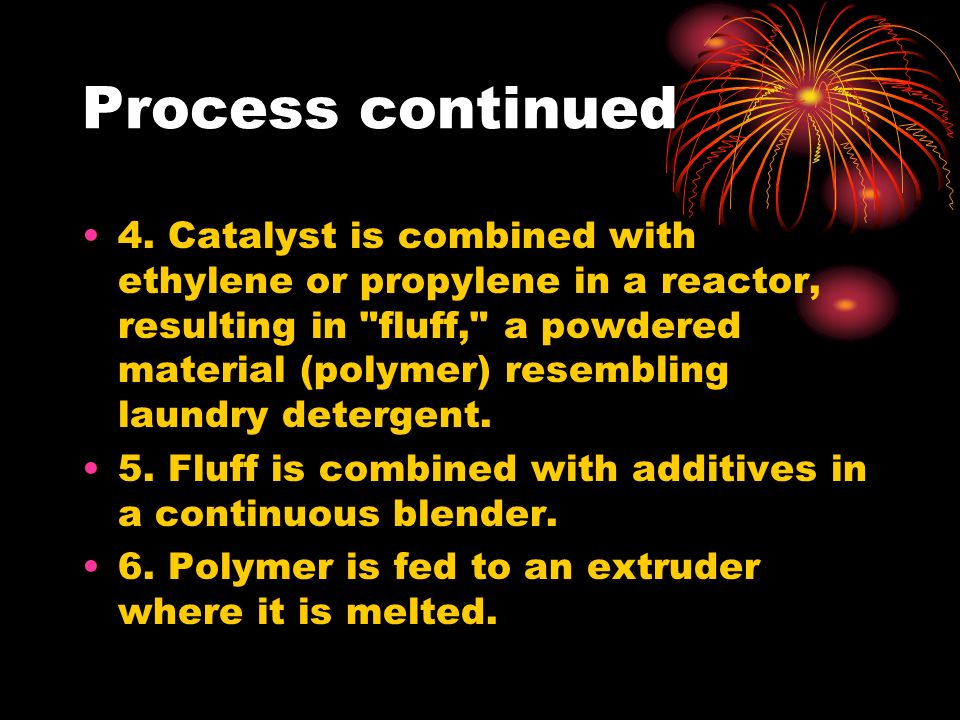

4. Process continued 4. Catalyst is combined with ethylene or propylene in a reactor, resulting in "fluff," a powdered material (polymer) resembling laundry detergent. 5. Fluff is combined with additives in a continuous blender. 6. Polymer is fed to an extruder where it is melted.

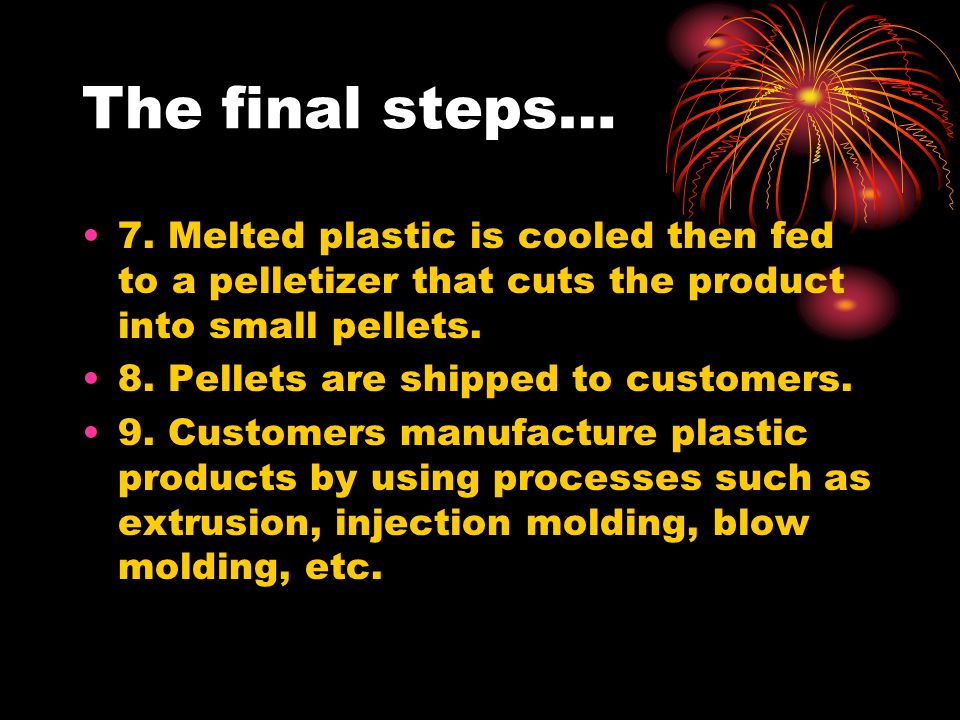

5. The final steps… 7. Melted plastic is cooled then fed to a pelletizer that cuts the product into small pellets. 8. Pellets are shipped to customers. 9. Customers manufacture plastic products by using processes such as extrusion, injection molding, blow molding, etc.

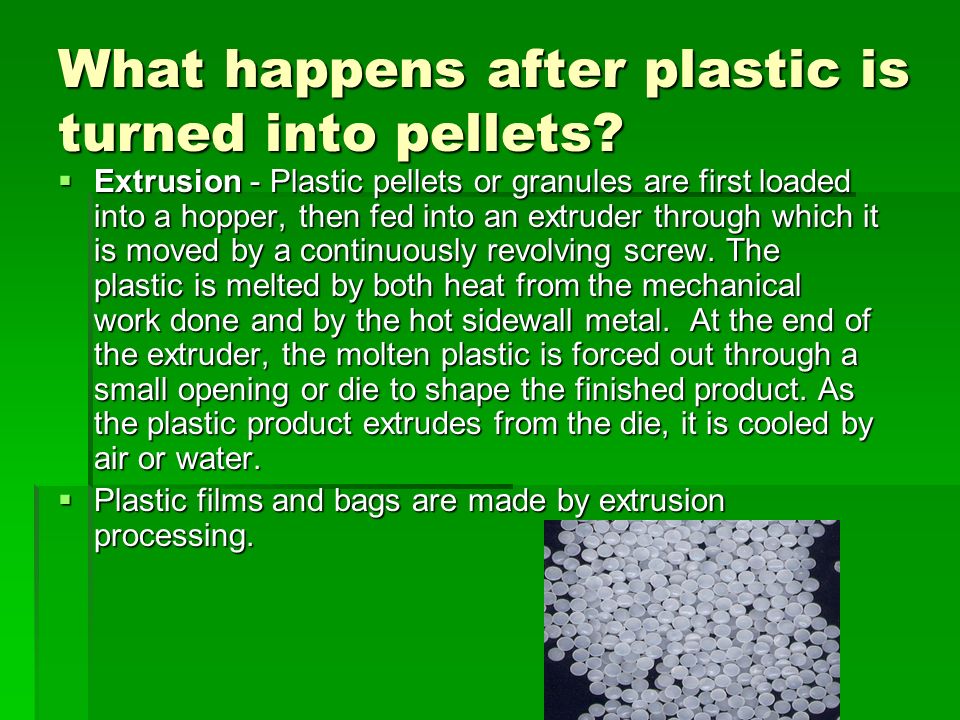

6. What happens after plastic is turned into pellets?  Extrusion - Plastic pellets or granules are first loaded into a hopper, then fed into an extruder through which it is moved by a continuously revolving screw. The plastic is melted by both heat from the mechanical work done and by the hot sidewall metal. At the end of the extruder, the molten plastic is forced out through a small opening or die to shape the finished product. As the plastic product extrudes from the die, it is cooled by air or water.  Plastic films and bags are made by extrusion processing.

7. Injection Molding Injection molding - In injection molding, plastic pellets are fed from a hopper into a heating chamber. An extrusion screw pushes the plastic through the heating chamber, where the material is softened into a fluid state. Mechanical work and hot sidewalls melt the plastic. At the end of the chamber, the resin is forced at high pressure into a cooled, closed mold. Once the plastic cools to a solid state, the mold opens and the finished part is ejected. This process is used to make products such as butter tubs, yogurt containers, closures and fittings

8. Blow Molding Blow molding - Blow molding is a process used in conjunction with extrusion or injection molding. In one form, extrusion blow molding, the die forms a continuous semi-molten tube of thermoplastic material. A chilled mold is clamped around the tube and compressed air is then blown into the tube to conform the tube to the interior of the mold and to solidify the stretched tube. Overall, the goal is to produce a uniform melt, form it into a tube with the desired cross section and blow it into the exact shape of the product. This process is used to manufacture hollow plastic products and its principal advantage is its ability to produce hollow shapes without having to join two or more separately injection molded parts. This method is used to make items such as commercial drums and milk bottles. Another blow molding technique is to injection mold an intermediate shape called a perform and then to heat the perform and blow the heat-softened plastic into the final shape in a chilled mold. This is the process to make carbonated soft drink bottles. Basically, you melt the plastic and then a tube blows it into the desired shape.

9. Rotational Molding Rotational Molding - Rotational molding consists of a closed mold mounted on a machine capable of rotation on two axes simultaneously. Plastic granules are placed in the mold, which is then heated in an oven to melt the plastic Rotation around both axes distributes the molten plastic into a uniform coating on the inside of the mold until the part is set by cooling. This process is used to make hollow products, for example large toys or kayaks

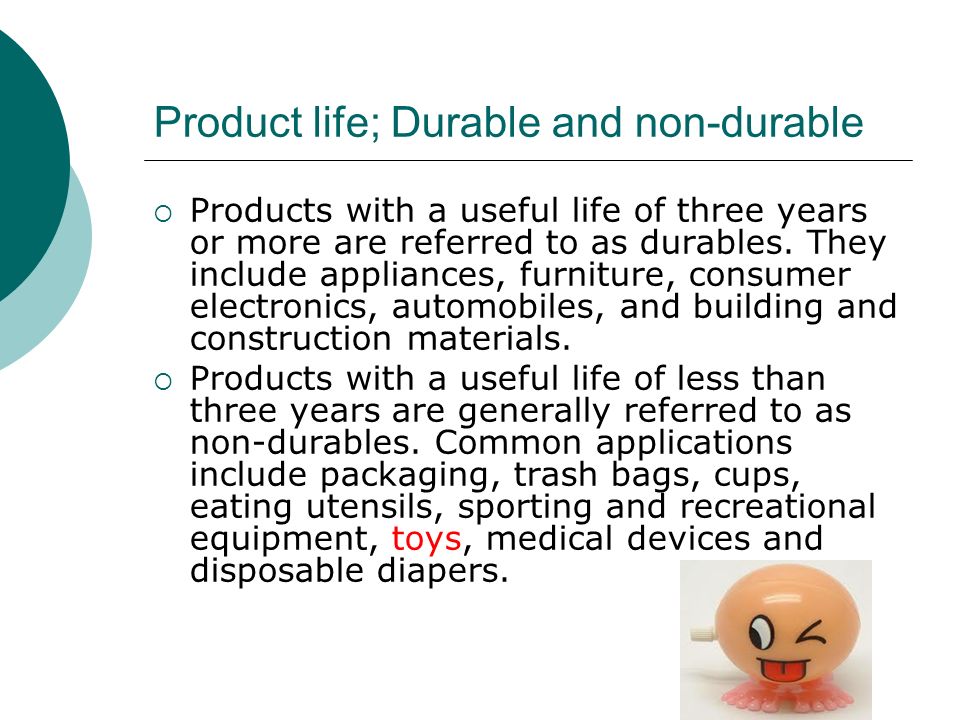

10. Product life; Durable and non-durable  Products with a useful life of three years or more are referred to as durables. They include appliances, furniture, consumer electronics, automobiles, and building and construction materials.  Products with a useful life of less than three years are generally referred to as non-durables. Common applications include packaging, trash bags, cups, eating utensils, sporting and recreational equipment, toys, medical devices and disposable diapers.

11. End of the line Mechanical Recycling- Once collected, the plastics are delivered to a material recovery facility (MRF) or handler for sorting into single resin streams to increase product value. The sorted plastics are then baled to reduce shipping costs to re-claimers. Reclamation is the next step where the plastics are chopped into flakes, washed to remove contaminants and sold to end users to manufacture new products such as bottles, containers, clothing, carpet, plastic lumber, etc

12. Mechanical recycling diagram

13. Some materials Gutta-percha, shellac, and the horns of animals are all materials in plastic. plastic shopping bag is usually made of polyethylene plastic in soda bottles is made using a process that uses ethylene glycol. most plastics are made from petrochemicals (crude oil and natural gas)

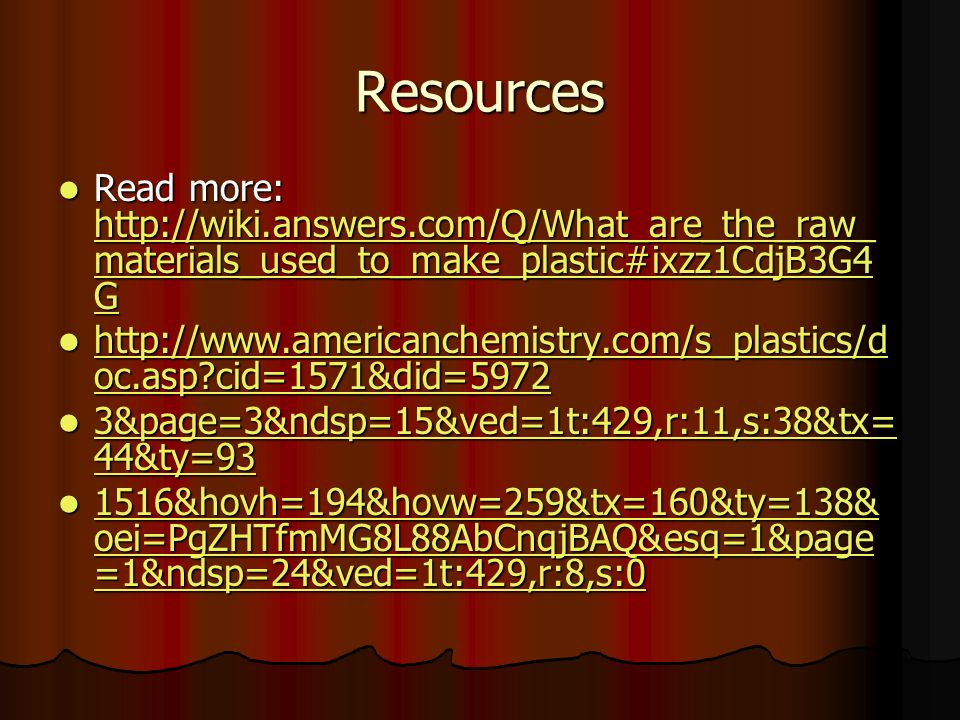

14. Resources Read more: http://wiki.answers.com/Q/What_are_the_raw_ materials_used_to_make_plastic#ixzz1CdjB3G4 G Read more: http://wiki.answers.com/Q/What_are_the_raw_ materials_used_to_make_plastic#ixzz1CdjB3G4 G http://wiki.answers.com/Q/What_are_the_raw_ materials_used_to_make_plastic#ixzz1CdjB3G4 G http://wiki.answers.com/Q/What_are_the_raw_ materials_used_to_make_plastic#ixzz1CdjB3G4 G http://www.americanchemistry.com/s_plastics/d oc.asp?cid=1571&did=5972 http://www.americanchemistry.com/s_plastics/d oc.asp?cid=1571&did=5972 http://www.americanchemistry.com/s_plastics/d oc.asp?cid=1571&did=5972 http://www.americanchemistry.com/s_plastics/d oc.asp?cid=1571&did=5972 3&page=3&ndsp=15&ved=1t:429,r:11,s:38&tx= 44&ty=93 3&page=3&ndsp=15&ved=1t:429,r:11,s:38&tx= 44&ty=93 3&page=3&ndsp=15&ved=1t:429,r:11,s:38&tx= 44&ty=93 3&page=3&ndsp=15&ved=1t:429,r:11,s:38&tx= 44&ty=93 1516&hovh=194&hovw=259&tx=160&ty=138& oei=PgZHTfmMG8L88AbCnqjBAQ&esq=1&page =1&ndsp=24&ved=1t:429,r:8,s:0 1516&hovh=194&hovw=259&tx=160&ty=138& oei=PgZHTfmMG8L88AbCnqjBAQ&esq=1&page =1&ndsp=24&ved=1t:429,r:8,s:0 1516&hovh=194&hovw=259&tx=160&ty=138& oei=PgZHTfmMG8L88AbCnqjBAQ&esq=1&page =1&ndsp=24&ved=1t:429,r:8,s:0 1516&hovh=194&hovw=259&tx=160&ty=138& oei=PgZHTfmMG8L88AbCnqjBAQ&esq=1&page =1&ndsp=24&ved=1t:429,r:8,s:0
