2 Sound, Wavefronts

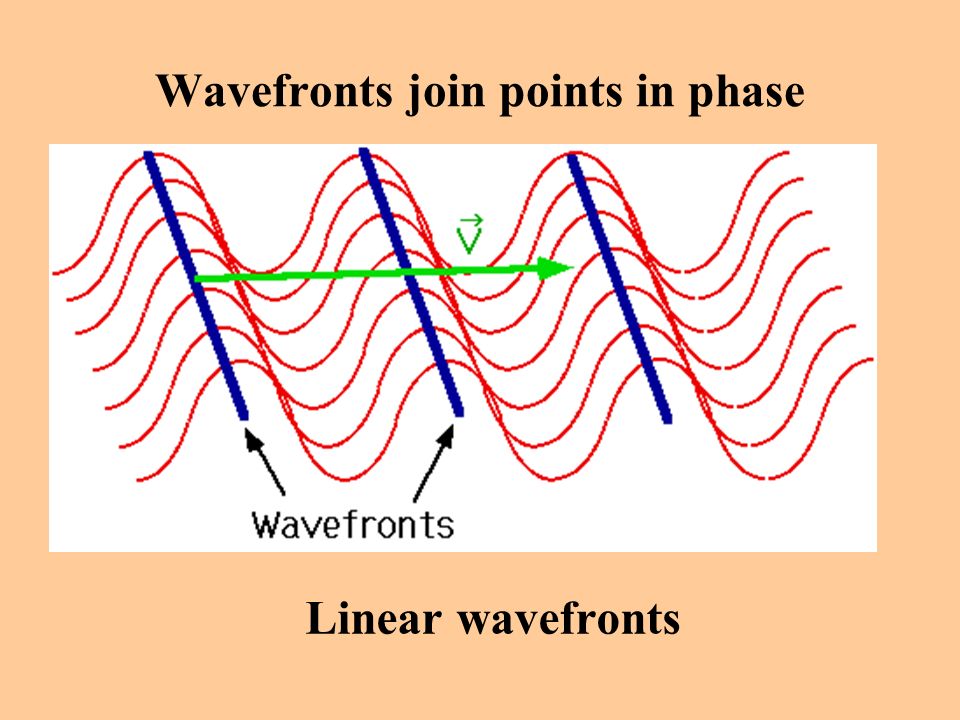

3 Wavefronts join points in phase Linear wavefronts

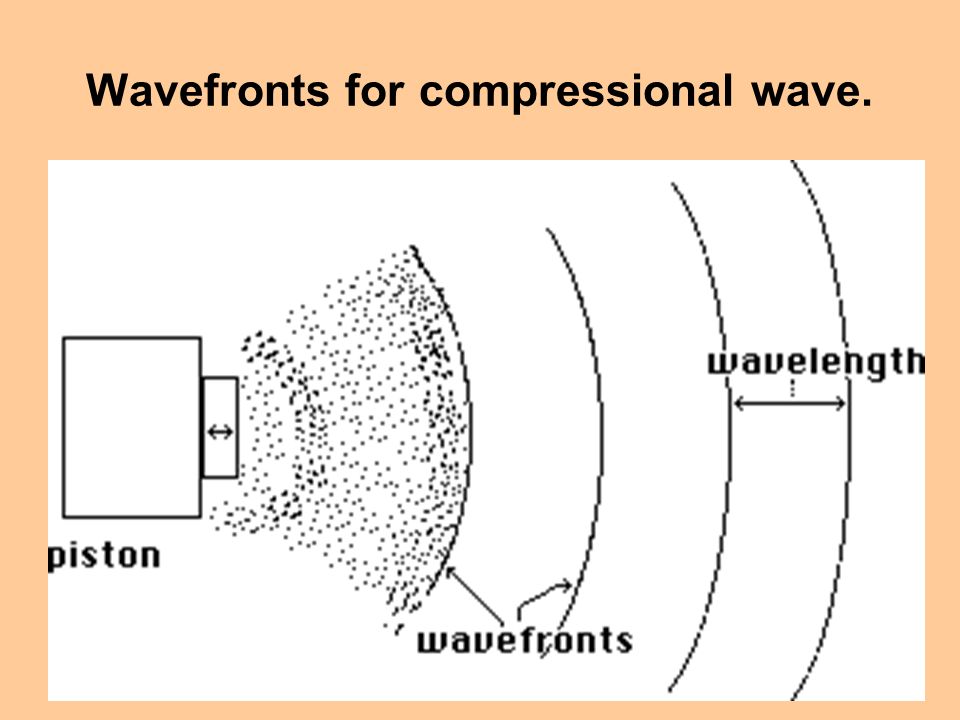

4 Wavefronts for compressional wave.

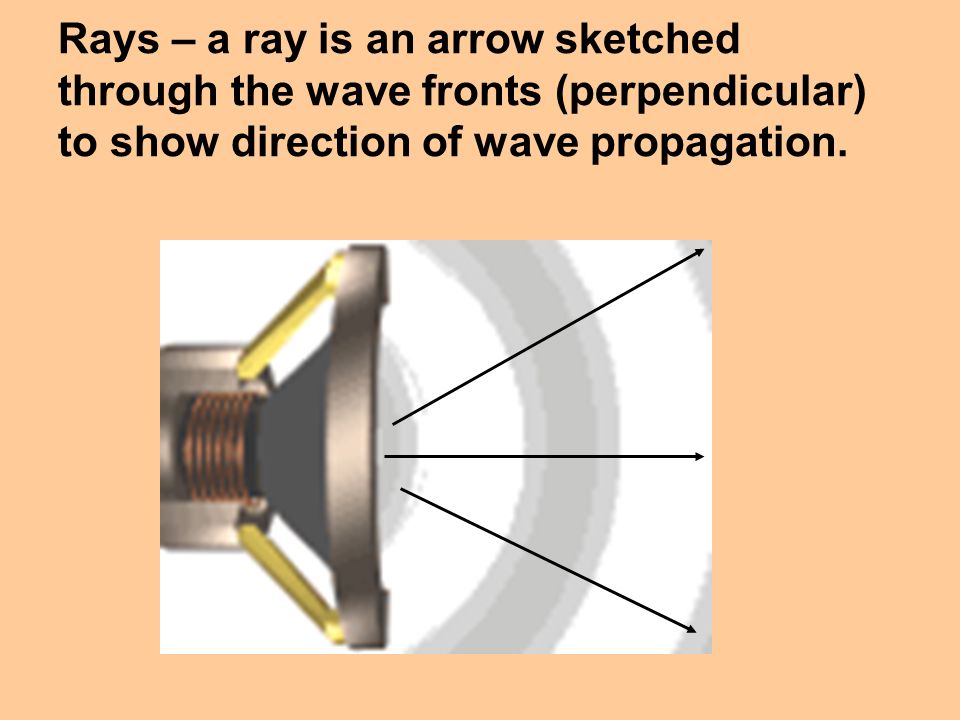

5 Rays – a ray is an arrow sketched through the wave fronts (perpendicular) to show direction of wave propagation.

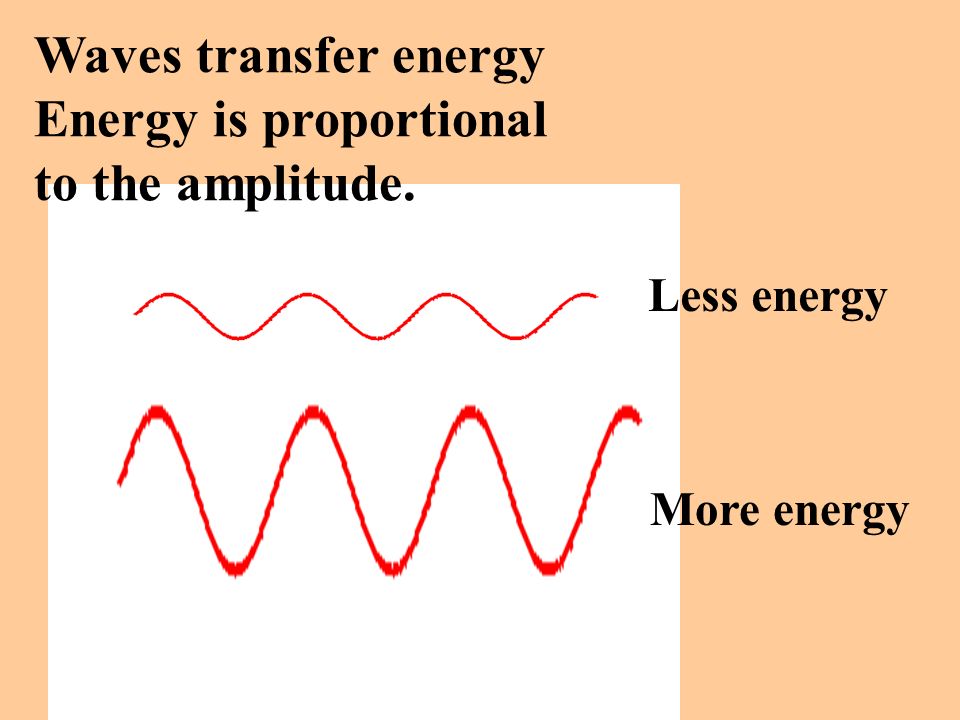

6 Waves transfer energy Energy is proportional to the amplitude. Less energy More energy

7 For light increased amplitude increases brightness.

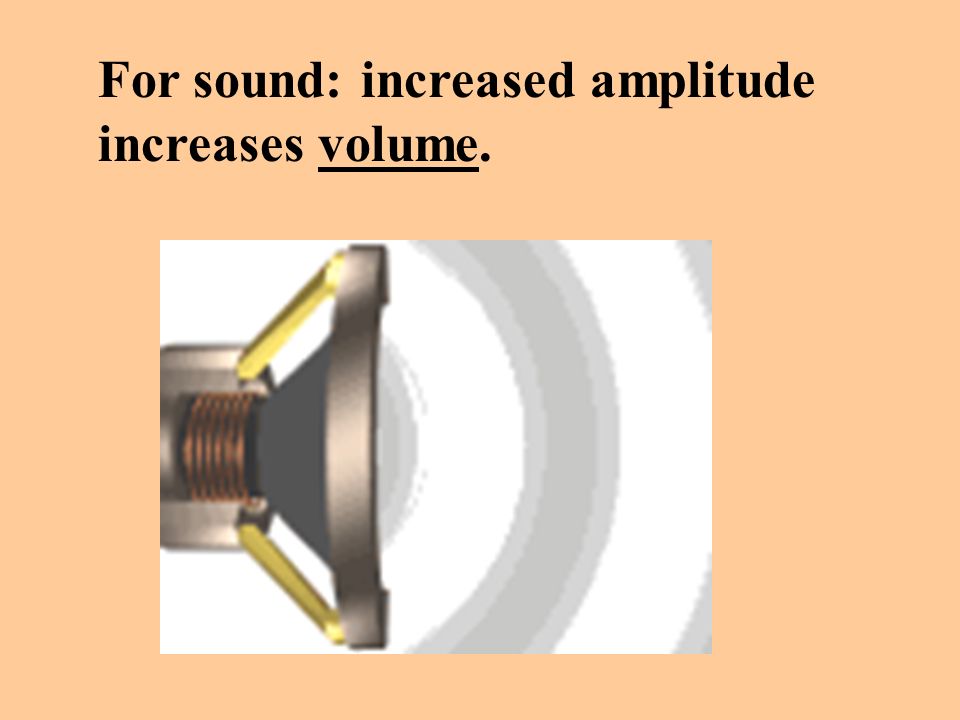

8 For sound: increased amplitude increases volume.

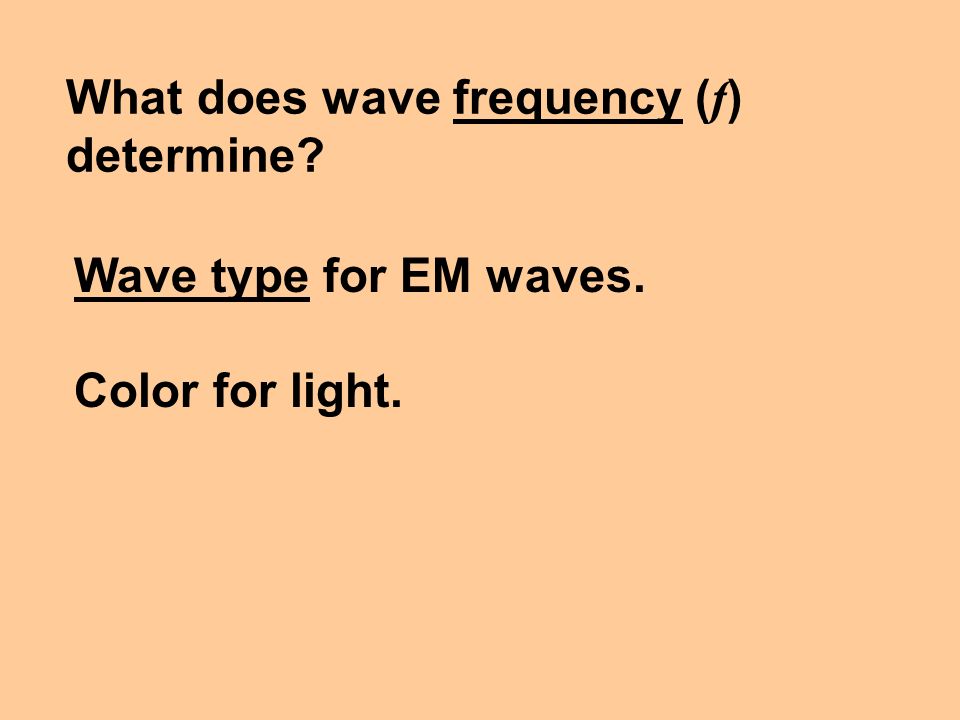

9 What does wave frequency ( f ) determine? Wave type for EM waves. Color for light.

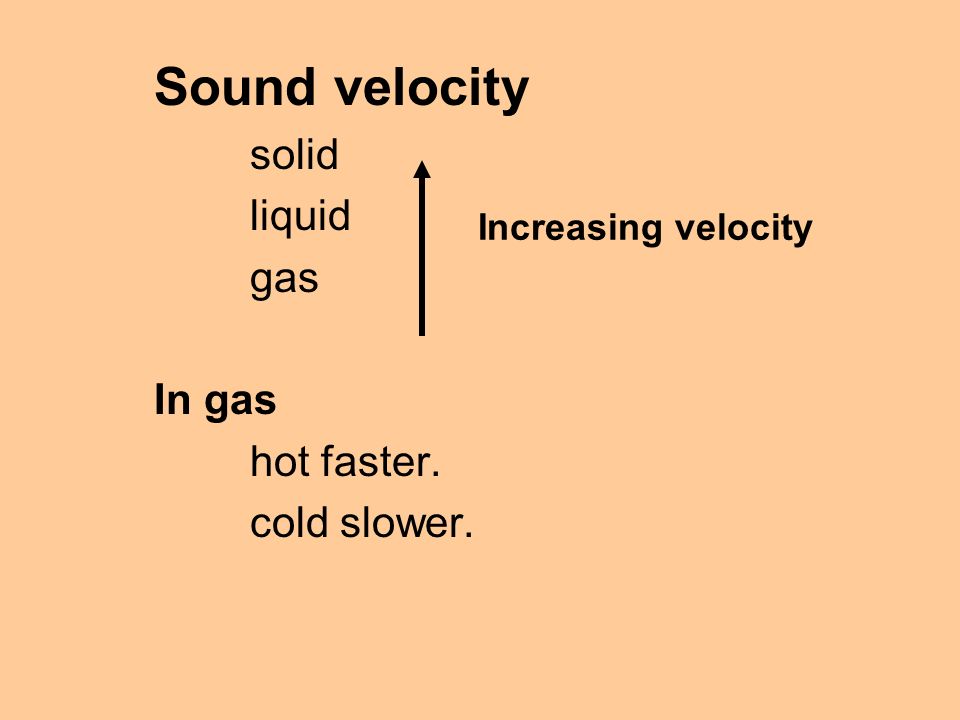

10 Sound velocity solid liquid gas In gas hot faster. cold slower. Increasing velocity

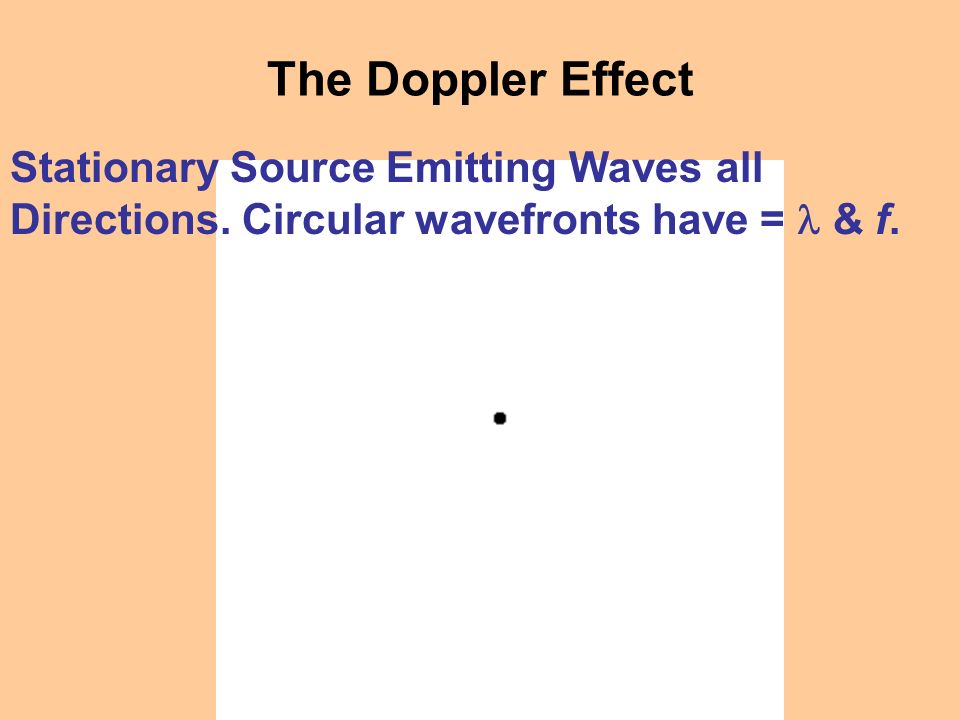

11 The Doppler Effect Stationary Source Emitting Waves all Directions. Circular wavefronts have = & f.

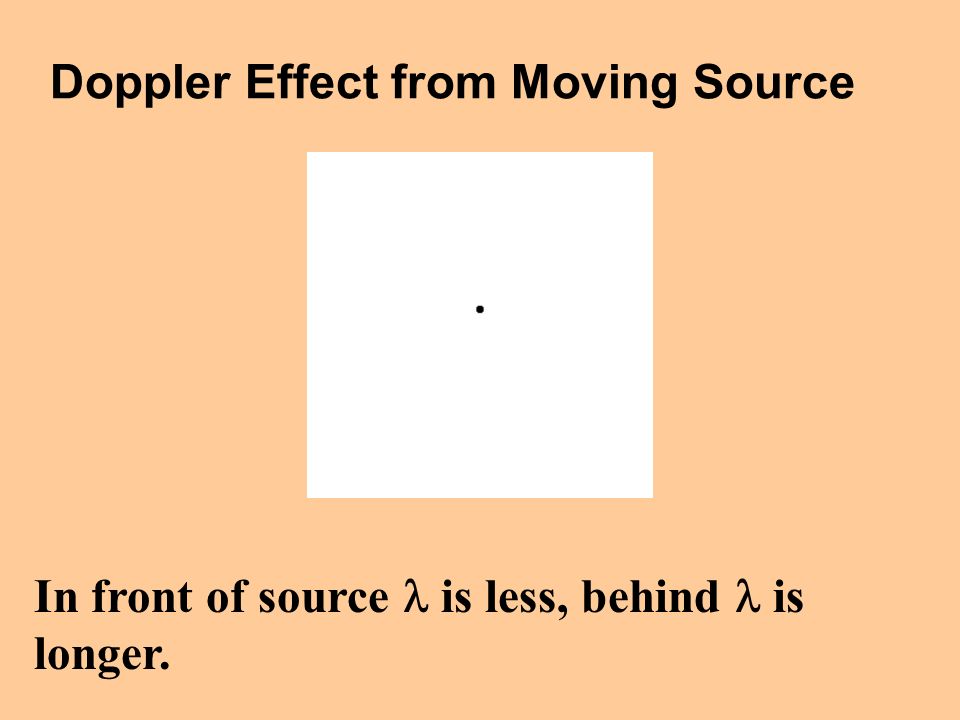

12 Doppler Effect from Moving Source In front of source is less, behind is longer.

13 Another View

14 In front of source -short higher f: hear higher pitch sound- see shorter light (blue). behind source - longer lower f: hear lower pitch sound see longer light (red).

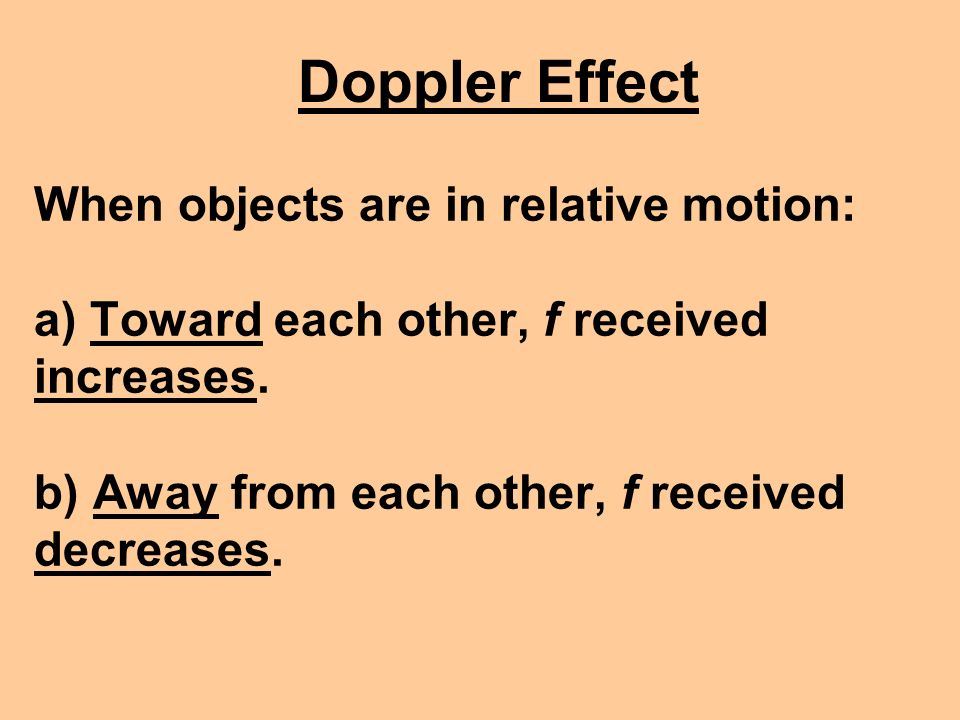

15 When objects are in relative motion: a) Toward each other, f received increases. b) Away from each other, f received decreases. Doppler Effect

16 Resonance & Sympathetic Vibration

17 * Fact * All objects have a natural frequency of vibration. Resonance - the inducing of vibrations of a natural rate by a vibrating source having the same frequency “sympathetic vibrations”

18 Push at natural frequency, amplitude increases

19 Resonance: An oscillatory system that is driven by a force with a frequency = to its natural frequency. System will resonate – amplitude will increase.

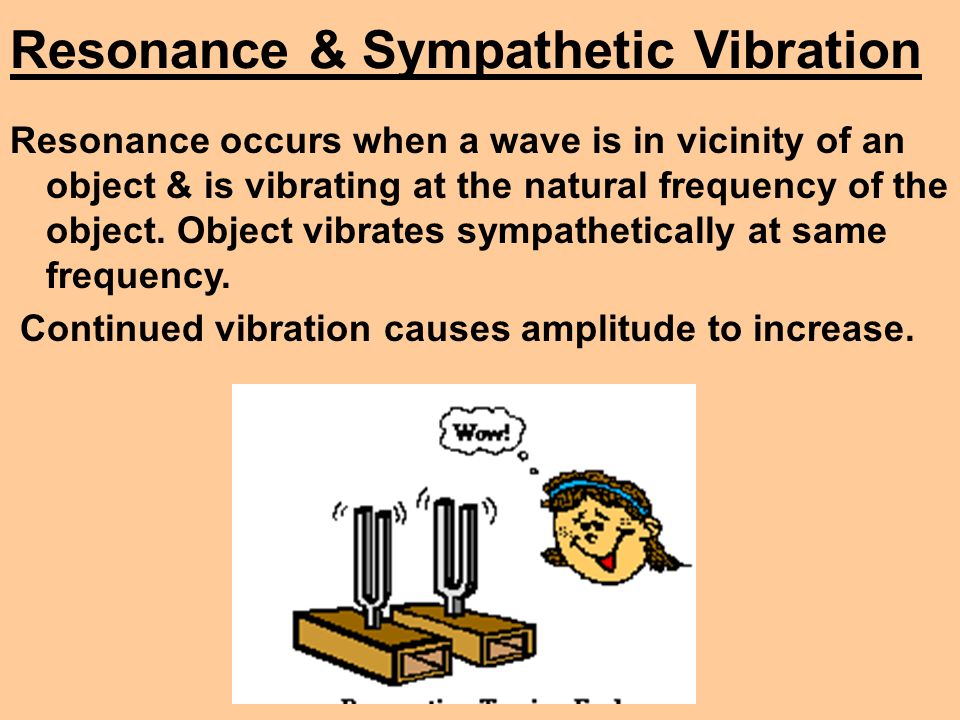

20 Resonance & Sympathetic Vibration Resonance occurs when a wave is in vicinity of an object & is vibrating at the natural frequency of the object. Object vibrates sympathetically at same frequency. Continued vibration causes amplitude to increase.

21 mechanical universe resonance

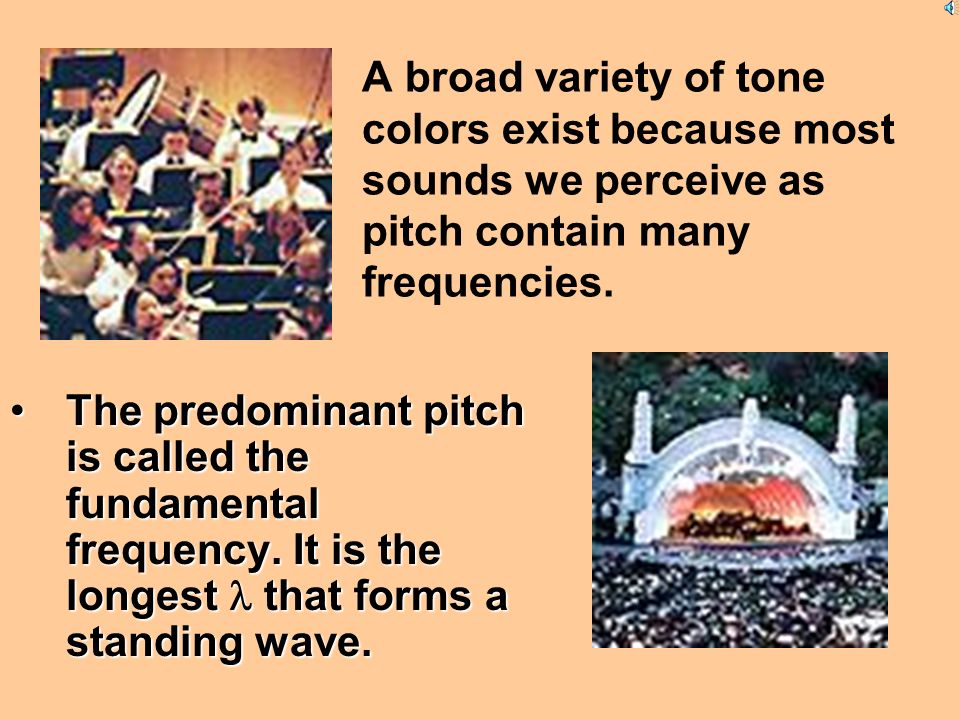

22 A broad variety of tone colors exist because most sounds we perceive as pitch contain many frequencies. The predominant pitch is called the fundamental frequency. It is the longest that forms a standing wave.The predominant pitch is called the fundamental frequency. It is the longest that forms a standing wave.

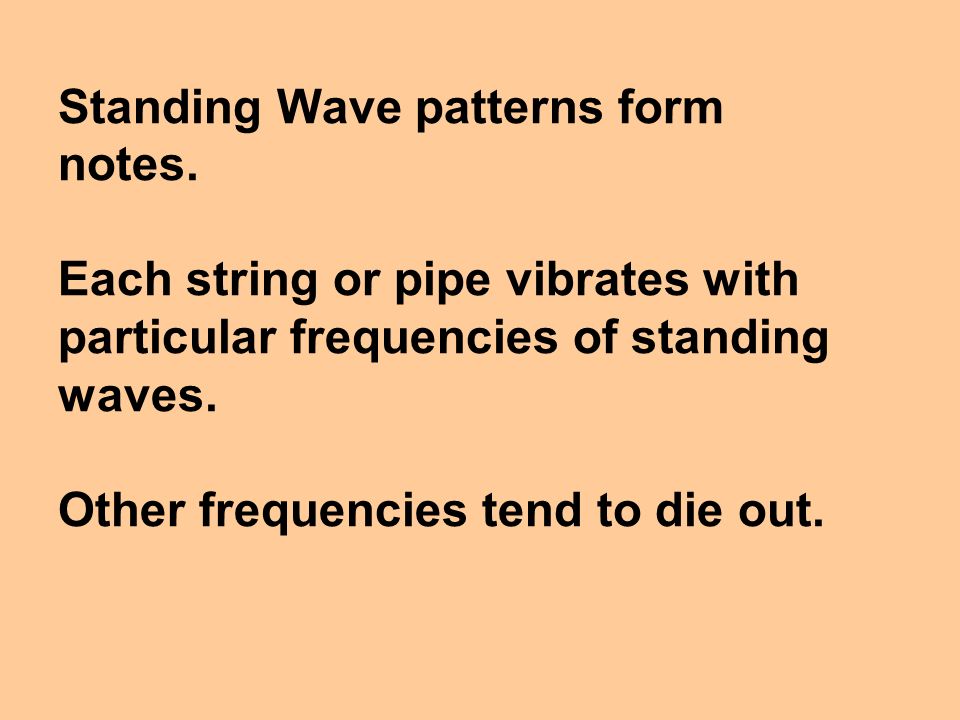

23 Standing Wave patterns form notes. Each string or pipe vibrates with particular frequencies of standing waves. Other frequencies tend to die out.

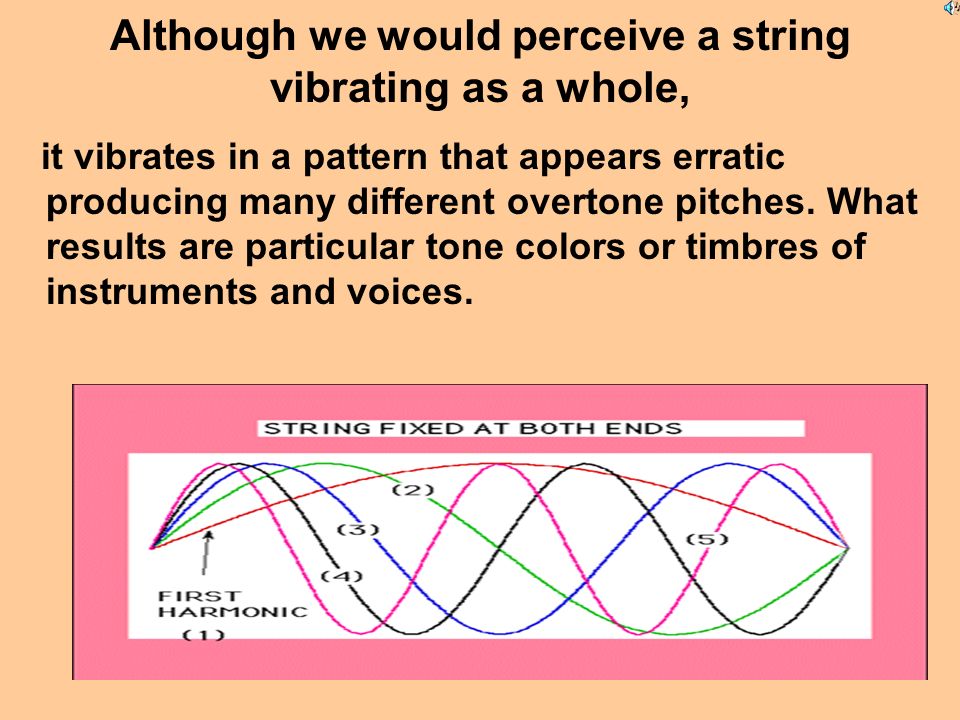

24 Although we would perceive a string vibrating as a whole, it vibrates in a pattern that appears erratic producing many different overtone pitches. What results are particular tone colors or timbres of instruments and voices.

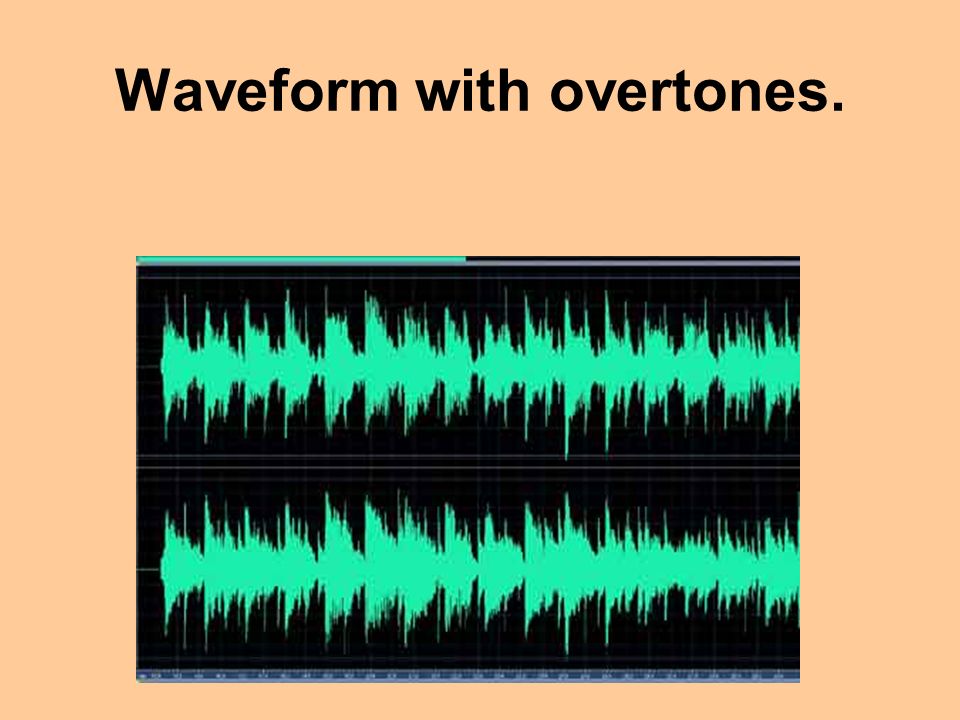

25 Waveform with overtones.

26 Frequencies which occur along with the primary note are called the harmonic or overtone series. When C is the fundamental the pitches below represent its first 15 overtones.

27 There are several standing waves which can be produced by vibrations on a string, or rope. Each pattern corresponds to vibrations which occur at a particular frequency and is known as a harmonic. Harmonics

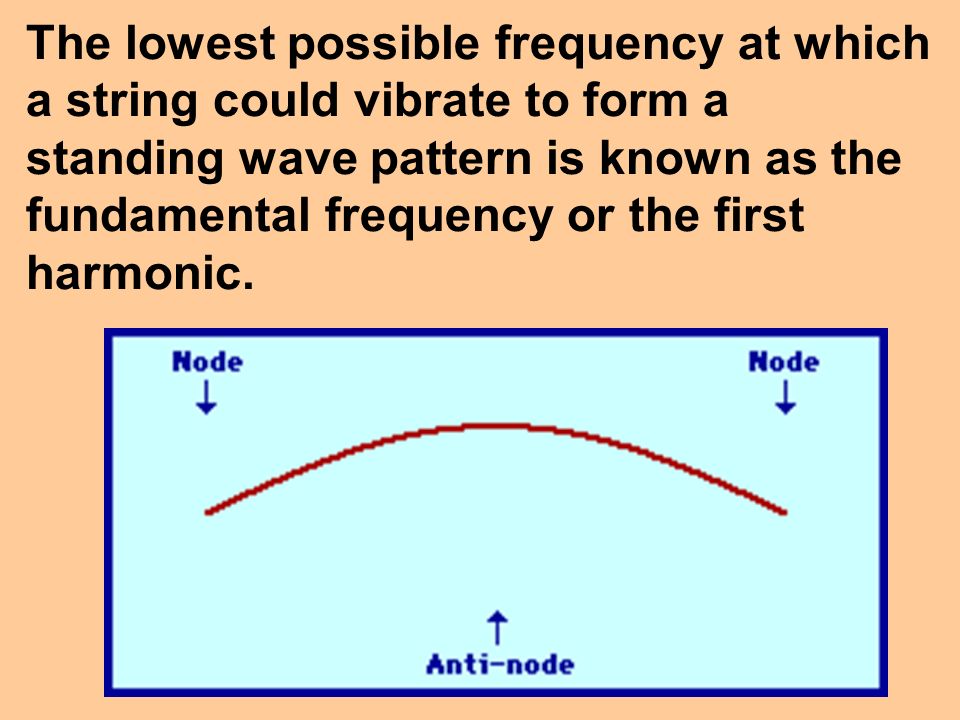

28 The lowest possible frequency at which a string could vibrate to form a standing wave pattern is known as the fundamental frequency or the first harmonic.

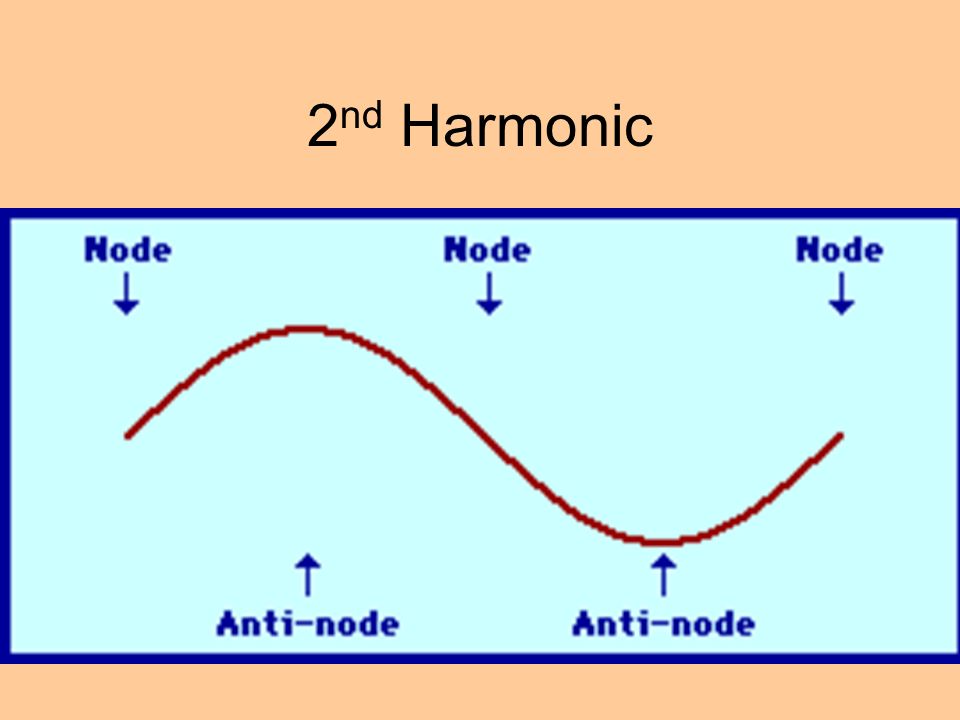

29 2 nd Harmonic

30 Which One??

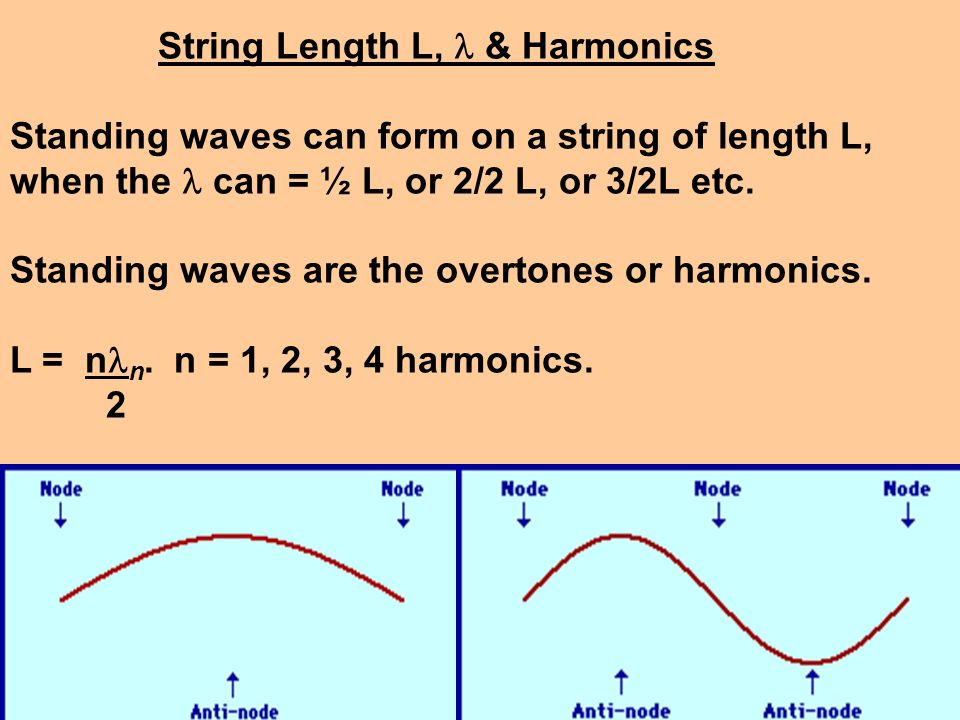

31 String Length L, & Harmonics Standing waves can form on a string of length L, when the can = ½ L, or 2/2 L, or 3/2L etc. Standing waves are the overtones or harmonics. L = n n. n = 1, 2, 3, 4 harmonics. 2

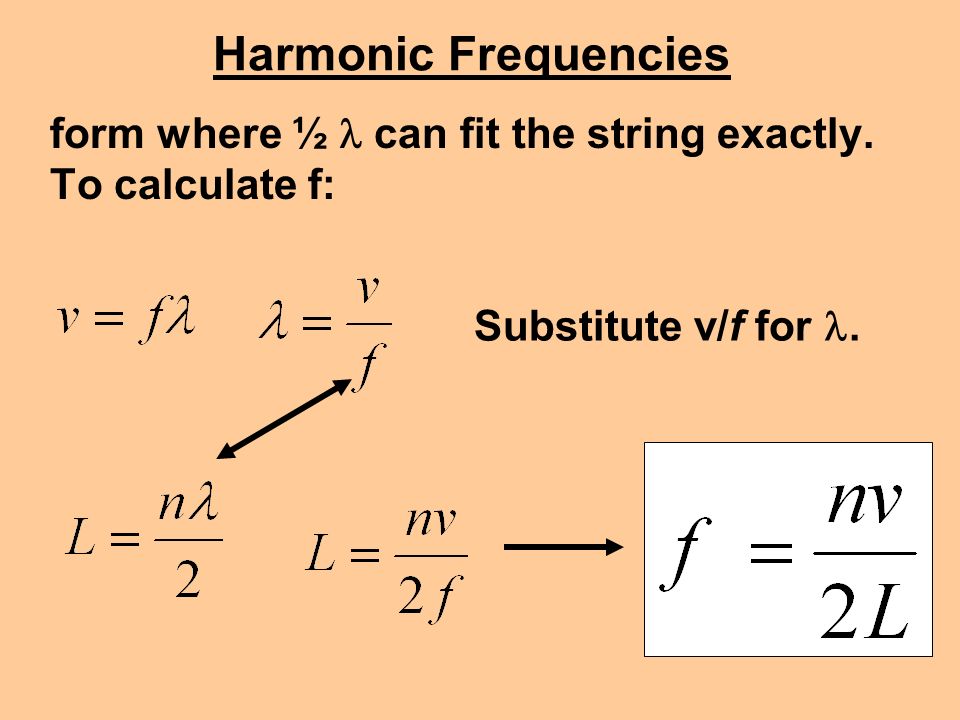

32 Harmonic Frequencies form where ½ can fit the string exactly. To calculate f: Substitute v/f for.

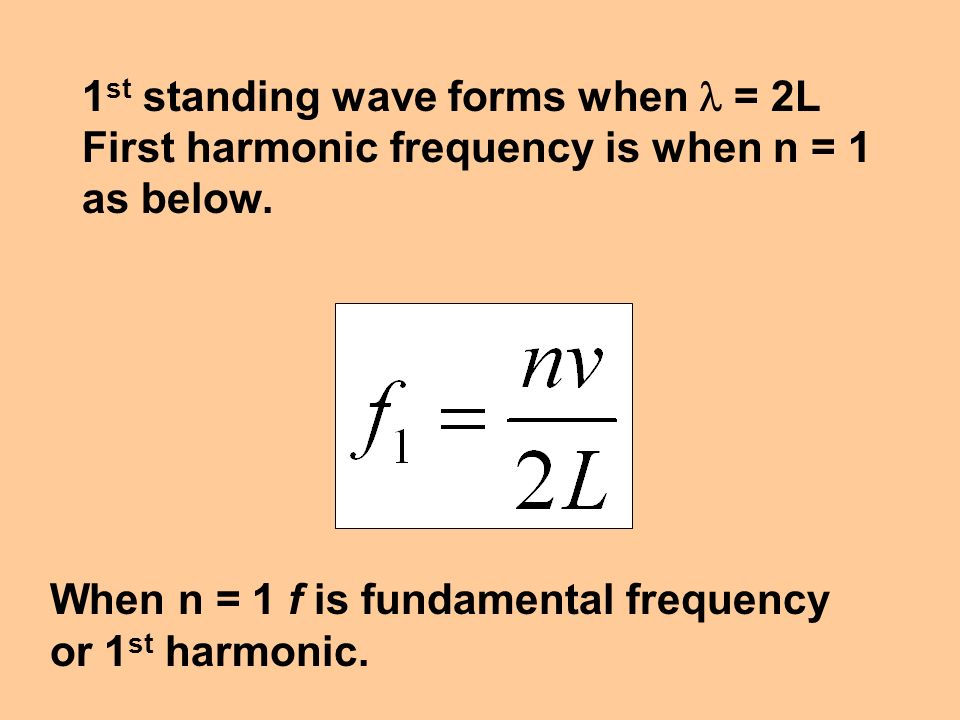

33 1 st standing wave forms when = 2L First harmonic frequency is when n = 1 as below. When n = 1 f is fundamental frequency or 1 st harmonic.

34 For second harmonic n = 2. f 2 = v/L Other standing waves with smaller wavelengths form other frequencies that ring out along with the fundamental.

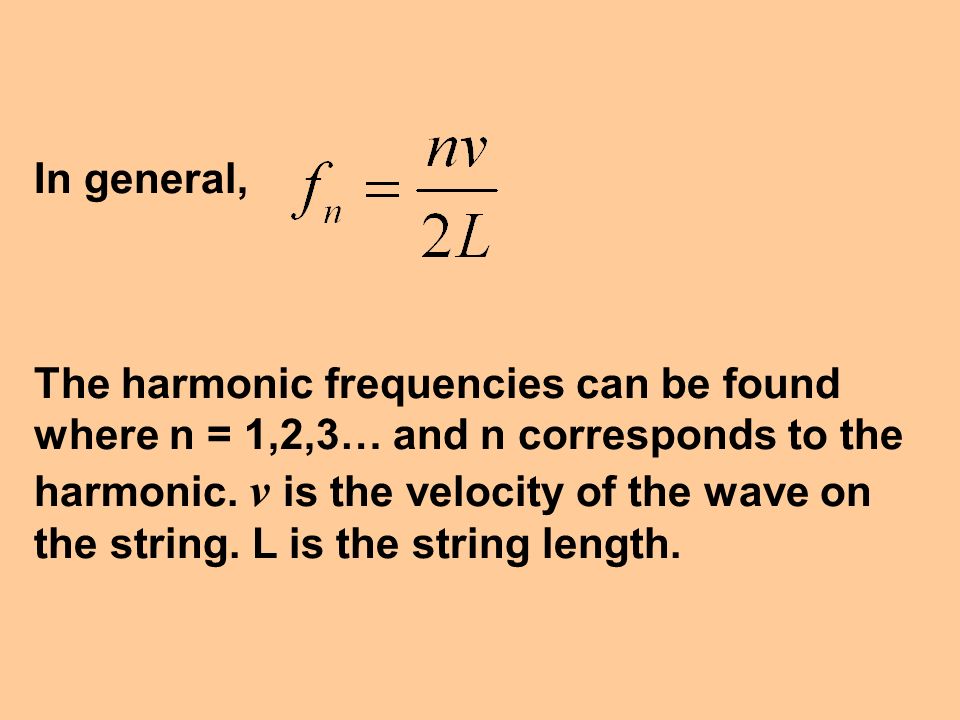

35 In general, The harmonic frequencies can be found where n = 1,2,3… and n corresponds to the harmonic. v is the velocity of the wave on the string. L is the string length.

36 It is helpful to note that the distance between nodes on a standing wave is ½. ½

37 Pipes and Air Columns

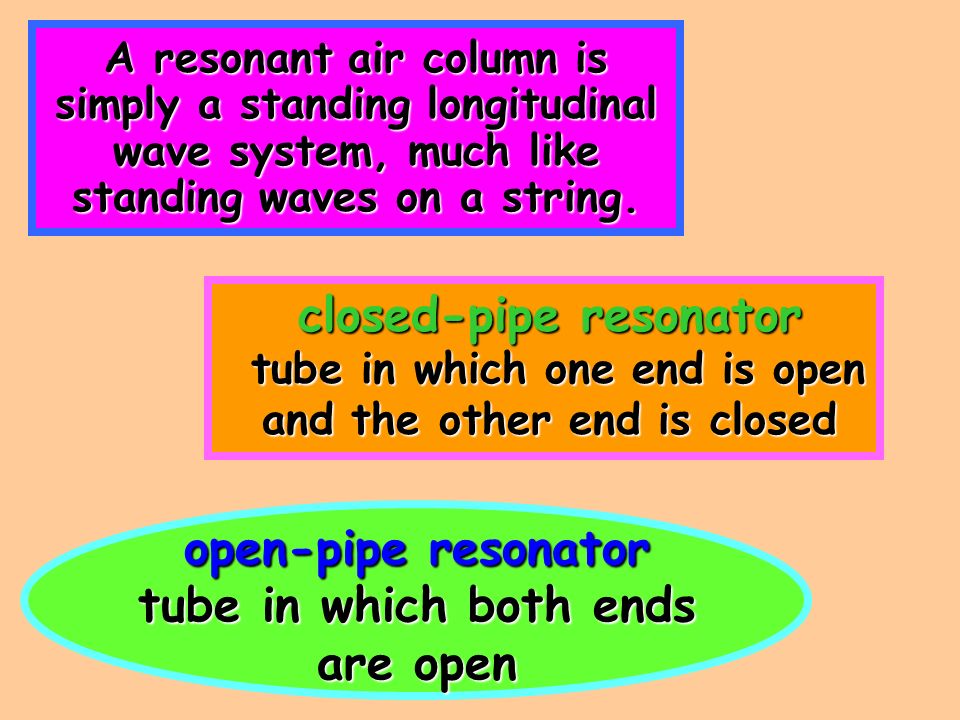

38 A resonant air column is simply a standing longitudinal wave system, much like standing waves on a string. closed-pipe resonator tube in which one end is open tube in which one end is open and the other end is closed open-pipe resonator tube in which both ends are open

39 Open Pipe – open end has antinode.

40 Standing Waves in Open Pipe Both ends must be antinodes. How much of the wavelength is the fundamental?

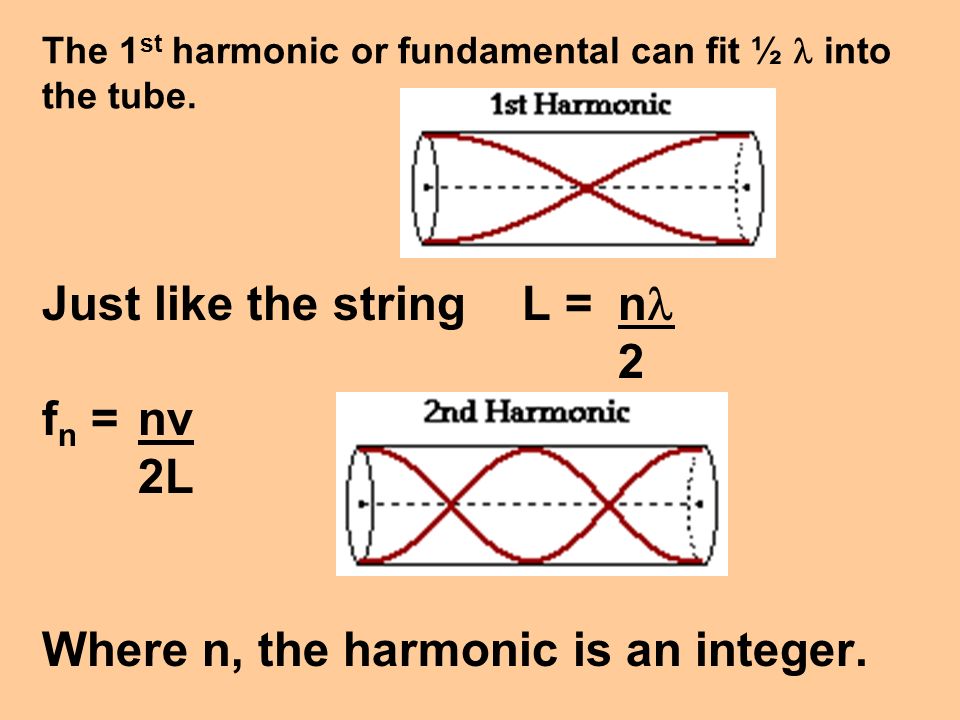

41 The 1 st harmonic or fundamental can fit ½ into the tube. Just like the string L = n 2 f n =nv 2L Where n, the harmonic is an integer.

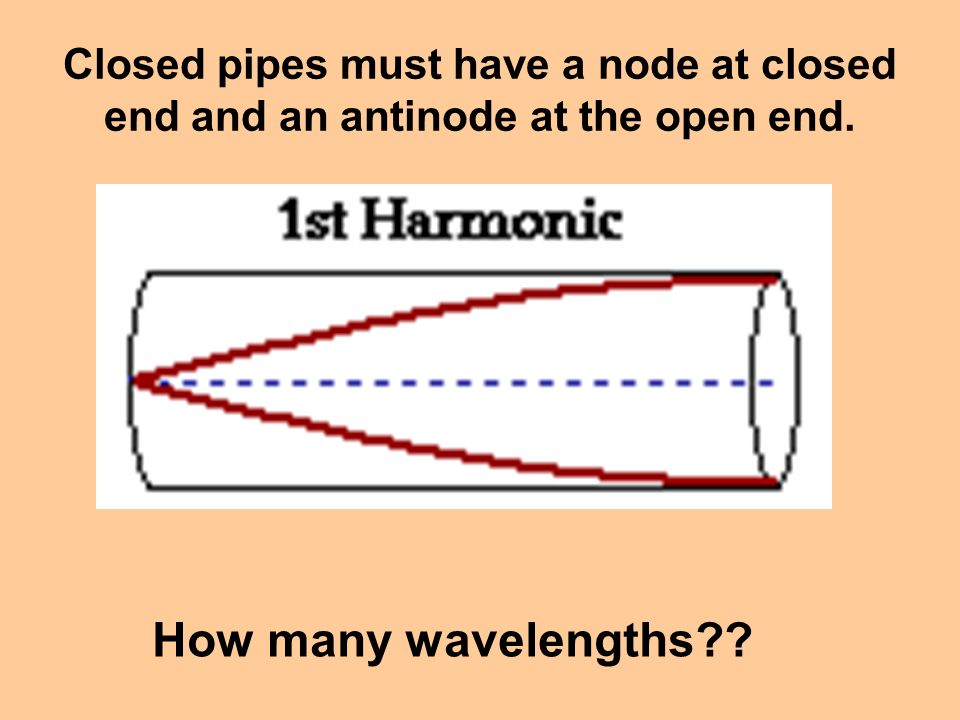

42 Closed pipes must have a node at closed end and an antinode at the open end. How many wavelengths??

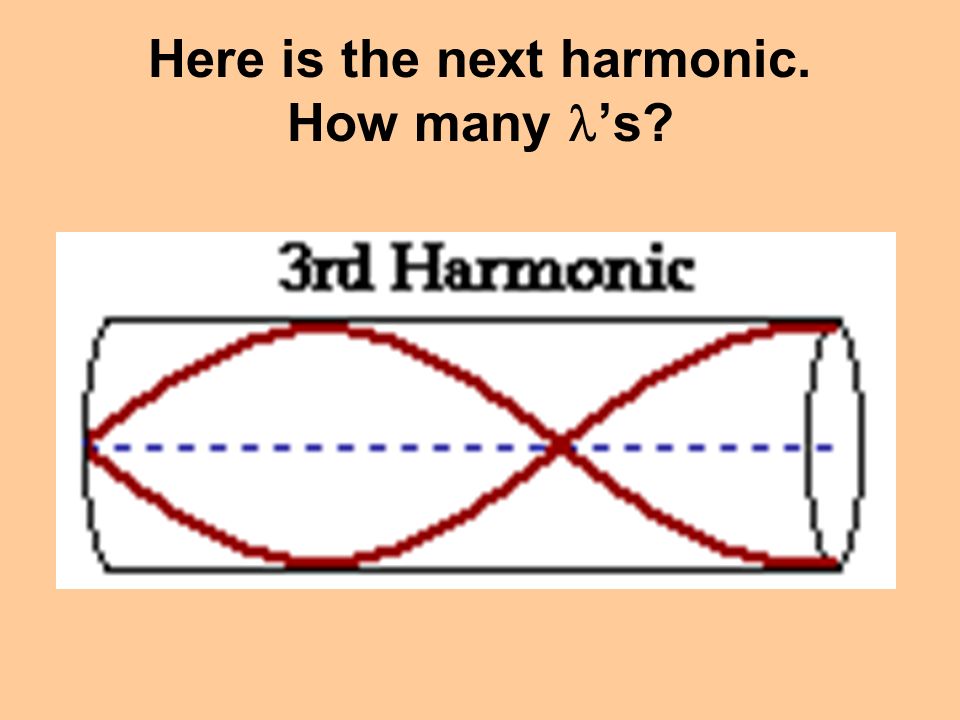

43 Here is the next harmonic. How many ’s?

44 There are only odd harmonics possible. L = 1/4. L = 3/4. L = 5/4  f n = nv where n = 1,3,5 … 4L

45 Beats – caused by constructive & destructive interference from 2 frequency sounds interacting. Beat Frequency heard is the difference between 2 frequencies. If a 50 Hz wave and a 60 Hz wave overlap, you hear beat of 10 Hz.

46 hear beat frequencies

47

48 Traveling Waves Beats

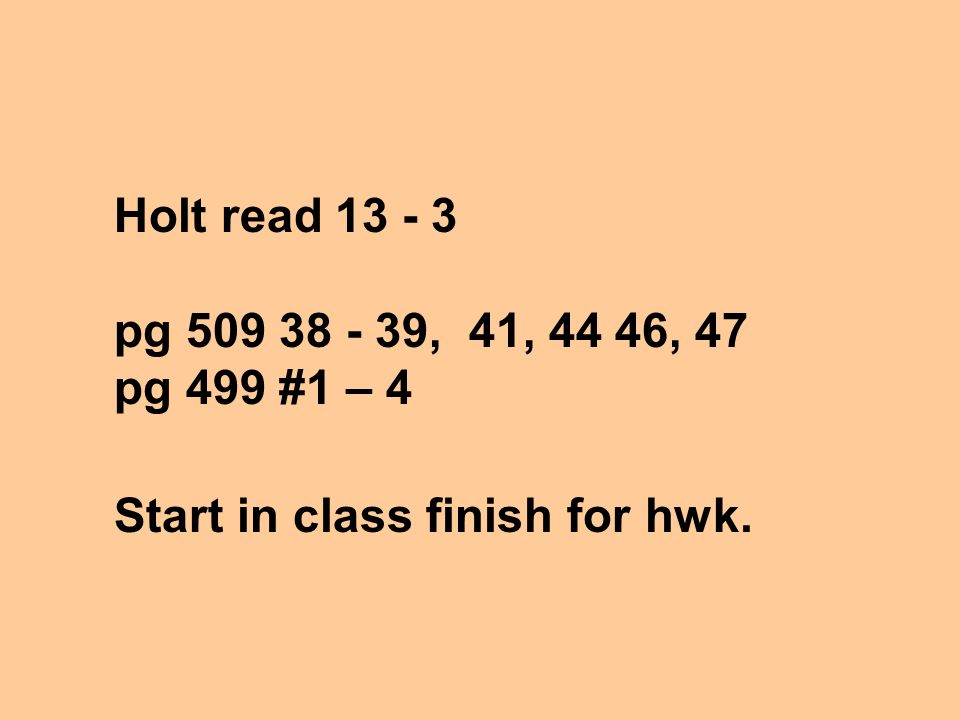

49 Holt read 13 - 3 pg 509 38 - 39, 41, 44 46, 47 pg 499 #1 – 4 Start in class finish for hwk.
