1. Product Overview

2. Design with Scan Data

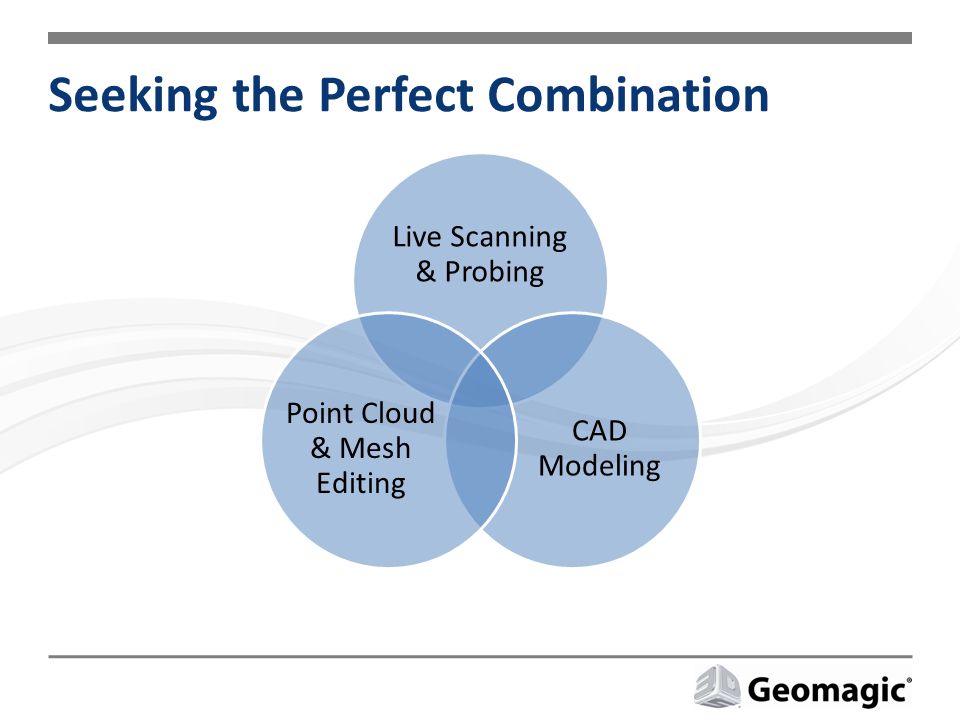

3. Seeking the Perfect Combination Live Scanning & Probing CAD Modeling Point Cloud & Mesh Editing

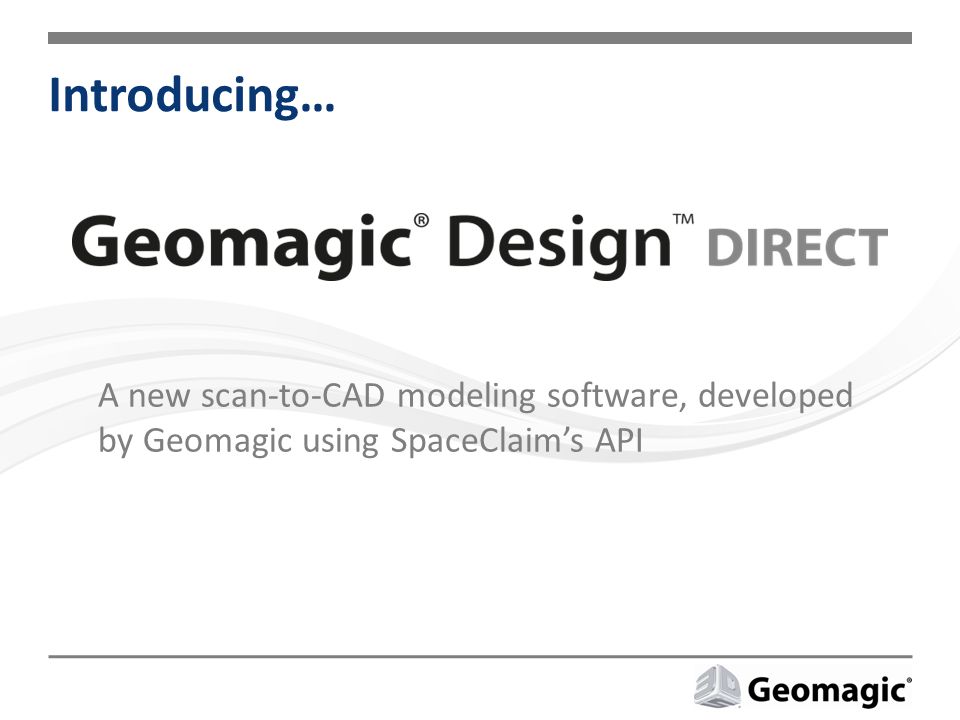

4. Introducing… A new scan-to-CAD modeling software, developed by Geomagic using SpaceClaim’s API

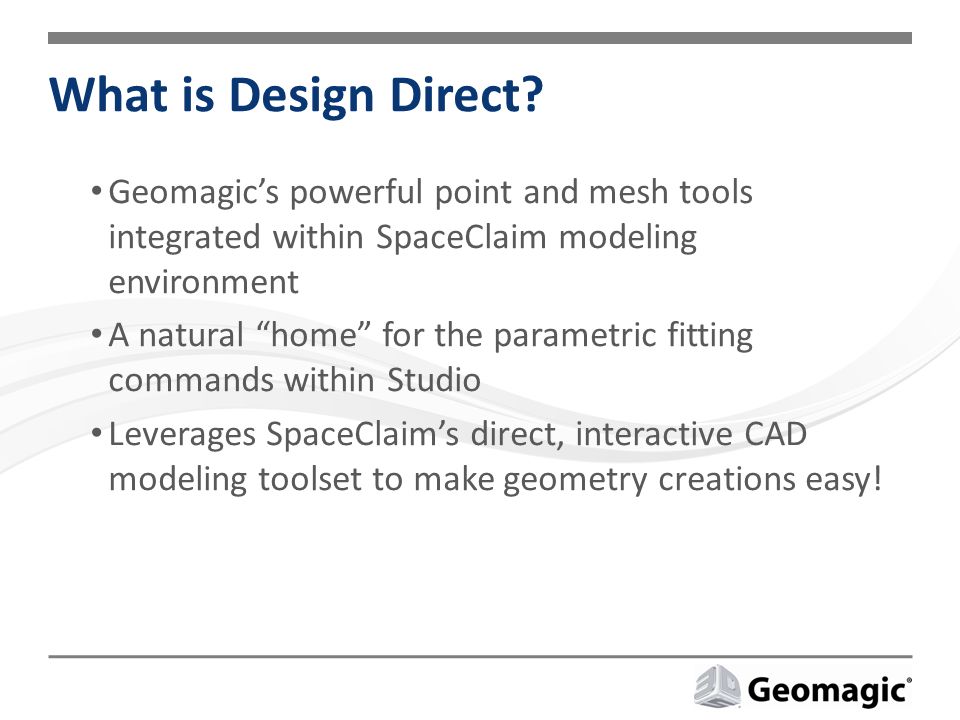

5. What is Design Direct? Geomagic’s powerful point and mesh tools integrated within SpaceClaim modeling environment A natural “home” for the parametric fitting commands within Studio Leverages SpaceClaim’s direct, interactive CAD modeling toolset to make geometry creations easy!

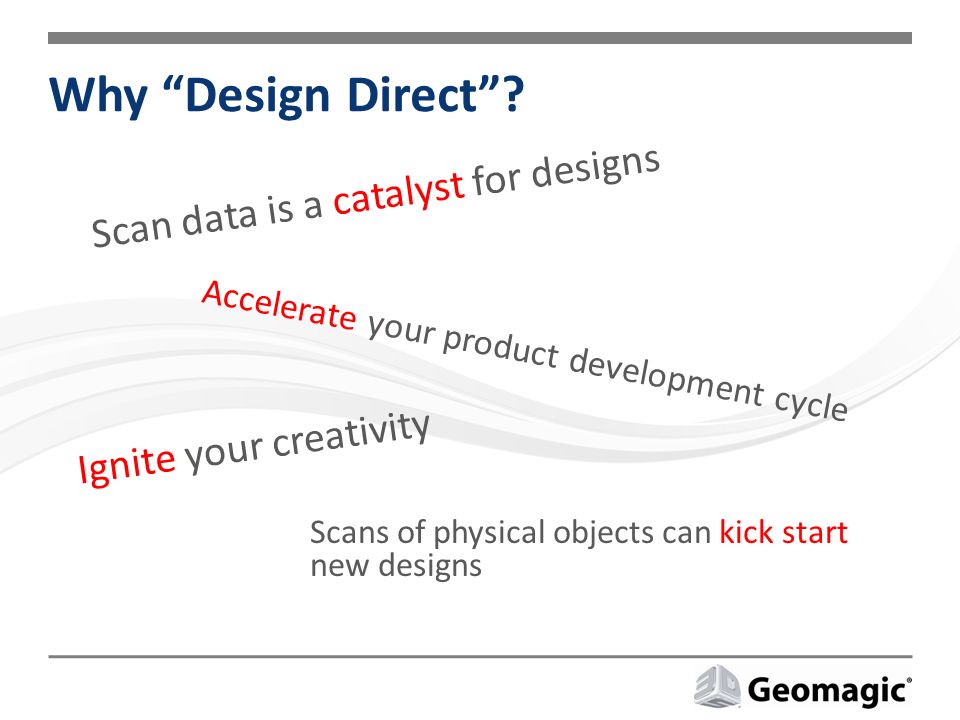

6. Why “Design Direct”? Scan data is a catalyst for designs Accelerate your product development cycle Ignite your creativity Scans of physical objects can kick start new designs

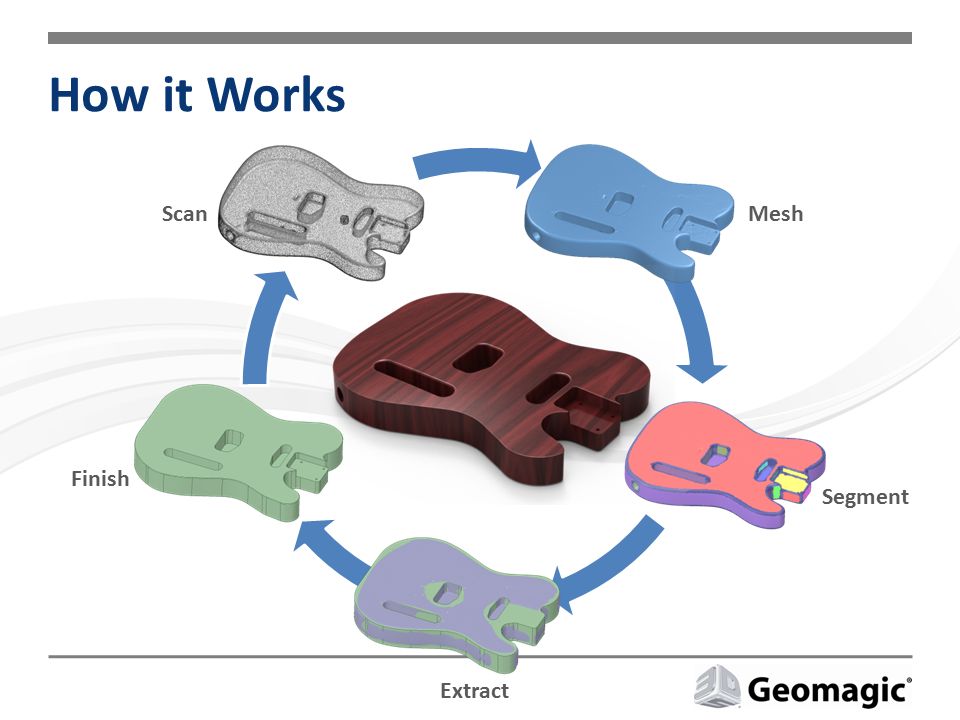

7. ..... How it Works ScanMesh Segment Finish Extract

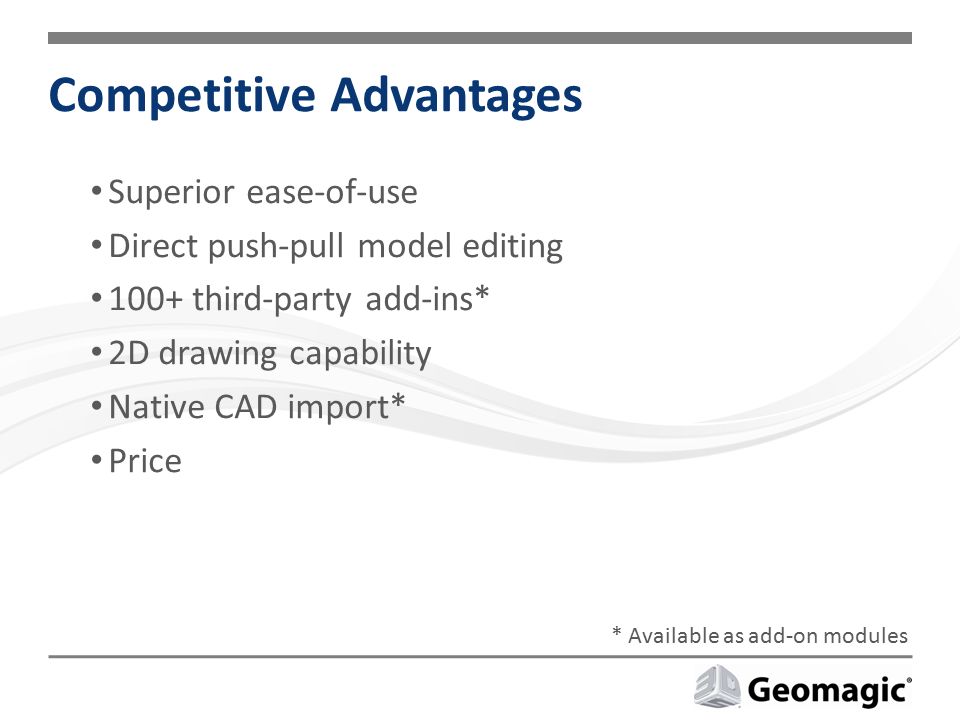

8. Competitive Advantages Superior ease-of-use Direct push-pull model editing 100+ third-party add-ins* 2D drawing capability Native CAD import* Price * Available as add-on modules

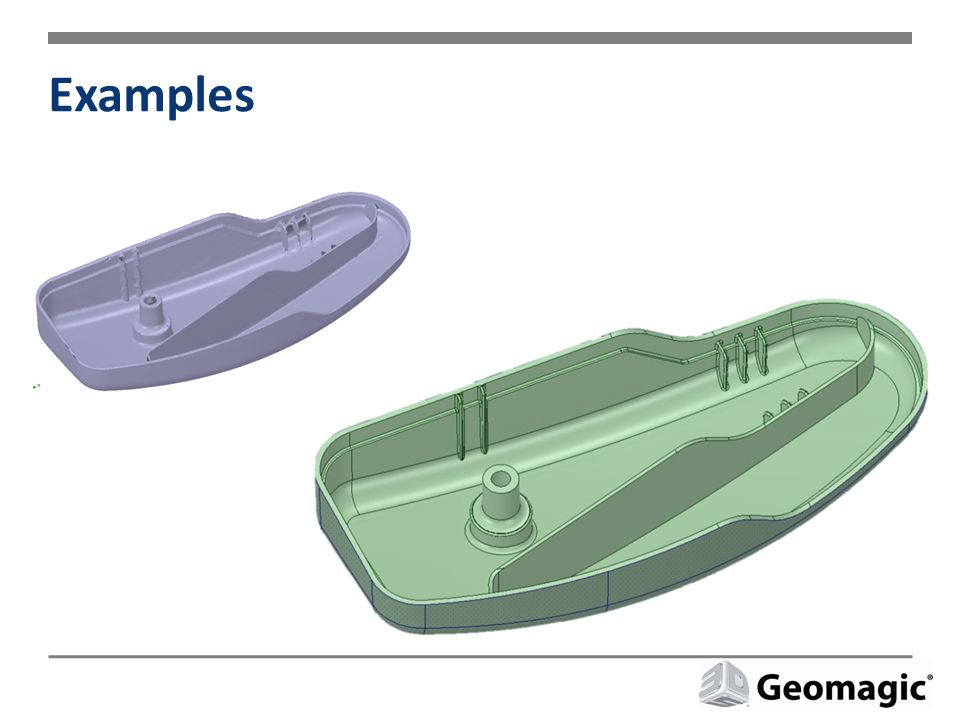

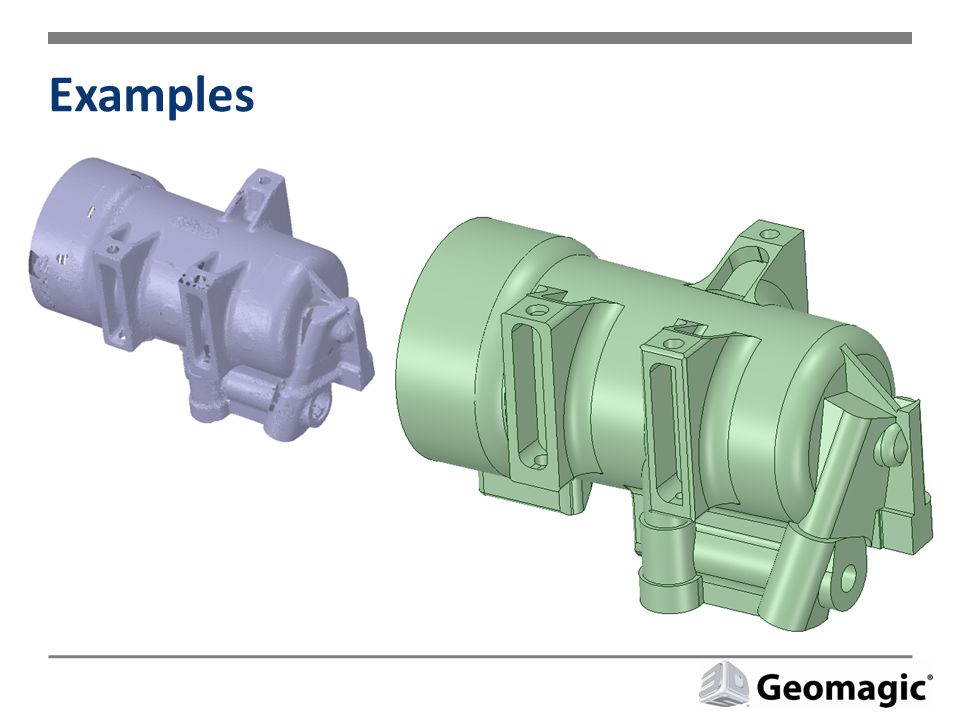

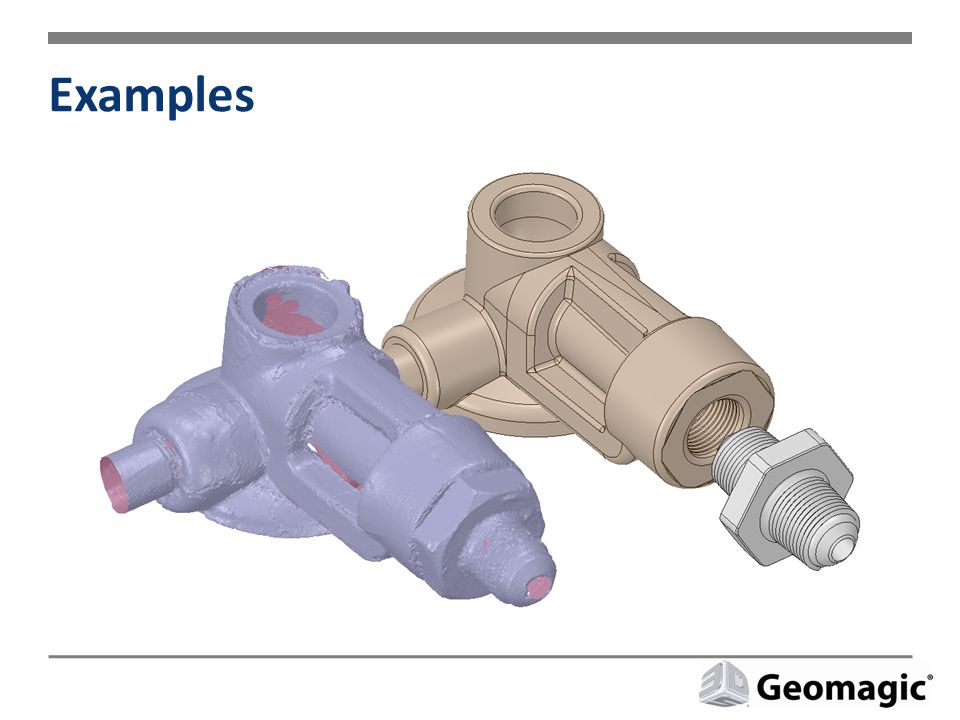

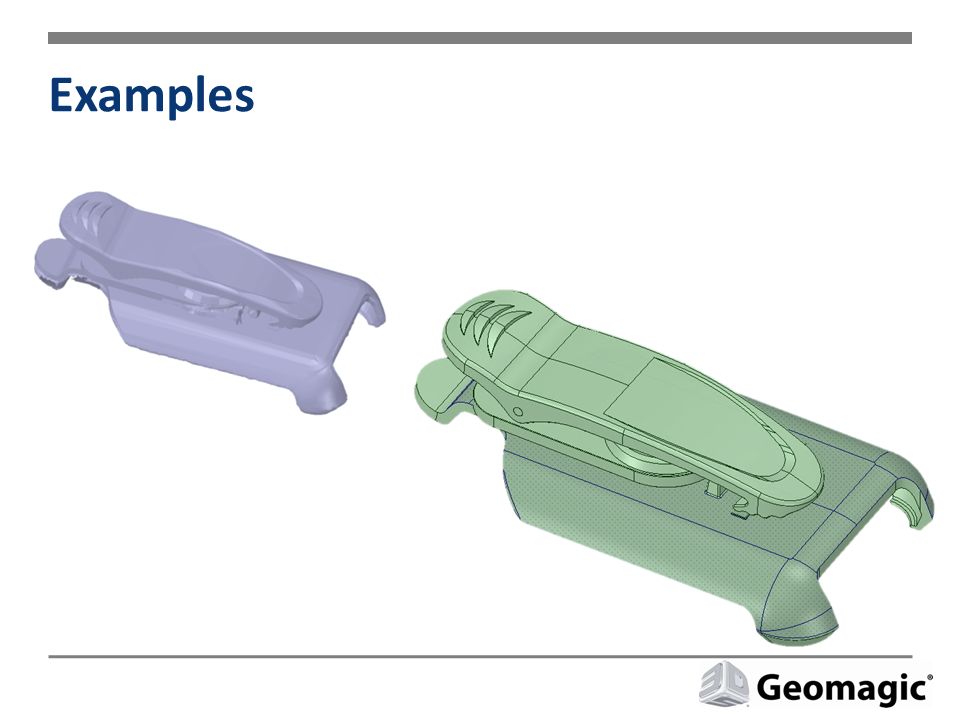

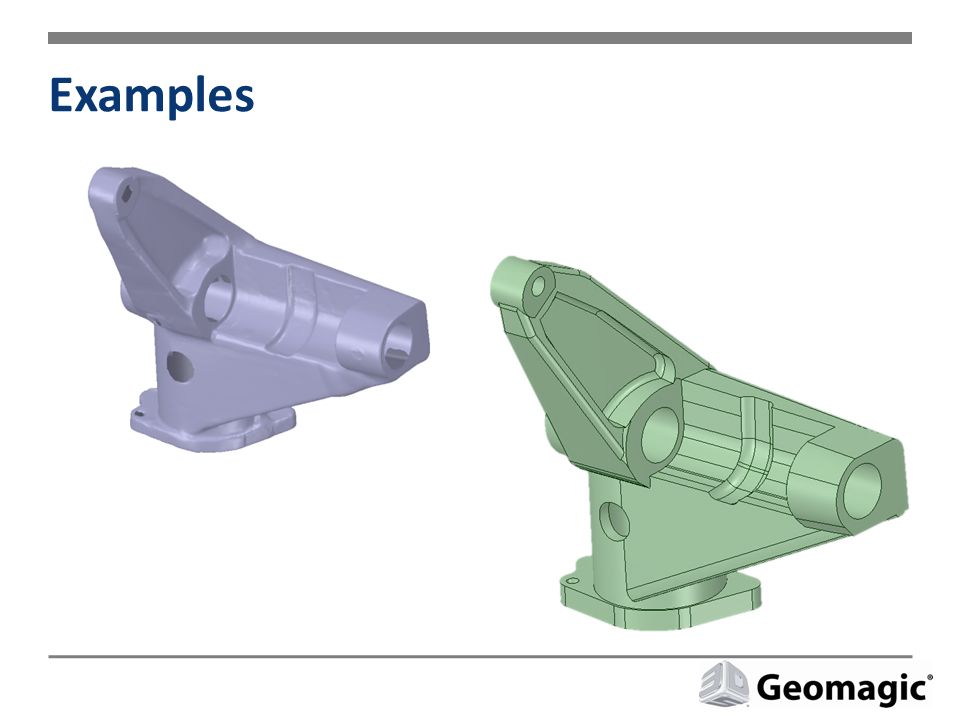

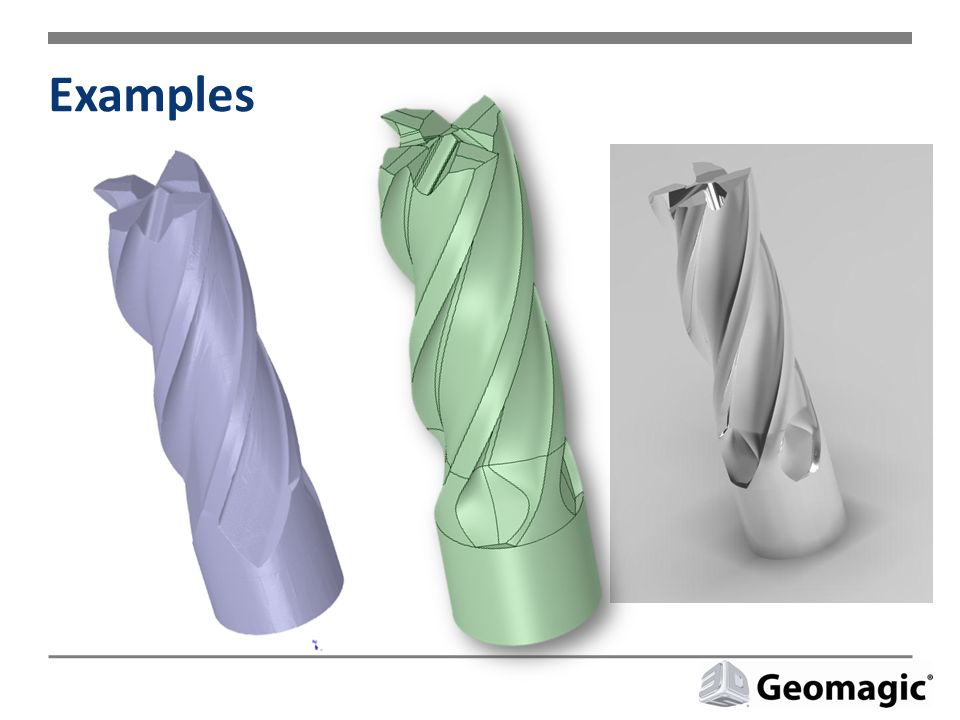

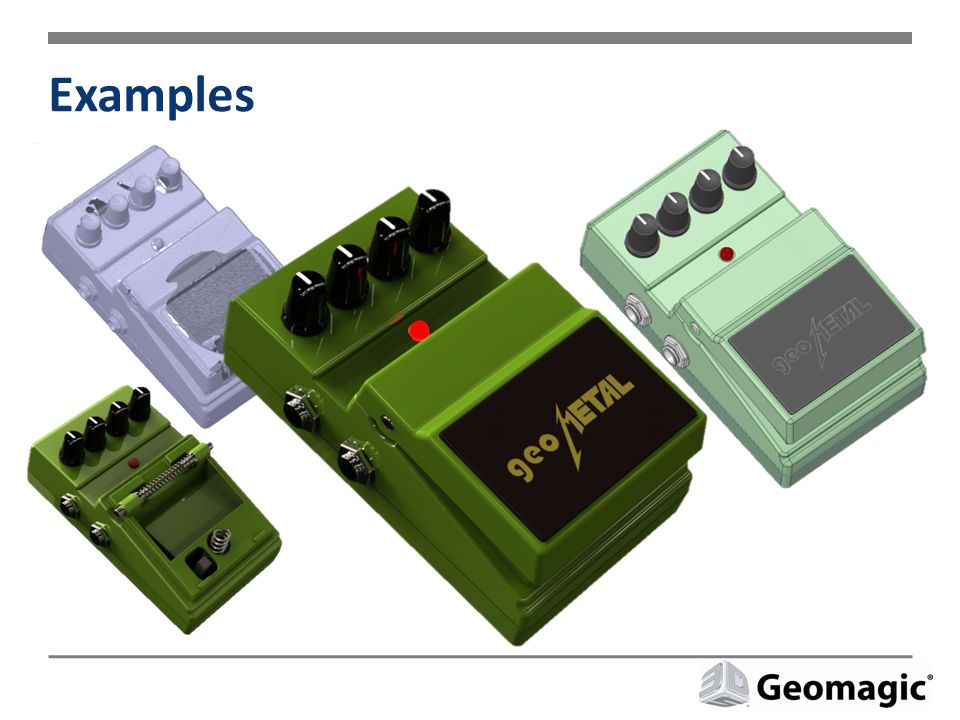

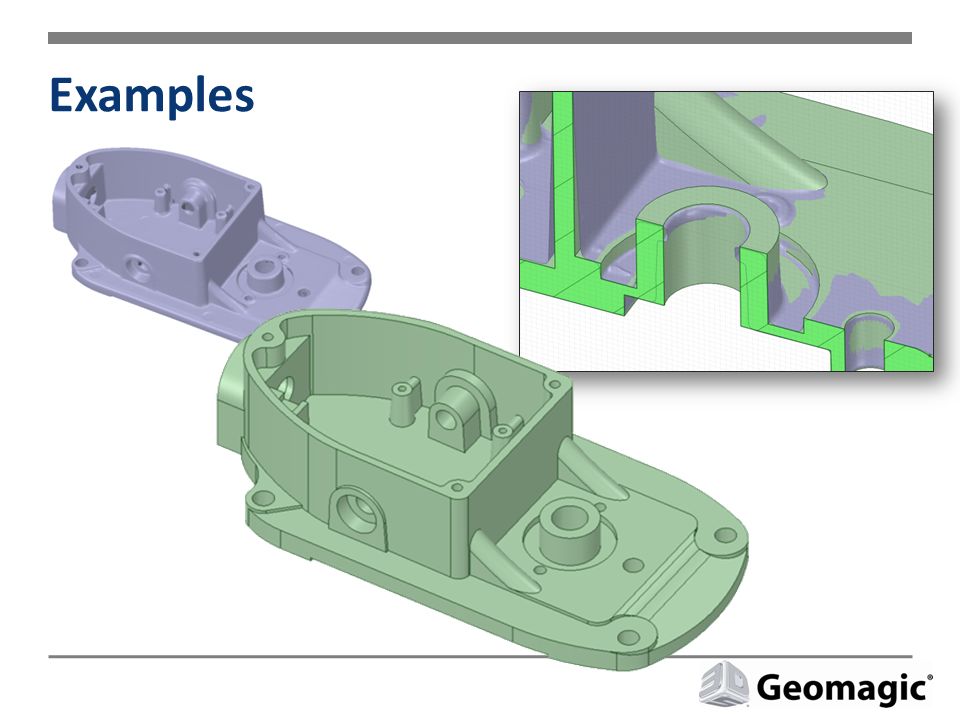

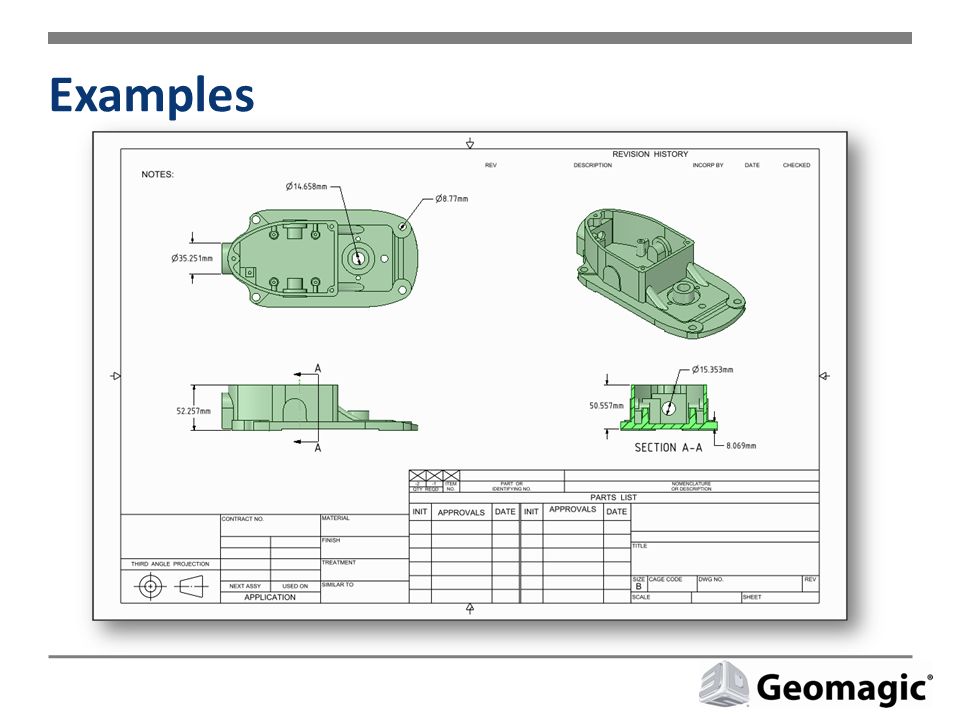

9. Examples

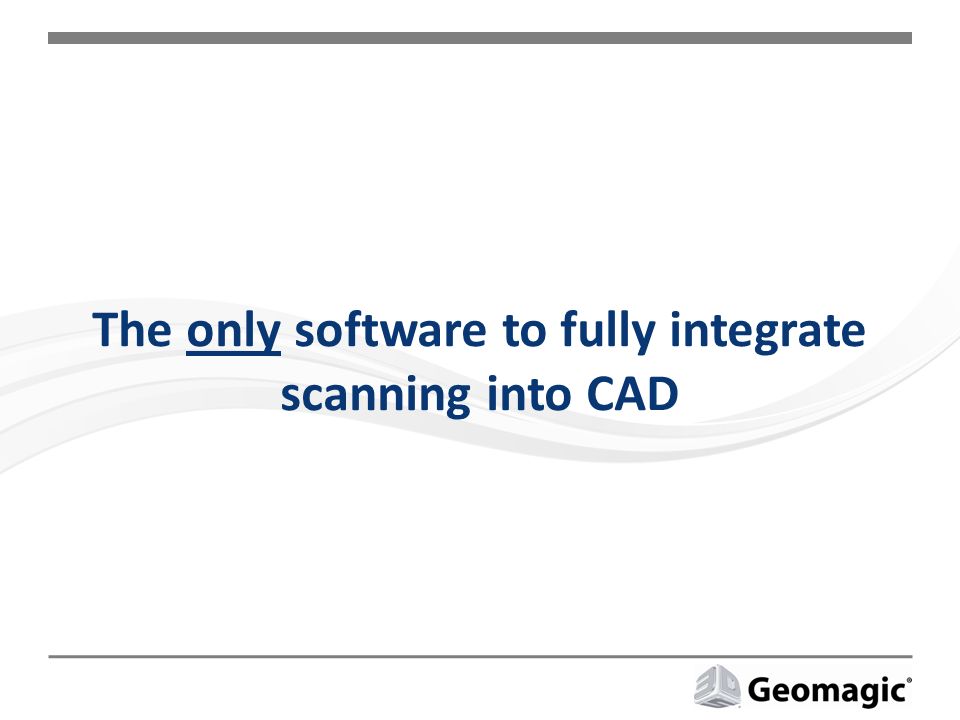

18. The only software to fully integrate scanning into CAD
