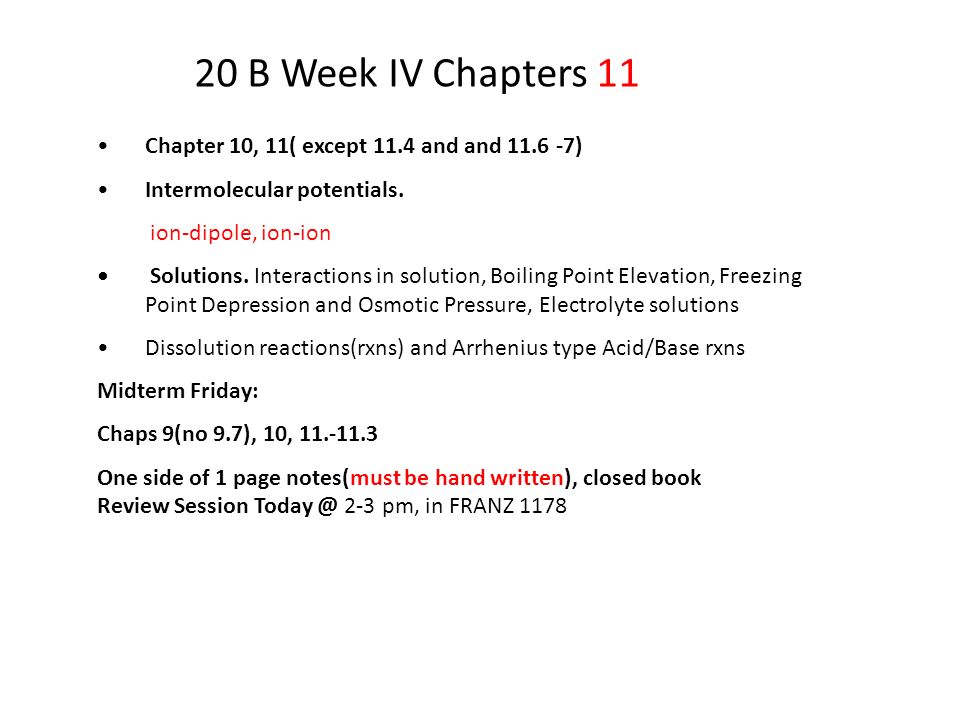

1 20 B Week IV Chapters 11 Chapter 10, 11( except 11.4 and and 11.6 -7) Intermolecular potentials. ion-dipole, ion-ion Solutions. Interactions in solution, Boiling Point Elevation, Freezing Point Depression and Osmotic Pressure, Electrolyte solutions Dissolution reactions(rxns) and Arrhenius type Acid/Base rxns Midterm Friday: Chaps 9(no 9.7), 10, 11.-11.3 One side of 1 page notes(must be hand written), closed book Review Session Today @ 2-3 pm, in FRANZ 1178

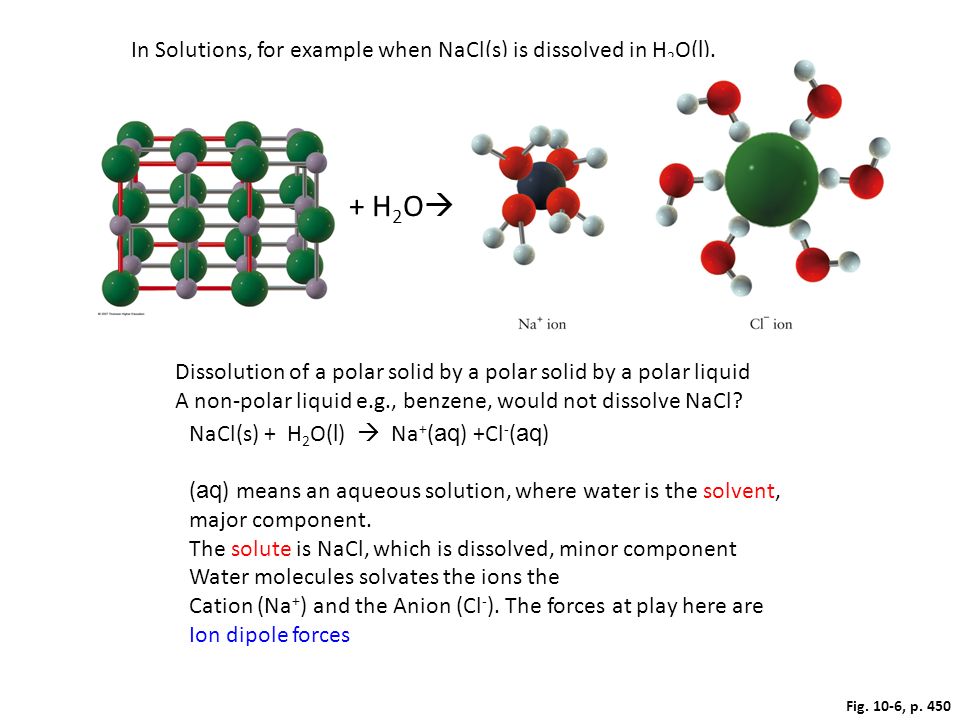

2 Fig. 10-6, p. 450 In Solutions, for example when NaCl(s) is dissolved in H 2 O( l ). + H 2 O  NaCl(s) + H 2 O( l )  Na + ( aq ) +Cl - ( aq ) ( aq ) means an aqueous solution, where water is the solvent, major component. The solute is NaCl, which is dissolved, minor component Water molecules solvates the ions the Cation (Na + ) and the Anion (Cl - ). The forces at play here are Ion dipole forces Dissolution of a polar solid by a polar solid by a polar liquid A non-polar liquid e.g., benzene, would not dissolve NaCl?

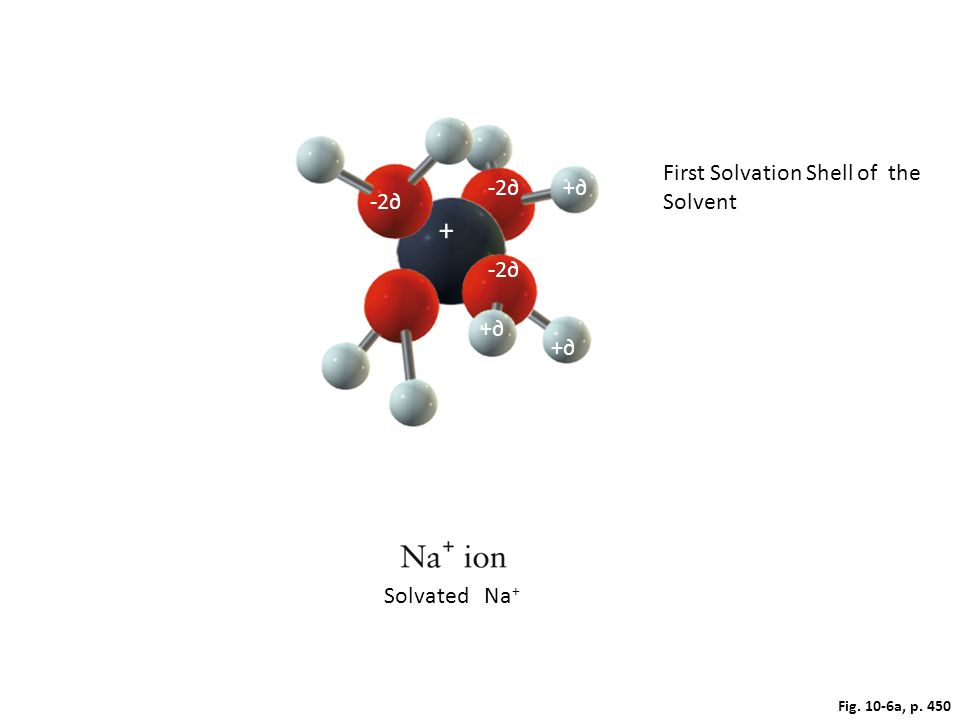

3 Fig. 10-6a, p. 450 + -2∂ +∂ Solvated Na + First Solvation Shell of the Solvent

4 Fig. 11-3, p. 480 2 nd solvation shell Dissolution of K 2 SO 4 in water

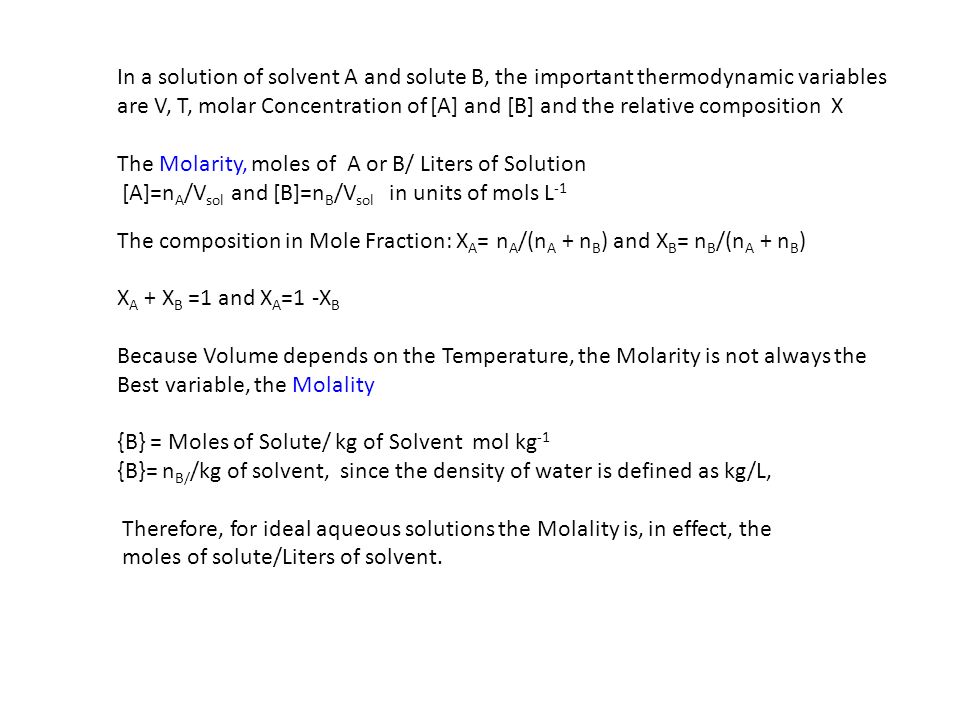

5 In a solution of solvent A and solute B, the important thermodynamic variables are V, T, molar Concentration of [A] and [B] and the relative composition X The Molarity, moles of A or B/ Liters of Solution [A]=n A /V sol and [B]=n B /V sol in units of mols L -1 The composition in Mole Fraction: X A = n A /(n A + n B ) and X B = n B /(n A + n B ) X A + X B =1 and X A =1 -X B Because Volume depends on the Temperature, the Molarity is not always the Best variable, the Molality {B} = Moles of Solute/ kg of Solvent mol kg -1 {B}= n B/ /kg of solvent, since the density of water is defined as kg/L, Therefore, for ideal aqueous solutions the Molality is, in effect, the moles of solute/Liters of solvent.

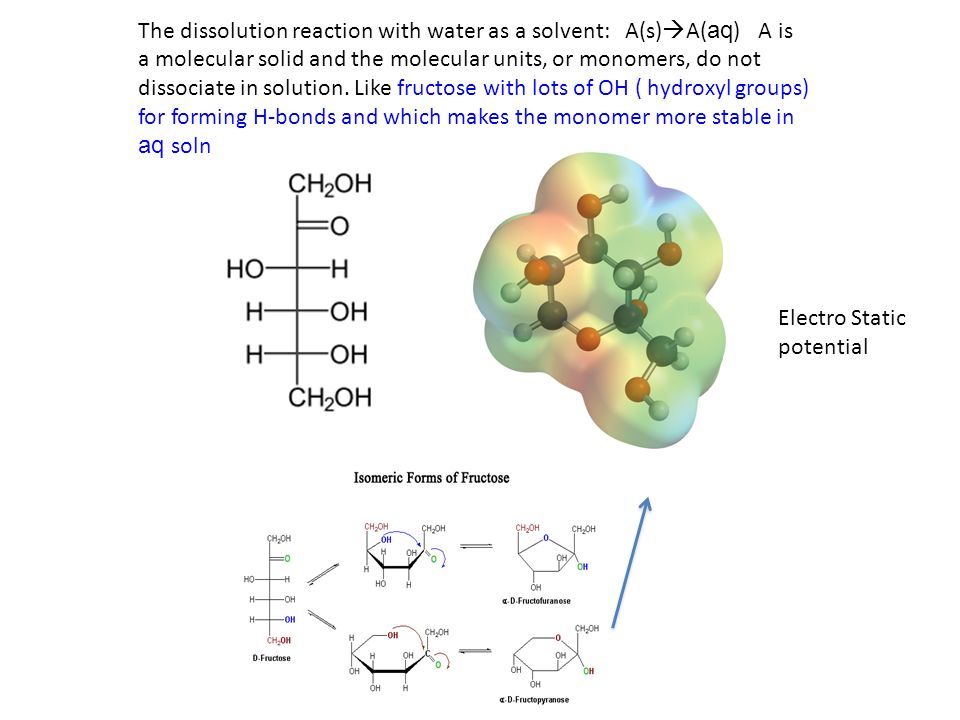

6 The dissolution reaction with water as a solvent: A(s)  A( aq ) A is a molecular solid and the molecular units, or monomers, do not dissociate in solution. Like fructose with lots of OH ( hydroxyl groups) for forming H-bonds and which makes the monomer more stable in aq soln Electro Static potential

7 Fructose C 6 H 12 O 6 Hydrated Fructose C 6 H 12 O 6 H-bonds The Hydrogen bonds between the water molecules of the solvents makes the molecule more stable in solution than in the solid

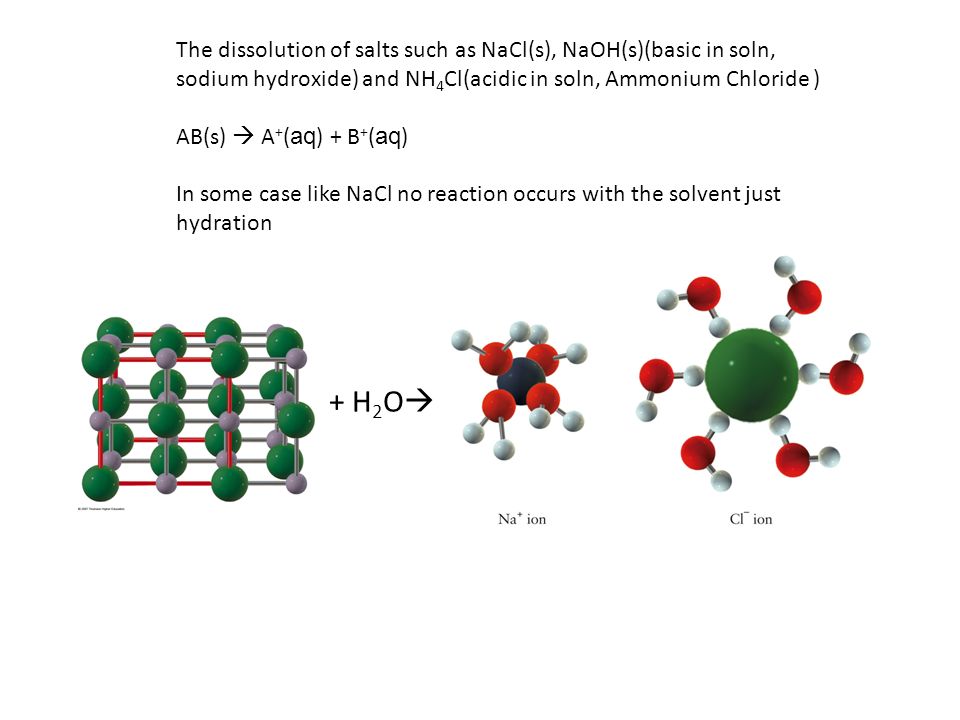

8 The dissolution of salts such as NaCl(s), NaOH(s)(basic in soln, sodium hydroxide) and NH 4 Cl(acidic in soln, Ammonium Chloride ) AB(s)  A + ( aq ) + B + ( aq ) In some case like NaCl no reaction occurs with the solvent just hydration + H 2 O 

9 NH 4 Cl(s)  NH + 4 ( aq ) + Cl - ( aq )NH + 4 ( aq ) + H 2 O( l )  H 3 O + (( aq ) + NH 3 (( aq ) Notice that the Number of Elements and the Amount of Charge are balanced On both sides reaction the rxn Such a reaction has the correct Stoichiometry and is said to be balanced + Lone pair Proton Transfer

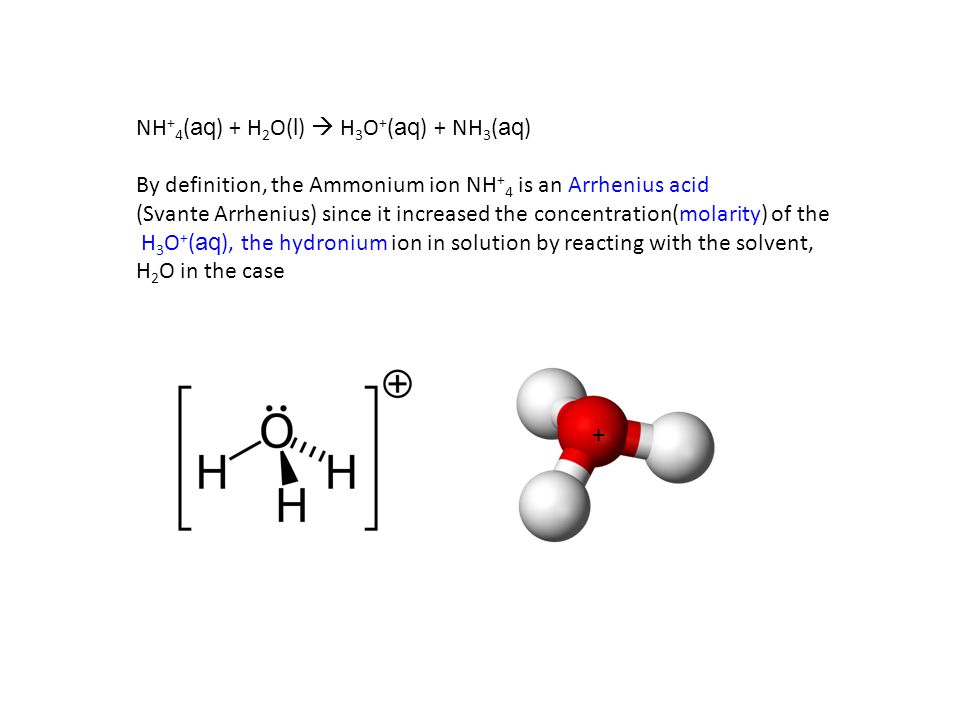

10 NH + 4 ( aq ) + H 2 O( l )  H 3 O + ( aq ) + NH 3 ( aq ) By definition, the Ammonium ion NH + 4 is an Arrhenius acid (Svante Arrhenius) since it increased the concentration(molarity) of the H 3 O + ( aq ), the hydronium ion in solution by reacting with the solvent, H 2 O in the case +

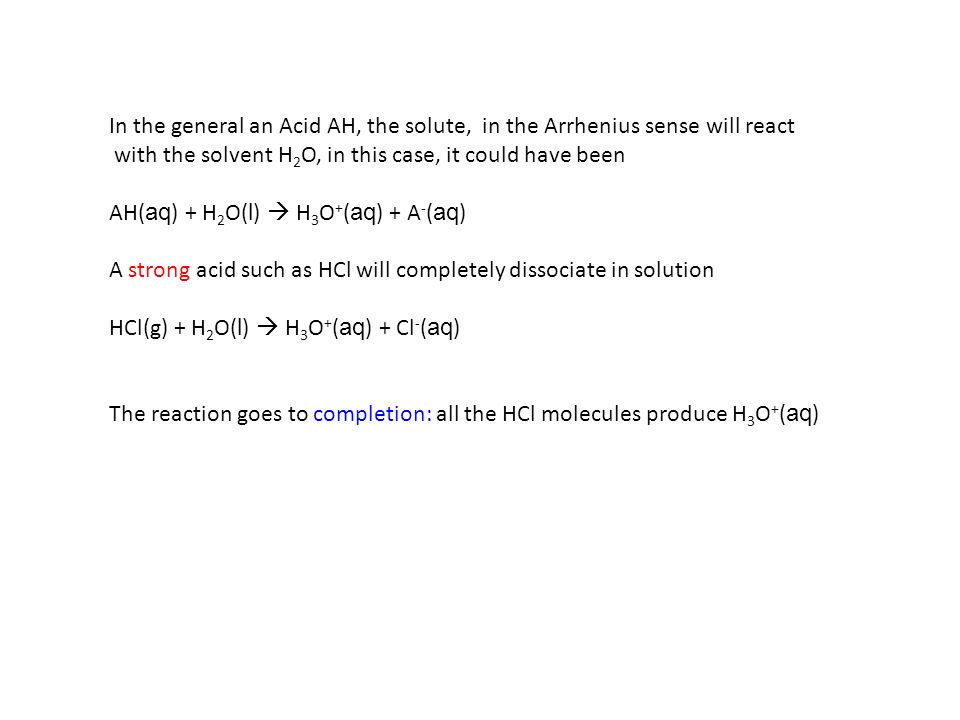

11 In the general an Acid AH, the solute, in the Arrhenius sense will react with the solvent H 2 O, in this case, it could have been AH( aq ) + H 2 O( l )  H 3 O + ( aq ) + A - ( aq ) A strong acid such as HCl will completely dissociate in solution HCl(g) + H 2 O( l )  H 3 O + ( aq ) + Cl - ( aq ) The reaction goes to completion: all the HCl molecules produce H 3 O + ( aq )

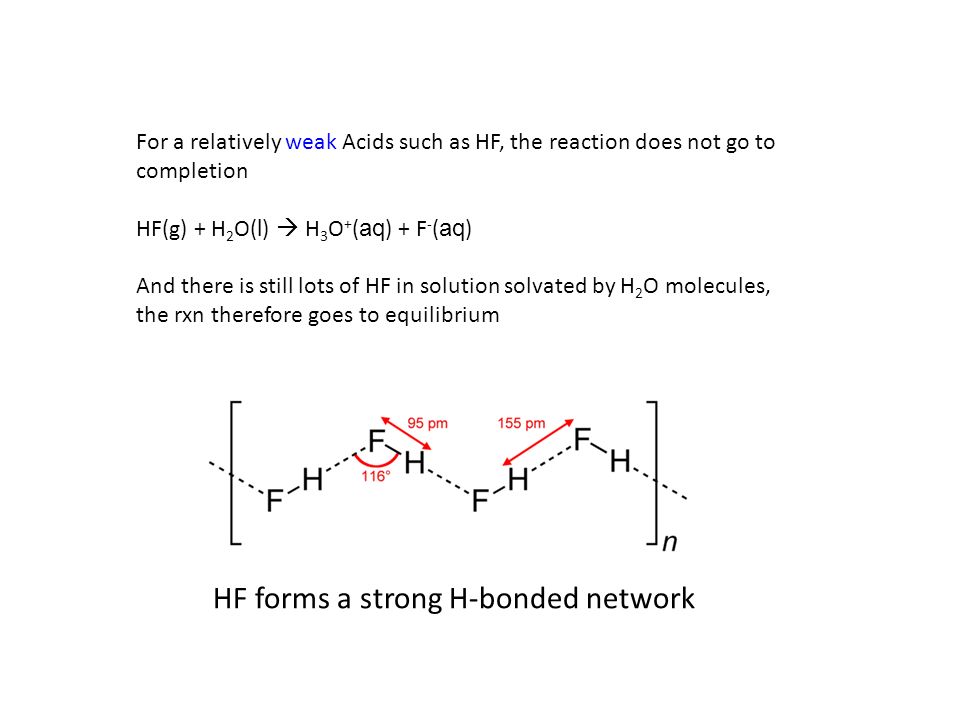

12 For a relatively weak Acids such as HF, the reaction does not go to completion HF(g) + H 2 O( l )  H 3 O + ( aq ) + F - ( aq ) And there is still lots of HF in solution solvated by H 2 O molecules, the rxn therefore goes to equilibrium HF forms a strong H-bonded network

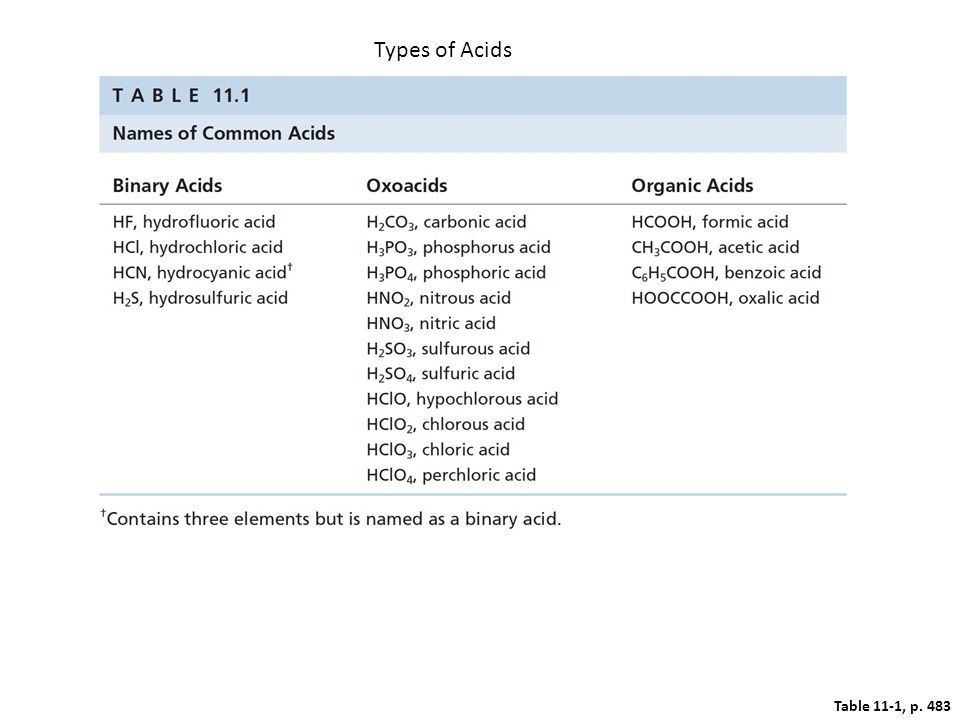

13 Table 11-1, p. 483 Types of Acids

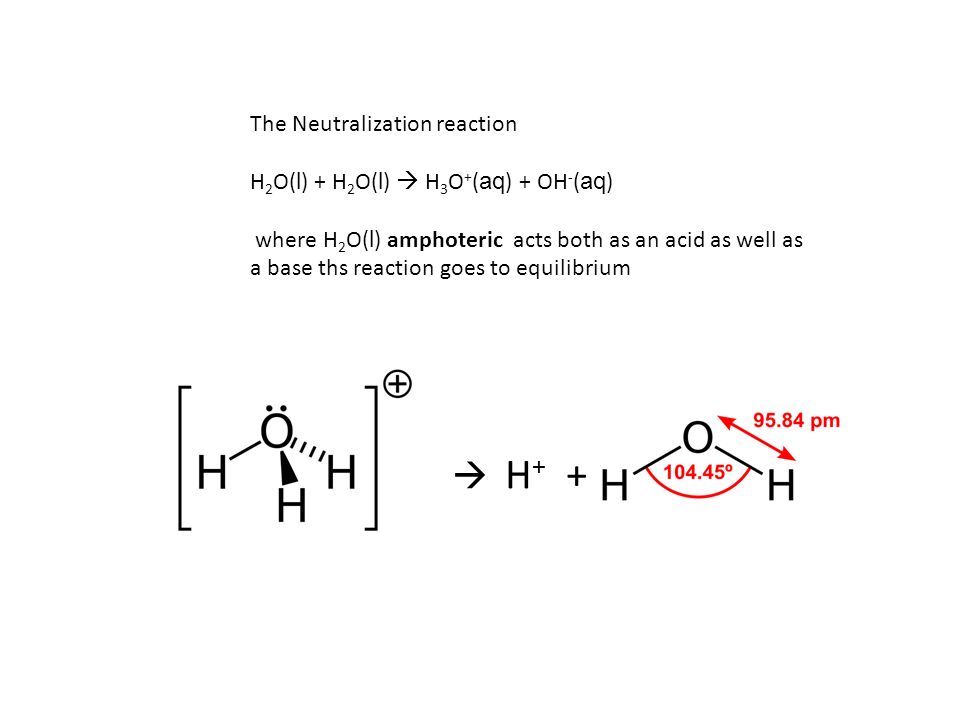

14 The Neutralization reaction H 2 O( l ) + H 2 O( l )  H 3 O + ( aq ) + OH - ( aq ) where H 2 O( l ) amphoteric acts both as an acid as well as a base ths reaction goes to equilibrium  H + +

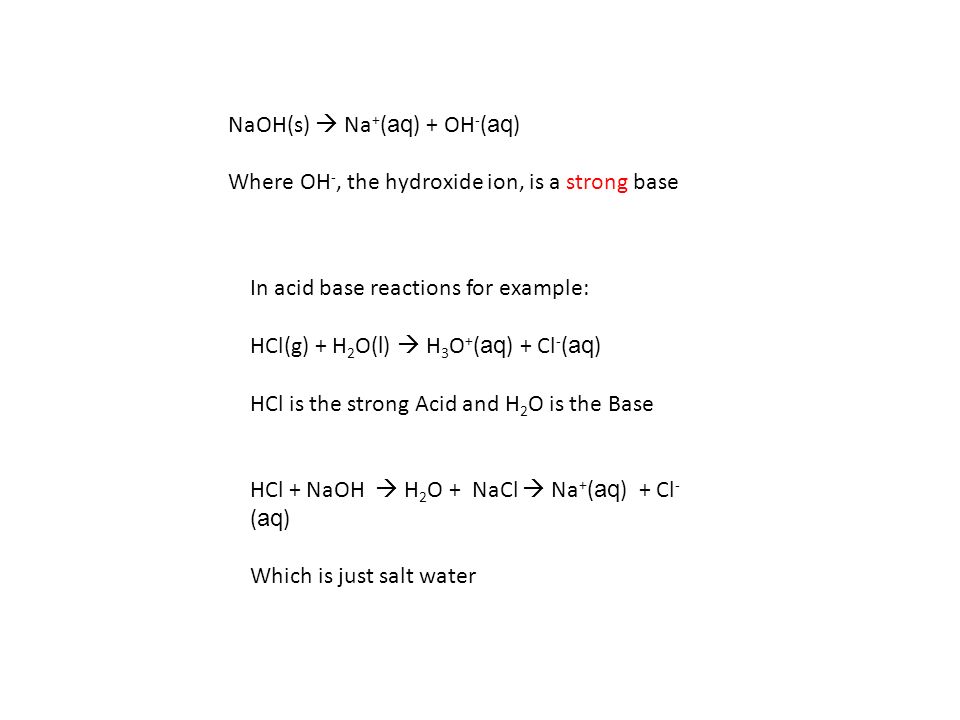

15 NaOH(s)  Na + ( aq ) + OH - ( aq ) Where OH -, the hydroxide ion, is a strong base In acid base reactions for example: HCl(g) + H 2 O( l )  H 3 O + ( aq ) + Cl - ( aq ) HCl is the strong Acid and H 2 O is the Base HCl + NaOH  H 2 O + NaCl  Na + ( aq ) + Cl - ( aq ) Which is just salt water

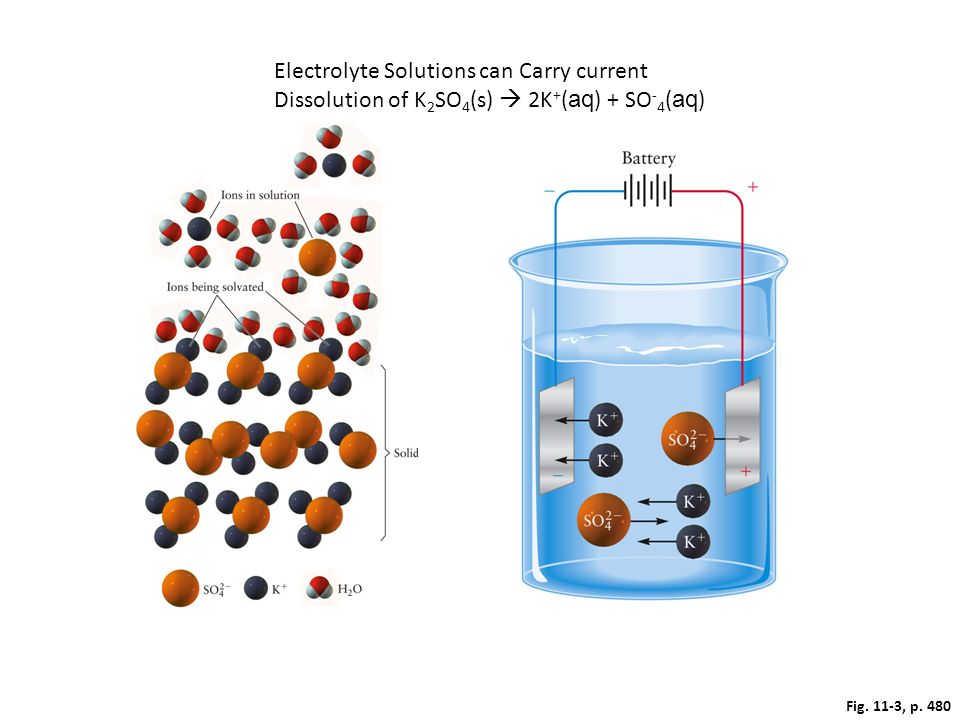

16 Fig. 11-3, p. 480 Electrolyte Solutions can Carry current Dissolution of K 2 SO 4 (s)  2K + ( aq ) + SO - 4 ( aq )

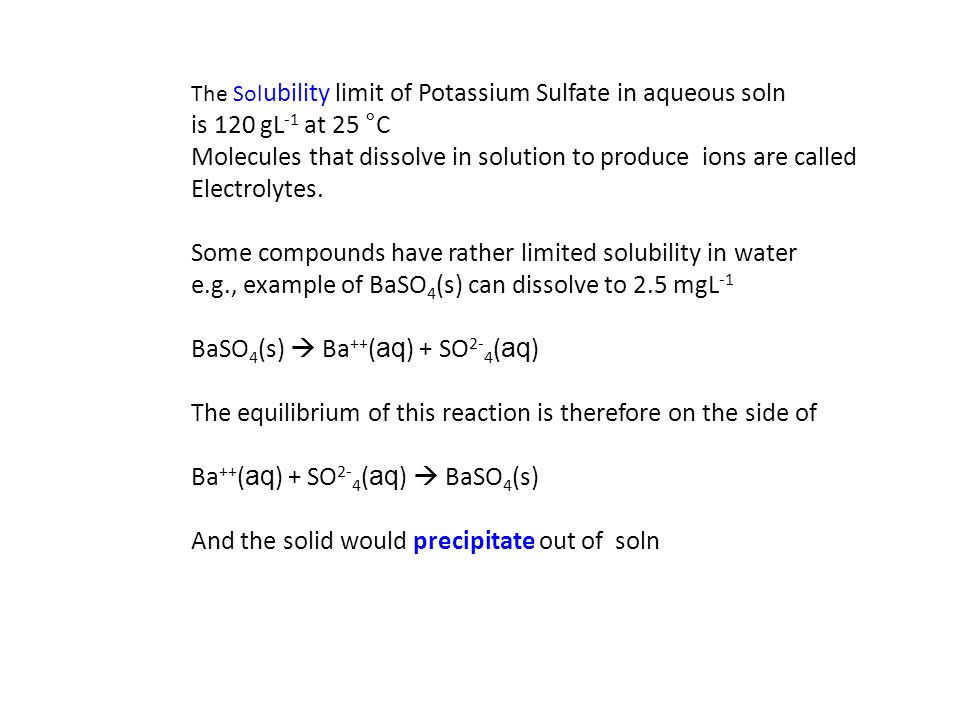

17 The Sol ubility limit of Potassium Sulfate in aqueous soln is 120 gL -1 at 25 °C Molecules that dissolve in solution to produce ions are called Electrolytes. Some compounds have rather limited solubility in water e.g., example of BaSO 4 (s) can dissolve to 2.5 mgL -1 BaSO 4 (s)  Ba ++ ( aq ) + SO 2- 4 ( aq ) The equilibrium of this reaction is therefore on the side of Ba ++ ( aq ) + SO 2- 4 ( aq )  BaSO 4 (s) And the solid would precipitate out of soln
