1. Advanced GIS Using ESRI ArcGIS 9.3 3D Analyst part 2

2. 3D Analyst TIN to Raster TINs are very slow to generate and refresh Therefore, once created, it is strongly suggested to rasterize them creating grids of elevations (i.e. raster Digital Elevation Models – DEMs)

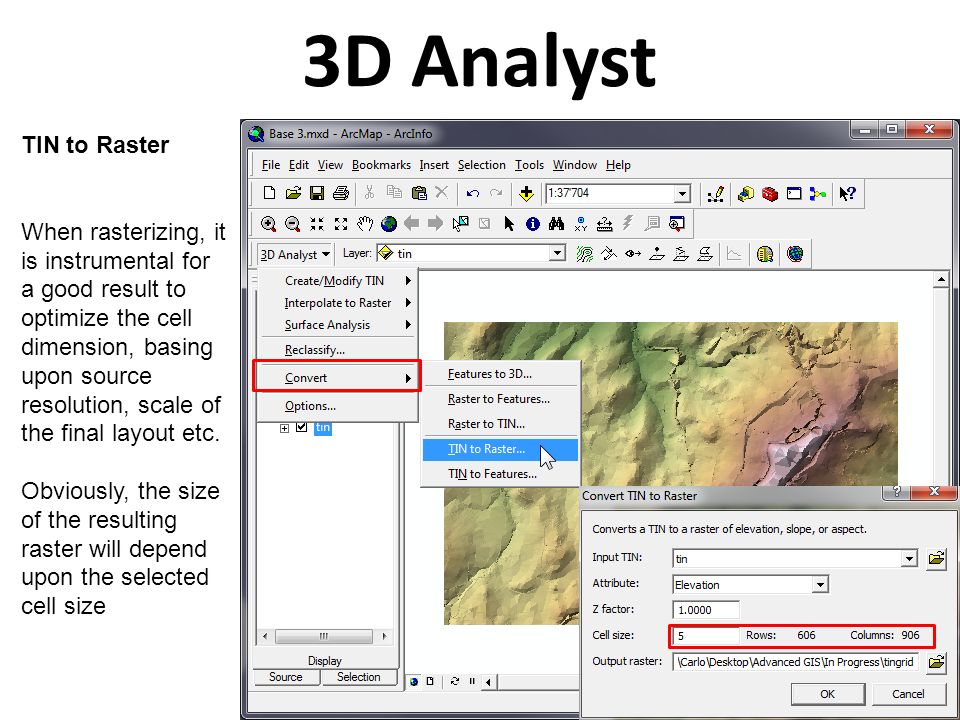

3. 3D Analyst TIN to Raster When rasterizing, it is instrumental for a good result to optimize the cell dimension, basing upon source resolution, scale of the final layout etc. Obviously, the size of the resulting raster will depend upon the selected cell size

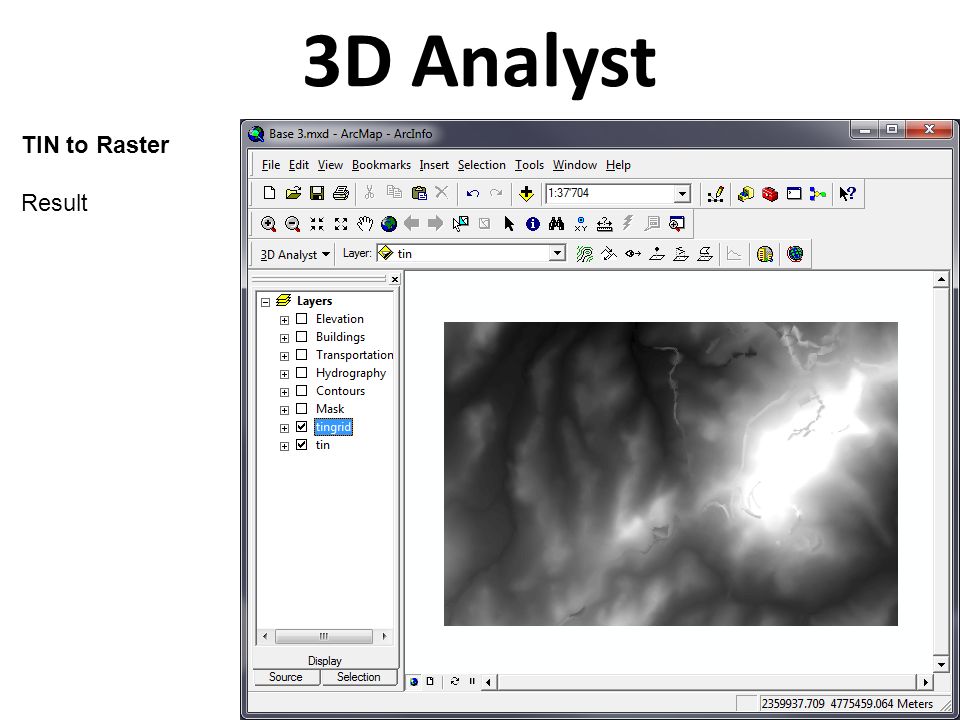

4. 3D Analyst TIN to Raster Result

5. 3D Analyst TIN to Raster The default color ramp for the resulting raster is the gray scale; generally, it is better to change it, also using a stratch metod capable of optimizing the visualization

6. 3D Analyst TIN to Raster 6 types of stretches are available: None Custom Standard deviations Histogram equalize Maximum-minimum Histogram specification

7. 3D Analyst TIN to Raster Stretching None No stretch will be applied The lowest value in the range will be represented with the starting color and the highest DN with the ending color. Equal differences of DN will always result in equal distances along the color ramp.

8. 3D Analyst TIN to Raster Stretching Maximum-minimum Same as “None”, but minimum and maximum values can be edited; DNs will be subject to linear stretch accordingly

9. 3D Analyst TIN to Raster Stretching Standard deviations Colors will be non-linearly stretched basing upon fractions of the standard deviation of the distribution of the source values.

10. 3D Analyst TIN to Raster Stretching Histogram equalize Colors will be distributed according to the distribution of DNs; therefore, ranges with frequent values will show a larger difference in color than an equally wide range of less frequent values

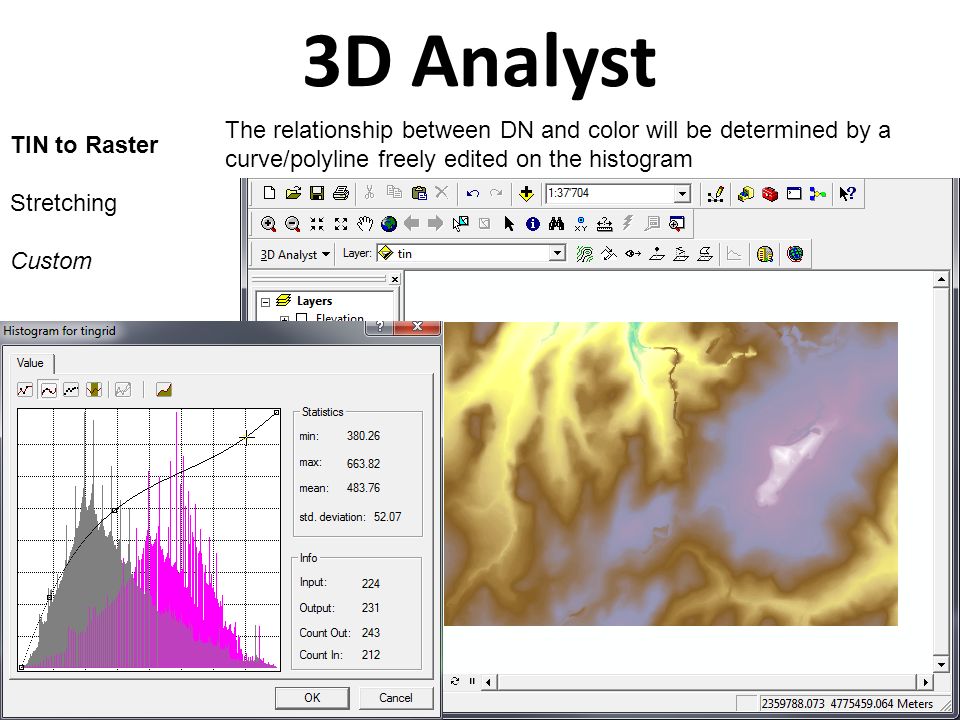

11. 3D Analyst TIN to Raster Stretching Custom The relationship between DN and color will be determined by a curve/polyline freely edited on the histogram

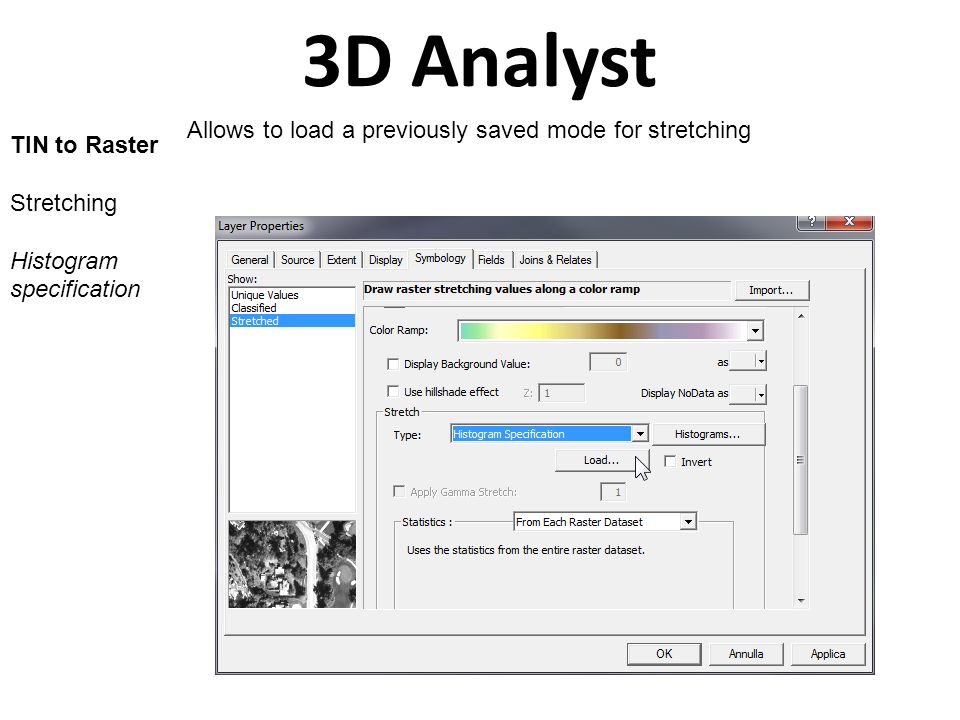

12. 3D Analyst TIN to Raster Stretching Histogram specification Allows to load a previously saved mode for stretching

13. 3D Analyst TIN to Raster TIN derived maps It is possible to rasterize maps of slope angle or aspect (i.e. the modular and directional values of the vector representing the first derivative of the elevation z with respect to the planimetric position x,y) directly from a TIN

14. 3D Analyst TIN to Raster TIN derived maps Slope angle

15. 3D Analyst TIN to Raster TIN derived maps Slope aspect

16. 3D Analyst Surface analysis TIN derived maps Slope angle and aspect Slope angle and aspect can be calculated (from a TIN or a tingrid) also using the “Surface analysis” set of tools

17. 3D Analyst Surface analysis TIN derived maps Hillshade The same set of tools allow also to generate a shaded map, created according to a light source, freely located in the 3D space above the 3D model. The default position is N315° (i.e. NW) with a zenith of 45°.

18. 3D Analyst Surface analysis TIN derived maps Hillshade Result

19. 3D Analyst Surface analysis TIN derived maps “Relief” Combining the hillshade map with the tingrid with proper transparency, a map effectively depicting the relief can be created. This will be displayed much faster than the shaded TIN.

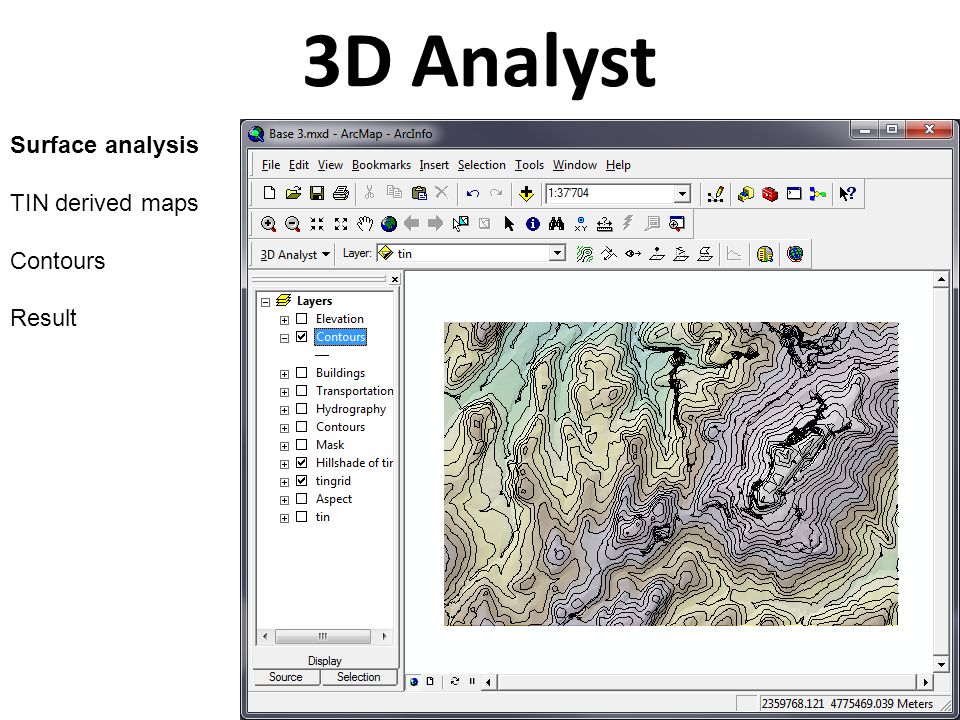

20. 3D Analyst Surface analysis TIN derived maps Contours TIN and tingrids can also be used to generate vector contour maps. The base contour and interval can be freely chosen.

21. 3D Analyst Surface analysis TIN derived maps Contours Result

22. 3D Analyst Surface analysis TIN derived maps Viewshed It is also possible to delineate the areas visible from the feature(s) contained in a 3D shapefile.

23. 3D Analyst Surface analysis TIN derived maps Viewshed Result

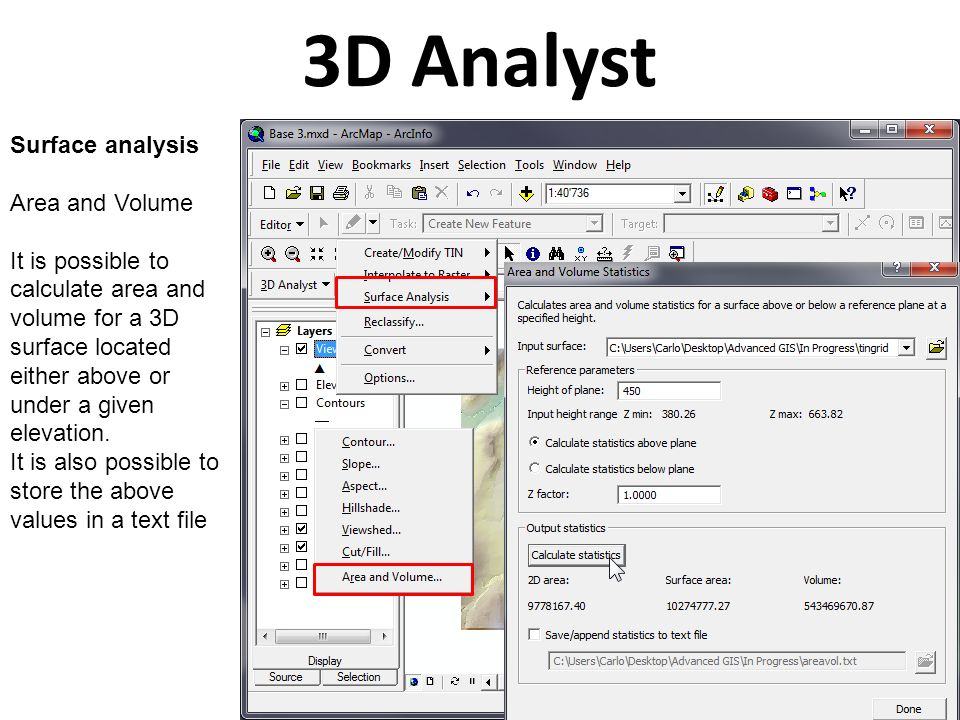

24. 3D Analyst Surface analysis Area and Volume It is possible to calculate area and volume for a 3D surface located either above or under a given elevation. It is also possible to store the above values in a text file

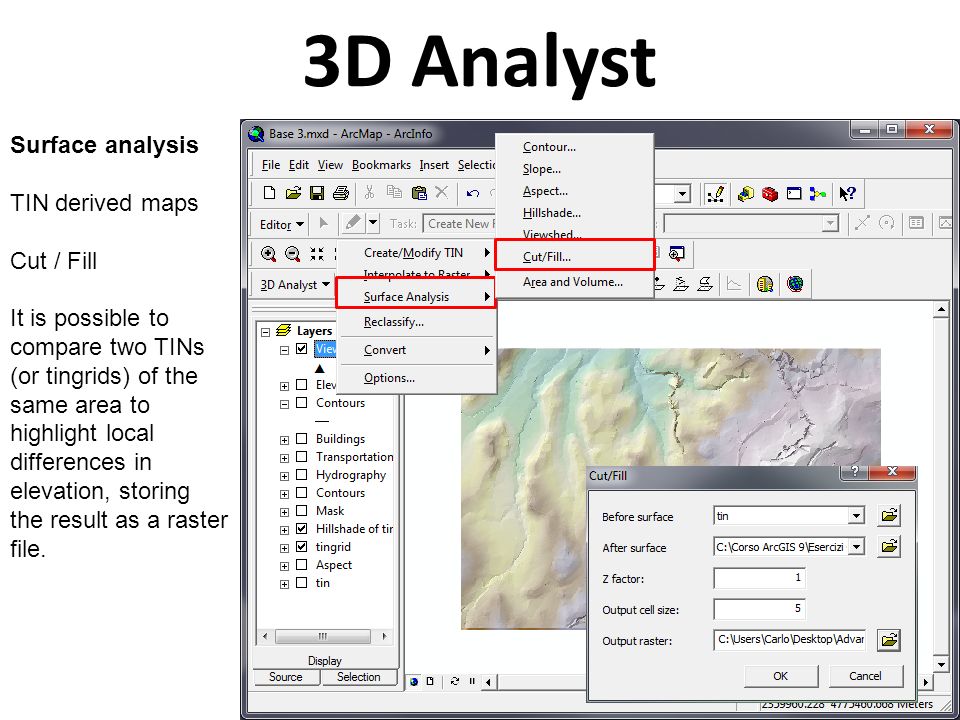

25. 3D Analyst Surface analysis TIN derived maps Cut / Fill It is possible to compare two TINs (or tingrids) of the same area to highlight local differences in elevation, storing the result as a raster file.

26. 3D Analyst Surface analysis TIN derived maps Cut / Fill Result

27. 3D Analyst Reclassify TIN derived maps It is possible to recassify a ruaster, passing from continuous values to classes

28. 3D Analyst Reclassify Example of reclassification of a slope angle map

29. 3D Analyst Reclassify Example of reclassification of a slope angle map Result

30. 3D Analyst Convert 2D features to 3D Adds the “Z value” to any 2D vector feature, generally extracting it from a TIN

31. 3D Analyst Convert Raster to TIN A TIN will be created connecting the center of each cell at the elevation stored in it. Almost never used.

32. 3D Analyst Convert TIN to Features Converts the information stored into the TIN into Polygon or Point features

33. 3D Analyst Convert TIN to Features Converts the information stored into the TIN into Polygon or Point features

34. 3D Analyst Convert TIN to Features Converts a raster to a Polygon or Polyline or Point feature. Will be discussed in the Spatial Analyst, as well as the Interpolation

35. 3D Analyst Options General

36. 3D Analyst Options Extent

37. 3D Analyst Options Cell Size

38. 3D Analyst Icons

39. 3D Analyst Icons Create Contours Creates a contour passing from a point (selected clicking on the map)

40. 3D Analyst Icons Create Contours Creates a contour passing from a point (selected clicking on the map)

41. 3D Analyst Icons Create Steepest Path Creates a line following the steepest path from a selected point

42. 3D Analyst Icons Create Line of Sight Creates a straight line connecting two points (different color where underground)

43. 3D Analyst Icons Interpolate Point Creates a 3D point where clicked desuming the z value from the active TIN (or tingrid).

44. 3D Analyst Icons Interpolate point When editing a 3D Point shapefile, the point will be stored in it.

45. 3D Analyst Icons Interpolate Line Creates a 3D polyline where clicked desuming the z values from the active TIN (or tingrid). When editing a 3D Polyline shapefile, the polyline will be stored in it.

46. 3D Analyst Icons Interpolate Polygon Creates a 3D polygon where clicked desuming the z values fot its boundary from the active TIN (or tingrid). When editing a 3D Polygon shapefile, the polygon will be stored in it.

47. 3D Analyst Icons Create Profile Graph Once interpolated (and selected) a Line, a profile graph will be created

48. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it

49. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Properties Series

50. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Properties Appearance

51. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Properties Appearance

52. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties General

53. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Axis - Scales

54. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Axis – Title 1

55. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Axis – Title 2

56. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Axis – Labels 1

57. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Axis – Labels 2

58. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Axis – Ticks

59. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Axis – Minor

60. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Axis - Position

61. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Titles - Style

62. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Titles - Format

63. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Titles - Gradient

64. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Titles - Shadow

65. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Legend - Style

66. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Legend - Symbols

67. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Panel - Background

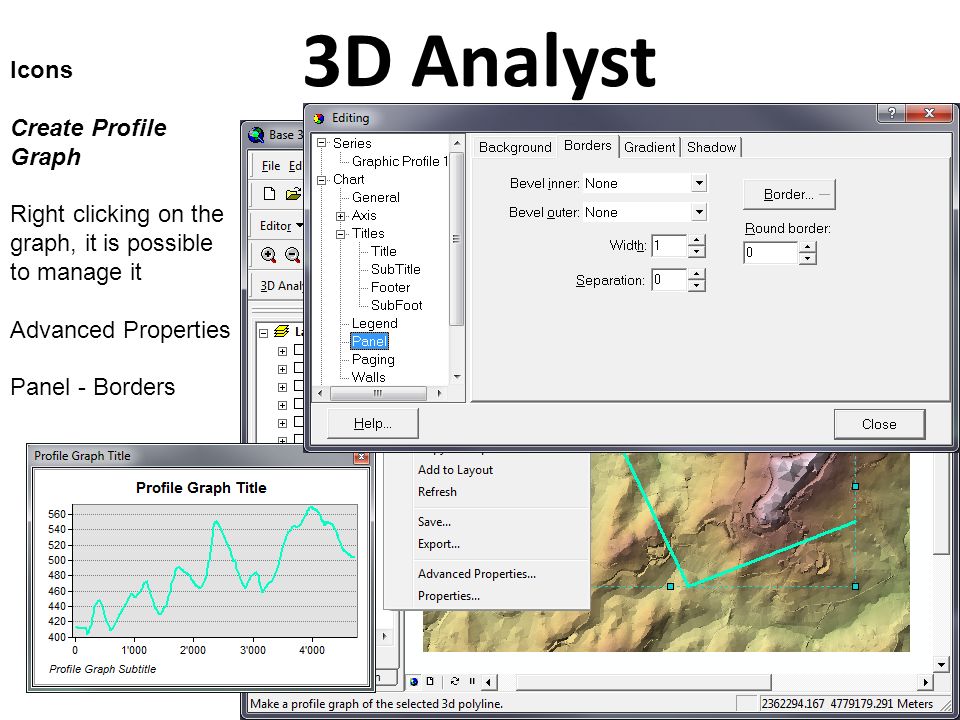

68. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Panel - Borders

69. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Paging

70. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Walls

71. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Data

72. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Themes

73. 3D Analyst Icons Create Profile Graph Right clicking on the graph, it is possible to manage it Advanced Properties Themes
