1. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 1 Overview of Web database applications with PHP

2. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 2 3 tier architecture Client runs browser, which sends HTTP requests, receives HTTP responses, and renders the HTML document from the response Web server (e.g. Apache) calls PHP script that requested url points to and incorporates output into the response –Script is html mixed with executable code fragments Optionally, script connects to DBMS and uses query results to produce its output Example: Code Execution

3. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 3 Basic Language Features Variables –Denoted by $identifier –No static type rules – error prone! The usual control flow constructs Functions –Call by value default –Call by reference denoted with & Lots of string and regular expression functions to facilitate string matching and manipulation PHP 5: Object oriented; PEAR library

4. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 4 Associative Arrays Map key to value –Array slots can also be accessed by position $price = array (“milk”=>3.99, “bread”=>4.85, “coffee”=>6.99); Print $price[“milk”]; print $price[0]; $price[“beer”] = 7.99 // updates or adds element Heterogeneous Can be single dimensional or multi-dimensional

5. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 5 Other useful array features Explode, implode functions for converting between arrays and strings Sorting, searching functions Array_key_exists Example codecode Example execution: Execution

6. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 6 Executing SQL from PHP Connect to server –mysql_connect Select the database –mysql_select_db Run query Retrieve row of results –mysql_fetch_array Retrieve attributes –foreach

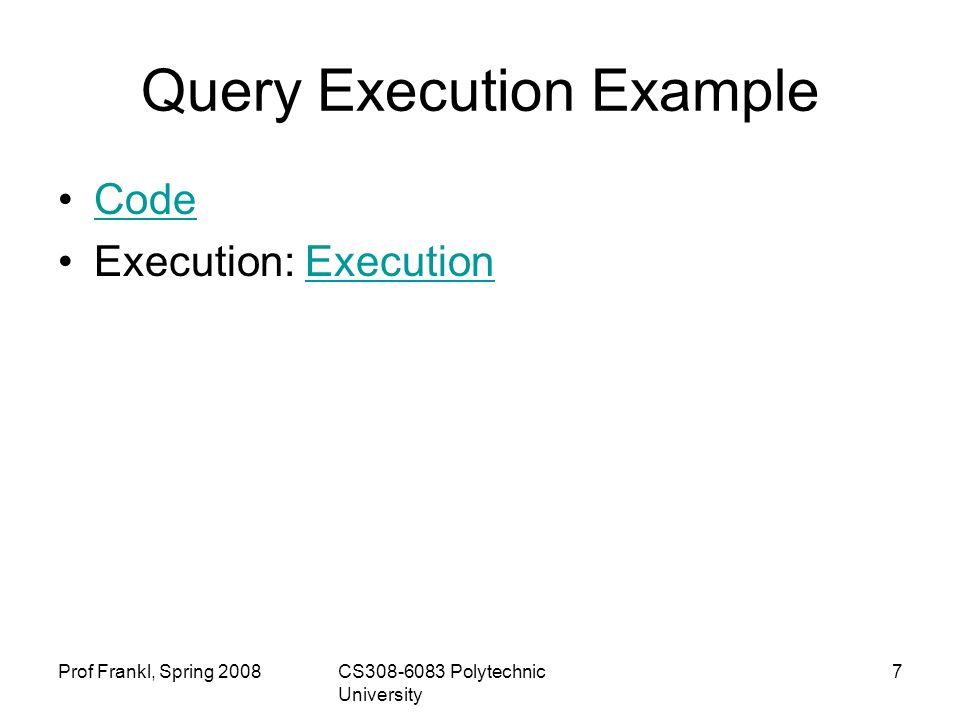

7. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 7 Query Execution Example Code Execution: ExecutionExecution

8. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 8 Dynamic Query construction Query details may depend on user inputs from –Parameters to http get or post –Cookies –Session variables Example codecode Example url: Execution

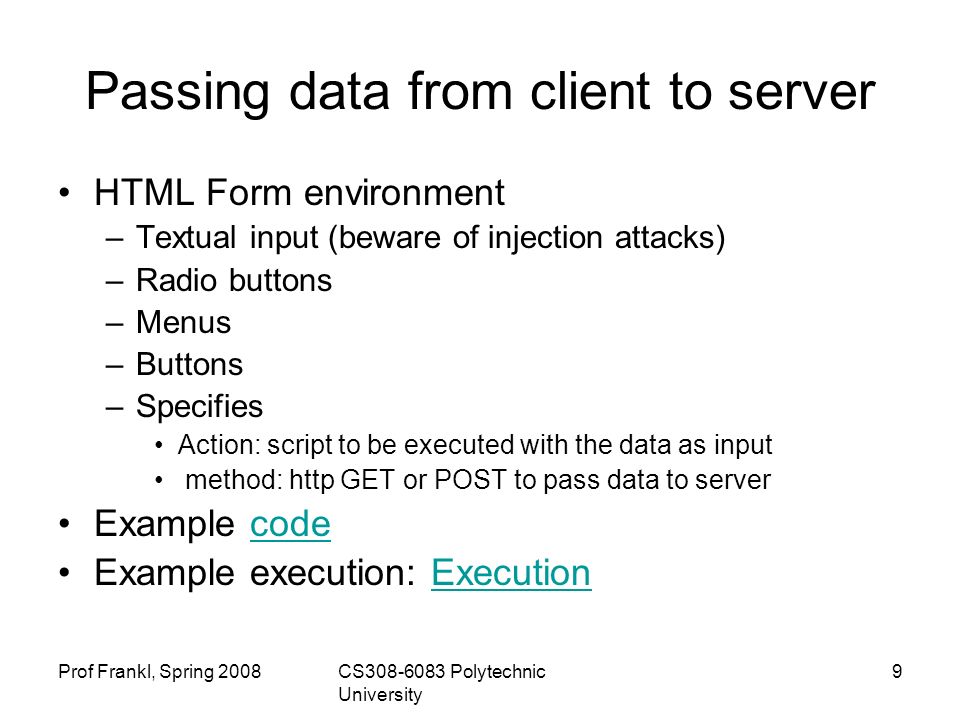

9. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 9 Passing data from client to server HTML Form environment –Textual input (beware of injection attacks) –Radio buttons –Menus –Buttons –Specifies Action: script to be executed with the data as input method: http GET or POST to pass data to server Example codecode Example execution: ExecutionExecution

10. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 10 Selecting Multiple Items HTML tag allows user to select multiple items from a list They have the same name in the URL In order to pass all of them, rather than clobbering all but the last, make the name an array, e.g Example code and execution for pull-down menu.codeexecution Example code and execution for target page.code

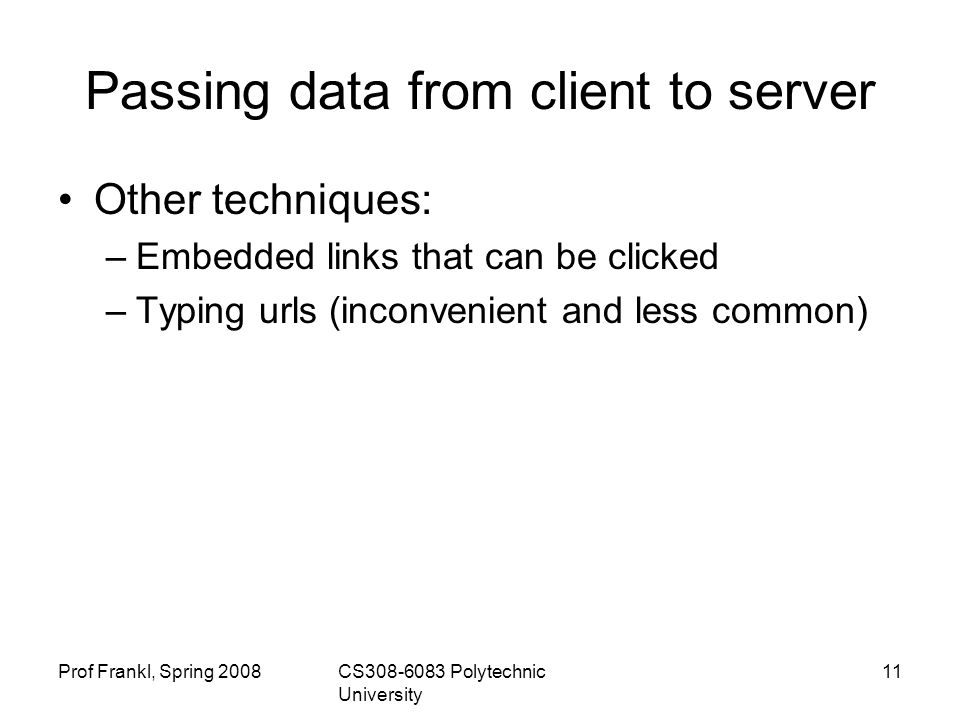

11. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 11 Passing data from client to server Other techniques: –Embedded links that can be clicked –Typing urls (inconvenient and less common)

12. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 12 Multi-file applications Can require or include other files Included files can have.inc extension, but beware of putting sensitive information in.inc files unless they’re on inaccessible paths or web-server is configured to not allow them to be downloaded. Safer to put sensitive info in.php files which will be executed, rather than returned as text.

13. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 13 Sessions Manage interaction between browser and server, to give stateful structure to the application, in spite of HTTP statelessness. Session variables: –State info created and accessed by application Session ID –Identifier passed between server and browser (usually as cookie) –Used to identify a file on the server, in which session variables and their values are stored (or to find them in a DB) –Eventually session times out and file is removed

14. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 14 session_start() function First call generates session ID and creates empty associative array $_SESSION Application may create and store session variables in $_SESSION –Example: $_SESSION[userName]=$_GET[name]; Session ID is passed to browser with HTTP response and stored there, and session variables are stored in file Subsequent calls to session_start() (usually by other scripts in the application) cause $_SESSION to be reinitialized with the values stored on the server

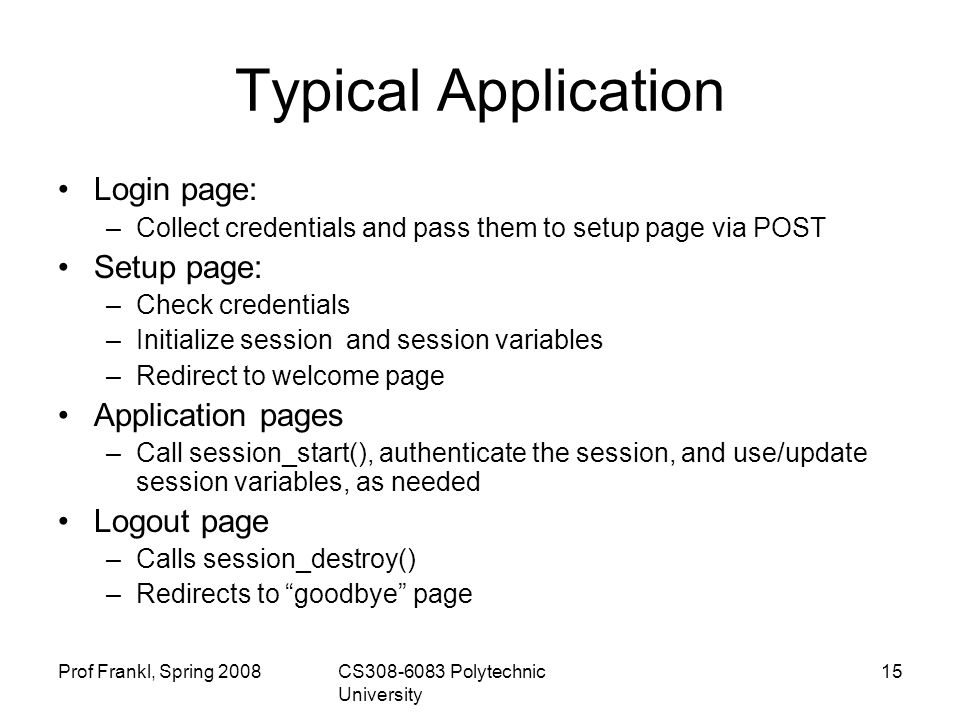

15. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 15 Typical Application Login page: –Collect credentials and pass them to setup page via POST Setup page: –Check credentials –Initialize session and session variables –Redirect to welcome page Application pages –Call session_start(), authenticate the session, and use/update session variables, as needed Logout page –Calls session_destroy() –Redirects to “goodbye” page

16. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 16 Checking User Credentials Username and cryptographic hash (message digest) of password stored in DB Retrieve data from HTTP $_POST Sanitize username, and password digest, and query DB to check that password matches If OK set session variables with username (and IP address for more safety) and other relevant stuff about user

17. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 17 Example Scripts (from Williams, Lane book & website). They use templates, but you should be able to understand the main points: http://www.webdatabasebook.com/2nd- edition/examples/index.html, Chapter 11. http://www.webdatabasebook.com/2nd- edition/examples/index.html Login page Logincheck Authenticate User, Authenticate Session Logout

18. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 18 Some Security Issues Detailed treatment is beyond the scope of this class, but you should be aware that issues exist. HTTP sends data in the clear. For real applications that handle sensitive data, should use HTTPS –authenticate server –encrypt data sent over network via SSL Session hijacking –Adversary who discovers session ID can take over a session –Checking IP address of each request helps mitigate this threat, but doesn’t eliminate it

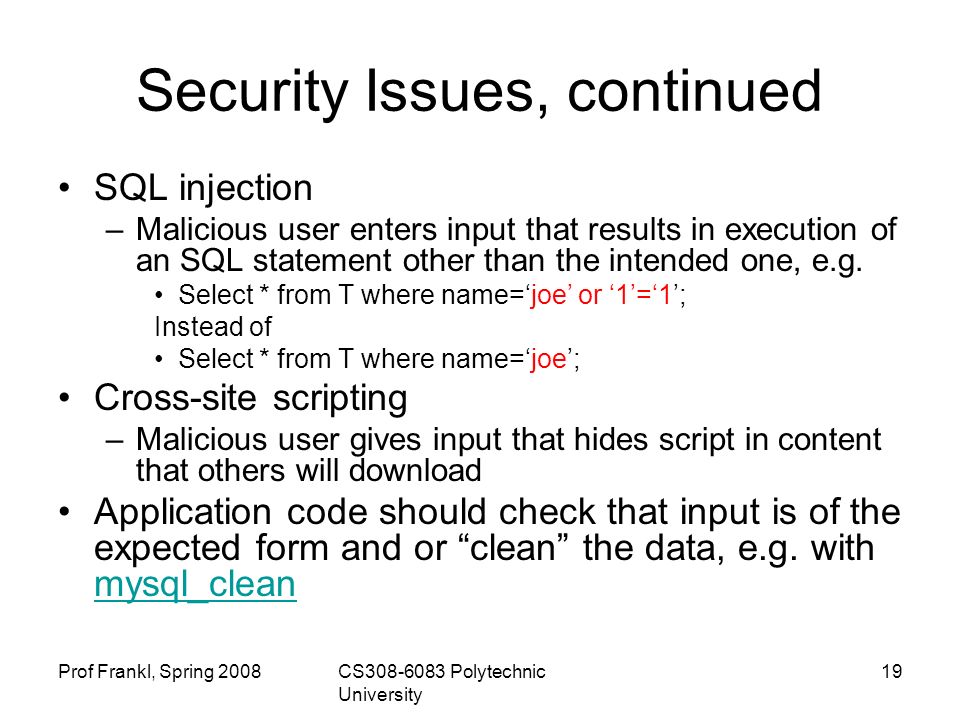

19. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 19 Security Issues, continued SQL injection –Malicious user enters input that results in execution of an SQL statement other than the intended one, e.g. Select * from T where name=‘joe’ or ‘1’=‘1’; Instead of Select * from T where name=‘joe’; Cross-site scripting –Malicious user gives input that hides script in content that others will download Application code should check that input is of the expected form and or “clean” the data, e.g. with mysql_clean mysql_clean

20. Prof Frankl, Spring 2008CS308-6083 Polytechnic University 20 References Williams and Lane, Web Database Applications with PHP and MySQL, 2 nd Ed, O’Reilly http://www.oreilly.com/catalog/webdbapps2/ http://www.oreilly.com/catalog/webdbapps2/ W-L book’s code: http://www.webdatabasebook.com/http://www.webdatabasebook.com/ On-line tutorial: http://www.w3schools.com/php/default.asp http://www.w3schools.com/php/default.asp Article on security: http://www.sitepoint.com/article/php- security-blundershttp://www.sitepoint.com/article/php- security-blunders
