1. Schutzvermerk nach DIN 34 beachten XControl XC600 The modular, open industry control with IT functionality by Moeller XControl

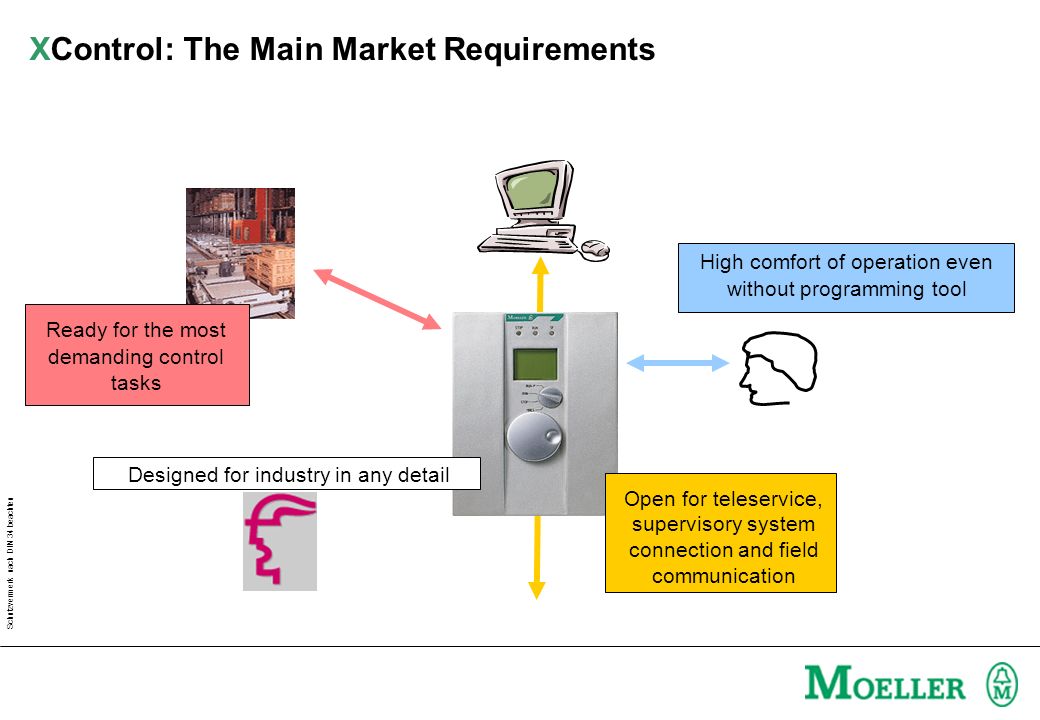

2. Schutzvermerk nach DIN 34 beachten High comfort of operation even without programming tool Designed for industry in any detail Ready for the most demanding control tasks Open for teleservice, supervisory system connection and field communication XControl: The Main Market Requirements

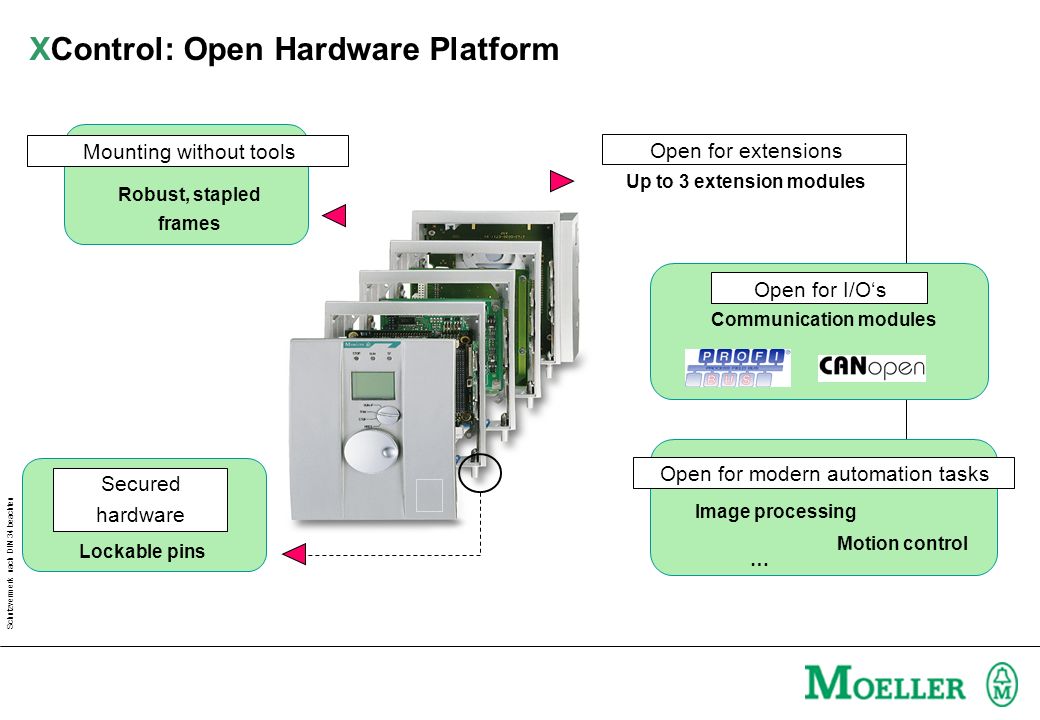

3. Schutzvermerk nach DIN 34 beachten Robust, stapled frames Mounting without tools Open for modern automation tasks Motion control Image processing … Secured hardware Lockable pins Communication modules Up to 3 extension modules Open for extensions Open for I/O‘s XControl: Open Hardware Platform

4. Schutzvermerk nach DIN 34 beachten Basic Module Mechanical Mounting (DIN rail) Alimentation Module Voltage transformation Extension Module Up to 3 Fieldbus Modules or other extensions CPU Module Windows NTe with real time PLC system on Pentium processor Operation Module Display, Function selector switch, LED’s, Menue selector button „Modular“, „without tools“ and „made for industry“aren‘t necessarily contrasts XControl: The Modules

5. Schutzvermerk nach DIN 34 beachten Buffering the real time clock Battery Load and export data Compact Flash Card LED’s Display of actual status DisplayLCD 4 lines x 12 characters Function selector switch Menu selection buttonMenu selection Run, Run-P, Stop, MRes Easy access XControl: The Operation Module

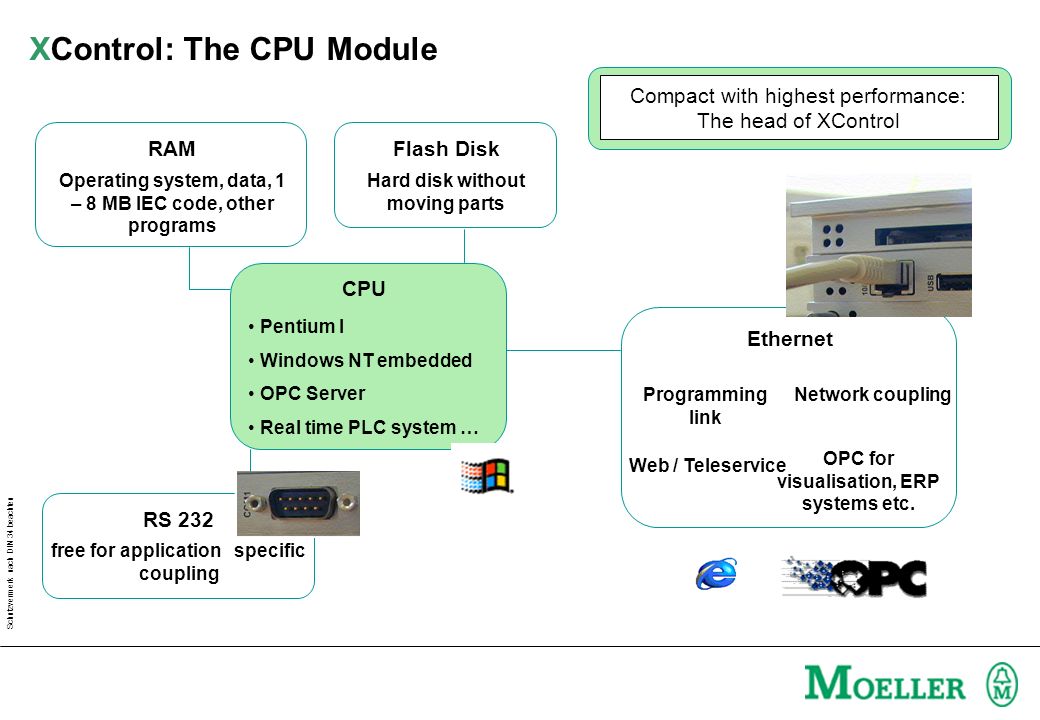

6. Schutzvermerk nach DIN 34 beachten CPU Pentium I Windows NT embedded OPC Server Real time PLC system … free for application specific coupling RAM Operating system, data, 1 – 8 MB IEC code, other programs RS 232 Flash Disk Hard disk without moving parts Ethernet Programming link Network coupling Web / Teleservice OPC for visualisation, ERP systems etc. Compact with highest performance: The head of XControl XControl: The CPU Module

7. Schutzvermerk nach DIN 34 beachten … Up to 31 slaves on 1 line …… Via Repeater: Up to 124 slaves on 4 lines … … Up to 126 slaves on 1 Strang Three Communication Modules can integrate up to 370 participants Comm. Module Profibus-DP Comm. Module CANopen R R Configuration completely via XSoft RS 485 CAN Slave = XI/ON as Gateway to analogue/digital signals or field equipment with fieldbus capability or XControl: The communication Modules
