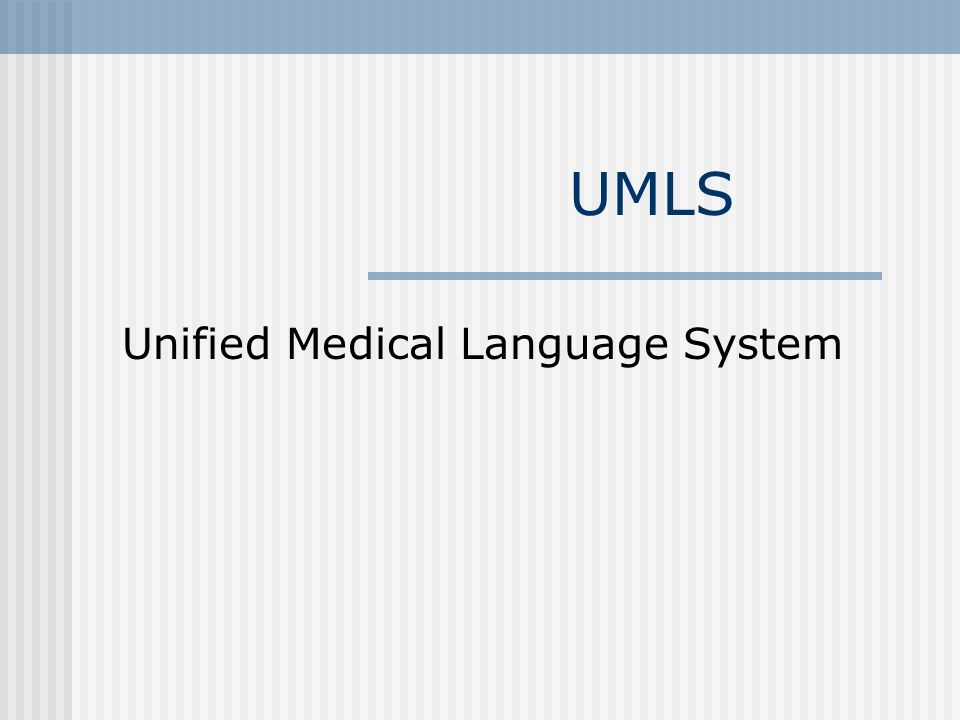

1 UMLS Unified Medical Language System

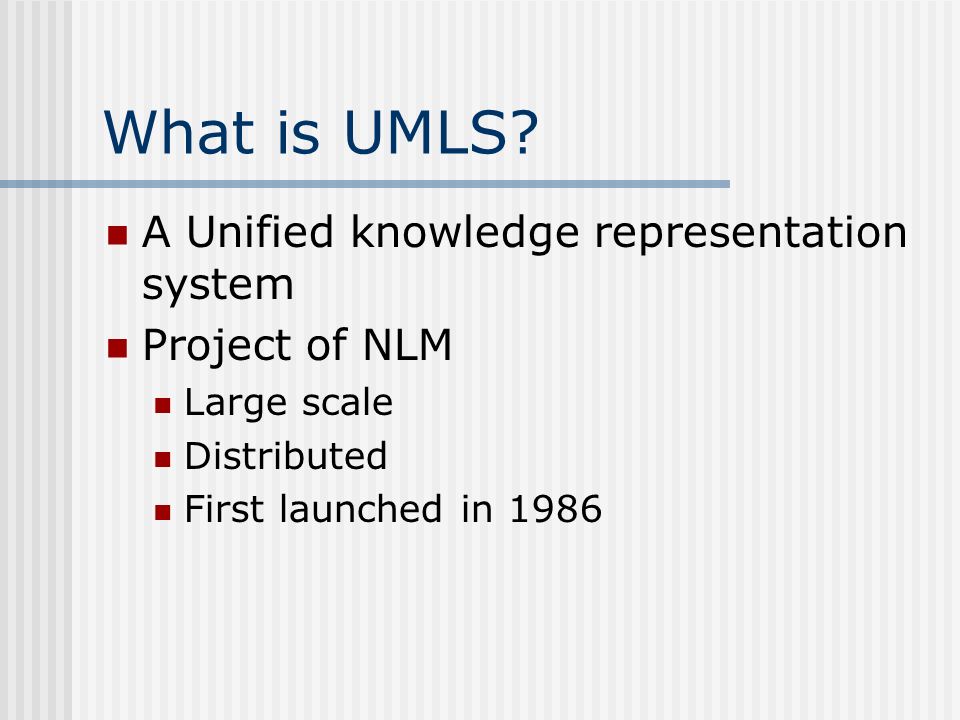

2 What is UMLS? A Unified knowledge representation system Project of NLM Large scale Distributed First launched in 1986

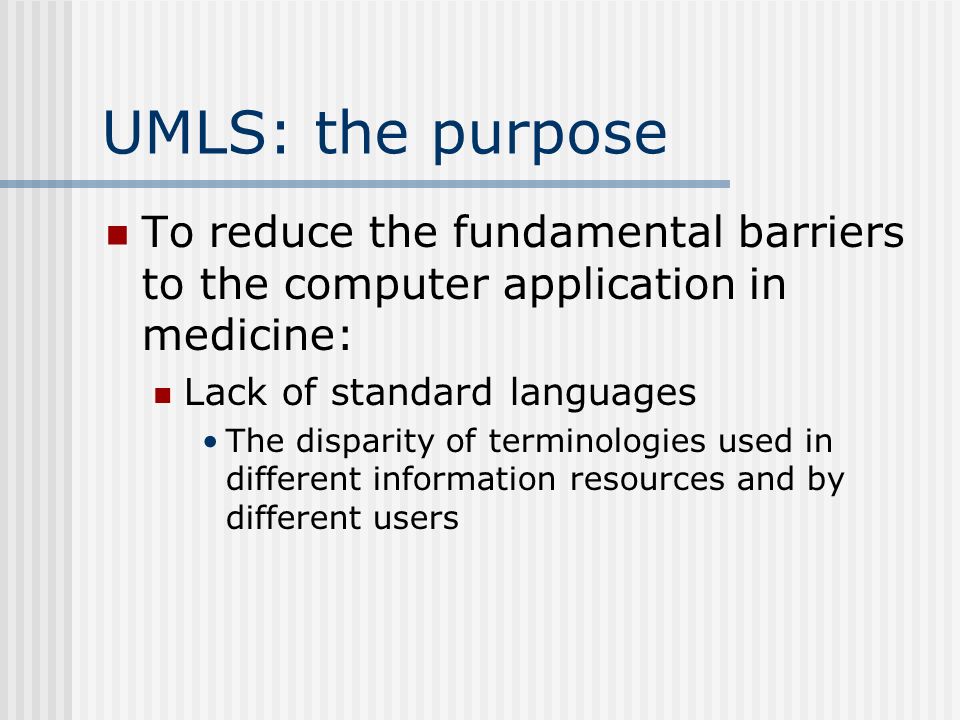

3 UMLS: the purpose To reduce the fundamental barriers to the computer application in medicine: Lack of standard languages The disparity of terminologies used in different information resources and by different users

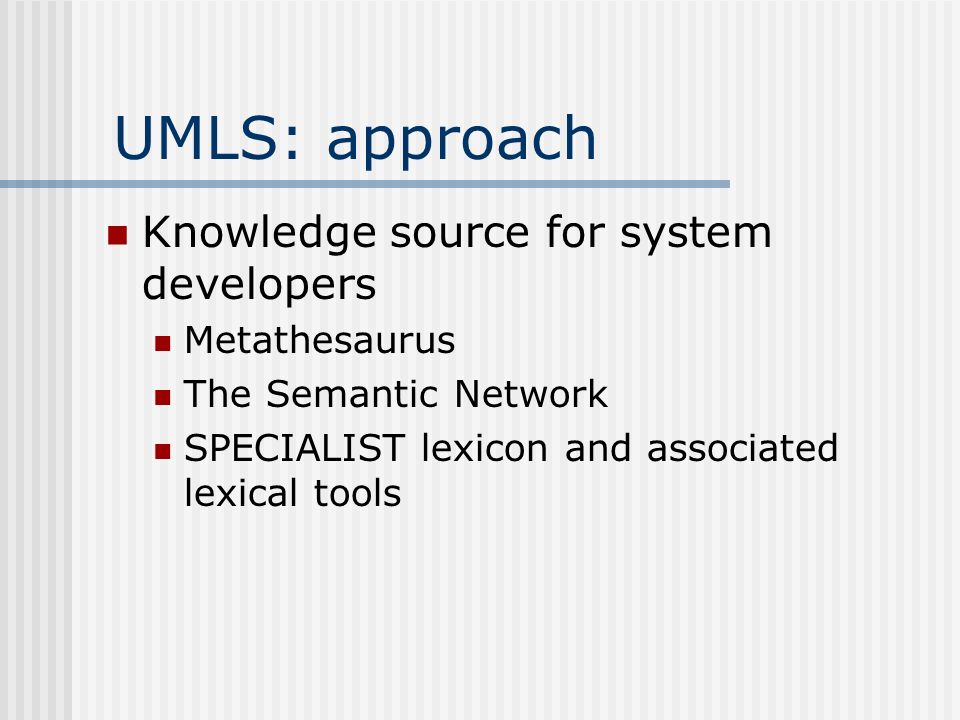

4 UMLS: approach Knowledge source for system developers Metathesaurus The Semantic Network SPECIALIST lexicon and associated lexical tools

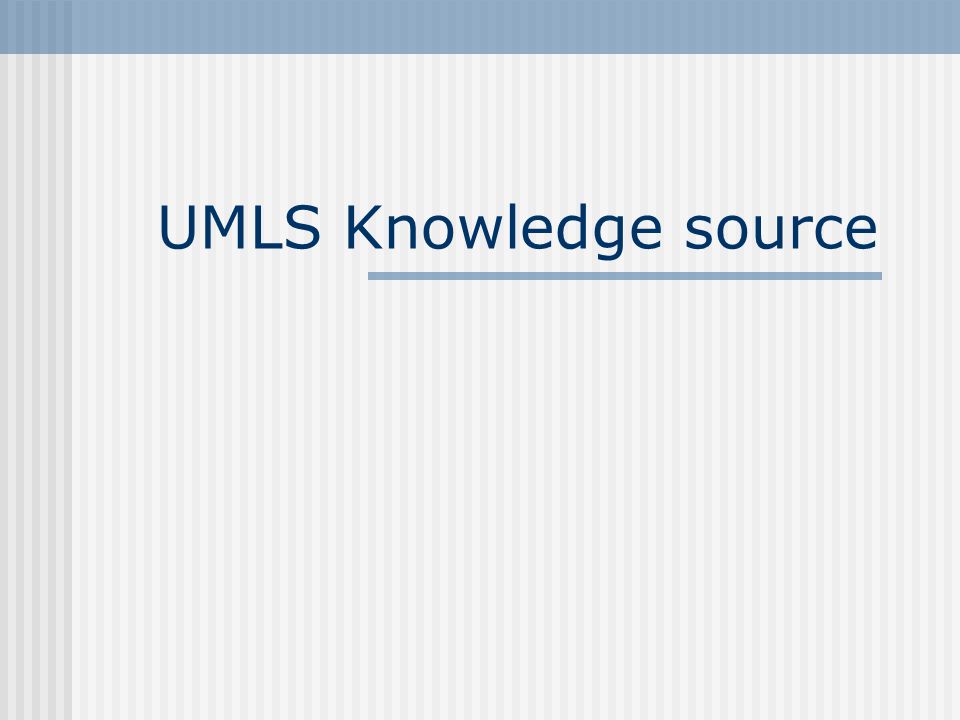

5 UMLS Knowledge source

6 UMLS knowledge source: Core components: Metathesaurs Semantic Network SPECIALIST lexicon and associated lexical tools

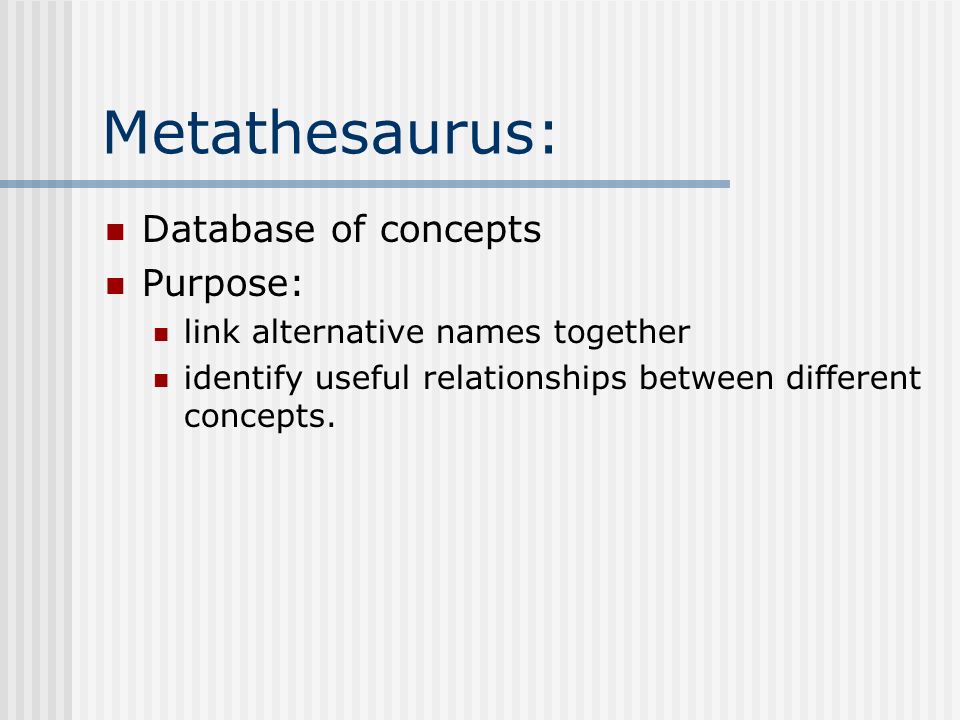

7 Metathesaurus: Database of concepts Purpose: link alternative names together identify useful relationships between different concepts.

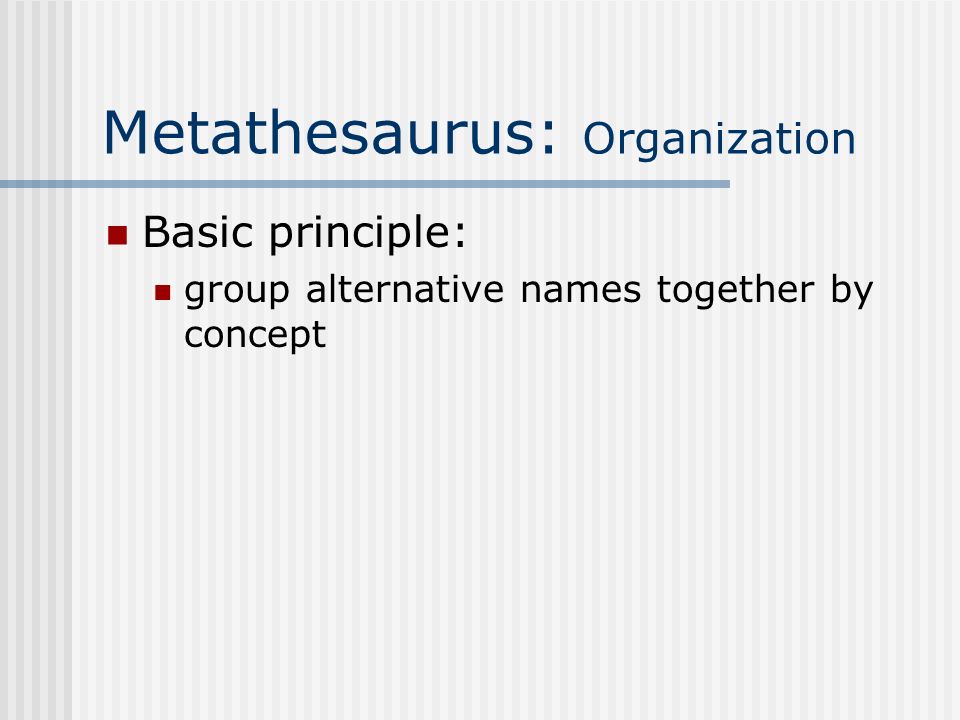

8 Metathesaurus: Organization Basic principle: group alternative names together by concept

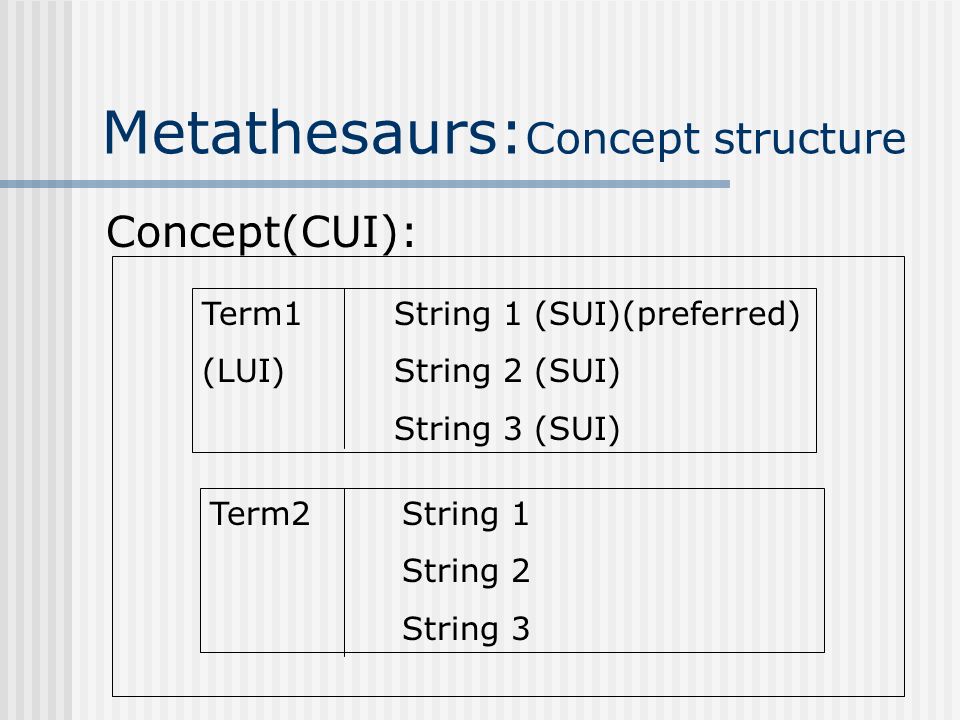

9 Metathesaurs: Concept structure Concept(CUI): Term1String 1 (SUI)(preferred) (LUI) String 2 (SUI) String 3 (SUI) Term2String 1 String 2 String 3

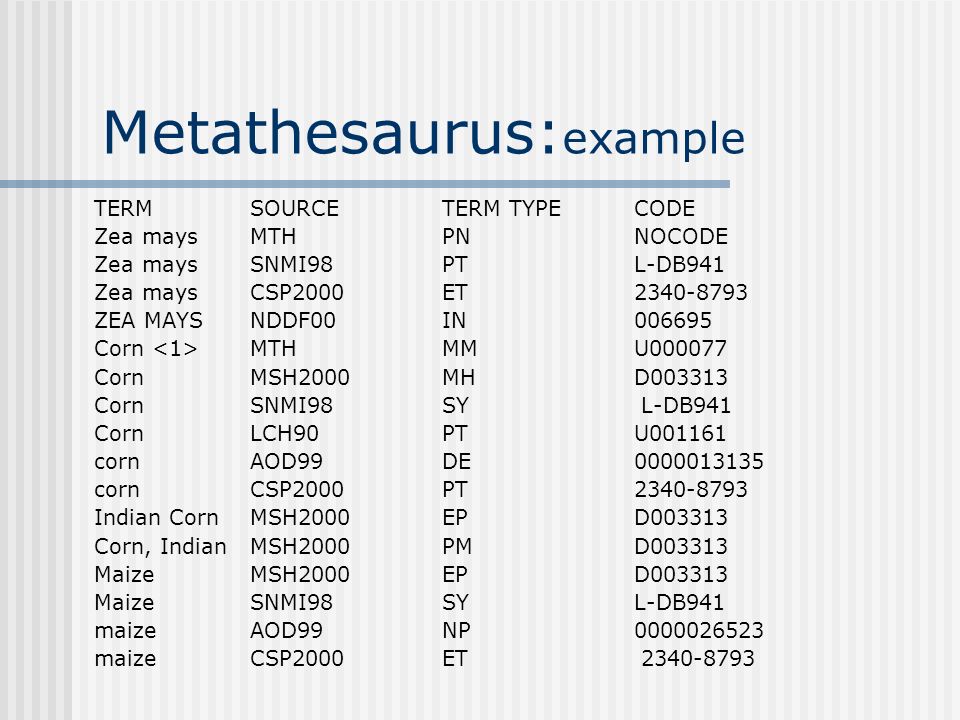

10 Metathesaurus: example TERM SOURCE TERM TYPE CODE Zea mays MTH PN NOCODE Zea mays SNMI98 PT L-DB941 Zea mays CSP2000 ET 2340-8793 ZEA MAYS NDDF00 IN 006695 Corn MTH MM U000077 Corn MSH2000 MH D003313 Corn SNMI98 SY L-DB941 Corn LCH90 PT U001161 corn AOD99 DE 0000013135 corn CSP2000 PT 2340-8793 Indian Corn MSH2000 EP D003313 Corn, Indian MSH2000 PM D003313 Maize MSH2000 EP D003313 Maize SNMI98 SY L-DB941 maize AOD99 NP 0000026523 maize CSP2000 ET 2340-8793

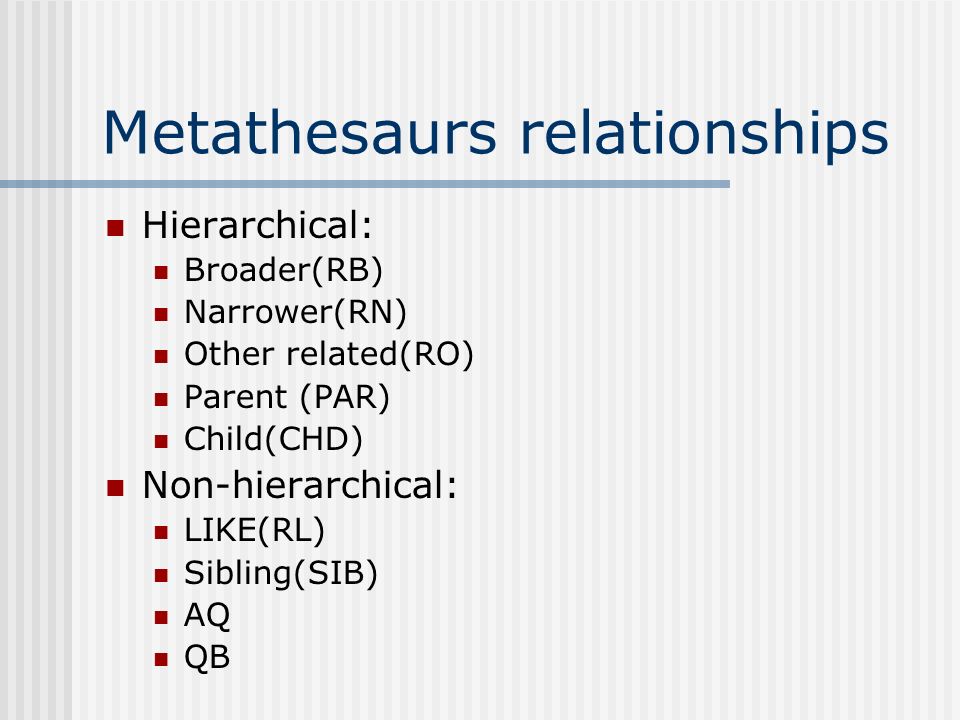

11 Metathesaurs relationships Hierarchical: Broader(RB) Narrower(RN) Other related(RO) Parent (PAR) Child(CHD) Non-hierarchical: LIKE(RL) Sibling(SIB) AQ QB

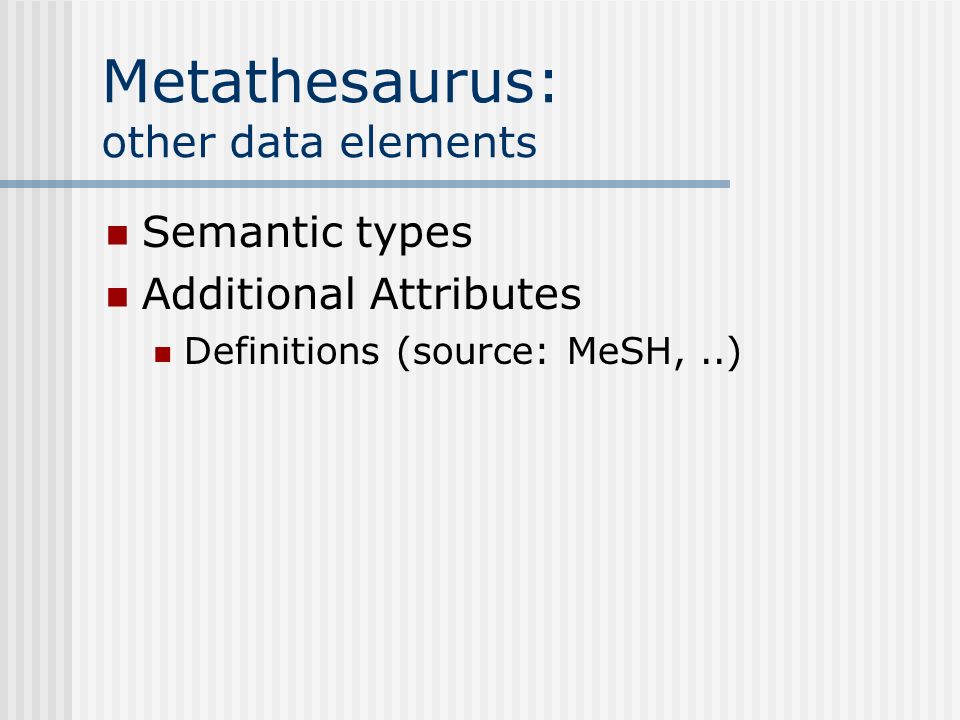

12 Metathesaurus: other data elements Semantic types Additional Attributes Definitions (source: MeSH,..)

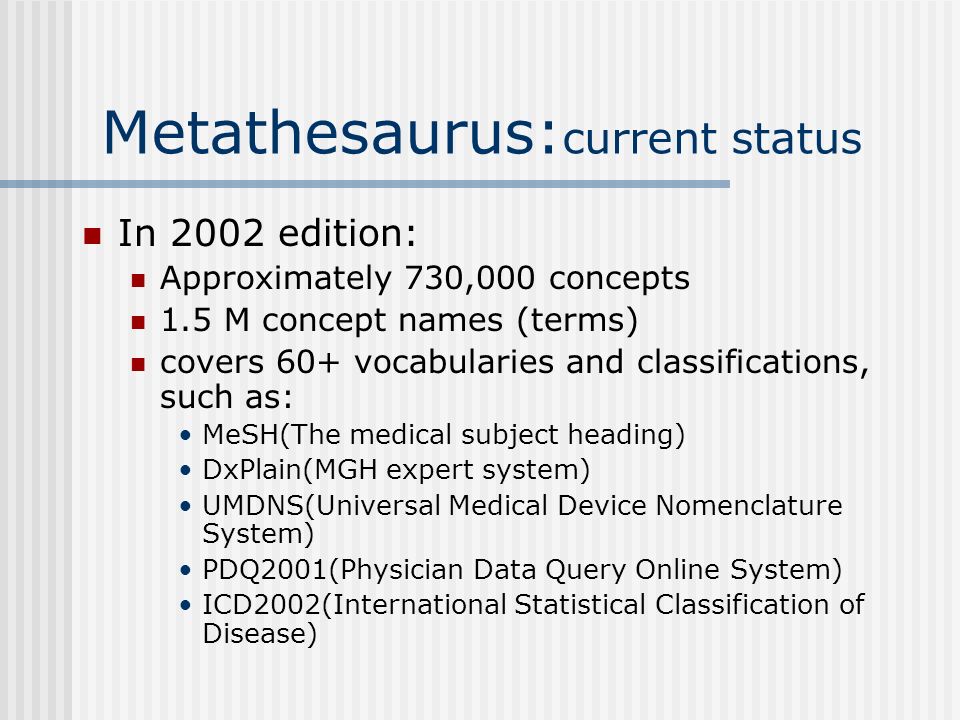

13 Metathesaurus: current status In 2002 edition: Approximately 730,000 concepts 1.5 M concept names (terms) covers 60+ vocabularies and classifications, such as: MeSH(The medical subject heading) DxPlain(MGH expert system) UMDNS(Universal Medical Device Nomenclature System) PDQ2001(Physician Data Query Online System) ICD2002(International Statistical Classification of Disease)

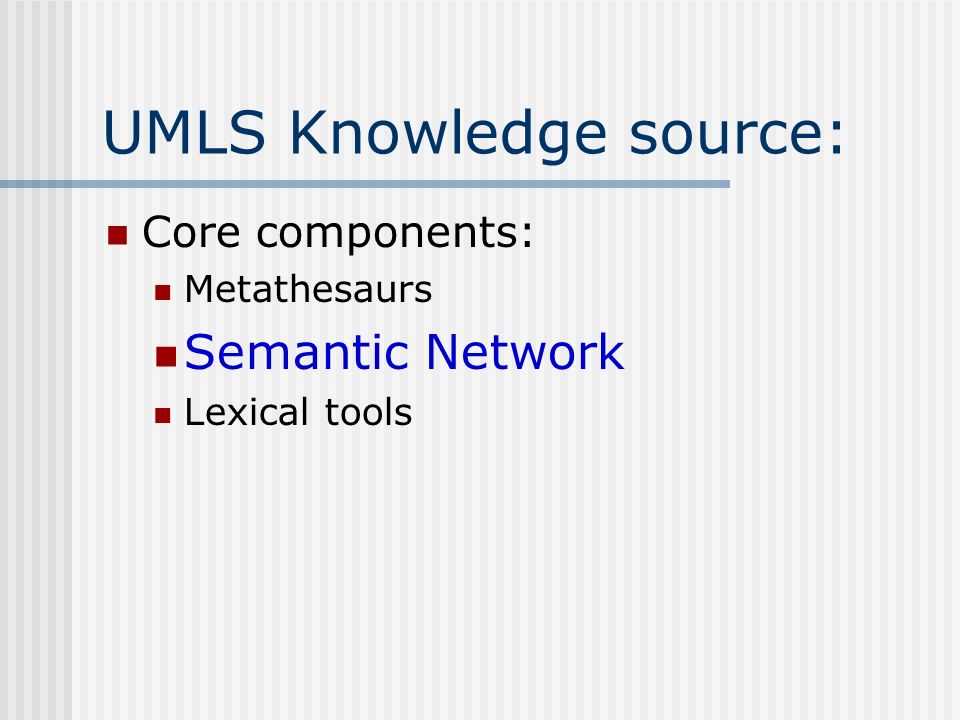

14 UMLS Knowledge source: Core components: Metathesaurs Semantic Network Lexical tools

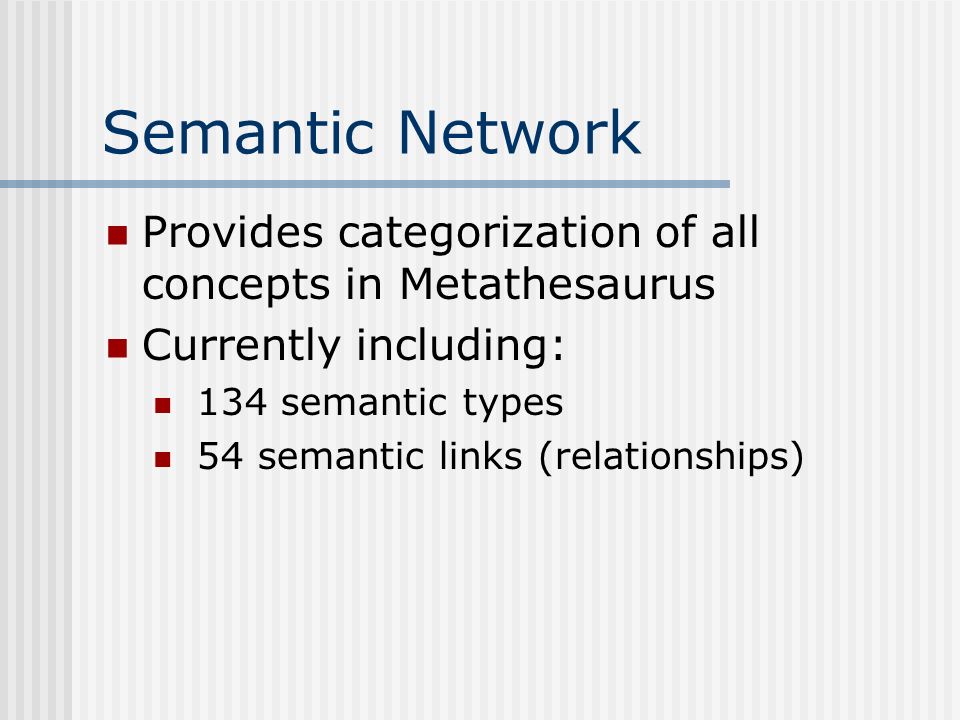

15 Semantic Network Provides categorization of all concepts in Metathesaurus Currently including: 134 semantic types 54 semantic links (relationships)

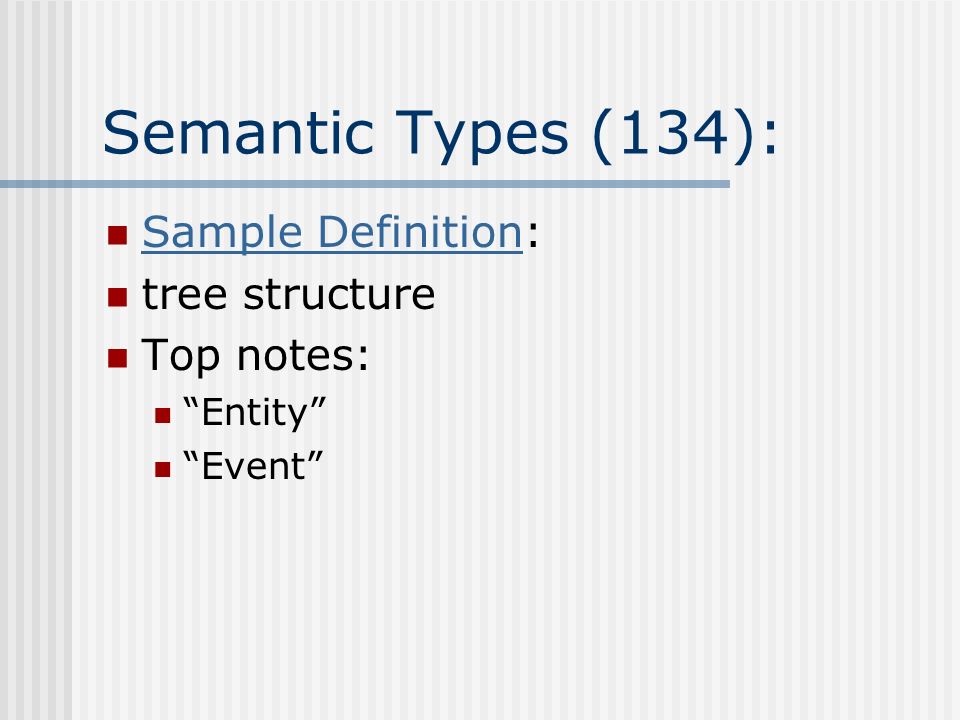

16 Semantic Types (134): Sample Definition: Sample Definition tree structure Top notes: “Entity” “Event”

17 Semantic relationships(54) hierarchical (isa = is a kind of) Among types: Plant isa organism Activity isa event Among relations: Treats isa affects Affects isa related to non-hierarchical: Injuries or poisoning disrupts physiology functions Pharmacologic substance treats pathologic functions

18 Hierarchical relations types:

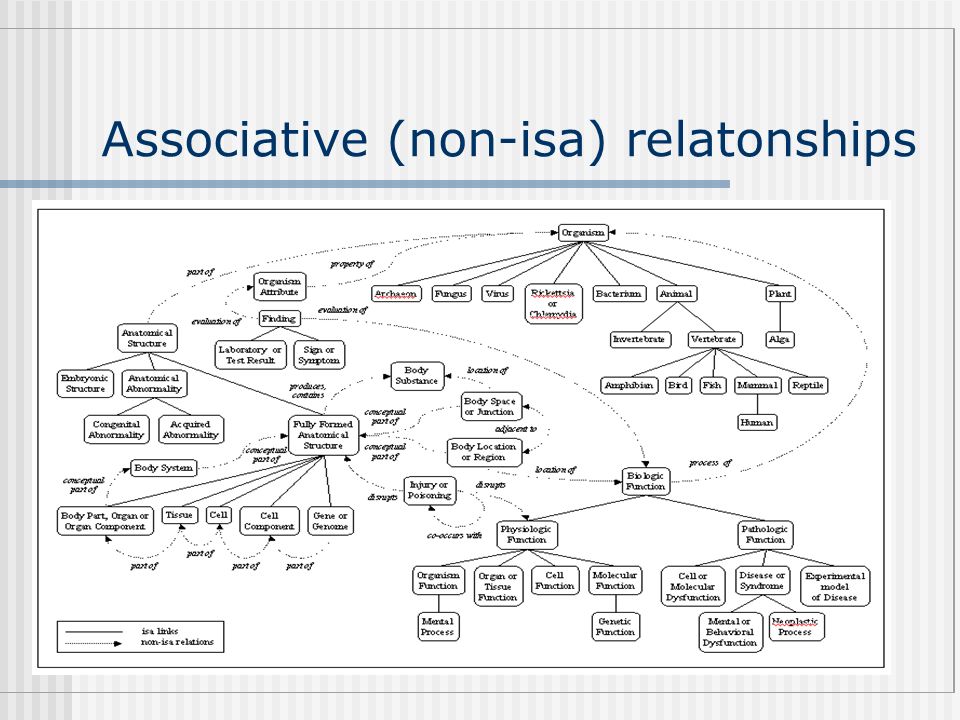

19 Associative (non-isa) relatonships

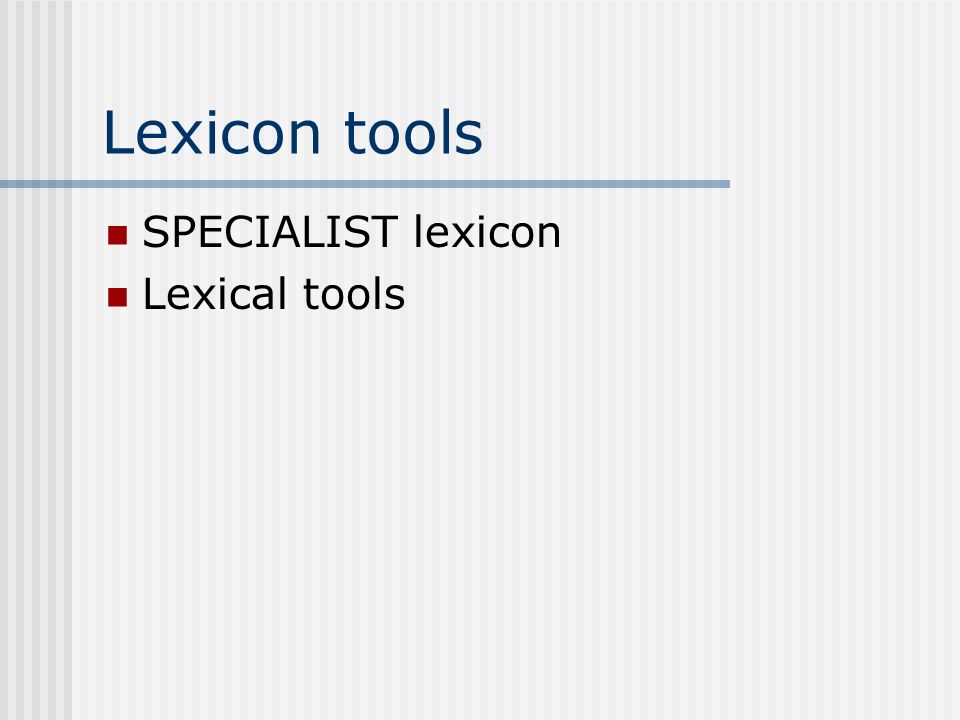

20 Lexicon tools SPECIALIST lexicon Lexical tools

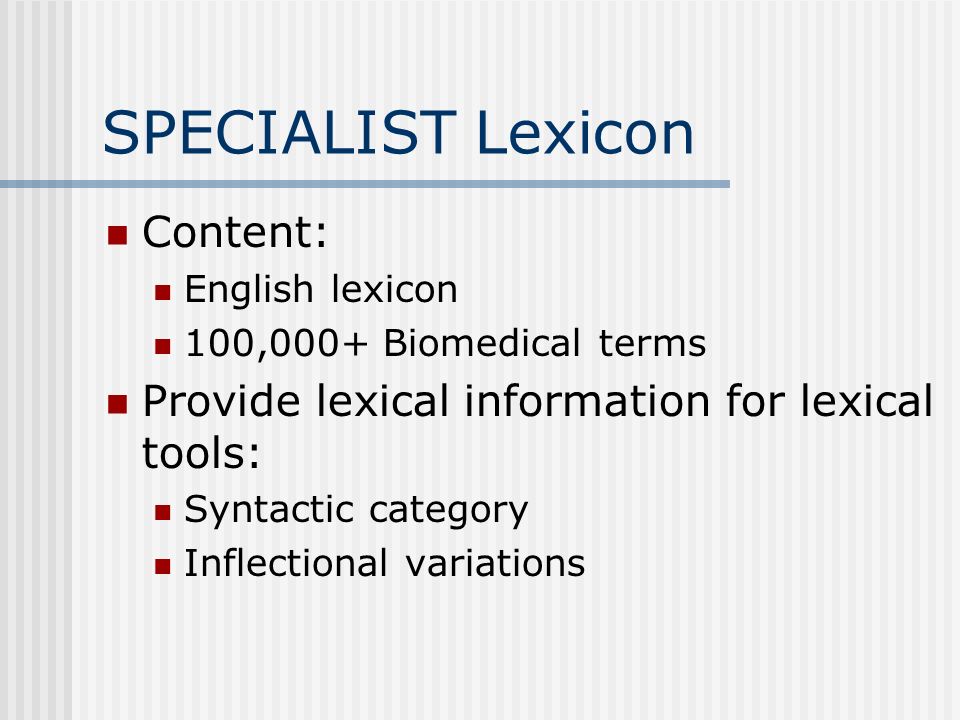

21 SPECIALIST Lexicon Content: English lexicon 100,000+ Biomedical terms Provide lexical information for lexical tools: Syntactic category Inflectional variations

22 UMLS Knowledge source: Core components: Metathesaurs Semantic Network SPECIALIST Lexicon and Lexical tools

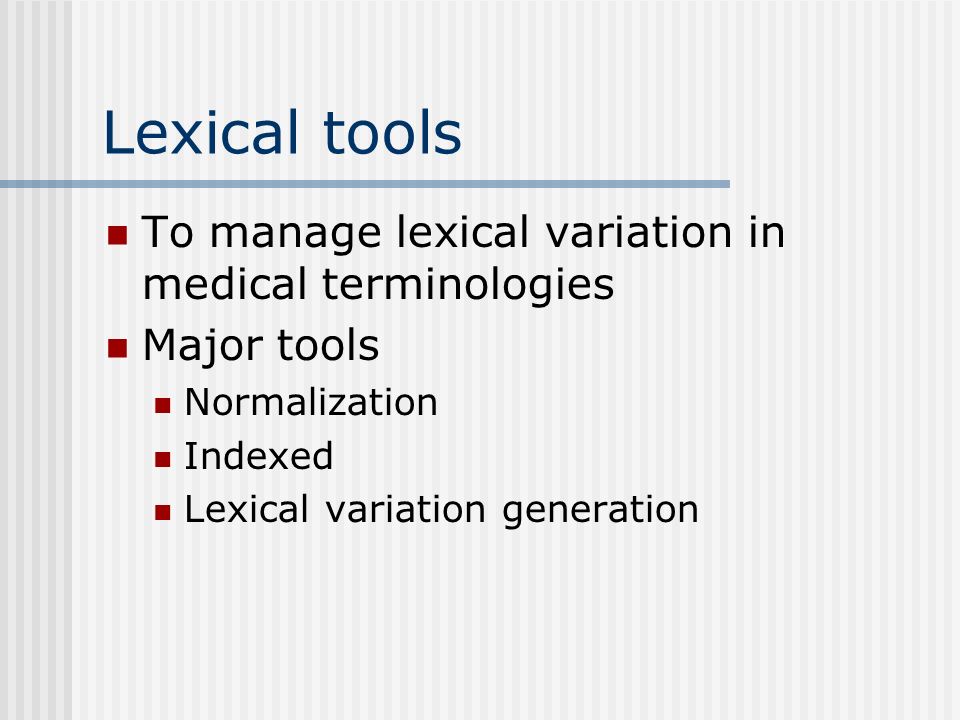

23 Lexical tools To manage lexical variation in medical terminologies Major tools Normalization Indexed Lexical variation generation

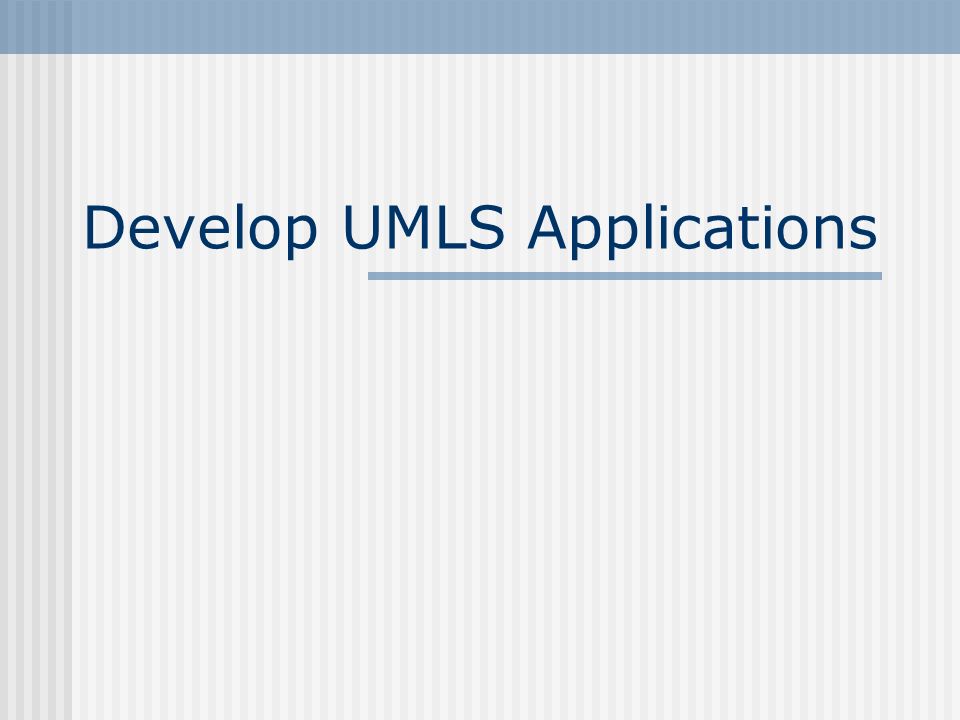

24 Develop UMLS Applications

25 UMLS Distribution Knowledge source and associated lexical tools Annual updates since 1990 Free, but requires a license agreement Full UMLS available: CD-ROM ftp from the Knowledge Source Server Application Programming Interface(API) Knowledge Source Server

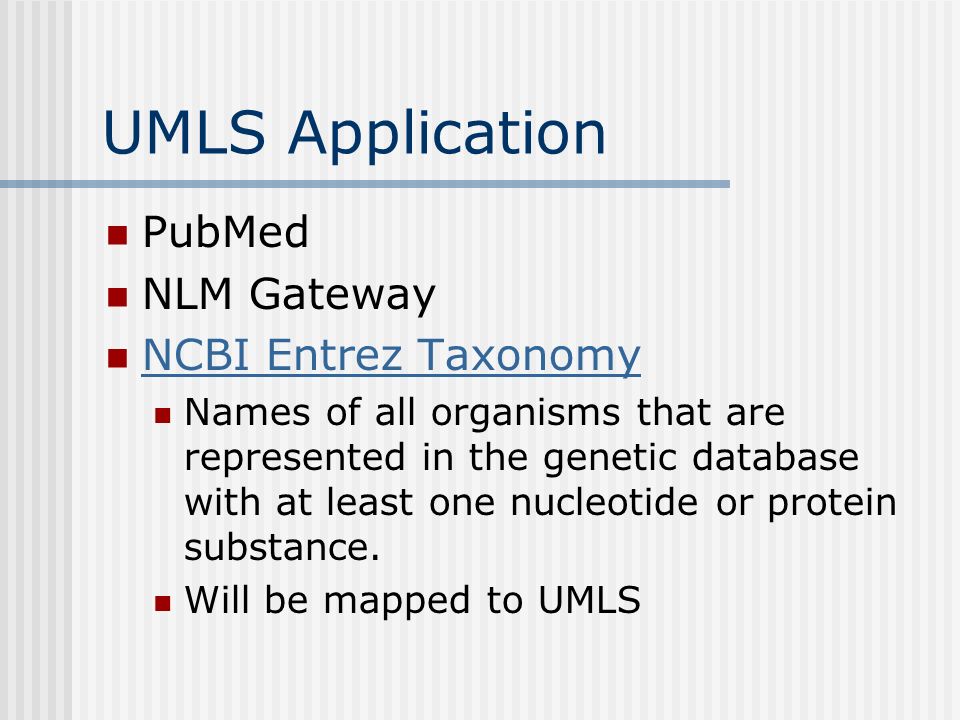

26 UMLS Application PubMed NLM Gateway NCBI Entrez Taxonomy Names of all organisms that are represented in the genetic database with at least one nucleotide or protein substance. Will be mapped to UMLS

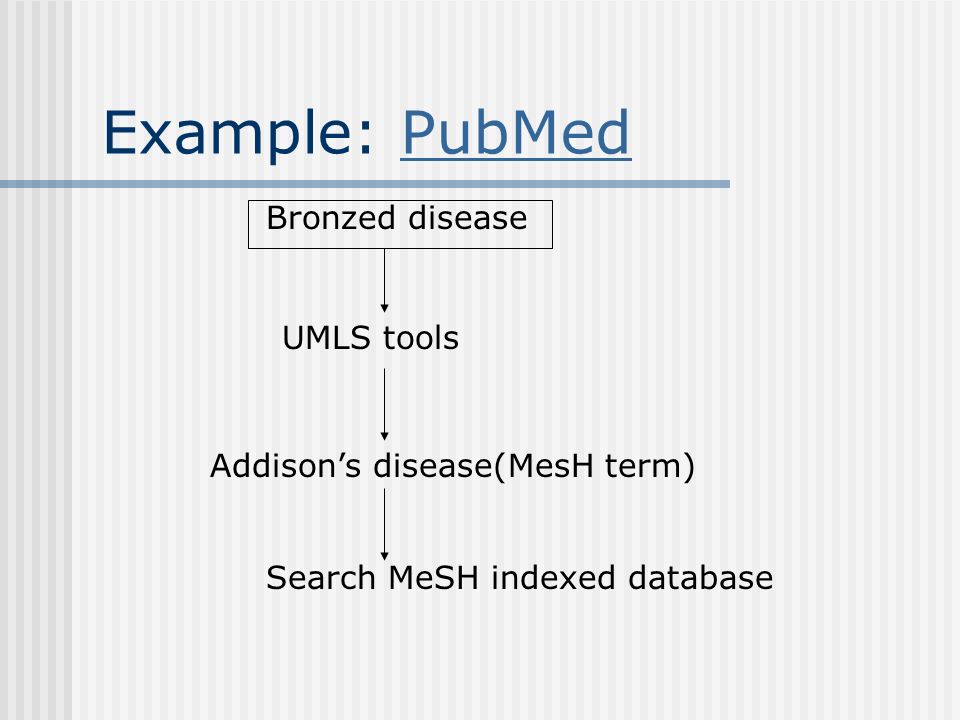

27 Example: PubMedPubMed Bronzed disease UMLS tools Addison’s disease(MesH term) Search MeSH indexed database

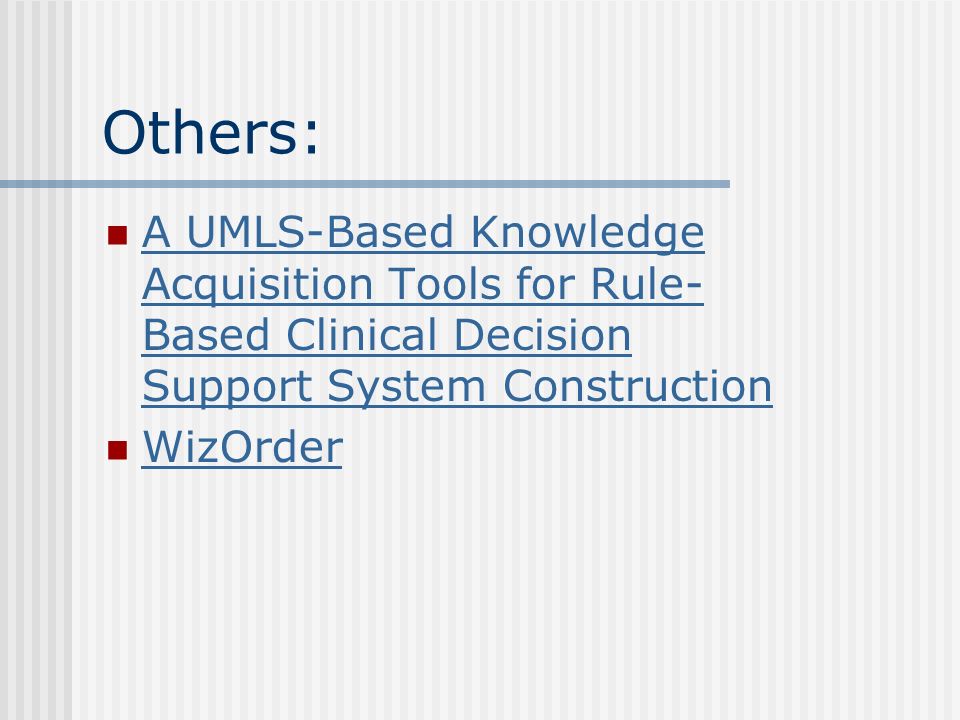

28 Others: A UMLS-Based Knowledge Acquisition Tools for Rule- Based Clinical Decision Support System Construction A UMLS-Based Knowledge Acquisition Tools for Rule- Based Clinical Decision Support System Construction WizOrder
