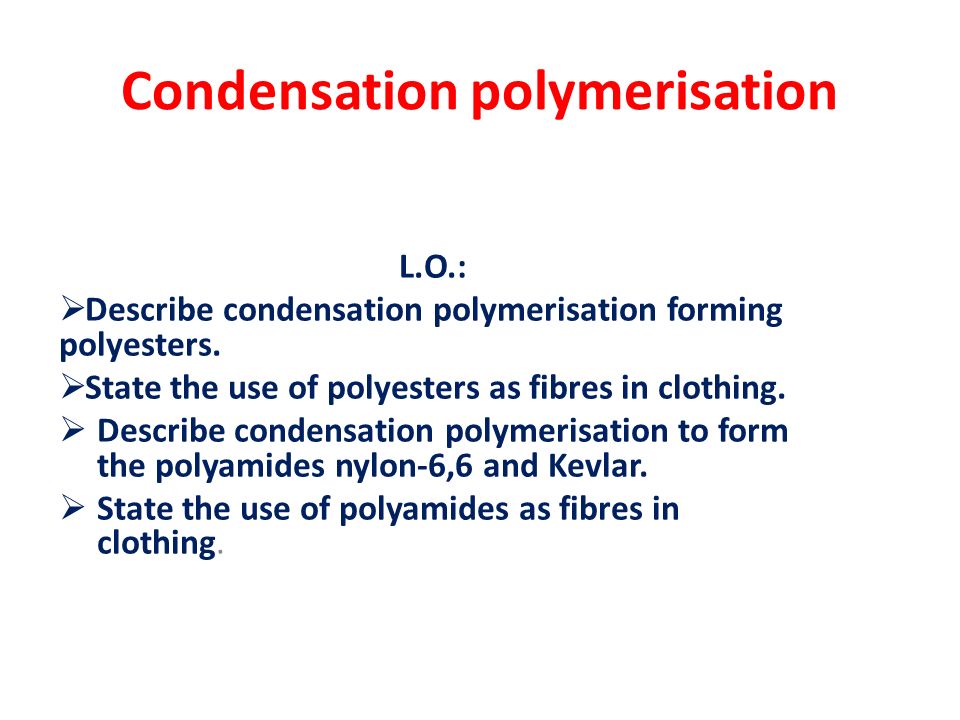

1 Condensation polymerisation L.O.:  Describe condensation polymerisation forming polyesters.  State the use of polyesters as fibres in clothing.  Describe condensation polymerisation to form the polyamides nylon-6,6 and Kevlar.  State the use of polyamides as fibres in clothing.

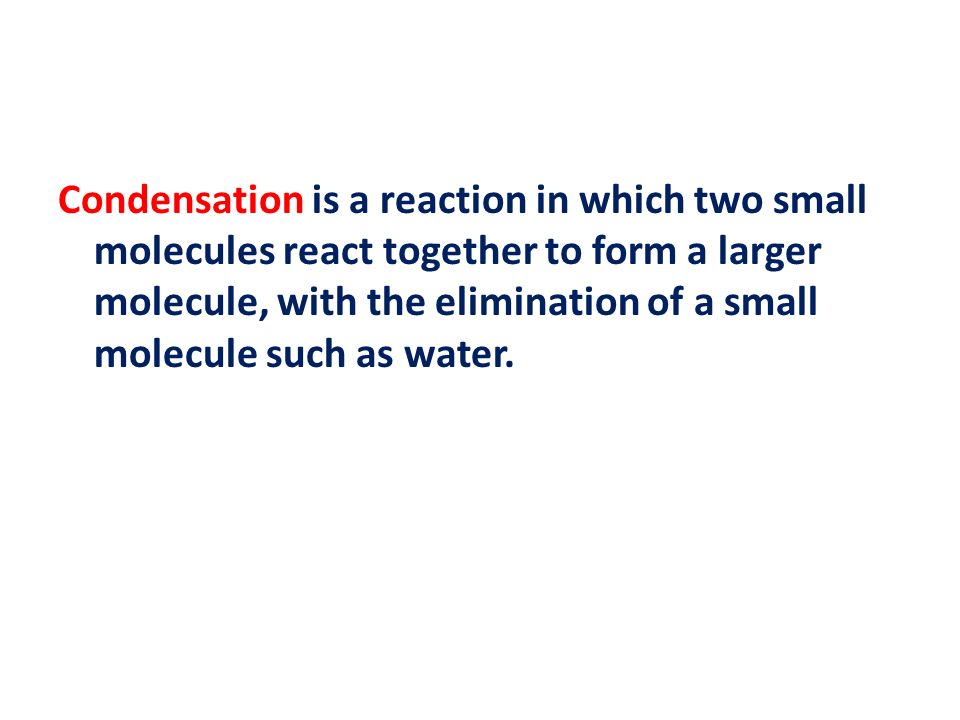

2 Condensation is a reaction in which two small molecules react together to form a larger molecule, with the elimination of a small molecule such as water.

3 Formation of polyesters from two types of monomer

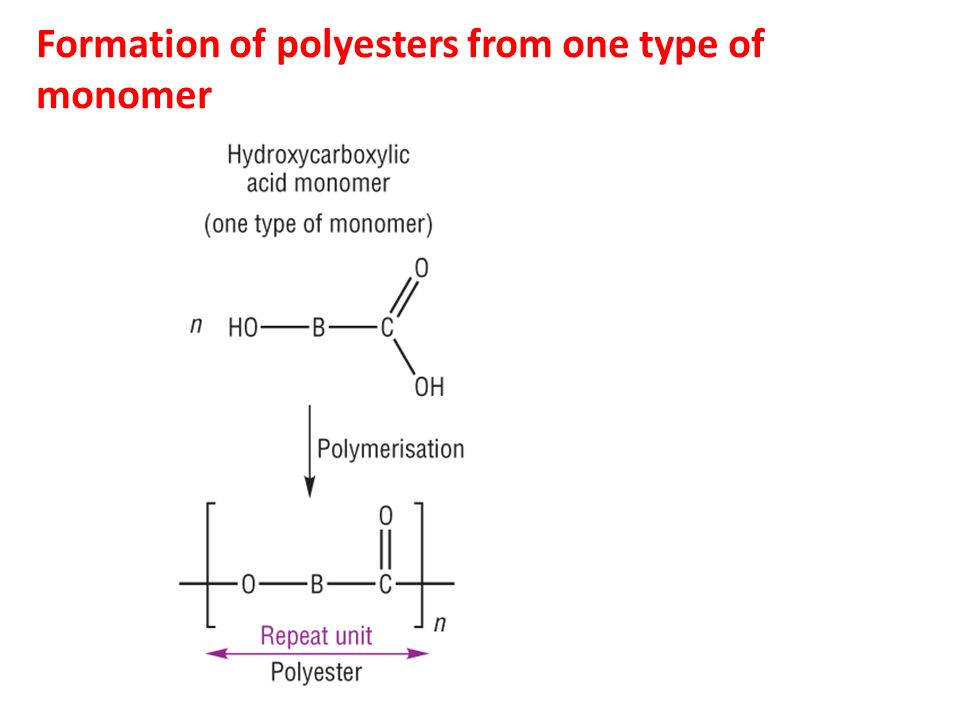

4 Formation of polyesters from one type of monomer

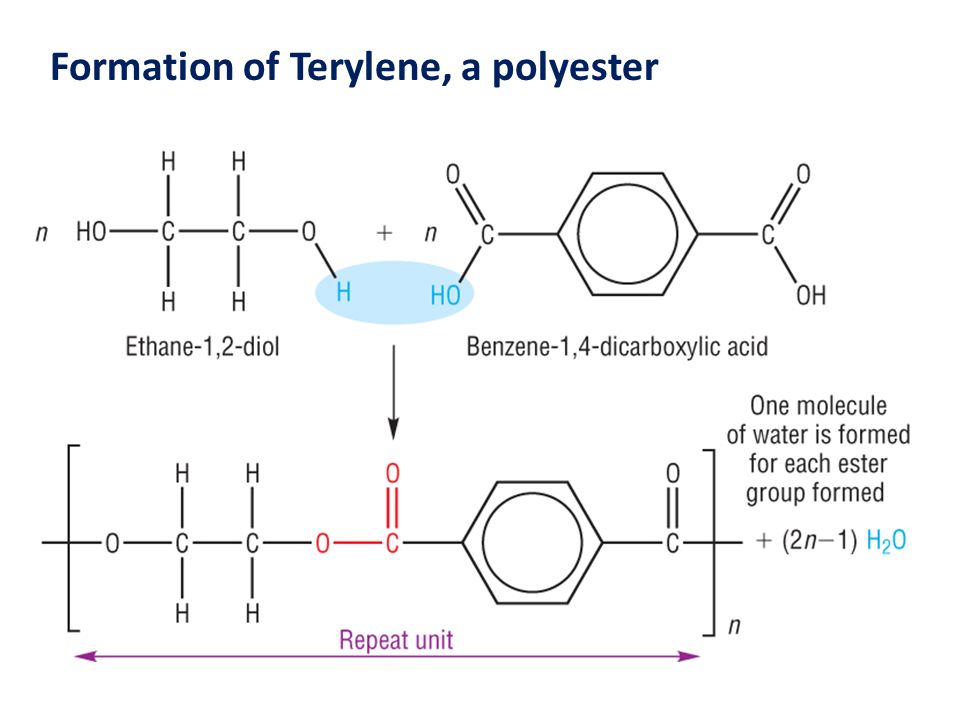

5 Formation of Terylene, a polyester

6 Condensation polymerisation of lactic acid

7 1)Draw the repeat unit of the polymer that can be made fro ethanedioic acid and ethan- 1,2-diol. 2)From what monomers can the following condensation polymer be made:

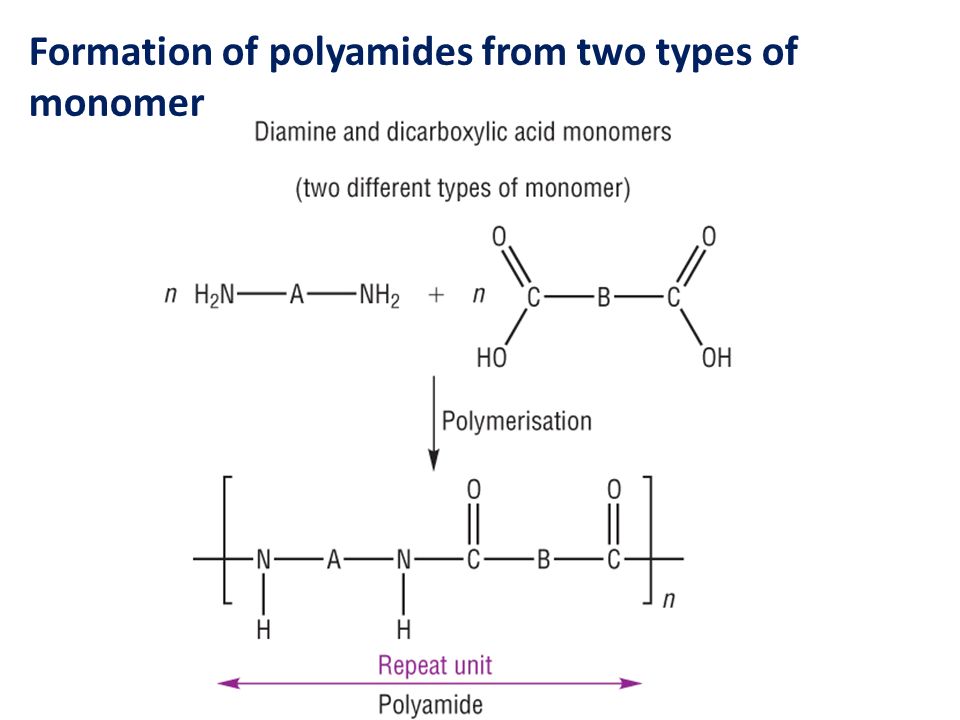

8 Formation of polyamides from two types of monomer

9 Formation of polyamides from one type of monomer

10 Formation of the polyamide nylon-6,6

11 Formation of the polyamide Kevlar
