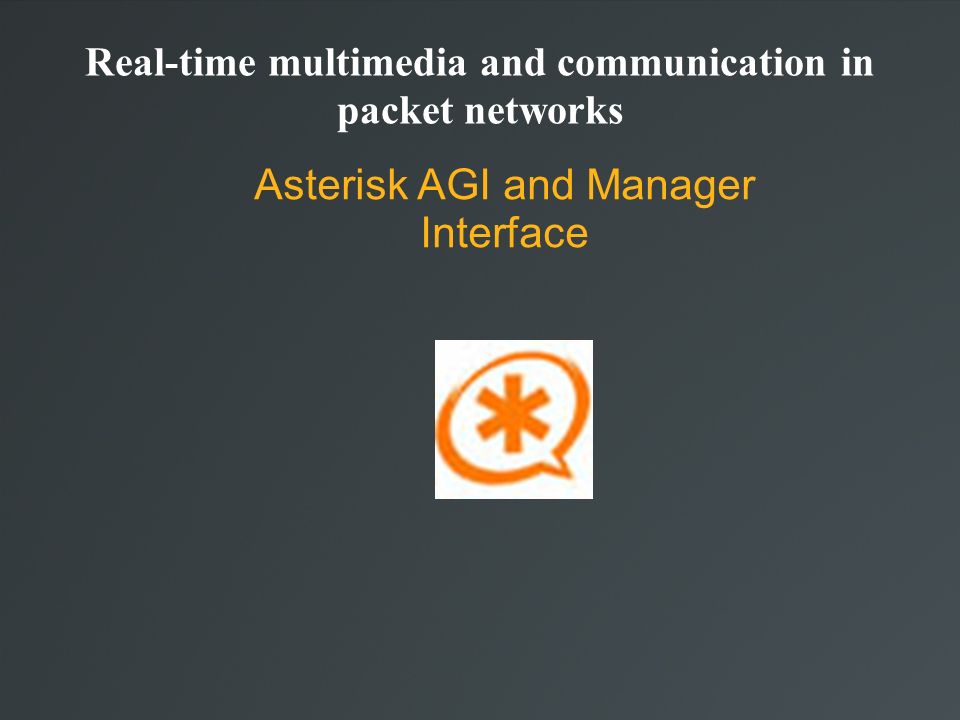

1. Real-time multimedia and communication in packet networks Asterisk AGI and Manager Interface

2. Last Practical Create a calculator application using the Asterisk dialplan E.g. phone an extension * answers and provide an IVR menu saying press 1 to go to the calculator, 2 to go somewhere else, and 3 to go somewhere further If I press 1 – must be routed to calculator where I am prompted to choose to go to multiplication menu, division menu, add menu or subtraction menu 1,2,3,4 Within each menu – prompt user for expression separated by star (*)‏ So in addition menu, pressing 100*20 should return 120 While in multiplication menu pressing 100*20 will return 2000 Results can be played using Festival After each result should have option of another operation or going to one of the other menus (+-/*)‏ Remember to check out http://www.voip-info.org/ - Check out the Cut function!http://www.voip-info.org/

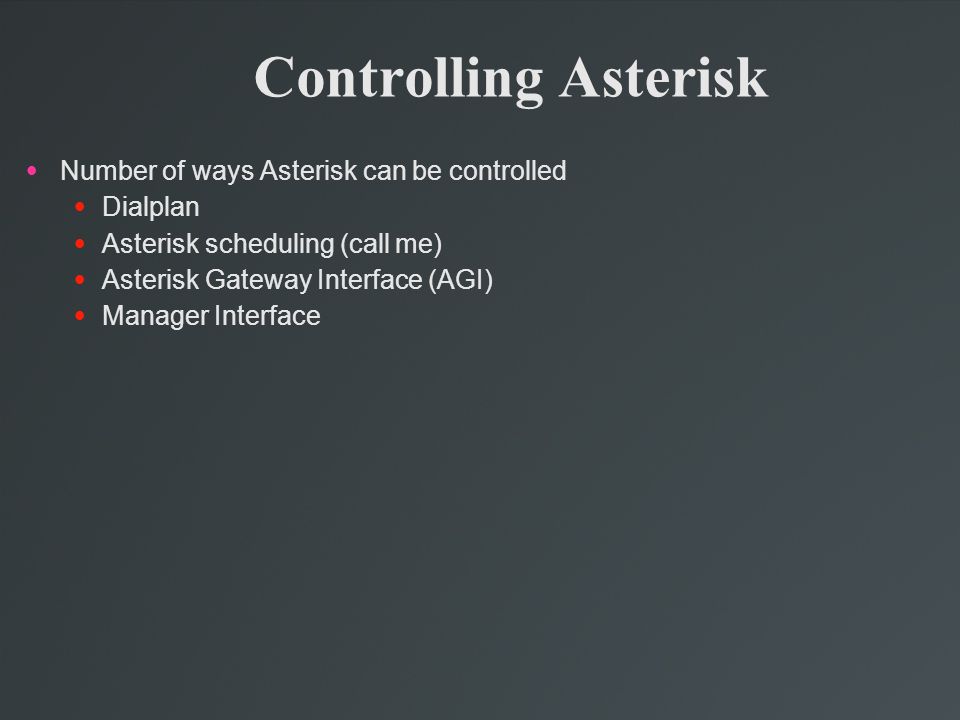

3. Controlling Asterisk Number of ways Asterisk can be controlled Dialplan Asterisk scheduling (call me)‏ Asterisk Gateway Interface (AGI)‏ Manager Interface

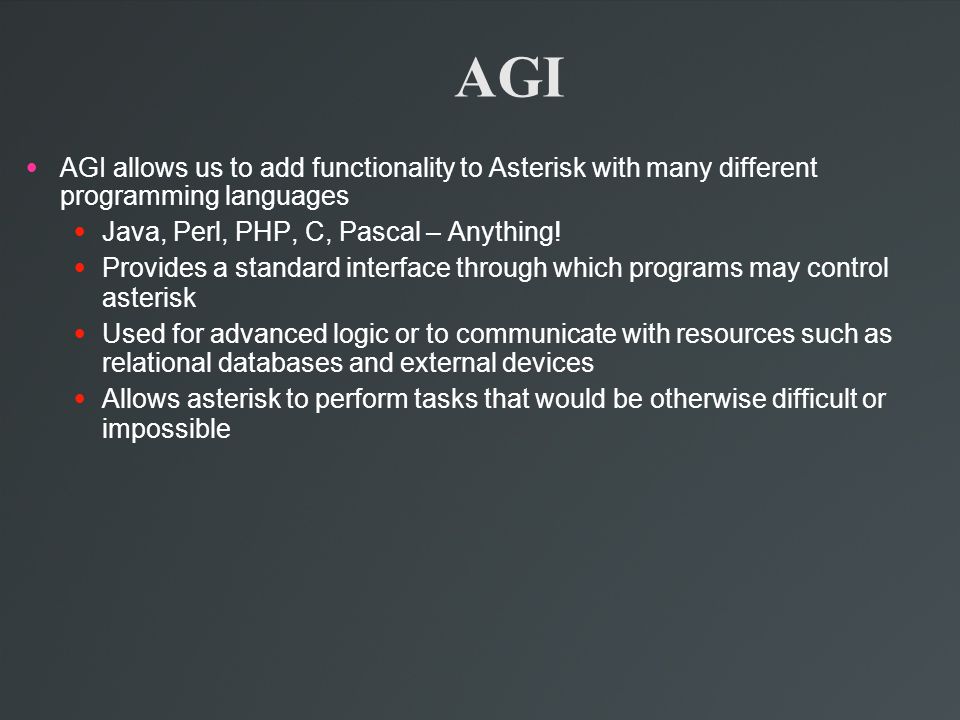

4. AGI AGI allows us to add functionality to Asterisk with many different programming languages Java, Perl, PHP, C, Pascal – Anything! Provides a standard interface through which programs may control asterisk Used for advanced logic or to communicate with resources such as relational databases and external devices Allows asterisk to perform tasks that would be otherwise difficult or impossible

5. AGI – How it works The AGI script is called from the dialplan‏ Asterisk and your program communicate via the STDIN, STDOUT and STDERR communications channels (file handles in programming)‏ Your AGI scripts reads input via its STDIN file handle Your AGI script writes back to asterisk via its STDOUT file handle Your AGI program writes error message back to asterisk via its STDERR file handle

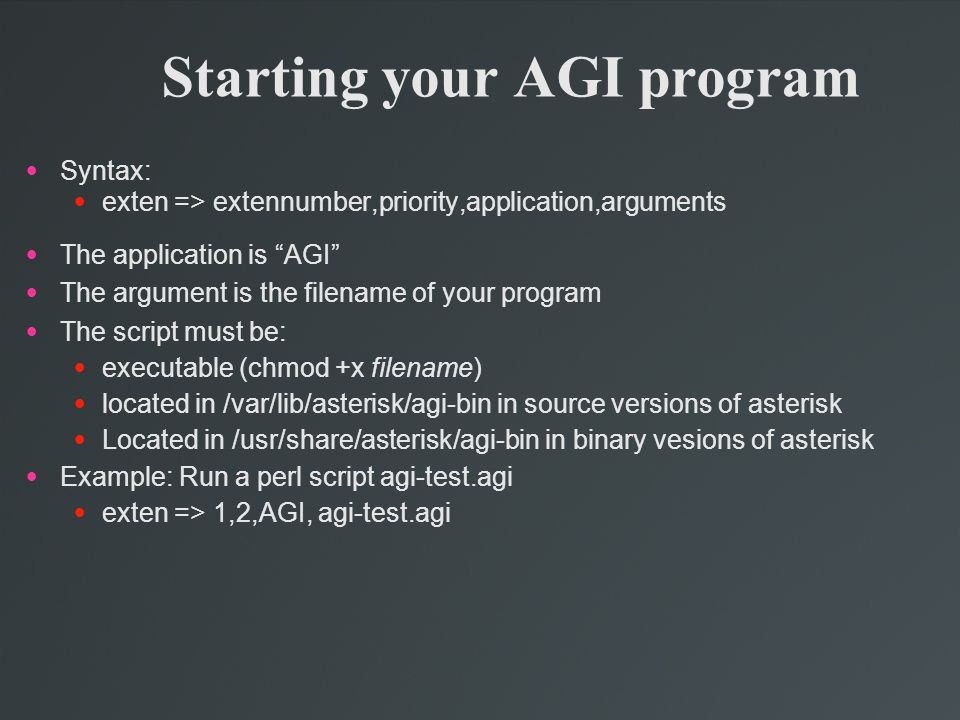

6. Starting your AGI program Syntax: exten => extennumber,priority,application,arguments The application is “AGI” The argument is the filename of your program The script must be: executable (chmod +x filename)‏ located in /var/lib/asterisk/agi-bin in source versions of asterisk Located in /usr/share/asterisk/agi-bin in binary vesions of asterisk Example: Run a perl script agi-test.agi exten => 1,2,AGI, agi-test.agi

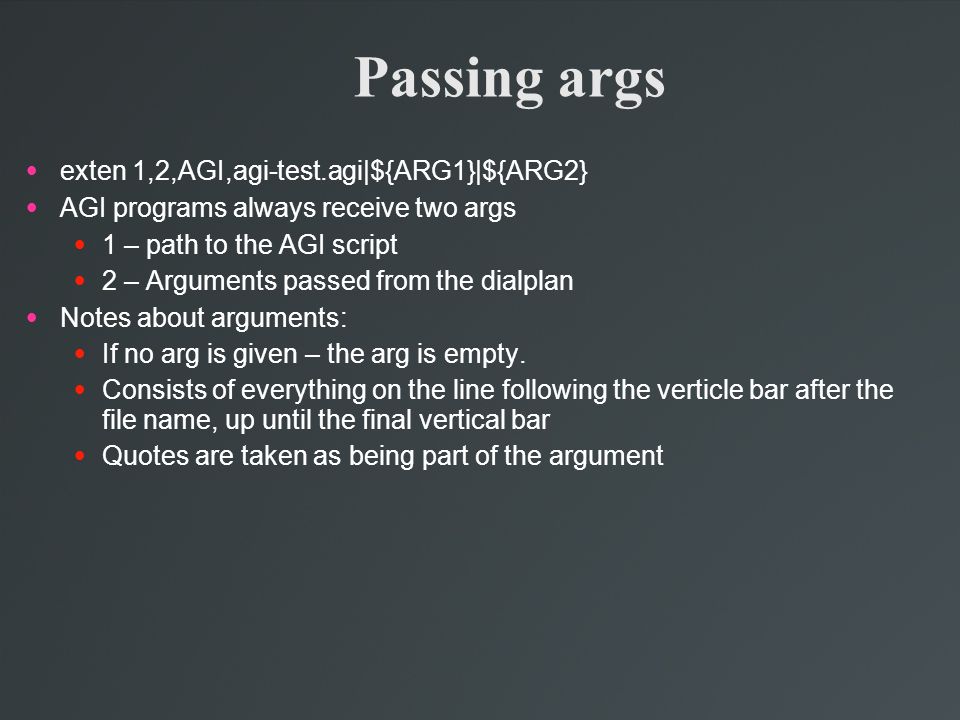

7. Passing args exten 1,2,AGI,agi-test.agi|${ARG1}|${ARG2} AGI programs always receive two args 1 – path to the AGI script 2 – Arguments passed from the dialplan Notes about arguments: If no arg is given – the arg is empty. Consists of everything on the line following the verticle bar after the file name, up until the final vertical bar‏ Quotes are taken as being part of the argument

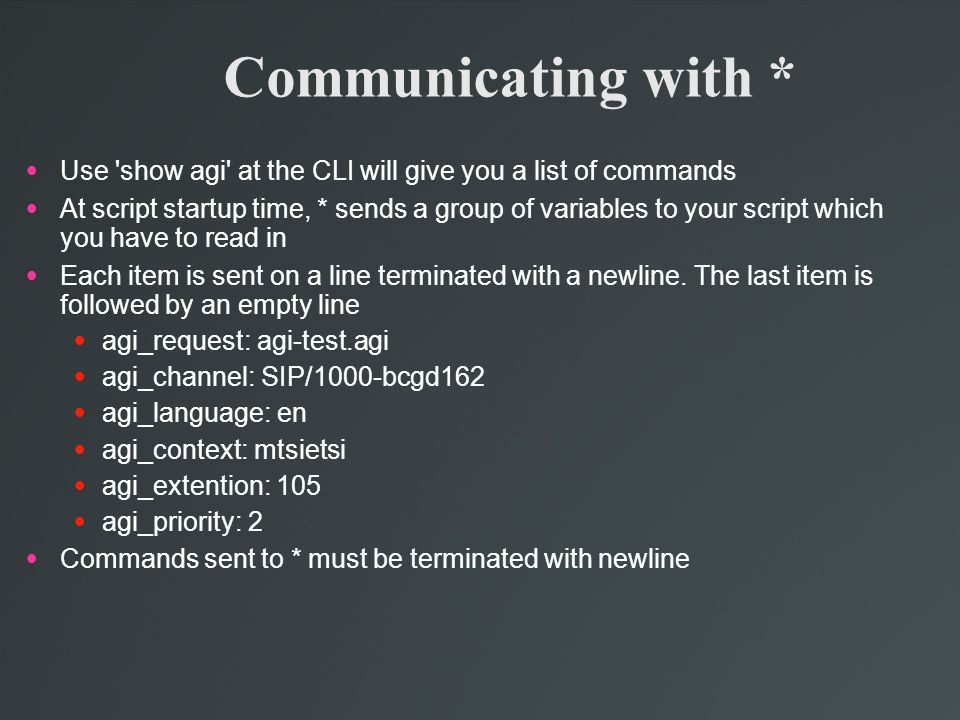

8. Communicating with * Use 'show agi' at the CLI will give you a list of commands At script startup time, * sends a group of variables to your script which you have to read in Each item is sent on a line terminated with a newline. The last item is followed by an empty line agi_request: agi-test.agi agi_channel: SIP/1000-bcgd162 agi_language: en agi_context: mtsietsi agi_extention: 105 agi_priority: 2 Commands sent to * must be terminated with newline

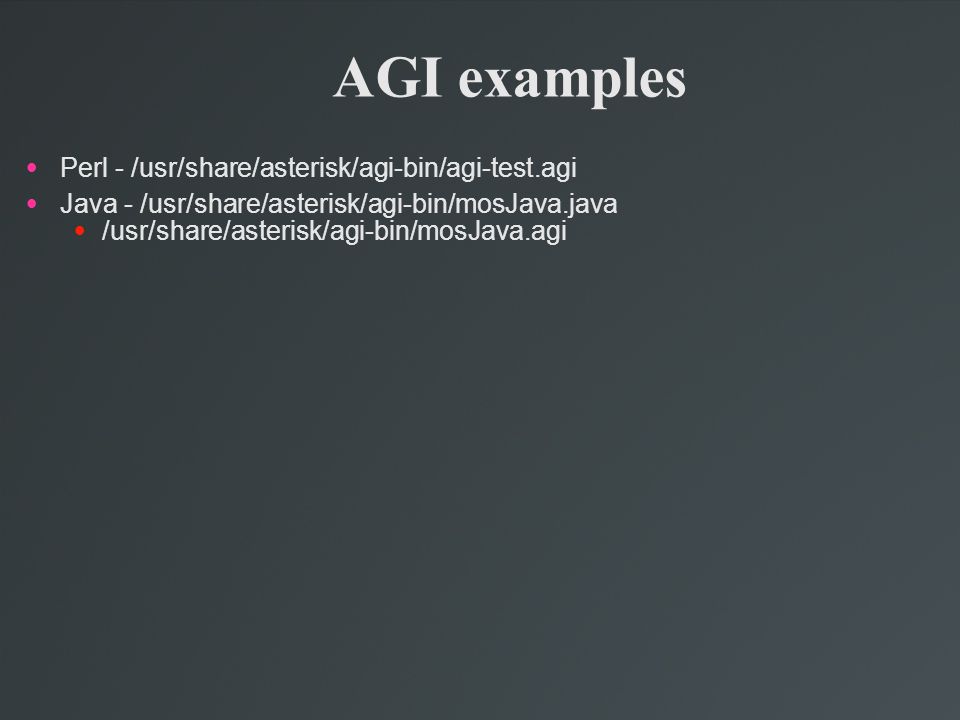

9. AGI examples‏ Perl - /usr/share/asterisk/agi-bin/agi-test.agi Java - /usr/share/asterisk/agi-bin/mosJava.java /usr/share/asterisk/agi-bin/mosJava.agi

10. Manager API A client/server module that allows us to interact with * via TCP/IP Similar to SMTP and HTTP Communicates using tags “header:value” terminated with a newline First tag must be one of the following Action: an action requested by the client. Response: A response to an action from Asterisk Event: An event reported by Asterisk to the client

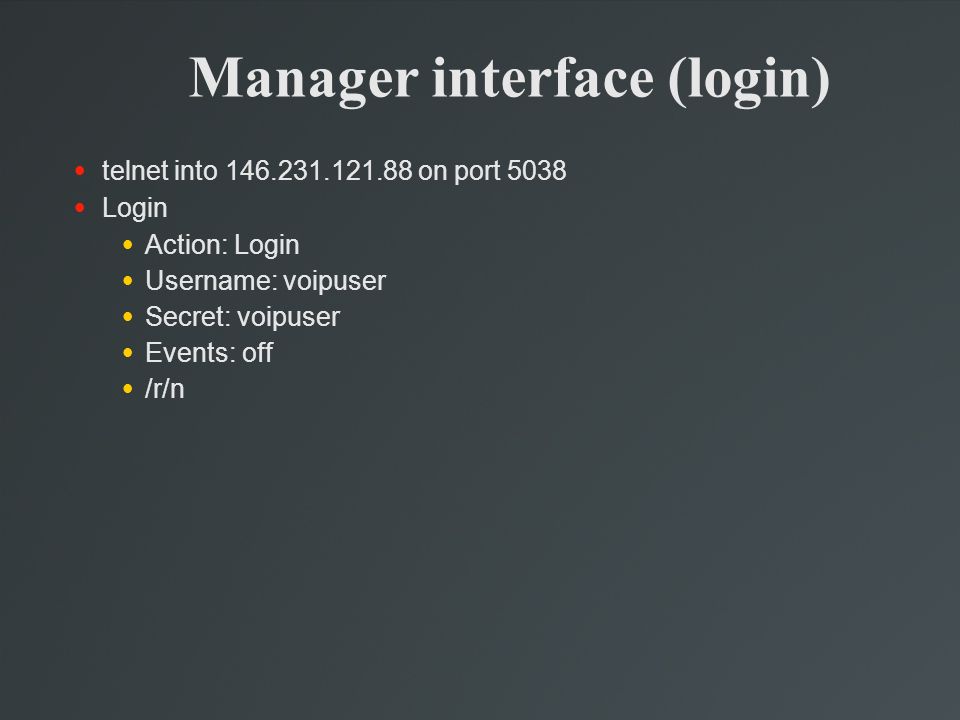

11. Manager interface (login)‏ telnet into 146.231.121.88 on port 5038 Login Action: Login Username: voipuser Secret: voipuser Events: off /r/n

12. Manager interface (Originate)‏ Action: Originate Channel: SIP/1000 Exten: s Context: mtsietsi Priority: 1 Timeout: 10000

13. Manager interface (Monitor)‏ Action: Monitor Channel: SIP/ab5s51182s File: monitor Mix: 1

14. Today's Practical 1) Extend your calculator to incorporate an AGI program Do the calculation Parse the numbers Take a number to a power Solve complex problems i.e. y = ax 4 + ax 3 = ax 2 + ax + a
