3. New Benicia-Martinez Bridge Project Remove Median Barrier and place floating slab Remove Asphalt and replace with lightweight fill. Marina Vista Road Complete Remaining work on Marina Vista to new Mococo rail crossing. South Approach Contract Work

4. New Benicia-Martinez Bridge Project 18” Asphalt Overlay Raise Mococo Bridge by 18” South Approach Contract Work

5. New Benicia-Martinez Bridge Project Existing Bridge Work Add New Bike/Pedestrian Walkway Demolish Center Median Benicia Martinez Replace 67 Deck Joints Replace Deck Sections

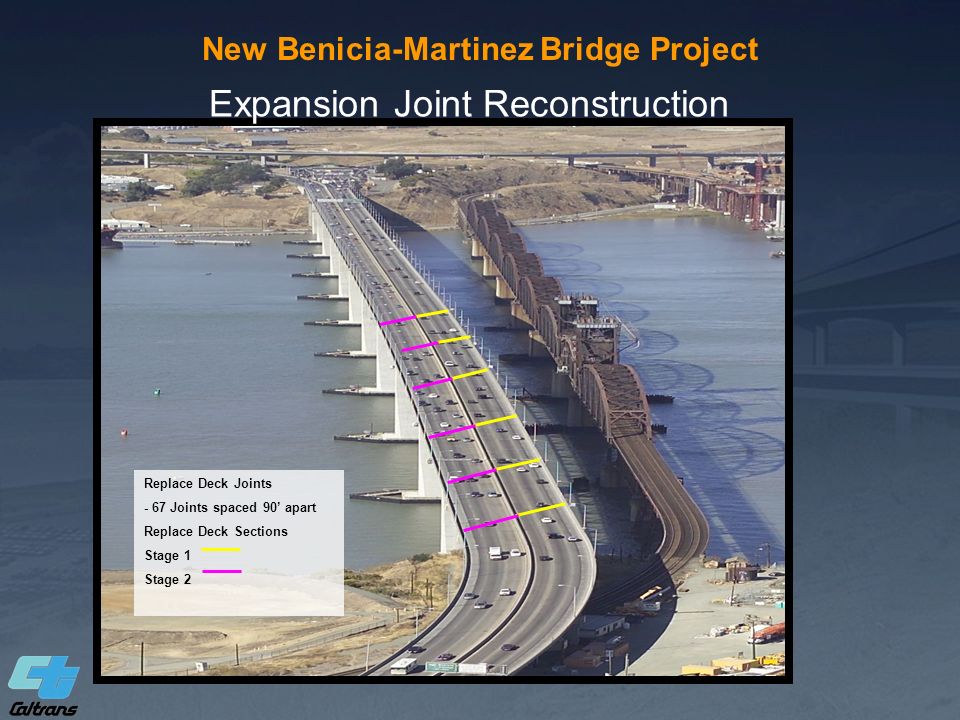

6. New Benicia-Martinez Bridge Project Replace Deck Joints - 67 Joints spaced 90’ apart Replace Deck Sections Stage 1 Stage 2 Expansion Joint Reconstruction

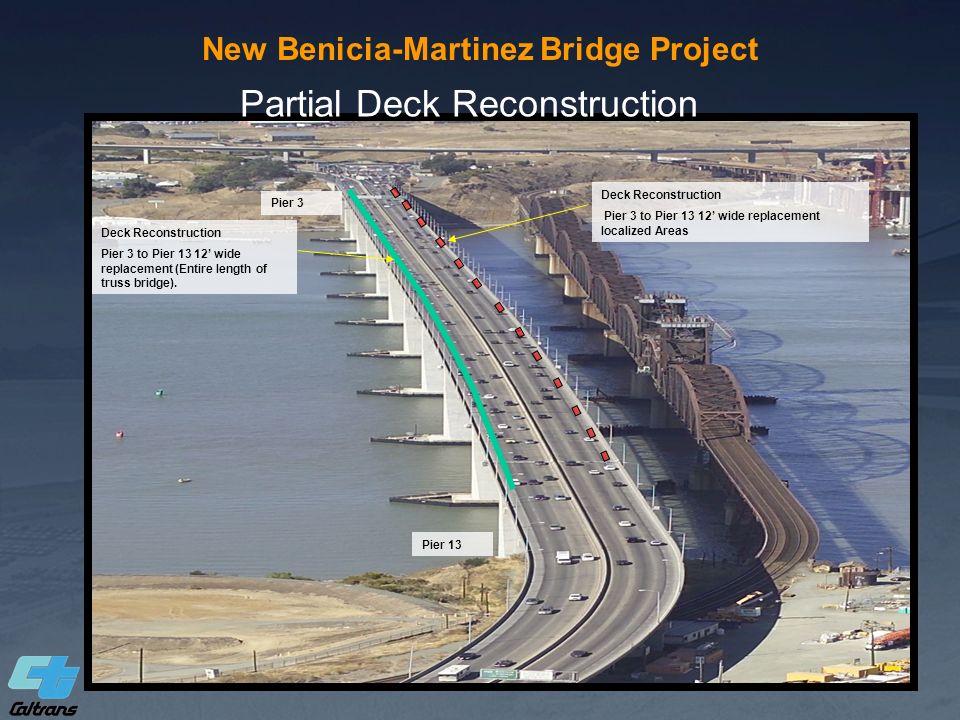

7. New Benicia-Martinez Bridge Project Deck Reconstruction Pier 3 to Pier 13 12’ wide replacement (Entire length of truss bridge). Pier 13 Pier 3 Deck Reconstruction Pier 3 to Pier 13 12’ wide replacement localized Areas Partial Deck Reconstruction

8. New Benicia-Martinez Bridge Project Deck Reconstruction – Typical Section

9. New Benicia-Martinez Bridge Project Expansion Joint Reconstruction

10. New Benicia-Martinez Bridge Project Existing Bridge With New Public Access Existing Bridge 74’ 12’11’ 6’ 11’ 12’ median Existing Bridge with New Bicycle & Pedestrian Path Southbound I-680 74’ 12’ shoulder 8’ 12’ 11.5’ 11’ 8’ shoulder Southbound Northbound

11. New Benicia-Martinez Bridge Project Public Access At North Approach Existing Vista Point New Bicycle & Pedestrian Path

12. New Benicia-Martinez Bridge Project Bike Path Cross Sections 12’ 2’ 2% Typical Section 12’ 2’ Freeway Traffic Adjacent to Freeway Shoulder 2% 12’ 1.50% Bridge Traffic Existing Concrete Barrier On Existing Bridge

13. New Benicia-Martinez Bridge Project Mococo Road Public Access to New Toll Plaza MARTINEZ Marina Vista Road New Bicycle & Pedestrian Path South Approach Contract Work

14. New Benicia-Martinez Bridge Project Bike and Pedestrian Facilities

15. New Benicia-Martinez Bridge Project North Approach Contract Work Remove Toll Plaza

16. New Benicia-Martinez Bridge Project Demolish Over crossings Demolish Existing Toll Plaza New Pedestrian/Bike Path Realign I-680/I- 780 SB Traffic North Approach Contract Work Benicia
