1

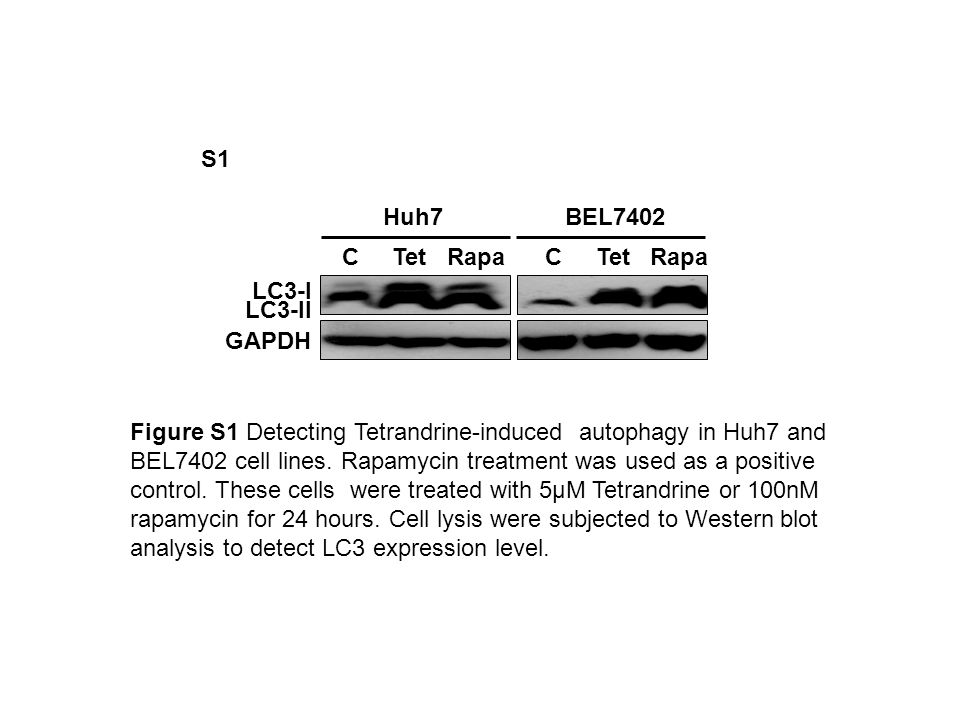

BEL7402Huh7 C Tet Rapa C Tet Rapa LC3-II LC3-I GAPDH Figure S1 Detecting Tetrandrine-induced autophagy in Huh7 and BEL7402 cell lines. Rapamycin treatment was used as a positive control. These cells were treated with 5μM Tetrandrine or 100nM rapamycin for 24 hours. Cell lysis were subjected to Western blot analysis to detect LC3 expression level. S1
2

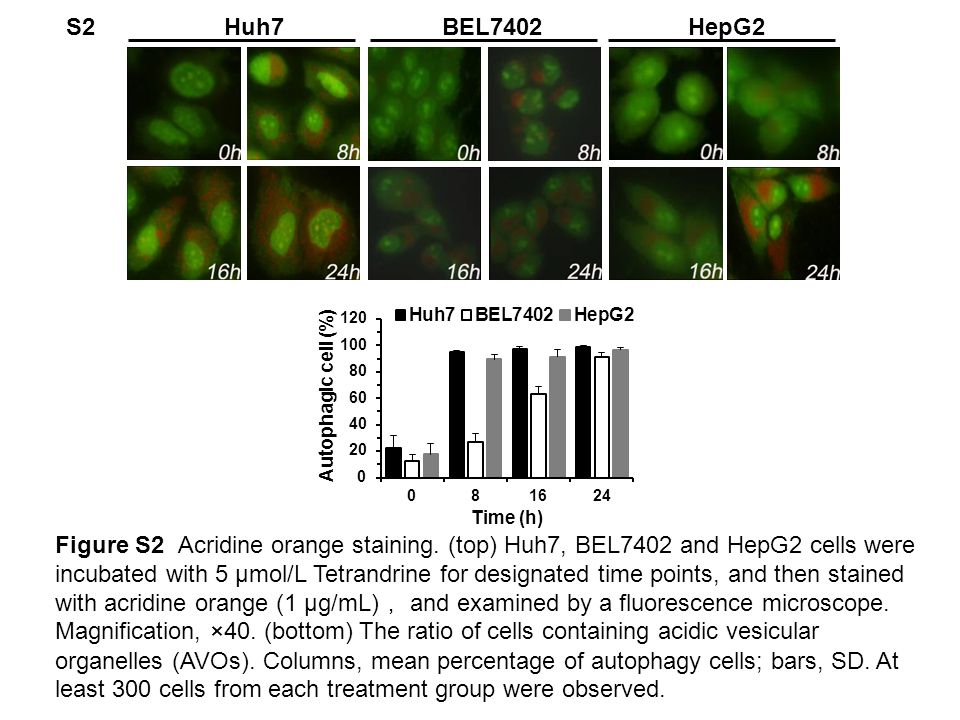

BEL7402HepG2Huh7 Figure S2 Acridine orange staining. (top) Huh7, BEL7402 and HepG2 cells were incubated with 5 μmol/L Tetrandrine for designated time points, and then stained with acridine orange (1 μg/mL) , and examined by a fluorescence microscope. Magnification, ×40. (bottom) The ratio of cells containing acidic vesicular organelles (AVOs). Columns, mean percentage of autophagy cells; bars, SD. At least 300 cells from each treatment group were observed. S2
3

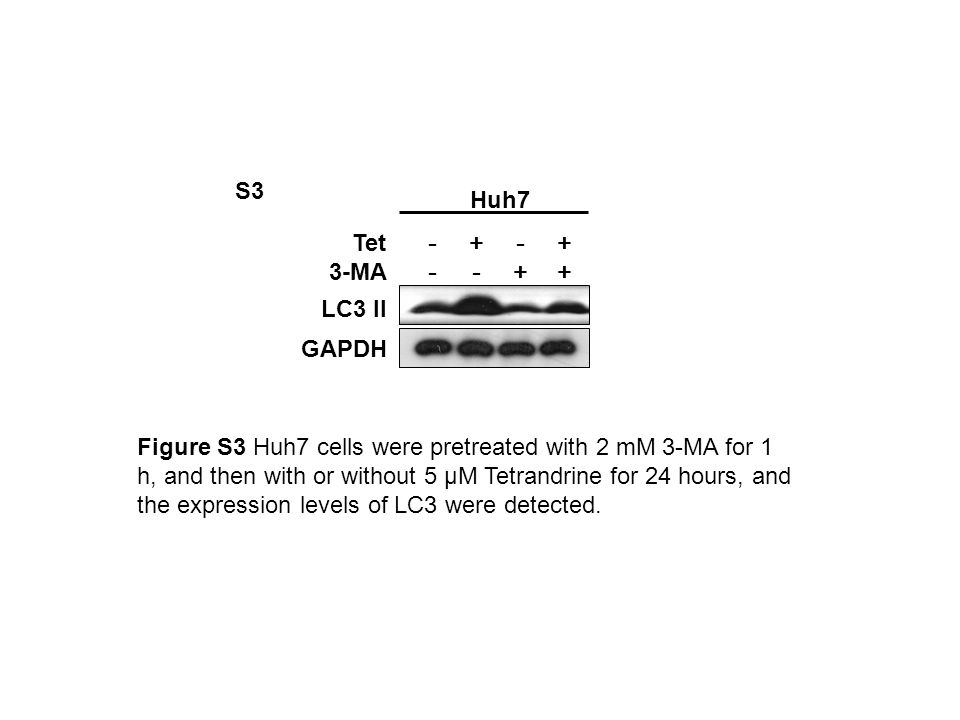

GAPDH LC3 II Tet - + - + 3-MA - - + + Huh7 Figure S3 Huh7 cells were pretreated with 2 mM 3-MA for 1 h, and then with or without 5 μM Tetrandrine for 24 hours, and the expression levels of LC3 were detected. S3
4

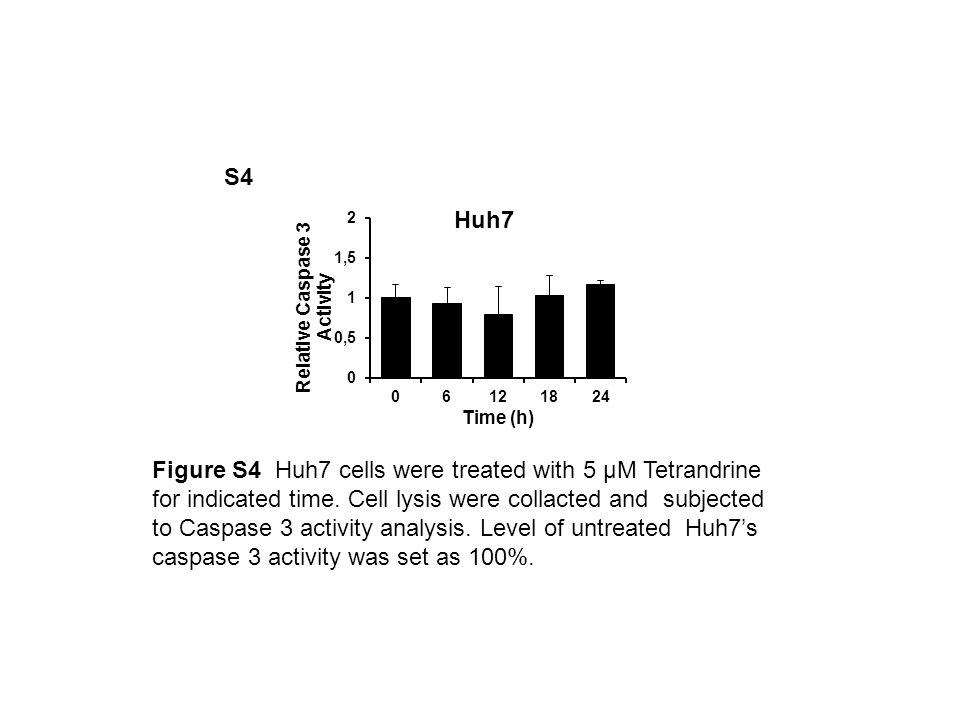

Figure S4 Huh7 cells were treated with 5 μM Tetrandrine for indicated time. Cell lysis were collacted and subjected to Caspase 3 activity analysis. Level of untreated Huh7’s caspase 3 activity was set as 100%. S4
5

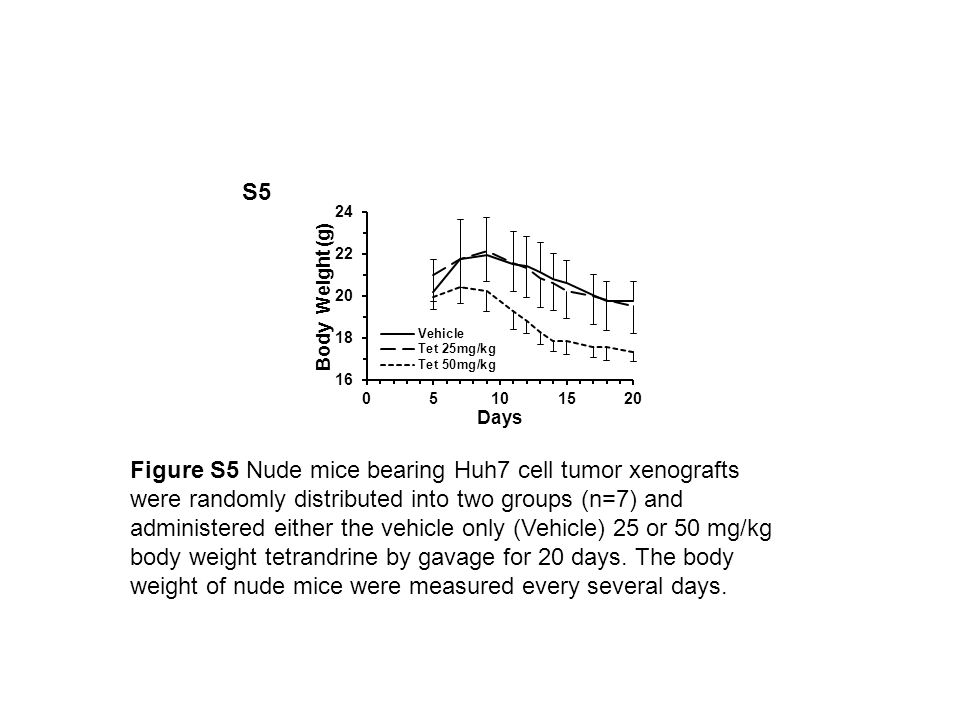

Figure S5 Nude mice bearing Huh7 cell tumor xenografts were randomly distributed into two groups (n=7) and administered either the vehicle only (Vehicle) 25 or 50 mg/kg body weight tetrandrine by gavage for 20 days. The body weight of nude mice were measured every several days. S5
