1
1.Determine the following weakest pre-conditions. a. wp(paint the living room ceiling, the house is all painted)

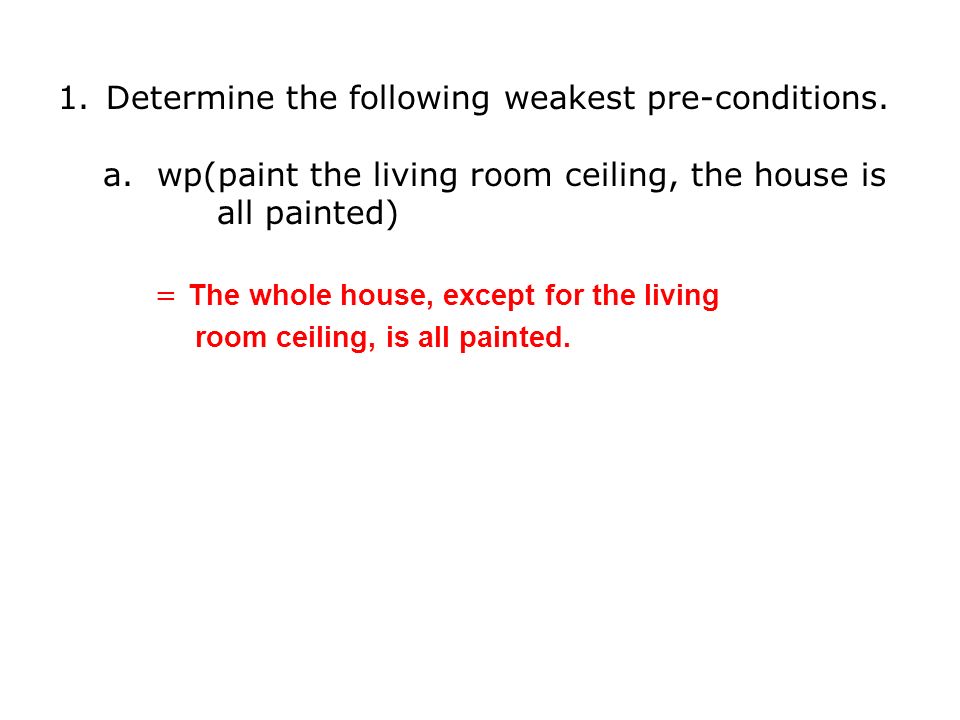

2
1.Determine the following weakest pre-conditions. a. wp(paint the living room ceiling, the house is all painted) = The whole house, except for the living room ceiling, is all painted.
3
1.Determine the following weakest pre-conditions. a. wp(paint the living room ceiling, the house is all painted) = The whole house, except for the living room ceiling, is all painted.
4
1.Determine the following weakest pre-conditions. a. wp(paint the living room ceiling, the house is all painted) = The whole house, except POSSIBLY for the living room ceiling, is all painted. (The living room ceiling may or may not be all painted!)
5
1.Determine the following weakest pre-conditions. a. wp(paint the living room ceiling, the house is all painted) = The whole house, except POSSIBLY for the living room ceiling, is all painted. (The living room ceiling may or may not be all painted!) (Compare this with: wp(A := true, A Л B Л C Л D ) = true Л B Л C Л D = B Л C Л D (A may be true or false) where “parts of the house” are A, B, C, and D, and (X = true) “part X is painted.”)
6
b. wp(i := j-1, A[i] is the smallest element in A[1], A[2],..., A[i])
7
b. wp(i := j-1, A[i] is the smallest element in A[1], A[2],..., A[i]) = A[j-1] is the smallest element in A[1], A[2],..., A[j-1]

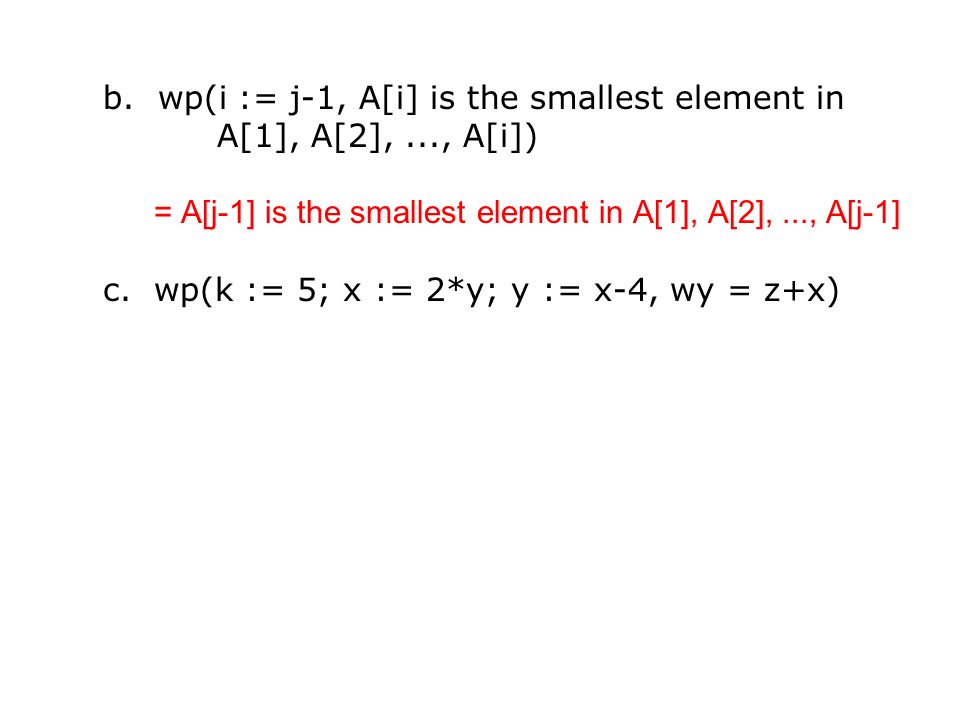

8
b. wp(i := j-1, A[i] is the smallest element in A[1], A[2],..., A[i]) = A[j-1] is the smallest element in A[1], A[2],..., A[j-1] c. wp(k := 5; x := 2*y; y := x-4, wy = z+x)

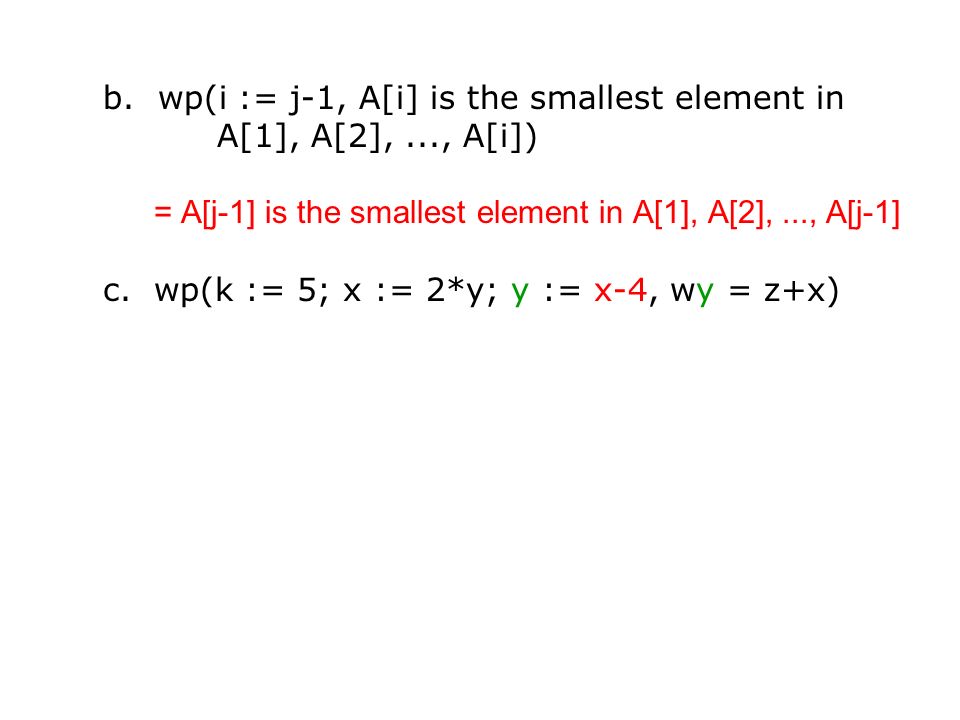

9
b. wp(i := j-1, A[i] is the smallest element in A[1], A[2],..., A[i]) = A[j-1] is the smallest element in A[1], A[2],..., A[j-1] c. wp(k := 5; x := 2*y; y := x-4, wy = z+x)
10
b. wp(i := j-1, A[i] is the smallest element in A[1], A[2],..., A[i]) = A[j-1] is the smallest element in A[1], A[2],..., A[j-1] c. wp(k := 5; x := 2*y; y := x-4, wy = z+x) = wp(k := 5; x := 2*y, w(x-4) = z+x)

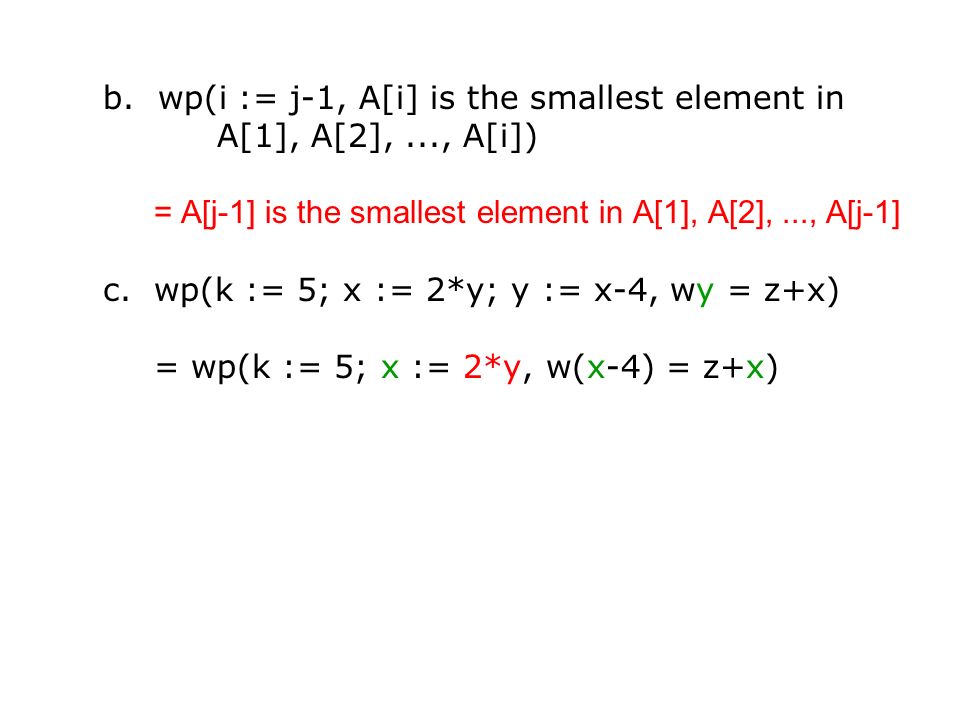

11
b. wp(i := j-1, A[i] is the smallest element in A[1], A[2],..., A[i]) = A[j-1] is the smallest element in A[1], A[2],..., A[j-1] c. wp(k := 5; x := 2*y; y := x-4, wy = z+x) = wp(k := 5; x := 2*y, w(x-4) = z+x)
12
b. wp(i := j-1, A[i] is the smallest element in A[1], A[2],..., A[i]) = A[j-1] is the smallest element in A[1], A[2],..., A[j-1] c. wp(k := 5; x := 2*y; y := x-4, wy = z+x) = wp(k := 5; x := 2*y, w(x-4) = z+x) = wp(k := 5, w(2y-4) = z+2y)
13
b. wp(i := j-1, A[i] is the smallest element in A[1], A[2],..., A[i]) = A[j-1] is the smallest element in A[1], A[2],..., A[j-1] c. wp(k := 5; x := 2*y; y := x-4, wy = z+x) = wp(k := 5; x := 2*y, w(x-4) = z+x) = wp(k := 5, w(2y-4) = z+2y)
14
b. wp(i := j-1, A[i] is the smallest element in A[1], A[2],..., A[i]) = A[j-1] is the smallest element in A[1], A[2],..., A[j-1] c. wp(k := 5; x := 2*y; y := x-4, wy = z+x) = wp(k := 5; x := 2*y, w(x-4) = z+x) = wp(k := 5, w(2y-4) = z+2y) = w(2y-4) = z+2y
15
b. wp(i := j-1, A[i] is the smallest element in A[1], A[2],..., A[i]) = A[j-1] is the smallest element in A[1], A[2],..., A[j-1] c. wp(k := 5; x := 2*y; y := x-4, wy = z+x) = wp(k := 5; x := 2*y, w(x-4) = z+x) = wp(k := 5, w(2y-4) = z+2y) = w(2y-4) = z+2y d. wp(if x is even then x := x+1, x = 9)
16
b. wp(i := j-1, A[i] is the smallest element in A[1], A[2],..., A[i]) = A[j-1] is the smallest element in A[1], A[2],..., A[j-1] c. wp(k := 5; x := 2*y; y := x-4, wy = z+x) = wp(k := 5; x := 2*y, w(x-4) = z+x) = wp(k := 5, w(2y-4) = z+2y) = w(2y-4) = z+2y d. wp(if x is even then x := x+1, x = 9) = (x is even Л x=8) V (x is odd Л x=9)
17
b. wp(i := j-1, A[i] is the smallest element in A[1], A[2],..., A[i]) = A[j-1] is the smallest element in A[1], A[2],..., A[j-1] c. wp(k := 5; x := 2*y; y := x-4, wy = z+x) = wp(k := 5; x := 2*y, w(x-4) = z+x) = wp(k := 5, w(2y-4) = z+2y) = w(2y-4) = z+2y d. wp(if x is even then x := x+1, x = 9) = (x is even Л x=8) V (x is odd Л x=9) = (x=8 V x=9)
18
2. Consider the assertion: {Z=B} if A>B then Z := A end_if {Z=Max(A,B)} Use the WEAKEST PRECONDITION-BASED METHOD to prove the assertion. Show all steps.

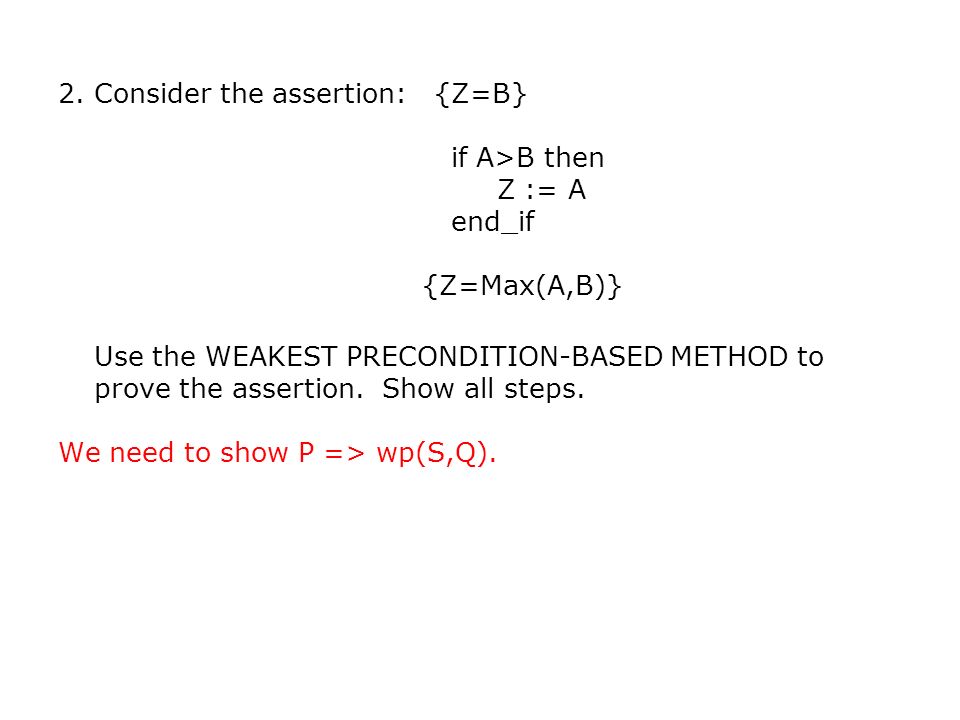

19
2. Consider the assertion: {Z=B} if A>B then Z := A end_if {Z=Max(A,B)} Use the WEAKEST PRECONDITION-BASED METHOD to prove the assertion. Show all steps. We need to show P => wp(S,Q).
20
2. Consider the assertion: {Z=B} if A>B then Z := A end_if {Z=Max(A,B)} Use the WEAKEST PRECONDITION-BASED METHOD to prove the assertion. Show all steps. We need to show P => wp(S,Q). wp(S,Q) = wp(if A>B then Z := A end_if, Z=Max(A,B))
21
2. Consider the assertion: {Z=B} if A>B then Z := A end_if {Z=Max(A,B)} Use the WEAKEST PRECONDITION-BASED METHOD to prove the assertion. Show all steps. We need to show P => wp(S,Q). wp(S,Q) = wp(if A>B then Z := A end_if, Z=Max(A,B)) = (A>B Л wp(Z := A, Z=Max(A,B)) V (A≤B Л Z=Max(A,B))

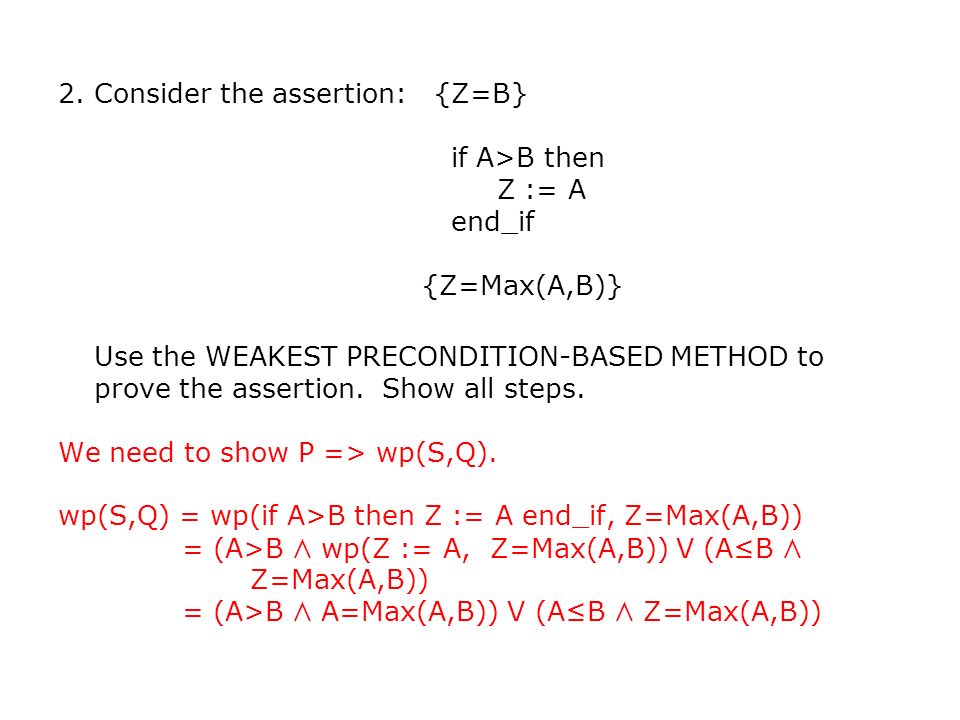

22
2. Consider the assertion: {Z=B} if A>B then Z := A end_if {Z=Max(A,B)} Use the WEAKEST PRECONDITION-BASED METHOD to prove the assertion. Show all steps. We need to show P => wp(S,Q). wp(S,Q) = wp(if A>B then Z := A end_if, Z=Max(A,B)) = (A>B Л wp(Z := A, Z=Max(A,B)) V (A≤B Л Z=Max(A,B)) = (A>B Л A=Max(A,B)) V (A≤B Л Z=Max(A,B))
23
2. Consider the assertion: {Z=B} if A>B then Z := A end_if {Z=Max(A,B)} Use the WEAKEST PRECONDITION-BASED METHOD to prove the assertion. Show all steps. We need to show P => wp(S,Q). wp(S,Q) = wp(if A>B then Z := A end_if, Z=Max(A,B)) = (A>B Л wp(Z := A, Z=Max(A,B)) V (A≤B Л Z=Max(A,B)) = (A>B Л A=Max(A,B)) V (A≤B Л Z=Max(A,B)) = (A>B) V (A≤B Л Z=B)
24
2. Consider the assertion: {Z=B} if A>B then Z := A end_if {Z=Max(A,B)} Use the WEAKEST PRECONDITION-BASED METHOD to prove the assertion. Show all steps. Does Z=B => [(A>B) V (A≤B Л Z=B)] ?
25
2. Consider the assertion: {Z=B} if A>B then Z := A end_if {Z=Max(A,B)} Use the WEAKEST PRECONDITION-BASED METHOD to prove the assertion. Show all steps. Does Z=B => [(A>B) V (A≤B Л Z=B)] ? Z=B => { [(A>B) V (A≤B Л Z=B)] = [(A>B) V (A≤B Л true)] }

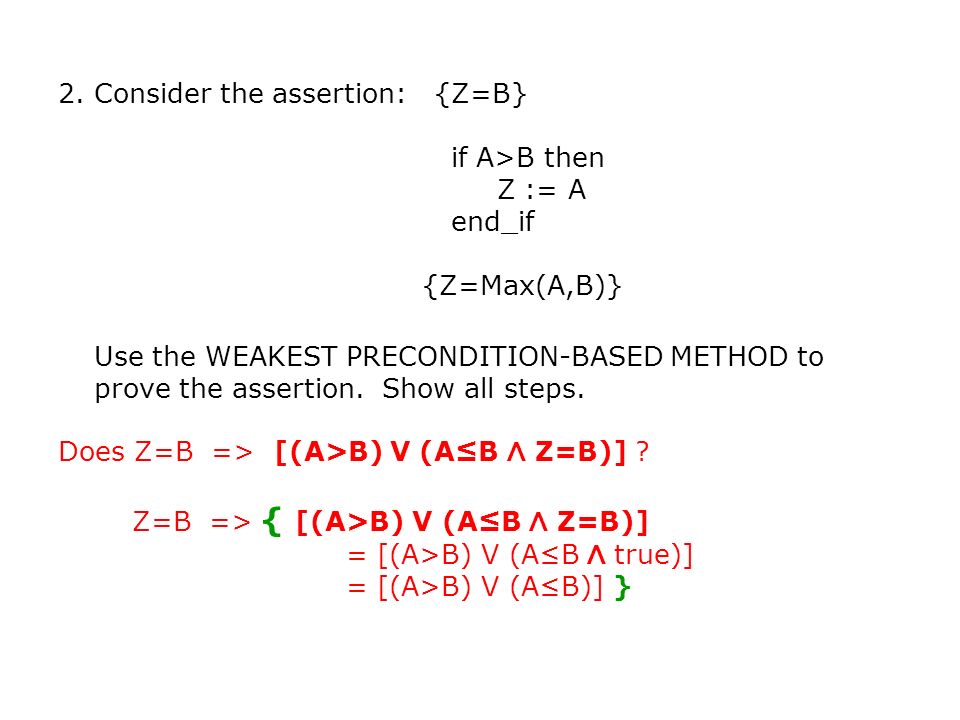

26
2. Consider the assertion: {Z=B} if A>B then Z := A end_if {Z=Max(A,B)} Use the WEAKEST PRECONDITION-BASED METHOD to prove the assertion. Show all steps. Does Z=B => [(A>B) V (A≤B Л Z=B)] ? Z=B => { [(A>B) V (A≤B Л Z=B)] = [(A>B) V (A≤B Л true)] = [(A>B) V (A≤B)] }

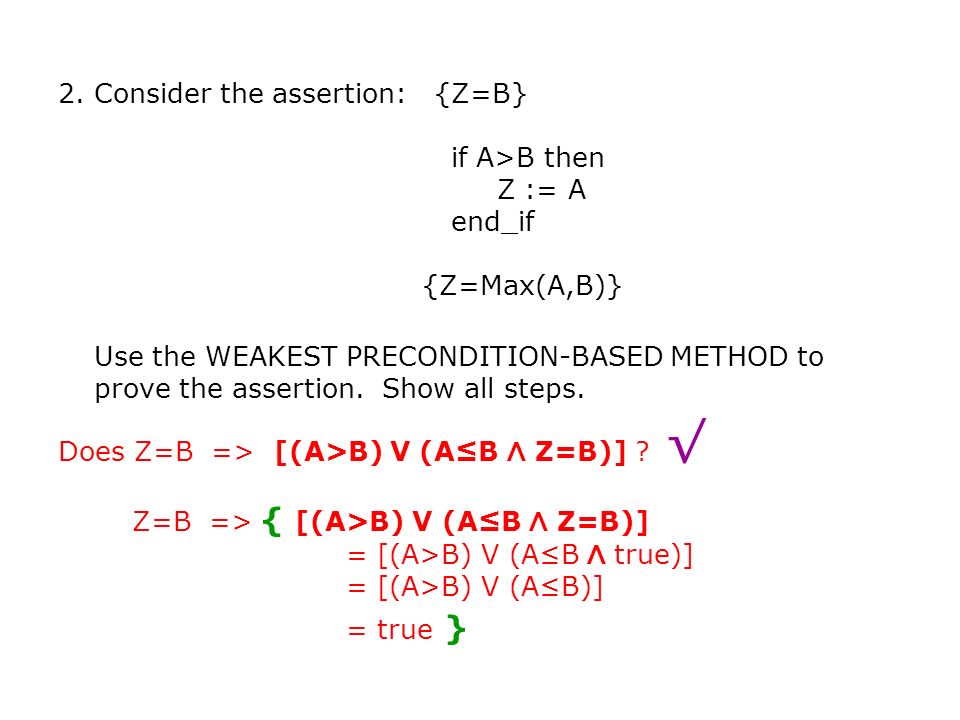

27
2. Consider the assertion: {Z=B} if A>B then Z := A end_if {Z=Max(A,B)} Use the WEAKEST PRECONDITION-BASED METHOD to prove the assertion. Show all steps. Does Z=B => [(A>B) V (A≤B Л Z=B)] ? Z=B => { [(A>B) V (A≤B Л Z=B)] = [(A>B) V (A≤B Л true)] = [(A>B) V (A≤B)] = true } √
