1. Sponsored by the National Science Foundation GENI Exploring Networks of the Future www.geni.net

2. Sponsored by the National Science Foundation2GENI Introduction – 26 May 2015www.geni.net Outline What is GENI? How is GENI being used? Key GENI Concepts Demo: A simple experiment using GENI

3. Sponsored by the National Science Foundation3GENI Introduction – 26 May 2015www.geni.net GENI: Infrastructure for Experimentation GENI provides compute resources that can be connected in experimenter specified Layer 2 topologies.

4. Sponsored by the National Science Foundation4GENI Introduction – 26 May 2015www.geni.net GENI Compute Resources GENI Racks GENI Wireless compute nodes Existing Testbeds Emulab Planetlab ORBIT

5. Sponsored by the National Science Foundation5GENI Introduction – 26 May 2015www.geni.net GENI Networking Resources Networking within a Rack National Research Backbones (e.g. Internet2) Regional Networks (e.g. CENIC) WiMAX Base Stations

6. Sponsored by the National Science Foundation6GENI Introduction – 26 May 2015www.geni.net GENI: Infrastructure for Experimentation GENI provides compute resources that can be connected in experimenter specified Layer 2 topologies.

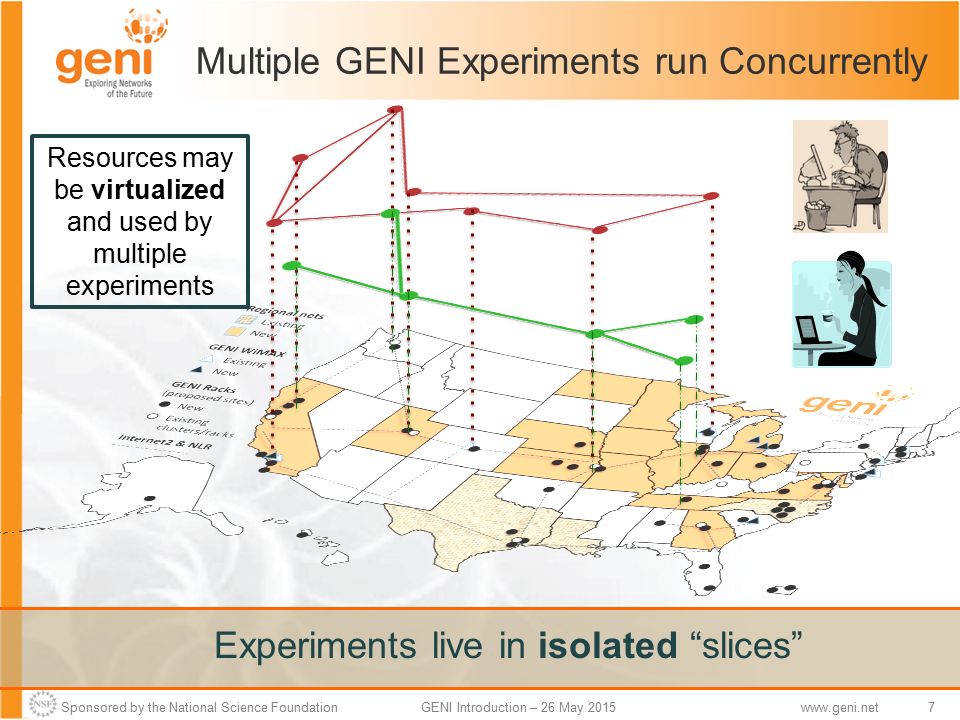

7. Sponsored by the National Science Foundation7GENI Introduction – 26 May 2015www.geni.net Multiple GENI Experiments run Concurrently Resources may be virtualized and used by multiple experiments Experiments live in isolated “slices”

8. Sponsored by the National Science Foundation8GENI Introduction – 26 May 2015www.geni.net GENI is “Deeply Programmable” I install software I want throughout my network slice (into routers, switches, …) or control switches using OpenFlow Experimenters can set up custom topologies, protocols and switching of flows

9. Sponsored by the National Science Foundation9GENI Introduction – 26 May 2015www.geni.net GENI Build Out: Deploying GENI racks Ilia Baldine RENCI More resources / rack, fewer racks Rick McGeer HP Labs Fewer resources / rack, more racks Latest addition Rajesh Narayanan DELL KC Wang Clemson Over 50 GENI Racks will be deployed by August 2015

10. Sponsored by the National Science Foundation10GENI Introduction – 26 May 2015www.geni.net GENI Wireless Sliced, virtualized and interconnected through Internet2 26 Wimax Base Stations in 13 sites 90 android handsets available to experimenters New wireless deployments will use LTE

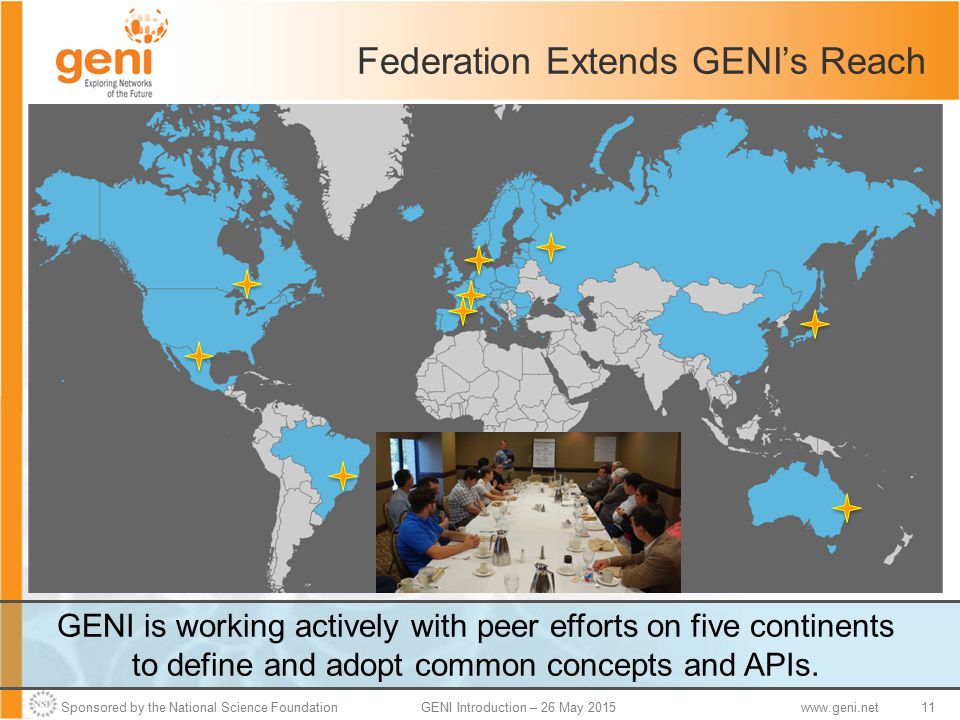

11. Sponsored by the National Science Foundation11GENI Introduction – 26 May 2015www.geni.net Federation Extends GENI’s Reach GENI is working actively with peer efforts on five continents to define and adopt common concepts and APIs.

12. Sponsored by the National Science Foundation12GENI Introduction – 26 May 2015www.geni.net Outline What is GENI? How is GENI being used? Key GENI Concepts Demo: A simple experiment using GENI

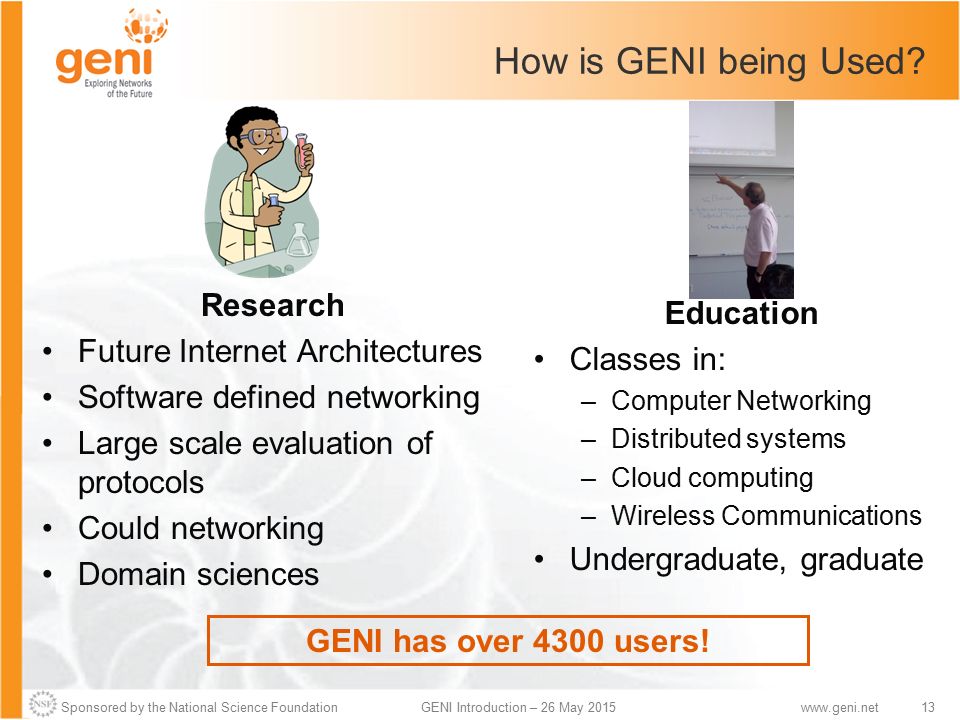

13. Sponsored by the National Science Foundation13GENI Introduction – 26 May 2015www.geni.net How is GENI being Used? Research Future Internet Architectures Software defined networking Large scale evaluation of protocols Could networking Domain sciences Education Classes in: –Computer Networking –Distributed systems –Cloud computing –Wireless Communications Undergraduate, graduate GENI has over 4300 users!

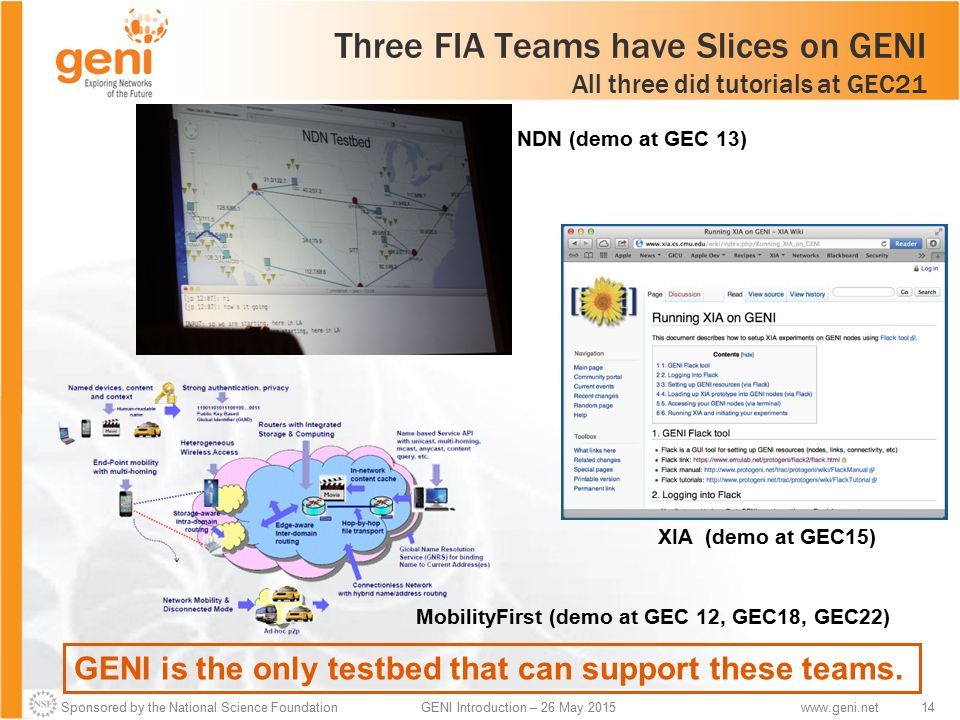

14. Sponsored by the National Science Foundation14GENI Introduction – 26 May 2015www.geni.net Three FIA Teams have Slices on GENI All three did tutorials at GEC21 GENI is the only testbed that can support these teams. XIA (demo at GEC15) NDN (demo at GEC 13) MobilityFirst (demo at GEC 12, GEC18, GEC22)

15. Sponsored by the National Science Foundation15GENI Introduction – 26 May 2015www.geni.net GENI in the Classroom GENI as a remote, virtual lab for networking, distributed systems and cloud computing classes

16. Sponsored by the National Science Foundation16GENI Introduction – 26 May 2015www.geni.net GENI at Conferences and Workshops Computer and Networking Experimental Research using Testbeds 29 June 2014 With ICDCS in Columbus, OH Papers and demos on research validated using testbeds Tutorial: Building Experiments Using the GENI and SAVI Testbeds 24 June 2014 Vancouver, Canada Tutorial on Network Function Virtualization using GENI Organized by Jay Aikat, U. of North Carolina

17. Sponsored by the National Science Foundation17GENI Introduction – 26 May 2015www.geni.net Outline What is GENI? How is GENI being used? Key GENI Concepts Demo: A simple experiment using GENI

18. Sponsored by the National Science Foundation18GENI Introduction – 26 May 2015www.geni.net GENI Network Architecture Flexible network / cloud research infrastructure Also suitable for physics, genomics, other domain science Distributed cloud (racks) for content caching, acceleration, etc. Legend GENI-enabled hardware Layer 3 Control Plane Layer 2 Data Plane Metro Research Backbones Internet ISP Regional Networks Campus g g g

19. Sponsored by the National Science Foundation19GENI Introduction – 26 May 2015www.geni.net GENI: Terms and Definitions Slice: Abstraction for a collection of resources capable of running experiments –An experiment uses resources in a slice –Slices isolate experiments –Experimenters are responsible for their slices

20. Sponsored by the National Science Foundation20GENI Introduction – 26 May 2015www.geni.net Slice credentials GENI: Terms and Definitions Slice authority: Creates and registers slices –GENI slice authorities: GENI Portal, PlanetLab, ProtoGENI Aggregate: Provides resources to GENI experimenters –Typically owned and managed by an organization –Examples: GENI Racks, Internet2, Emulab, PlanetLab –Aggregates implement the GENI AM API Create & Register Slice Researcher Slice Authority Aggregate Manager API - listResources - createSliver … Aggregate Manager Aggregate Resources

21. Sponsored by the National Science Foundation21GENI Introduction – 26 May 2015www.geni.net GENI: Terms and Definitions Slivers: Resources held by a slice –E.g. Bare machines, virtual machines, VLANs Backbone #1 Backbone #2 GENI Rack #3 GENI Rack #2 Access #1 Commercial Clouds Corporate GENI suites Other-Nation Projects Research Testbed GENI Rack #1 My GENI Slice My slice contains slivers from many aggregates.

22. Sponsored by the National Science Foundation22GENI Introduction – 26 May 2015www.geni.net Resource Specifications (RSpecs) RSpecs: Lingua franca for describing and requesting resources –“Machine language” for negotiating resources between experiment and aggregate –Experimenter tools eliminate the need for most experimenters to write or read RSpec <rspec xmlns="http://www.protogeni.net/resources/rspec/2" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.protogeni.net/resources/rspec/2 http://www.protogeni.net/resources/rspec/2/request.xsd" type="request" > <node client_id="my-node" exclusive="true"> RSpec for requesting a single node

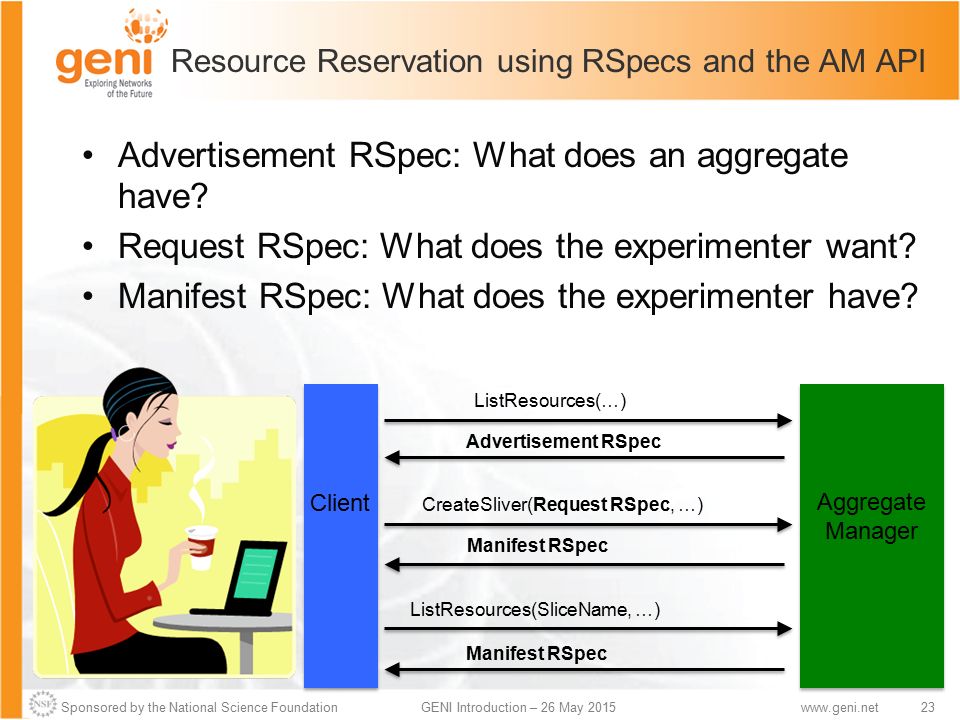

23. Sponsored by the National Science Foundation23GENI Introduction – 26 May 2015www.geni.net Resource Reservation using RSpecs and the AM API Advertisement RSpec: What does an aggregate have? Request RSpec: What does the experimenter want? Manifest RSpec: What does the experimenter have? Aggregate Manager Client ListResources(…) Advertisement RSpec CreateSliver(Request RSpec, …) Manifest RSpec ListResources(SliceName, …) Manifest RSpec

24. Sponsored by the National Science Foundation24GENI Introduction – 26 May 2015www.geni.net Join a Mailing List geni-announce –GENI news and events –Announcements of events, opportunities –http://lists.geni.net Help using GENI (community list) –geni-users@googlegroups.com Email the GENI Project Office –help@geni.net Full list at: http://groups.geni.net/geni/wiki/GENICommunicationChannels ?

25. Sponsored by the National Science Foundation25GENI Introduction – 26 May 2015www.geni.net Outline What is GENI? How is GENI being used? Key GENI Concepts Demo: A simple experiment using GENI

26. Sponsored by the National Science Foundation26GENI Introduction – 26 May 2015www.geni.net Putting it all Together: Demo Demo –Create a slice –Create a sliver at one aggregate Two computers (VMs), connected by a LAN –Install and run software on the machines –View output of software –Delete sliver Experimenter tool: Jacks server (VM) client (VM)

27. Sponsored by the National Science Foundation27GENI Introduction – 26 May 2015www.geni.net QUESTIONS?
