1
**Robin Hogan, University of Reading**

Grand Unified Algorithms How to retrieve radiatively consistent profiles of clouds, precipitation and aerosol from radar, lidar and radiometers …and evaluating models Robin Hogan, University of Reading Thanks to Julien Delanoe, Nicola Pounder, Nicky Chalmers, Howard Barker

2
**Spaceborne radar, lidar and radiometers**

EarthCare The A-Train NASA 700-km orbit CloudSat 94-GHz radar (launch 2006) Calipso 532/1064-nm depol. lidar MODIS multi-wavelength radiometer CERES broad-band radiometer AMSR-E microwave radiometer EarthCARE: launch 2012 ESA+JAXA 400-km orbit: more sensitive 94-GHz Doppler radar 355-nm HSRL/depol. lidar Multispectral imager Broad-band radiometer Heart-warming name 2018 2019 2017 2014 2013 2015 2016

3
**What do CloudSat and Calipso see?**

Cloudsat radar Radar: ~D6, detects whole profile, surface echo provides integral constraint Lidar: ~D2, more sensitive to thin cirrus and liquid but attenuated Radar-lidar ratio provides size D CALIPSO lidar Target classification Insects Aerosol Rain Supercooled liquid cloud Warm liquid cloud Ice and supercooled liquid Ice Clear No ice/rain but possibly liquid Ground Delanoe and Hogan (2008, 2010)

4
**How do we evaluate models?**

Traditional approach Compare retrieved cloud products to model variables New approach Forward-model observations and evaluate in obs. space IceSat lidar: Chepfer et al. (2007), Wilkinson et al. (2008) CloudSat: Bodas et al. (2008) CloudSat & Calipso: IPCC/COSP Much easier! Avoids contamination by a-priori information Avoids competition between retrievals But these are the variables we want to know! Simple forward modeling can get right answer for wrong reasons, e.g. right Z with wrong IWC and re Can extract “hidden” info, e.g. re from radar-lidar synergy Can provide radiative verification of each retrieved profile But certainly more difficult!

5
**Overview Justification for and design of unified algorithm Ice clouds**

Evaluation against CERES Evaluation of ECMWF and Met Office models Liquid clouds Fast multiple scattering model for exploitation of lidar signal Extinction profile from multiple field-of-view lidar Can we estimate liquid cloud base from the Calipso lidar? First results from unified algorithm applied to A-Train Simultaneous ice, liquid and rain retrievals Outlook 3D radiatively consistent scene retrieval

6
**“Grand Unified Algorithm”**

Combine all measurements available (radar, lidar, radiometers) Forms the observation vector y Retrieve cloud, precipitation and aerosol properties simultaneously Ensures integral measurements can be used when affected by more than one species (e.g. radiances affected by ice and liquid clouds) Forms the state vector x Variational approach This is the proper way to do it! Use forward model H(x) to predict observations from state vector Report solution error covariance matrix & averaging kernel Completely flexible Applicable to ground-based, airborne and space-borne platforms Behaviour should tend towards existing two-instrument synergy algos Radar+lidar for ice clouds: Donovan et al. (2001), Tinel et al. (2005) CloudSat+MODIS for liquid clouds: Austin & Stephens (2001) Calipso+MODIS for aerosol: Kaufman et al. (2003) CloudSat surface return for rainfall: L’Ecuyer & Stephens (2002)

7
**The cost function + Smoothness constraints**

The essence of the method is to find the state vector x that minimizes a cost function: Some elements of x are constrained by a prior estimate This term can be used to penalize curvature in the retrieved profile Each observation yi is weighted by the inverse of its error variance The forward model H(x) predicts the observations from the state vector x + Smoothness constraints

8
**Ingredients developed Work in progress**

Unified retrieval 1. New ray of data: define state vector x Use classification to specify variables describing each species at each gate Ice: extinction coefficient , N0’, lidar extinction-to-backscatter ratio Liquid: extinction coefficient and number concentration Rain: rain rate, drop diameter and melting ice Aerosol: extinction coefficient, particle size and lidar ratio Ingredients developed Work in progress 2. Forward model 4. Iteration method Derive a new state vector Adjoint of full forward model Quasi-Newton or Gauss-Newton scheme 2a. Radar model Including surface return and multiple scattering 2b. Lidar model Including HSRL channels and multiple scattering 2c. Radiance model Solar and IR channels 3. Compare to observations Check for convergence Not converged Converged 5. Calculate retrieval error Error covariances and averaging kernel Proceed to next ray of data

9
**Unified retrieval: Forward model**

From state vector x to forward modelled observations H(x)... Ice & snow Liquid cloud Rain Aerosol x Adjoint of radar model (vector) Adjoint of lidar model (vector) Adjoint of radiometer model Gradient of cost function (vector) xJ=HTR-1[y–H(x)] Vector-matrix multiplications: around the same cost as the original forward operations Adjoint of radiative transfer models yJ=R-1[y–H(x)] Ice/radar Liquid/radar Rain/radar Ice/lidar Liquid/lidar Rain/lidar Aerosol/lidar Ice/radiometer Liquid/radiometer Rain/radiometer Aerosol/radiometer Lookup tables to obtain profiles of extinction, scattering & backscatter coefficients, asymmetry factor Radar scattering profile Lidar scattering profile Radiometer scattering profile Sum the contributions from each constituent Radar forward modelled obs Lidar forward modelled obs Radiometer fwd modelled obs H(x) Radiative transfer models

10
**Ice cloud: non-variational retrieval**

Aircraft-simulated profiles with noise (from Hogan et al. 2006) Donovan et al. (2000) Observations State variables Derived variables Retrieval is accurate but not perfectly stable where lidar loses signal Donovan et al. (2000) algorithm can only be applied where both lidar and radar have signal Delanoe and Hogan (2008)

11
**Variational radar/lidar retrieval**

Observations State variables Derived variables Lidar noise matched by retrieval Noise feeds through to other variables Noise in lidar backscatter feeds through to retrieved extinction Delanoe and Hogan (2008)

12
**…add smoothness constraint**

Observations State variables Derived variables Retrieval reverts to a-priori N0 Extinction and IWC too low in radar-only region Smoothness constraint: add a term to cost function to penalize curvature in the solution (J’ = l Si d2ai/dz2) Delanoe and Hogan (2008)

13
**…add a-priori error correlation**

Observations State variables Derived variables Vertical correlation of error in N0 Extinction and IWC now more accurate Use B (the a priori error covariance matrix) to smooth the N0 information in the vertical Delanoe and Hogan (2008)

14
**…add infrared radiances**

Observations State variables Derived variables Poorer fit to Z at cloud top: information here now from radiances Better fit to IWC and re at cloud top

15
**Example ice cloud retrievals**

Lidar observations Delanoe and Hogan (2010) Lidar forward model Radar forward model Visible extinction Ice water content Effective radius Radar observations MODIS radiance 10.8um Forward modelled radiance

16
**Evaluation using CERES TOA fluxes**

Radar-lidar retrieved profiles containing only ice used with Edwards-Slingo radiation code to predict CERES fluxes Note: MODIS IR radiances can be used but aren’t used here Small biases but large random shortwave error: 3D effects? Shortwave Bias 4 W m-2, RMSE 71 W m-2 Longwave Bias 0.3 W m-2, RMSE 14 W m-2 Chalmers (2011)

17
**CERES versus a radar-only retrieval**

How does this compare with radar-only empirical IWC(Z, T) retrieval of Hogan et al. (2006) using effective radius parameterization from Kristjansson et al. (1999)? Shortwave Bias 48 W m-2, RMSE 110 W m-2 Longwave Bias –10 W m-2, RMSE 47 W m-2 Bias 10 W m-2 RMS 47 W m-2 Chalmers (2011)

18
How important is lidar? Remove lidar-only pixels from radar-lidar retrieval Change to fluxes is only ~5 W m-2 but lidar still acts to improve retrieval in radar-lidar region of the cloud Shortwave Bias –5 W m-2, RMSE 17 W m-2 Longwave Bias 4 W m-2, RMSE 9 W m-2 Chalmers (2011)

19
**TOA fluxes don’t tell the whole story...**

In terms of net atmospheric heating rate in the tropics, cloud radiative effect is underestimated by a factor of two above 12 km if clouds detected by lidar alone are ignored

20
**A-Train versus models Ice water content 14 July 2006 Half an orbit**

150° longitude at equator Delanoe et al. (2011)

21
**Evaluation of gridbox-mean ice water content**

In-cloud mean ice water content Both models lack high thin cirrus ECMWF lacks high IWC values; using this work, ECMWF have developed a new prognostic snow scheme that performs better Met Office has too narrow a distribution of in-cloud IWC

22
**Why you must compare the full PDF**

Consider Cloudnet evaluation of IWC in models DWD model drastically underestimates mean IWC Illingworth et al. (2007) 3-7 km But PDF is within observational range in all but the highest bin! 10% of cloud volume contains 75% of the ice in observations But all parts of PDF can be radiatively significant Moreover, top 10% of IWC retrievals are the least reliable

23
**Liquid clouds CALIPSO CloudSat Stratocumulus clouds are tricky!**

Lidar beam is rapidly attenuated Radar return usually dominated by drizzle (Fox & Illingworth 1997) Can we piece together their properties by forward modeling the following? Multiply scattered lidar signal: information on optical depth and extinction profile Surface radar return: path integrated attenuation proportional to liquid water path (Hawkness-Smith 2010) Solar radiances: optical depth and droplet size / number concentration We need: Fast lidar forward model incorporating multiple scattering Ability to use additional constraints, such as tendency for liquid water content profile to be adiabatic, particularly near cloud base CALIPSO CloudSat

24
**Examples of multiple scattering**

LITE lidar (l<r, footprint~1 km) CloudSat radar (l>r) Stratocumulus Intense thunderstorm Surface echo Apparent echo from below the surface!

25
**Time-dependent 2-stream approx.**

Describe diffuse flux in terms of outgoing stream I+ and incoming stream I–, and numerically integrate the following coupled PDEs: These can be discretized quite simply in time and space (no implicit methods or matrix inversion required) Time derivative Remove this and we have the time-independent two-stream approximation Source Scattering from the quasi-direct beam into each of the streams Gain by scattering Radiation scattered from the other stream Loss by absorption or scattering Some of lost radiation will enter the other stream Spatial derivative Transport of radiation from upstream Hogan and Battaglia (2008)

26
**Fast multiple scattering forward model**

Hogan and Battaglia (2008) New method uses the time-dependent two-stream approximation Agrees with Monte Carlo but ~107 times faster (~3 ms) CloudSat-like example CALIPSO-like example

27
**Multiple field-of-view lidar retrieval**

To test multiple scattering model in a retrieval, and its adjoint, consider a multiple field-of-view lidar observing a liquid cloud Wide fields of view provide information deeper into the cloud The NASA airborne “THOR” lidar is an example with 8 fields of view Simple retrieval implemented with state vector consisting of profile of extinction coefficient lidar Cloud top 100 m 10 m 600 m

28
**Results for a sine profile**

Averaging kernel area: what fraction of retrieval from obs rather than prior? Averaging kernel width: how much has true profile been smeared out? Simulated test with 200-m sinusoidal structure in extinction With 1FOV, only retrieve first 2 optical depths With 3FOVs, retrieve structure down to 6 optical depths Beyond that the information is smeared out Pounder et al. (2011)

29
Calipso? Can we use this approach with a lidar with only one field of view? Calipso has 90-m footprint Simulations indicate that there is measurable difference in apparent backscatter profile up to optical depths (would be more for a larger field-of-view) Perhaps can’t retrieve full extinction profile, but at least the optical depth and the cloud boundaries?

30
Simulated profile Adiabatic cloud retrieved by lidar using smoothness constraint Optical depth around 20 Because lidar ratio is well constrained in liquid clouds, backscatter provides quite accurate extinction (and hence LWC) at cloud top Wide-angle multiple scattering provides some optical depth information But retrieved shape is wrong Cloud base too low

31
**One-sided gradient constraint**

Slingo et al. (1982) We have a good constraint on the gradient of LWC with height in stratocumulus: adiabatic profile, particularly near cloud base Add an extra term to the cost function to penalize deviations from gradient c: This term is only used when the LWC gradient is greater than c, so sub-adiabatic clouds can be retrieved Test with simulated lidar-only retrieval of liquid water cloud using unified algorithm, and including simulated instrument noise

32
Gradient constraint With one-sided gradient constraint observed by backscatter-only lidar, much better retrieved shape Cloud base about right

33
Clipped profile Multiply scattered signal plus gradient constraint enables more structured profiles to still be retrieved reasonably well Still have the problem of multiple liquid layers if the lower ones are undetected by the lidar

34
Unphysical profile Gradient constraint ensures no super-adiabatic profiles are retrieved.

35
**Optical depth from multiple scattering lidar**

Total optical depth can be retrieved to ~30 optical depths with 3 fields of view Limit is closer to 3 for one narrow field-of-view lidar Useful optical depth information from one 100-m-footprint lidar (e.g. Calipso)! Why not launch multiple FOV lidar in space? Pounder et al. (2011)

36
**Unified algorithm: progress**

Bringing the aspects of this talk together… Done: Functioning algorithm framework exists C++: object orientation allows code to be completely flexible: observations can be added and removed without needing to keep track of indices to matrices, so same code can be applied to different observing systems Preliminary retrieval of ice, liquid, rain and aerosol Adjoint of radar and lidar forward models with multiple scattering and HSRL/Raman support Interface to L-BFGS quasi-Newton algorithm in GNU Scientific Library In progress / future work: Estimate and report error in solution and averaging kernel Interface to radiance models Test on a range of ground-based, airborne and spaceborne instruments Will produce the standard EarthCARE cloud & precip synergy products

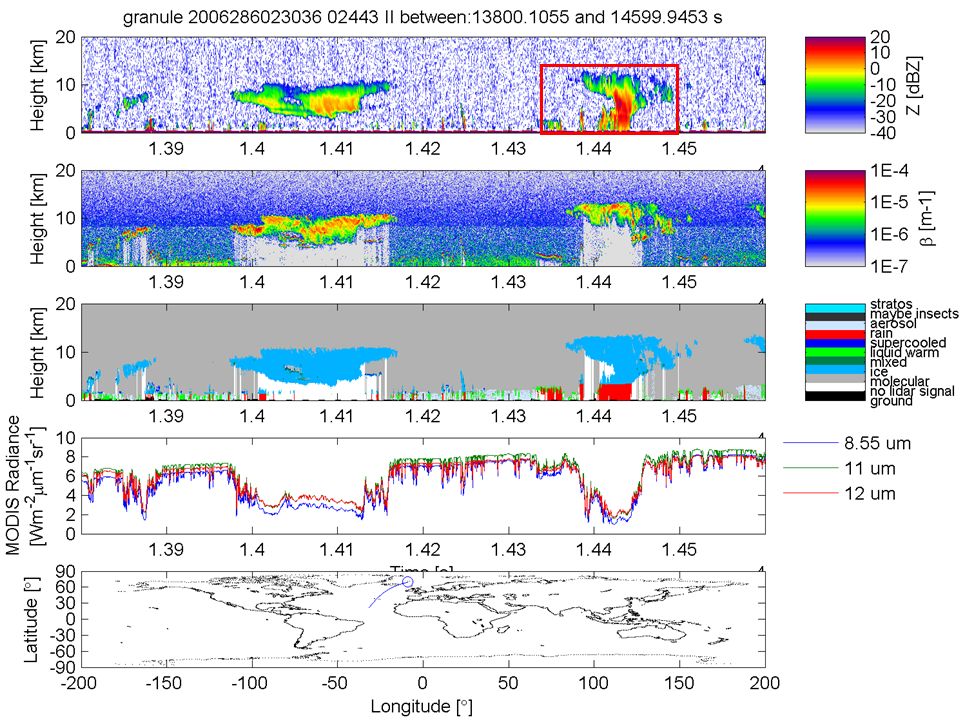

38
**Observations vs forward models**

Lidar backscatter Radar reflectivity factor Radar and lidar backscatter are successfully forward modelled (at final iteration) in most situations Can also forward model Doppler velocity (what EarthCARE would see)

39
**Three retrieved components**

Liquid water content Ice extinction coefficient Rain rate

40
**Extension to three dimensions**

Synergistic retrievals under radar and lidar can be extended laterally using imager, then evaluated radiatively using broadband fluxes Part of proposed product chain for EarthCARE satellite Barker et al. (2011)

41
**A: aerosol not included**

B: surface temperature error

42
Outlook Evaluation of climate models in model space has distinct advantages over comparisons in observation space Radiatively validated and consistent estimates of atmospheric state Can say not only in what way model clouds are wrong but what the radiative consequence is Forward-model errors affect both approaches A “Grand Unified Algorithm” enables all measurements to be combined to provide the optimum estimate of the atmospheric state Difficult and plenty remains to be done (e.g. precipitation – to be done with Pavlos Kolias) Important to report errors (including those due to forward model errors) and averaging kernel information Hope to have a fully flexible and freely available code that can be applied to many different platforms and accommodate new observations Three years of CloudSat and Calipso ice retrievals: (Google “dardar icare”)

44
**Clouds in climate models**

Via their interaction with solar and terrestrial radiation, clouds are one of the greatest sources of uncertainty in climate forecasts But cloud water content in models varies by a factor of 10 Need instrument with high vertical resolution… 14 global models (AMIP) 90N 80 60 40 20 -20 -40 -60 -80 90S 0.05 0.10 0.15 0.20 0.25 Latitude Vertically integrated cloud water (kg m-2) But all models tuned to give about the same top-of-atmosphere radiation The properties of ice clouds are particularly uncertain Stephens et al. (2002)

45
**Vertical structure of liquid water content**

Cloudnet: several years of retrievals from 3 European ground-based sites Observations in grey (with range indicating uncertainty) How do these models perform globally? 0-3 km Supercooled liquid water content from seven forecast models spans a factor of 20 ECMWF has far too great an occurrence of low LWC values Illingworth, Hogan et al. (2007)

46
**CloudSat and Calipso sensitivity**

In July 2006, cloud occurrence in the subzero troposphere was 13.3% The fraction observed by radar was 65.9% The fraction observed by lidar was 65.0% The fraction observed by both was 31.0%

47
**Minimization methods - in 1D**

Quasi-Newton method (e.g. L-BFGS) Rolling a ball down a hill Intelligent choice of direction in multi-dimensions helps convergence Requires the gradient J/x A vector (efficient to store) Efficient to calculate using adjoint method Used in data assimilation Gauss-Newton method Requires the curvature 2J/x2 A matrix More expensive to calculate Faster convergence Assume J is quadratic and jump to the minimum Limited to smaller retrieval problems J x x1 J/x 2J/x2 J x1 J/x x2 x3 x4 x5 x6 x7 x8 x2 x3 x4 x5 x

48
**Minimizing the cost function**

Gradient of cost function (a vector) Gauss-Newton method Rapid convergence (instant for linear problems) Get solution error covariance “for free” at the end Levenberg-Marquardt is a small modification to ensure convergence Need the Jacobian matrix H of every forward model: can be expensive for larger problems as forward model may need to be rerun with each element of the state vector perturbed and 2nd derivative (the Hessian matrix): Gradient Descent methods Fast adjoint method to calculate xJ means don’t need to calculate Jacobian Disadvantage: more iterations needed since we don’t know curvature of J(x) Quasi-Newton method to get the search direction (e.g. L-BFGS used by ECMWF): builds up an approximate inverse Hessian A for improved convergence Scales well for large x Poorer estimate of the error at the end

49
EarthCARE The ESA/JAXA “EarthCARE” satellite is designed with synergy in mind We are currently developing synergy algorithms for its instrument specification

50
EarthCARE lidar High Spectral Resolution capability enables direct retrieval of extinction profile

51
Scattering models First part of a forward model is the scattering and fall-speed model Same methods typically used for all radiometer and lidar channels Radar and Doppler model uses another set of methods Particle type Radar (3.2 mm) Radar Doppler Thermal IR, Solar, UV Aerosol Aerosol not detected by radar Mie theory, Highwood refractive index Liquid droplets Mie theory Beard (1976) Rain drops T-matrix: Brandes et al. (2002) shapes Ice cloud particles T-matrix (Hogan et al. 2010) Westbrook & Heymsfield Baran (2004) Graupel and hail TBD Melting ice Wu & Wang (1991)

52
**Unified algorithm: state variables**

Proposed list of retrieved variables held in the state vector x State variable Representation with height / constraint A-priori Ice clouds and snow Visible extinction coefficient One variable per pixel with smoothness constraint None Number conc. parameter Cubic spline basis functions with vertical correlation Temperature dependent Lidar extinction-to-backscatter ratio Cubic spline basis functions 20 sr Riming factor Likely a single value per profile 1 Liquid clouds Liquid water content One variable per pixel but with gradient constraint Droplet number concentration One value per liquid layer Rain Rain rate Cubic spline basis functions with flatness constraint Normalized number conc. Nw One value per profile Dependent on whether from melting ice or coallescence Melting-layer thickness scaling factor Aerosols Extinction coefficient One value per aerosol layer identified Climatological type depending on region Ice clouds follows Delanoe & Hogan (2008); Snow & riming in convective clouds needs to be added Liquid clouds currently being tackled Basic rain to be added shortly; Full representation later Basic aerosols to be added shortly; Full representation via collaboration?

53
**Radiative transfer forward models**

Infrared radiances Delanoe and Hogan (2008) model Currently testing RTTOV (widely used, can do microwave, has adjoint) Solar radiances Currently testing LIDORT Radar and lidar Simplest model is single scattering with attenuation: b’=b exp(-2d) Problem from space is multiple scattering: contains extra information on cloud properties (particularly optical depth) but no-one has previously been able to rigorously make use of data subject to pulse stretching Use combination of fast “Photon Variance-Covariance” method and “Time-Dependent Two-Stream” methods Adjoints for these models recently coded Forward model for lidar depolarization is in progress

54
**Radiative transfer forward models**

Computational cost can scale with number of points describing vertical profile N; we can cope with an N2 dependence but not N3 Radar/lidar model Applications Speed Jacobian Adjoint Single scattering: b’=b exp(-2t) Radar & lidar, no multiple scattering N N2 Platt’s approximation b’=b exp(-2ht) Lidar, ice only, crude multiple scattering Photon Variance-Covariance (PVC) method (Hogan 2006, 2008) Lidar, ice only, small-angle multiple scattering N or N2 Time-Dependent Two-Stream (TDTS) method (Hogan and Battaglia 2008) Lidar & radar, wide-angle multiple scattering N3 Depolarization capability for TDTS Lidar & radar depol with multiple scattering Lidar uses PVC+TDTS (N2), radar uses single-scattering+TDTS (N2) Jacobian of TDTS is too expensive: N3 We have recently coded adjoint of multiple scattering models Future work: depolarization forward model with multiple scattering Radiometer model Applications Speed Jacobian Adjoint RTTOV (used at ECMWF & Met Office) Infrared and microwave radiances N Two-stream source function technique (e.g. Delanoe & Hogan 2008) Infrared radiances N2 LIDORT Solar radiances Infrared will probably use RTTOV, solar radiances will use LIDORT Both currently being tested by Julien Delanoe

56
**Scattering regimes Regime 2: Small-angle multiple scattering**

Regime 0: No attenuation Optical depth d << 1 Regime 1: Single scattering Apparent backscatter b’ is easy to calculate from d at range r : b’(r) = b(r) exp[-2d(r)] Mean free path l Regime 2: Small-angle multiple scattering Occurs when Ql ~ x Only for wavelength much less than particle size, e.g. lidar & ice clouds No pulse stretching Footprint x Regime 3: Wide-angle multiple scattering (pulse stretching) Occurs when l ~ x

57
THOR lidar

58
**Comparison of convergence rates**

Solution is identical Gauss-Newton method converges in < 10 iterations L-BFGS Gradient Descent method converges in < 100 iterations Conjugate Gradient method converges a little slower than L-BFGS Each L-BFGS iteration >> 10x faster than each Gauss-Newton one! Gauss-Newton method requires the Jacobian matrix, which must be calculated by rerunning multiple scattering model multiple times

59
**Unified algorithm: first results for ice+liquid**

But lidar noise degrades retrieval Convergence! Truth Retrieval First guess Iterations Observations Retrieval Observations Forward modelled retrieval Forward modelled first guess

60
**Add smoothness constraint**

Smoother retrieval but slower convergence Truth Retrieval First guess Iterations Observations Retrieval Observations Forward modelled retrieval Forward modelled first guess

61
**Comparison with MODIS Optical depth Effective radius Ice water path**

VarCloud-OA “Oblate ice” Our preferred ice model Poor agreement with MODIS optical depth and effective radius VarCloud-BR “Bullet rosettes” Similar assumption to MODIS Better agreement So why does “OA” IWP agree better? IWP ~ opt. depth*effective radius MODIS effective radius is from top few optical depths of the cloud and assumed constant through cloud In reality (according to radar-lidar), effective radius increases with depth MODIS underestimates IWP for a given optical depth and effective radius Effective radius Ice water path

62
**Satellite observations: IceSAT**

Cloud observations from IceSAT 0.5-micron lidar (first data Feb 2004) Global coverage but lidar attenuated by thick clouds: direct model comparison difficult Lidar apparent backscatter coefficient (m-1 sr-1) Latitude Optically thick liquid cloud obscures view of any clouds beneath Solution: forward-model the measurements (including attenuation) using the ECMWF variables

63
**Simulate lidar backscatter:**

ECMWF raw cloud fraction Simulate lidar backscatter: Create subcolumns with max-rand overlap Forward-model lidar backscatter from ECMWF water content & particle size Remove signals below lidar sensitivity ECMWF cloud fraction after processing IceSAT cloud fraction

64
**Global cloud fraction comparison**

ECMWF raw cloud fraction ECMWF processed cloud fraction Results for October 2003 Tropical convection peaks too high Too much polar cloud Elsewhere agreement is good Results can be ambiguous An apparent low cloud underestimate could be a real error, or could be due to high cloud above being too thick IceSAT cloud fraction Wilkinson, Hogan, Illingworth and Benedetti (MWR 2008)

65
**Testing the model climatology**

Reduction in model due to lidar attenuation Error due to uncertain extinction-to-backscatter ratio
