1. The Cell

2. Cells are Us

3. Cilia on a protozoan. Sperm meets egg.

4. Cells are Us A person contains about 100 trillion cells. That’s 100,000,000,000,000 or 1 x 10 14 cells. There are about 200 different cell types in mammals (one of us). Cells are tiny, measuring on average about 0.002 cm (20 um) across. That’s about 1250 cells, “shoulder-to-shoulder” per inch. nerve cell Red and white blood cells above vessel- forming cells.

5. The Cell Theory *All organisms are composed of one or more cells. *Cells are the basic unit of structure and function. All organisms living today are descendents of an ancestral cell. * Cells arise only by division of previously existing cells. The Cell Theory (proposed independently in 1838 and 1839) is a cornerstone of biology.

6. A Sense of Scale and Abundance – Bacteria on the Head of a Pin

7. Two Fundamentally Different Types of Cells A prokaryotic cell A eukaryotic cell

8. Them vs. Us -Prokaryotes and Eukaryotes

9. An Idealized Animal Cell

10. The Plasma Membrane – Gateway to the Cell

11. The Plasma Membrane is Selectively permeable Small molecules and larger hydrophobic molecules move through. Ions, hydrophilic molecules larger than water, and large molecules such as proteins do not move through the membrane on their own. The physical properties of phospholipids account for membrane assembly and many of its properties.

12. Plasma Membrane Functions Maintain a high concentration of materials in the cell. Keep harmful materials out. Control the movement of materials into and out of the cell. Let the cell sense its environment.

13. Phospholipids Cholesterol Proteins (peripheral and integral) Carbohydrates Membrane Components

14. Proteins Are Critical to Membrane Function

15. Transport Processes - Diffusion Solutes move down a concentration gradient until they are evenly distributed. This is diffusion. Another way of saying this is that solutes move from a region of higher concentration to a region of lower concentration until there is no difference in concentration. Diffusion of water= Osmosis

16. Three Forms of Transport Across the Membrane

17. Example: Oxygen or water diffusing into a cell and carbon dioxide diffusing out.

18. Three Forms of Transport Across the Membrane Examples: Glucose or amino acids moving from blood into a cell.

19. Three Forms of Transport Across the Membrane Examples: Pumping Na + (sodium ions) out and K + (potassium ions) in against strong concentration gradients.

20. Moving the “Big Stuff” Molecules are moved out of the cell by vesicles that fuse with the plasma membrane. Exocytosis: moving things out. This is how many hormones are secreted and how nerve cells communicate with one another.

21. Exocytosis Exocytic vesicle immediately after fusion with plasma membrane.

22. Moving the “Big Stuff” Large molecules move in via one of two forms of endocytosis.

23. Pinocytosis This is the most common form of endocytosis. Pinocytosis takes up most proteins and other large molecules.

24. Pinocytosis pinocytic vesicles forming mature transport vesicle Transport across a capillary cell (blue).

25. Endocytosis – Phagocytosis Transports Large Particles

26. Phagocytosis About to Occur

27. The Threshold of Phagocytosis - Capture of a Yeast Cell (yellow) by Membrane Extensions of an Immune System Cell (blue)

28. Effects of Osmosis on Water Balance Osmosis is the diffusion of water across a selectively permeable membrane Water diffuses across a membrane from the region of lower solute concentration to the region of higher solute concentration This will “dilute” the higher concentration. Copyright © 2008 Pearson Education, Inc., publishing as Pearson Benjamin Cummings

29. Lower concentration of solute (sugar) Fig. 7-12 H2OH2O Higher concentration of sugar Selectively permeable membrane Same concentration of sugar Osmosis

30. Water Balance of Cells Without Walls Isotonic solution: Solute concentration is the same as that inside the cell; no net water movement across the plasma membrane Hypertonic solution: Solute concentration is greater than that inside the cell; cell loses water and will shrivel. Hypotonic solution: Solute concentration is less than that inside the cell; cell gains water and expands. Copyright © 2008 Pearson Education, Inc., publishing as Pearson Benjamin Cummings

31. Fig. 7-13 Hypotonic solution (a ) Animal cell (b ) Plant cell H2OH2O Lysed H2OH2O Turgid (normal) H2OH2O H2OH2O H2OH2O H2OH2O Normal Isotonic solution Flaccid H2OH2O H2OH2O Shriveled Plasmolyzed Hypertonic solution

32. It’s Crowded In There An artist’s conception of the cytosol - the region of a cell that’s not in the nucleus or within an organelle.

33. Animal and Plant Cells Have More Similarities Than Differences

34. What Do Those Parts Do? We’ll start by seeing what role these parts play in making and moving proteins.

35. A Focus of Our Tour of the Cell: The Path of Protein Synthesis and Export

36. The Nucleus Think of the nucleus as the cell’s control center. Two meters of human DNA fits into a nucleus that’s 0.000005 meters across.

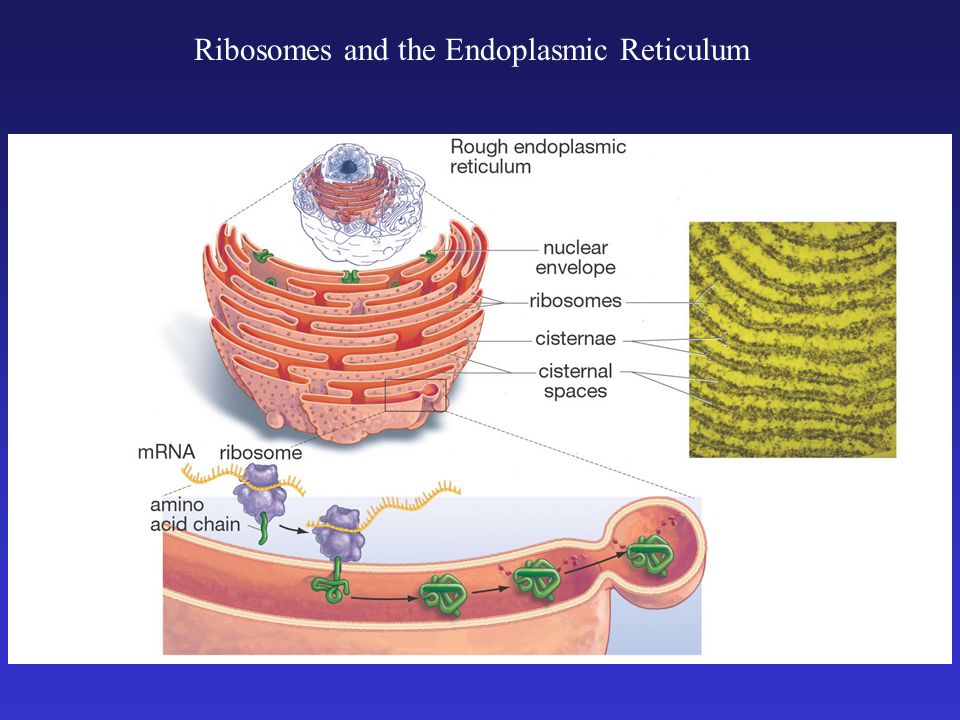

37. Ribosomes and the Endoplasmic Reticulum

38. The Rough Endoplasmic Reticulum Protein movement (trafficking) Protein synthesis (about half the cell’s proteins are made here). Protein “proofreading” Functions:

39. The Golgi Apparatus (or Complex) Think of the Golgi apparatus as a busy airport receiving passengers (proteins) and sending them to their destinations.

40. The Golgi Apparatus Proteins moved through the Golgi apparatus can travel to the lysosome, the plasma membrane, or outside the cell. Proteins moved through the Golgi apparatus travel to the lysosome, the plasma membrane, or outside the cell. Note how protein cargo moves in vesicles.

41. Off the Path of Protein Production: Lysosomes, Mitochondria, Chloroplasts and the Cytoskeleton

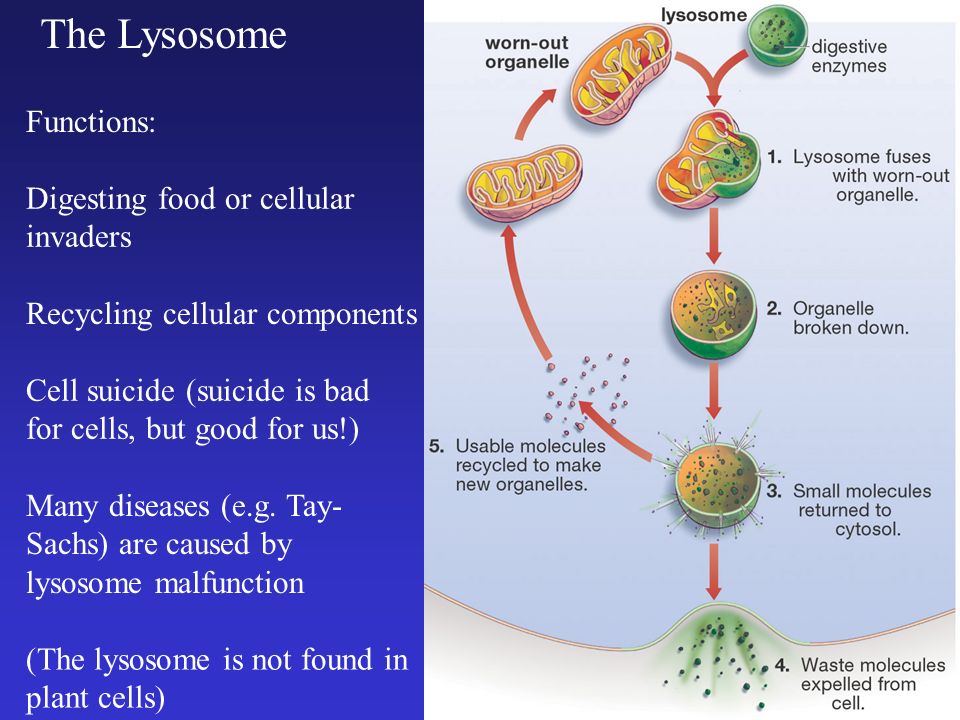

42. The Lysosome Cell suicide (suicide is bad for cells, but good for us!) Many diseases (e.g. Tay- Sachs) are caused by lysosome malfunction Recycling cellular components Functions: Digesting food or cellular invaders (The lysosome is not found in plant cells)

43. The Lysosome This bacterium about to be eaten by an immune system cell will spend the last minutes of its existence within a lysosome.

44. The Mitochondrion Think of the mitochondrion as the powerhouse of the cell. Both plant and animal cells contain many mitochondria. (Mitochondria is the plural of mitochondrion)

45. The Mitochondrion A class of diseases that causes muscle weakness and neurological disorders are caused by malfunctioning mitochondria. Worn out mitochondria may be an important factor in aging.

46. Animal vs. Plant Cells – Chloroplasts Are a Big Part of the Difference

47. Two Other Differences

48. Cells In a Leaf

49. A Consequence of Cell Walls – the Great Strength of Woody Plants

50. The Chloroplast Think of the chloroplast as the solar panel of the plant cell. Only plants have chloroplasts, but animals reap the benefits too.

51. An animal cell cytoskeleton The name is misleading. The cytoskeleton is the skeleton of the cell, but it’s also like the muscular system, able to change the shape of cells in a flash. The Cytoskeleton

52. The Cytoskeleton in Action Cilia on a protozoan. Beating sperm tail at fertilization.
