1. Art of Multiprocessor Programming 1 Programming Paradigms for Concurrency Pavol Černý, Vasu Singh, Thomas Wies

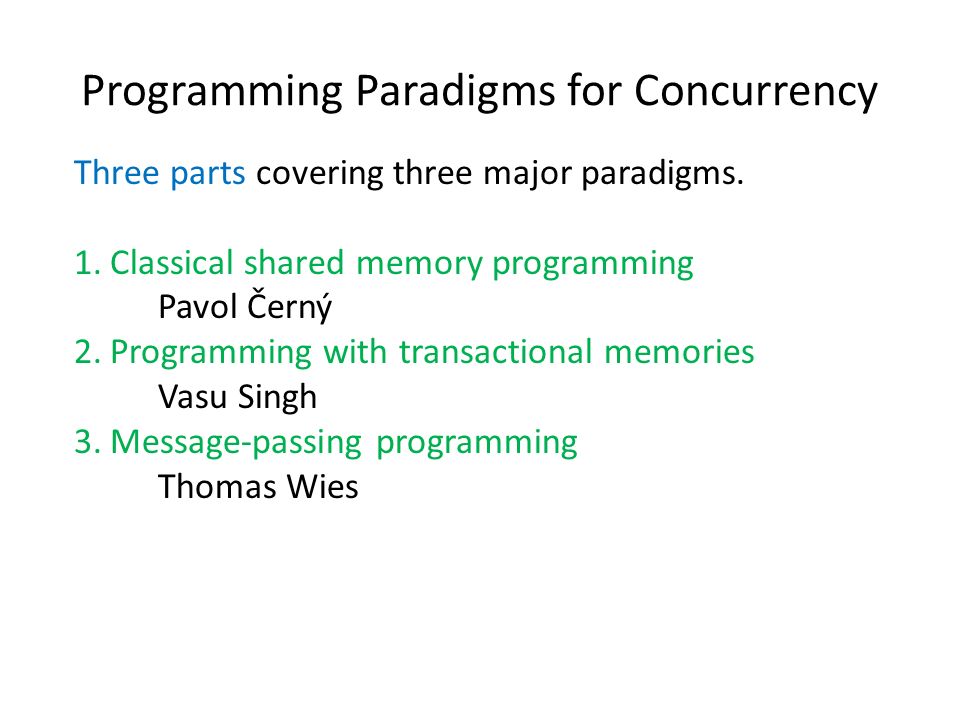

2. Programming Paradigms for Concurrency Three parts covering three major paradigms. 1.Classical shared memory programming Pavol Černý 2.Programming with transactional memories Vasu Singh 3.Message-passing programming Thomas Wies

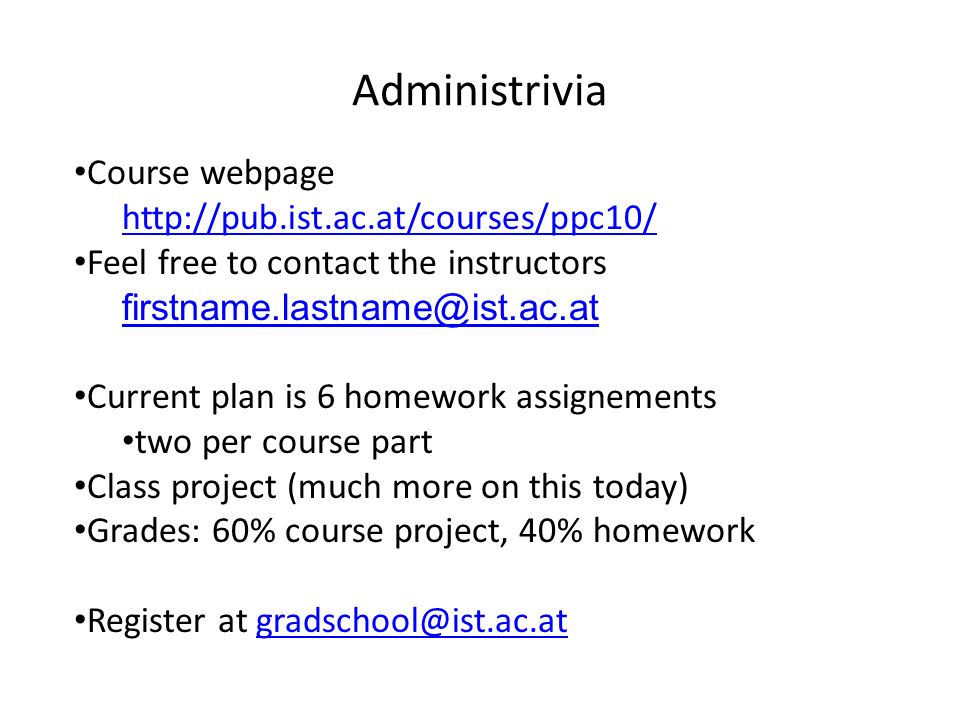

3. Administrivia Course webpage http://pub.ist.ac.at/courses/ppc10/ Feel free to contact the instructors firstname.lastname@ist.ac.at Current plan is 6 homework assignements two per course part Class project (much more on this today) Grades: 60% course project, 40% homework Register at gradschool@ist.ac.atgradschool@ist.ac.at

4. Art of Multiprocessor Programming 4 Programming Paradigms for Concurrency Part I: Shared Memory Programming Pavol Černý

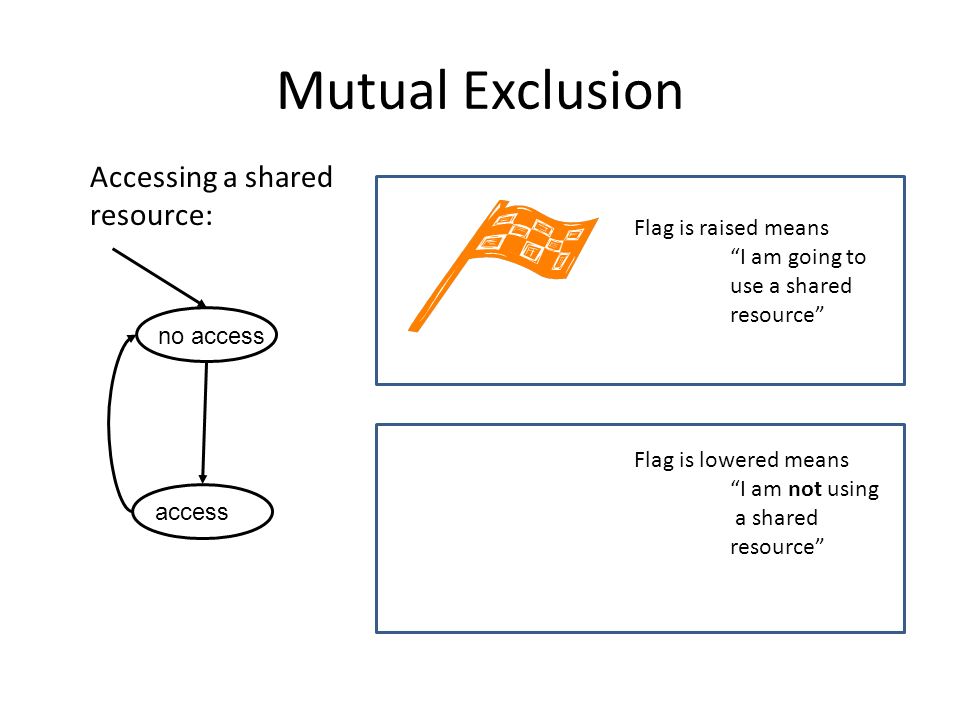

5. Mutual Exclusion no access access Flag is raised means “I am going to use a shared resource” Accessing a shared resource: Flag is lowered means “I am not using a shared resource”

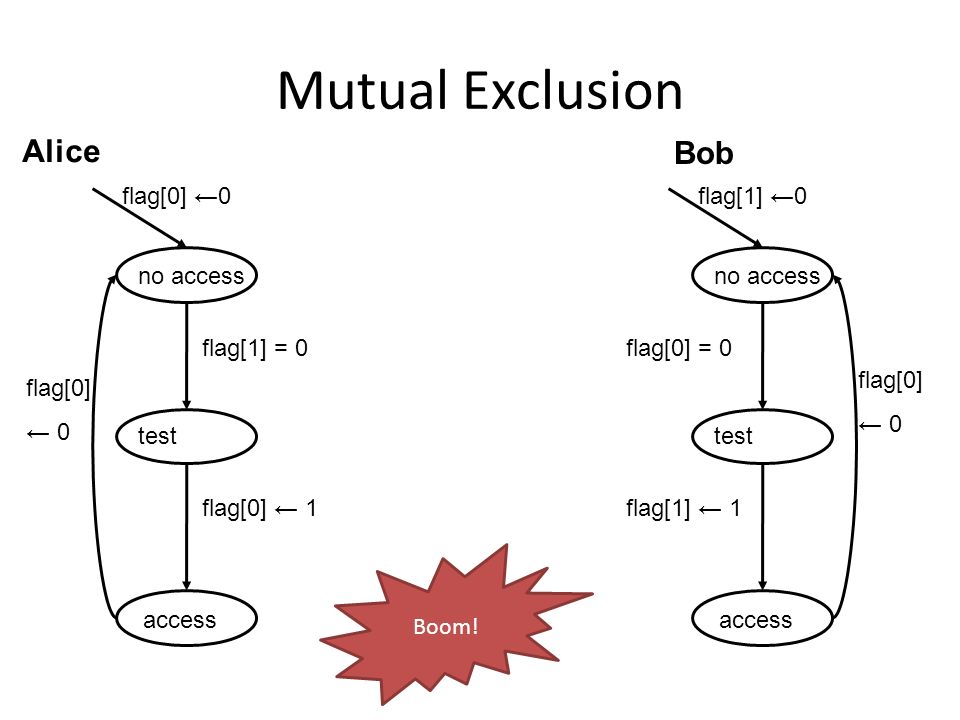

6. Mutual Exclusion flag[0] ← 0 no access flag[0] ←0 flag[1] = 0 access test flag[0] ← 1 flag[0] ← 0 no access flag[1] ←0 flag[0] = 0 access test flag[1] ← 1 Alice Bob Boom!

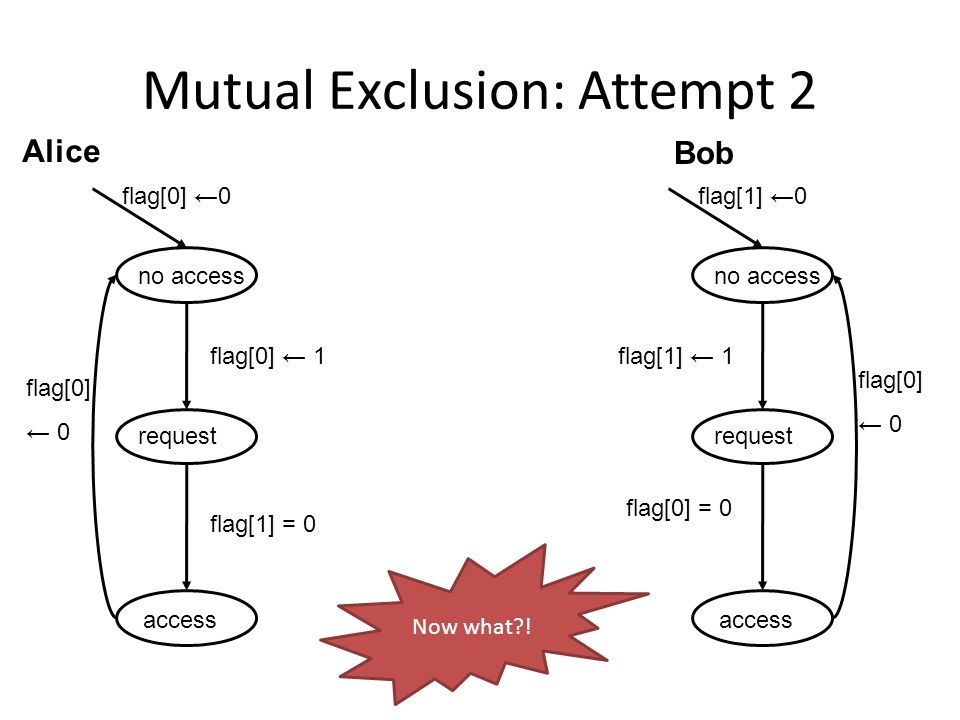

7. Mutual Exclusion: Attempt 2 flag[0] ← 0 no access flag[0] ←0 flag[1] = 0 access request flag[0] ← 1 flag[0] ← 0 no access flag[1] ←0 flag[0] = 0 access request flag[1] ← 1 Alice Bob Now what?!

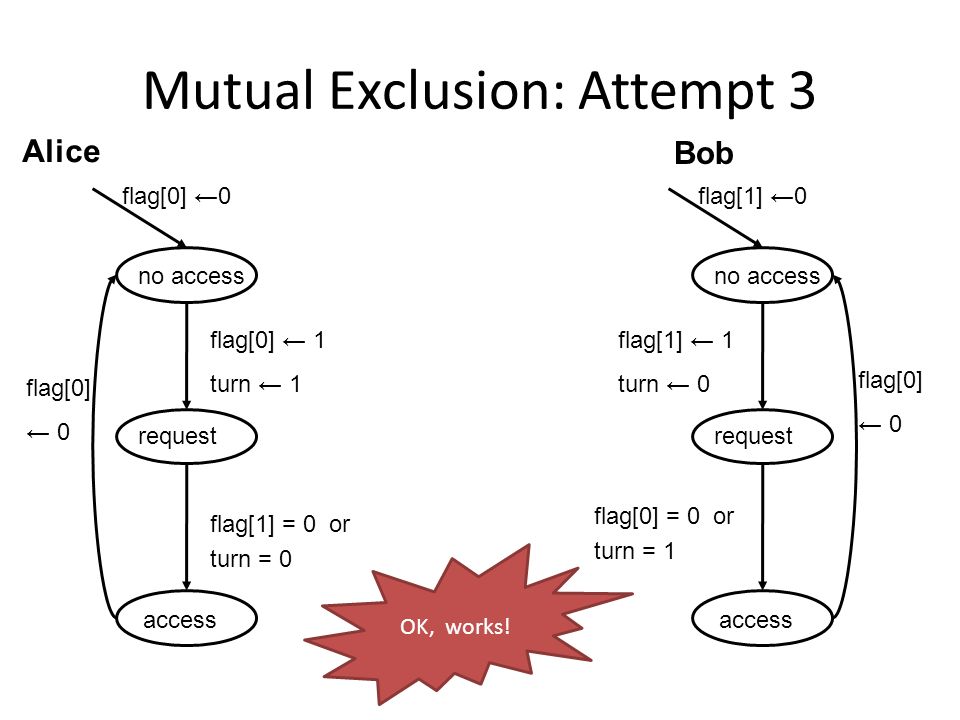

8. Mutual Exclusion: Attempt 3 flag[0] ← 0 no access flag[0] ←0 flag[1] = 0 or turn = 0 access request flag[0] ← 1 turn ← 1 flag[0] ← 0 no access flag[1] ←0 access request flag[1] ← 1 turn ← 0 Alice Bob flag[0] = 0 or turn = 1 OK, works!

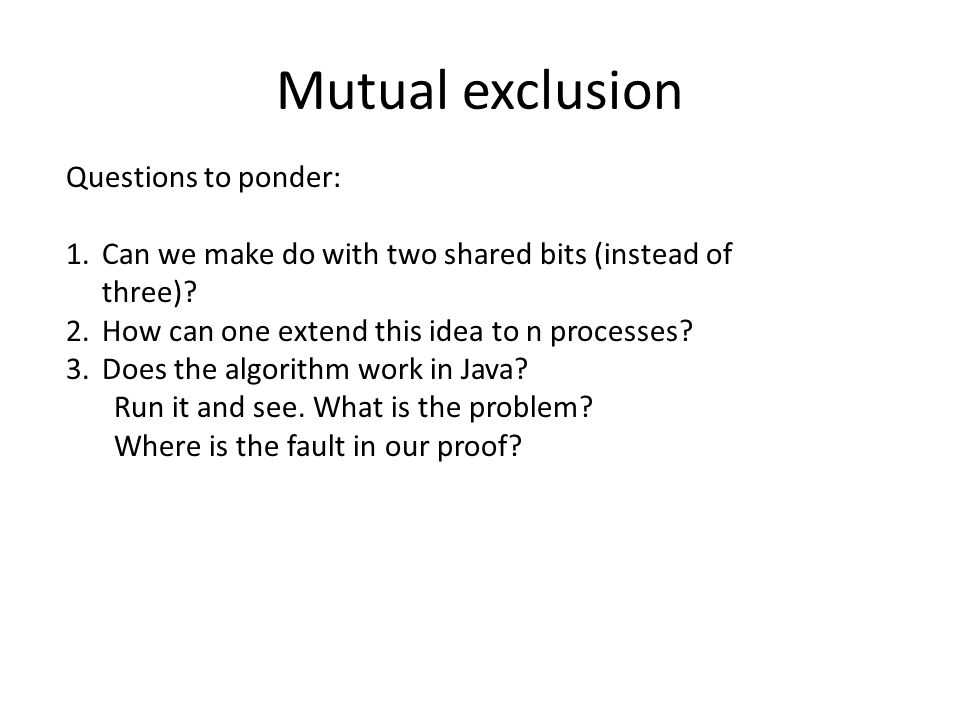

9. Mutual exclusion Questions to ponder: 1.Can we make do with two shared bits (instead of three)? 2.How can one extend this idea to n processes? 3.Does the algorithm work in Java? Run it and see. What is the problem? Where is the fault in our proof?

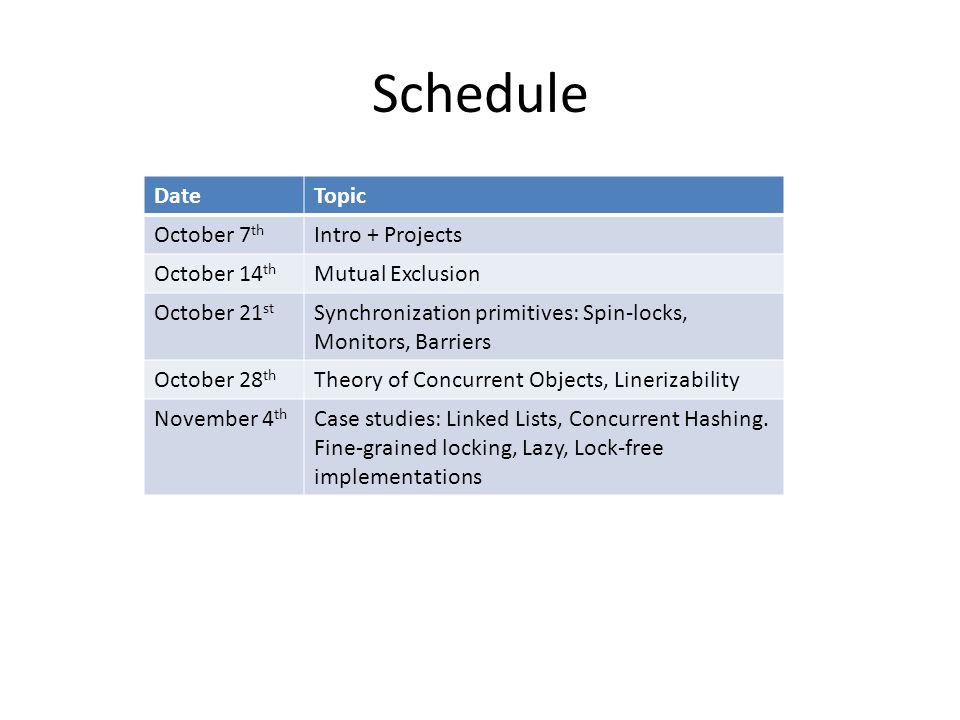

10. Schedule DateTopic October 7 th Intro + Projects October 14 th Mutual Exclusion October 21 st Synchronization primitives: Spin-locks, Monitors, Barriers October 28 th Theory of Concurrent Objects, Linerizability November 4 th Case studies: Linked Lists, Concurrent Hashing. Fine-grained locking, Lazy, Lock-free implementations

11. How many of you have seen…? 1.Have you programmed concurrent programs? In Java? In pthreads? … 2.Bakery algorithm? 3.Queue locks? 4.Linearizability? Sequential consistency? 5.compareAndSet? 6.Concurrent Hashtables?

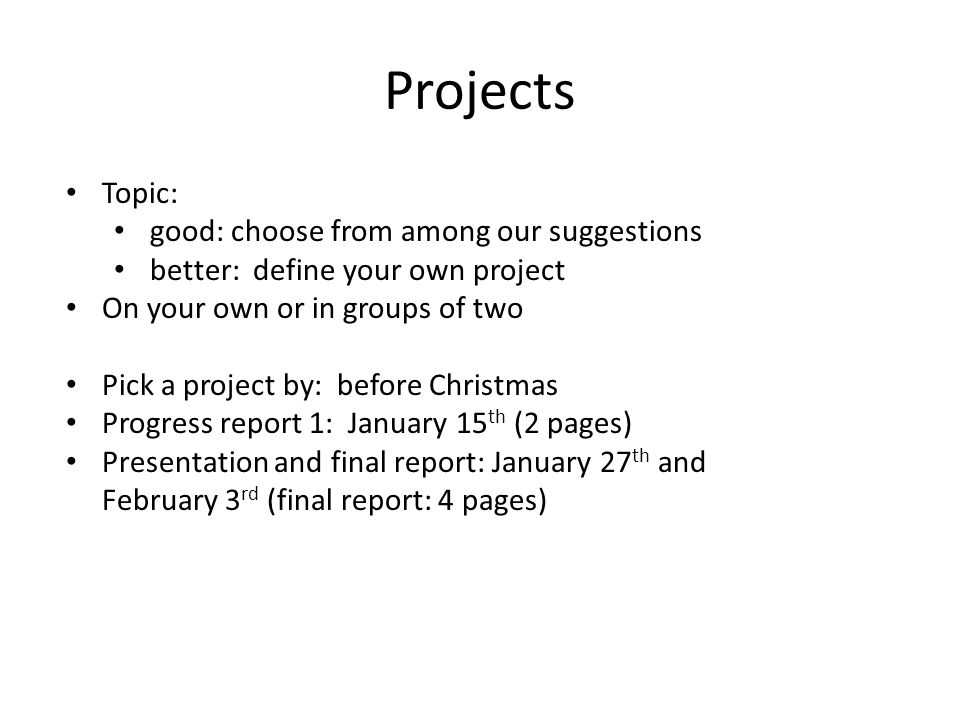

12. Projects Topic: good: choose from among our suggestions better: define your own project On your own or in groups of two Pick a project by: before Christmas Progress report 1: January 15 th (2 pages) Presentation and final report: January 27 th and February 3 rd (final report: 4 pages)

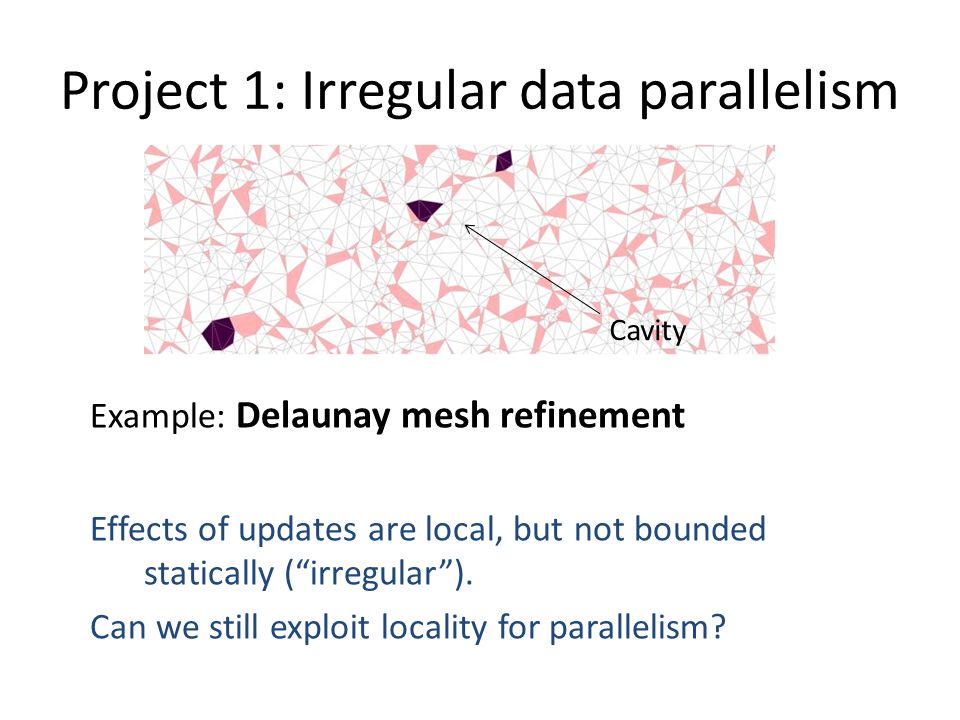

13. Project 1: Irregular data parallelism Cavity Example: Delaunay mesh refinement Effects of updates are local, but not bounded statically (“irregular”). Can we still exploit locality for parallelism?

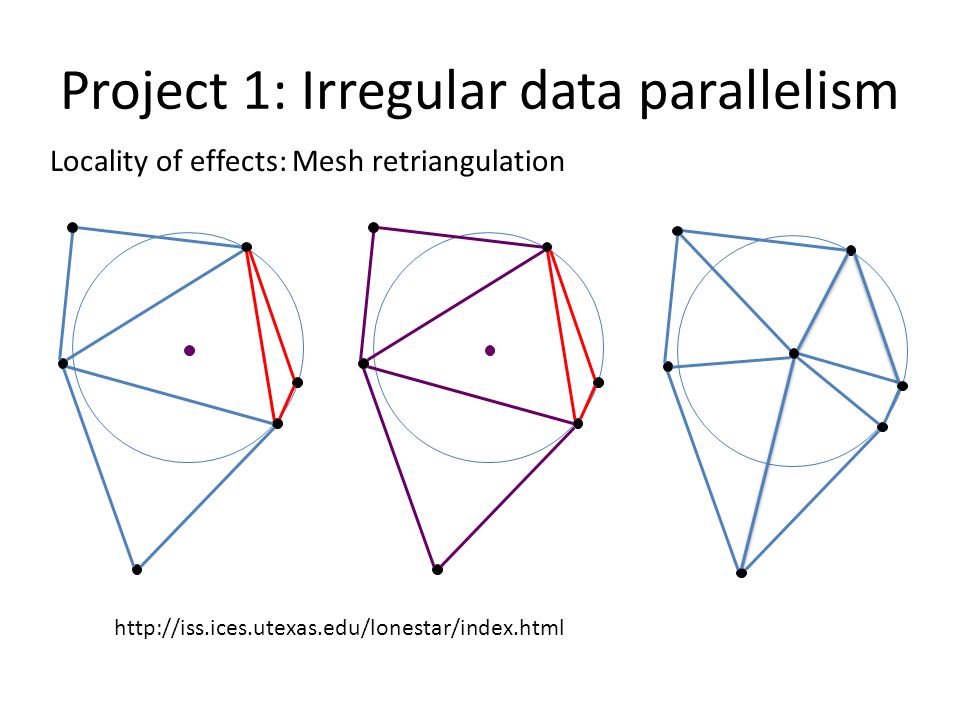

14. Project 1: Irregular data parallelism http://iss.ices.utexas.edu/lonestar/index.html Locality of effects: Mesh retriangulation

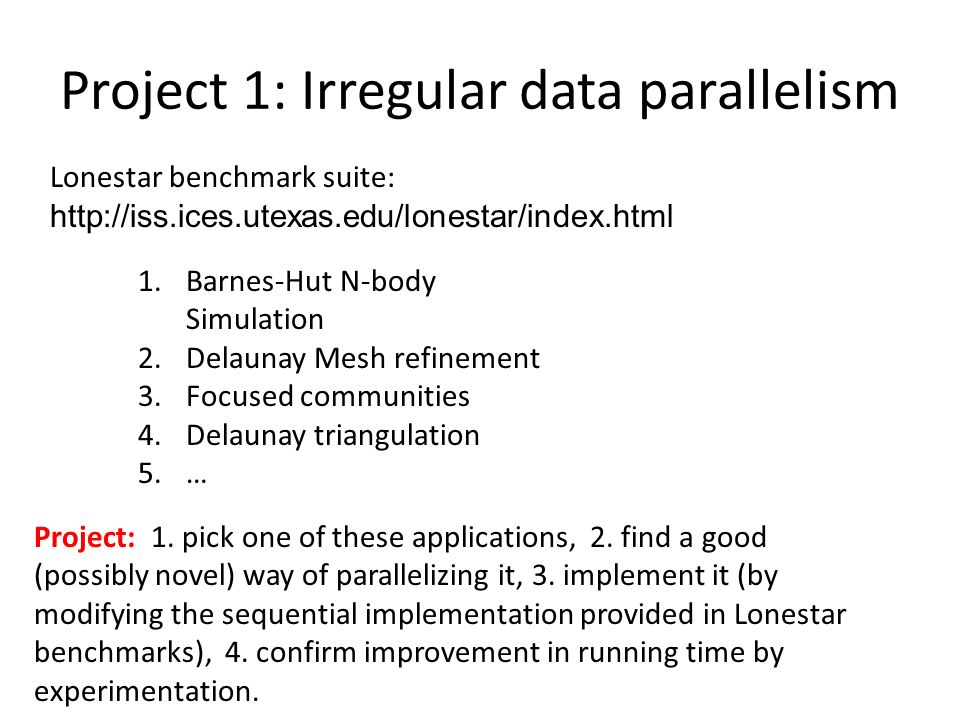

15. Project 1: Irregular data parallelism Lonestar benchmark suite: http://iss.ices.utexas.edu/lonestar/index.html 1.Barnes-Hut N-body Simulation 2.Delaunay Mesh refinement 3.Focused communities 4.Delaunay triangulation 5.… Project: 1. pick one of these applications, 2. find a good (possibly novel) way of parallelizing it, 3. implement it (by modifying the sequential implementation provided in Lonestar benchmarks), 4. confirm improvement in running time by experimentation.

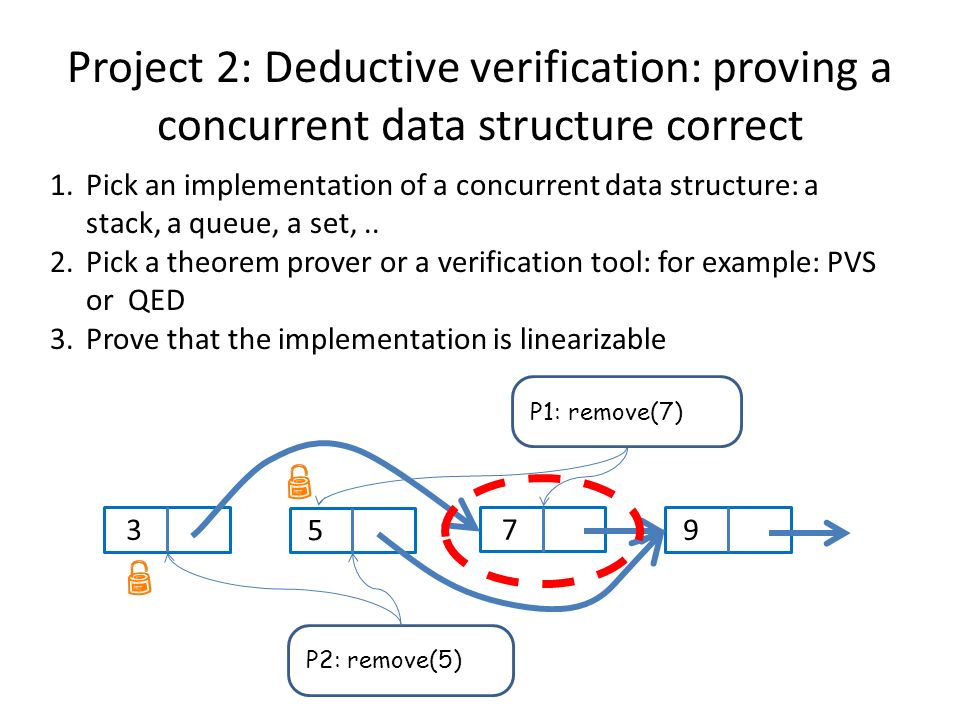

16. Project 2: Deductive verification: proving a concurrent data structure correct 1.Pick an implementation of a concurrent data structure: a stack, a queue, a set,.. 2.Pick a theorem prover or a verification tool: for example: PVS or QED 3.Prove that the implementation is linearizable 3 5 7 9 P1: remove(7) P2: remove(5)

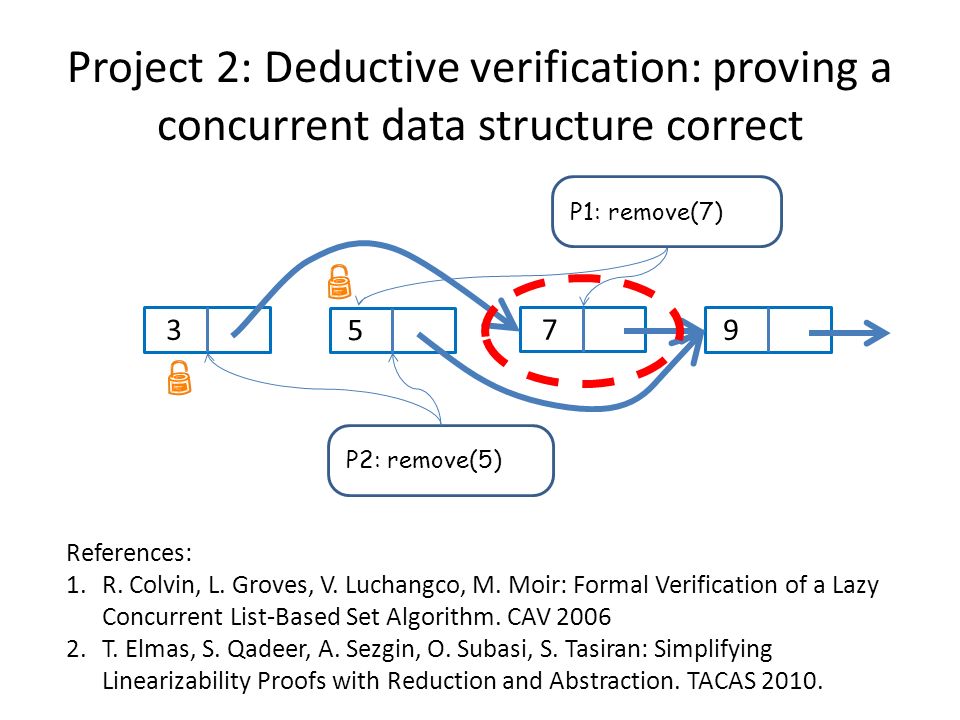

17. Project 2: Deductive verification: proving a concurrent data structure correct References: 1.R. Colvin, L. Groves, V. Luchangco, M. Moir: Formal Verification of a Lazy Concurrent List-Based Set Algorithm. CAV 2006 2.T. Elmas, S. Qadeer, A. Sezgin, O. Subasi, S. Tasiran: Simplifying Linearizability Proofs with Reduction and Abstraction. TACAS 2010. 3 5 7 9 P1: remove(7) P2: remove(5)

18. Project 3:Performance measurement/ performance model for concurrent programs 1.Pick a problem with at least three-four different solutions 1.Lock implementations 2.Data structures: queues, stacks, sets… 2.Examine the performance of the solutions in different settings: 1.small number of threads vs large number of threads 2.2 cores, small amount of memory (laptop) vs 8 cores, large memory/cache (server) 3.different usage models 4.input that generates little vs input that generates lots of contention 3a. Find a hybrid solution that works well in a particular setting or 3b. Find a performance model that explains the data

19. Project 4: Your own!
