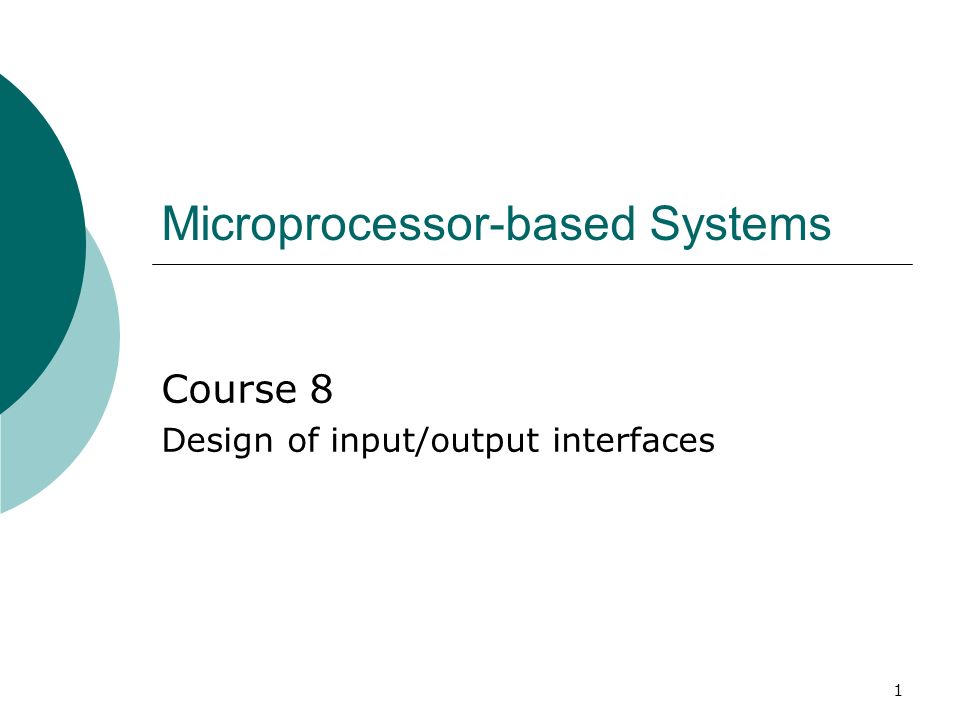

1. 1 Microprocessor-based Systems Course 8 Design of input/output interfaces

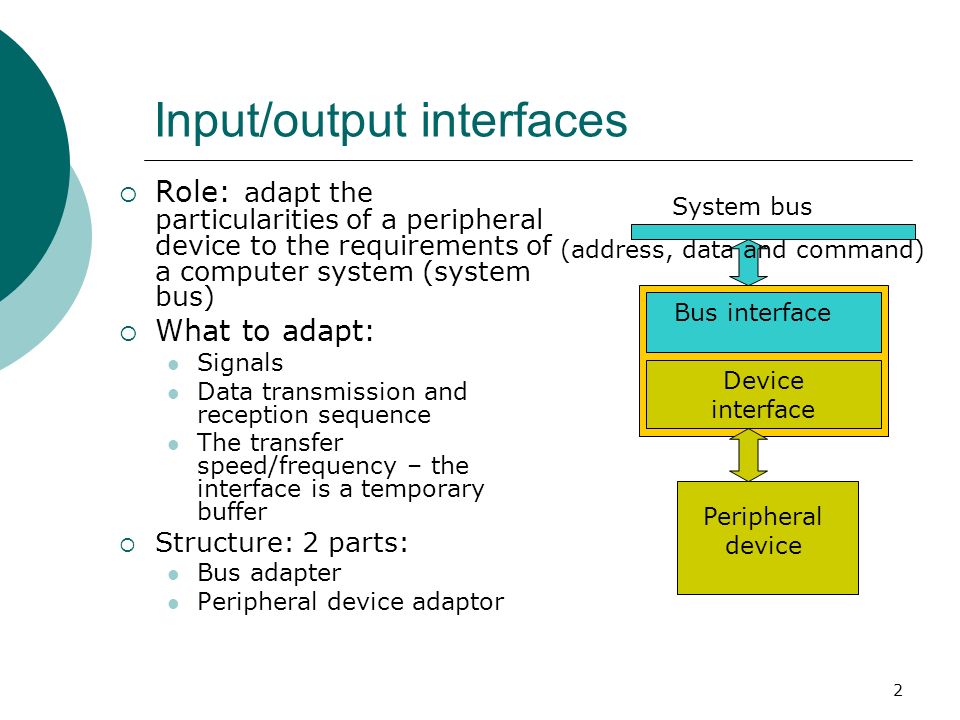

2. 2 Input/output interfaces  Role: adapt the particularities of a peripheral device to the requirements of a computer system (system bus)  What to adapt: Signals Data transmission and reception sequence The transfer speed/frequency – the interface is a temporary buffer  Structure: 2 parts: Bus adapter Peripheral device adaptor Peripheral device Bus interface Device interface System bus (address, data and command)

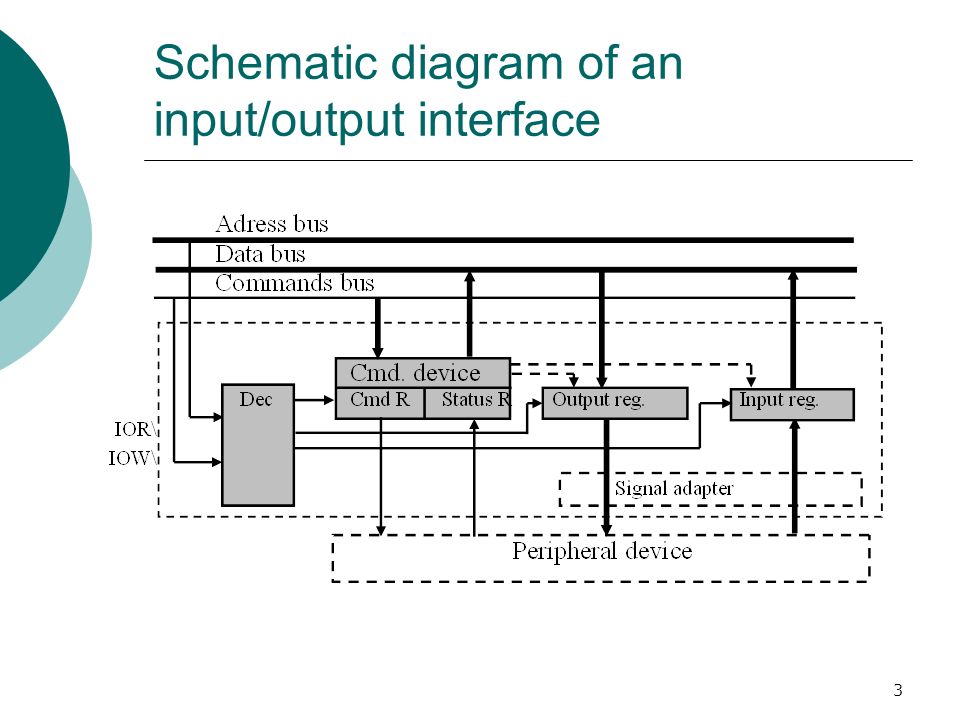

3. 3 Schematic diagram of an input/output interface

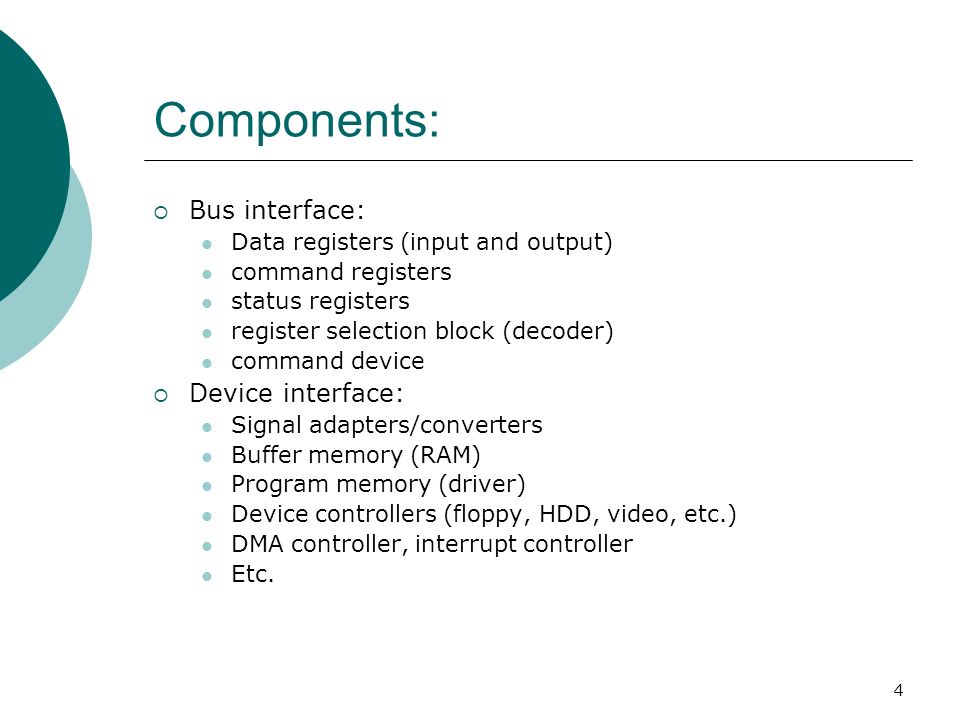

4. 4 Components:  Bus interface: Data registers (input and output) command registers status registers register selection block (decoder) command device  Device interface: Signal adapters/converters Buffer memory (RAM) Program memory (driver) Device controllers (floppy, HDD, video, etc.) DMA controller, interrupt controller Etc.

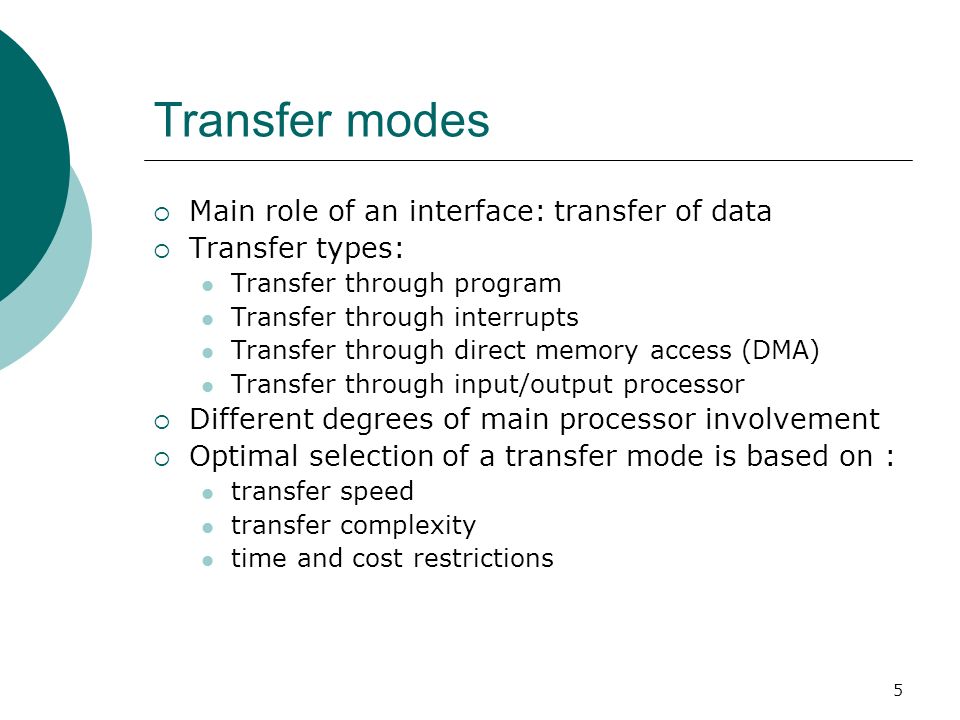

5. 5 Transfer modes  Main role of an interface: transfer of data  Transfer types: Transfer through program Transfer through interrupts Transfer through direct memory access (DMA) Transfer through input/output processor  Different degrees of main processor involvement  Optimal selection of a transfer mode is based on : transfer speed transfer complexity time and cost restrictions

6. 6 Phases of a transfer  Transfer initialization tasks: setting the parameters of a transfer  direction of the transfer,  number of data transferred,  the address of the memory zone where or from where the transfer is made  Transfer phase tasks:  Transfer of data  Synchronization with the peripheral device  Final phase tasks:  verify the correctness of the transfer

7. 7 Transfer through a program  The simplest transfer mode requires simple hardware the transfer program is simple/short  The main processor handles all the phases and tasks of the transfer, through a routine (driver): Initialization Transfer: Final verification

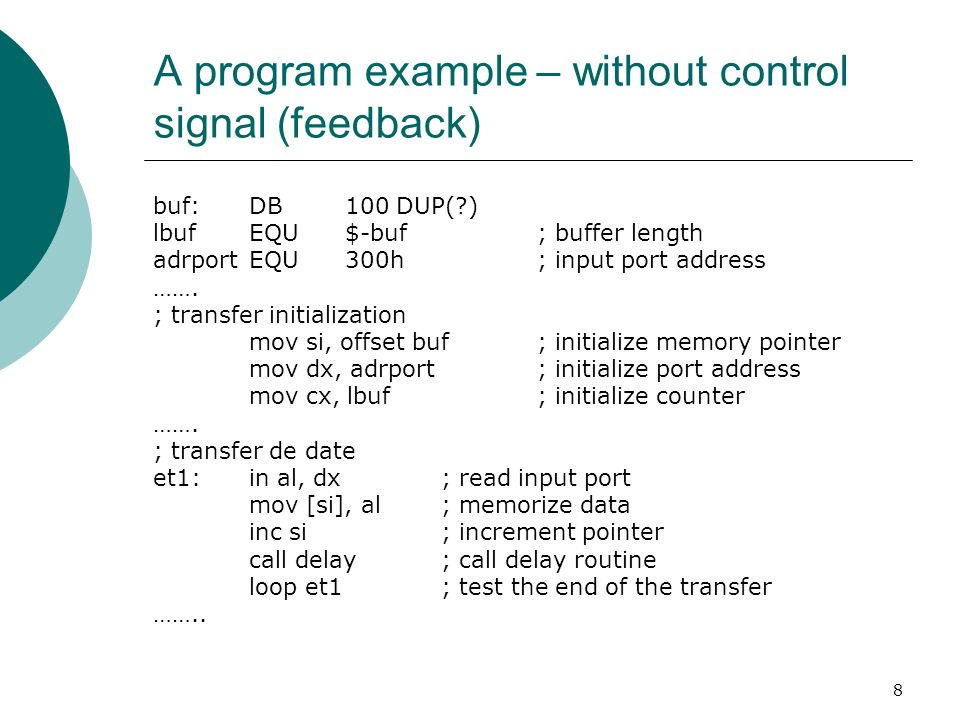

8. 8 A program example – without control signal (feedback) buf:DB100 DUP(?) lbufEQU$-buf; buffer length adrportEQU 300h; input port address ……. ; transfer initialization mov si, offset buf; initialize memory pointer mov dx, adrport; initialize port address mov cx, lbuf; initialize counter ……. ; transfer de date et1:in al, dx; read input port mov [si], al; memorize data inc si; increment pointer call delay; call delay routine loop et1; test the end of the transfer ……..

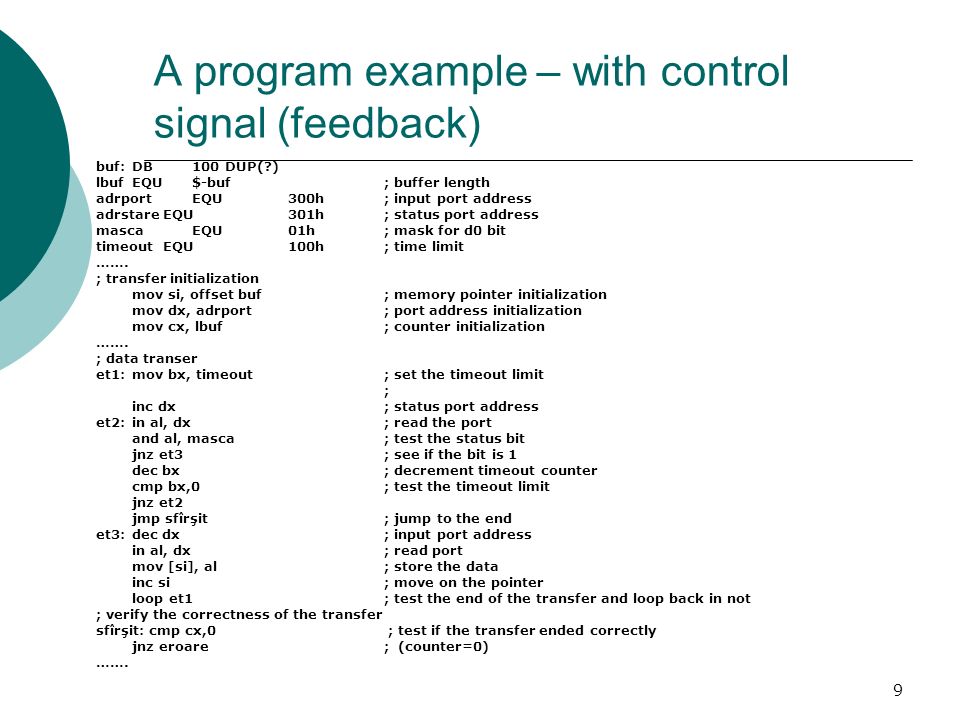

9. 9 A program example – with control signal (feedback) buf:DB100 DUP(?) lbufEQU$-buf; buffer length adrportEQU 300h; input port address adrstare EQU 301h; status port address mascaEQU01h; mask for d0 bit timeout EQU 100h; time limit ……. ; transfer initialization mov si, offset buf; memory pointer initialization mov dx, adrport; port address initialization mov cx, lbuf; counter initialization ……. ; data transer et1:mov bx, timeout; set the timeout limit ; inc dx; status port address et2:in al, dx; read the port and al, masca; test the status bit jnz et3; see if the bit is 1 dec bx; decrement timeout counter cmp bx,0; test the timeout limit jnz et2 jmp sfîrşit; jump to the end et3:dec dx; input port address in al, dx; read port mov [si], al; store the data inc si; move on the pointer loop et1; test the end of the transfer and loop back in not ; verify the correctness of the transfer sfîrşit: cmp cx,0 ; test if the transfer ended correctly jnz eroare; (counter=0) …….

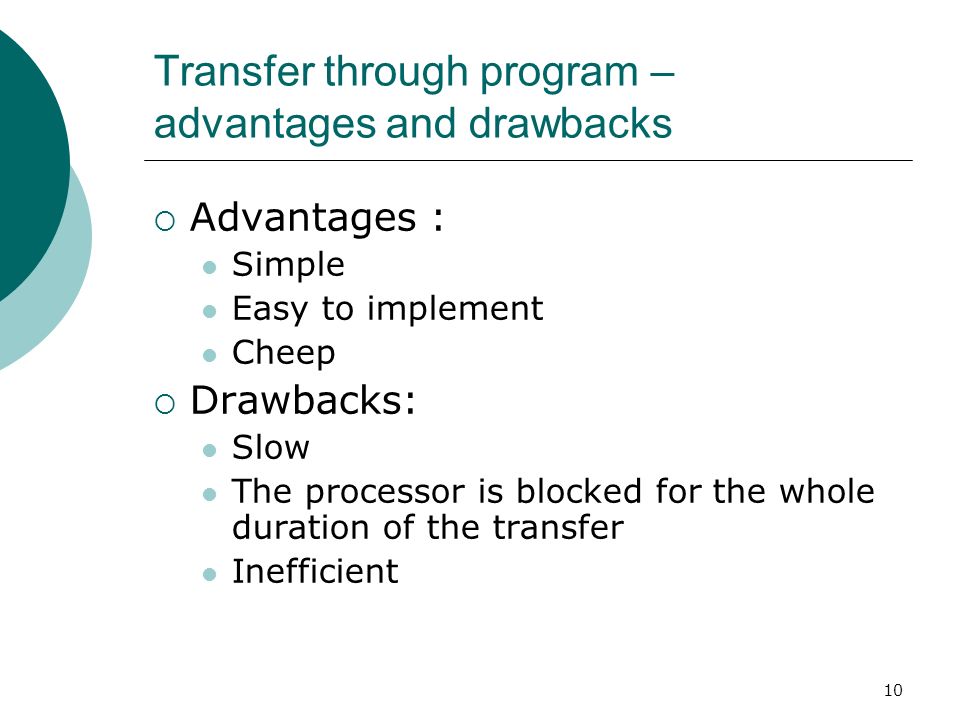

10. 10 Transfer through program – advantages and drawbacks  Advantages : Simple Easy to implement Cheep  Drawbacks: Slow The processor is blocked for the whole duration of the transfer Inefficient

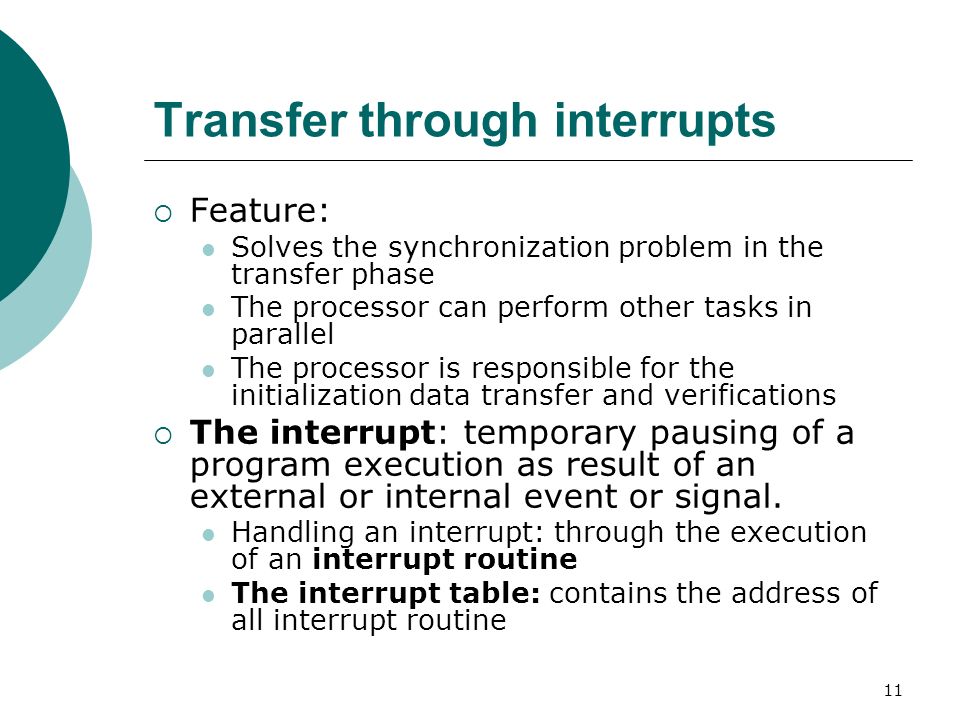

11. 11 Transfer through interrupts  Feature: Solves the synchronization problem in the transfer phase The processor can perform other tasks in parallel The processor is responsible for the initialization data transfer and verifications  The interrupt: temporary pausing of a program execution as result of an external or internal event or signal. Handling an interrupt: through the execution of an interrupt routine The interrupt table: contains the address of all interrupt routine

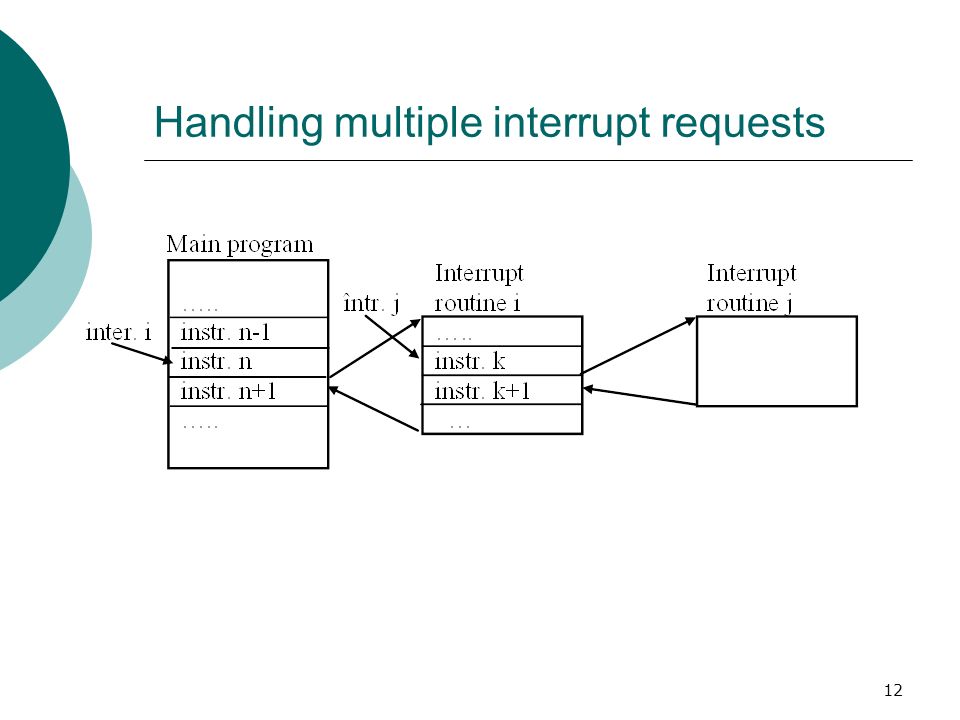

12. 12 Handling multiple interrupt requests

13. 13 The interrupt system for the Intel x86 processors  256 interrupt levels  Interrupts: Internal:  Division by 0, software interrupts (INT n), trace interrupt, overflow, breakpoint External:  Non-maskable: NMI  Maskable INTR  Enable/Disable interrupts: STI: set interrupt – IF=1 - enable CLI: clear interrupt – IF=0 – Disable (masking)

14. 14 Handling an interrupt request by the microprocessor 1. Save the next instruction's address and the status word (PSW) on the stack 2. generate 2 INTA cycles (INTerrupt Acknowlidge) to accept the interrupt and to identify the source of the interrupt; in the second cycle read the interrupt’s vector placed on the bus by the interrupt controller; 3. jump to the interrupt rountine; the address of the interrupt routine is found in the interrupt table in the position indicated by the interrupt vector; 4. when the routine is finished it will restore the status register (from the stack) and it will jump back in the interrupted program, using the address stored on the stack 5. continue the execution of the interrupted program

15. 15 Interrupt types  Hardware: generated by external signals Interrupt signals: INTR, NMI Interrupt acknowledge signal: INTA/ Interrupt sources:  Input/output interfaces: mouse, keyboard, HDD, network  Detect detectors: parity error, power-down  Software: generated by instructions Simulates hardware interrupts Used for calling functions of the operating system: system calls (INT 21H) Interrupt instruction types:  INT n  INTO  INT 3 (breakpoint)

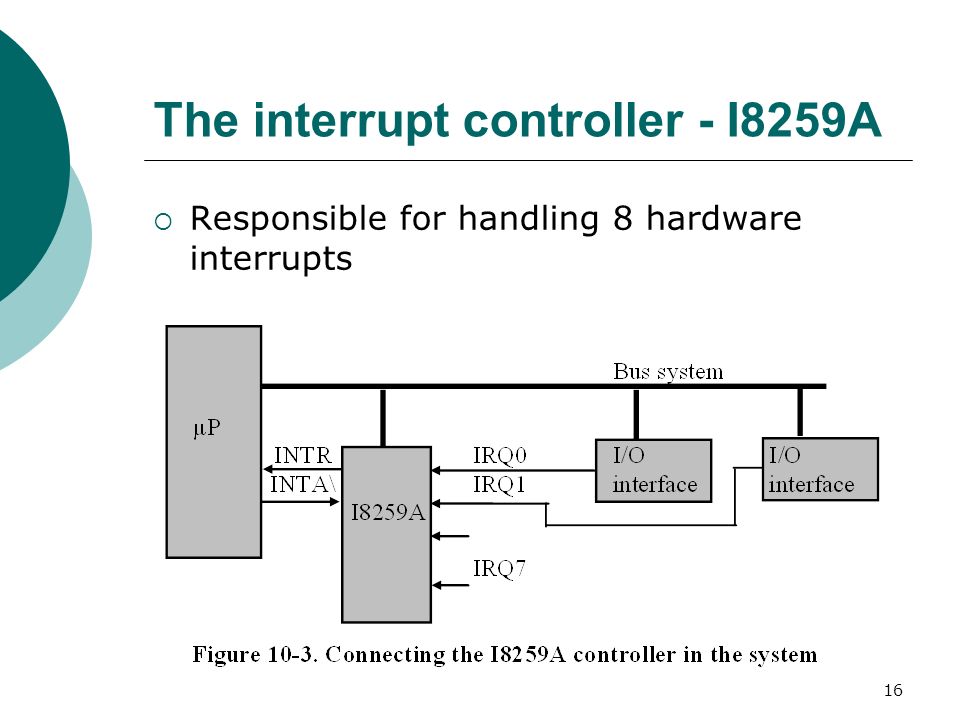

16. 16 The interrupt controller - I8259A  Responsible for handling 8 hardware interrupts

17. 17 The internal structure of an interrupt controller (I8259)

18. 18 Programming the interrupt controller  initialization words (used once when the system is started) - ICW0-4 (Initialization Command Word)  operation words (used during normal operations ) - OCW0-3 (Operation Command Word)  The following parameters are set through the program: working mode 8080 or 8086 interrupt detection mode: on edge (transition from 0 to 1) or on level interrupt nesting mode: normal or special (nesting= handling a new interrupt during the execution of a previous one) priority type: fixed or through rotation the position of the handled interrupts in the interrupt space of the processor (the base address)

19. 19 The interrupt handling sequence 1. The Interface generates an interrupt by activating an IRQ signal to the controller 2. The Controller test if the interrupt is allowed and if there are no higher priority interrupts in service 3. If the interrupt is allowed and there are no higher priority interrupts than the controller generates an interrupt to the processor through the INTR signal 4. Afer the end of the current instruction the Processor generates 2 INTA cycles in order to accept and identify the interrupt source 5. On the second INTA cycle the controller puts on the data lines the interrupt vector (its number) 6. The Processor uses the vector as an index in the interrupt table to find the address of the interrupt routine 7. The Processor saves on the stack the returning address and the program status word (PSW), than makes a jump to the interrupt routine 8. At the end of the interrupt routine the processor sends a command to the controller in order to end the interrupt (EOI) 9. As a result of the IRET instruction (return from interrupt routine) the processor restores the PSW and gets the returning address from the stack; than it makes a jump to this address, continuing the interrupted program

20. 20 The interrupt system of the IBM PC compatible computers  2 interrupt controllers  Hardware interrupts: Real-time counter Keyboard Serial channels printer interface FDD/HDD interface Network interface  Software interrupts: BIOS interrupts: keyboard, video interface, serial transmission, printing, external memory (HDD. floppy) operations System calls (INT 21h): read the standard input channel, write the standard output channel, read/write on disck, etc.

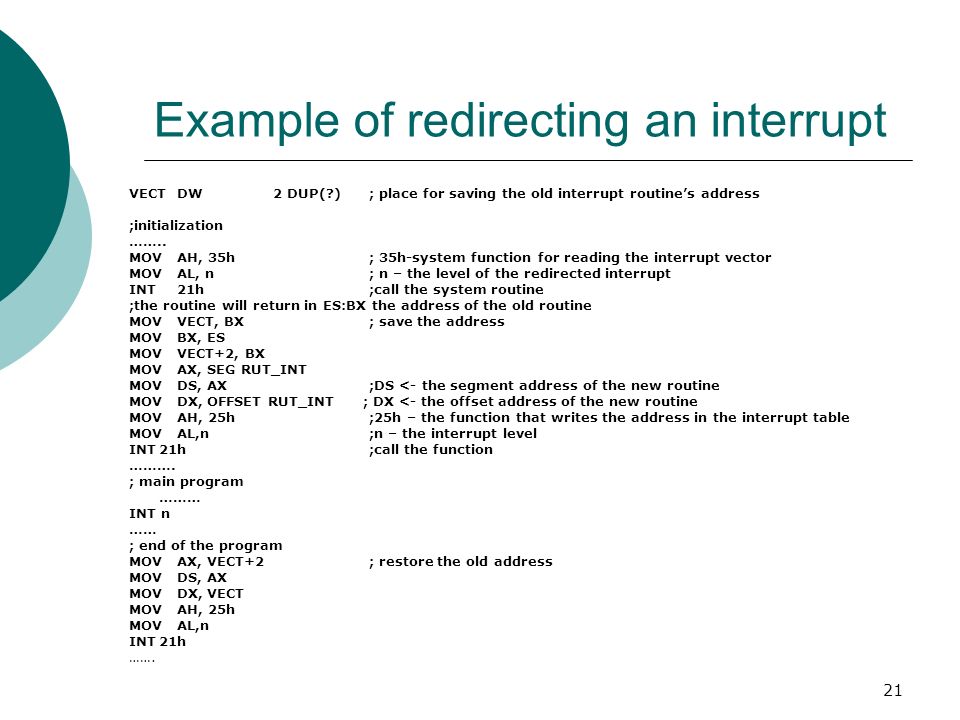

21. 21 Example of redirecting an interrupt VECTDW2 DUP(?); place for saving the old interrupt routine’s address ;initialization …….. MOVAH, 35h; 35h-system function for reading the interrupt vector MOVAL, n ; n – the level of the redirected interrupt INT 21h;call the system routine ;the routine will return in ES:BX the address of the old routine MOVVECT, BX; save the address MOVBX, ES MOVVECT+2, BX MOVAX, SEG RUT_INT MOVDS, AX;DS <- the segment address of the new routine MOVDX, OFFSET RUT_INT ; DX <- the offset address of the new routine MOV AH, 25h;25h – the function that writes the address in the interrupt table MOVAL,n;n – the interrupt level INT21h;call the function ………. ; main program ……… INT n …… ; end of the program MOVAX, VECT+2; restore the old address MOVDS, AX MOVDX, VECT MOV AH, 25h MOVAL,n INT21h …….

22. 22 Continue ;interrupt handling routine RUT_INT PROCFAR; the new interrupt handling routine PUSH r; save all the registers used in the routine ; (r = AX, BX, ….) STI; enable interrupts ……….. ; the body of the routine ……….. ; end of the routine POPr; restore registers IRET RUT_INTENDP

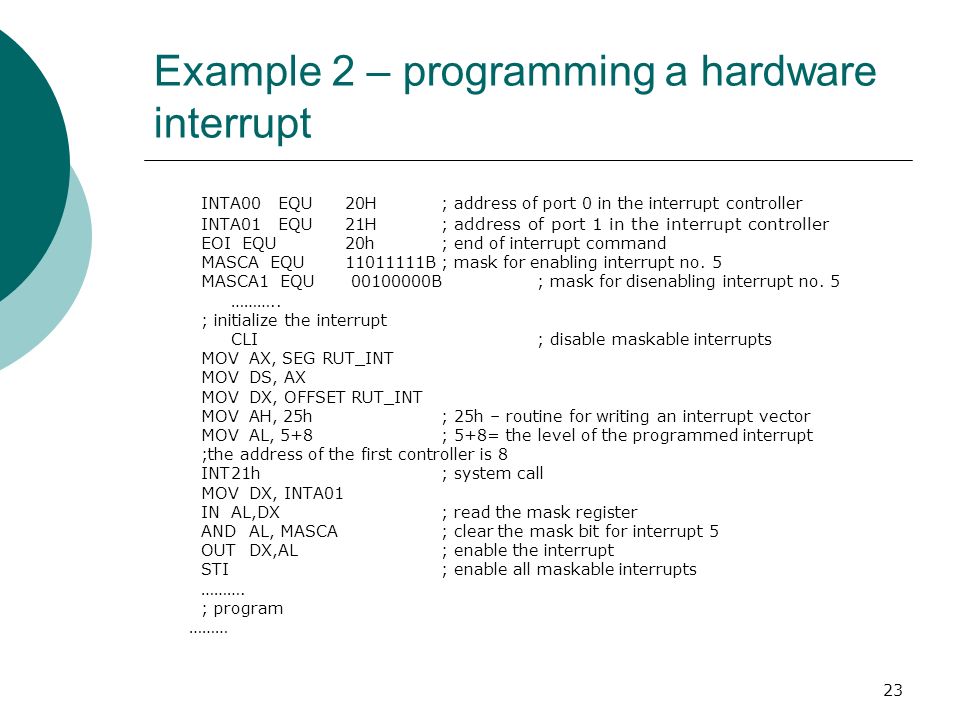

23. 23 Example 2 – programming a hardware interrupt INTA00 EQU20H; address of port 0 in the interrupt controller INTA01 EQU21H; address of port 1 in the interrupt controller EOI EQU20h; end of interrupt command MASCA EQU11011111B; mask for enabling interrupt no. 5 MASCA1 EQU 00100000B; mask for disenabling interrupt no. 5 ……….. ; initialize the interrupt CLI; disable maskable interrupts MOVAX, SEG RUT_INT MOVDS, AX MOVDX, OFFSET RUT_INT MOV AH, 25h; 25h – routine for writing an interrupt vector MOVAL, 5+8; 5+8= the level of the programmed interrupt ;the address of the first controller is 8 INT21h; system call MOVDX, INTA01 INAL,DX; read the mask register ANDAL, MASCA; clear the mask bit for interrupt 5 OUTDX,AL; enable the interrupt STI; enable all maskable interrupts ………. ; program ………

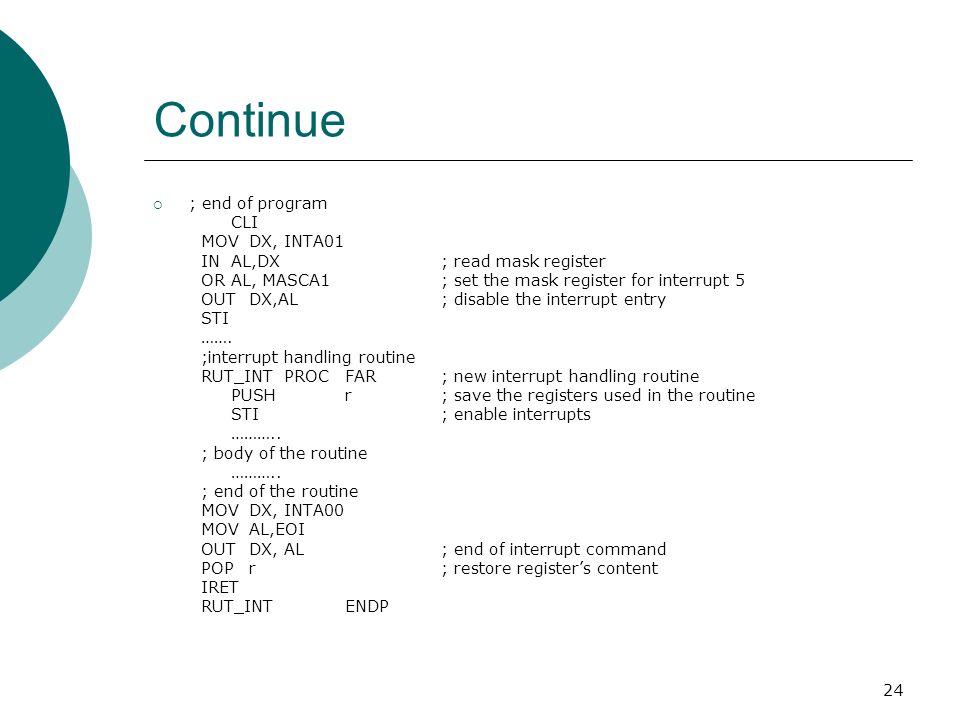

24. 24 Continue  ; end of program CLI MOVDX, INTA01 INAL,DX; read mask register ORAL, MASCA1; set the mask register for interrupt 5 OUTDX,AL; disable the interrupt entry STI ……. ;interrupt handling routine RUT_INT PROC FAR ; new interrupt handling routine PUSH r; save the registers used in the routine STI; enable interrupts ……….. ; body of the routine ……….. ; end of the routine MOVDX, INTA00 MOVAL,EOI OUTDX, AL; end of interrupt command POPr; restore register’s content IRET RUT_INTENDP
