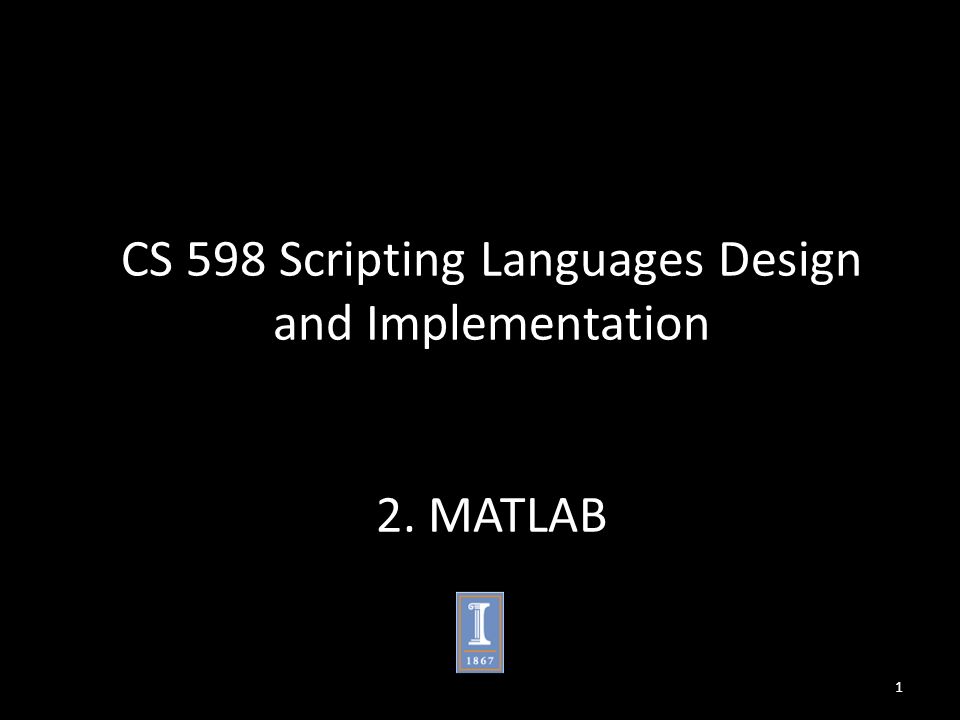

1. CS 598 Scripting Languages Design and Implementation 2. MATLAB 1

2. Origins Designed by Cleve Moler in the late 1970s. It is mainly his design and in fact the MATLAB logo is from his 1965 PhD Thesis (see right) Initial version seems to have been mainly a FORTRAN-like simple interface to LINPACK and EISPACK. Has become immensely popular See http://www.mathworks.com/compa ny/newsletters/articles/the-origins- of-matlab.html http://www.mathworks.com/compa ny/newsletters/articles/the-origins- of-matlab.html 2

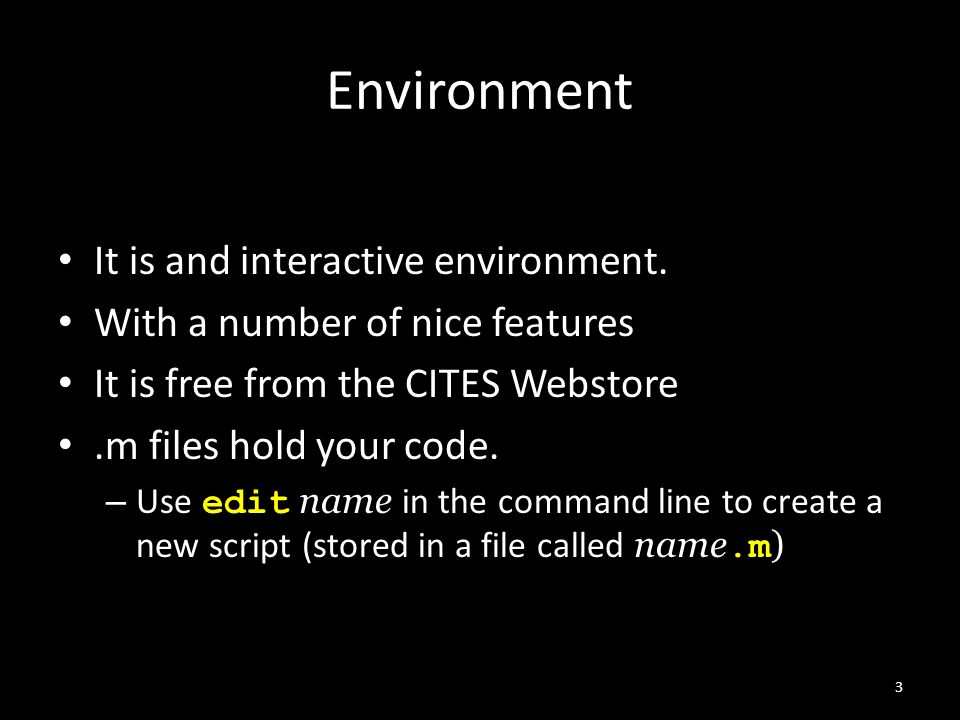

3. Environment It is and interactive environment. With a number of nice features It is free from the CITES Webstore.m files hold your code. – Use edit name in the command line to create a new script (stored in a file called name.m ) 3

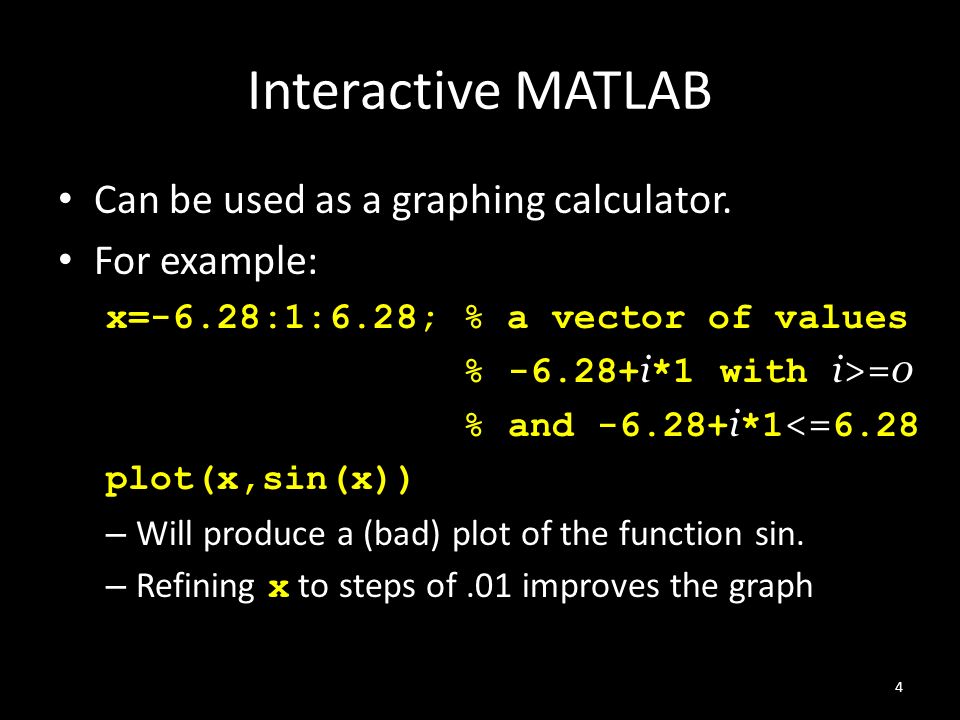

4. Interactive MATLAB Can be used as a graphing calculator. For example: x=-6.28:1:6.28; % a vector of values % -6.28+ i *1 with i>=0 % and -6.28+ i *1 <= 6.28 plot(x,sin(x)) – Will produce a (bad) plot of the function sin. – Refining x to steps of.01 improves the graph 4

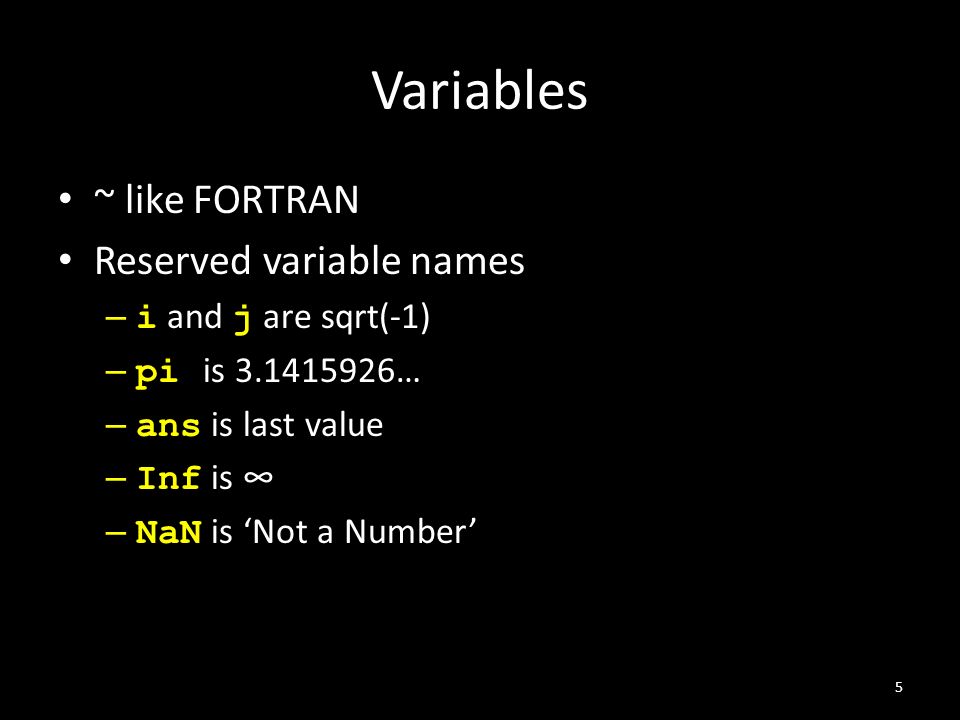

5. Variables ~ like FORTRAN Reserved variable names – i and j are sqrt(-1) – pi is 3.1415926… – ans is last value – Inf is ∞ – NaN is ‘Not a Number’ 5

6. Dynamic typing Type of variables can change dynamically. Sometime with unintended consequences. E.g. what is the output of for kk=1:10 w=2*i i=kk; end ? 6

7. Classes of objects S = class(OBJ) returns the name of the class of object OBJ. Possibilities are: double -- Double precision floating point number array (this is the traditional MATLAB matrix or array) single -- Single precision floating point number array logical -- Logical array char -- Character array cell -- Cell array struct -- Structure array 7

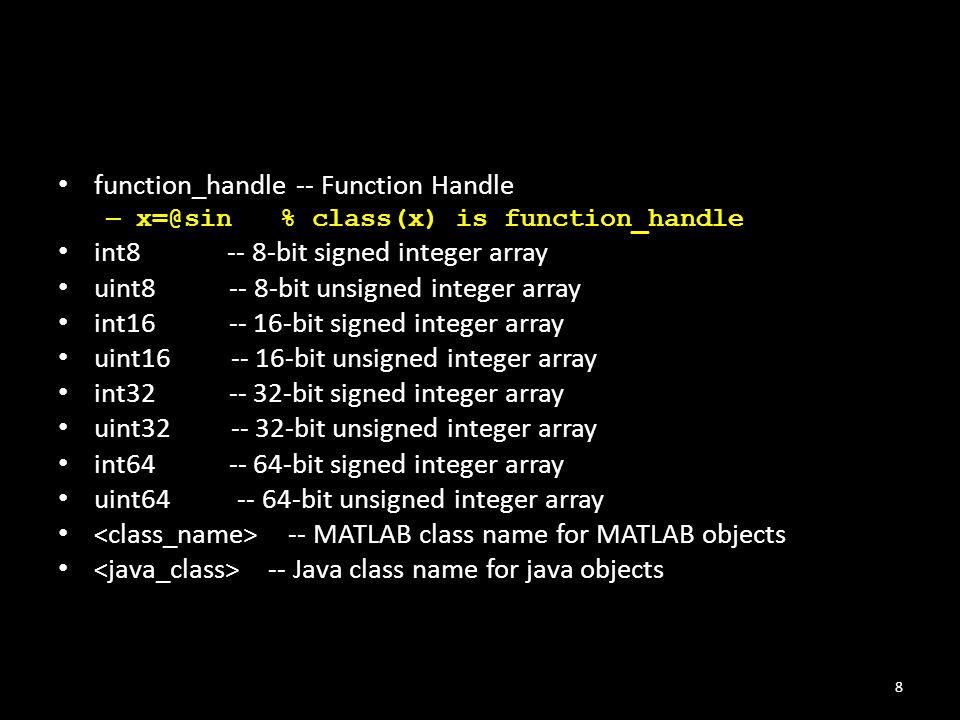

8. function_handle -- Function Handle – x=@sin % class(x) is function_handle int8 -- 8-bit signed integer array uint8 -- 8-bit unsigned integer array int16 -- 16-bit signed integer array uint16 -- 16-bit unsigned integer array int32 -- 32-bit signed integer array uint32 -- 32-bit unsigned integer array int64 -- 64-bit signed integer array uint64 -- 64-bit unsigned integer array -- MATLAB class name for MATLAB objects -- Java class name for java objects 8

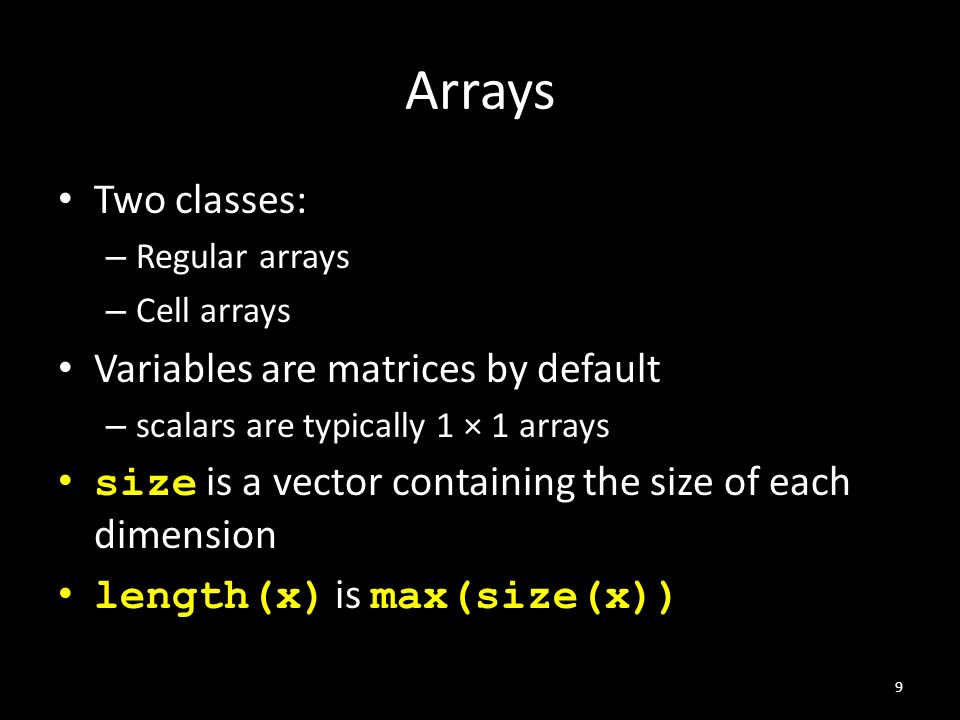

9. Arrays Two classes: – Regular arrays – Cell arrays Variables are matrices by default – scalars are typically 1 × 1 arrays size is a vector containing the size of each dimension length(x) is max(size(x)) 9

10. Arrays Constant arrays are list of values within brackets. Comma (, )of space separates elements of a row. Semicolon ( ; ) separates rows. Arrays of more than two dimensions cannot be represented as constants 10

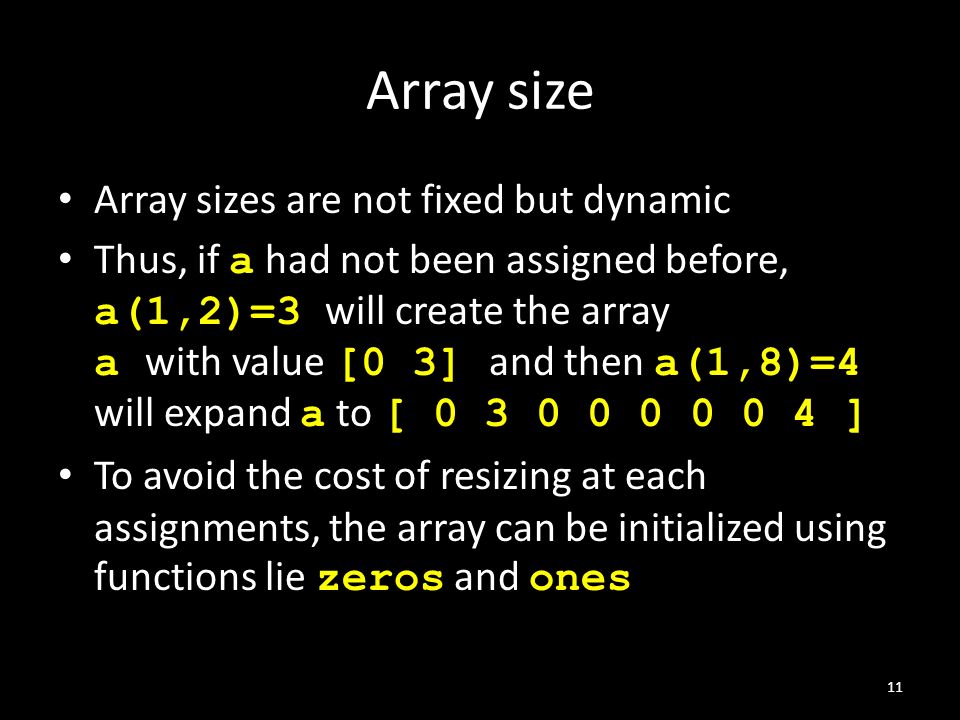

11. Array size Array sizes are not fixed but dynamic Thus, if a had not been assigned before, a(1,2)=3 will create the array a with value [0 3] and then a(1,8)=4 will expand a to [ 0 3 0 0 0 0 0 4 ] To avoid the cost of resizing at each assignments, the array can be initialized using functions lie zeros and ones 11

12. Expressions Arithmetic operations and intrinsic functions similar to FORTRAN. Typically extended to arrays to operate on an element by element basis. – Exception: for *, / and ^ (exponentiation) use.*,./, and.^ for element by element operations. Binary operators must work on conformable operands – Arrays that have the same size (including pairs of scalars. – One array and one scalar. 12

13. Expressions * is Matrix matrix multiplication / is matrix division ( a/b is a*inv(b) ) \ has a similar meaning ( a\b is inv(a)*b ) ^ is matrix exponentiation ( a^2 is a*a ) 13

14. Accessing array elements Use scalars, – a(2,3) triplet notation, – a(init:step:end) are the a( k ) where k is an element of the vector init:step:end – init, step and end are optional default to 1, 1 and length(a) respectively. or a combination of these. – a(3, 5:7, 6:3, 4) 14

15. Assigning arrays Array assignment statement, the right hand side is evaluated before any value is assigned. E.g. how much faster will the assignment a=zeros make the loop? % a=zeros(1,1000000); tic for i=1:1000000 a(i)=0; end toc 15

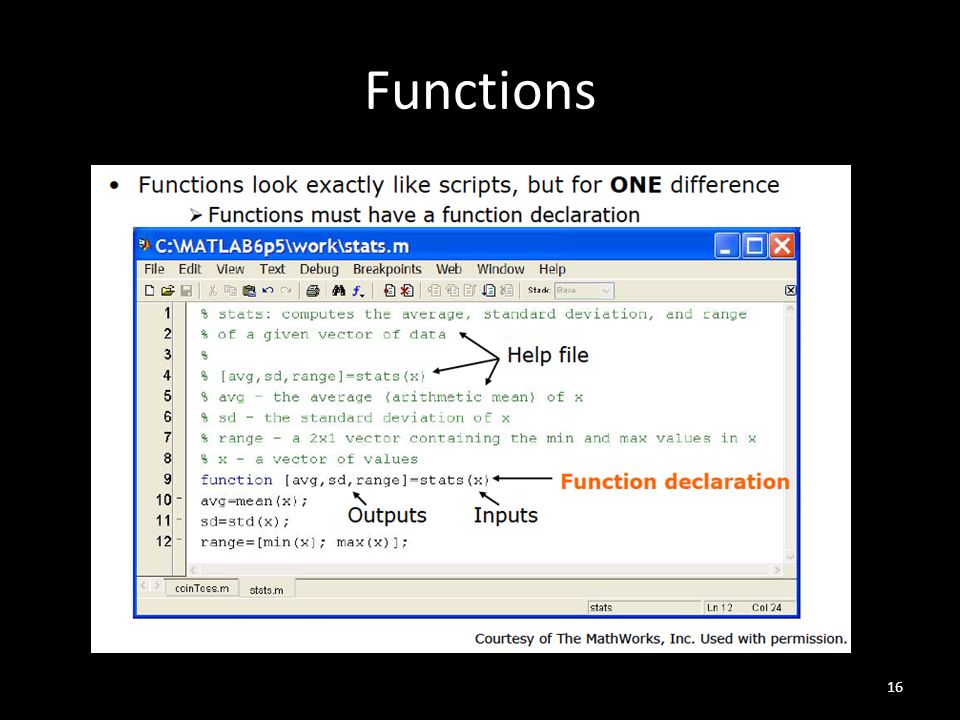

16. Functions 16

17. Input parameter passing Parameters are typically passed by value. The parameter passing is implemented using copy-on-write strategy. 17

18. Flow of control if cond command end if cond command else command end 18 if cond command elseif cond command … else command end

19. Flow of control There are also for loops and while loops for n=1:20 commands end while cond commands end 19

20. Cell arrays Can have heterogeneous elements Access using curly brackets – a=cell(2,3) – a{1,2}=‘this is a string ’ – a{2,3}=5 Can use triplets and array operations such as transpose. 20

21. Structs Can be created using struct – c=struct('a',1) And entries can be added dynamically – c.b=3 21

22. Classes MATLAB classes are defined using classdef Subclasses Abstract classes And privacy control It is possible to dynamically add properties to an instance. – Use addprop for instance of objects whose class is a subclass of dynamicprops 22

23. Classes classdef orderednode < handle properties id end properties (SetAccess = private) prev next end methods function node = orderednode(n) node.id = 0; if nargin > 0 node.id = n; end end function disp(node) if isscalar(node) if ~isempty(node.id) disp(node.id); end disp(node.next); else disp('Array of nodes'); end function t = gt(a,b) t = (a.id > b.id); end 23 function insert(node, head) if isempty(head) error('no list provided'); end cur = head; last = []; while ~isempty(cur) && node > cur last = cur; cur = cur.next; end if node == cur error('Node already in the list'); end if isempty(last) node.next = head; node.prev = []; head.prev = node; else last.next = node; node.prev = last; node.next = cur; if ~isempty(cur) cur.prev = node; end classname subclass privacy Overloading ‘>’

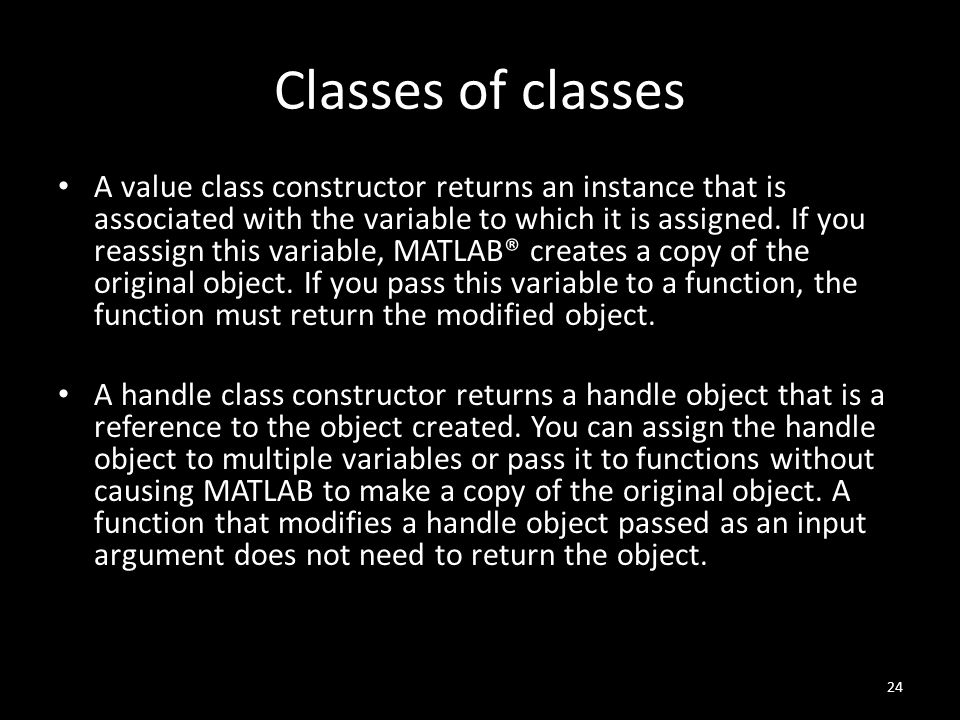

24. Classes of classes A value class constructor returns an instance that is associated with the variable to which it is assigned. If you reassign this variable, MATLAB® creates a copy of the original object. If you pass this variable to a function, the function must return the modified object. A handle class constructor returns a handle object that is a reference to the object created. You can assign the handle object to multiple variables or pass it to functions without causing MATLAB to make a copy of the original object. A function that modifies a handle object passed as an input argument does not need to return the object. 24

25. Using MATLAB as glue code Calling C from MATLAB is “easy” Use MEX files 25

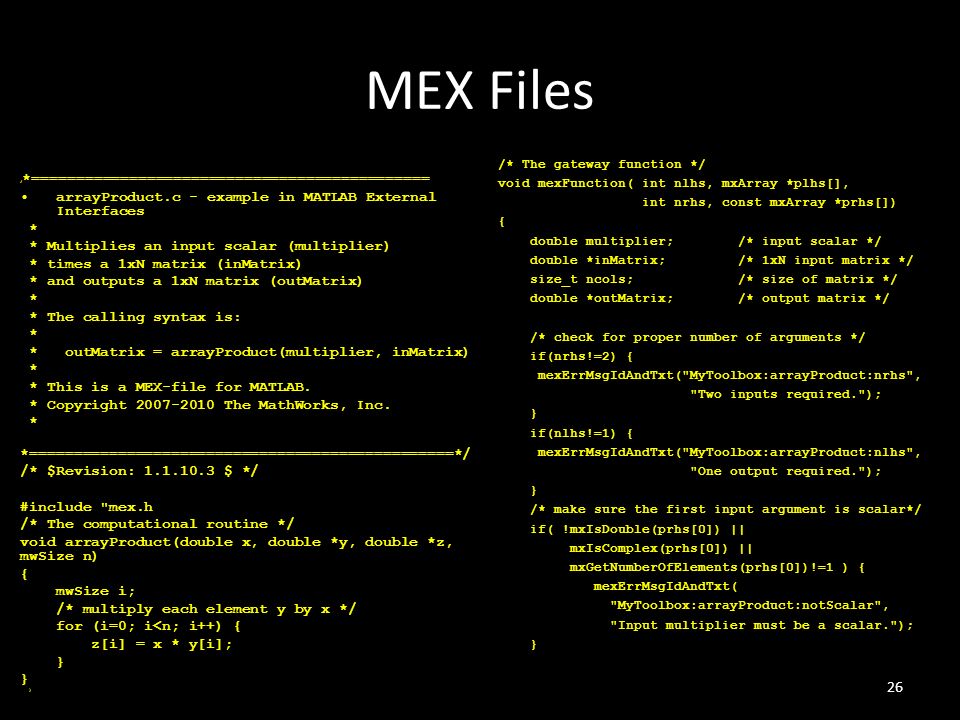

26. MEX Files / *============================================= arrayProduct.c - example in MATLAB External Interfaces * * Multiplies an input scalar (multiplier) * times a 1xN matrix (inMatrix) * and outputs a 1xN matrix (outMatrix) * * The calling syntax is: * * outMatrix = arrayProduct(multiplier, inMatrix) * * This is a MEX-file for MATLAB. * Copyright 2007-2010 The MathWorks, Inc. * *================================================*/ /* $Revision: 1.1.10.3 $ */ #include "mex.h /* The computational routine */ void arrayProduct(double x, double *y, double *z, mwSize n) { mwSize i; /* multiply each element y by x */ for (i=0; i<n; i++) { z[i] = x * y[i]; } /* The gateway function */ void mexFunction( int nlhs, mxArray *plhs[], int nrhs, const mxArray *prhs[]) { double multiplier; /* input scalar */ double *inMatrix; /* 1xN input matrix */ size_t ncols; /* size of matrix */ double *outMatrix; /* output matrix */ /* check for proper number of arguments */ if(nrhs!=2) { mexErrMsgIdAndTxt("MyToolbox:arrayProduct:nrhs", "Two inputs required."); } if(nlhs!=1) { mexErrMsgIdAndTxt("MyToolbox:arrayProduct:nlhs", "One output required."); } /* make sure the first input argument is scalar*/ if( !mxIsDouble(prhs[0]) || mxIsComplex(prhs[0]) || mxGetNumberOfElements(prhs[0])!=1 ) { mexErrMsgIdAndTxt( "MyToolbox:arrayProduct:notScalar", "Input multiplier must be a scalar."); } 26

27. MEX Files cont /* check that number of rows in second input argument is 1 */ if(mxGetM(prhs[1])!=1) { mexErrMsgIdAndTxt("MyToolbox:arrayProduct:notRowV ector","Input must be a row vector."); } /* get the value of the scalar input */ multiplier = mxGetScalar(prhs[0]); /* create a pointer to the real data in the input matrix */ inMatrix = mxGetPr(prhs[1]); /* get dimensions of the input matrix */ ncols = mxGetN(prhs[1]); /* create the output matrix */ plhs[0] = mxCreateDoubleMatrix(1,(mwSize)ncols,mxREAL); /* get a pointer to the real data in the output matrix */ outMatrix = mxGetPr(plhs[0]); /* call the computational routine */ arrayProduct(multiplier,inMatrix,outMatrix,(mwSiz e)ncols); } 27 s = 5; A = [1.5, 2, 9]; B = arrayProduct(s,A)

28. HIERARCHICALLY TILED ARRAYS 28

29. Array operations for parallelism Array operations are a great example of abstractions for parallel programming. – Can be implemented sequentially and in parallel. – Given two arrays, A and B, A*B can represent either dense or sparse computations 29

30. Array operations for programmability Matrix addition in scalar mode for i=1:m, for j=1:l, c(i,j)= a(i,j) + b(i,j); end Matrix addition in array notation is simpler c = a + b; 30

31. An important generalization: Hierarchically Tiled Arrays Recognizes the importance of blocking/tiling for locality and parallel programming. Makes tiles first class objects. – Referenced explicitly. – Manipulated using array operations such as reductions, gather, etc.. 31

32. Locality Distributed A hierarchically tiled array 32 Ganesh Bikshandi, Jia Guo, Daniel Hoeflinger, Gheorghe Almasi, Basilio B. Fraguela, María J. Garzarán, David Padua, and Christoph von Praun. 2006. Programming for parallelism and locality with hierarchically tiled arrays. In Proceedings of the eleventh ACM SIGPLAN symposium on Principles and practice of parallel programming (PPoPP '06). ACM, New York, NY, USA, 48-57.

33. An Example: Summa T2{:,:} B T1{:,:} * function C = summa (A, B, C) for k=1:m T1 = repmat(A{:, k}, 1, m); T2 = repmat(B{k, :}, m, 1); C = C + T1{:,:} * T2 {:,:}; end repmat broadcast parallel computation 33
