1. Week 3 Exploring Linux Filesystems

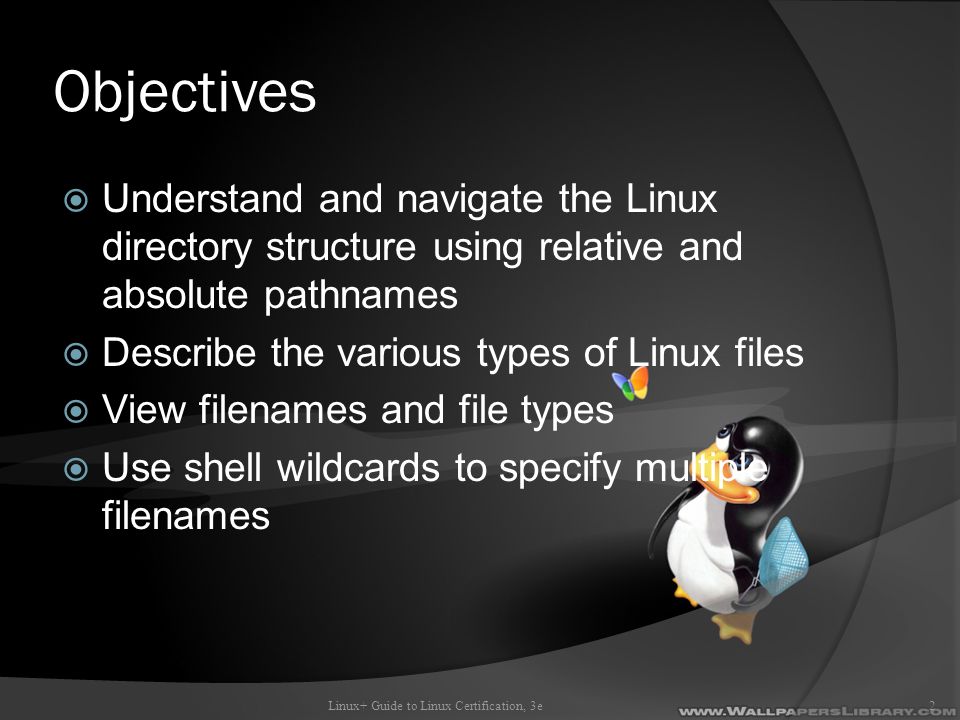

2. Objectives  Understand and navigate the Linux directory structure using relative and absolute pathnames  Describe the various types of Linux files  View filenames and file types  Use shell wildcards to specify multiple filenames Linux+ Guide to Linux Certification, 3e2

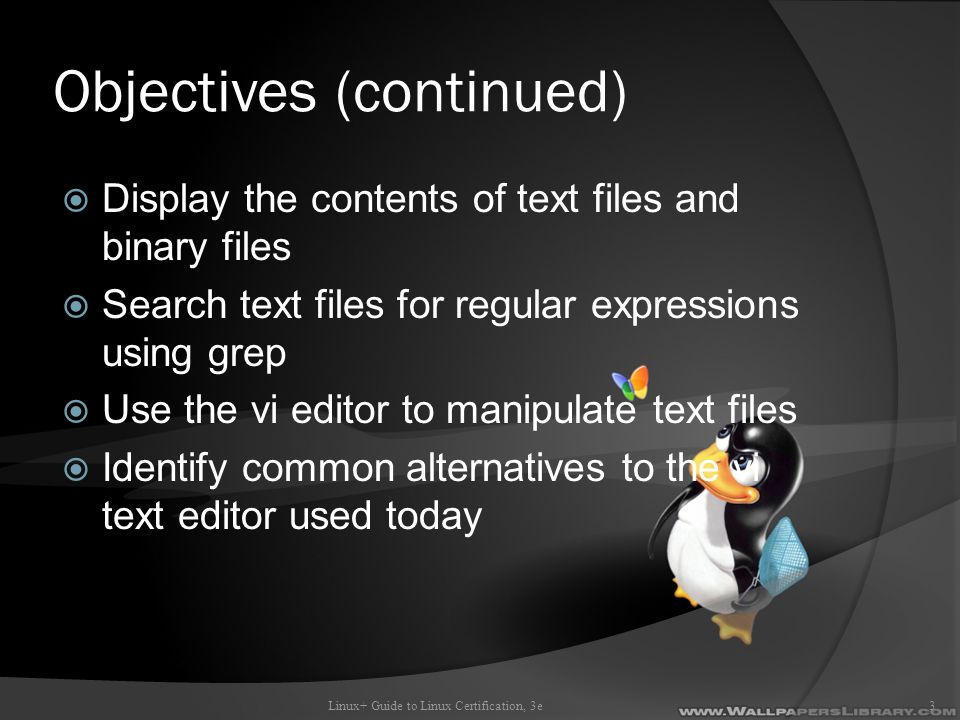

3. Objectives (continued)  Display the contents of text files and binary files  Search text files for regular expressions using grep  Use the vi editor to manipulate text files  Identify common alternatives to the vi text editor used today Linux+ Guide to Linux Certification, 3e3

4. The Linux Directory Structure  Directory: Used to organize other files into a logical tree structure Stored in a filesystem of a specific partition in the hard disk  Absolute pathname: Pathname from the root directory to a certain file or directory  Root: The top level directory Referred to using the / character Forms root of a hierarchical tree Linux+ Guide to Linux Certification, 3e4

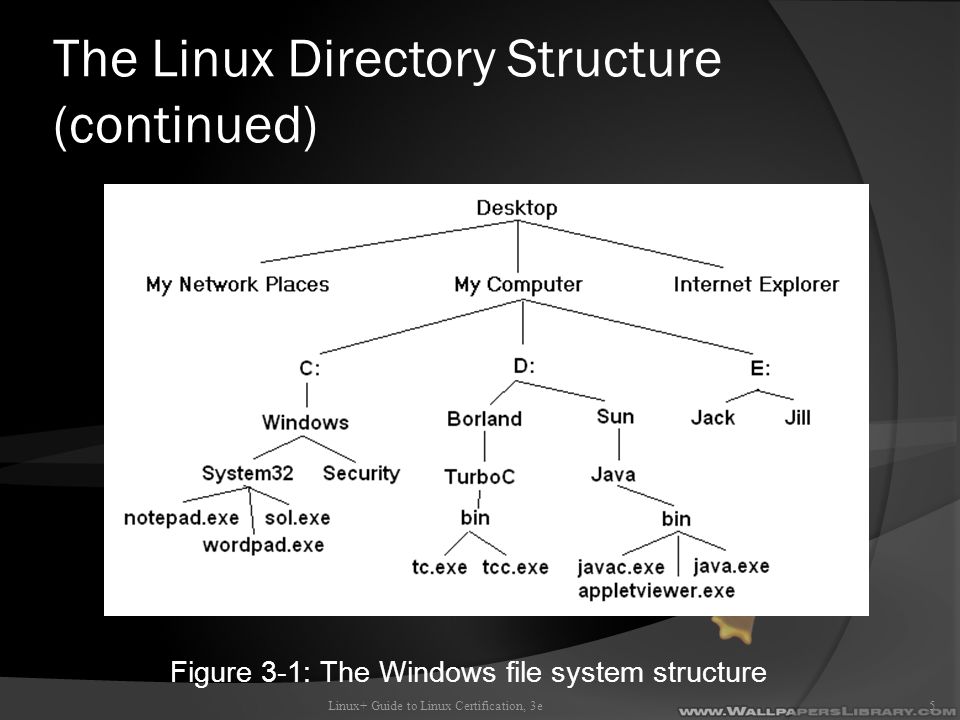

5. The Linux Directory Structure (continued) Linux+ Guide to Linux Certification, 3e5 Figure 3-1: The Windows file system structure

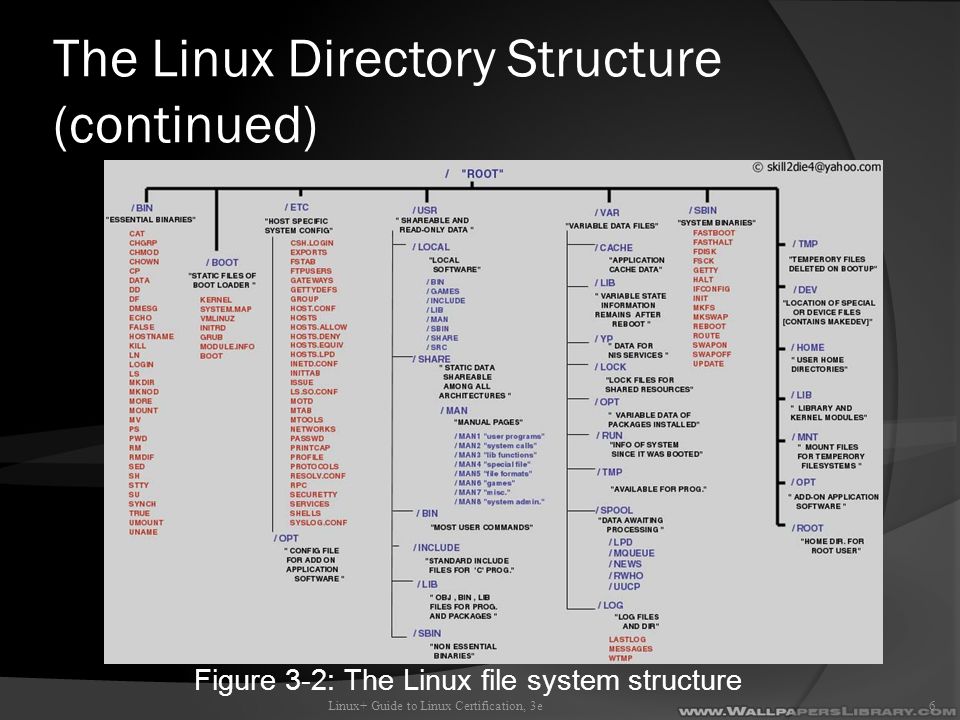

6. The Linux Directory Structure (continued) Linux+ Guide to Linux Certification, 3e6 Figure 3-2: The Linux file system structure

7. Changing Directories  Home directory: unique to each user ~ metacharacter used to refer to home directory  pwd (print working directory) command: displays current directory in the directory tree  cd (change directory) command: change the current directory in the directory tree Argument specifies the destination directory  Relative pathname: pathname of file or directory relative to current directory Linux+ Guide to Linux Certification, 3e7

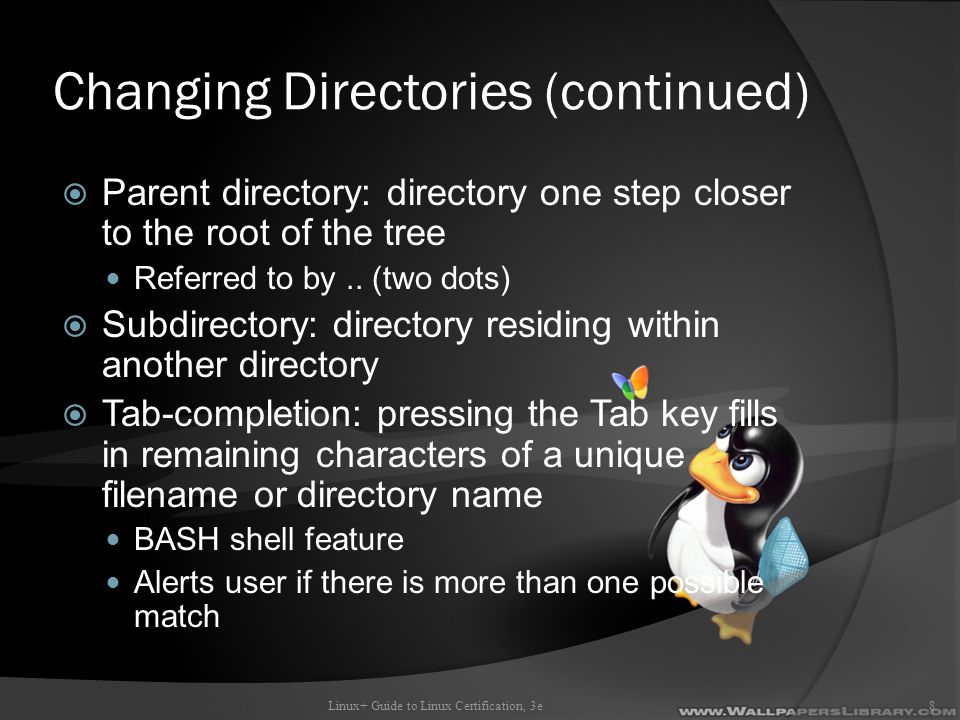

8. Changing Directories (continued)  Parent directory: directory one step closer to the root of the tree Referred to by.. (two dots)  Subdirectory: directory residing within another directory  Tab-completion: pressing the Tab key fills in remaining characters of a unique filename or directory name BASH shell feature Alerts user if there is more than one possible match Linux+ Guide to Linux Certification, 3e8

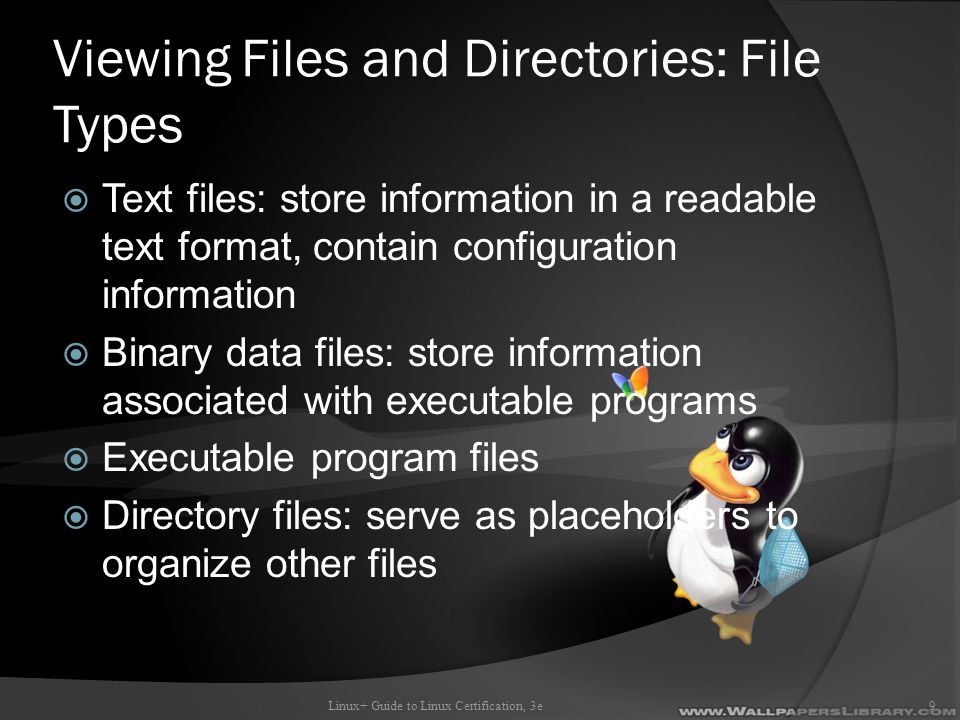

9. Viewing Files and Directories: File Types  Text files: store information in a readable text format, contain configuration information  Binary data files: store information associated with executable programs  Executable program files  Directory files: serve as placeholders to organize other files Linux+ Guide to Linux Certification, 3e9

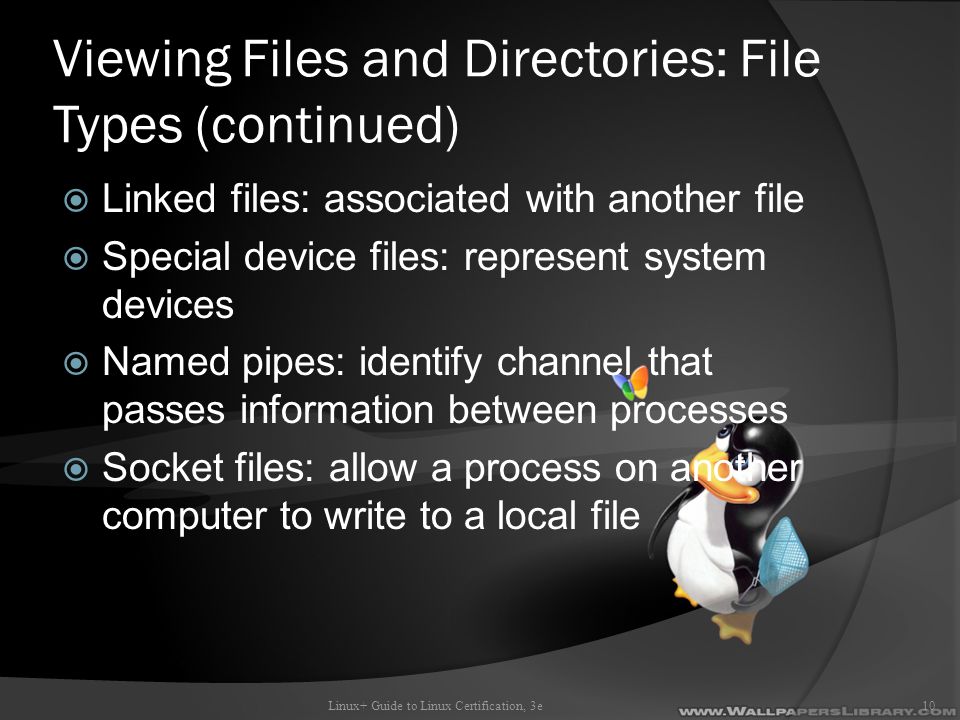

10. Viewing Files and Directories: File Types (continued)  Linked files: associated with another file  Special device files: represent system devices  Named pipes: identify channel that passes information between processes  Socket files: allow a process on another computer to write to a local file Linux+ Guide to Linux Certification, 3e10

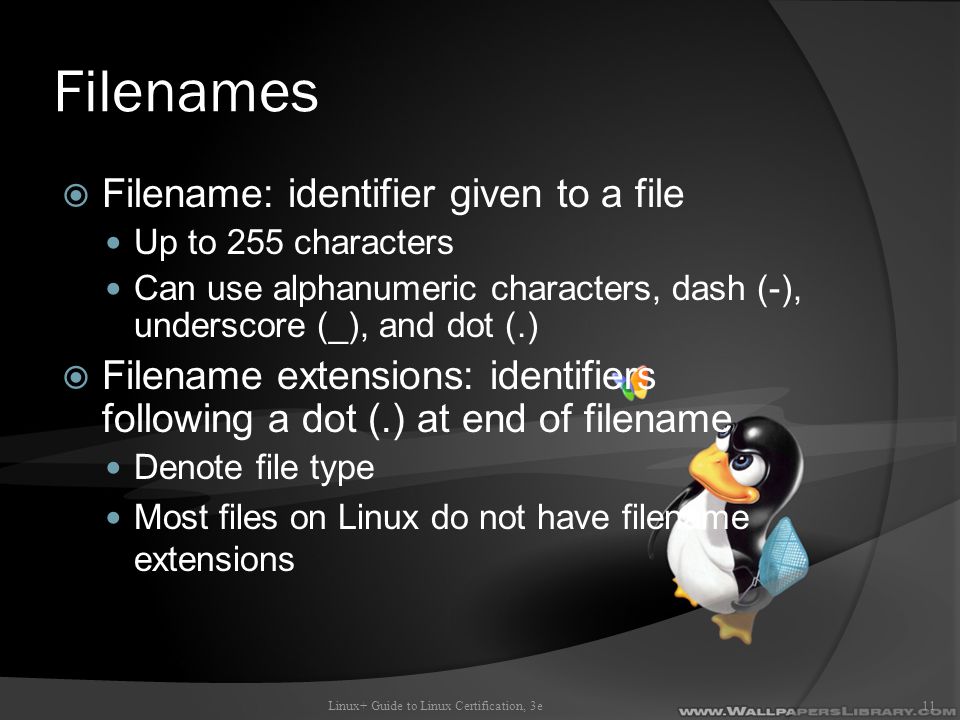

11. Filenames  Filename: identifier given to a file Up to 255 characters Can use alphanumeric characters, dash (-), underscore (_), and dot (.)  Filename extensions: identifiers following a dot (.) at end of filename Denote file type Most files on Linux do not have filename extensions Linux+ Guide to Linux Certification, 3e11

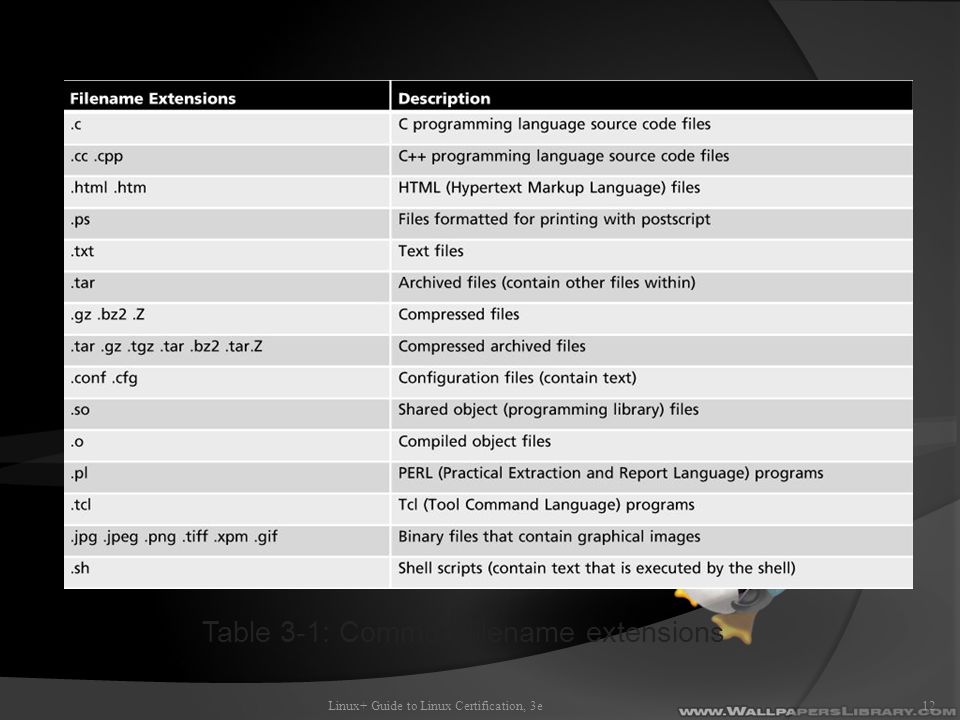

12. Linux+ Guide to Linux Certification, 3e12 Table 3-1: Common filename extensions

13. Listing Files  ls command: List the files in a directory May pass an argument indicating the directory to be listed ○ –F option: Argument to indicate file types ○ –l option: Argument to list long file listings Linux+ Guide to Linux Certification, 3e13

14. Listing Files (continued)  Long listing for each file includes eight components File type character List of permissions (mode of the file) Hard link count Owner Group owner File size Most recent modification time Filename Linux+ Guide to Linux Certification, 3e14

15. Listing Files (continued)  Alias: shortcut for a command ll command: Alias for ls -l  File command: displays file type of any file Argument indicates what file or files to analyze Identifies between different types of executable files Identifies empty files  Hidden files: files not normally displayed to user Configuration files often hidden Filenames start with a dot (.) ls –a command: displays hidden files Linux+ Guide to Linux Certification, 3e15

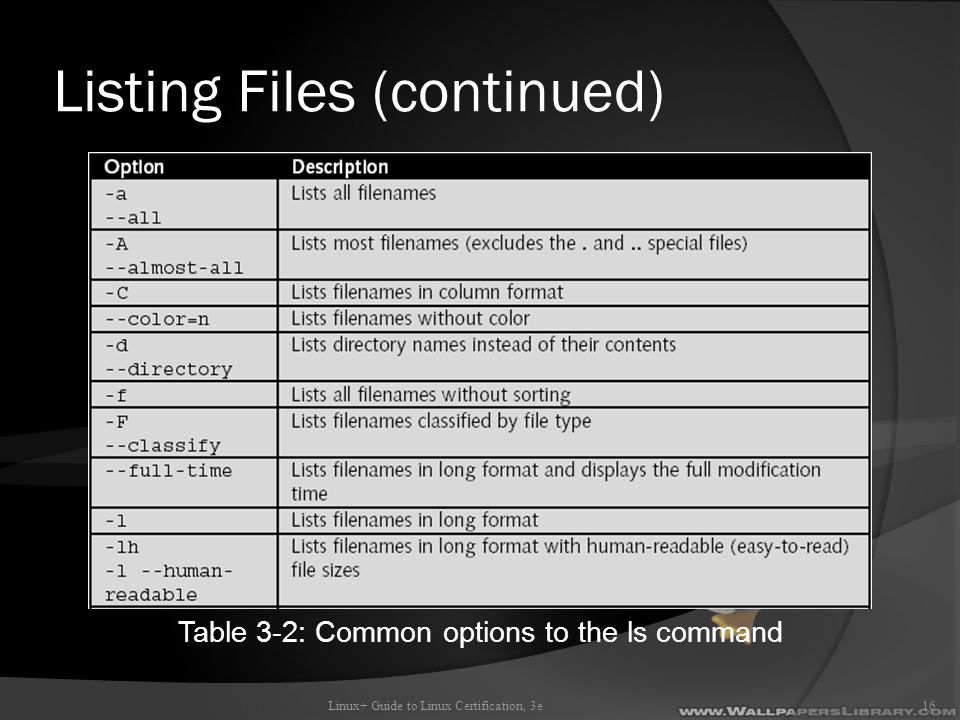

16. Listing Files (continued) Linux+ Guide to Linux Certification, 3e16 Table 3-2: Common options to the ls command

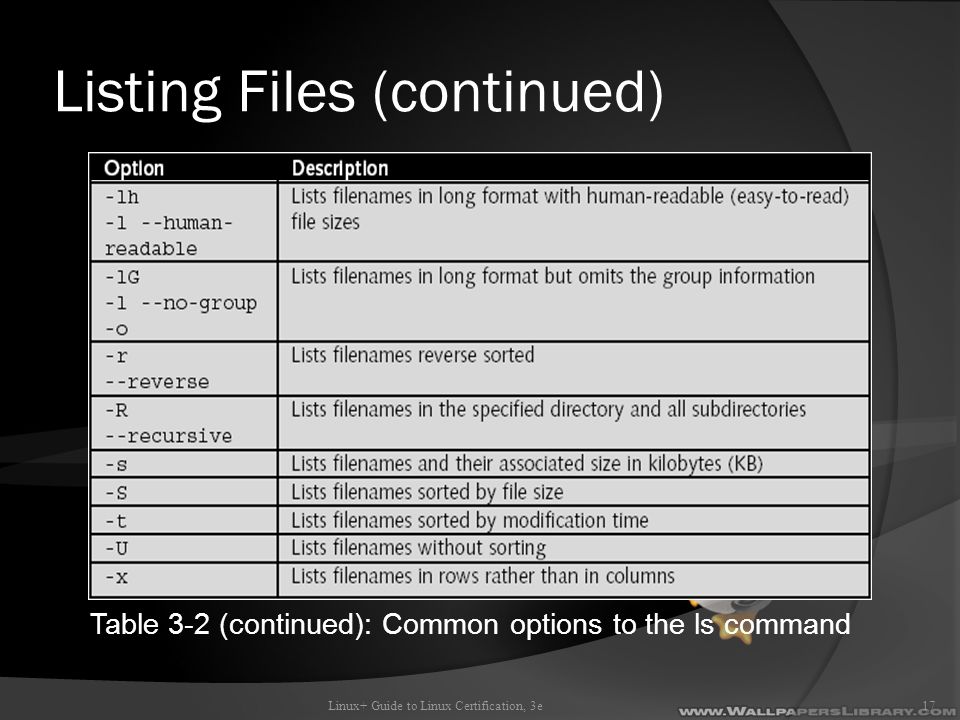

17. Listing Files (continued) Linux+ Guide to Linux Certification, 3e17 Table 3-2 (continued): Common options to the ls command

18. Wildcard Metacharacters  Wildcard metacharacter: used to simplify commands specifying multiple filenames Can match the entire filename or portions of filenames Can be used with most Linux filesystem commands Linux+ Guide to Linux Certification, 3e18

19. Wildcard Metacharacters (continued) Linux+ Guide to Linux Certification, 3e19 Table 3-3: Wildcard metacharacters

20. Displaying Content of Text Files  Concatenation: joining text together  cat command: displays (concatenates) contents of a text file to the screen -n option: displays line number and contents  Log files: contain records of past system events New events appended to end  tac command: displays contents of a text file in reverse order Linux+ Guide to Linux Certification, 3e20

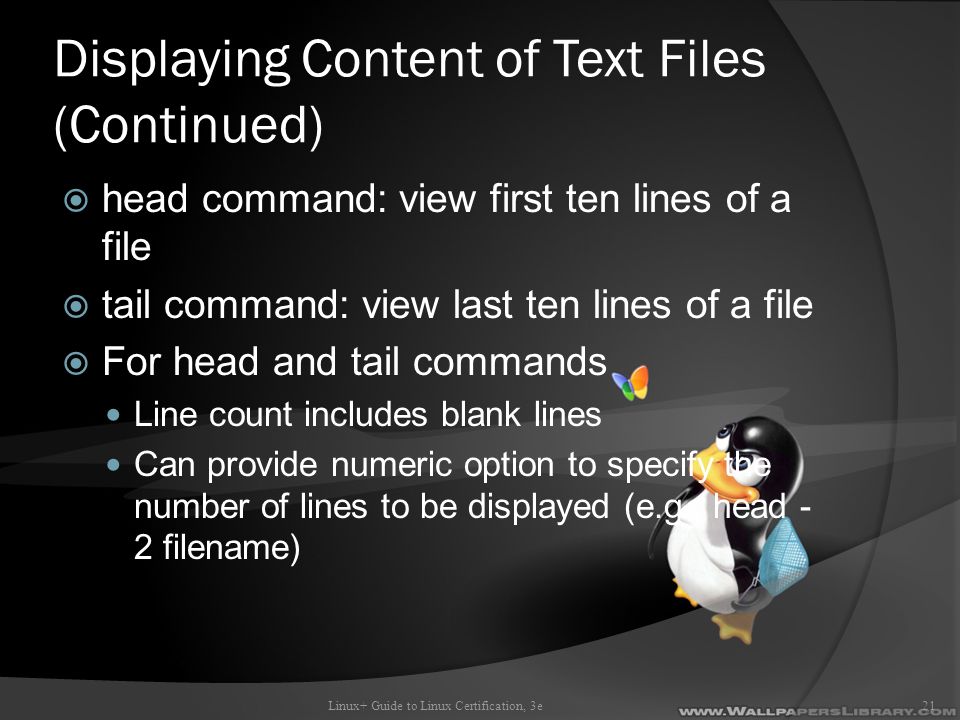

21. Displaying Content of Text Files (Continued)  head command: view first ten lines of a file  tail command: view last ten lines of a file  For head and tail commands Line count includes blank lines Can provide numeric option to specify the number of lines to be displayed (e.g., head - 2 filename) Linux+ Guide to Linux Certification, 3e21

22. Displaying Content of Text Files (continued)  Large text files can not be viewed using the cat command, because the screen will only fit a portion of the file  more command: displays text files page- by-page Pressing Spacebar displays the next page Pressing Enter displays the next line  less command: same as more command, but can also use cursor to scroll Linux+ Guide to Linux Certification, 3e22

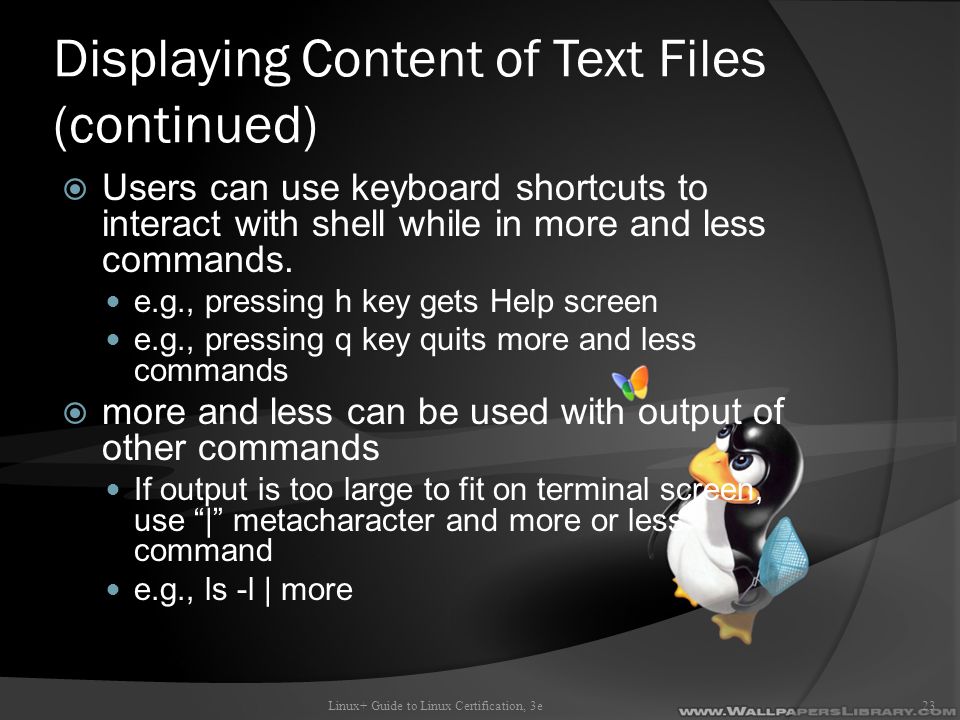

23. Displaying Content of Text Files (continued)  Users can use keyboard shortcuts to interact with shell while in more and less commands. e.g., pressing h key gets Help screen e.g., pressing q key quits more and less commands  more and less can be used with output of other commands If output is too large to fit on terminal screen, use “|” metacharacter and more or less command e.g., ls -l | more Linux+ Guide to Linux Certification, 3e23

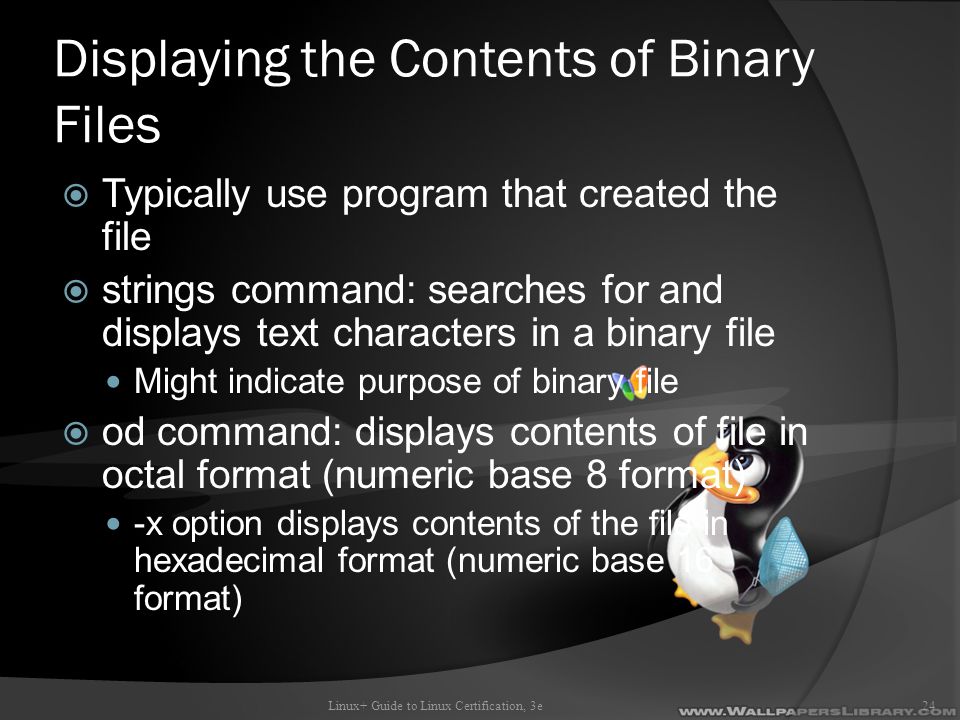

24. Displaying the Contents of Binary Files  Typically use program that created the file  strings command: searches for and displays text characters in a binary file Might indicate purpose of binary file  od command: displays contents of file in octal format (numeric base 8 format) -x option displays contents of the file in hexadecimal format (numeric base 16 format) Linux+ Guide to Linux Certification, 3e24

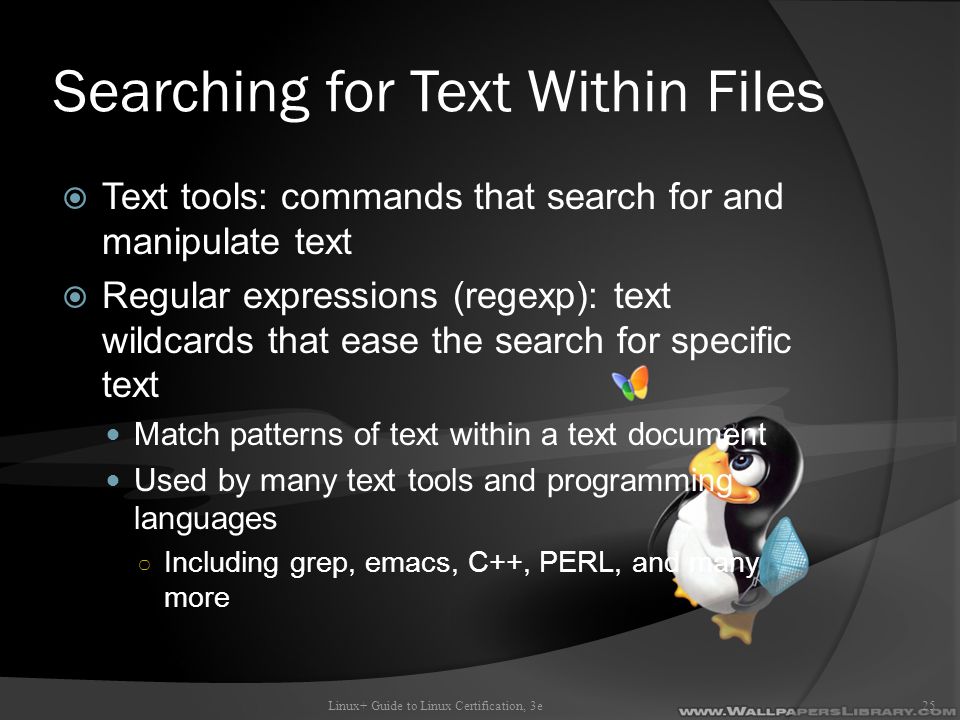

25. Searching for Text Within Files  Text tools: commands that search for and manipulate text  Regular expressions (regexp): text wildcards that ease the search for specific text Match patterns of text within a text document Used by many text tools and programming languages ○ Including grep, emacs, C++, PERL, and many more Linux+ Guide to Linux Certification, 3e25

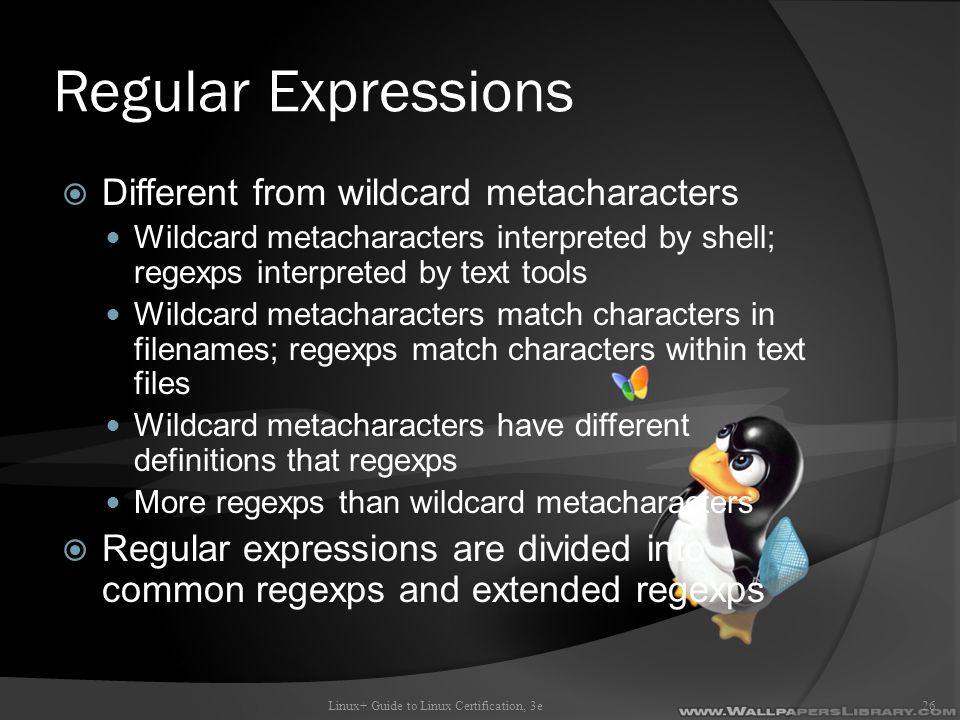

26. Regular Expressions  Different from wildcard metacharacters Wildcard metacharacters interpreted by shell; regexps interpreted by text tools Wildcard metacharacters match characters in filenames; regexps match characters within text files Wildcard metacharacters have different definitions that regexps More regexps than wildcard metacharacters  Regular expressions are divided into common regexps and extended regexps Linux+ Guide to Linux Certification, 3e26

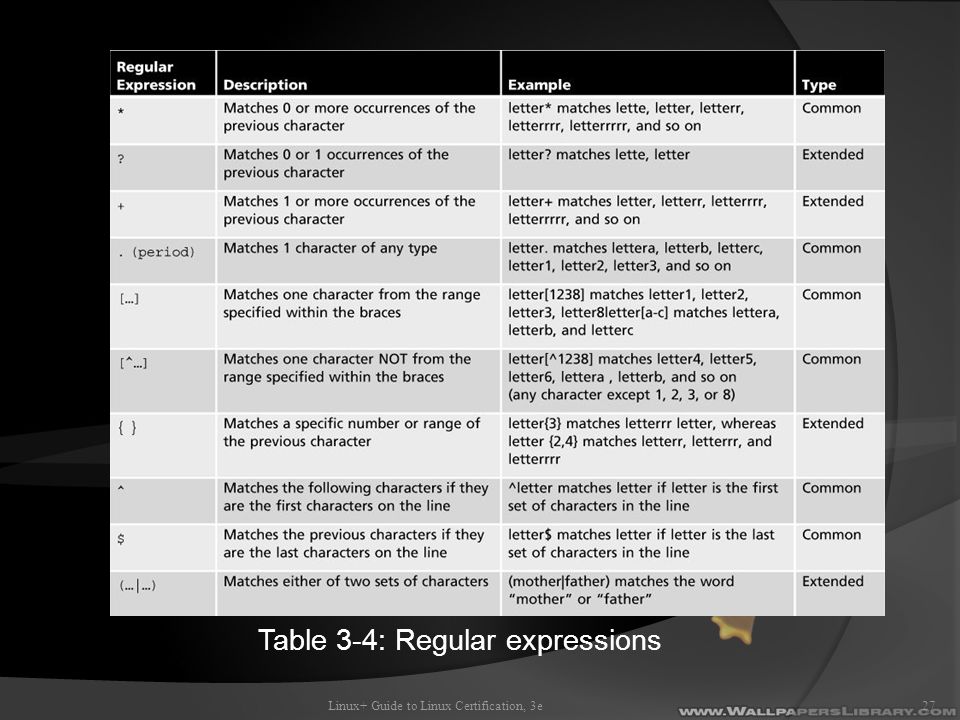

27. Linux+ Guide to Linux Certification, 3e27 Table 3-4: Regular expressions

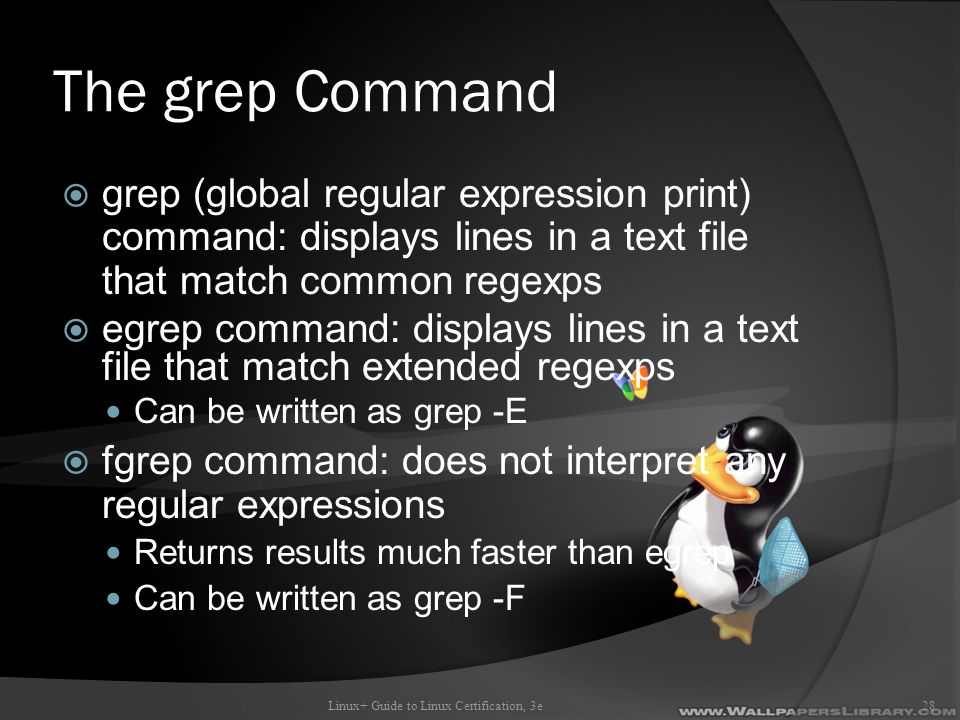

28. The grep Command  grep (global regular expression print) command: displays lines in a text file that match common regexps  egrep command: displays lines in a text file that match extended regexps Can be written as grep -E  fgrep command: does not interpret any regular expressions Returns results much faster than egrep Can be written as grep -F Linux+ Guide to Linux Certification, 3e28

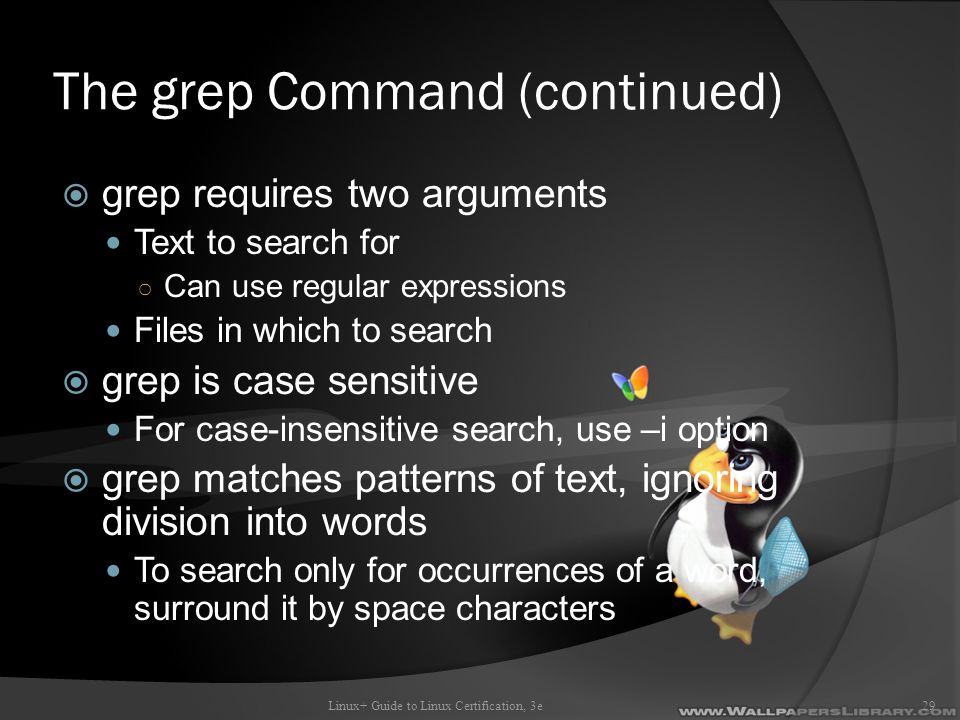

29. The grep Command (continued)  grep requires two arguments Text to search for ○ Can use regular expressions Files in which to search  grep is case sensitive For case-insensitive search, use –i option  grep matches patterns of text, ignoring division into words To search only for occurrences of a word, surround it by space characters Linux+ Guide to Linux Certification, 3e29

30. Editing Text Files: The vi Editor  One of the oldest and most popular text editors for UNIX OSs  Vim: Linux equivalent of vi Standard on most Linux distributions  Advantage is portability, not usability Used on Unix and Linux  Bi-modal editor (two possible modes): Command mode: Performs text editing tasks not related to inserting text Insert mode: Inserts text, but nothing else  User environment is customizable Linux+ Guide to Linux Certification, 3e30

31. Editing Text Files: The vi Editor (continued) Linux+ Guide to Linux Certification, 3e31 Table 3-5: Common keyboard keys used to change to and from insert mode

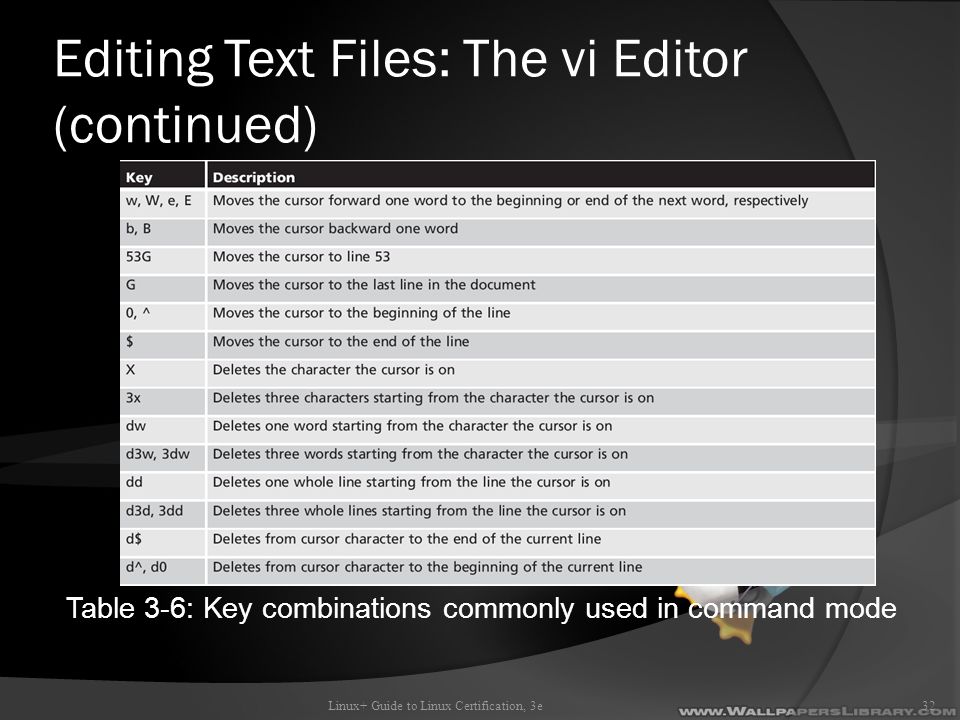

32. Editing Text Files: The vi Editor (continued) 32Linux+ Guide to Linux Certification, 3e Table 3-6: Key combinations commonly used in command mode

33. Editing Text Files: The vi Editor (continued) 33Linux+ Guide to Linux Certification, 3e Table 3-6 (continued): Key combinations commonly used in command mode

34. Editing Text Files: The vi Editor (continued) 34Linux+ Guide to Linux Certification, 3e Table 3-6 (continued): Key combinations commonly used in command mode

35. Editing Text Files: The vi Editor (continued) Linux+ Guide to Linux Certification, 3e35 Table 3-7: Key combinations commonly used at the command mode : prompt

36. Other Common Text Editors  Emacs (Editor MACroS) editor: comparable functionality to vi Ctrl key combinations to perform special functions Supports LISP (LISt Processing) artificial intelligence programming language  Emacs editor is not easy to use Must memorize key combination  Emacs can be run in a GUI environment to get a graphical version of the editor Much easier to use; icons replace key combinations Linux+ Guide to Linux Certification, 3e36

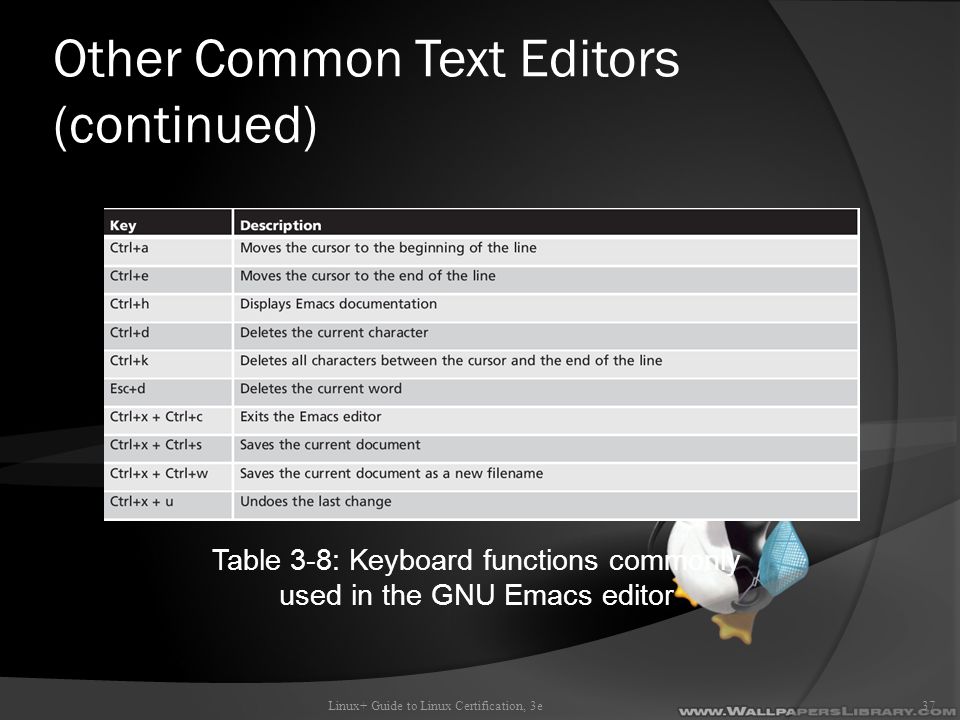

37. Other Common Text Editors (continued) Linux+ Guide to Linux Certification, 3e37 Table 3-8: Keyboard functions commonly used in the GNU Emacs editor

38. Other Common Text Editors (continued) Linux+ Guide to Linux Certification, 3e38 Figure 3-3: A graphical Emacs session

39. Other Common Text Editors (continued)  Nano editor: text editor that uses Ctrl key combinations for performing functions Based on the pine UNIX editor Ctrl key combinations listed at the bottom of the screen  Very basic and easy-to-use Used by Linux administrators to modify files when advanced functionality is not needed Linux+ Guide to Linux Certification, 3e39

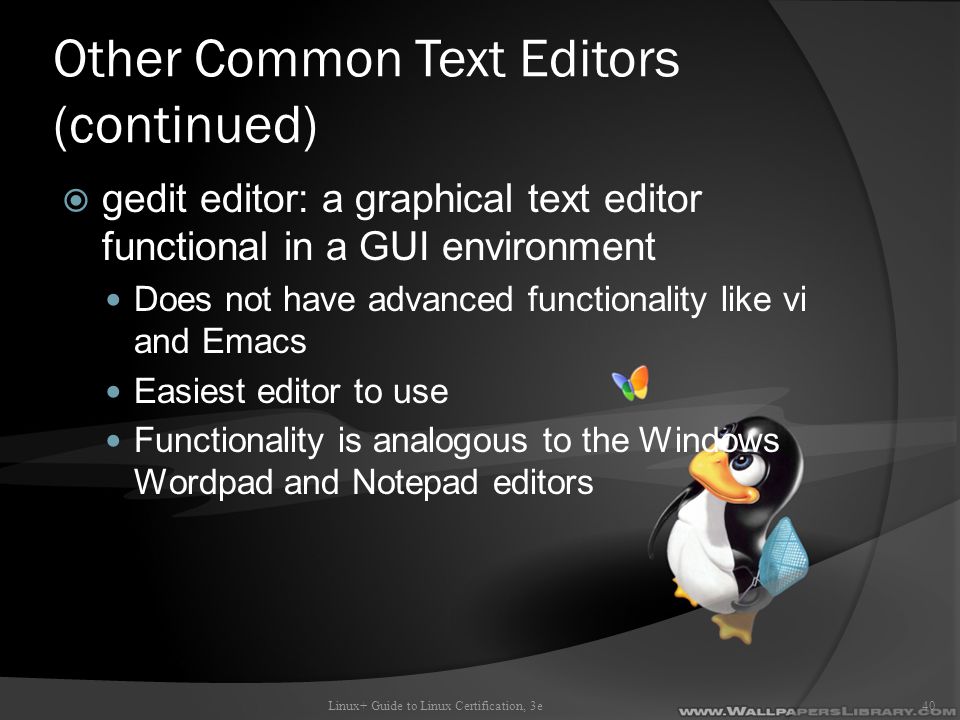

40. Other Common Text Editors (continued)  gedit editor: a graphical text editor functional in a GUI environment Does not have advanced functionality like vi and Emacs Easiest editor to use Functionality is analogous to the Windows Wordpad and Notepad editors Linux+ Guide to Linux Certification, 3e40

41. Other Common Text Editors (continued) Linux+ Guide to Linux Certification, 3e41 Figure 3-4: The gedit text editor

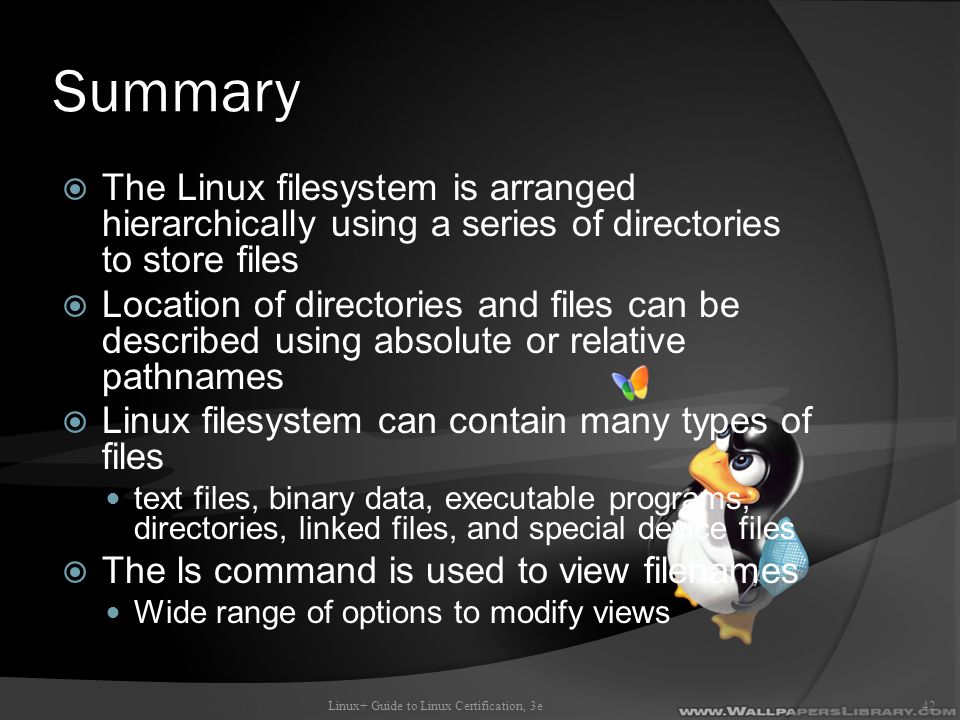

42. Summary  The Linux filesystem is arranged hierarchically using a series of directories to store files  Location of directories and files can be described using absolute or relative pathnames  Linux filesystem can contain many types of files text files, binary data, executable programs, directories, linked files, and special device files  The ls command is used to view filenames Wide range of options to modify views Linux+ Guide to Linux Certification, 3e42

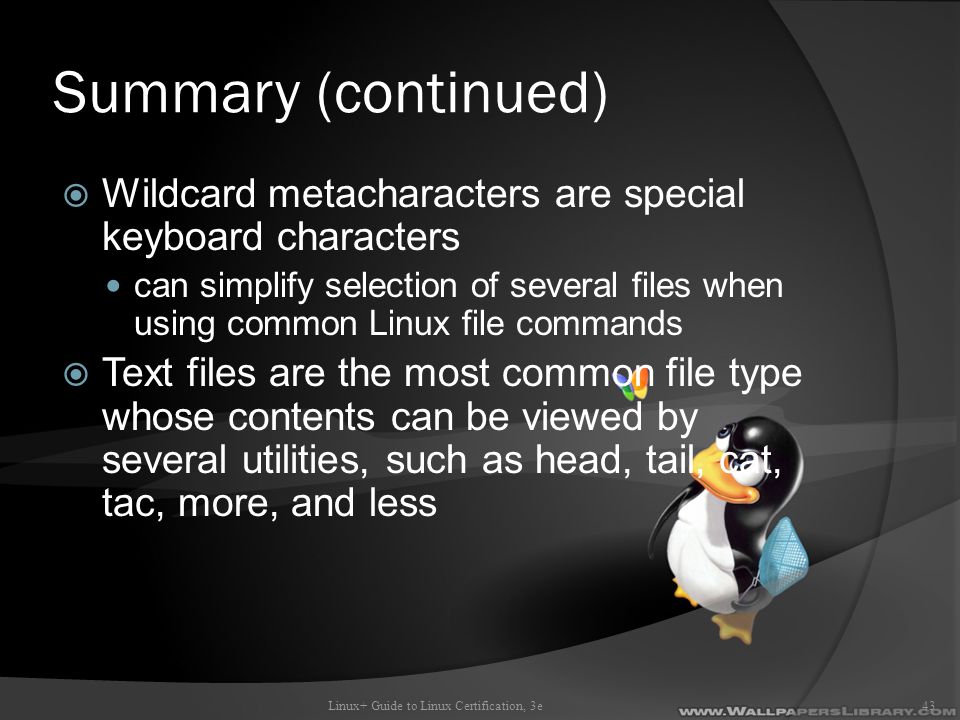

43. Summary (continued)  Wildcard metacharacters are special keyboard characters can simplify selection of several files when using common Linux file commands  Text files are the most common file type whose contents can be viewed by several utilities, such as head, tail, cat, tac, more, and less Linux+ Guide to Linux Certification, 3e43

44. Summary (continued)  Regular expression metacharacters can be used to specify certain patterns of text used with certain programming languages and text tool utilities such as grep  vi (vim) is a powerful, bimodal text editor that is standard on most UNIX and Linux systems Linux+ Guide to Linux Certification, 3e44
