Presentation on theme: "The Live Access Server (Access to observational data) Jonathan Callahan (University of Washington) Steve Hankin (NOAA/PMEL – PI) Roland Schweitzer, Kevin."— Presentation transcript:
The Live Access Server (Access to observational data) Jonathan Callahan (University of Washington) Steve Hankin (NOAA/PMEL – PI) Roland Schweitzer, Kevin OBrien, Ansley Manke, Steve Du, Xiaoping Wang, Joe Mclean, Joe Sirott, Jerry Davison
Gridded vs. Observational Data Clean Organized Labeled Voluminous Handled by machines Dirty Messy Often un/mis-labeled Increasingly voluminous Previously handled by hand

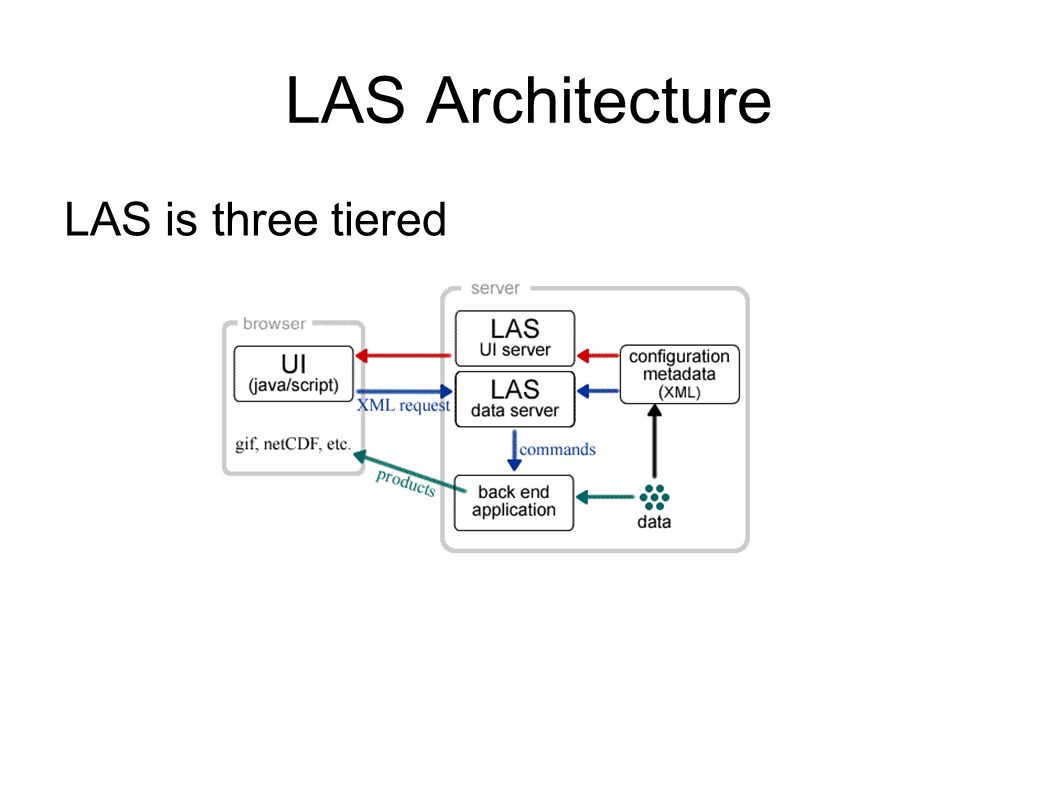

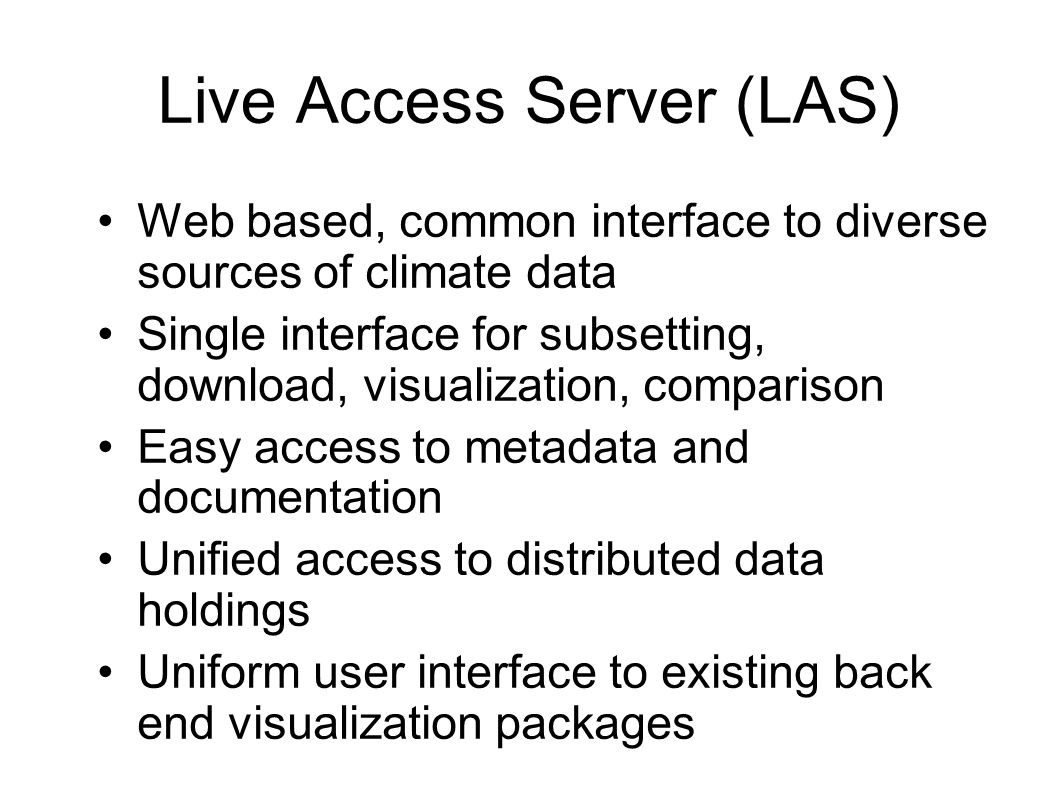

Live Access Server (LAS) Web based, common interface to diverse sources of climate data Single interface for subsetting, download, visualization, comparison Easy access to metadata and documentation Unified access to distributed data holdings Uniform user interface to existing back end visualization packages

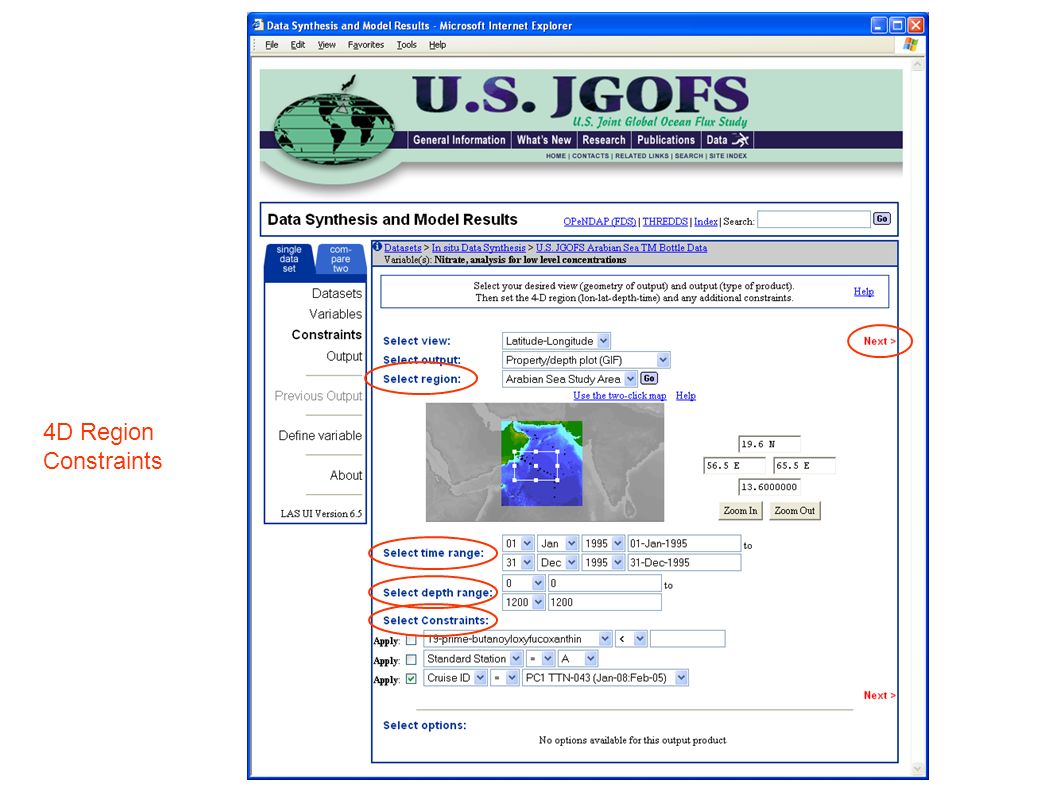

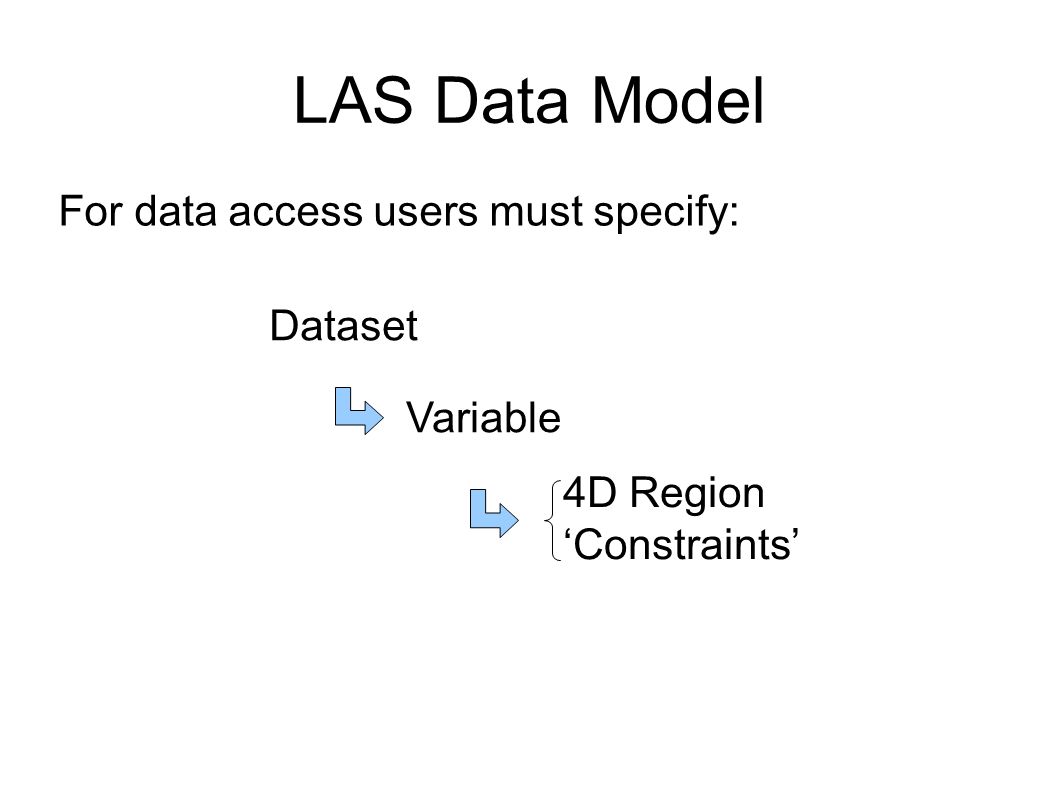

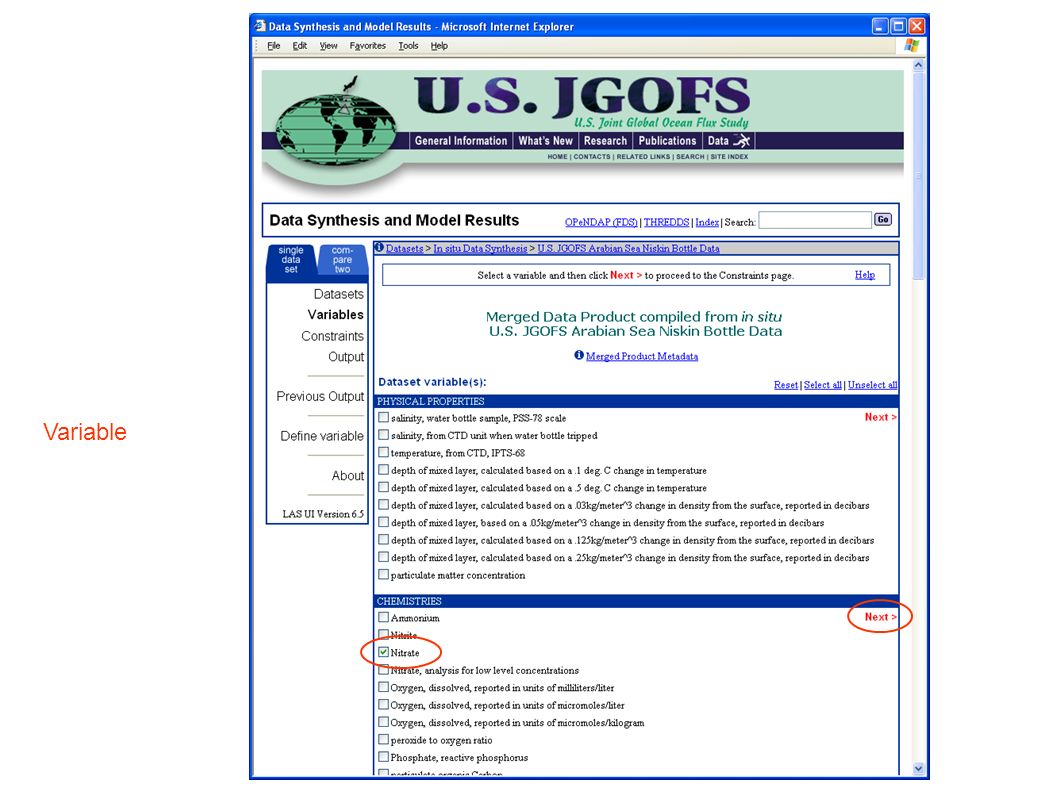

LAS Data Model For data access users must specify: Dataset Variable 4D Region Constraints

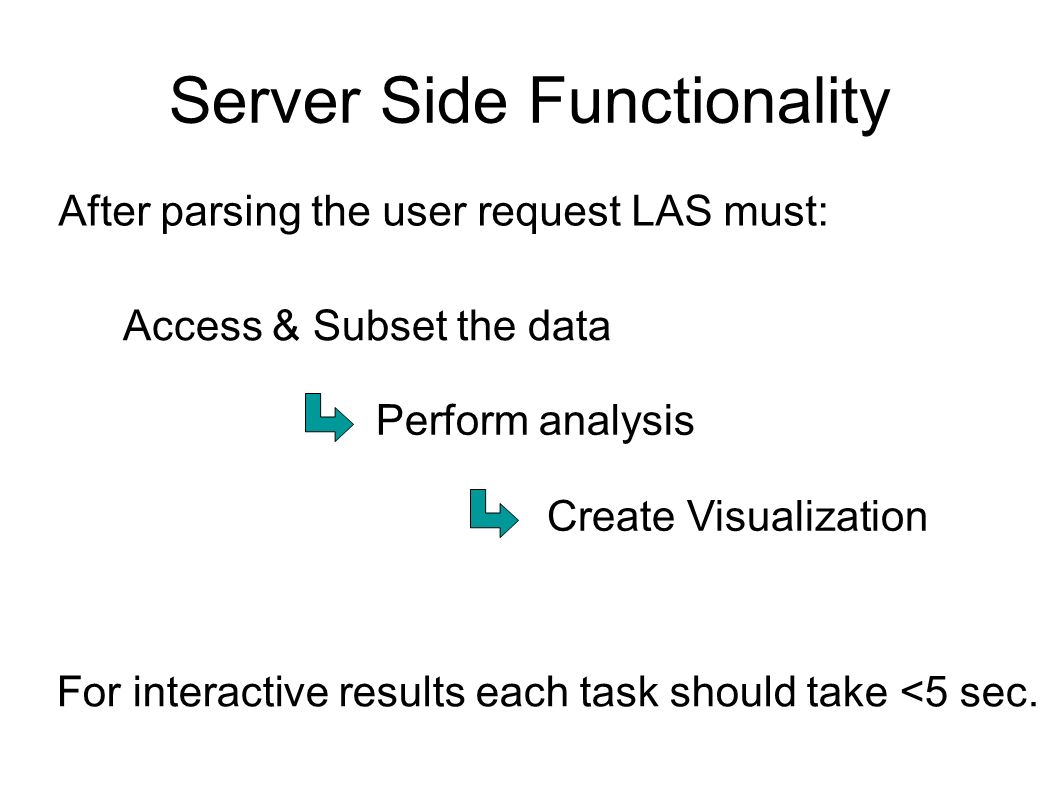

Server Side Functionality After parsing the user request LAS must: For interactive results each task should take <5 sec. Access & Subset the data Perform analysis Create Visualization

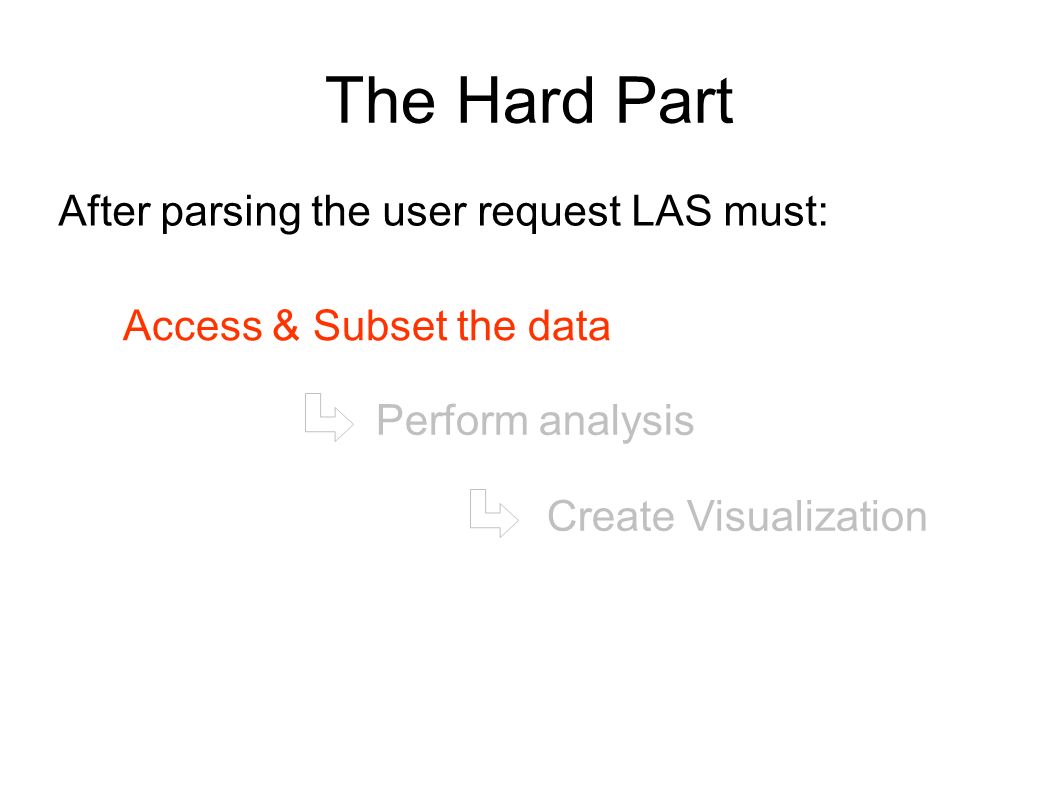

The Hard Part After parsing the user request LAS must: Access & Subset the data Perform analysis Create Visualization

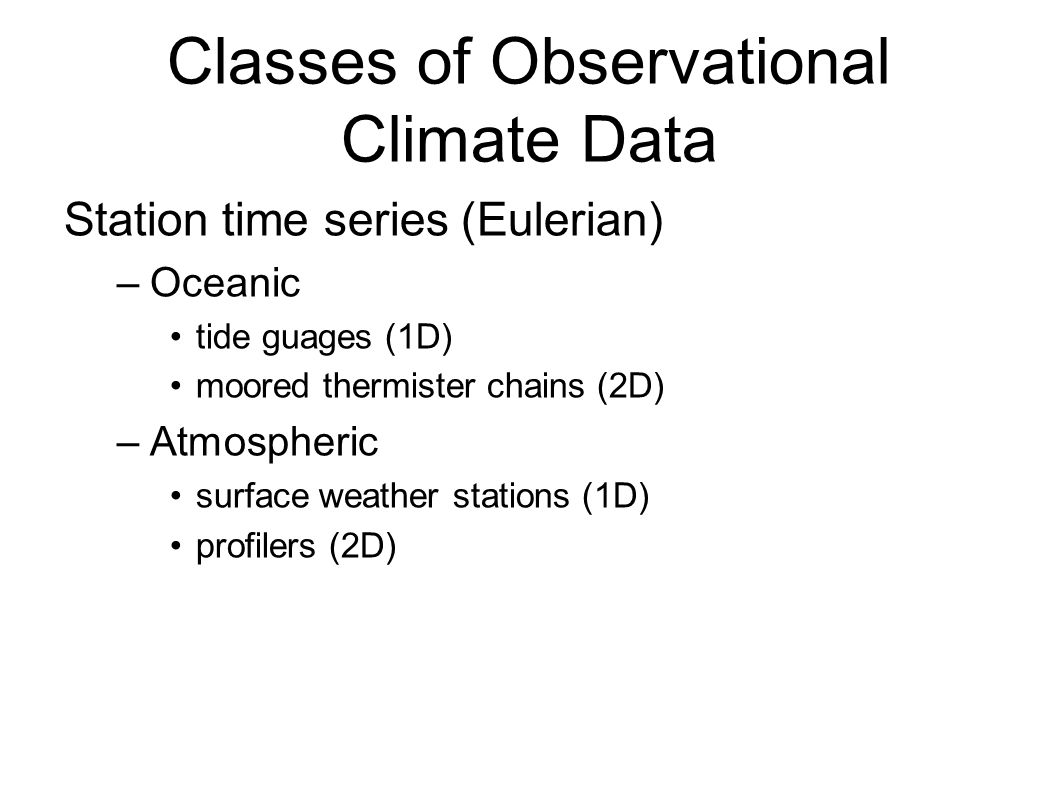

Classes of Observational Climate Data Station time series (Eulerian) –Oceanic tide guages (1D) moored thermister chains (2D) –Atmospheric surface weather stations (1D) profilers (2D)

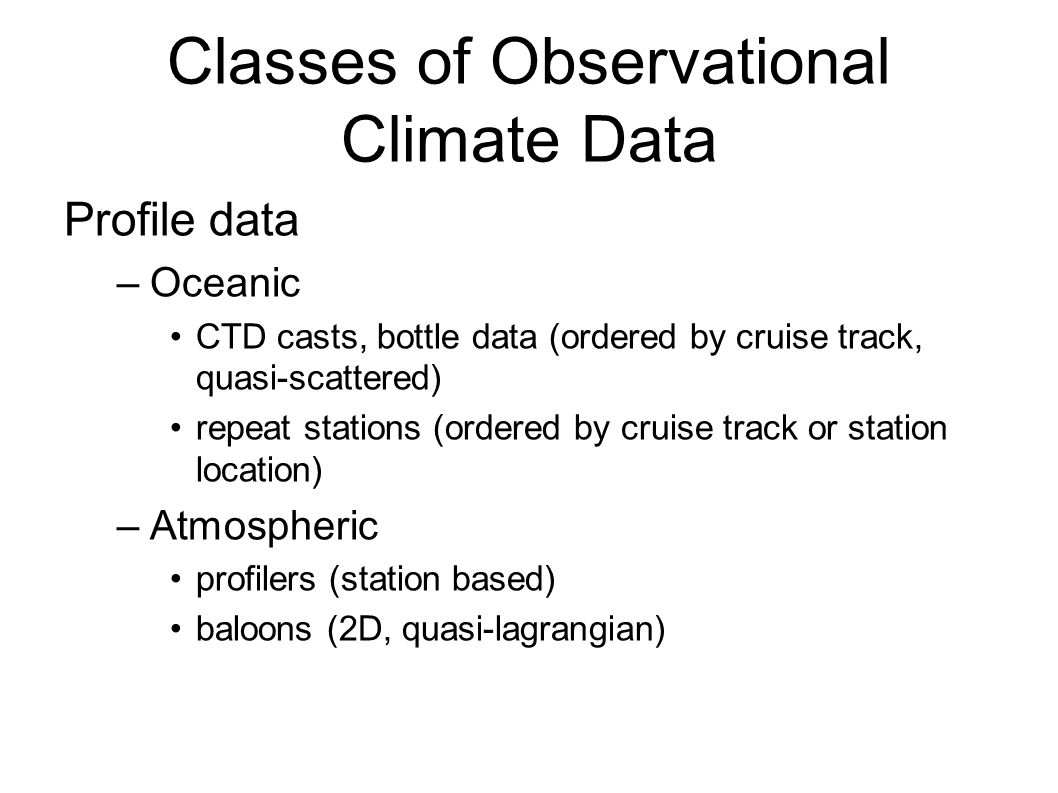

Classes of Observational Climate Data Profile data –Oceanic CTD casts, bottle data (ordered by cruise track, quasi-scattered) repeat stations (ordered by cruise track or station location) –Atmospheric profilers (station based) baloons (2D, quasi-lagrangian)

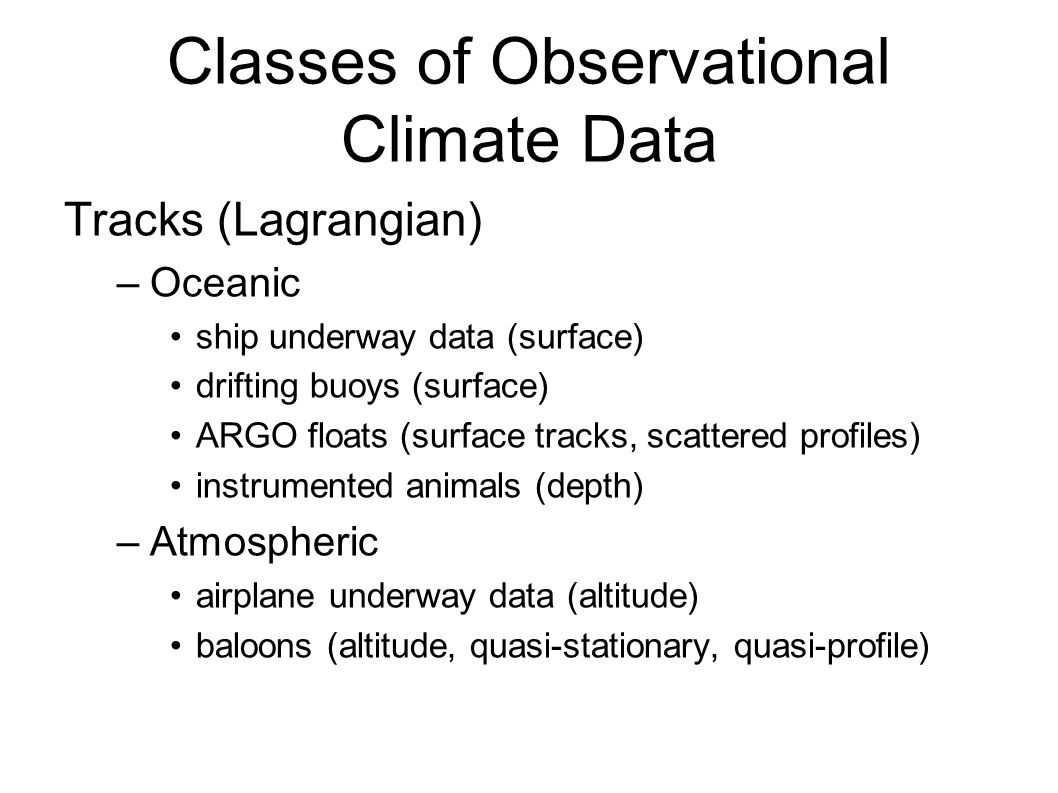

Classes of Observational Climate Data Tracks (Lagrangian) –Oceanic ship underway data (surface) drifting buoys (surface) ARGO floats (surface tracks, scattered profiles) instrumented animals (depth) –Atmospheric airplane underway data (altitude) baloons (altitude, quasi-stationary, quasi-profile)
Classes of Observational Climate Data Random Scatter –Oceanic surface ship observations profile locations –Atmospheric surface weather obs

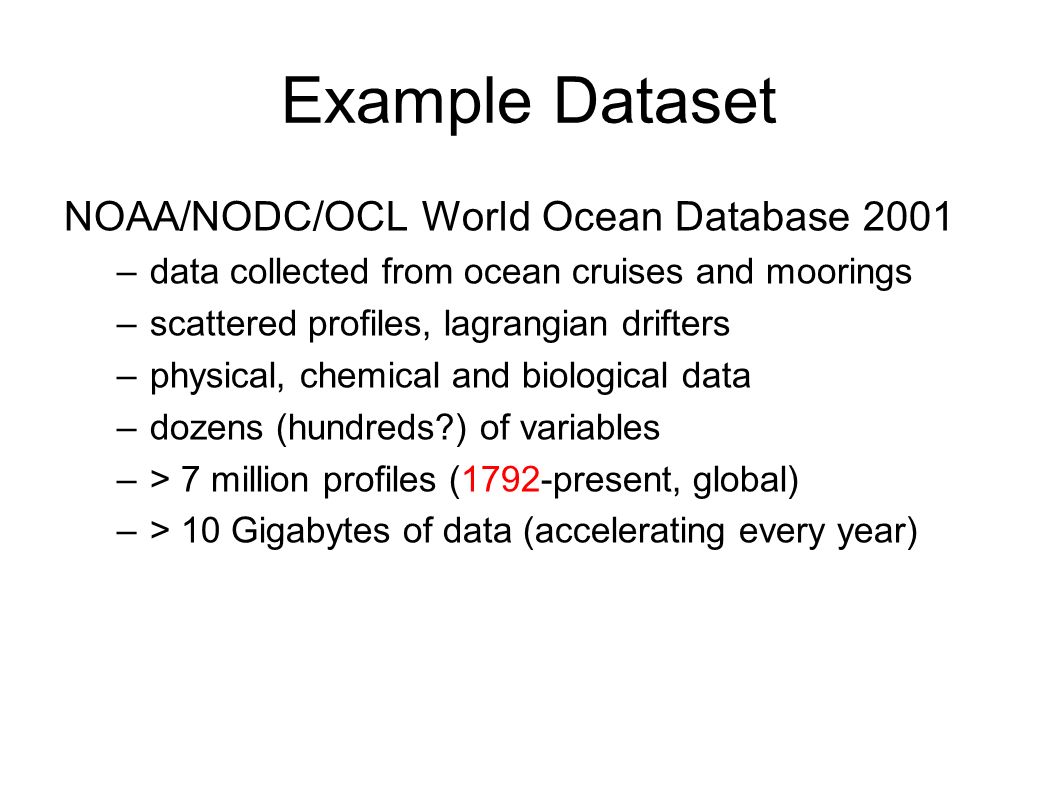

Example Dataset NOAA/NODC/OCL World Ocean Database 2001 –data collected from ocean cruises and moorings –scattered profiles, lagrangian drifters –physical, chemical and biological data –dozens (hundreds?) of variables –> 7 million profiles (1792-present, global) –> 10 Gigabytes of data (accelerating every year)
Example Dataset NOAA/NODC/OCL World Ocean Database 2001 Current access: Choose either temporally or spatially sorted data Choose year(s) or 10x10 degree box Choose instrument Retrieve data for all variables from that file Problems: Cannot subset data (1 year x 1 instrument 7 Mbytes) Data returned in impenetrable compressed ASCII files Associated metadata is lost

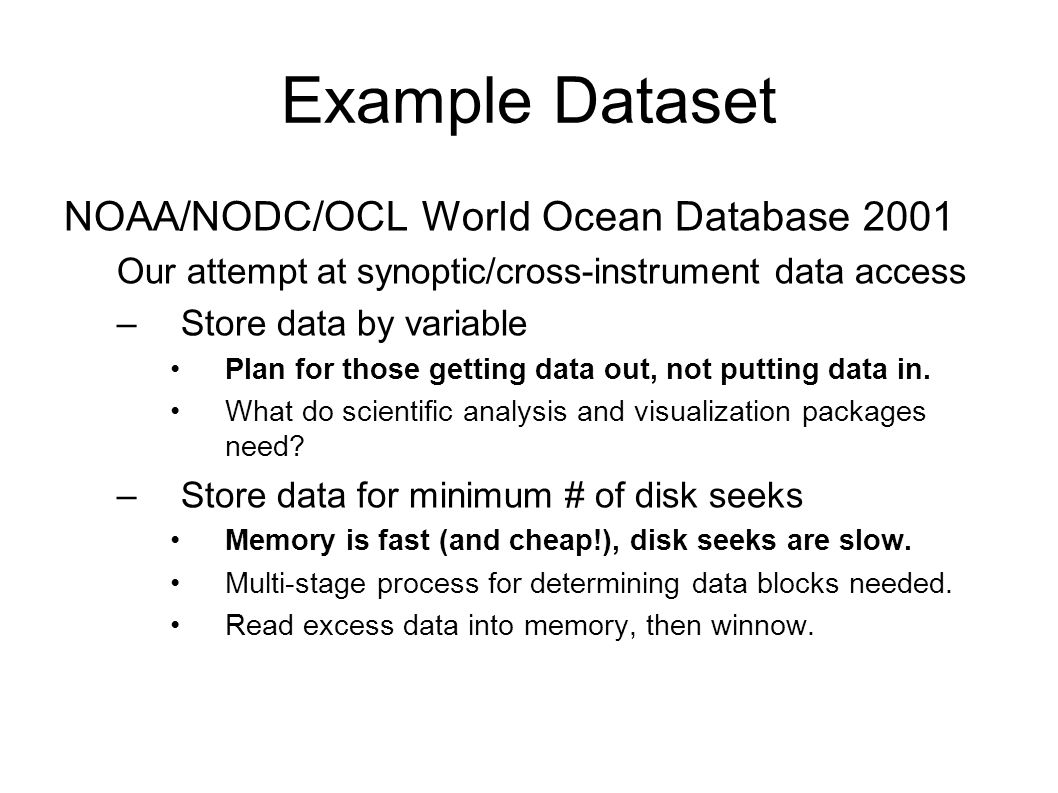

Example Dataset NOAA/NODC/OCL World Ocean Database 2001 Our attempt at synoptic/cross-instrument data access –Store data by variable Plan for those getting data out, not putting data in. What do scientific analysis and visualization packages need? –Store data for minimum # of disk seeks Memory is fast (and cheap!), disk seeks are slow. Multi-stage process for determining data blocks needed. Read excess data into memory, then winnow.
Example Dataset NOAA/NODC/OCL World Ocean Database 2001 Longitude Latitude Time Step 1: synoptic meta-pointer file (0.3 MByte) a) load synoptic meta-pointer file into memory b) subset to extract metadata pointers 10deg x 10deg x 50 irregular timesteps = 260 Kbytes number of profiles pointer into NetCDF metadata file =

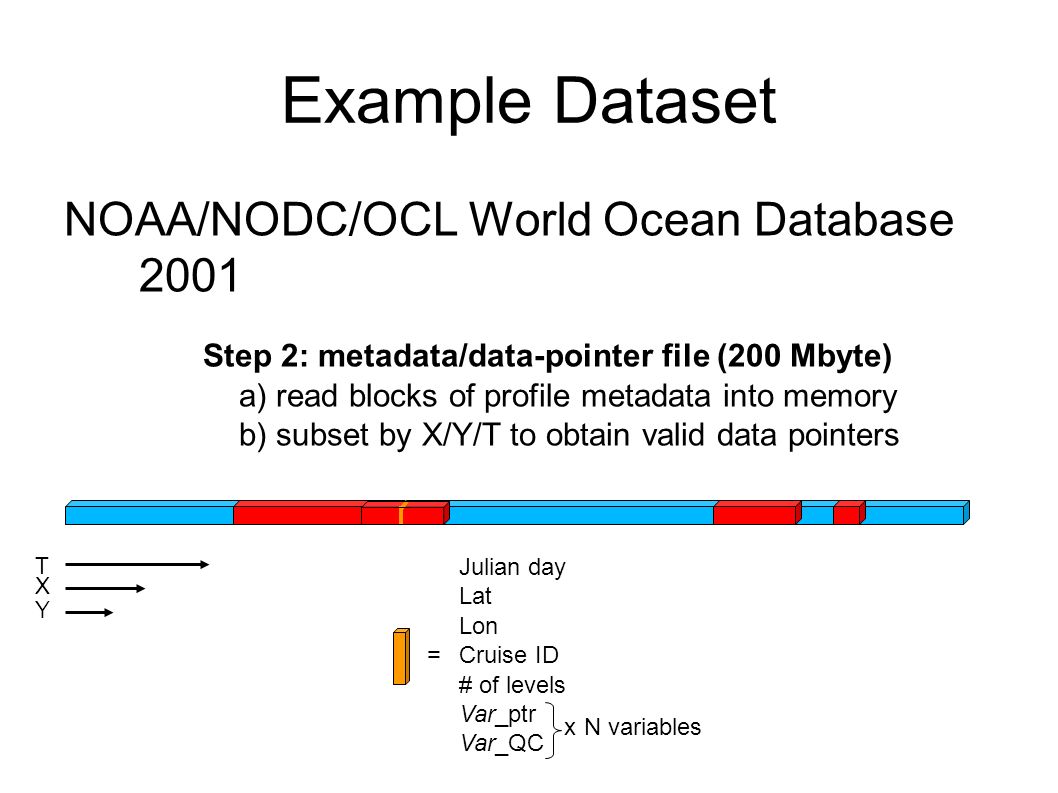

Example Dataset NOAA/NODC/OCL World Ocean Database 2001 Step 2: metadata/data-pointer file (200 Mbyte) a) read blocks of profile metadata into memory b) subset by X/Y/T to obtain valid data pointers T X Y Julian day Lat Lon Cruise ID # of levels Var_ptr Var_QC = N variables x
Example Dataset NOAA/NODC/OCL World Ocean Database 2001 Step 3: data files (10 - 2000 Mbyte) a) read profile data b) subset by depth/quality flag to obtain valid data 1D profile T X Y Depth Value Quality flag = Z N depths x
Example Dataset NOAA/NODC/OCL World Ocean Database 2001 Our attempt at synoptic/cross-instrument data access Successes: Able to subset without accessing (much) unwanted data Access to (<1 Mbyte) subsets in seconds Access to metadata (What profiles exist?) even faster Problems: Only set up for most important variables Data cannot be updated, must be rewritten Must reinvent logic for relational queries Funky, home built soluition

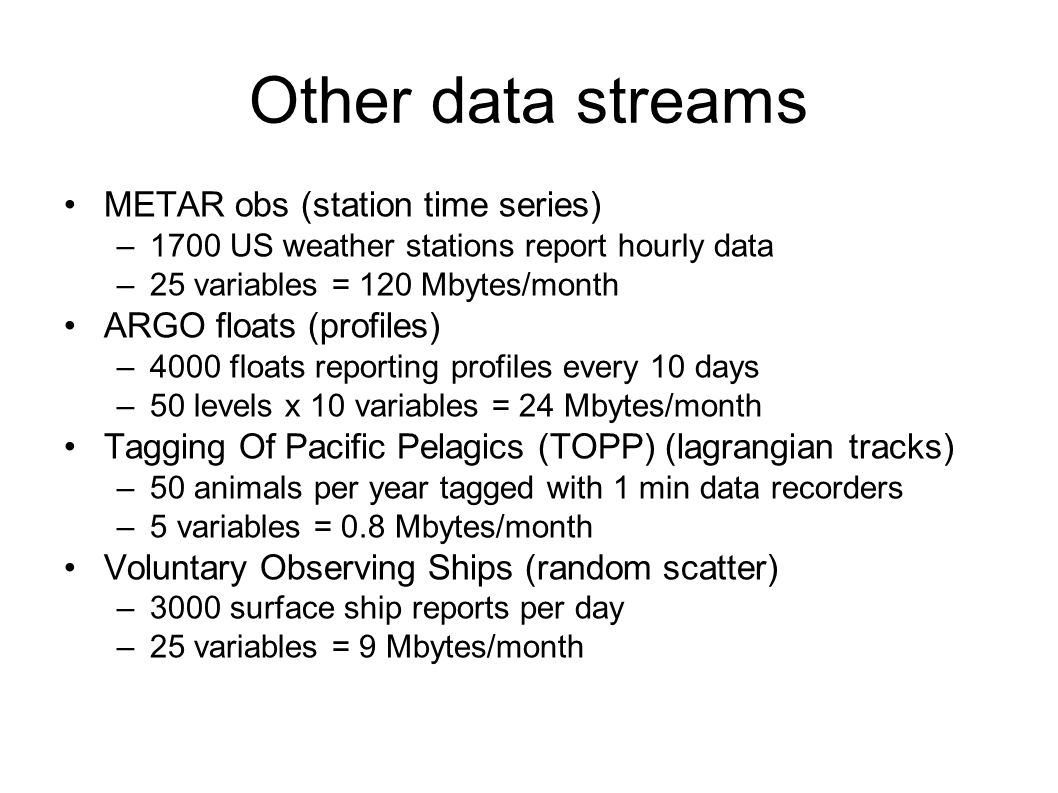

Other data streams METAR obs (station time series) –1700 US weather stations report hourly data –25 variables = 120 Mbytes/month ARGO floats (profiles) –4000 floats reporting profiles every 10 days –50 levels x 10 variables = 24 Mbytes/month Tagging Of Pacific Pelagics (TOPP) (lagrangian tracks) –50 animals per year tagged with 1 min data recorders –5 variables = 0.8 Mbytes/month Voluntary Observing Ships (random scatter) –3000 surface ship reports per day –25 variables = 9 Mbytes/month

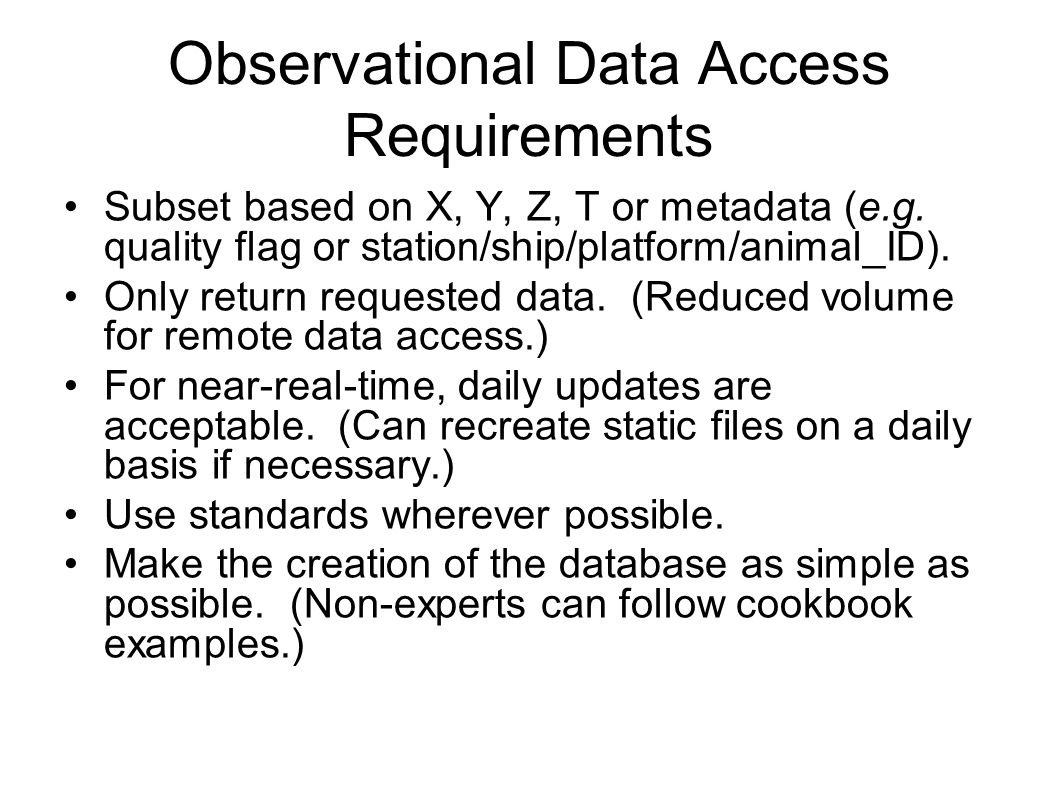

Observational Data Access Requirements Subset based on X, Y, Z, T or metadata (e.g. quality flag or station/ship/platform/animal_ID). Only return requested data. (Reduced volume for remote data access.) For near-real-time, daily updates are acceptable. (Can recreate static files on a daily basis if necessary.) Use standards wherever possible. Make the creation of the database as simple as possible. (Non-experts can follow cookbook examples.)
Conclusion Efficient access to observational data is an unsolved problem. Data volumes are increasing exponentially. Data access problems hinder the development of interactive visualization tools.
