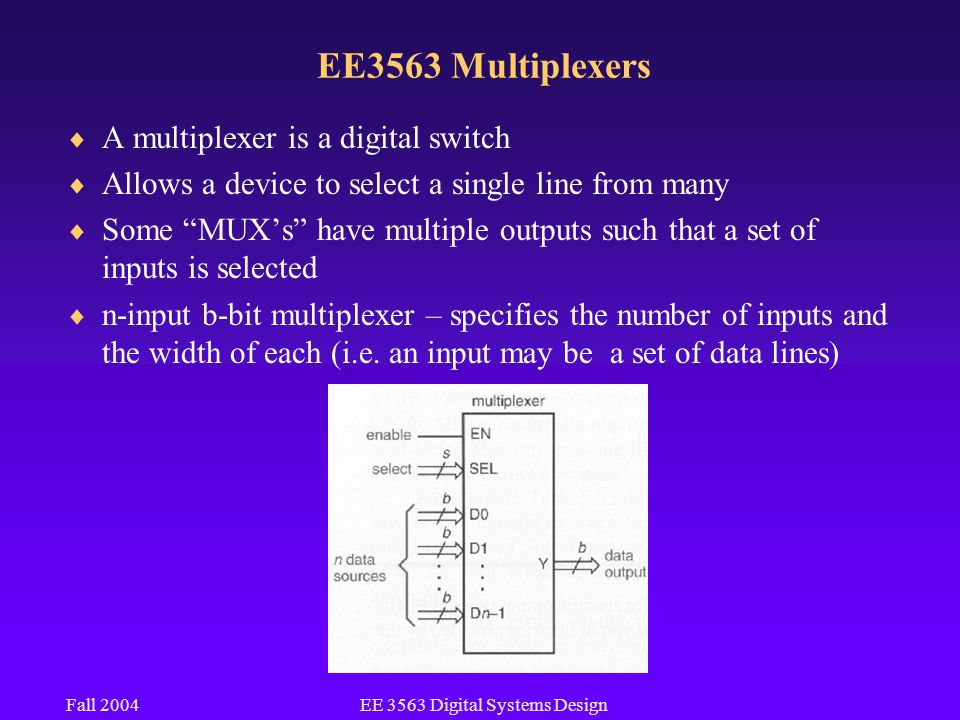

1. Fall 2004EE 3563 Digital Systems Design EE3563 Multiplexers  A multiplexer is a digital switch  Allows a device to select a single line from many  Some “MUX’s” have multiple outputs such that a set of inputs is selected  n-input b-bit multiplexer – specifies the number of inputs and the width of each (i.e. an input may be a set of data lines)

2. Fall 2004EE 3563 Digital Systems Design EE3563 Multiplexers  A mux may be used in digital communications –Voice requires 4 kHz of bandwidth (8 kilobits/sec) –If the total bandwidth is 64 kHz, then 16 voice users can talk “simultaneously” since the mux can switch them every 15.625μs  Since gate delays are on the order of 10ns, these speeds are easily achievable (and have been for many years)

3. Fall 2004EE 3563 Digital Systems Design EE3563 Multiplexers  16-input 8-bit multiplexer.. 16 inputs. 16 users, 8 bits for each user There are 8, 16 input switches How many wires in? How many select lines are needed? 250μs

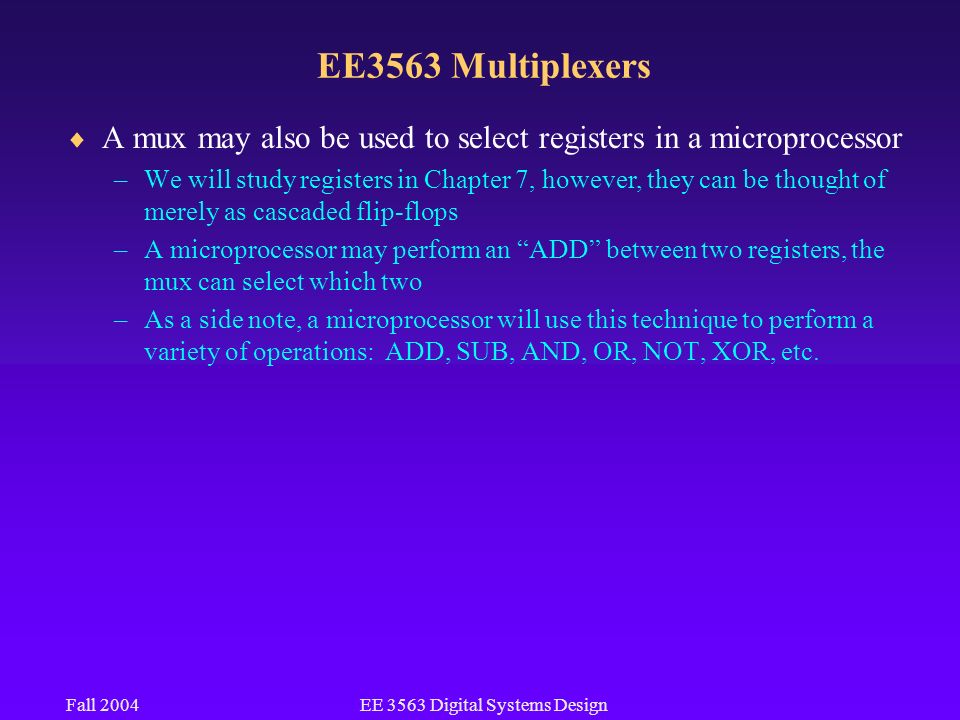

4. Fall 2004EE 3563 Digital Systems Design EE3563 Multiplexers  A mux may also be used to select registers in a microprocessor –We will study registers in Chapter 7, however, they can be thought of merely as cascaded flip-flops –A microprocessor may perform an “ADD” between two registers, the mux can select which two –As a side note, a microprocessor will use this technique to perform a variety of operations: ADD, SUB, AND, OR, NOT, XOR, etc.

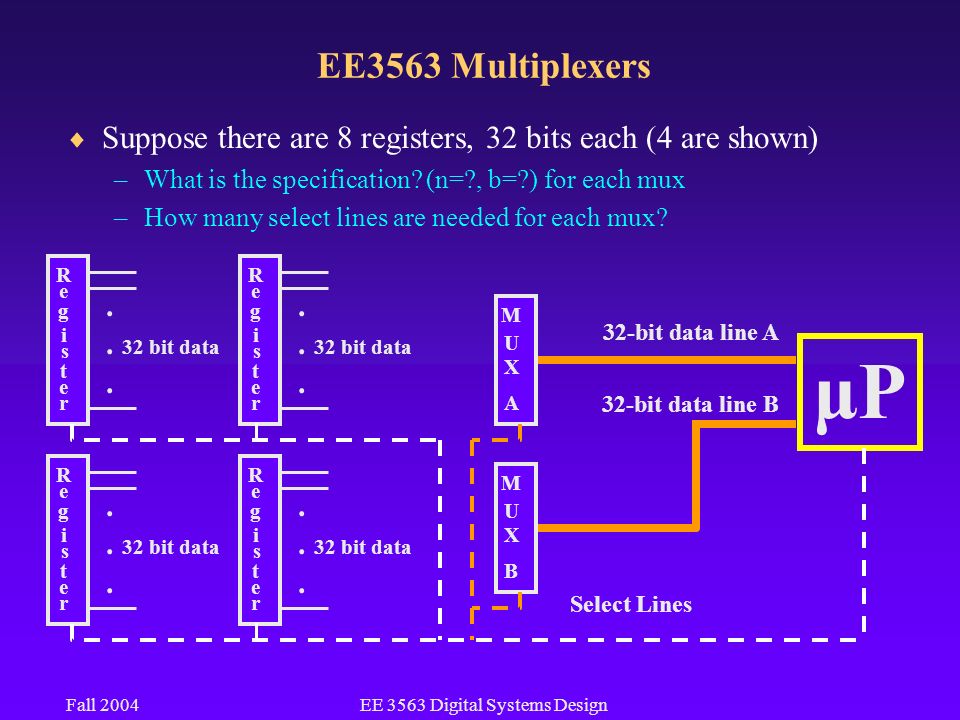

5. Fall 2004EE 3563 Digital Systems Design EE3563 Multiplexers  Suppose there are 8 registers, 32 bits each (4 are shown) –What is the specification? (n=?, b=?) for each mux –How many select lines are needed for each mux? R e g i s t r e.. 32 bit data. R e g i s t r e. 32 bit data. R e g i s t r e. 32 bit data. R e g i s t r e. 32 bit data. μPμP 32-bit data line A 32-bit data line B Select Lines M U X A M U X B

6. Fall 2004EE 3563 Digital Systems Design EE3563 Multiplexers  The 74x151 mux selects one of 8 inputs

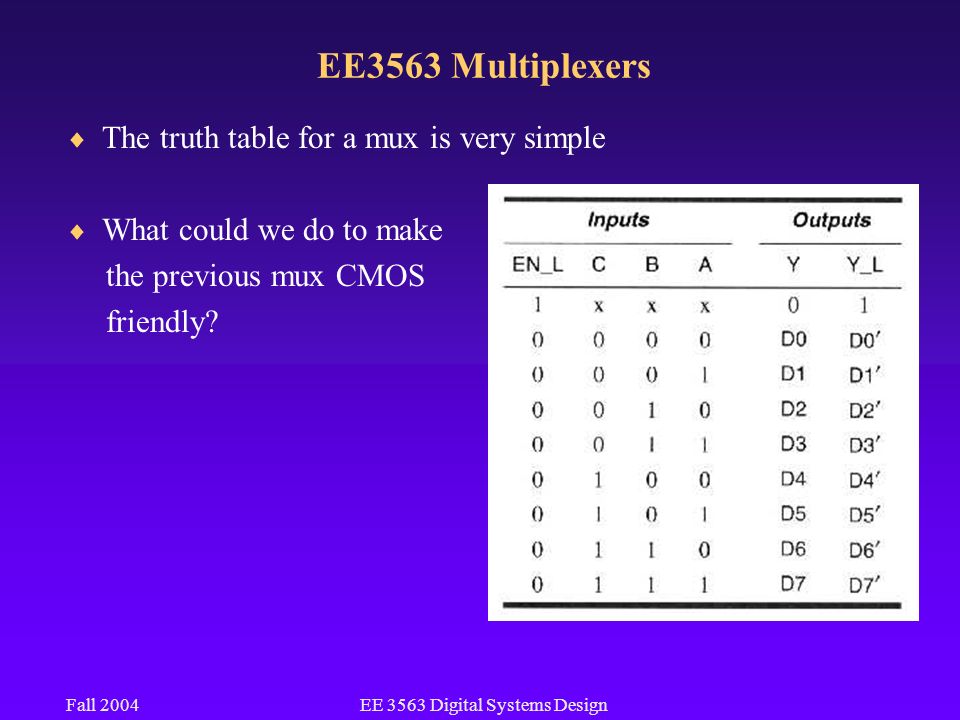

7. Fall 2004EE 3563 Digital Systems Design EE3563 Multiplexers  The truth table for a mux is very simple  What could we do to make the previous mux CMOS friendly?

8. Fall 2004EE 3563 Digital Systems Design EE3563 Multiplexers  Multiplexers can be cascaded as well, however, as the select signals drive more and more chips, fanout becomes a problem  For CMOS it is not the DC load that is the problem, but rather the capacitive load  What does that mean?  What can we do to solve the fanout problem?  What are the tradeoffs to these solutions?

9. Fall 2004EE 3563 Digital Systems Design EE3563 Demultiplexers  A demultiplexer (demux) performs the opposite function of the multiplexer  It takes 1 input and switch it between a number of outputs  Specified similarly to the multiplexer: b-bit n-output  For this general specification, how many select lines required?  A binary decoder, with an enable input, can be used as a demux  Truth Table for a 74x139 Decoder

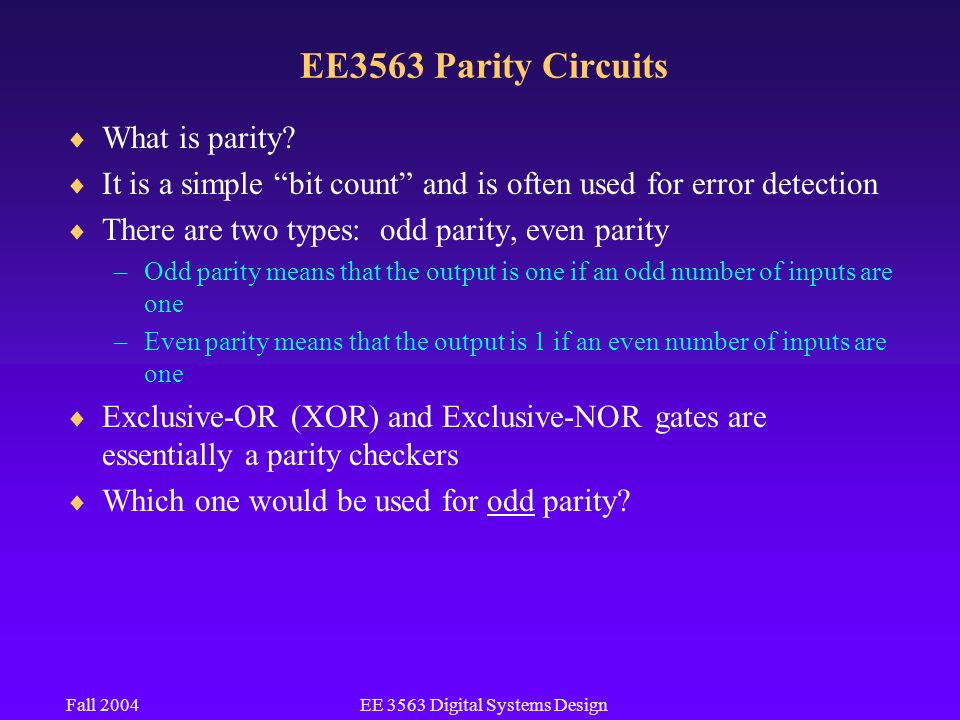

10. Fall 2004EE 3563 Digital Systems Design EE3563 Parity Circuits  What is parity?  It is a simple “bit count” and is often used for error detection  There are two types: odd parity, even parity –Odd parity means that the output is one if an odd number of inputs are one –Even parity means that the output is 1 if an even number of inputs are one  Exclusive-OR (XOR) and Exclusive-NOR gates are essentially a parity checkers  Which one would be used for odd parity?

11. Fall 2004EE 3563 Digital Systems Design EE3563 Parity Circuits  What is parity?  It is a simple “bit count” and is often used for error detection  There are two types: odd parity, even parity –Odd parity means that the output is one if an odd number of inputs are one –Even parity means that the output is 1 if an even number of inputs are one  Exclusive-OR (XOR) and Exclusive-NOR gates are essentially a parity checkers  Which one would be used for odd parity?  XOR  Which one would be used for even parity?

12. Fall 2004EE 3563 Digital Systems Design EE3563 Exclusive-OR Implementations

13. Fall 2004EE 3563 Digital Systems Design EE3563 Exclusive-OR Implementations A B Z IN OUT Transmission Gate Implementation

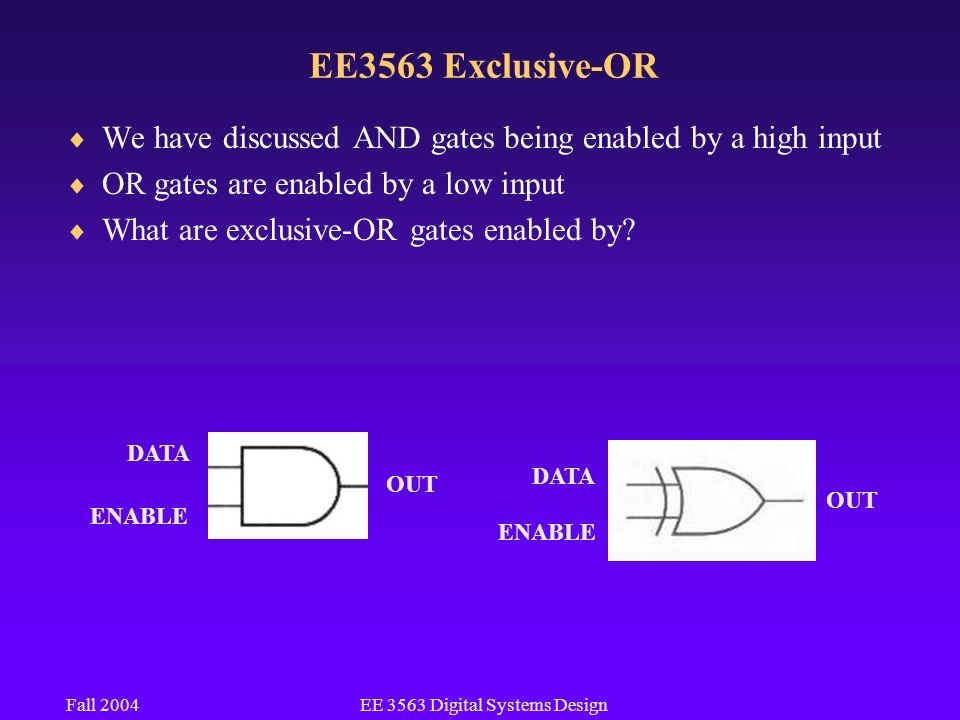

14. Fall 2004EE 3563 Digital Systems Design EE3563 Exclusive-OR  We have discussed AND gates being enabled by a high input  OR gates are enabled by a low input  What are exclusive-OR gates enabled by? DATA ENABLE OUT DATA ENABLE OUT

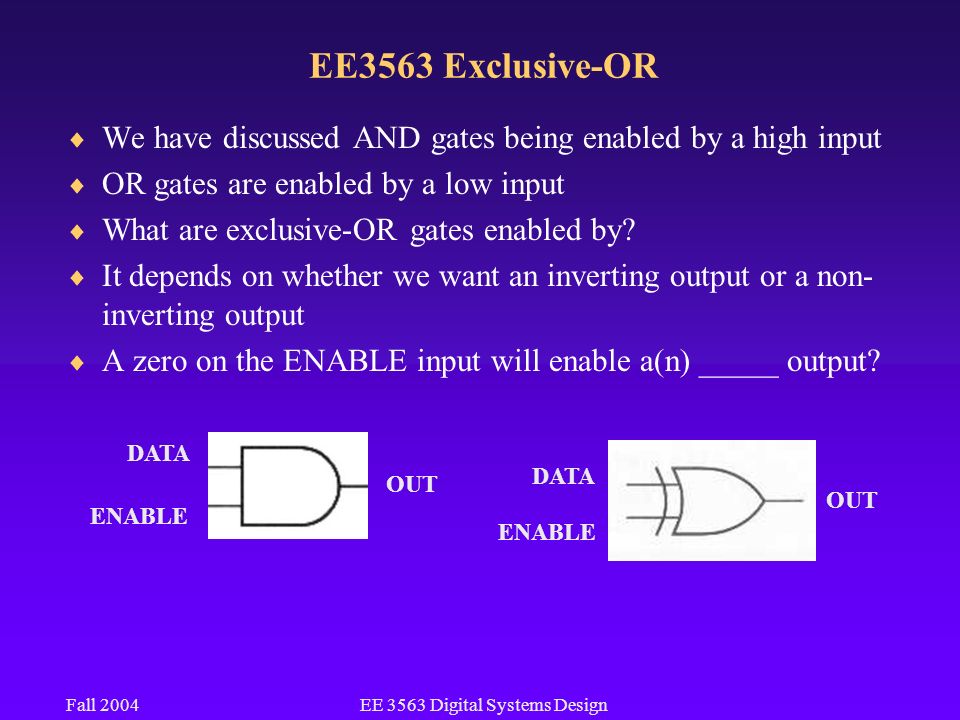

15. Fall 2004EE 3563 Digital Systems Design EE3563 Exclusive-OR  We have discussed AND gates being enabled by a high input  OR gates are enabled by a low input  What are exclusive-OR gates enabled by?  It depends on whether we want an inverting output or a non- inverting output  A zero on the ENABLE input will enable a(n) _____ output? DATA ENABLE OUT DATA ENABLE OUT

16. Fall 2004EE 3563 Digital Systems Design EE3563 Parity Circuits  XOR gates can be cascaded to form multi-bit parity checkers  Both of these are odd parity circuits  Which one do you think has the lowest delay?

17. Fall 2004EE 3563 Digital Systems Design EE3563 Parity Circuits  74x280 odd/even parity generator

18. Fall 2004EE 3563 Digital Systems Design EE3563 Parity Circuits  Parity Generation for an 8-bit Memory System
