1. Introduction to bluetooth

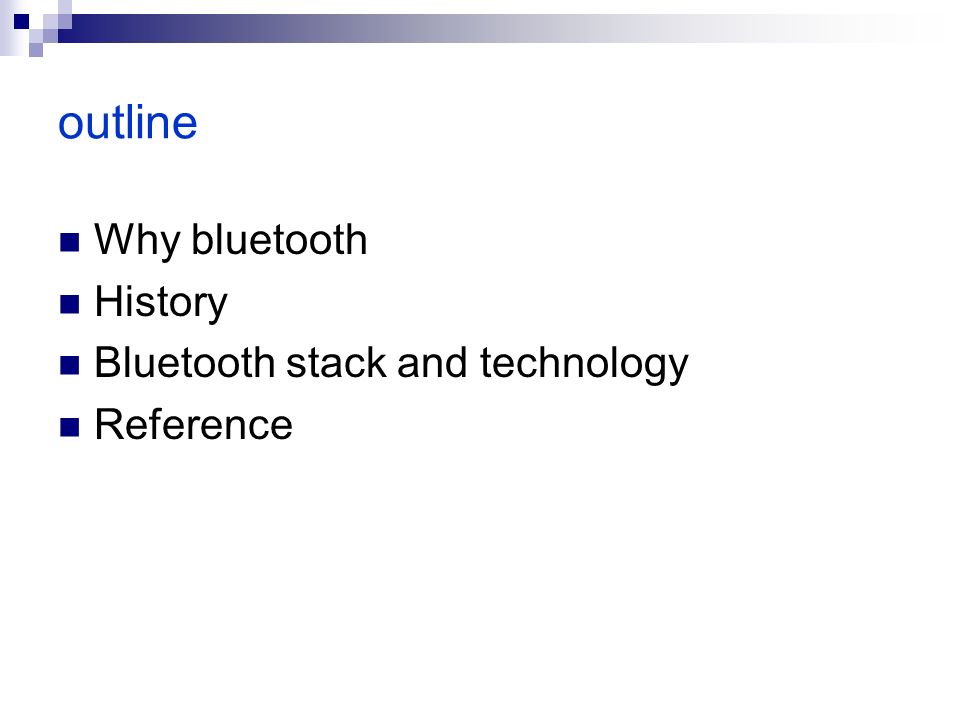

2. outline Why bluetooth History Bluetooth stack and technology Reference

3. bluetooth Why bluetooth?  Cable replacement between devices  Open Specification  Low power consumption  Connection can be initiated without user interaction  Devices can be connected to multiple devices at the same time

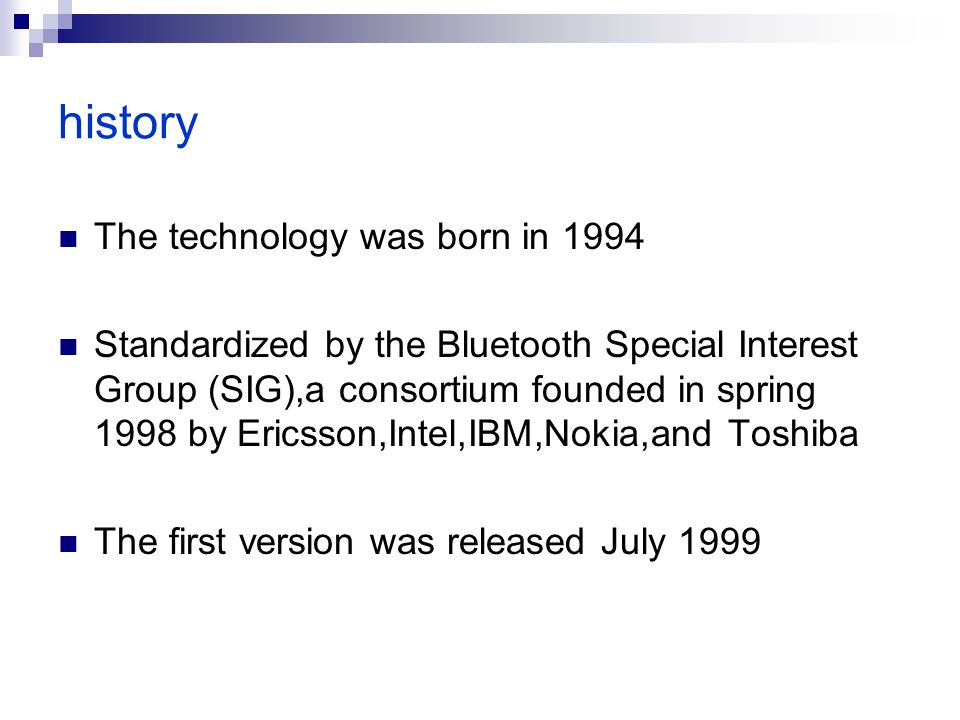

4. history The technology was born in 1994 Standardized by the Bluetooth Special Interest Group (SIG),a consortium founded in spring 1998 by Ericsson,Intel,IBM,Nokia,and Toshiba The first version was released July 1999

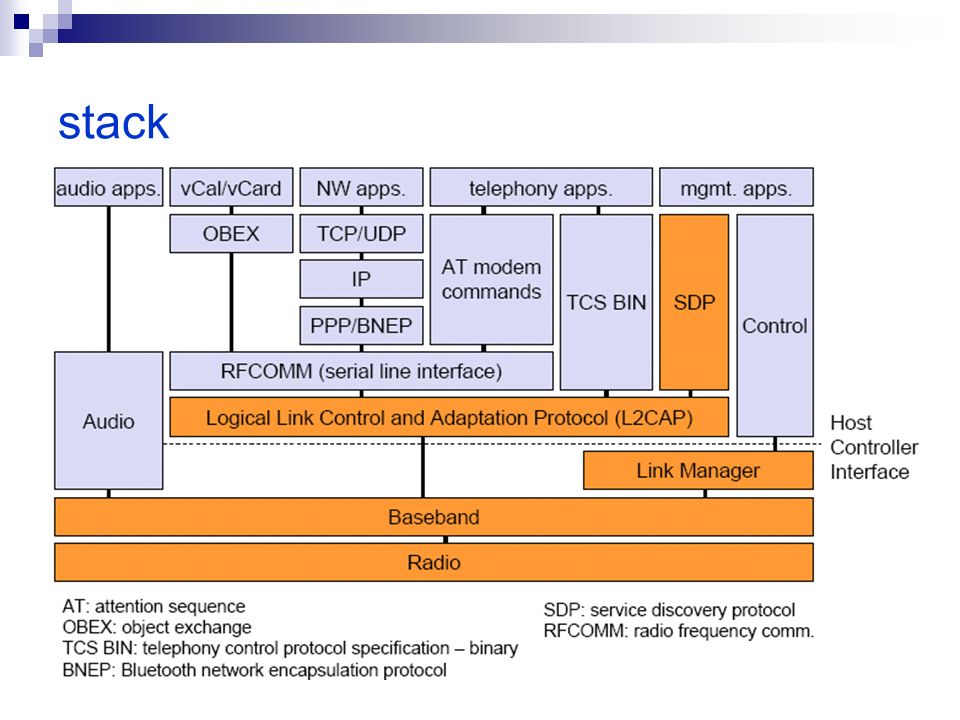

5. stack

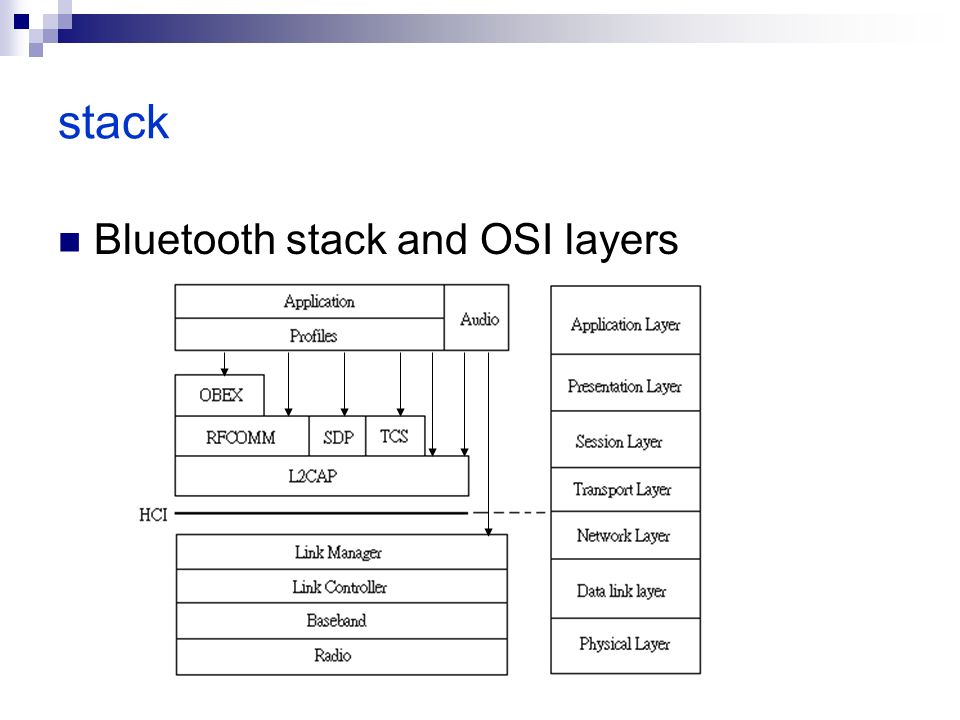

6. Bluetooth stack and OSI layers

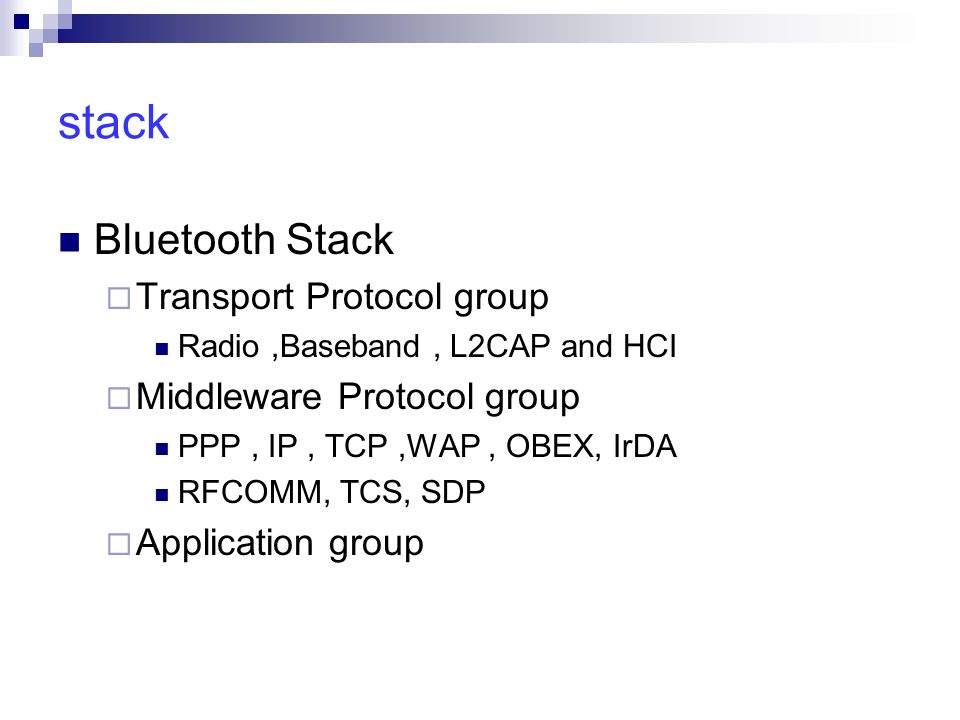

7. stack Bluetooth Stack  Transport Protocol group Radio,Baseband, L2CAP and HCI  Middleware Protocol group PPP, IP, TCP,WAP, OBEX, IrDA RFCOMM, TCS, SDP  Application group

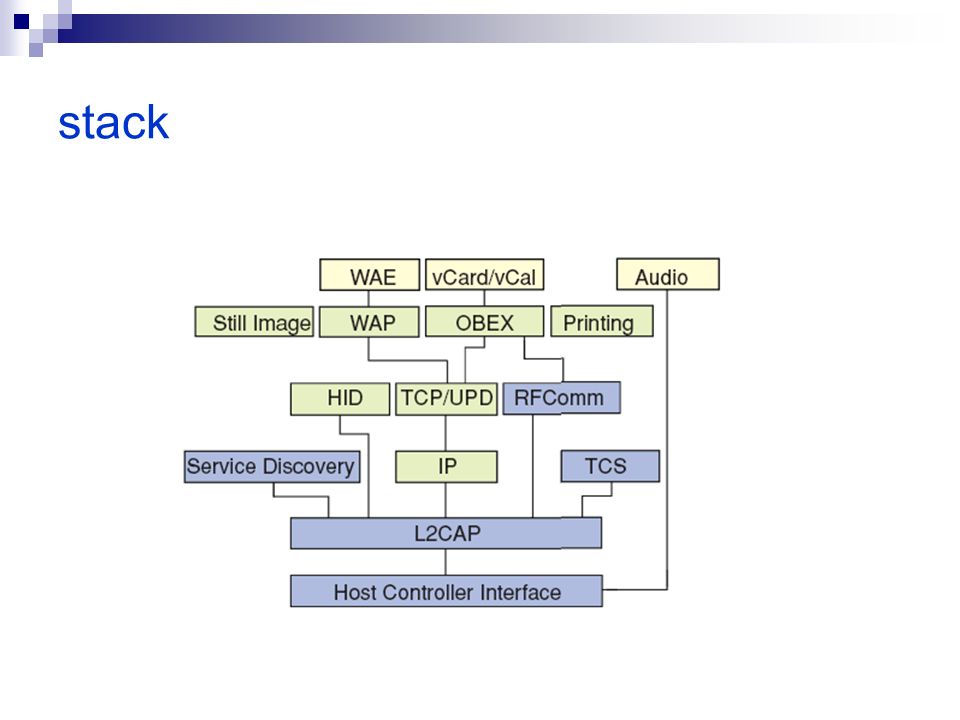

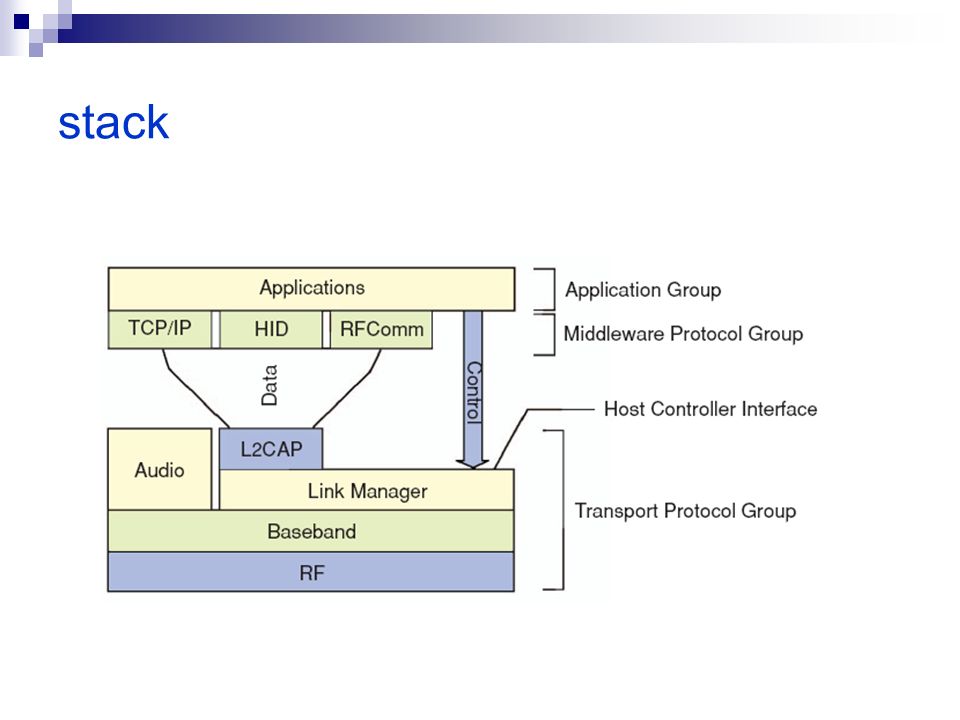

8. stack

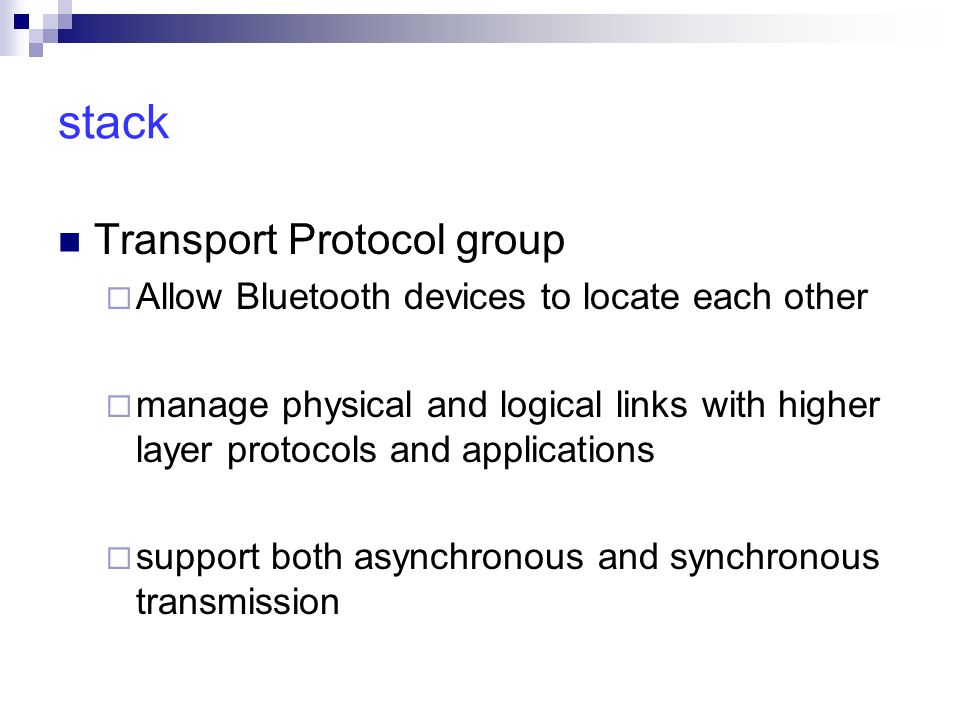

10. Transport Protocol group  Allow Bluetooth devices to locate each other  manage physical and logical links with higher layer protocols and applications  support both asynchronous and synchronous transmission

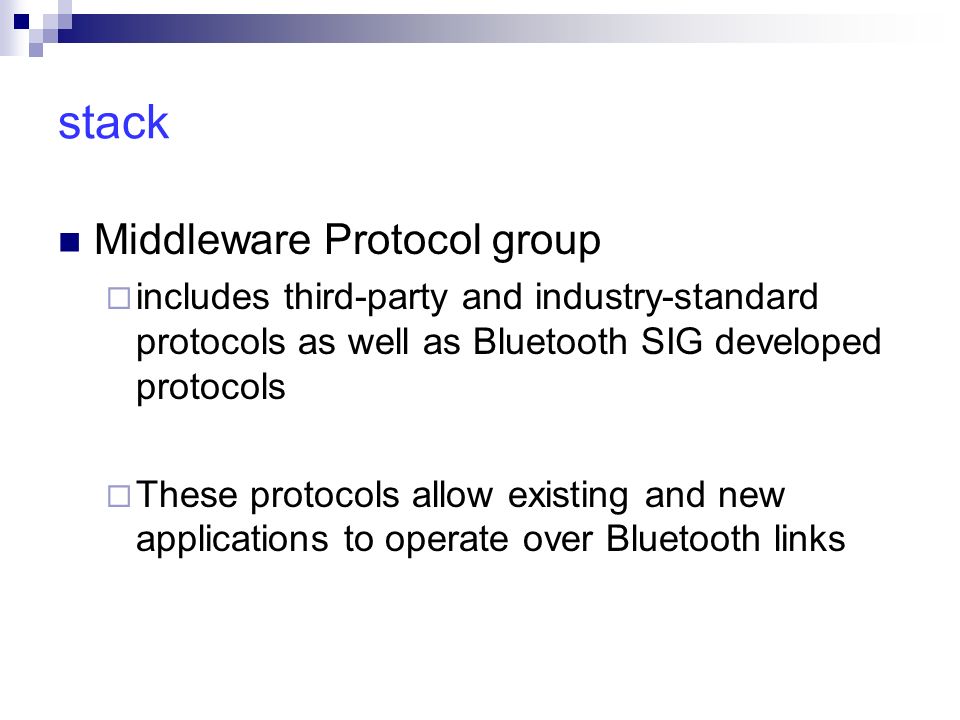

11. stack Middleware Protocol group  includes third-party and industry-standard protocols as well as Bluetooth SIG developed protocols  These protocols allow existing and new applications to operate over Bluetooth links

12. stack Application group  Consists of actual applications that use Bluetooth links  They can include legacy applications as well as Bluetooth-aware applications

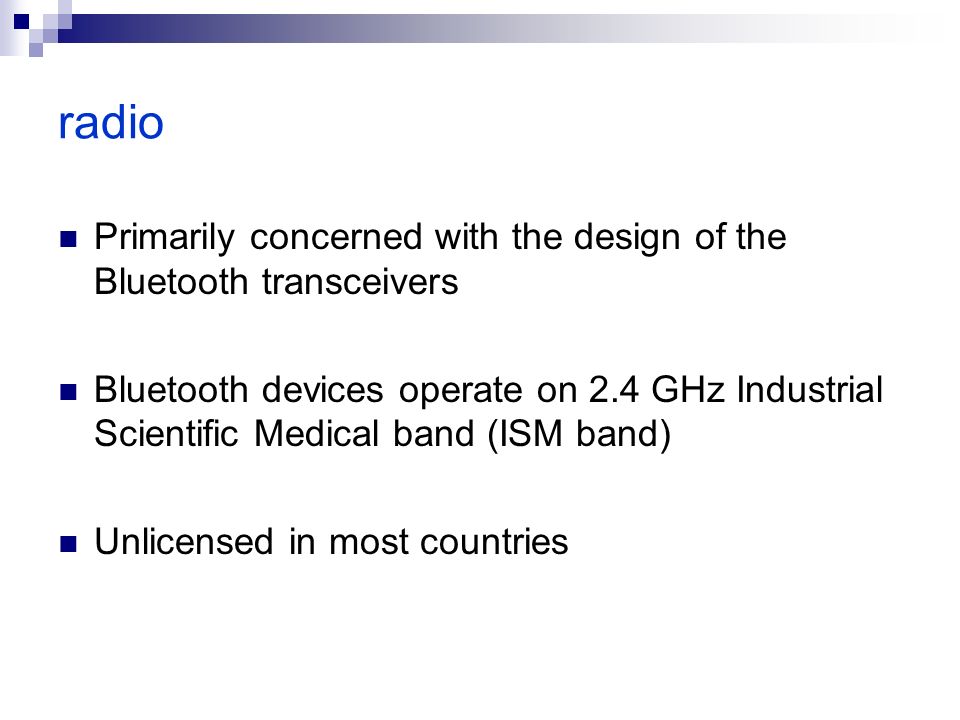

13. radio Primarily concerned with the design of the Bluetooth transceivers Bluetooth devices operate on 2.4 GHz Industrial Scientific Medical band (ISM band) Unlicensed in most countries

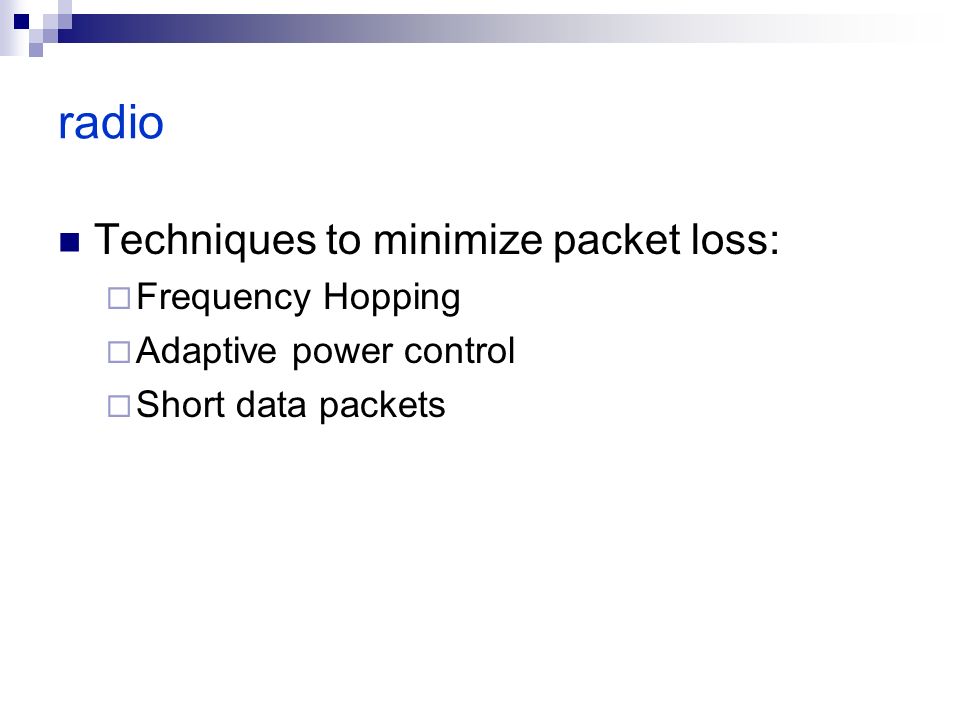

14. radio Techniques to minimize packet loss:  Frequency Hopping  Adaptive power control  Short data packets

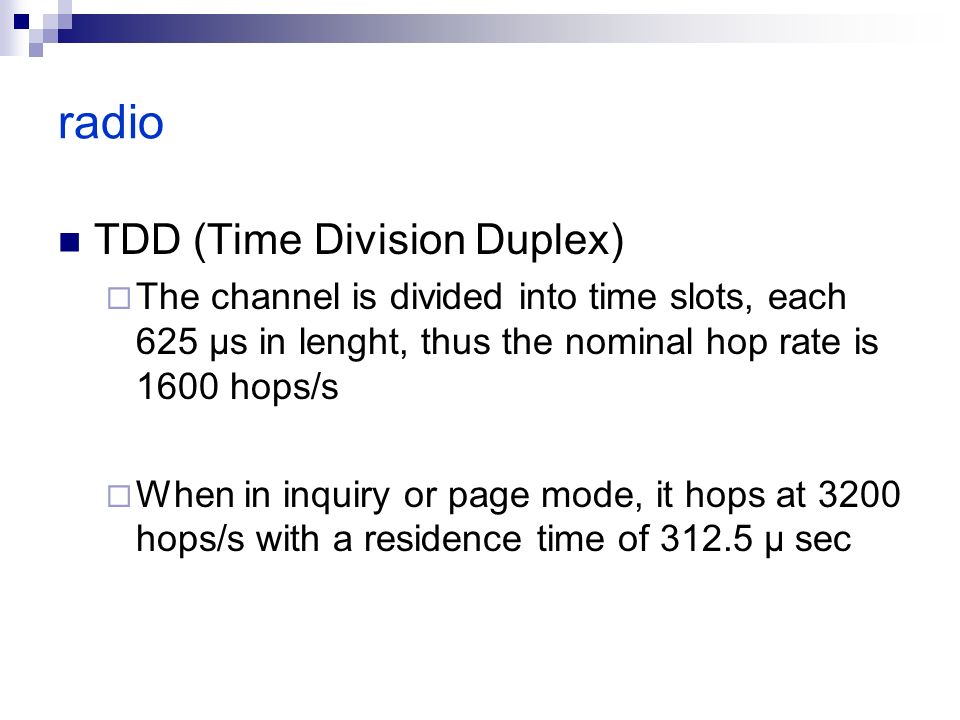

15. radio TDD (Time Division Duplex)  The channel is divided into time slots, each 625 μs in lenght, thus the nominal hop rate is 1600 hops/s  When in inquiry or page mode, it hops at 3200 hops/s with a residence time of 312.5 μ sec

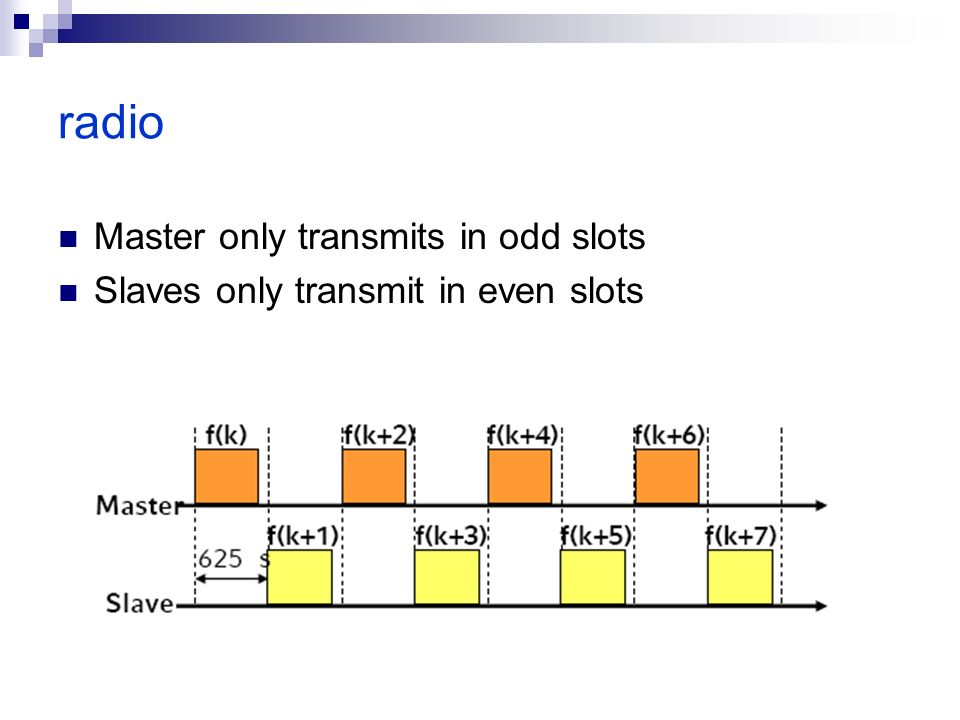

16. radio Master only transmits in odd slots Slaves only transmit in even slots

17. radio FHSS (Frequency Hopping Spread Spectrum)  Divides the ISM-band into 79 1-Mhz channels Channel 0: 2402 MHz … channel 78: 2480 MHz  Communication between devices switches between available channels

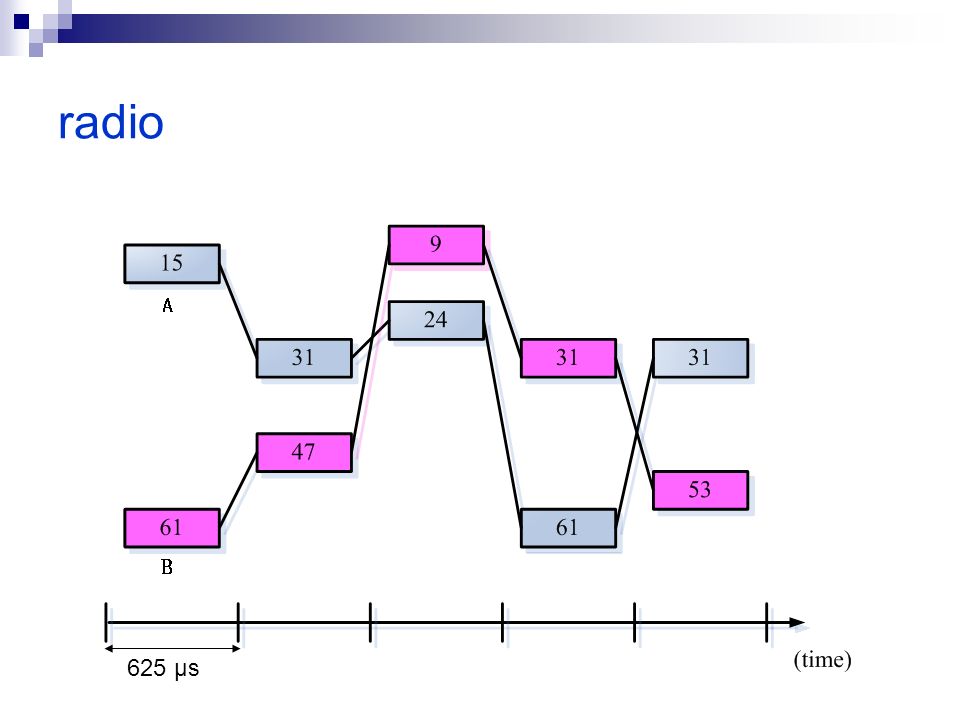

18. radio 625 μs

19. radio Three power classes defined with max output power from 1 mW (Class 1) to 100 mW (Class 3)  power class 1 : long range (~100m,~100mW)  power class 2 : mid range (~10m,~2.5mW)  power class 3 : short range (~1m,~1mW)

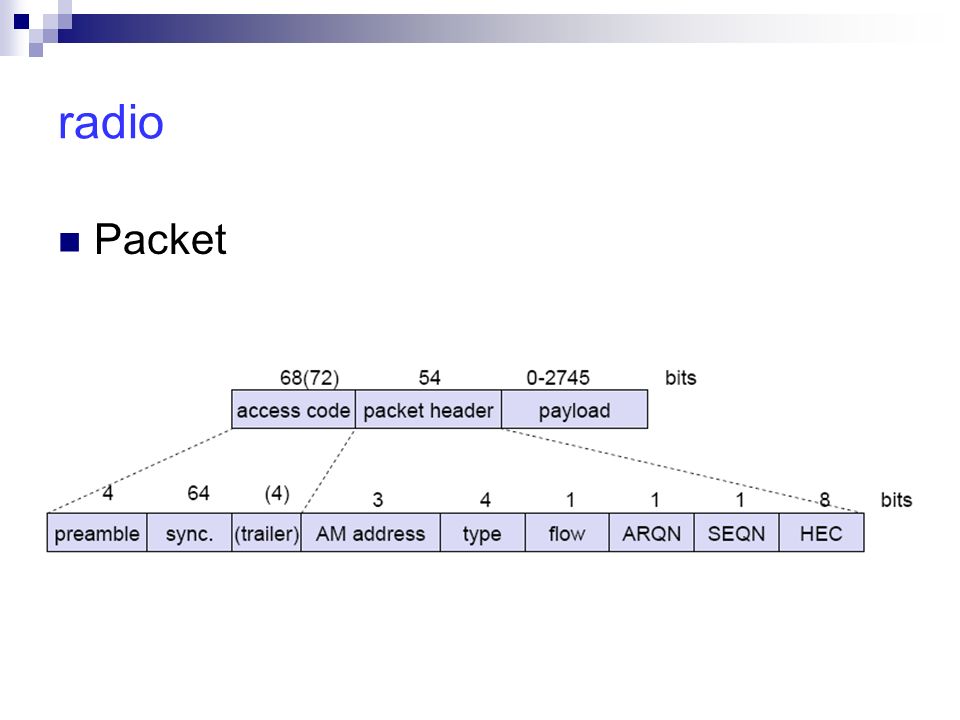

20. radio Packet

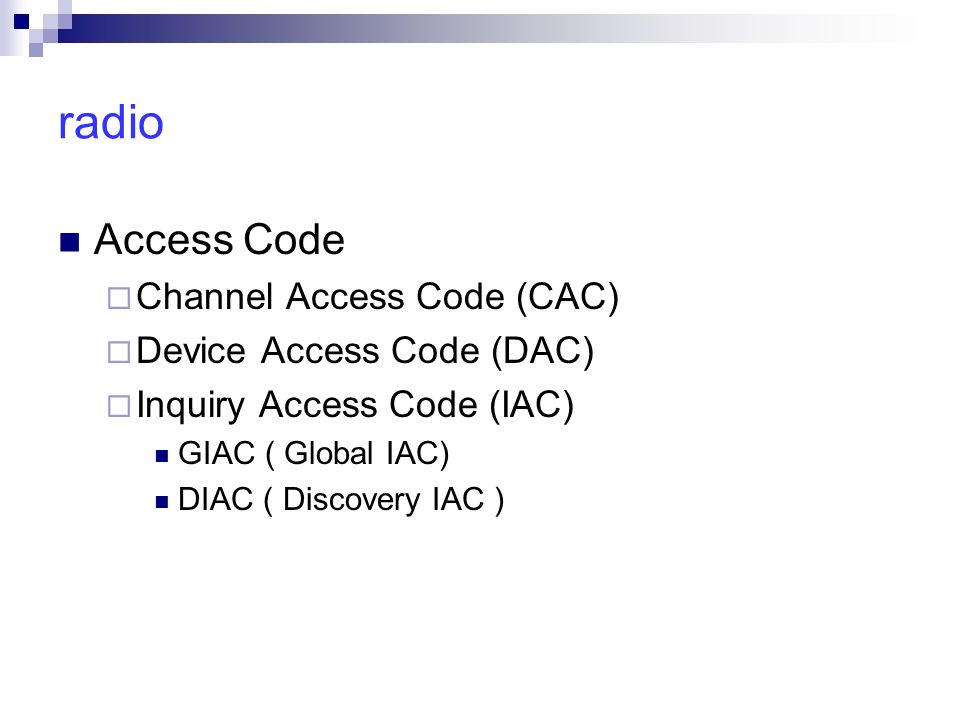

21. radio Access Code  Channel Access Code (CAC)  Device Access Code (DAC)  Inquiry Access Code (IAC) GIAC ( Global IAC) DIAC ( Discovery IAC )

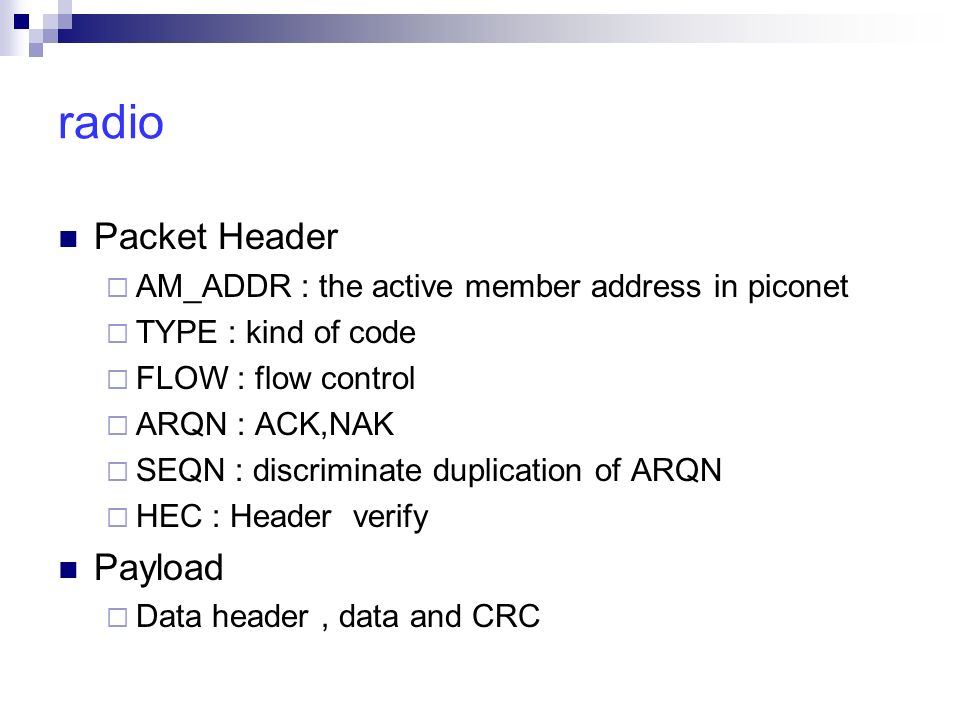

22. radio Packet Header  AM_ADDR : the active member address in piconet  TYPE : kind of code  FLOW : flow control  ARQN : ACK,NAK  SEQN : discriminate duplication of ARQN  HEC : Header verify Payload  Data header, data and CRC

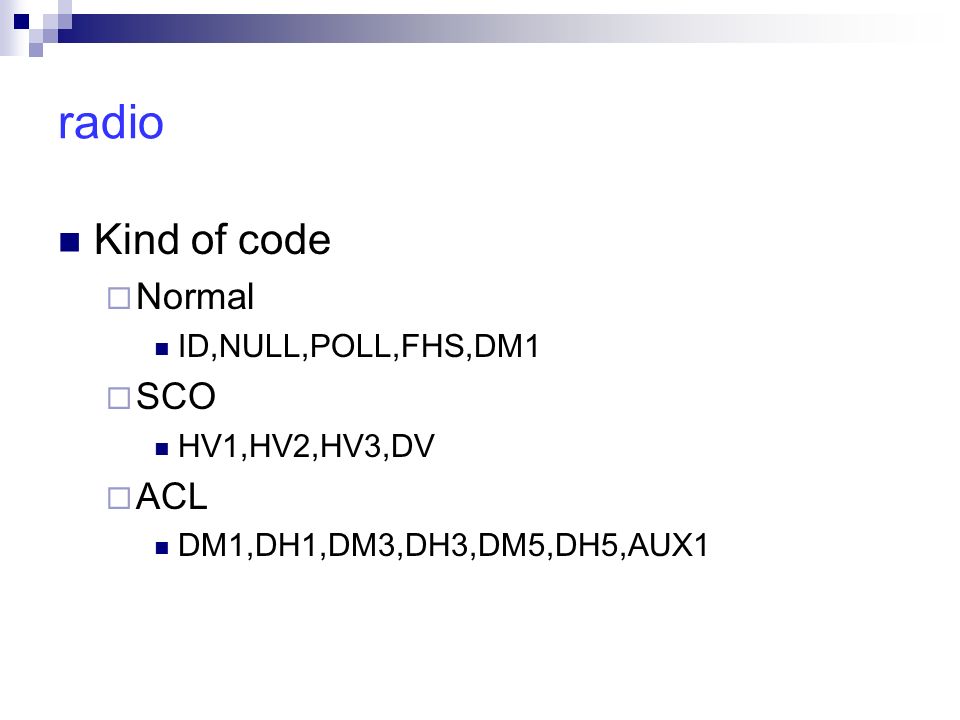

23. radio Kind of code  Normal ID,NULL,POLL,FHS,DM1  SCO HV1,HV2,HV3,DV  ACL DM1,DH1,DM3,DH3,DM5,DH5,AUX1

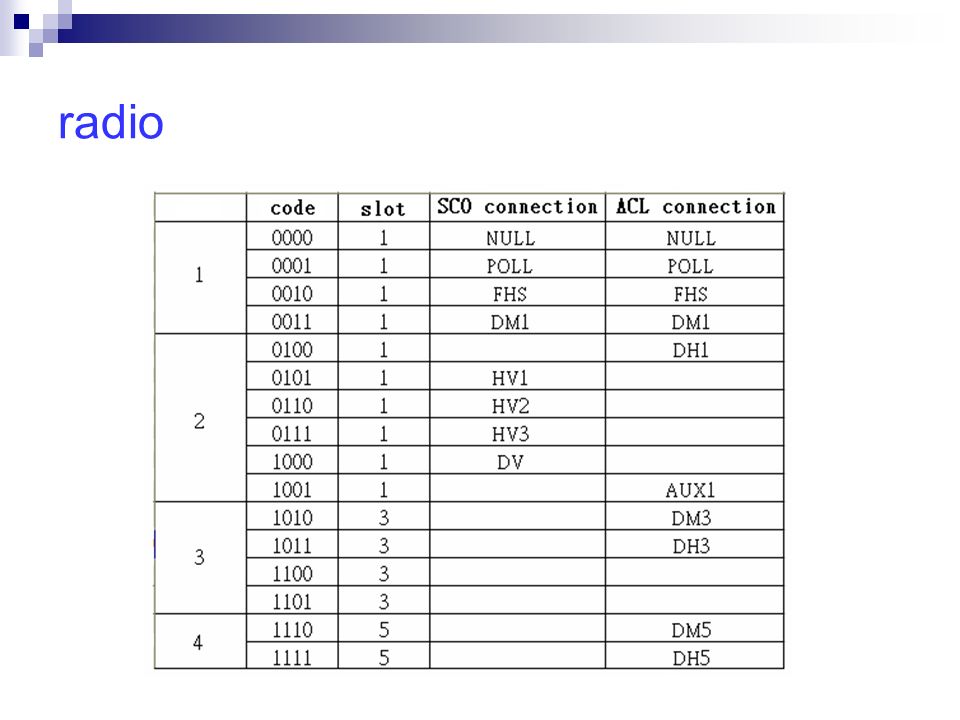

24. radio

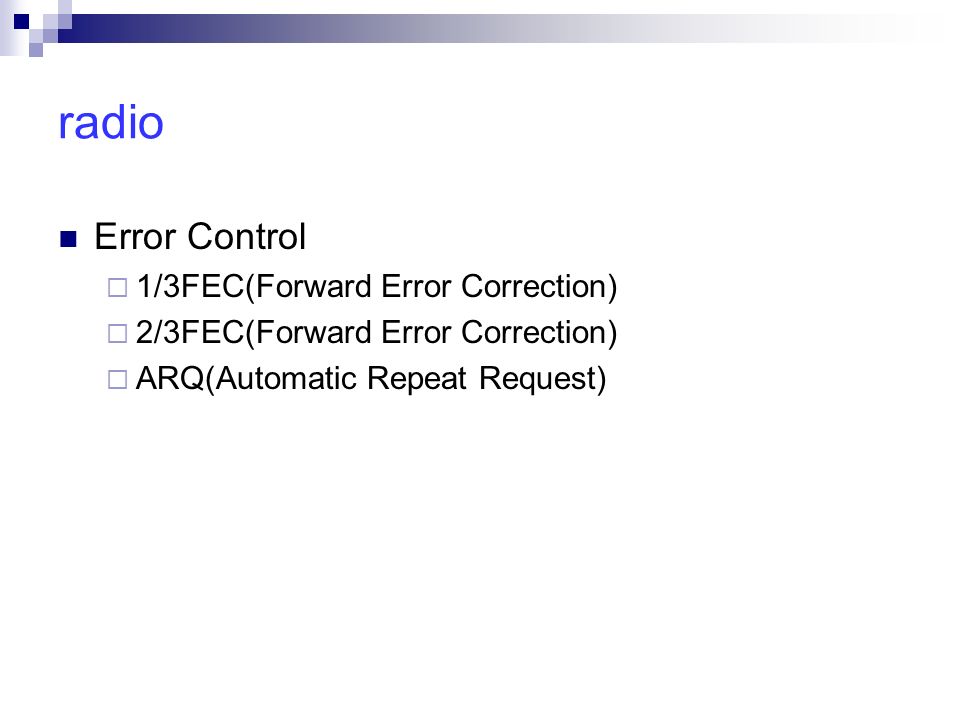

25. Error Control  1/3FEC(Forward Error Correction)  2/3FEC(Forward Error Correction)  ARQ(Automatic Repeat Request)

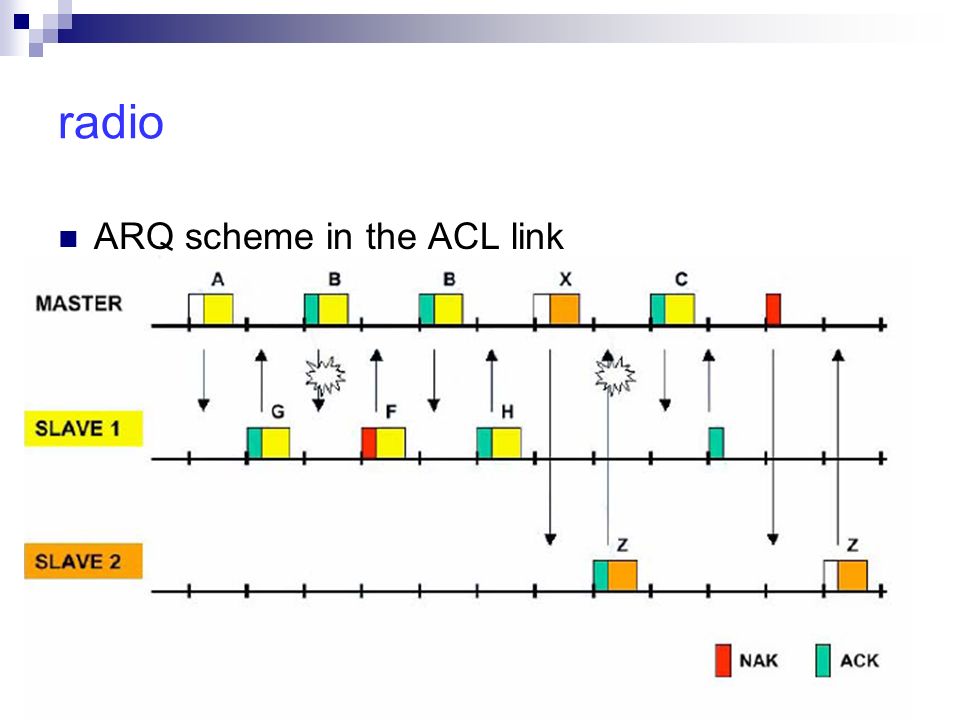

26. radio ARQ scheme in the ACL link

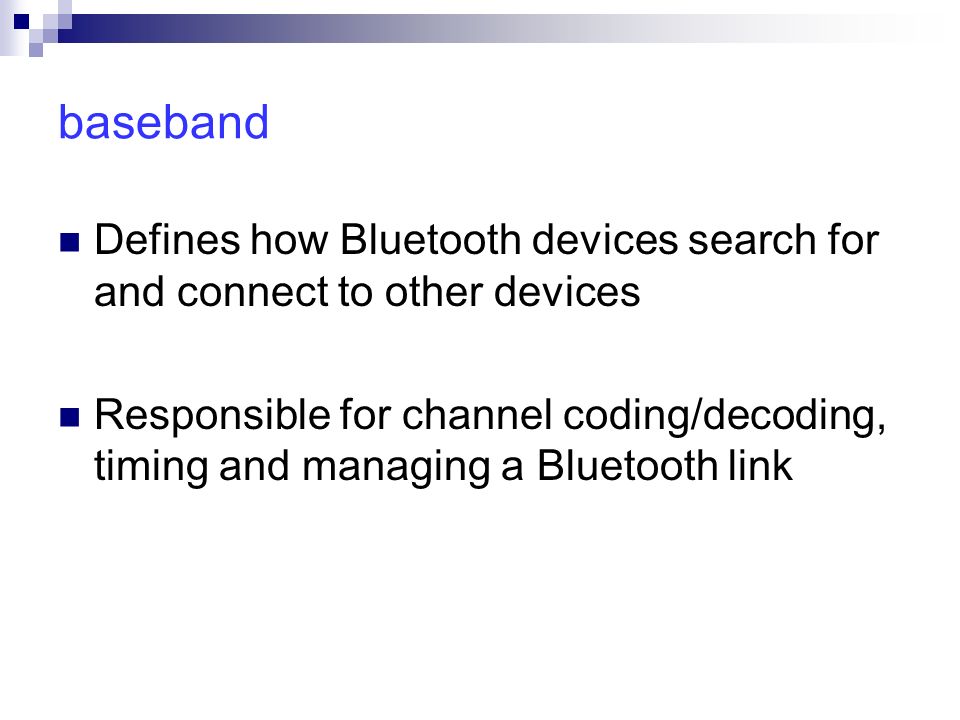

27. baseband Defines how Bluetooth devices search for and connect to other devices Responsible for channel coding/decoding, timing and managing a Bluetooth link

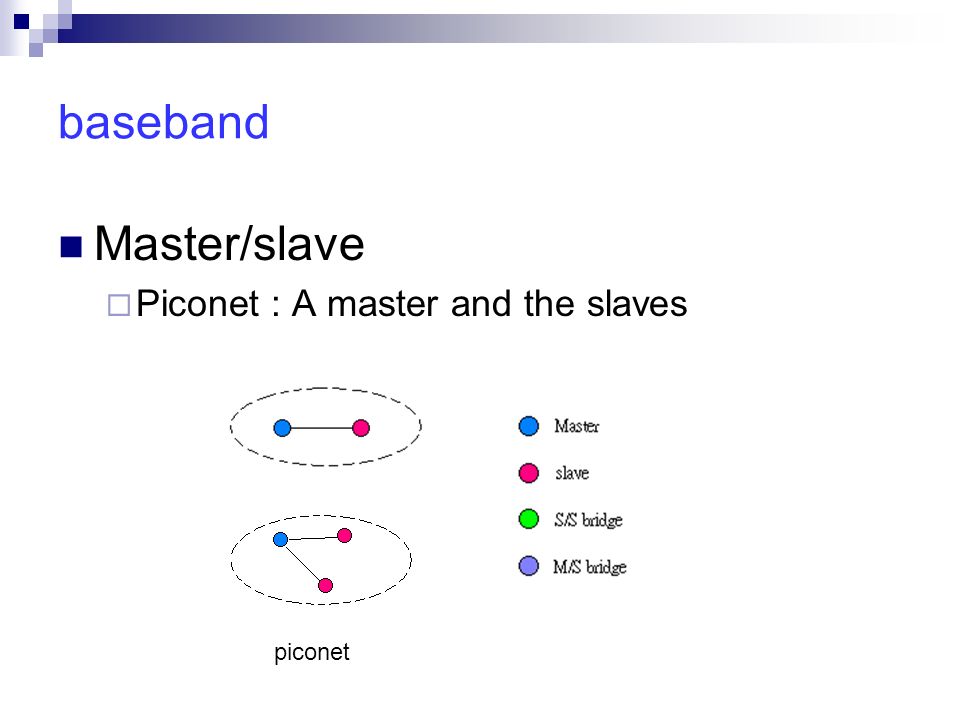

28. baseband Master/slave  Piconet : A master and the slaves piconet

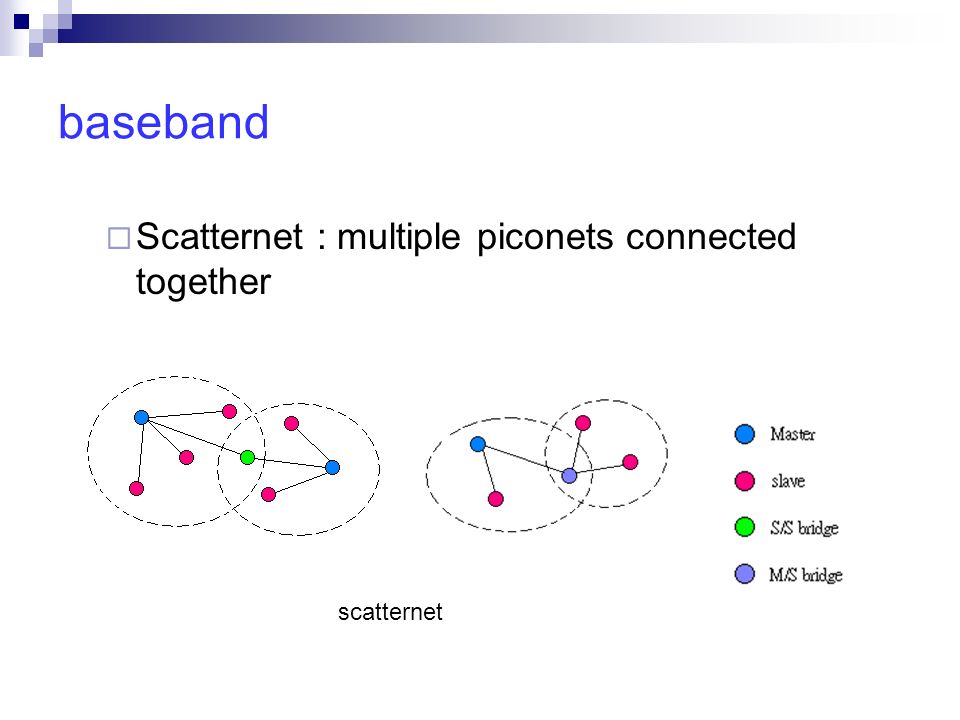

29. baseband  Scatternet : multiple piconets connected together scatternet

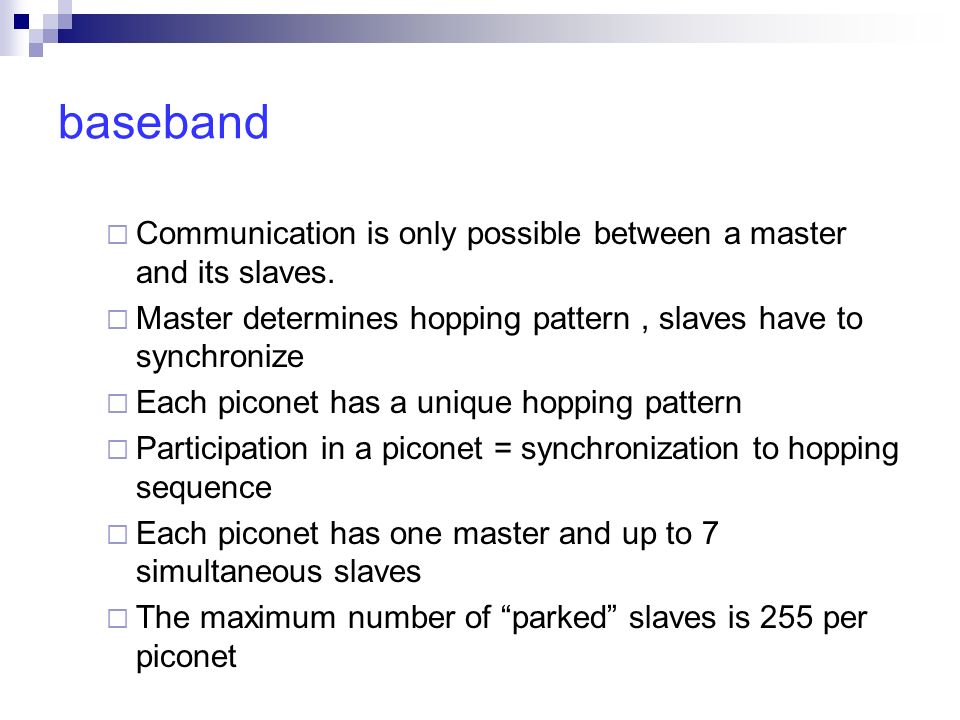

30. baseband  Communication is only possible between a master and its slaves.  Master determines hopping pattern, slaves have to synchronize  Each piconet has a unique hopping pattern  Participation in a piconet = synchronization to hopping sequence  Each piconet has one master and up to 7 simultaneous slaves  The maximum number of “parked” slaves is 255 per piconet

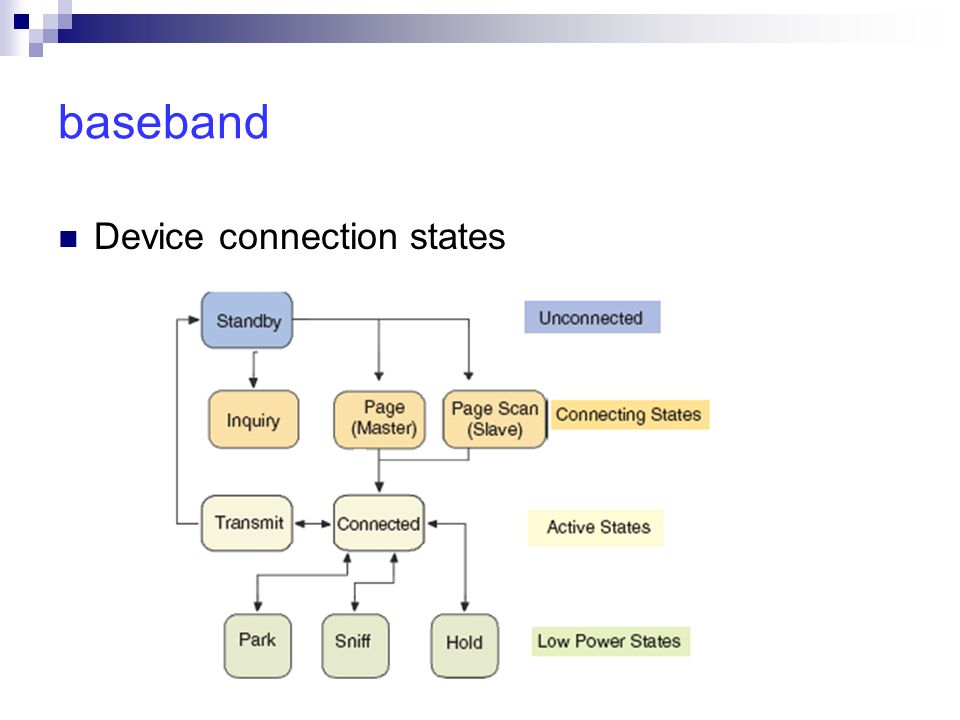

31. baseband Device connection states

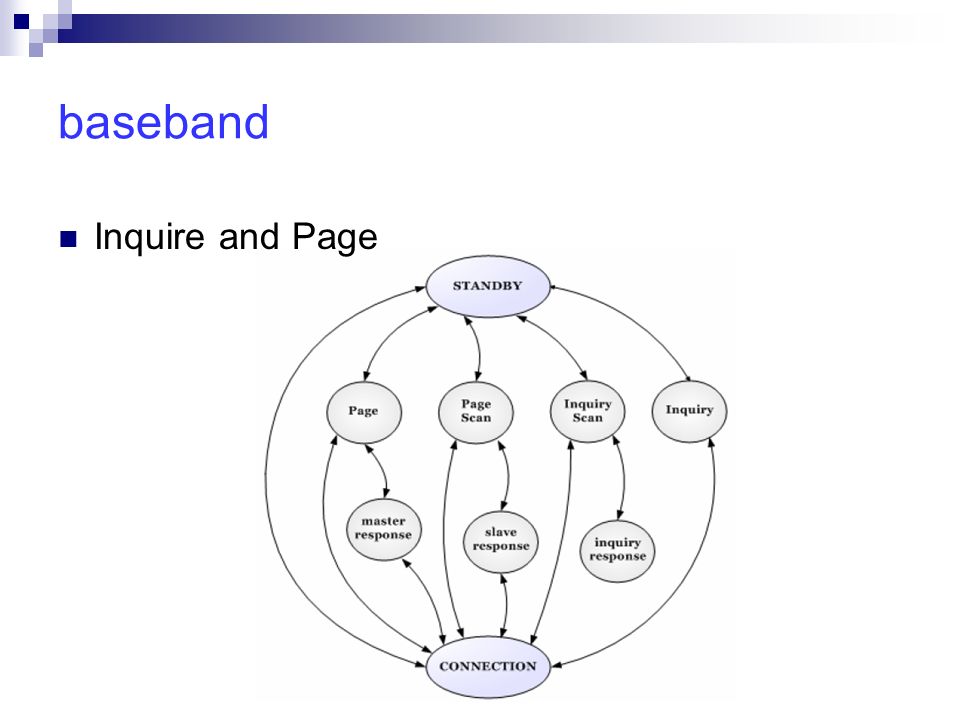

32. baseband Inquire and Page

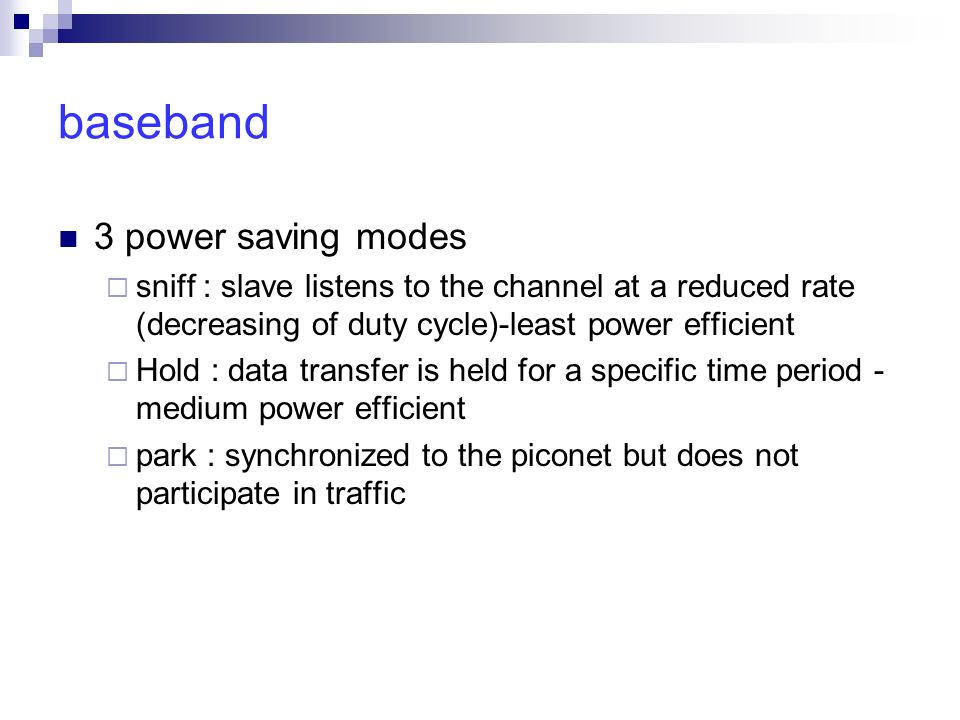

33. baseband 3 power saving modes  sniff : slave listens to the channel at a reduced rate (decreasing of duty cycle)-least power efficient  Hold : data transfer is held for a specific time period - medium power efficient  park : synchronized to the piconet but does not participate in traffic

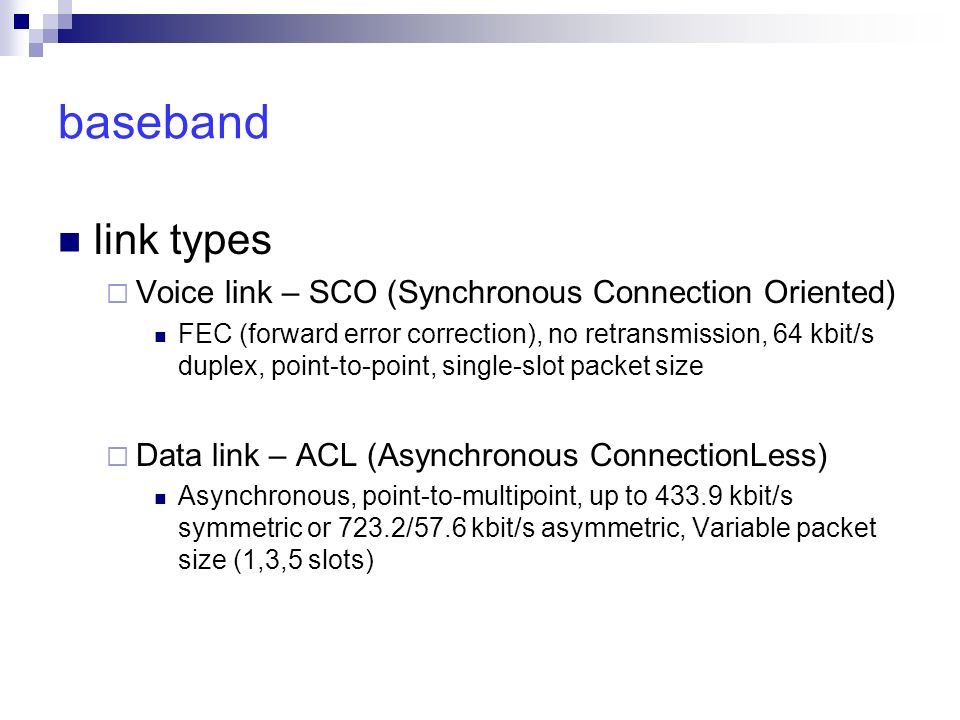

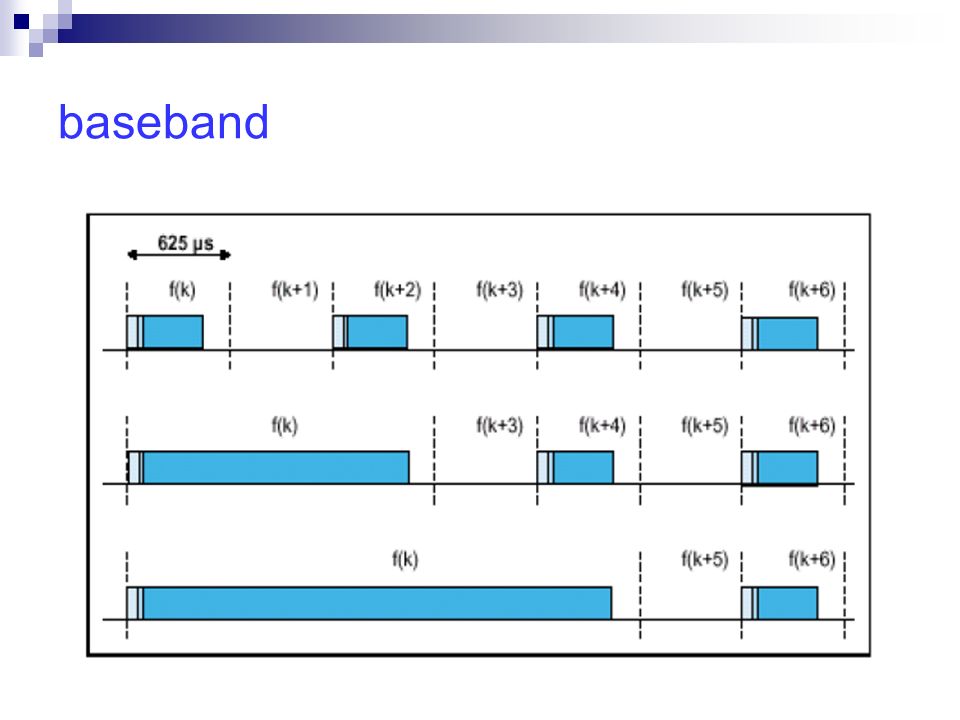

34. baseband link types  Voice link – SCO (Synchronous Connection Oriented) FEC (forward error correction), no retransmission, 64 kbit/s duplex, point-to-point, single-slot packet size  Data link – ACL (Asynchronous ConnectionLess) Asynchronous, point-to-multipoint, up to 433.9 kbit/s symmetric or 723.2/57.6 kbit/s asymmetric, Variable packet size (1,3,5 slots)

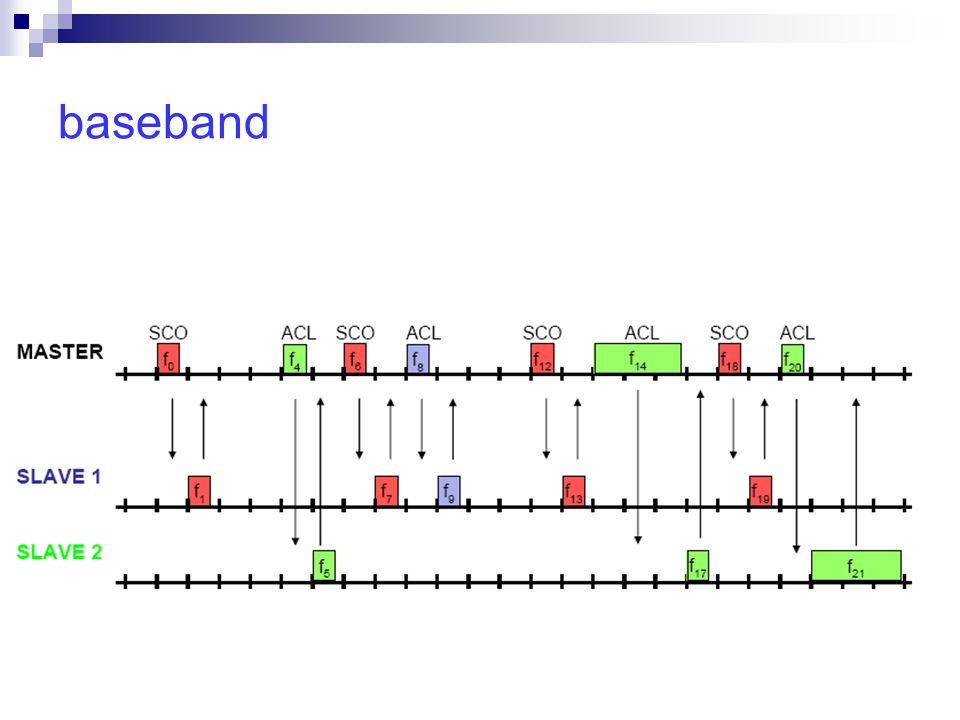

35. baseband

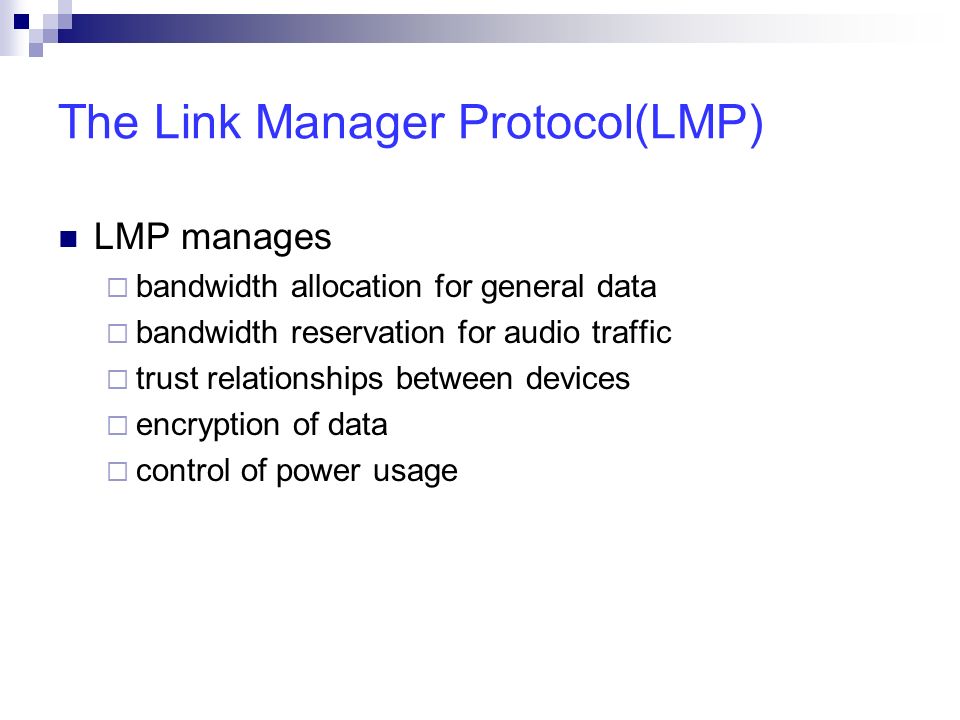

37. The Link Manager Protocol(LMP) LMP manages  bandwidth allocation for general data  bandwidth reservation for audio traffic  trust relationships between devices  encryption of data  control of power usage

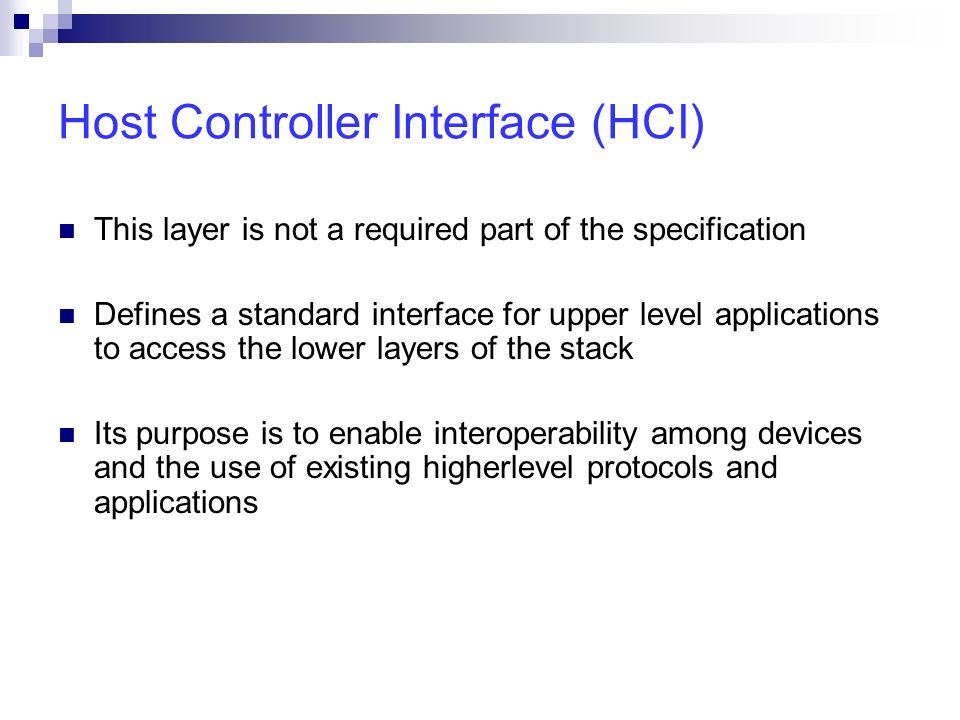

38. Host Controller Interface (HCI) This layer is not a required part of the specification Defines a standard interface for upper level applications to access the lower layers of the stack Its purpose is to enable interoperability among devices and the use of existing higherlevel protocols and applications

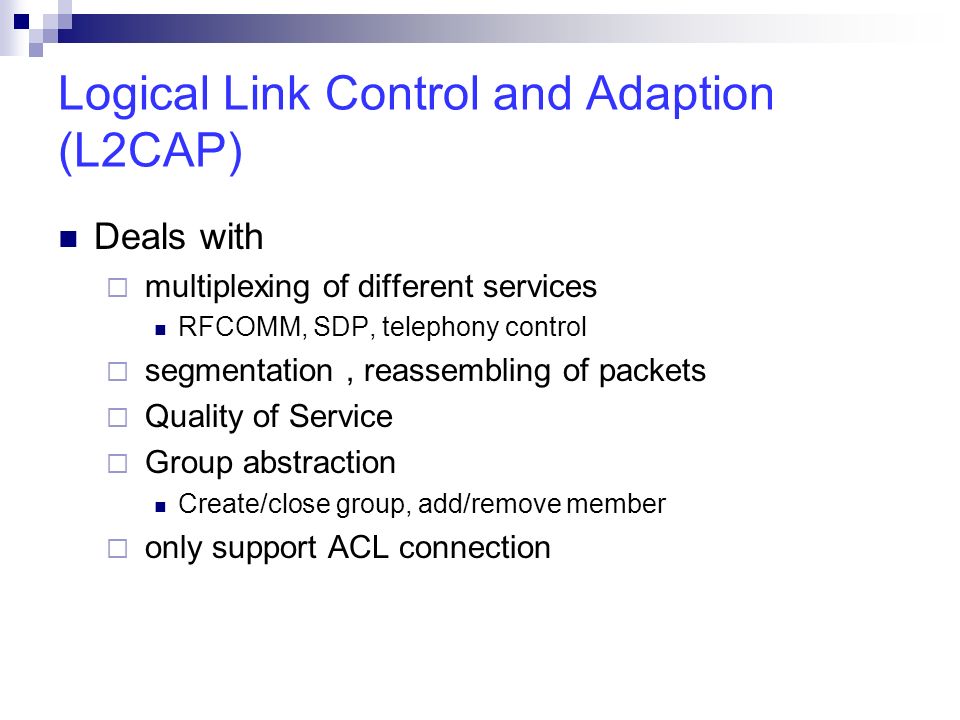

39. Logical Link Control and Adaption (L2CAP) Deals with  multiplexing of different services RFCOMM, SDP, telephony control  segmentation, reassembling of packets  Quality of Service  Group abstraction Create/close group, add/remove member  only support ACL connection

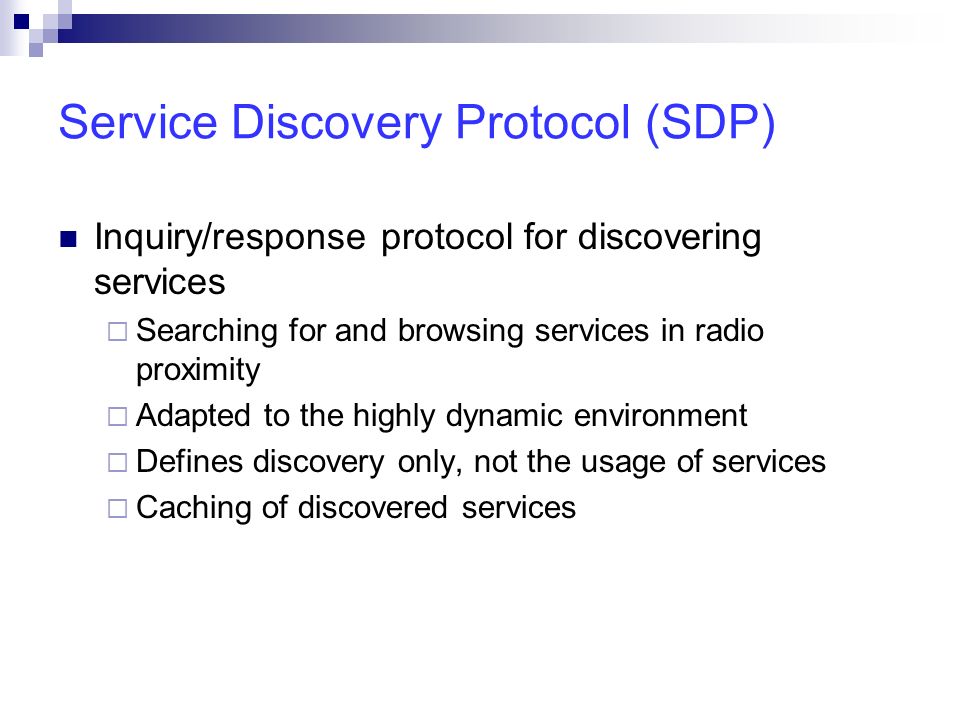

40. Service Discovery Protocol (SDP) Inquiry/response protocol for discovering services  Searching for and browsing services in radio proximity  Adapted to the highly dynamic environment  Defines discovery only, not the usage of services  Caching of discovered services

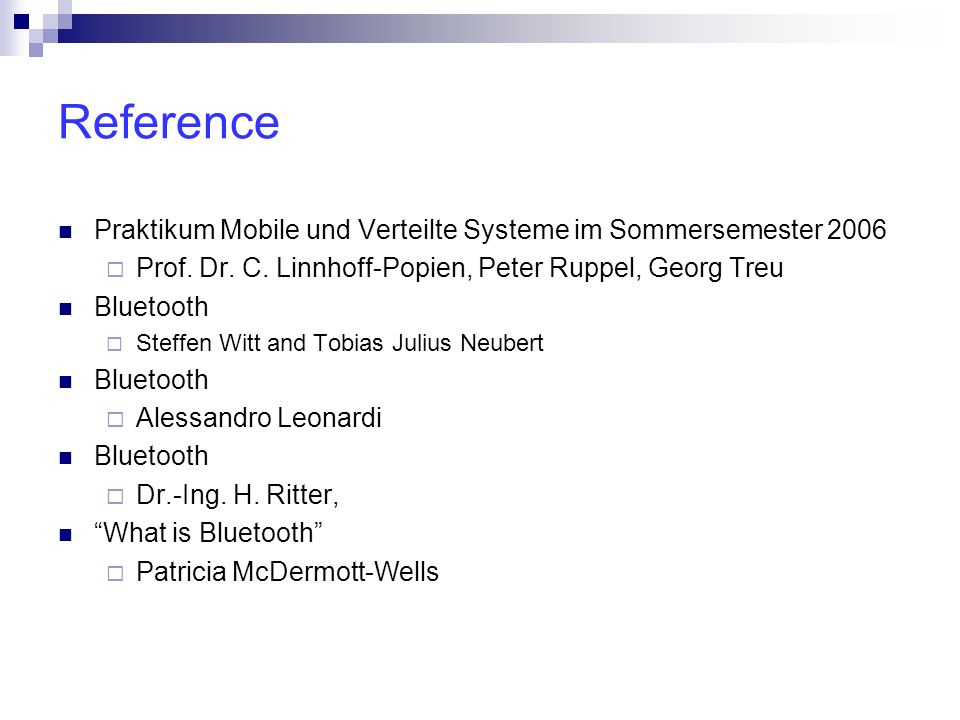

41. Reference Praktikum Mobile und Verteilte Systeme im Sommersemester 2006  Prof. Dr. C. Linnhoff-Popien, Peter Ruppel, Georg Treu Bluetooth  Steffen Witt and Tobias Julius Neubert Bluetooth  Alessandro Leonardi Bluetooth  Dr.-Ing. H. Ritter, “What is Bluetooth”  Patricia McDermott-Wells
