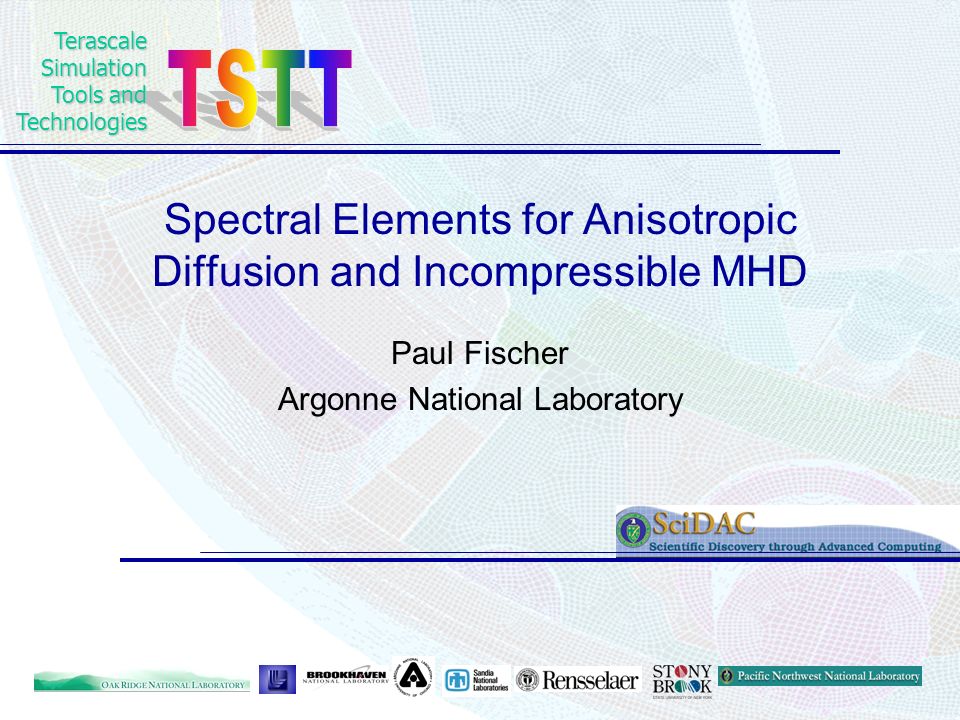

1. TerascaleSimulation Tools and Technologies Spectral Elements for Anisotropic Diffusion and Incompressible MHD Paul Fischer Argonne National Laboratory

2. 2 Terascale Simulation Tools and Technologies Goal: Enable high-fidelity calculations based on multiple coupled physical processes and multiple physical scales –Adaptive methods –Advanced meshing strategies –High-order discretization strategies Technical Approach: –Develop interchangeable and interoperable software components for meshing and discretization –Push state-of-the-art in discretizations

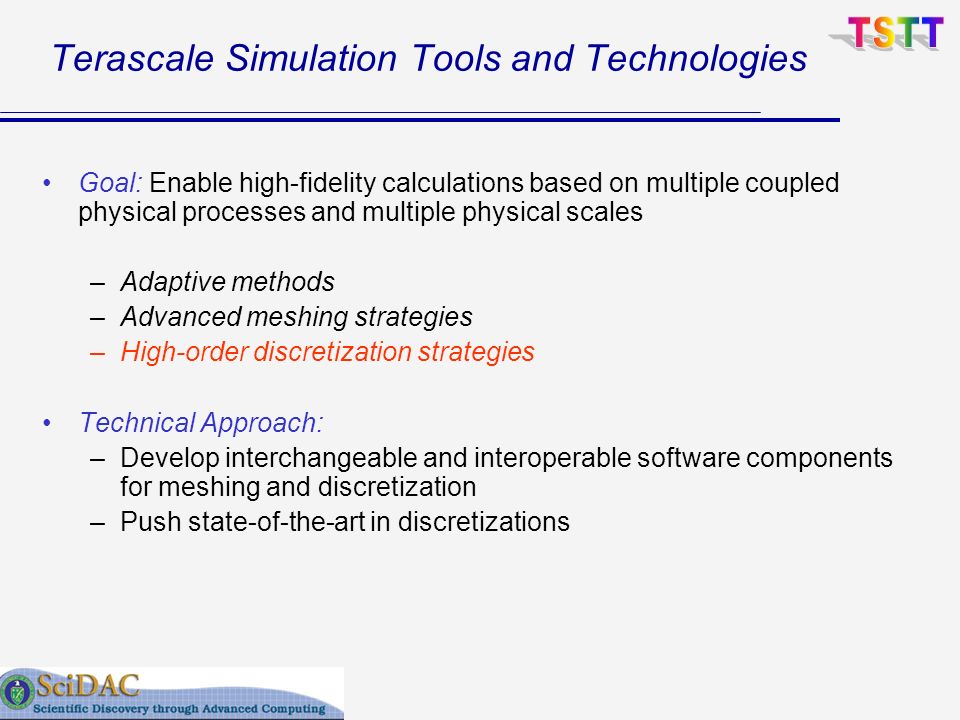

3. 3 Terascale Simulation Tools and Technologies Goal: Enable high-fidelity calculations based on multiple coupled physical processes and multiple physical scales –Adaptive methods –Advanced meshing strategies –High-order discretization strategies Technical Approach: –Develop interchangeable and interoperable software components for meshing and discretization –Push state-of-the-art in discretizations

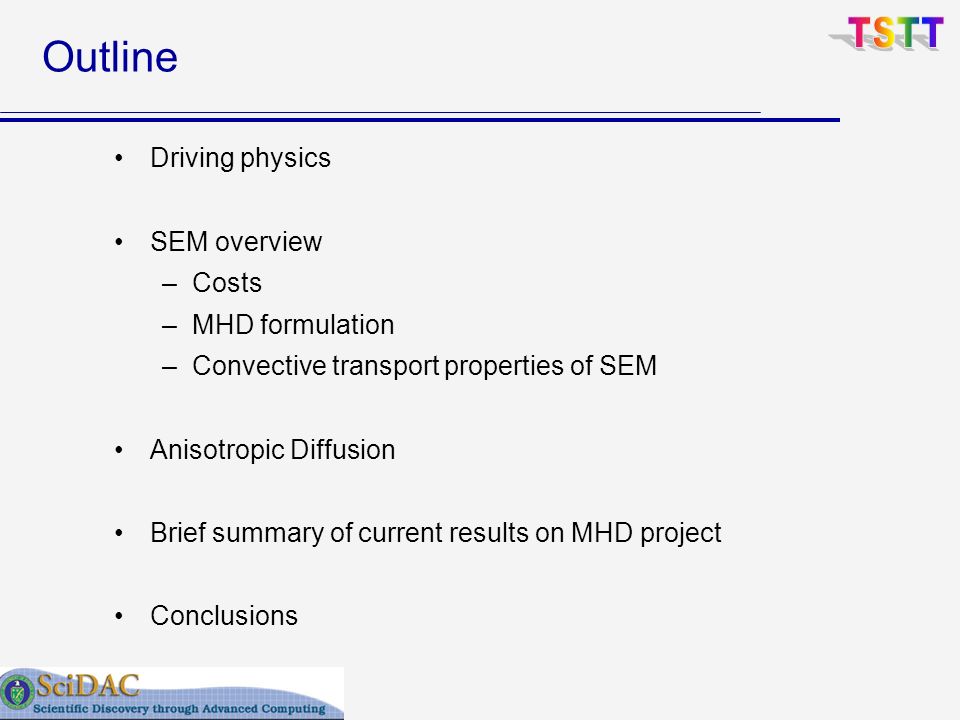

4. 4 Outline Driving physics SEM overview –Costs –MHD formulation –Convective transport properties of SEM Anisotropic Diffusion Brief summary of current results on MHD project Conclusions

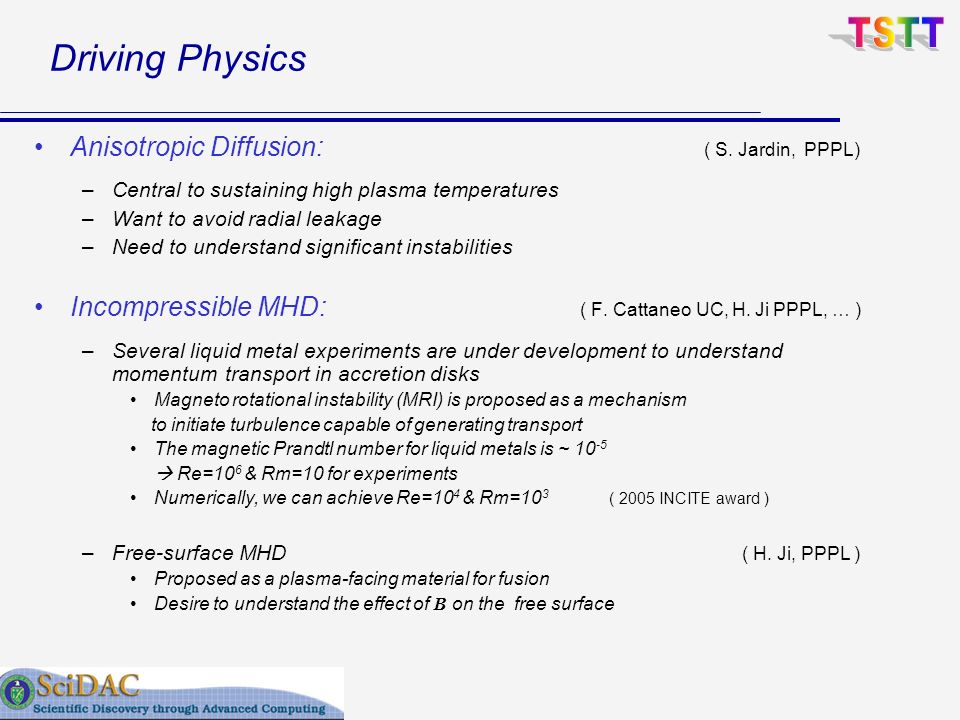

5. 5 Driving Physics Anisotropic Diffusion: ( S. Jardin, PPPL) –Central to sustaining high plasma temperatures –Want to avoid radial leakage –Need to understand significant instabilities Incompressible MHD: ( F. Cattaneo UC, H. Ji PPPL, … ) –Several liquid metal experiments are under development to understand momentum transport in accretion disks Magneto rotational instability (MRI) is proposed as a mechanism to initiate turbulence capable of generating transport The magnetic Prandtl number for liquid metals is ~ 10 -5  Re=10 6 & Rm=10 for experiments Numerically, we can achieve Re=10 4 & Rm=10 3 ( 2005 INCITE award ) –Free-surface MHD ( H. Ji, PPPL ) Proposed as a plasma-facing material for fusion Desire to understand the effect of B on the free surface

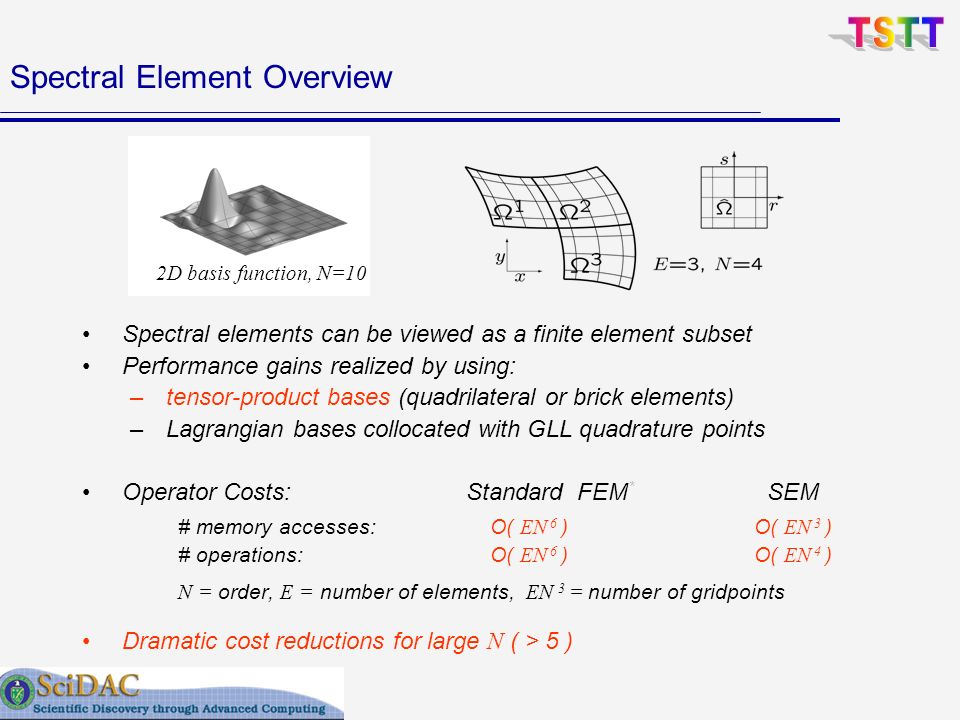

6. 6 Spectral Element Overview Spectral elements can be viewed as a finite element subset Performance gains realized by using: –tensor-product bases (quadrilateral or brick elements) –Lagrangian bases collocated with GLL quadrature points Operator Costs:Standard FEM * SEM # memory accesses: O( EN 6 ) O( EN 3 ) # operations: O( EN 6 ) O( EN 4 ) N = order, E = number of elements, EN 3 = number of gridpoints Dramatic cost reductions for large N ( > 5 ) 2D basis function, N=10

7. 7 Computational Advantages of Spectral Elements Exponential convergence with N minimal numerical dispersion / diffusion for anisotropic diffusion, lements of ker(A || ) well-resolved – sharp decoupling of isotropic and anisotropic modes Matrix-free form matrix-vector products cast as efficient matrix-matrix products number of memory accesses identical to 7-pt. finite difference no additional work or storage for anisotropic diffusion tensor

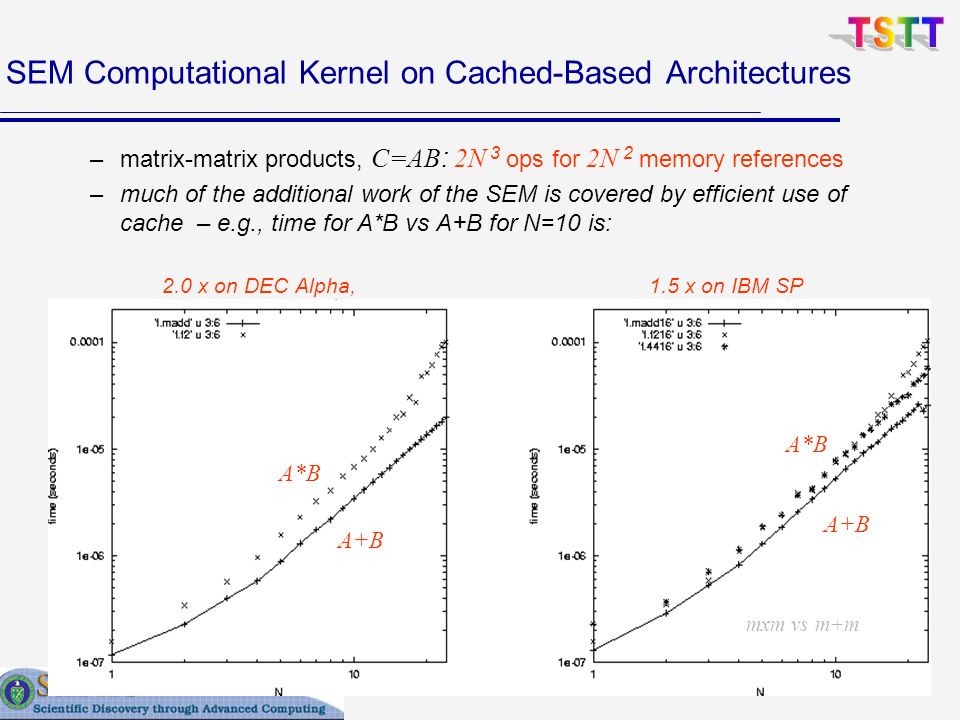

8. 8 SEM Computational Kernel on Cached-Based Architectures –matrix-matrix products, C=AB : 2N 3 ops for 2N 2 memory references –much of the additional work of the SEM is covered by efficient use of cache – e.g., time for A*B vs A+B for N=10 is: 2.0 x on DEC Alpha, 1.5 x on IBM SP A*B mxm vs m+m A*B A+B

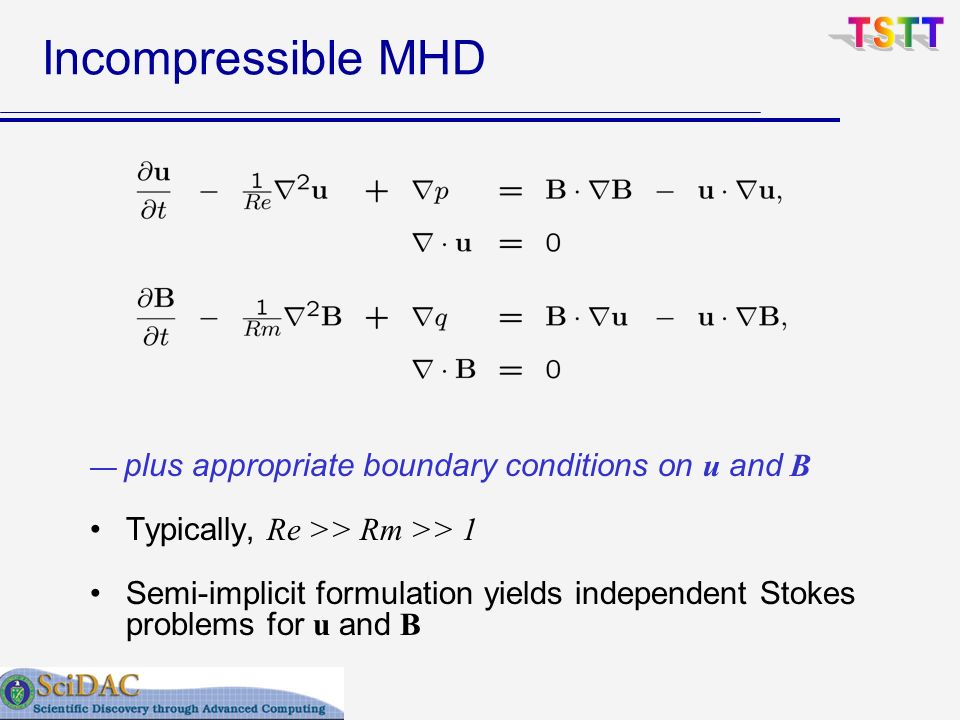

9. 9 Incompressible MHD t — plus appropriate boundary conditions on u and B Typically, Re >> Rm >> 1 Semi-implicit formulation yields independent Stokes problems for u and B

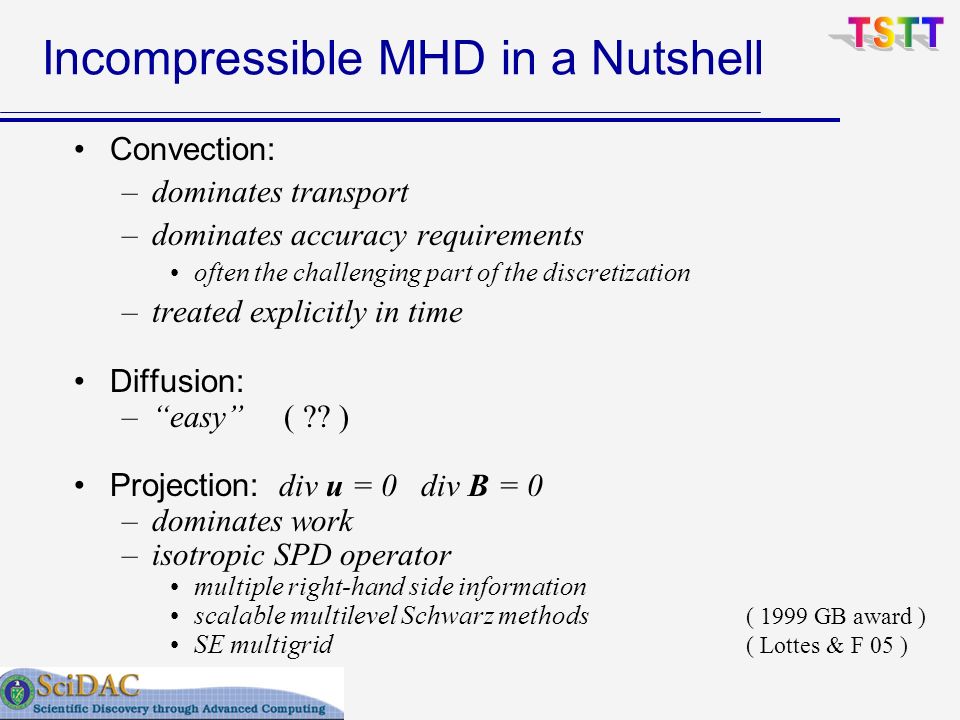

10. 10 Incompressible MHD in a Nutshell t Convection: –dominates transport –dominates accuracy requirements often the challenging part of the discretization –treated explicitly in time Diffusion: –“easy” ( ?? ) Projection: div u = 0 div B = 0 –dominates work –isotropic SPD operator multiple right-hand side information scalable multilevel Schwarz methods ( 1999 GB award ) SE multigrid ( Lottes & F 05 )

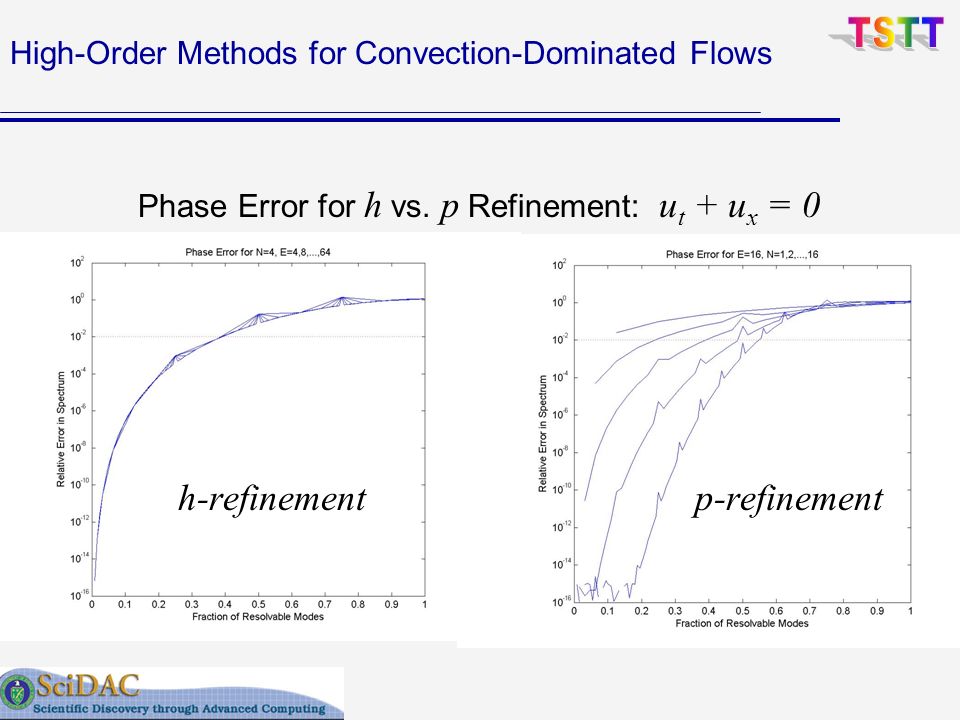

11. 11 High-Order Methods for Convection-Dominated Flows Phase Error for h vs. p Refinement: u t + u x = 0 h-refinement p-refinement

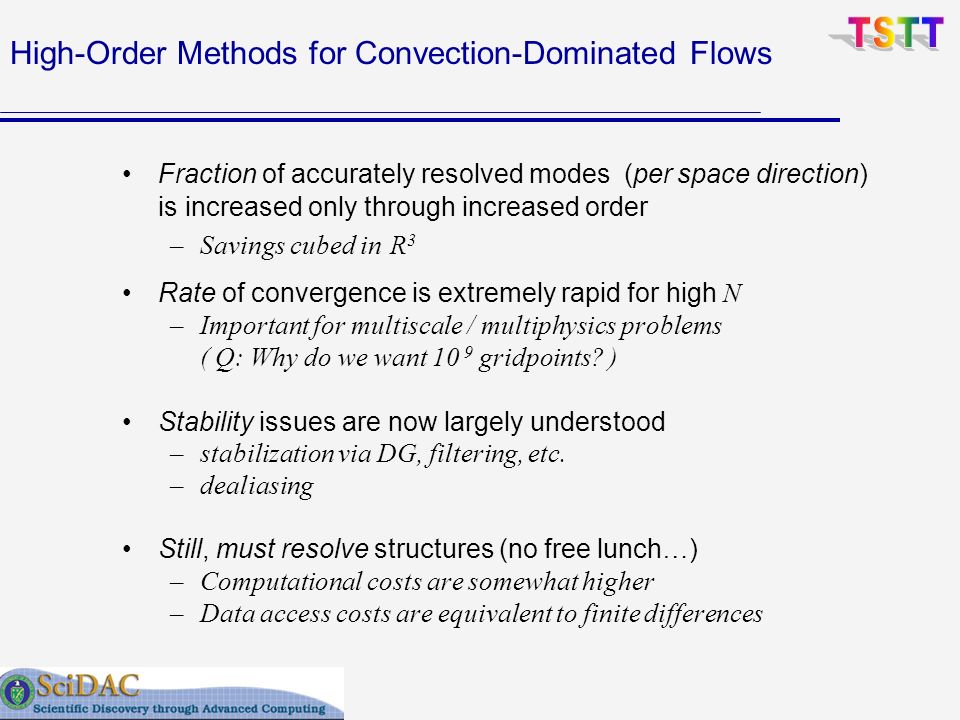

12. 12 High-Order Methods for Convection-Dominated Flows Fraction of accurately resolved modes (per space direction) is increased only through increased order –Savings cubed in R 3 Rate of convergence is extremely rapid for high N –Important for multiscale / multiphysics problems ( Q: Why do we want 10 9 gridpoints? ) Stability issues are now largely understood –stabilization via DG, filtering, etc. –dealiasing Still, must resolve structures (no free lunch … ) –Computational costs are somewhat higher –Data access costs are equivalent to finite differences

13. 13 c = (-x,y) c = (-y,x) Stabilizing convective problems: Models of straining and rotating flows: –Rotational case is skew-symmetric. –Filtering attacks the leading-order unstable mode. –Dealiasing ( high-order quadrature ) yields imaginary eigenvalues – vital for MHD N=19, M=19 N=19, M=20 straining field rotational field

14. 14 Diffusion – easy ??

15. 15 CEMM Challenge Problems S. Jardin, PPPL 1.Anisotropic diffusion in a toroidal geometry 2.Two-dimensional tilt mode instability 3.Magnetic reconnection in 2D Provides a problem suite that –captures essential physics of fusion simulation –stresses traditional numerical approaches –identifies pathways for next generation fusion codes Excellent vehicle for initiating SciDAC interatctions.

16. 16 Anisotropic Diffusion in Toroidal Domains b – normalized B-field, helically wrapped on toroidal surfaces thermal flux follows b.

17. 17 High degree of anisotropy creates significant challenges For this problem is more like a (difficult) hyperbolic problem than straightforward diffusion. This is reflected in the variational statement for the steady case with

18. 18 Numerical challenges: –radial diffusion, –nearly singular, with large (but finite) null space –avoid grid imprinting –unsteady case constitutes a stiff relaxation problem –preconditioning nearly singular systems CEMM challenge: –establish spatial convergence for steady state case –check unsteady energy conservation when –investigate the behavior of the tearing mode instability High degree of anisotropy creates significant challenges

19. 19 total number of gridpoints centerpoint error Steady State Error – 3D,  || = 10 8 It is advantageous to use few elements of high order Fewer gridpoints are required CPU time proportional to number of gridpoints ( N odd, 3-7) ( N even, 2-6)

20. 20 High Anisotropy Demands High Accuracy A =  || A || + A I A I controls radial diffusion –A || must be accurately represented when  || >> 1 –Error must scale as ~ 1 /  || Steady-State L 2 – error over a range of discretizations E N

21. 21 High Anisotropy Demands High Accuracy Difficulty stems from high-frequency content in null space of A || High-order discretizations are able to accurately represent these functions. N=16 k N=2 k k 18 th mode in circular geometry,  || = 10 8

22. 22 Error vs. t T vs. r,t N=14 Error vs. r, N=12 Evolution of Gaussian Pulse for –minimal radial diffusion –no grid imprinting –careful time integration required (e.g., adaptive DIRK4 )  -averaged temperature vs. time Evolution of Gaussian pulse for

23. 23 SEM is able to identify critical physics – Tearing mode instability –radial perturbation: b = b 0 +  cos(m  -n  ) r –field lines do not close on m-n rational surface –magnetic island results, with significant increase in radial conductivity. –island width scales as: W ~ in accord with asymptotic theory Note: this is a subtle effect! W W Island width vs.  || at onset. W

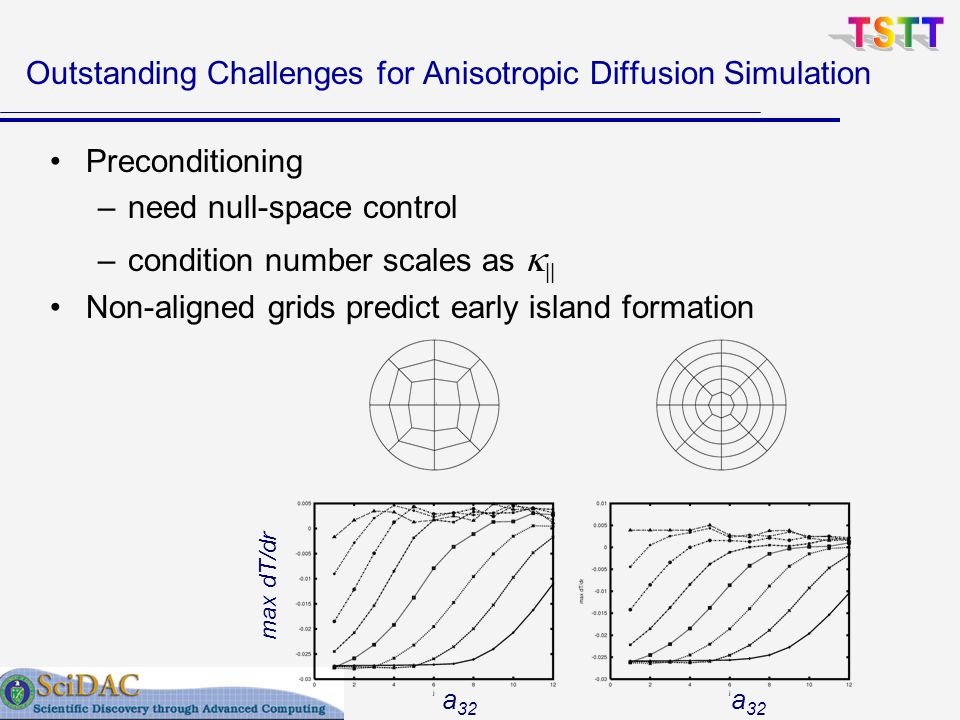

24. 24 Outstanding Challenges for Anisotropic Diffusion Simulation Preconditioning –need null-space control –condition number scales as  || Non-aligned grids predict early island formation  -averaged temperature vs. time a 32 max dT/dr

25. 25 Incompressible MHD Results

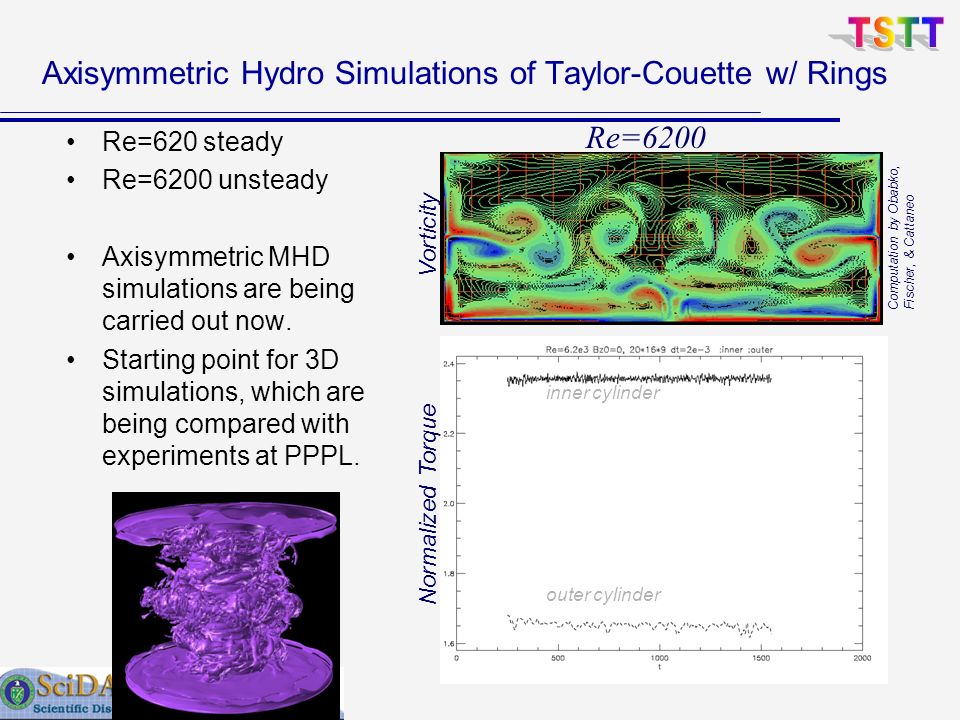

26. 26 Axisymmetric Hydro Simulations of Taylor-Couette w/ Rings Re=620 steady Re=6200 unsteady Axisymmetric MHD simulations are being carried out now. Starting point for 3D simulations, which are being compared with experiments at PPPL. Computation by Obabko, Fischer, & Cattaneo Normalized Torque Vorticity inner cylinder outer cylinder Re=6200

27. 27 Computational MRI: preliminary results Computations Fischer, Obabko & Cattaneo Nonlinear development of Magneto-Rotational Instability Cylindrical geometry similar to Goodman-Ji experiment Hydrodynamically stable rotation profile Weak vertical field Use newly developed spectral element MHD code Try to understand differences between experiments and simulations Simulations Re  Rm (moderate). Experiments Re>>Rm (Rm smallish)

28. 28 Summary & Conclusions Block-structured SEM provides an efficient path to high-order –accurate treatment of challenging physics –fast cache-friendly operator evaluation ( N 4 vs. N 6 ) For anisotropic diffusion –effects of grid imprinting are minimized –able to capture physics of high anisotropy MRI experiment –MRI has been observed with axial periodicity at Re=Rm=1000. –preliminary axisymmetric results indicate hydrodynamic unsteadiness at Re=6000 for two-ring boundary configuration, may be mitigated in 3D… Free-surface MHD –Free-surface NS is working –Coupling with full MHD is underway
