Geometry Section 1.6 Special Angle Pairs

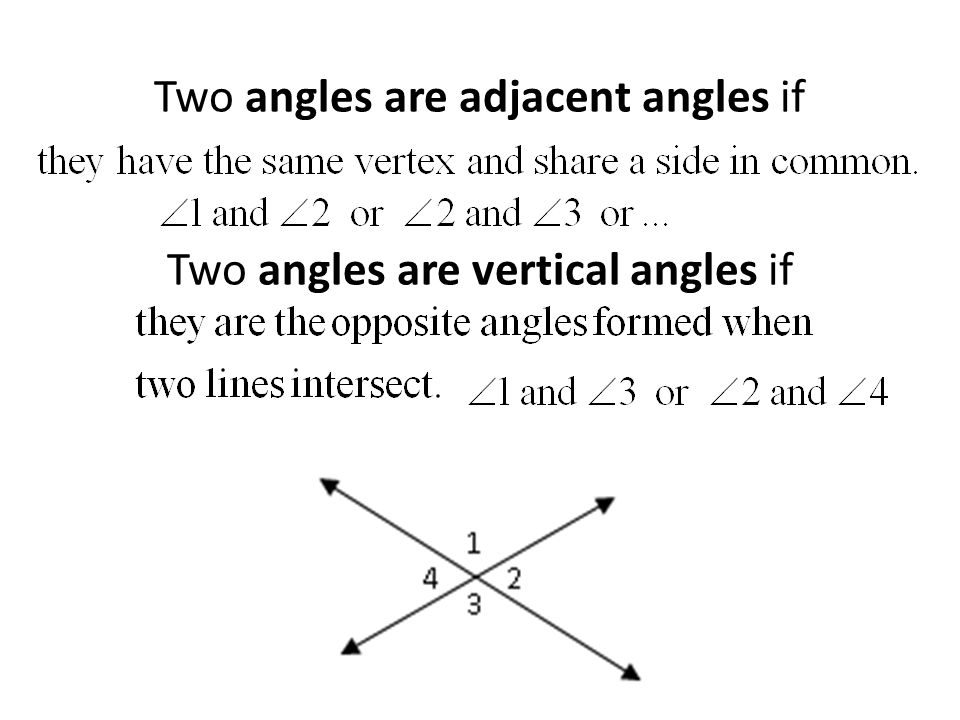

Two angles are adjacent angles if Two angles are vertical angles if
While a postulate is a theorem is a

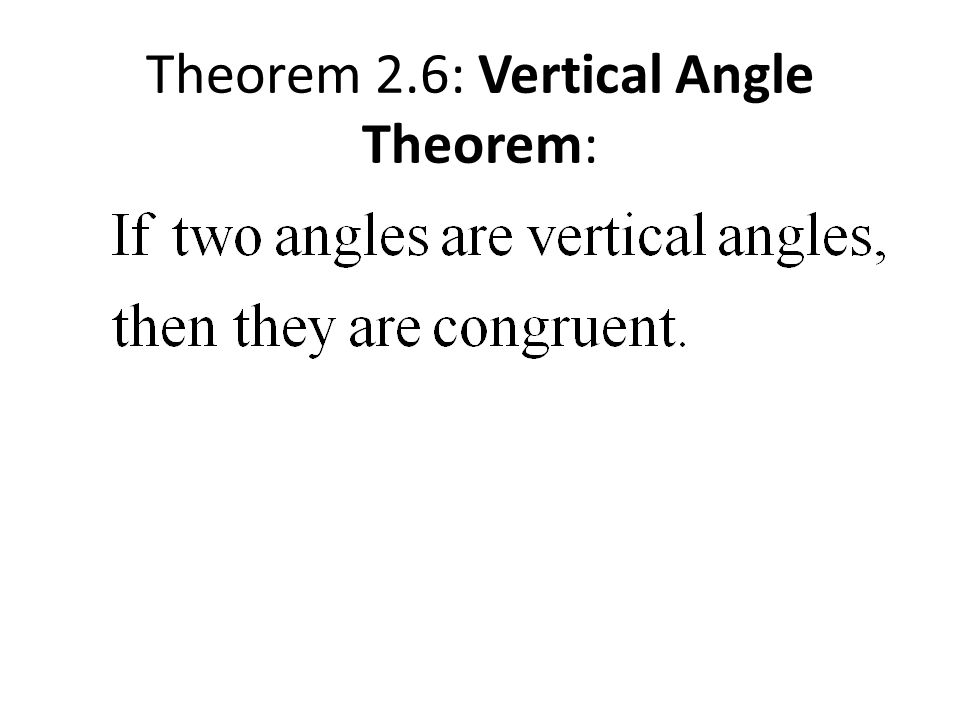

Theorem 2.6: Vertical Angle Theorem:

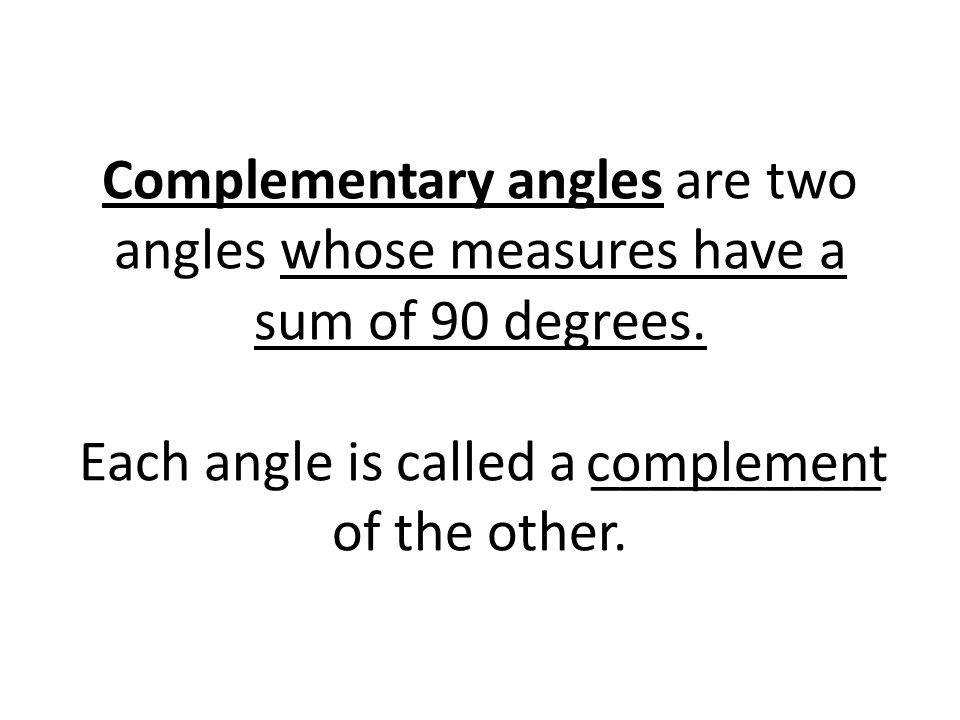

Complementary angles are two angles whose measures have a sum of 90 degrees. Each angle is called a __________ of the other. complement

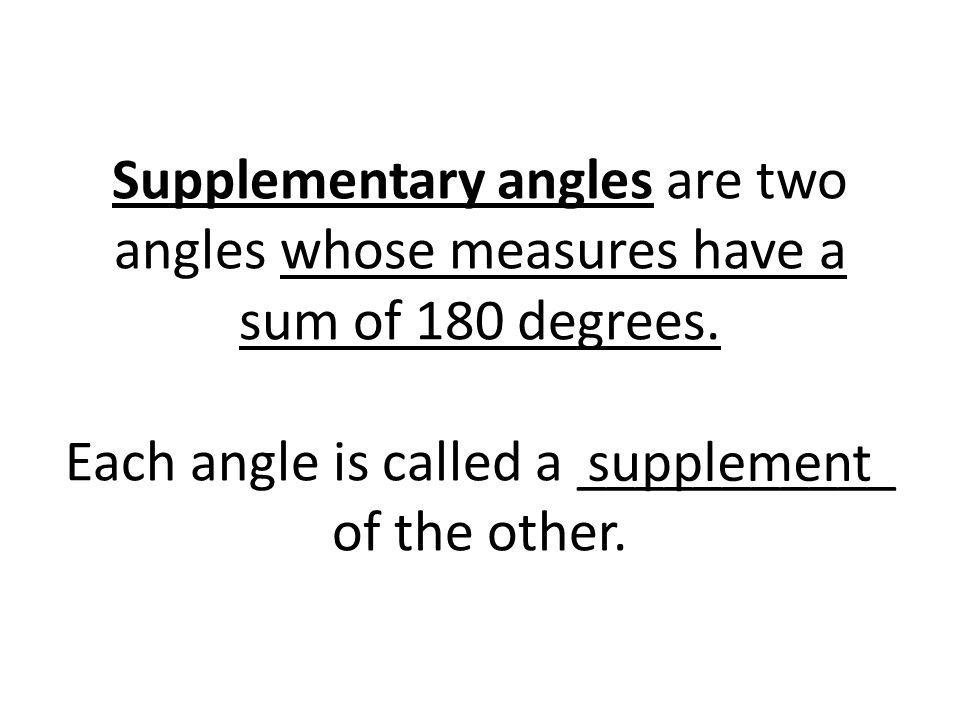

Supplementary angles are two angles whose measures have a sum of 180 degrees. Each angle is called a ___________ of the other. supplement

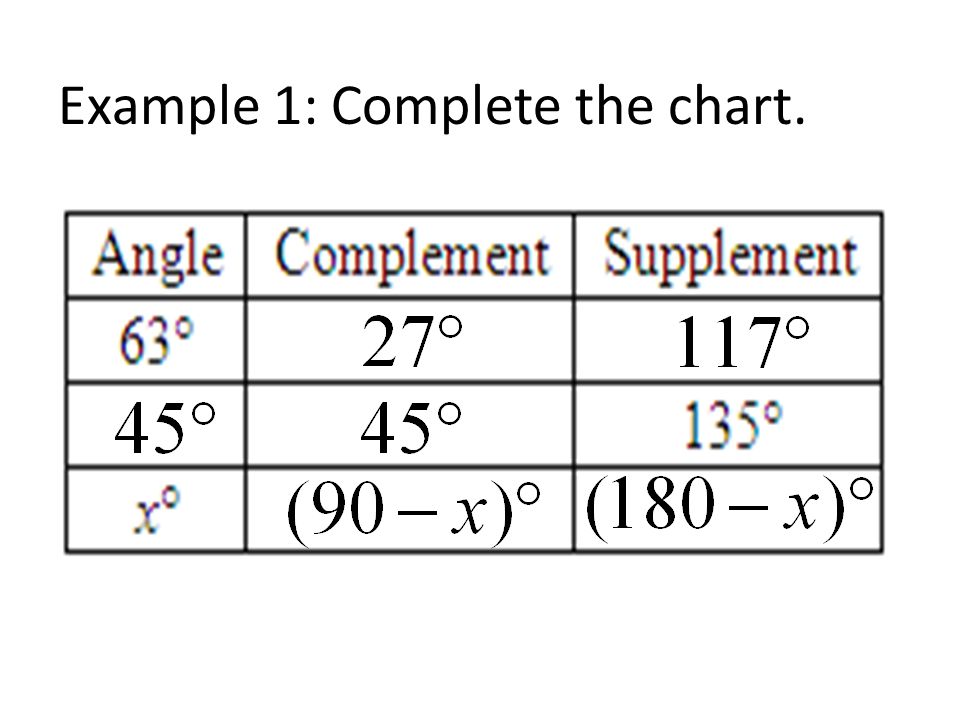

Example 1: Complete the chart.
Example 3: The measure of an angle is 10 less than three times the measure of its complement. Find the measure of both angles.

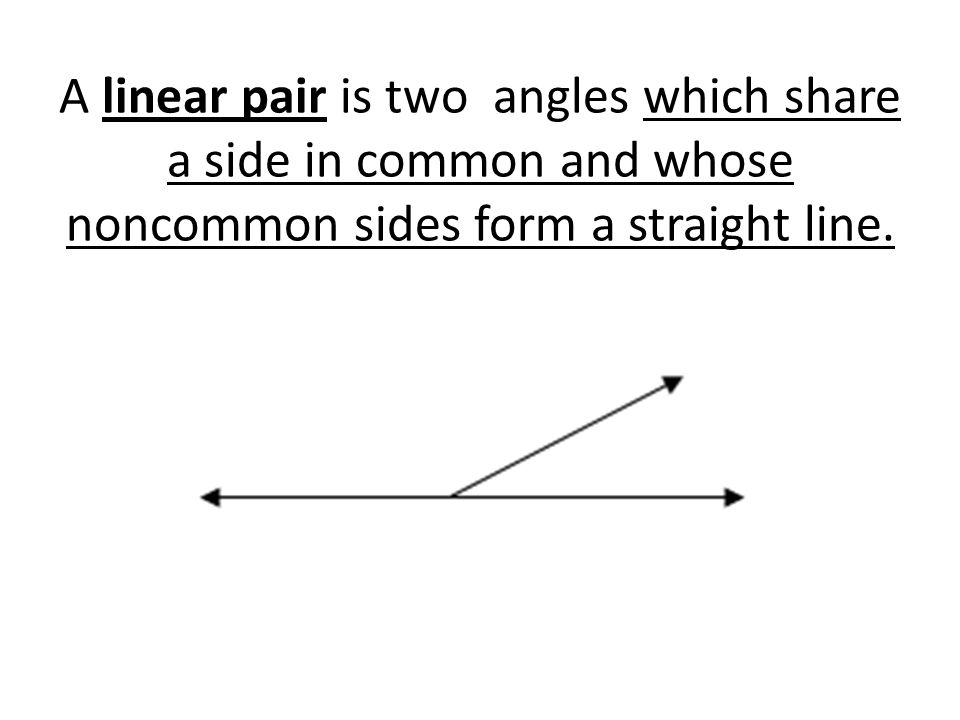

A linear pair is two angles which share a side in common and whose noncommon sides form a straight line.

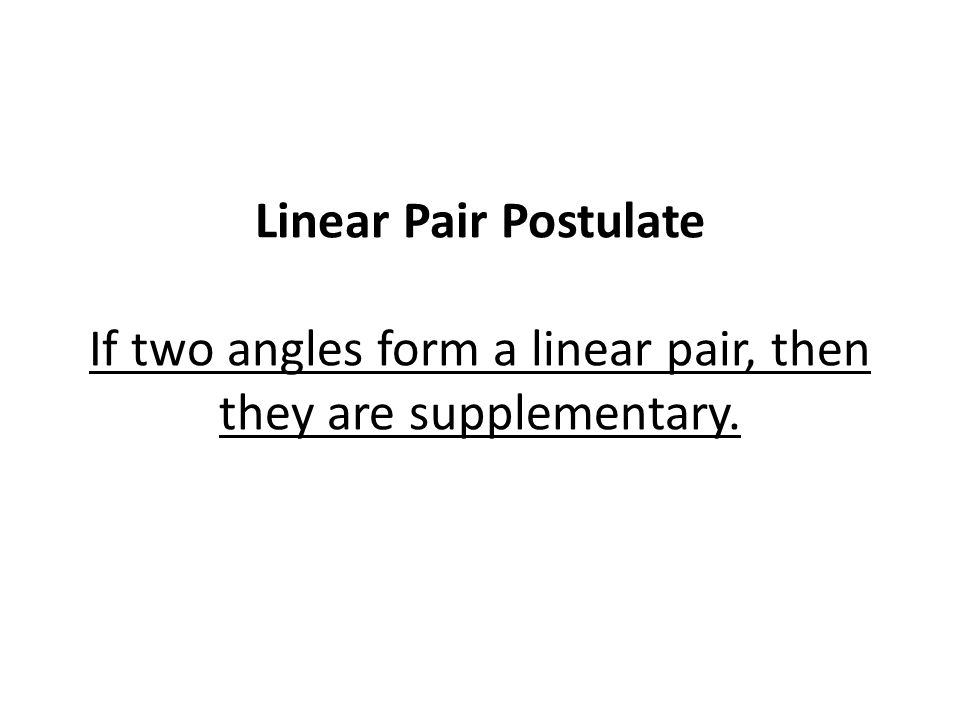

Linear Pair Postulate If two angles form a linear pair, then they are supplementary.

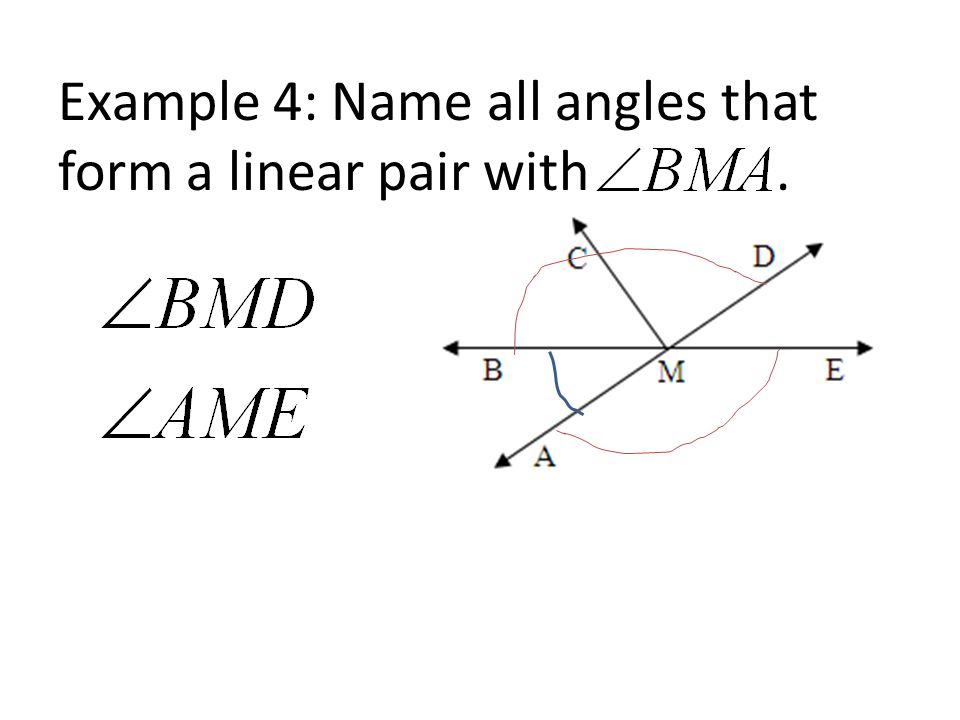

Example 4: Name all angles that form a linear pair with.
