1. Open Source and Informix Dynamic Server Jonathan Leffler IBM Information Management I07 Tuesday 3 rd October 2006 15:15 – 16:15

2. 2 Agenda Open Source Connecting to IDS Perl, DBI, and DBD::Informix Tcl/Tk and isqltcl PHP Aubit 4GL SQLCMD SQSL Python Ruby

3. 3 Open Source What is Open Source? Which rock have you been hiding under? Software released under an Open Source license Conformant with the Open Source Definition Found at http://www.opensource.org/http://www.opensource.org/ Free Redistribution Source Code Derived Works Permitted No Discrimination Against People or Groups No Discrimination Against Fields of Endeavour Distribution of License

4. 4 Open Source Licenses There are many Open Source licenses GPL – GNU General Public License LGPL – GNU Lesser General Public License BSD – Berkeley Systems Distribution MIT – Massachusetts Institute of Technology MPL – Mozilla Public License Academic Free License Open Software License Nearly 60 licenses at the Open Source Initiative!

5. 5 Informix Database Connectivity ESQL/C The original connectivity. Standardized in SQL by ISO/IEC 9075:1992 ODBC Originally defined by Microsoft. Standardized (as CLI) by ISO/IEC 9075-3:1996. JDBC Java analogue of ODBC. Standardized by Sun. All of these are proprietary. But can be used with Open Source software.

6. 6 ESQL/C Preprocessor that converts extended C into pure C. Links with specific libraries. Separates static and dynamic SQL. Even though Informix does not really do so. int main(void) { EXEC SQL WHENEVER ERROR STOP; EXEC SQL DATABASE Stores; EXEC SQL BEGIN WORK; EXEC SQL DROP TABLE Customer; EXEC SQL ROLLBACK WORK; return(0); }

7. 7 ODBC Database agnostic. Separates driver manager from drivers. Different drivers can be loaded at run time. You can avoid database-specific features. But sometimes you want to use them. All statements are dynamic. De-emphasized by Microsoft In favour of newer technologies ADO,.NET

8. 8 JDBC Database agnostic. Drivers have different levels of Java-ness. Type 4: pure Java – usually the best type to use. The other way to connect in Java is ESQL/J. Not widely accepted. JDBC is the lingua franca of the Java database world.

9. 9 Perl – Practical Extraction and Report Language Originally written by Larry Wall Version 1.0 in 1987 Version 5.0 in 1994 Version 6 under development for a long time Apocalypse 1 posted April 2001 (at http://perl.com/)http://perl.com/ Current stable version: 5.8.8— February 2006 Obtain via CPAN Comprehensive Perl Archive Network http://www.cpan.org/

10. 10 Perl Script Language Does not require separate compilation Complex looking code Can be incredibly terse Can be quite legible Excellent at string handling Excellent access to operating system Extensible A myriad modules available at CPAN http://www.cpan.org/

11. 11 Perl Database Interface DBI written by Tim Bunce. Standard way to access databases with Perl. Many database drivers available. Including ODBC, DB2, and Oracle. And, of course, Informix. And many others. DBI – version 1.52, August 2006. Requires Perl 5.6.1 or later. DBD::Informix – version 2005.02, July 2005.

12. 12 DBI – Database Handles Load DBI use DBI; Create database handles $dbh = DBI->connect(‘DBI:Informix:stores7’); Database methods $dbh->do(‘DELETE FROM Customer’); Transaction control $dbh->rollback; $dbh->commit; Disconnect $dbh->disconnect;

13. 13 DBI – Statement Handles Create statement handles my $xname = $dbh->quote(“%$name%”); $sth = $dbh->prepare(qq{ DELETE FROM Customer WHERE Lname LIKE $xname AND ZipCode IS NULL }); Statements can be executed $sth->execute(); Statement handles can be released Implicitly – statement handle goes out of scope Explicitly – undef $sth;

14. 14 Danger – SQL Injection What happens if the code is written as: $sth = $dbh->prepare(qq{ DELETE FROM Customer WHERE Lname LIKE ‘%$name%’ AND ZipCode IS NULL }); This is a security breach ready to happen SQL injection exploit. What happens if the user enters this name: X%’ OR fname != ‘X’ OR fname = ‘

15. 15 Danger – SQL Injection The query is now: DELETE FROM Customer WHERE Lname LIKE ‘%X%’ OR fname != ‘X’ OR fname = ‘%’ AND ZipCode IS NULL This deletes all (most) rows from the table! Use $dbh->quote($name) – if you must. Better to use placeholders (?) in the SQL $sth = $dbh->prepare(qq{ DELETE FROM Customer WHERE Lname LIKE ? AND ZipCode IS NULL });

16. 16 DBI – Handling SELECT Statement handles are used for SELECT too $sth = $dbh->prepare(q% SELECT * FROM Customer WHERE Fname = ? AND Lname = ? ORDER BY Lname, Fname%); $sth->execute($firstname, $surname); @results = $sth->fetchall_arrayref; …process results… print $results[$rownum][$colnum]; undef $sth;

17. 17 DBI – Handling SELECT Many ways to fetch rows $sth->fetchrow_array $sth->fetchrow_hashref $sth->fetchrow_arrayref $sth->fetchall_arrayref All rows Also utility methods $dbh->selectrow_array First row only $dbh->selectall_arrayref

18. 18 #! /usr/bin/perl -w use DBI; $dbh = DBI->connect(‘DBI:Informix:stores7’,’’,’’, {RaiseError => 1, PrintError=>1}); $sth = $dbh->prepare(q%SELECT Fname, Lname, Phone FROM Customer WHERE Customer_num = ? %); $sth->execute(106); $ref = $sth->fetchall_arrayref(); for $row (@$ref) { print “Name: $$row[0] $$row[1], Phone: $$row[2]\n”; } $dbh->disconnect; DBD::Informix – example

19. 19 Tcl/Tk and isqltcl Tcl – Tool Control Language Invented by John Ousterhout Tk – Tool Kit (GUI) Tcl/Tk – at http://www.tcl.tk/http://www.tcl.tk/ Current version 8.4.13 – April 2006. isqltcl – Informix SQL access via Tcl. Available at http://isqltcl.sourceforge.net/http://isqltcl.sourceforge.net/ Version 5.0 – released February 2002. Builds into dynamically loadable shared library

20. 20 Tcl/Tk Extensions Tcl/Tk is designed to be easily extended Many extensions available for all jobs For example Expect Designed to handle scripting of processes Used for automating testing ftp://expect.nist.gov/ And many more...

21. 21 Loading ISQLTCL Load the ISQLTCL extension load isql.so Adds the command ‘sql’ to Tcl/Tk tclsh wish

22. 22 ISQLTCL – Connections Connect to a database sql connect dbase as conn1 user $username \ password $password Connect to given database sql disconnect [current|default|all|conn1] Close database connection sql setconnection [default|conn1] Sets the specified connection

23. 23 ISQLTCL – Statements Executable statements Statements that return no data sql run {delete from sometable where pkcol = ?} $pkval Prepares and executes the statement Optionally takes a number of arguments for placeholders Returns zero on success; non-zero on failure

24. 24 ISQLTCL – Cursors SELECT, EXECUTE PROCEDURE set stmt [sql open {select * from sometable}] Does PREPARE, DECLARE, and OPEN Returns a statement number (id) or a negative error Optionally takes arguments for placeholders set row [sql fetch $stmt 1] Collects one row of data As a Tcl list in the variable ‘row’ The 1 is optional and means strip trailing blanks The list is empty if there is no more data

25. 25 ISQLTCL – Cursors sql reopen $stmt ?arg1? ?arg2? Reopens the statement, with new parameters sql close $stmt Indicates you have no further use for the statement It frees both the cursor and statement!

26. 26 What is PHP? Hypertext Processor Was once ‘Personal Home Page’ Version 4.4.2 released January 2006 Version 5.0.5 released September 2005 Version 5.1.6 released August 2006 An HTML scripting language Server-side Cross-platform Embedded in HTML documents Extensible Web site: http://php.net/http://php.net/

27. 27 What is PHP? Built into the Apache Web Server Using DSO (dynamic shared objects) mod_php Or as a CGI binary With any web server PHP has a reputation for being insecure. Largely a question of how it is used. See PHP Security Consortium http://phpsec.org/ Not clear how active this is…

28. 28 What is PHP? Built-in access to: Email XML HTTP (cookies, sessions) And databases: ODBC DB2, Adabas-D, Empress, Solid, Velocis mSQL, MySQL, PostgreSQL Sybase, Oracle Informix

29. 29 What is PHP? IBM also provides modern PDO drivers PDO – PHP Data Objects PHP analogue of Perl DBI Article on DeveloperWorks http://tinyurl.com/eycg2 For DB2 Via PDO_ODBC For IDS Version 1.0.0 – December 2005 (stable) Version 1.0.1 – May 2006 (alpha) http://pecl.php.net/package/PDO_INFORMIX

30. 30 Informative PHP Script PHP Information <?php echo “URL: http://$HTTP_HOST$PHP_SELF ” echo “ \n” phpinfo() ?>

31. 31 Old Informix Driver Code provided as standard part of PHP. But not maintained for several years. Must be explicitly compiled into PHP. 30 core functions. 8 functions to manipulate SBLOBs.

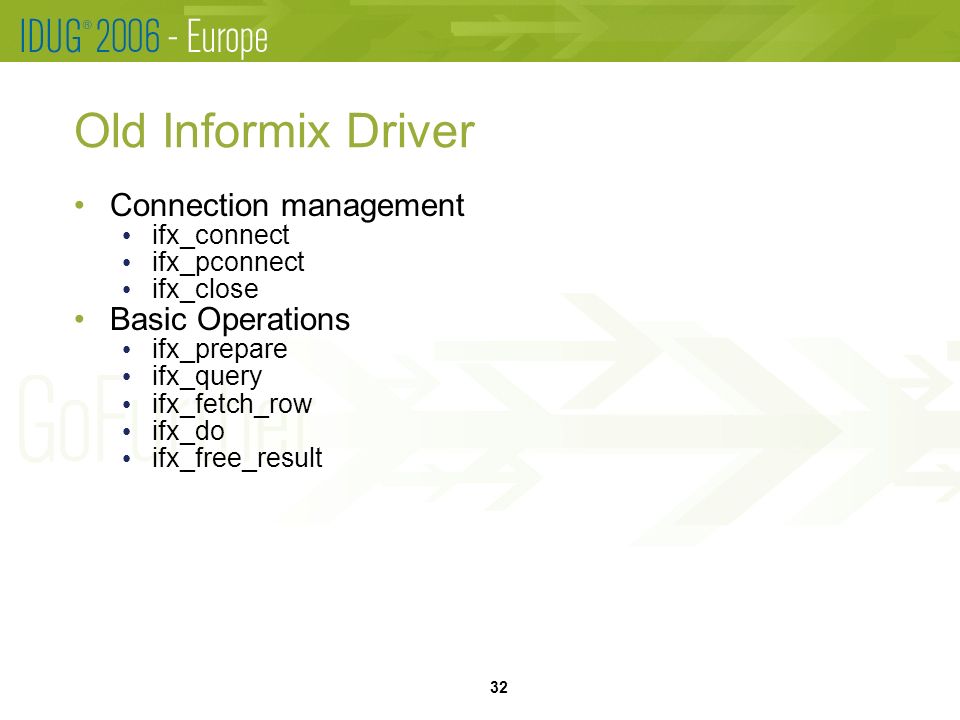

32. 32 Old Informix Driver Connection management ifx_connect ifx_pconnect ifx_close Basic Operations ifx_prepare ifx_query ifx_fetch_row ifx_do ifx_free_result

33. 33 Old Informix Driver Status and Error Handling ifx_getsqlca ifx_error ifx_errormsg ifx_affected_rows Attribute Queries Blob handling Utility functions ifx_htmltbl_result

34. 34 New Informix Driver Accessed via PDO functions See: http://www.php.net/pdohttp://www.php.net/pdo getMessage(). " "; die(); } ?>

35. 35 Python and InformixDB http://www.python.org/ Version 2.5 – 19 th September 2006 Version 2.4.3 – March 2006. InformixDB – under active development Maintainer: Carsten Haese Python DB-API 2.0 compliant Requires Python 2.2 or better Needs Informix ClientSDK Version 2.3 – 1 st October 2006

36. 36 Python and InformixDB import informixdb conn = informixdb.connect(”test”, ”someone”, ”somepw”) cur = conn.cursor() cur.execute(“create table test1(a int, b int)”) for i in range(1,25): cur.execute("insert into test1 values(?,?)", (i, i**2)) cur.execute("select * from test1") for row in cur: print "The square of %d is %d." % (row[0], row[1])

37. 37 Aubit 4GL – Open Source 4GL 99% Informix™ 4GL Compatible BODR=Business Oriented, Database Related Task-focussed language Embedded SQL for database access High productivity, easy to learn Licensed under GPL/LGPL Includes 4GL-based Open Source software For commercial and non-commercial applications

38. 38 Aubit 4GL – New to 4GL? MAIN MENU "Title for my test menu" COMMAND "Impress Me" "Do something to impress me“ HELP 126 CALL OpenMyWindow() COMMAND "Exit" "Exit this menu" HELP 127 EXIT MENU END MENU END MAIN FUNCTION OpenMyWindow() OPEN WINDOW MyTestWindow AT 2,3 WITH FORM "FormForMyTestWindow" ATTRIBUTE(BORDER, WHITE) END FUNCTION Think about amount of code to achieve same functionality in 3GL!

39. 39 Aubit 4GL – Features Database independent ODBC, native, ESQL/C Fully modular (plug-in) architecture User interface independent GUI and Curses modes Platform independent (POSIX, UNIX, Windows) Easy to embed 3GL in 4GL Embedded C code

40. 40 Aubit 4GL – Enhancements Logical Reports ASQL – dbaccess/isql replacement Flexible key mapping Print Screen functions Fully integrated testing hooks (including key recording and replay for batch jobs) Dynamic function calls (like perl ‘::’)

41. 41 Aubit 4GL – Web Sites Web site http://aubit4gl.sourceforge.nethttp://aubit4gl.sourceforge.net Bug Tracker http://www.aubit.com/mantishttp://www.aubit.com/mantis Bulletin boardhttp://www.aubit.com/phpBBhttp://www.aubit.com/phpBB Commercial supporthttp://www.aubit.comhttp://www.aubit.com Current version: 0.59-22 dated 2006-09-04 Pushing towards a 1.00 release Release candidates 0.99-xx available October 2006

42. 42 SQLCMD Originally called RDSQL in 1987. Renamed SQLCMD in 1992. Intended as an alternative to ‘isql’. Before DB-Access was created. Designed for use in shell scripts. Exits with non-zero status on error. Careful use of standard input, output, error. Output layout independent of selected data. Designed for interactive use. Available from the IIUG Software Archive. Version 80.00 – 2005-11-23

43. 43 SQSL – Structured Query Scripting Language SQSL is a scripting language Created by Marco Greco Superset of SQL Features aimed at scripting, reporting, and simple ETL Lets a DBA perform daily activities as easily as possible

44. 44 SQSL – Structured Query Scripting Language It has a low learning curve: Language features should be familiar To anyone with experience of: SQL SPL Informix 4GL Bourne shell It includes flow-control operations It has a curses-based full-screen mode Like DB-Access http://www.4glworks.com/sqsl.htm Version 0.02 – September 2005

45. 45 Ruby http://www.ruby-lang.org/ Version 1.8.5 – 29 th August 2006. NEW – Informix support http://rubyforge.org/projects/ruby-informix/ Registered February 2006 Version 0.2.0 released April 2006. Produced by Gerardo Santana Gómez Garrido gerardo.santana@gmail.com See also ‘Ruby on Rails’ http://www.rubyonrails.com/

46. 46 IIUG Software Archive http://www.iiug.org/software Many useful utilities Art Kagel’s ‘utils2_ak’ package Generate UPDATE STATISTICS statements DB-Copy Stored Procedure Libraries Example DataBlades 4GL Code Generators

47. 47 http://www.ibm.com/software/data/informix http://www.iiug.org/software

48. 48 http://www.ibm.com/software/data/informix http://www.iiug.org/software

49. 49 Jonathan Leffler IBM Information Management jleffler@us.ibm.com Session I07 Open Source and Informix Dynamic Server
