1.  Introduction to the Science Laboratory  Introduction to Science apparatus  Lab Safety The Science Laboratory

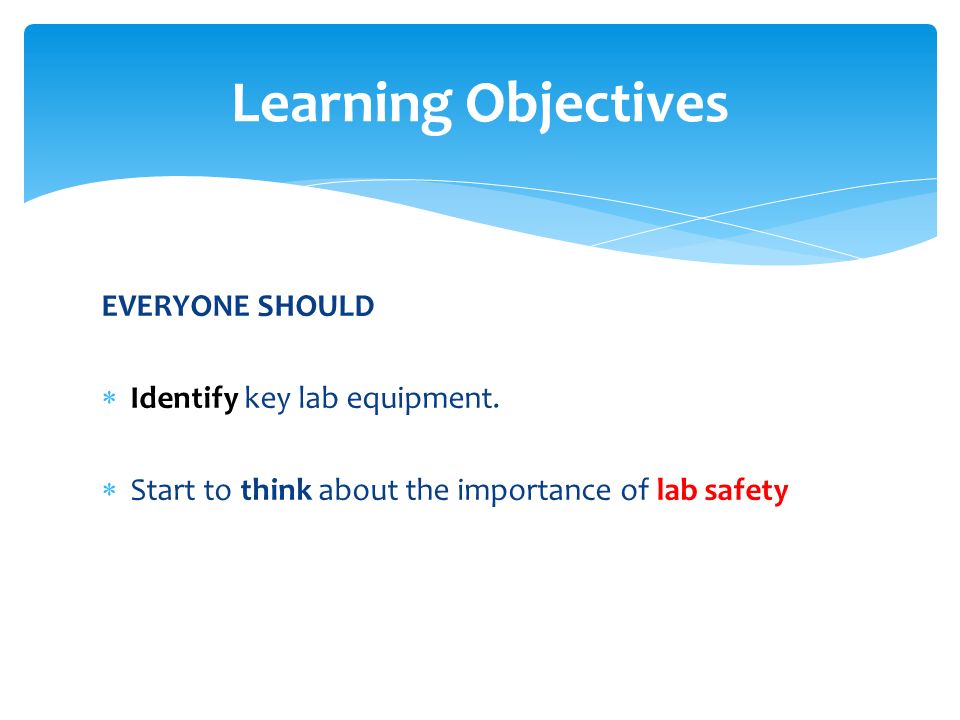

2. EVERYONE SHOULD  Identify key lab equipment.  Start to think about the importance of lab safety Learning Objectives

3.  The place where a scientist works is called a laboratory.  As students, you will carry out scientific investigations or experiments during science lessons in science laboratories The Science Laboratory

4.  We need to use apparatus to carry out our experiments.  The following slides show some common laboratory apparatus and their uses. Scientific Apparatus

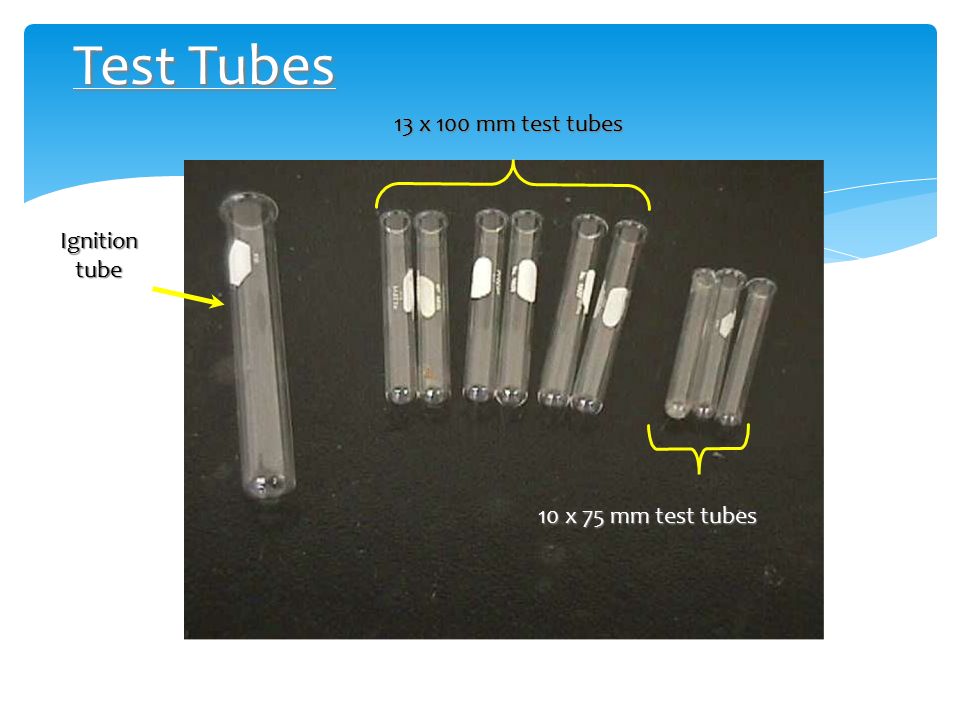

5. Test Tubes 13 x 100 mm test tubes 10 x 75 mm test tubes Ignitiontube

6. Test tubes and boiling tubes

7. Test Tube Holder A test tube holder is useful for holding a test tube which is too hot to handle.

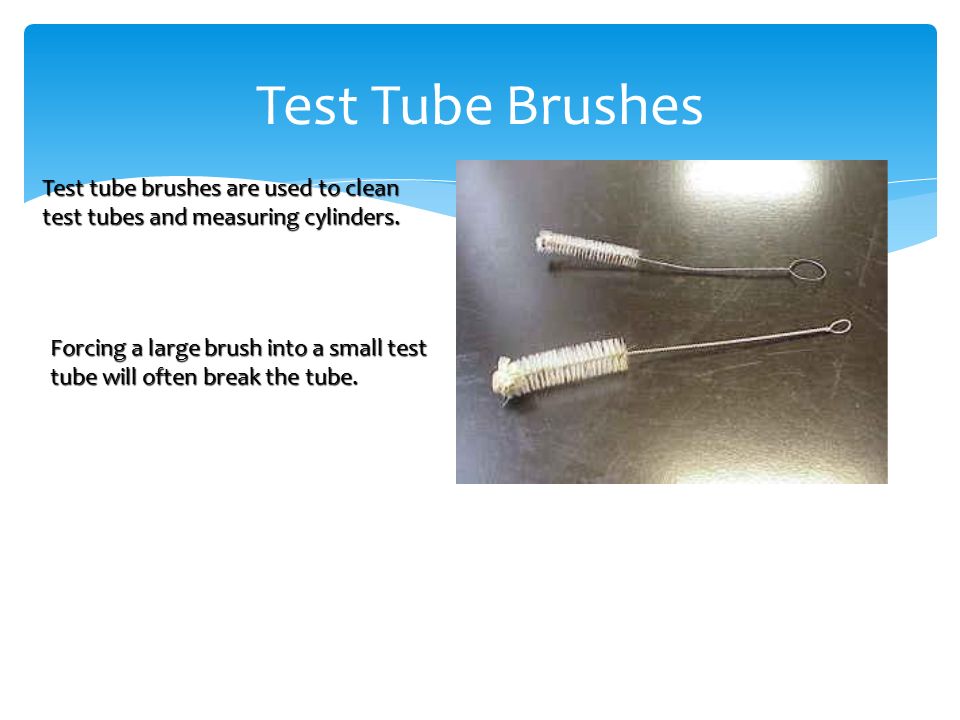

8. Test Tube Brushes Test tube brushes are used to clean test tubes and measuring cylinders. Forcing a large brush into a small test tube will often break the tube.

9. Test Tube Racks Test tube racks are for holding and organizing test tubes on the laboratory counter. Plastic racks may melt in contact with very hot test tubes.

10. Beaker Beakers hold solids or liquids that will not release gases when reacted or are unlikely to splatter if stirred or heated.

11. Beaker

12. Erlenmeyer Flask (Conical flask) Erlenmeyer flasks (conical flasks) hold solids or liquids that may release gases during a reaction or that are likely to splatter if stirred or heated.

13. Conical flask

14. Measuring Cylinder A measuring cylinder is used to measure volumes of liquids.

15. Measuring cylinder

16. Rubber Stoppers Rubber stoppers are used to close containers to avoid spillage or contamination. Containers should never be heated when there is a stopper in place.

17. Watch Glass A watch glass is used to hold a small amount of solid, such as the product of a reaction.

18. Glass Stir Rod A glass rod is used to manually stir solutions. It can also be used to transfer a single drop of a solution.

19. Forceps Forceps (or tweezers) are used to pick up small objects.

20. Bunsen burner

21. Funnel A funnel is used to aid in the transfer of liquid from one vessel to another.

22. Filter paper and funnel

23. Pipettes A pipette measures and delivers exact volumes of liquids.

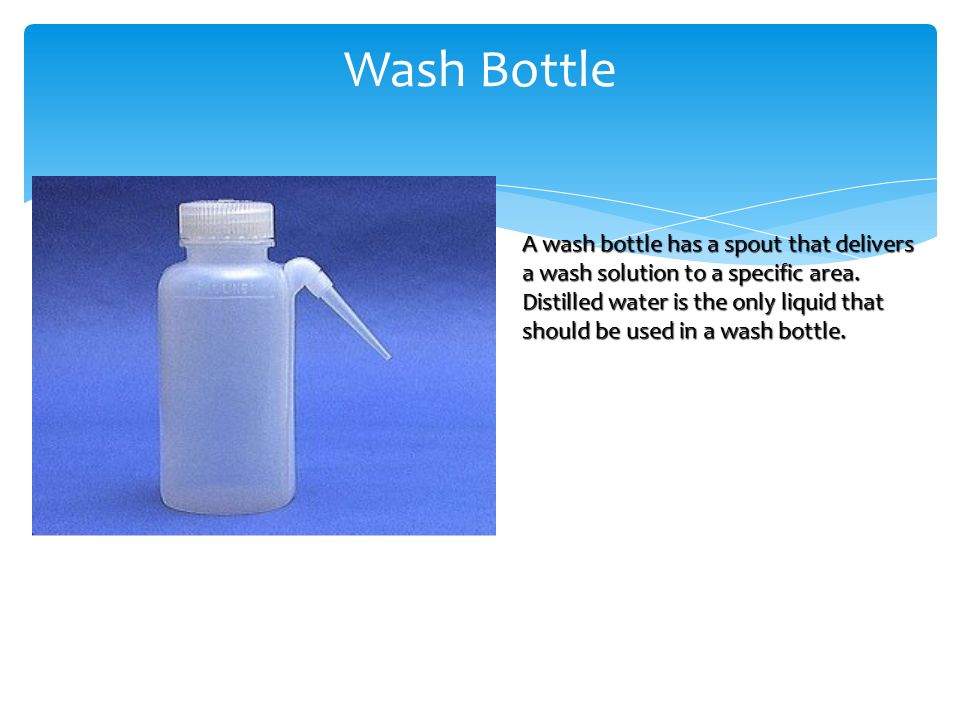

24. Wash Bottle A wash bottle has a spout that delivers a wash solution to a specific area. Distilled water is the only liquid that should be used in a wash bottle.

25. Bunsen Burner Bunsen burners are used for the heating of nonvolatile liquids and solids.

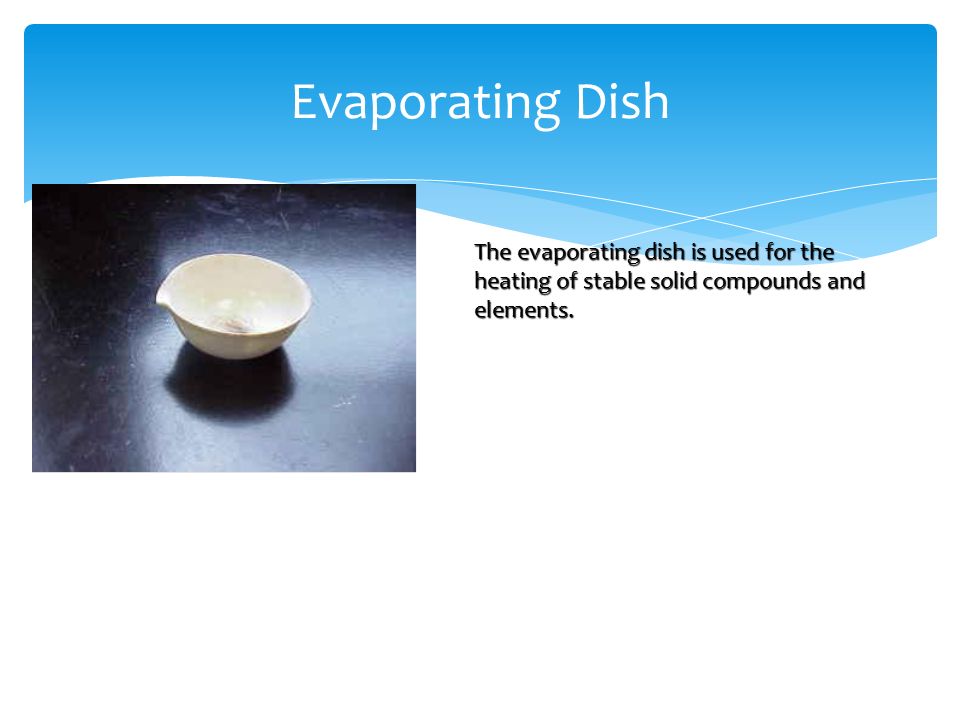

26. Evaporating Dish The evaporating dish is used for the heating of stable solid compounds and elements.

27. Crucible Crucibles are used for heating certain solids, particularly metals, to very high temperatures.

28. Clay Triangle The clay triangle is used as a support for porcelain crucibles when being heated over a Bunsen burner.

29. Universal clamp stand Clamp stands are a safe and convenient way to perform reactions that require heating using a Bunsen burner.

30. Clamp Utility clamps are used to secure test tubes, distillation columns, and burettes to the universal clamp stand.

31. Tripod and Wire gauze Wire gauze sits on the tripod to provide a place to stand a beaker. On older wire gauze, the white material is asbestos!

32. Tripod and gauze

33. Hot Plate  A hot plate is used to heat solids and liquids slowly, under safer conditions than a Bunsen burner.

34. Electronic Mass Balance  Accurately measures masses of solids up to 0.01 grams

35. Cleaning Brushes Cleans specific glassware  Test tube brush  Beaker brush  Flask brush

36. Electronic Thermometer  Measures temperatures to ± 0.1 degree Celsius

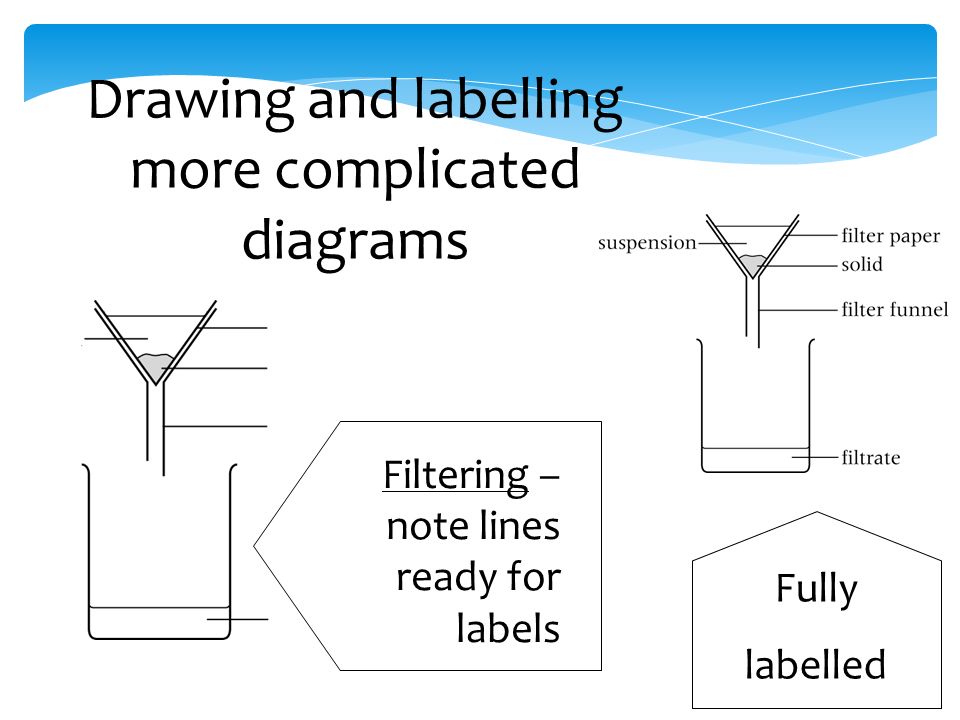

37. Drawing and labelling more complicated diagrams Fully labelled Filtering – note lines ready for labels

38. Yet more diagrams Evaporating

39. STARTER ON SAFETY
