1. Sediment Transport over Ripples and Dunes Stephen R McLean, UC Santa Barbara Jonathan Nelson, USGS, Denver, CO Thanks to: Sandro Orlandi, University of Bologna Lindsay Gary, UCSB

2. Ultimate Goal: predict bedform evolution System: Response of flow to topography Response of sediment to flow Response of topography to sediment flux divergence What is the sediment flux over a dune?

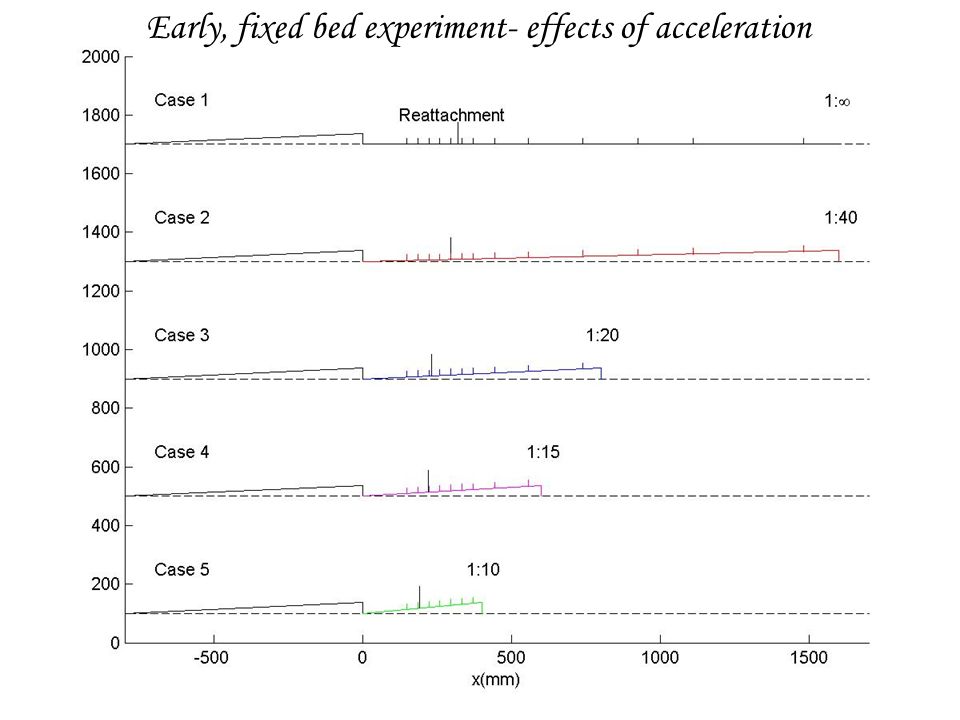

4. Early, fixed bed experiment- effects of acceleration

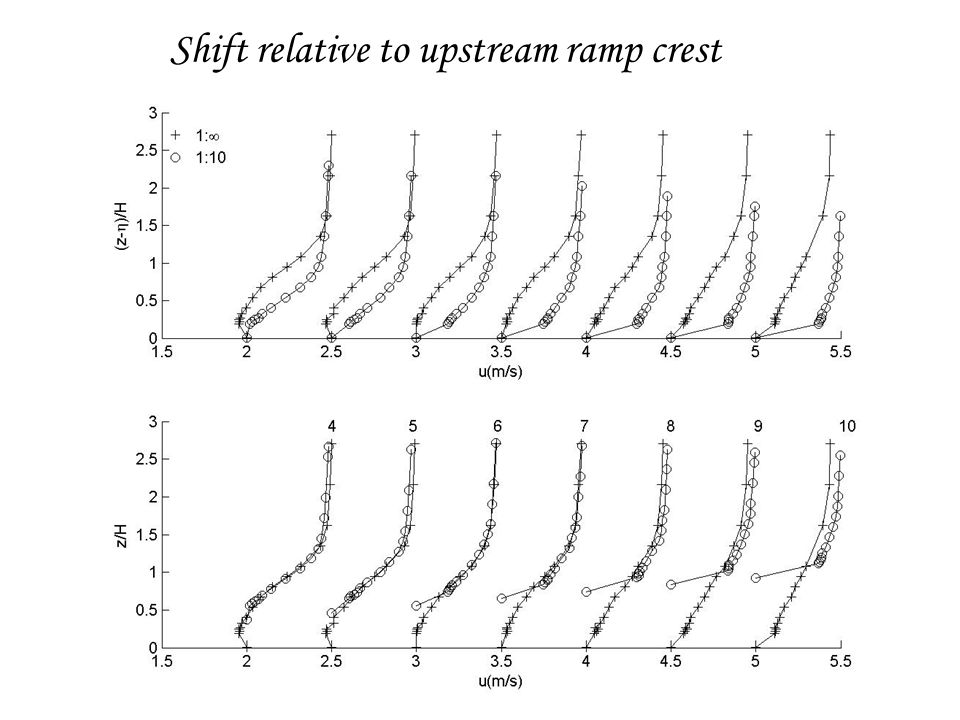

5. S Shift relative to upstream ramp crest

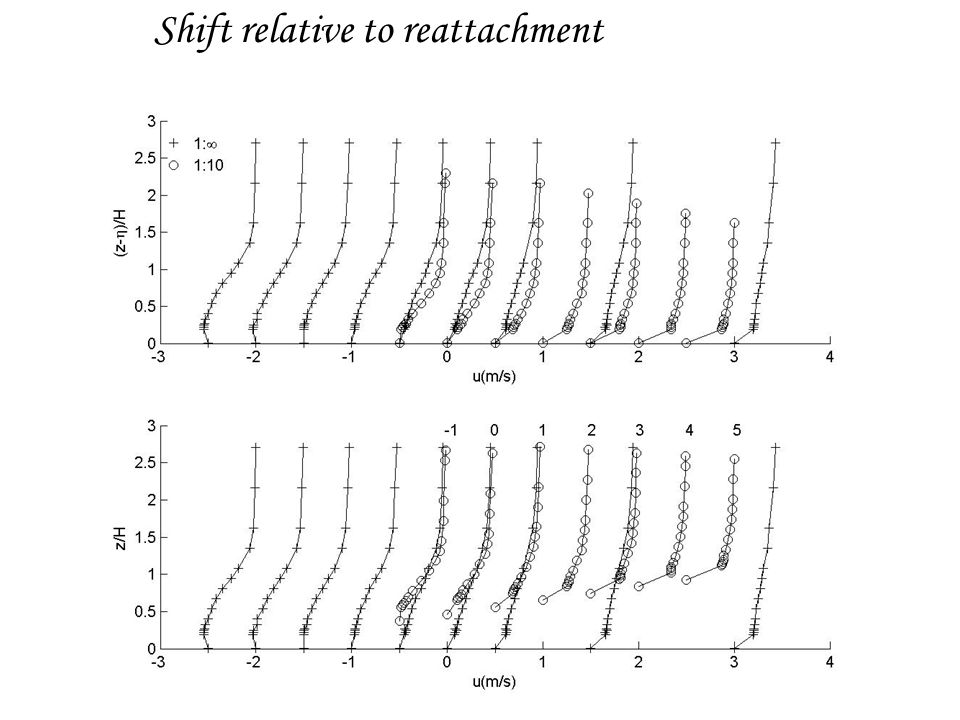

6. Shift relative to reattachment

8. Research Goal: predict bedform evolution Predict transport rate (Nelson, et al. tomorrow) Measure transport rate Measure near-bed velocity statistics Determine effects of ripples

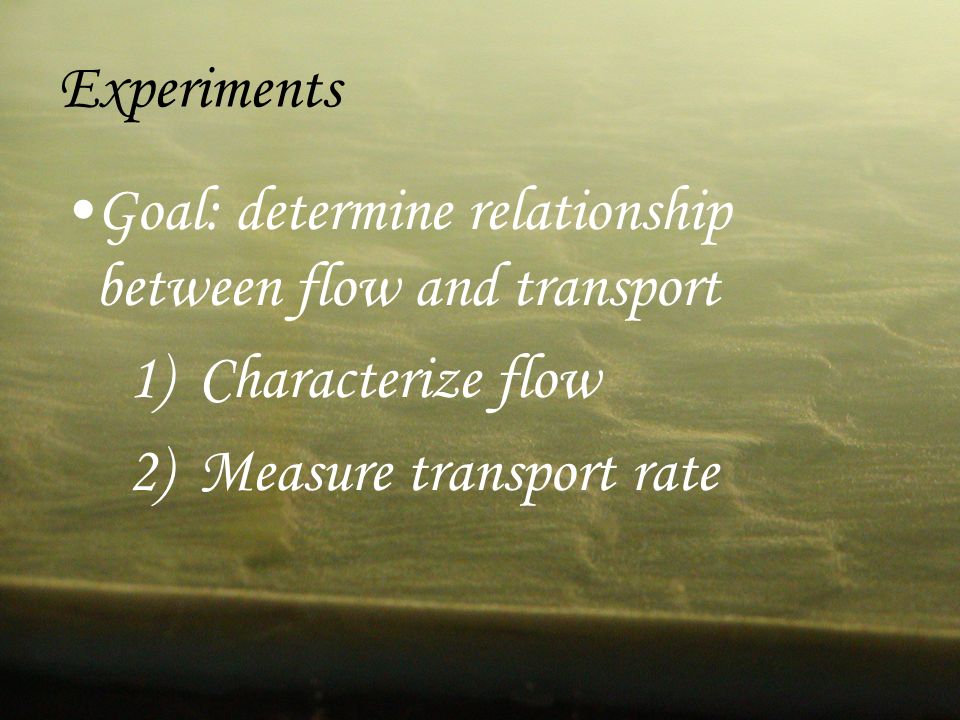

9. Experiments Goal: determine relationship between flow and transport 1) Characterize flow 2) Measure transport rate

10. Instrumentation: Acoustic Doppler Profiler Velocity along four beams (~1 mm bin spacing) ~20 Hz sampling freq; not simultaneous

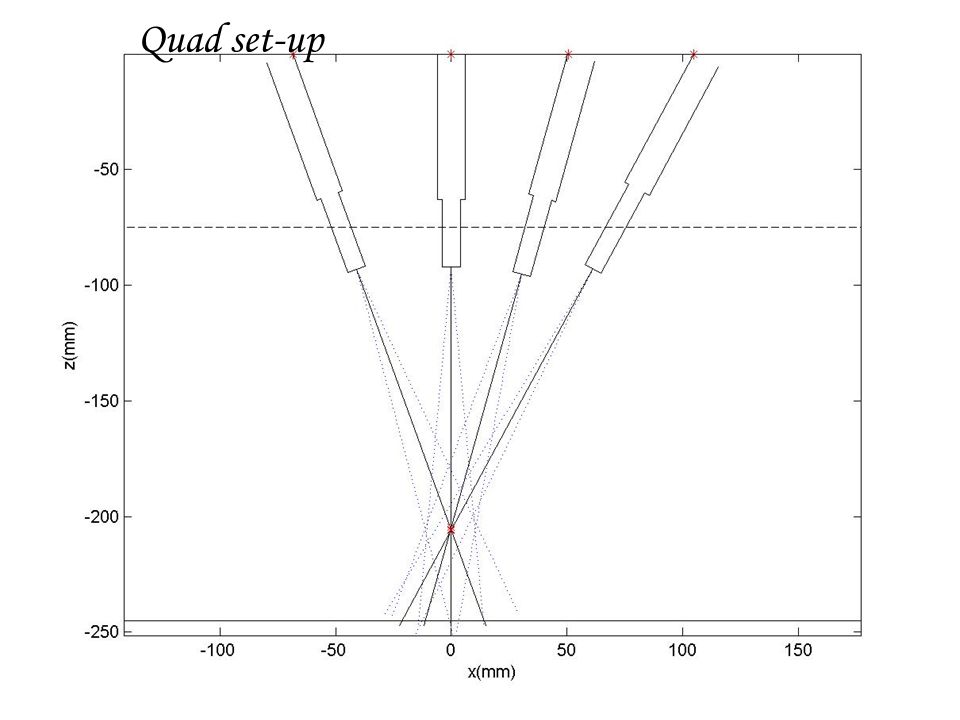

11. Quad set-up

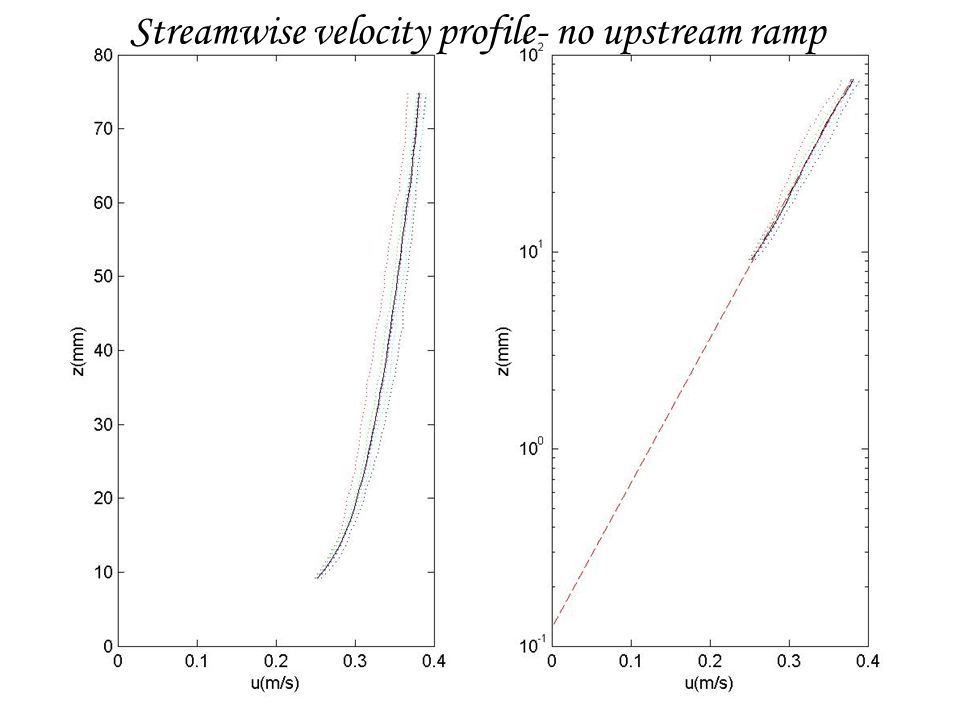

12. Streamwise velocity profile- no upstream ramp

13. Streamwise velocity profile- with upstream ramp

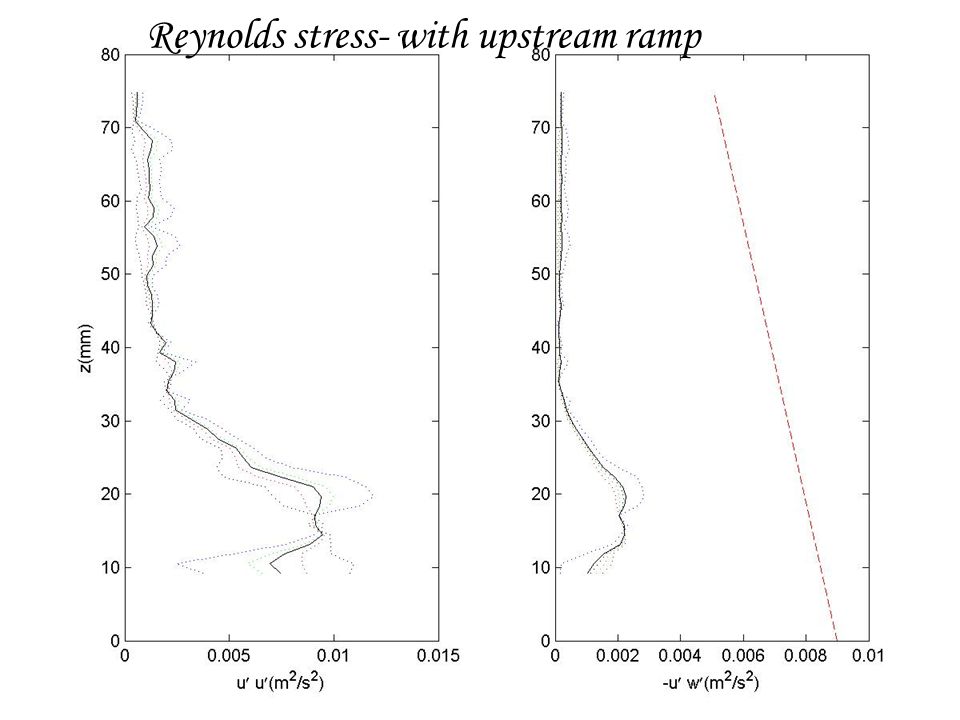

14. Reynolds stress- with upstream ramp

15. Instrumentation: Acoustic Doppler Profiler Velocity along four beams (~1 mm bin spacing) ~20 Hz sampling freq; not simultaneous Multiple transducer array (MTA) 32 acoustic transducers (20mm spacing)

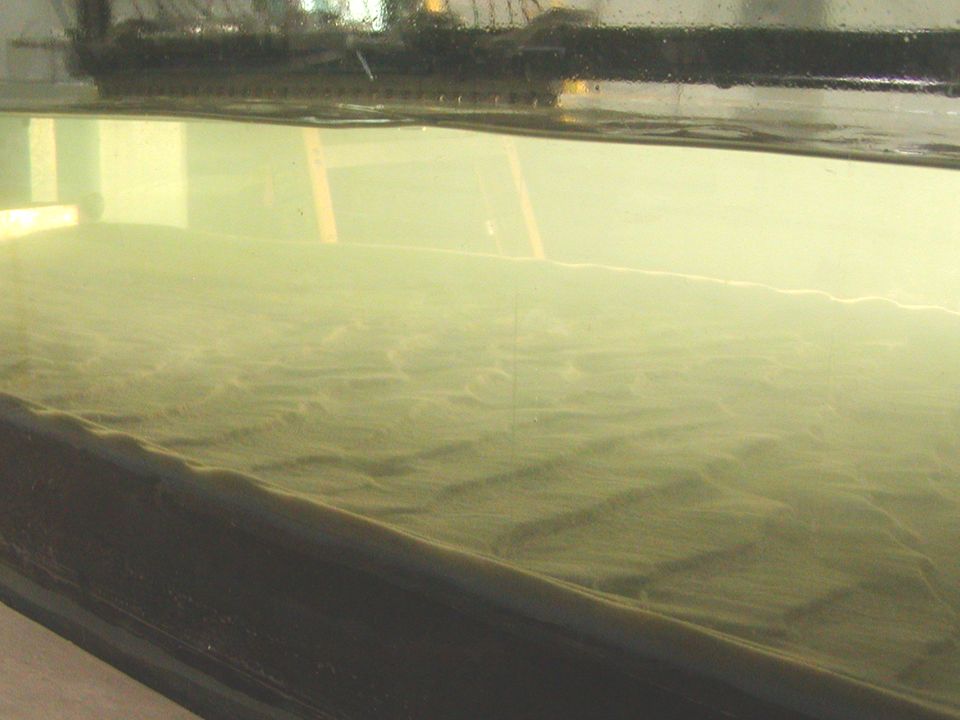

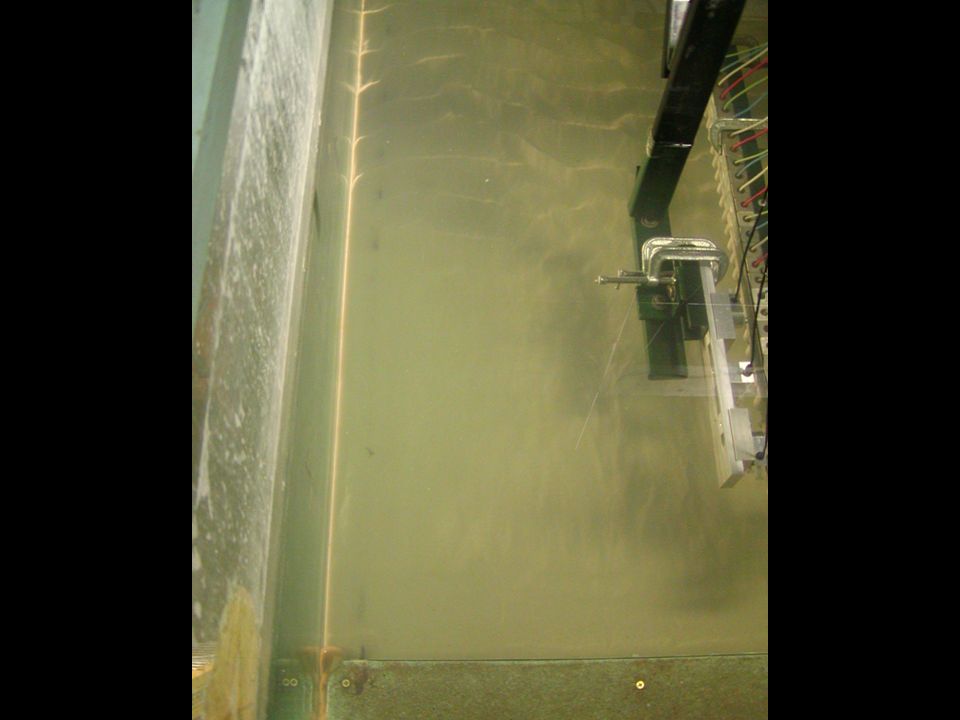

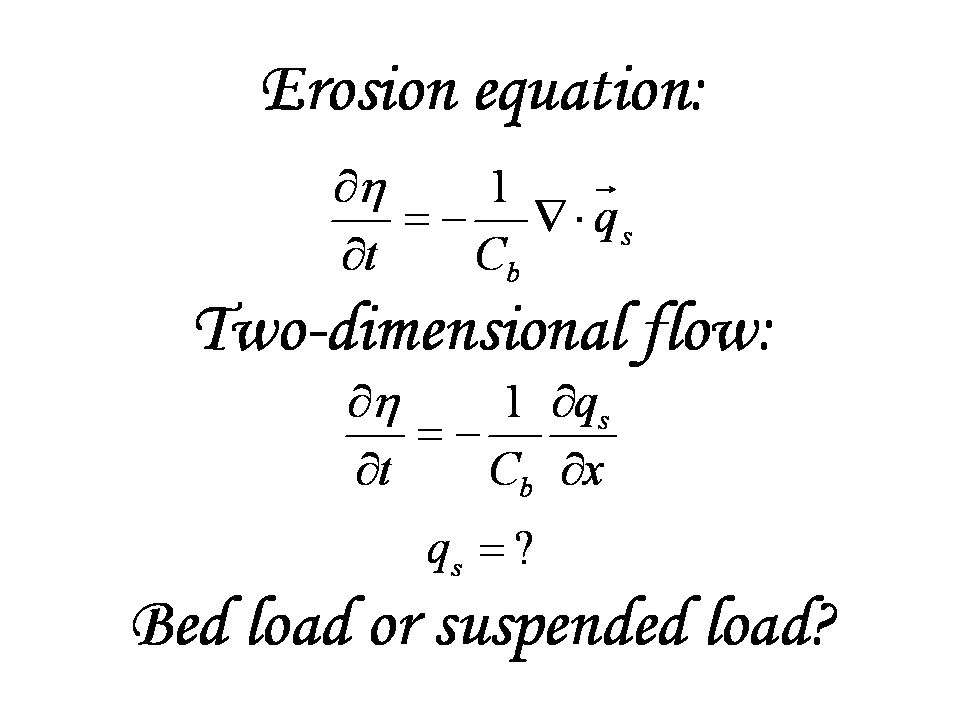

18. Estimating Transport rate For two-dimensional flow erosion equation yields:

19. Flat bed downstream of ramp

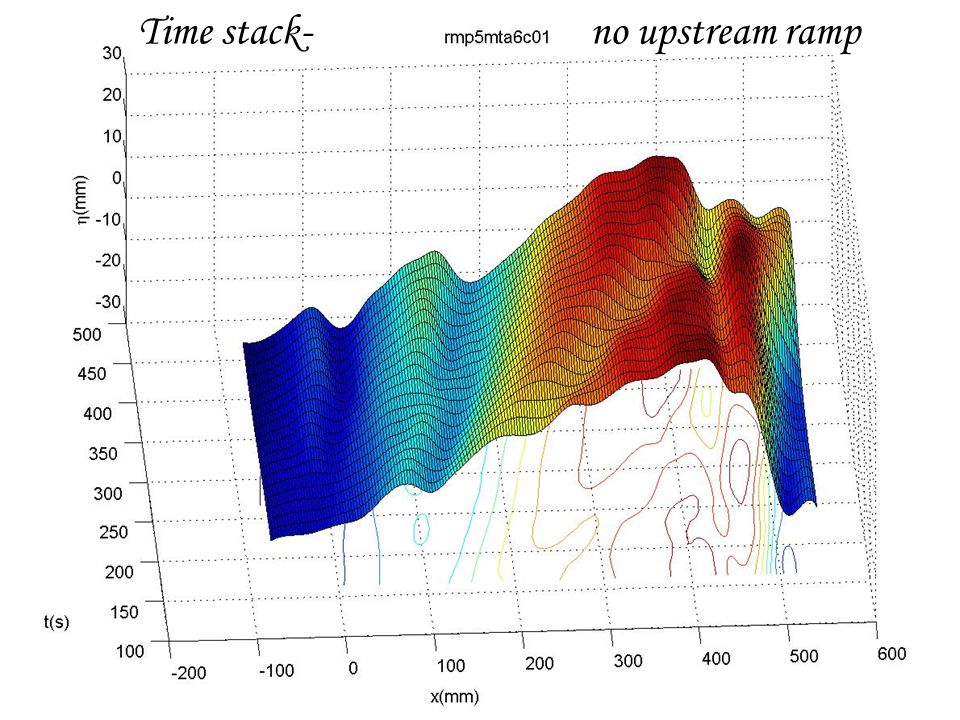

20. Time stack- no upstream ramp

21. Change in bed elevation- no upstream ramp

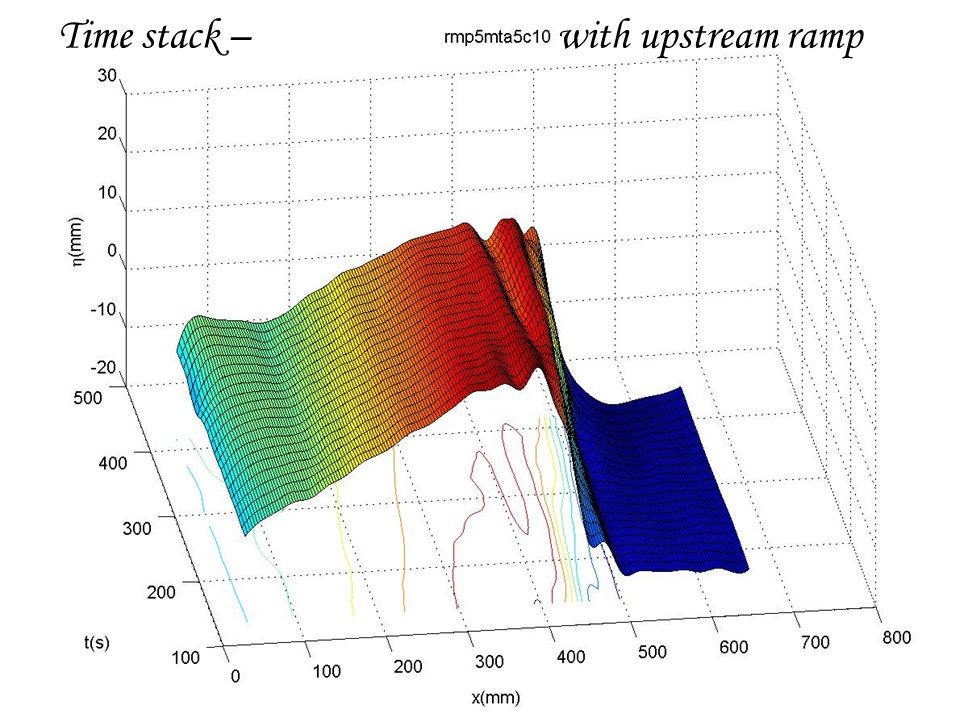

23. Time stack – with upstream ramp

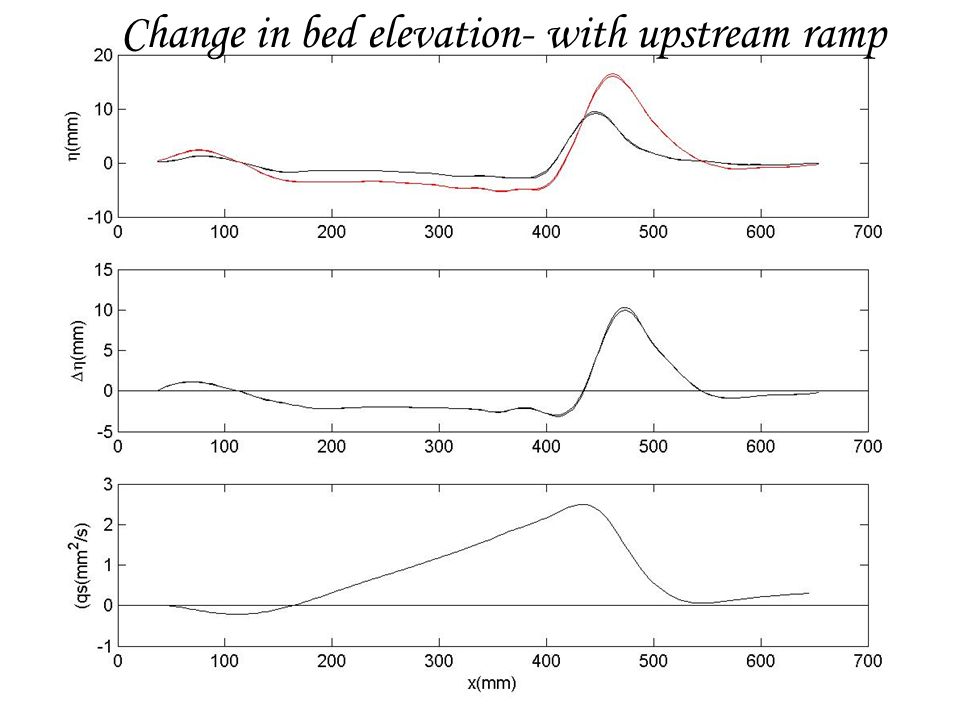

24. Change in bed elevation- with upstream ramp

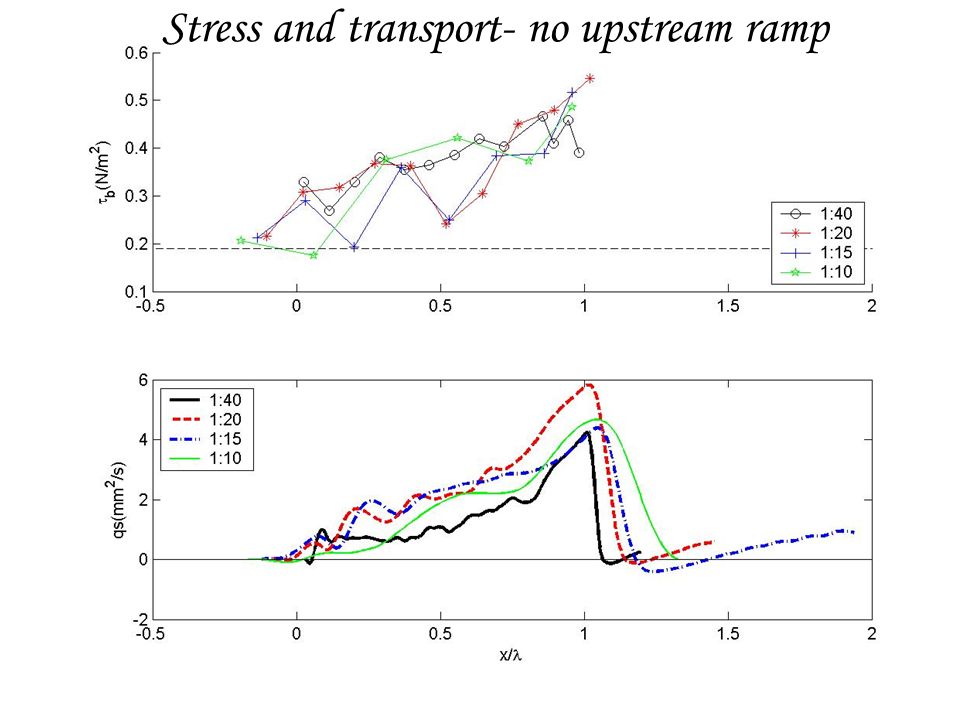

25. Stress and transport- no upstream ramp

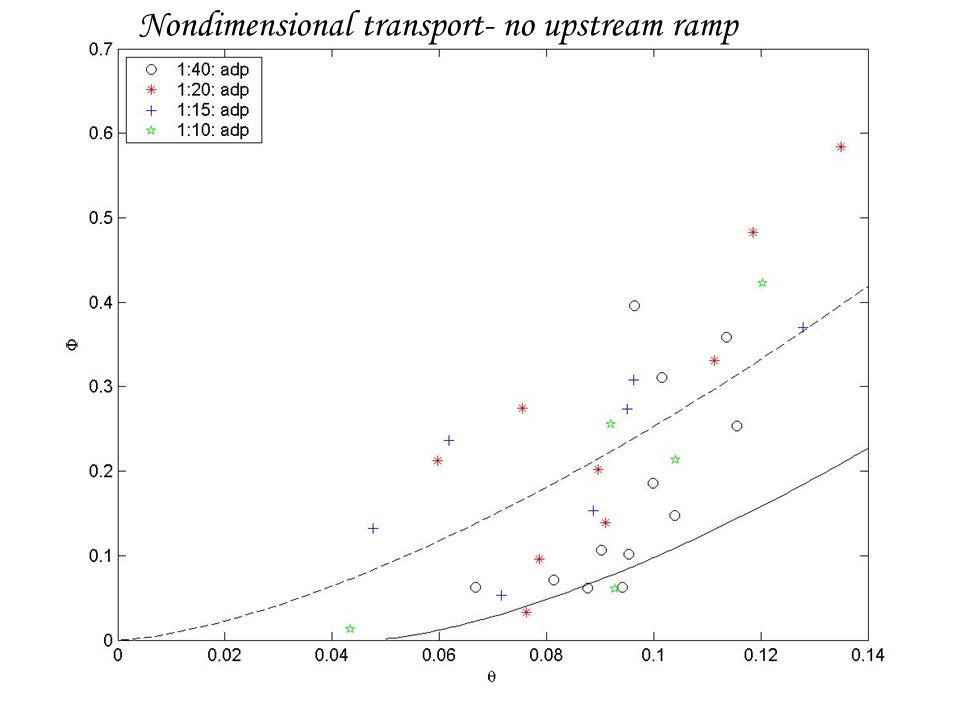

26. Nondimensional transport- no upstream ramp

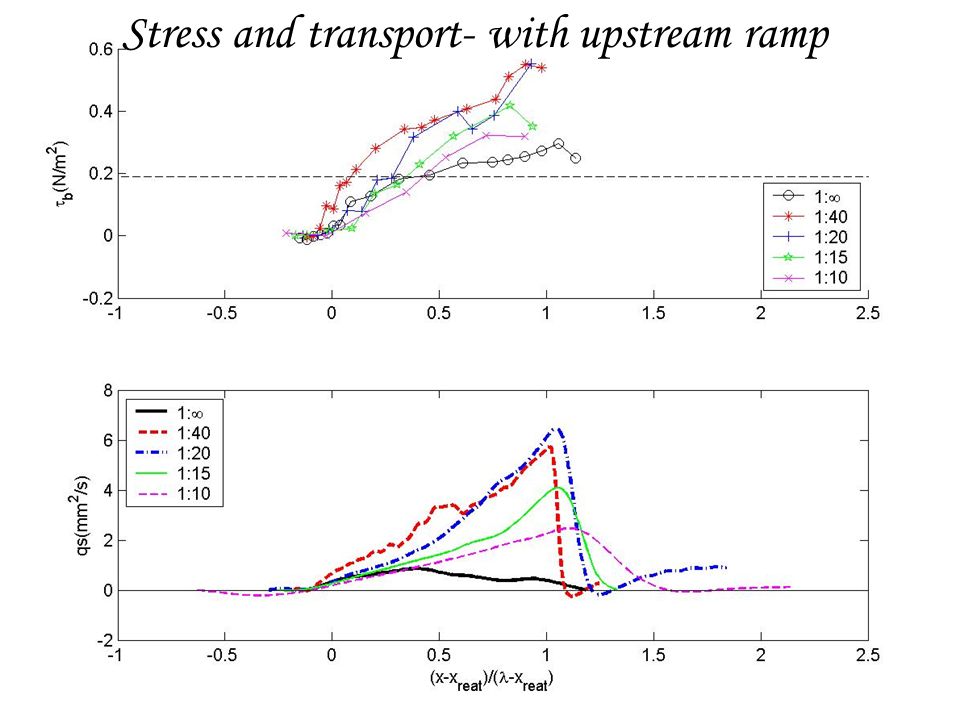

27. Stress and transport- with upstream ramp

28. Non-dimensional transport- with upstream ramp

29. Stress and transport with and without upstream ramp

30. Comparison with and without upstream ramp

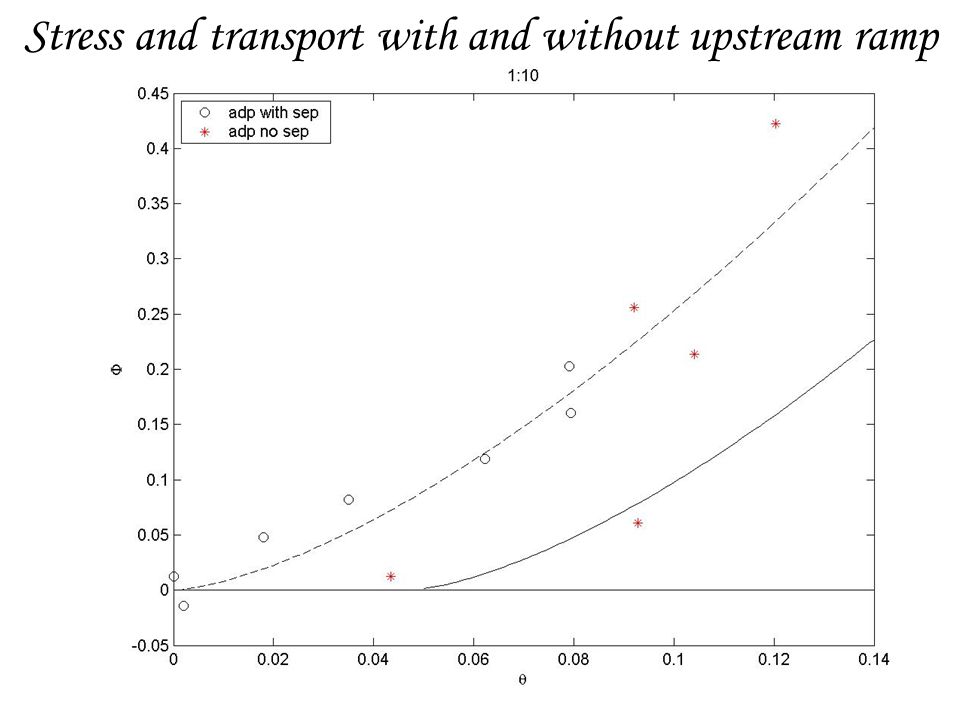

31. Stress and transport with and without upstream ramp

33. Comparison between beginning and end of run

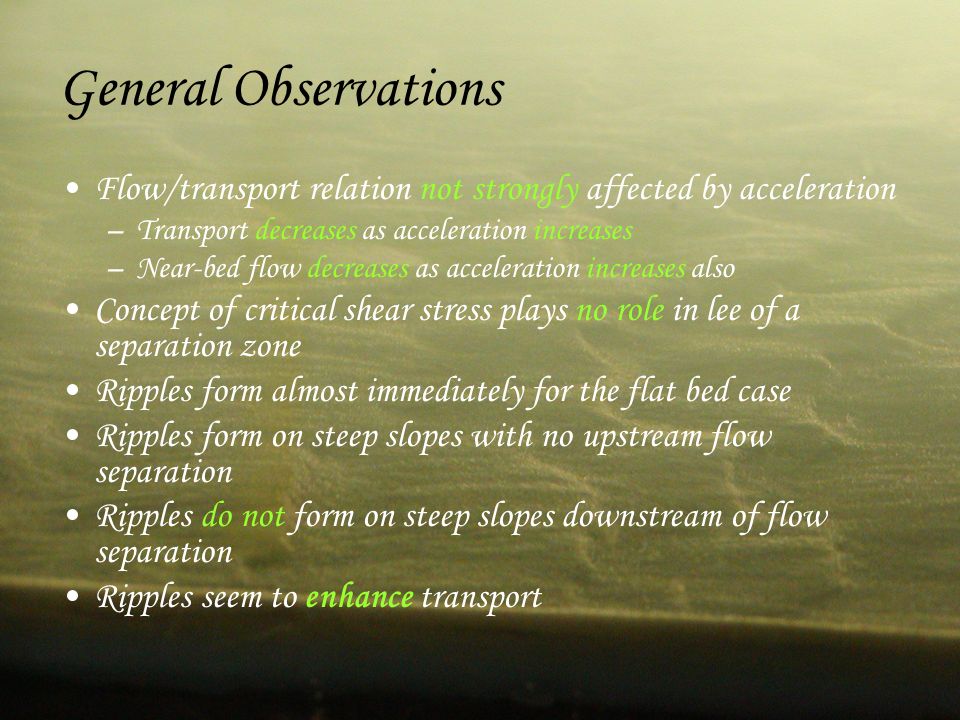

34. General Observations Flow/transport relation not strongly affected by acceleration –Transport decreases as acceleration increases –Near-bed flow decreases as acceleration increases also Concept of critical shear stress plays no role in lee of a separation zone Ripples form almost immediately for the flat bed case Ripples form on steep slopes with no upstream flow separation Ripples do not form on steep slopes downstream of flow separation Ripples seem to enhance transport

38. Erosion equation versus ripple migration
