1. doc.: IEEE 802.15-03/0474 r1 Submission September 2003 Kei Obara, SiemensSlide 1 Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [European 60GHz Indoor System Projects] Date Submitted: [ 11 th November, 2003] Source: [Kei Obara] Company [Siemens] Address [3-4, Hikarino-oka, Yokosuka, Kanagawa 239-0847, Japan] Voice:[+81(46) 847-5129], FAX: [+81(46) 847-5089], E-Mail:[K.Obara@crl.go.jp] Re: [] Abstract:[European Public Projects for 60GHz Indoor System] Purpose:[MM-wave interest group November contribution.] Notice:This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release:The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15.

2. doc.: IEEE 802.15-03/0474 r1 Submission September 2003 Kei Obara, SiemensSlide 2 History of European 60GHz related projects ACTS 4 th Framework Program 5 th Framework Program 6 th Framework Program 19941998 20022006 1994 1998 IST Projects ACTS : Advanced Communications Technology and Services IST : Information Society Technologies

3. doc.: IEEE 802.15-03/0474 r1 Submission September 2003 Kei Obara, SiemensSlide 3 60 GHz project (1) – MEDIAN (Sep.1995 – Aug.1999) ACTS Domain 1 Domain 4 MEDIAN (Wireless Broadband and Residential Multimedia Applications) Key words 60GHz Indoor

4. doc.: IEEE 802.15-03/0474 r1 Submission September 2003 Kei Obara, SiemensSlide 4 60 GHz project (1) – MEDIAN (Cont.) System features of MEDIAN 60GHz OFDM WLAN ATM backbone 150Mbps (UL + DL) total Lens antenna with 8dBi Cell radius of 4-6 m

5. doc.: IEEE 802.15-03/0474 r1 Submission September 2003 Kei Obara, SiemensSlide 5 60 GHz project (1) – MEDIAN (Cont.) Results of MEDIAN 1 document was submitted to ETSI BRAN (RES-10) to introduce the project. But there was no impact on the standardization activity. Submitted document : “ACTS Median: Wireless Broadband CPN/LAN for Professional and Residential Multimedia Applications”

6. doc.: IEEE 802.15-03/0474 r1 Submission September 2003 Kei Obara, SiemensSlide 6 60 GHz project (2) – BROADWAY (Jan.2002 – Dec.2004) 2.System features 5 & 60GHz dual frequency hybrid WLAN/WPAN Total system throughput of 350Mbps or more OFDM (HiperLAN2 extension) TX power of 10dBm Peer to peer communication for Ad hoc mode 1.BROADWAY is one of IST projects funded by EC

7. doc.: IEEE 802.15-03/0474 r1 Submission September 2003 Kei Obara, SiemensSlide 7 Current movement within ETST BRAN towards 60GHz indoor system In September 2003 meeting, there was a presentation from a BROADWAY rep. to create a working group within ETSI BRAN to study the extension of existing WLANs and WPANs in the 60GHz band. (doc# : bran34d018) In this presentation, IEEE802.15.mm-WIG has been introduced to ETSI BRAN. European frequency issues are under investigation towards next BRAN meeting. Following companies have already expressed their support for the creation of 60GHz working group in BRAN (Motorola, France Telecom, Intracom, Thomson Multimedia, CEA LETI, IMST, TNO)

8. doc.: IEEE 802.15-03/0474 r1 Submission September 2003 Kei Obara, SiemensSlide 8 Back up slides

9. doc.: IEEE 802.15-03/0474 r1 Submission September 2003 Kei Obara, SiemensSlide 9 ACTS ( Advanced Communications Technology and Services) Domain 1 : Interactive Digital Multimedia Services Domain 2 : Photonic Technologies Domain 3 : High Speed Networking Domain 4 : Mobility and Personal Communications Networks Domain 5 : Service Engineering, Security Management Domain 6 : Horizontal Actions ACTS is funded by European Commission to make Europe competitive in global markets ACTS was one of the specific programs of the “4 th Framework Program” with following categories

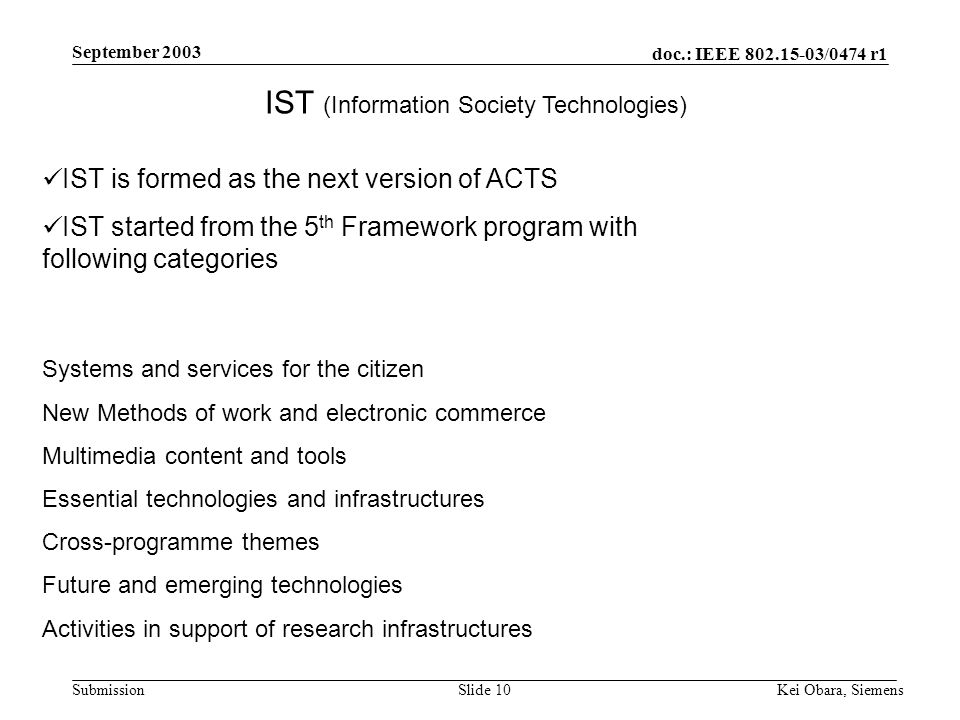

10. doc.: IEEE 802.15-03/0474 r1 Submission September 2003 Kei Obara, SiemensSlide 10 IST (Information Society Technologies) Systems and services for the citizen New Methods of work and electronic commerce Multimedia content and tools Essential technologies and infrastructures Cross-programme themes Future and emerging technologies Activities in support of research infrastructures IST is formed as the next version of ACTS IST started from the 5 th Framework program with following categories
