1. CASPUR Site Report Andrei Maslennikov Lead - Systems Karlsruhe, May 2005

2. A.Maslennikov - Karlsruhe 20052 Contents Update on central computers Storage news Linux Projects 2005

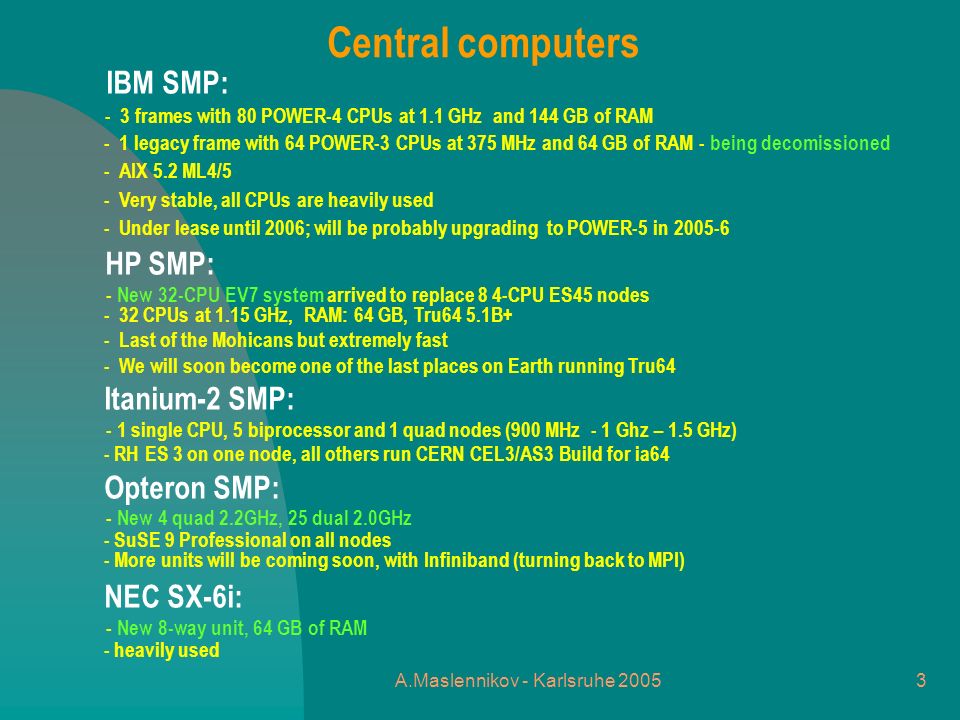

3. A.Maslennikov - Karlsruhe 20053 Central computers IBM SMP: - 3 frames with 80 POWER-4 CPUs at 1.1 GHz and 144 GB of RAM - 1 legacy frame with 64 POWER-3 CPUs at 375 MHz and 64 GB of RAM - being decomissioned - AIX 5.2 ML4/5 - Very stable, all CPUs are heavily used - Under lease until 2006; will be probably upgrading to POWER-5 in 2005-6 HP SMP: - New 32-CPU EV7 system arrived to replace 8 4-CPU ES45 nodes - 32 CPUs at 1.15 GHz, RAM: 64 GB, Tru64 5.1B+ - Last of the Mohicans but extremely fast - We will soon become one of the last places on Earth running Tru64 Itanium-2 SMP: - 1 single CPU, 5 biprocessor and 1 quad nodes (900 MHz - 1 Ghz – 1.5 GHz) - RH ES 3 on one node, all others run CERN CEL3/AS3 Build for ia64 Opteron SMP: - New 4 quad 2.2GHz, 25 dual 2.0GHz - SuSE 9 Professional on all nodes - More units will be coming soon, with Infiniband (turning back to MPI) NEC SX-6i: - New 8-way unit, 64 GB of RAM - heavily used

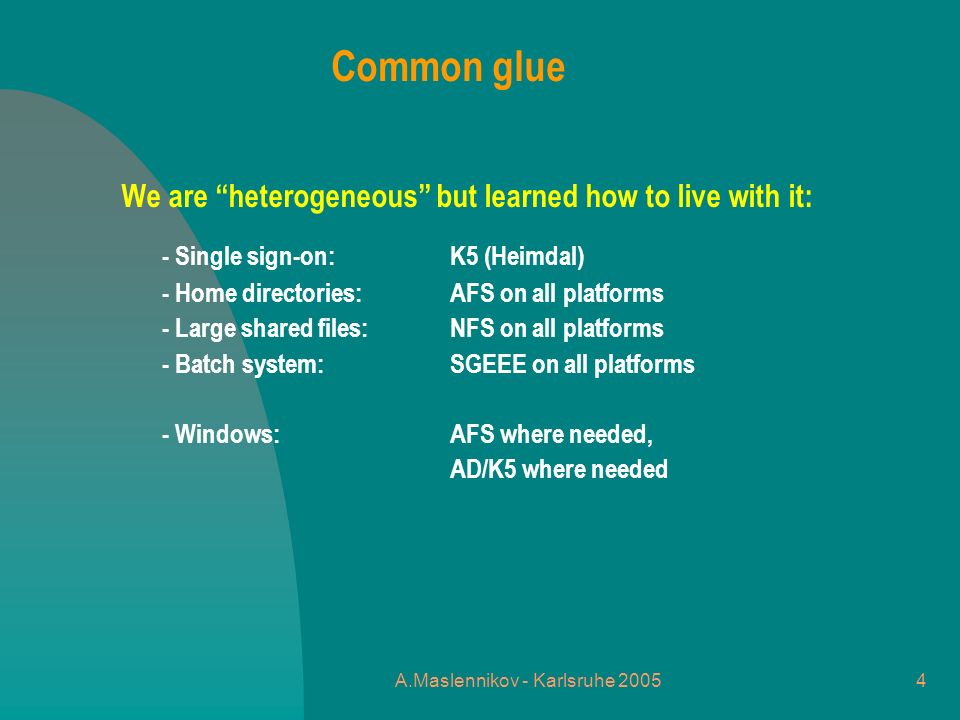

4. A.Maslennikov - Karlsruhe 20054 Common glue We are “heterogeneous” but learned how to live with it: - Single sign-on: K5 (Heimdal) - Home directories: AFS on all platforms - Large shared files:NFS on all platforms - Batch system:SGEEE on all platforms - Windows: AFS where needed, AD/K5 where needed

5. A.Maslennikov - Karlsruhe 20055 Storage news Purchased IBM SANFS (StorTank): - 2 MDS, 8TB (3 x FASTT100) - Metadata on IFT A16F-G1A2 (this saved a lot of money) - Local area for POWER-4 Cluster, but will test an Opteron port - In semiproduction since February, not yet backed up - Backup: most probably will be using our stager with archiving option Purchased 4 new IFT SATA/FC arrays (G2221) - Speed doubled in respect to G1A2 (more info tomorrow) - Will be putting these units in production shortly Tapes: some upgrades - Replaced LTO1s with LTO2s, doubled the number of slots in 3584 robot - Will replace remaining LTO1 drives with LTO3s in 3Q - Data migration in progress SAN: migration from Brocade to Qlogic - Several services moved, hope to finish before August

6. A.Maslennikov - Karlsruhe 20056 CASPUR: principal resources in 2005 Itanium2 – 15 CPUs (0.9-1.5 GHz) HP - 32 CPUs (1.15GHz) FC TAPE SYSTEMS 60 / 120 TB FC RAID SYSTEMS 50 TB AFS - 6TB NFS - 10 TB Data Movers Digital Library 16TB TSM Backup NEC 6Xi – 8 CPUs Opteron – 70 CPUs (2-2.5 GHz) StorTank - 8 TB IPSAN AFS Backup IBM - 150 CPUs (375,1100 MHz)

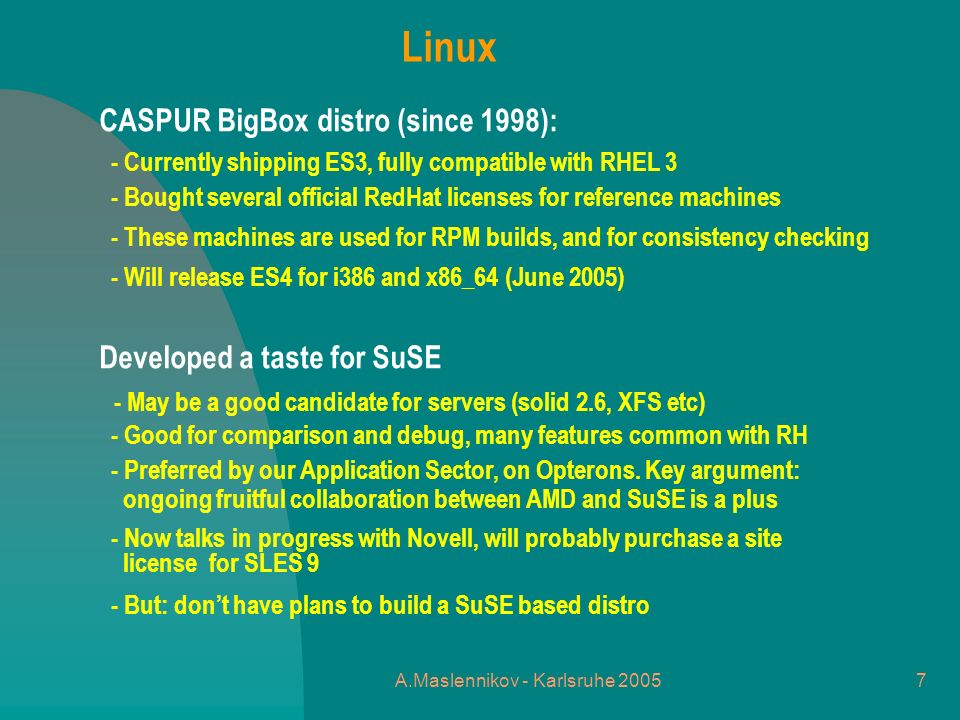

7. A.Maslennikov - Karlsruhe 20057 Linux CASPUR BigBox distro (since 1998): - Currently shipping ES3, fully compatible with RHEL 3 - Bought several official RedHat licenses for reference machines - These machines are used for RPM builds, and for consistency checking - Will release ES4 for i386 and x86_64 (June 2005) Developed a taste for SuSE - May be a good candidate for servers (solid 2.6, XFS etc) - Good for comparison and debug, many features common with RH - Preferred by our Application Sector, on Opterons. Key argument: ongoing fruitful collaboration between AMD and SuSE is a plus - Now talks in progress with Novell, will probably purchase a site license for SLES 9 - But: don’t have plans to build a SuSE based distro

8. A.Maslennikov - Karlsruhe 20058 Some projects, 2005 Technology tracking (in collab. with CERN and other centers) – 1 FTE - New storage devices - New software solutions in the field of storage - Tested 2005: 300+ KEuro worth of hardware Staging IIa / Tape Dispatcher– 1.5 FTE - Virtual Library implemented - Tuning, cleaning, new features - Will appear on Source Forge before the end of 2005 AFS/OSD (in collaboration with CERN and RZ Garching) - 2.3 FTE - Implementation of an Object Shared Device (OSD) in accordance with T10 specs - OSD integration with AFS
