April 7 AP Physics

2
AP Practice Exam April 28 ACT day 1 pm Not optional

3
In: Two 1 kg spheres each carry a charge of magnitude 1C. How does F E, the strength of the electric force between the spheres, compare to F G, the strength of their gravitational attraction? a)F E < F G b)F E =F G c)F E >F G d)If the charges on the spheres are of the same sign, then F E >F G ; but if the charges on the spheres are of the opposite sign, then F E

4
Objective: To learn about static electricity: –Millikan Oil Drop Experiment –Electric potential energy –Electric potential –Capacitance –Parallel plate capacitors

5
Homework Check 18, 20, 24, 30

6
Robert Millikan Oil Drop experiment Measured charge to mass ratio of electron Published in 1913 Nobel prize 1932

7

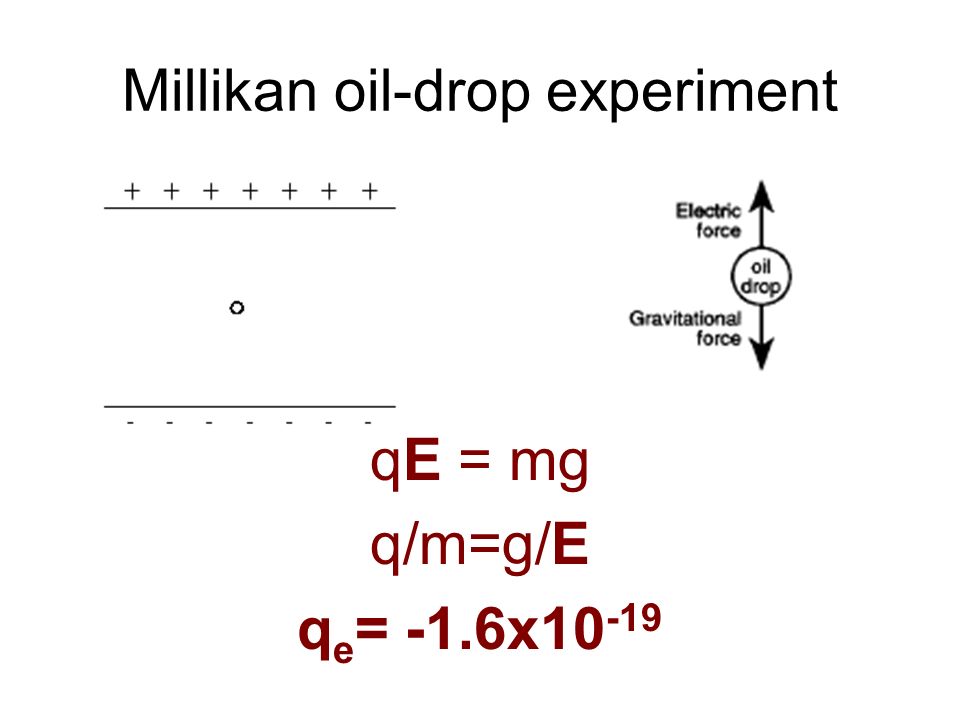

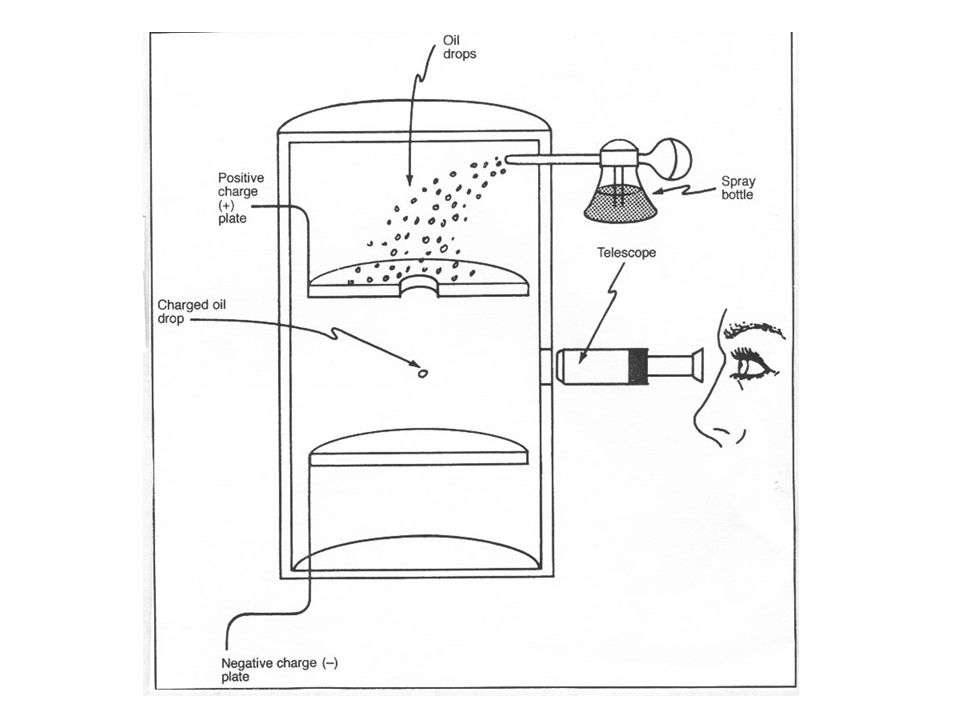

Millikan oil-drop experiment qE = mg q/m=g/E q e = -1.6x10 -19

10
Electrical potential energy Work

11

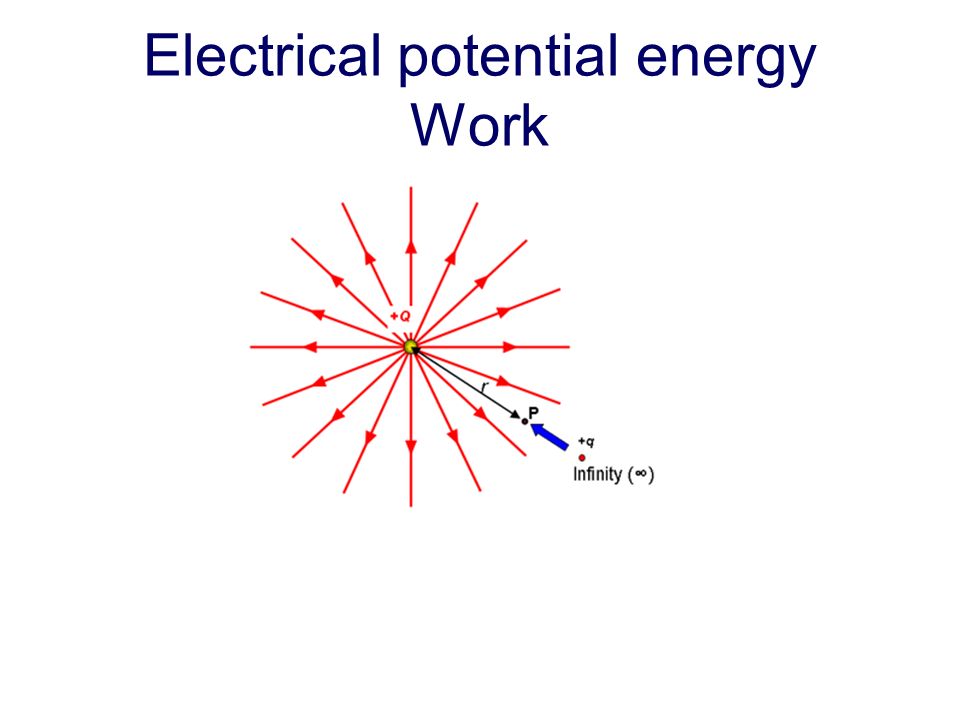

Electric potential energy The work done to bring a charge from infinity to a particular distance = - potential energy the charge has at that point. U E =-Work Also, the change in PE from one point to another = -work done to change the position. ΔU E =-W

12
In a field generated by a point charge: U E =kq 1 q 2 r In a uniform field: ΔU E =qEΔd

13

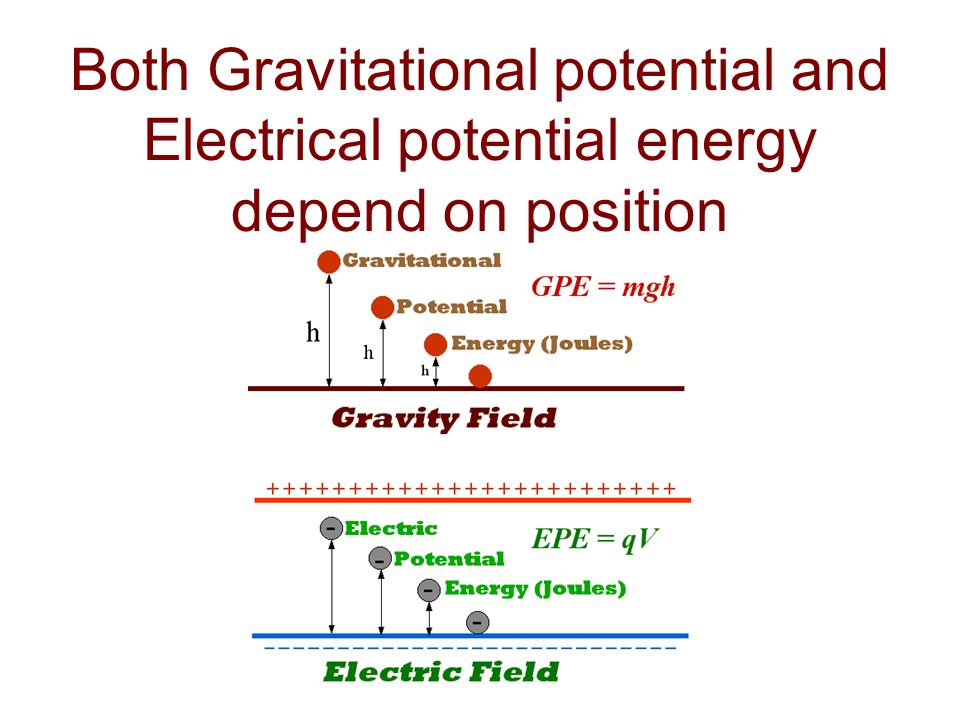

Both Gravitational potential and Electrical potential energy depend on position

14

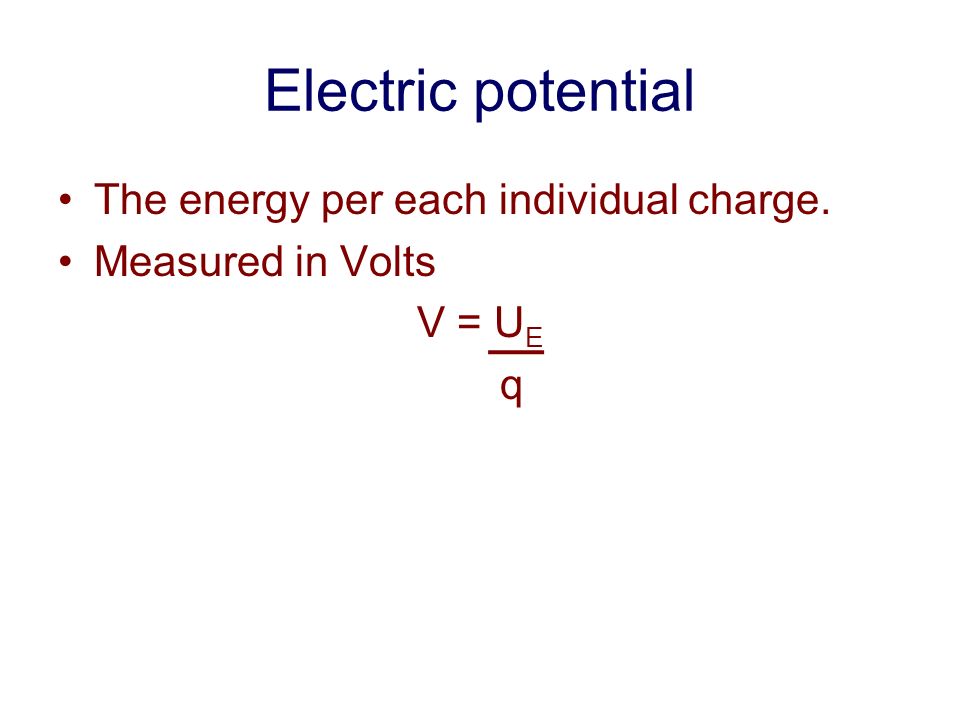

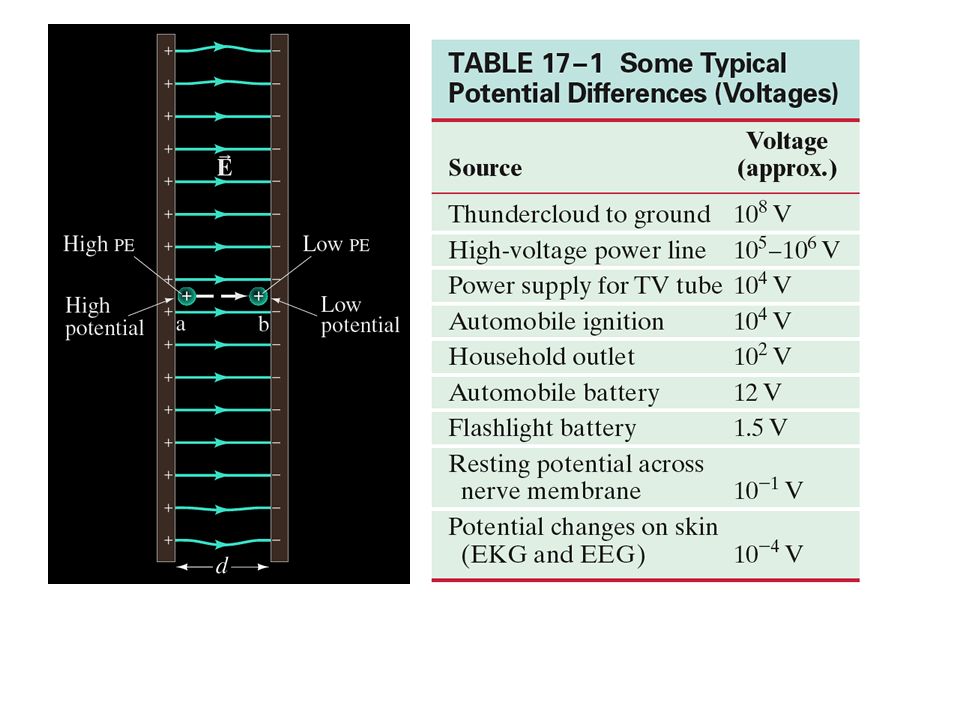

Electric potential The energy per each individual charge. Measured in Volts V = U E q

16

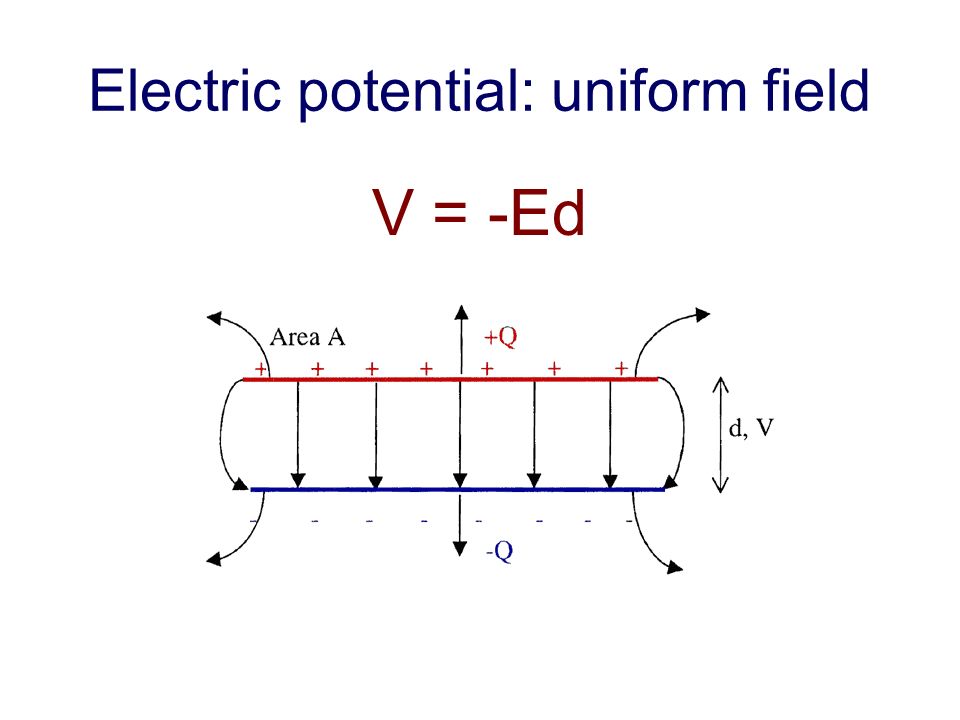

Electric potential: uniform field V = -Ed

17

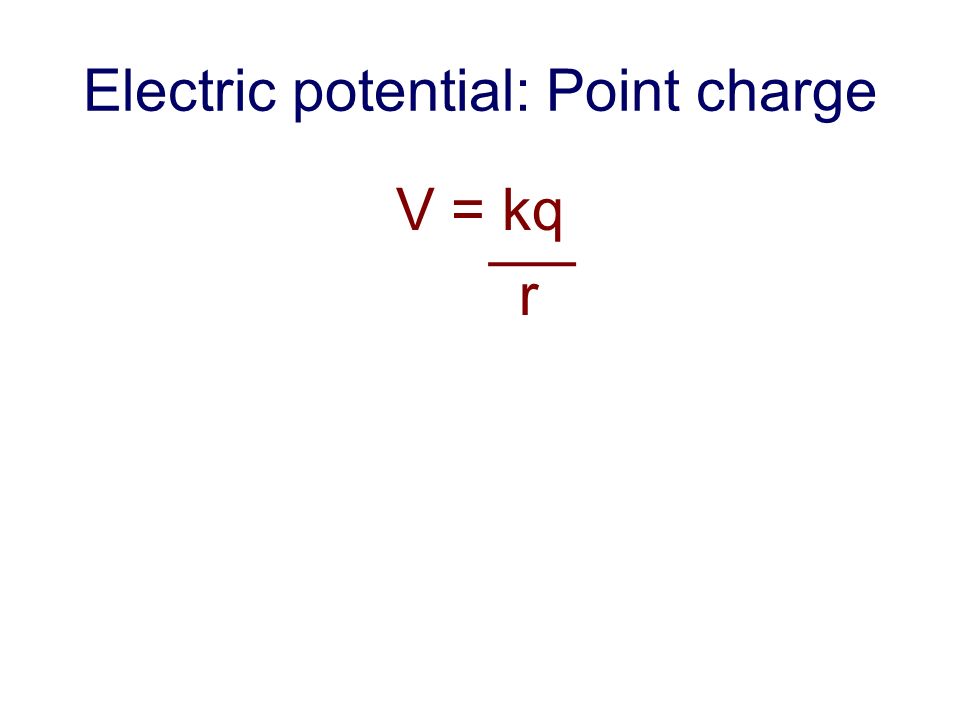

Electric potential: Point charge V = kq r

18
Equipotential lines

19

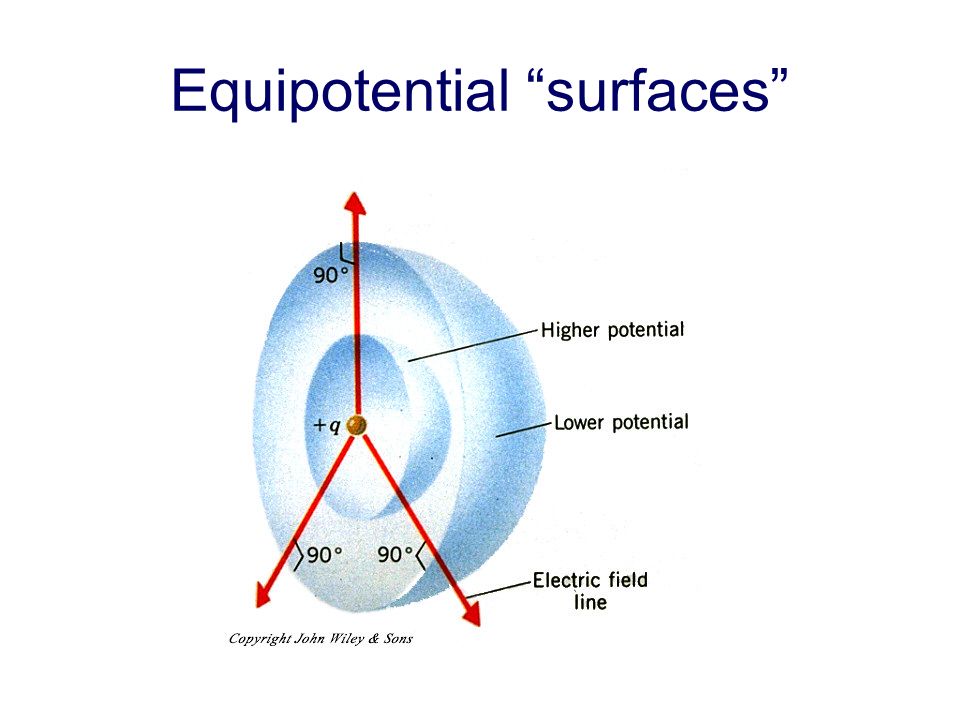

Equipotential surfaces

21

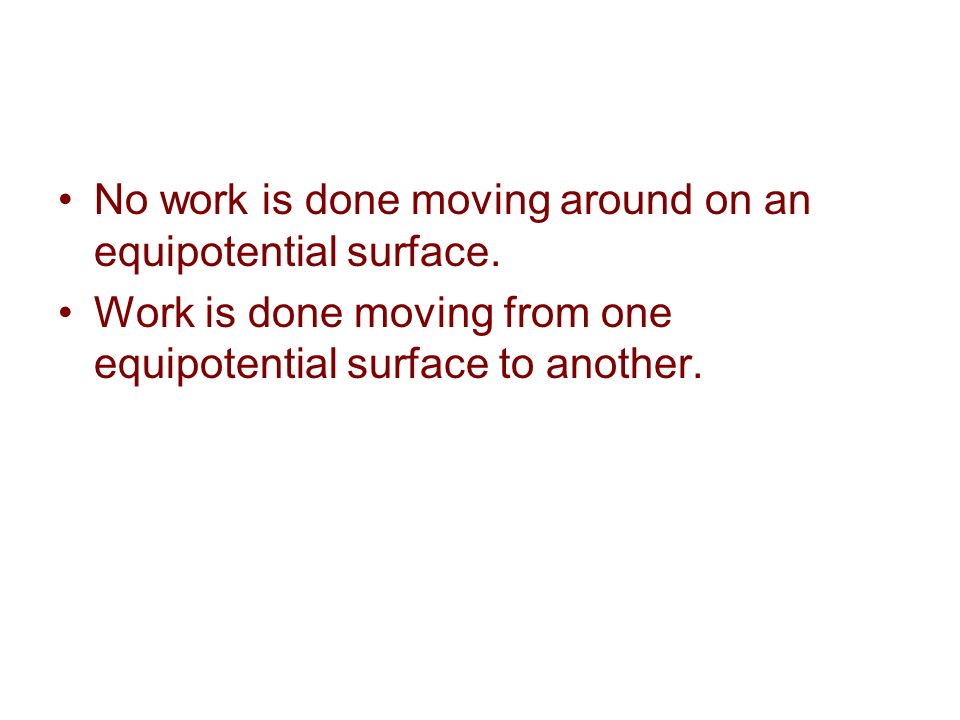

No work is done moving around on an equipotential surface. Work is done moving from one equipotential surface to another.

22

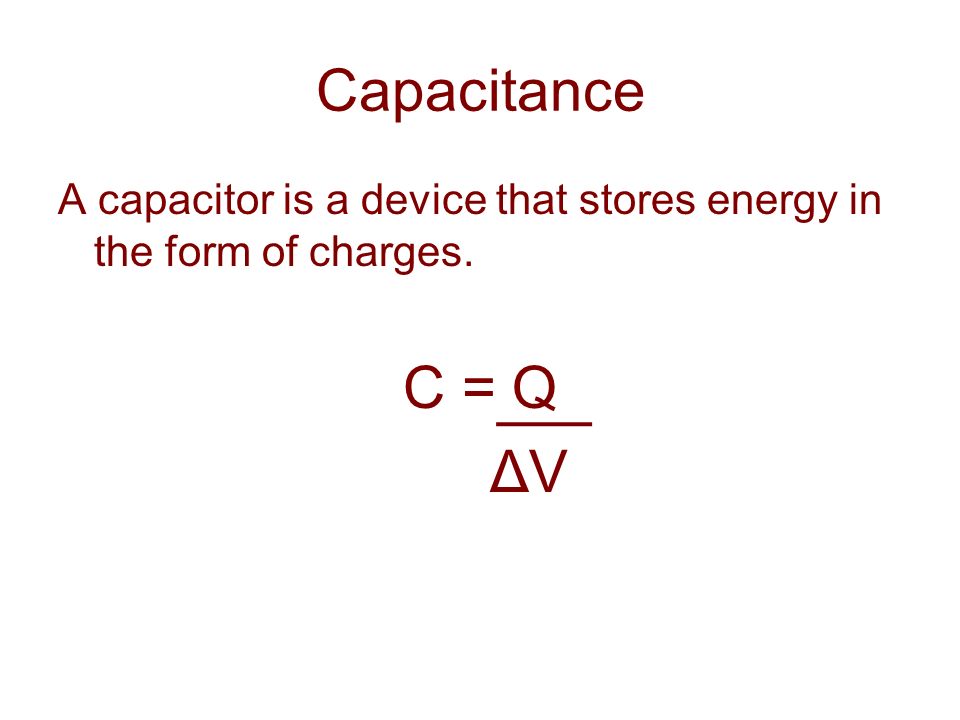

Capacitance A capacitor is a device that stores energy in the form of charges. C = Q ΔV

23

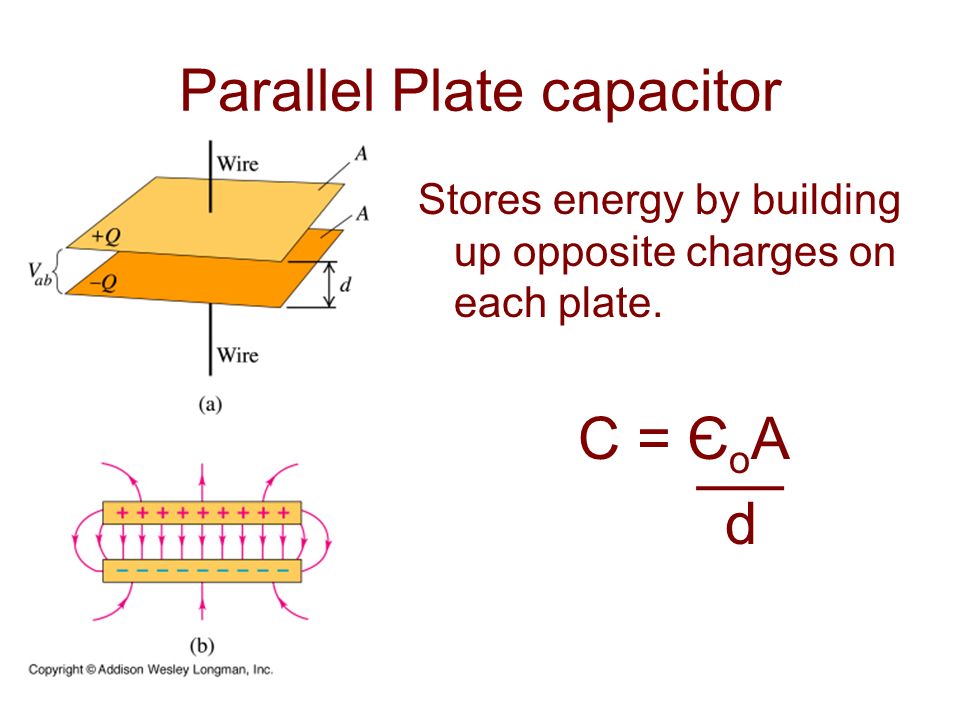

Parallel Plate capacitor Stores energy by building up opposite charges on each plate. C = Є o A d

24
Energy stored in a capacitor U c = ½ QV= ½ CV 2

25
Equivalent Capacitance parallel circuits

26
C=Q/V V 1 =V 2 =V e Q 1 +Q 2 =Q e so…C 1 +C 2 =C e

27

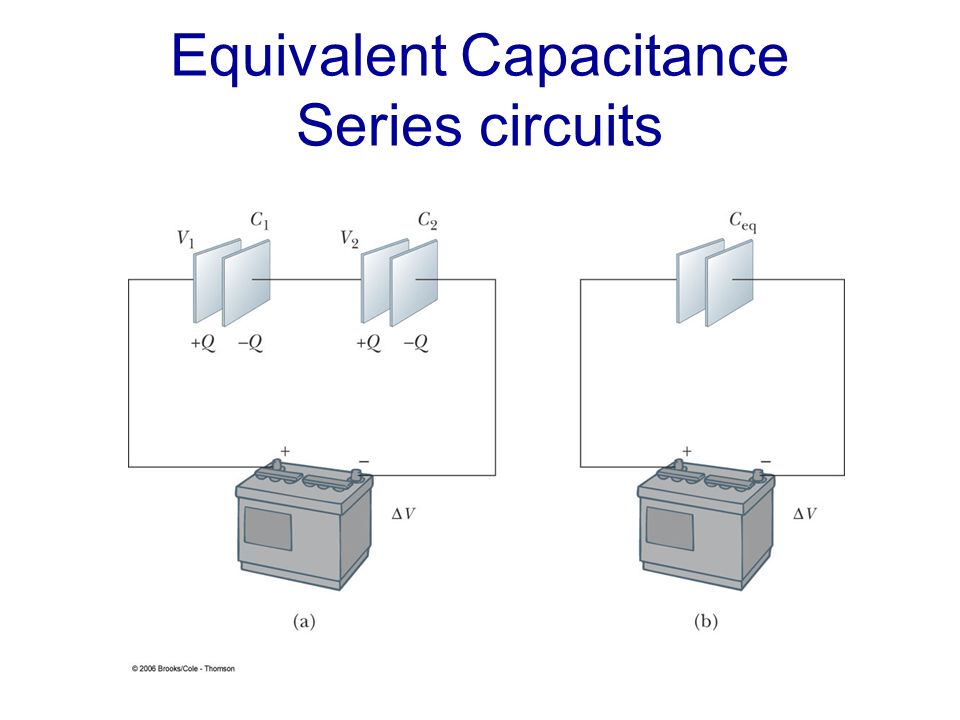

Equivalent Capacitance Series circuits

28
C=Q/V V 1 +V 2 =V e Q 1 =Q 2 =Qe so…1/C 1 +1/C 2 =1/C e

32

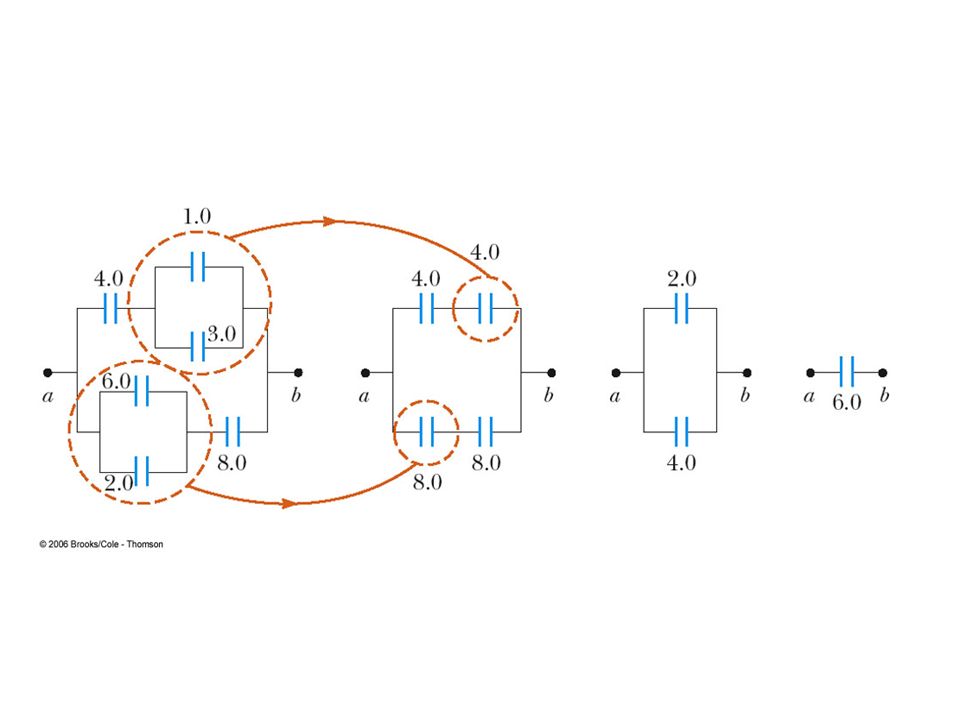

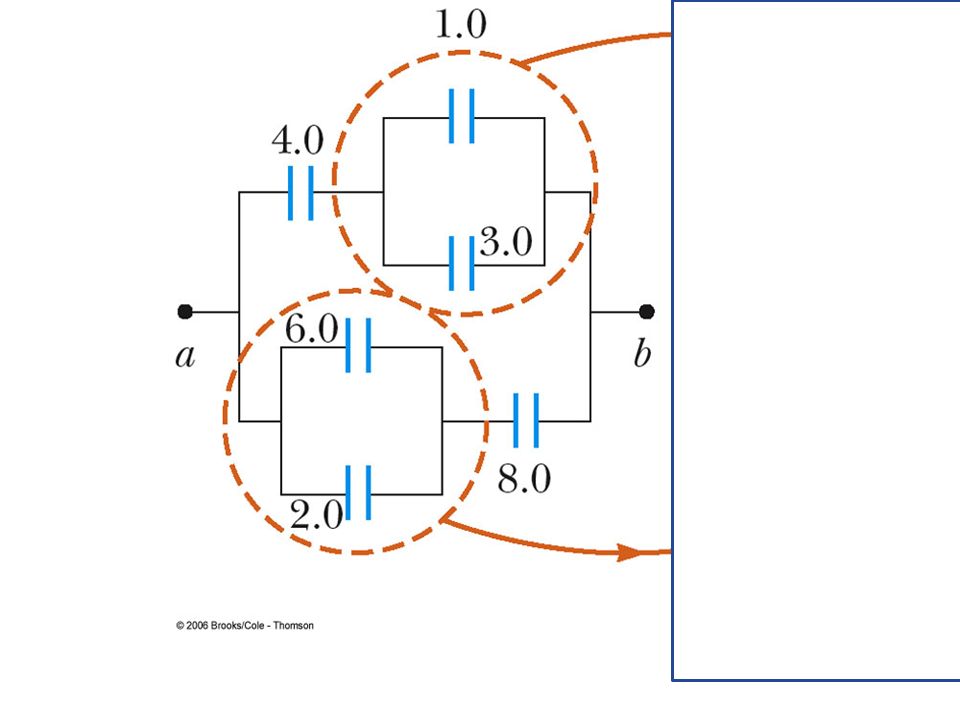

Out: What is the equivalent capacitance of the circuit between a and b ?
