1. Intel Pentium II Processor Brent Perry Pat Reagan Brian Davis Umesh Vemuri

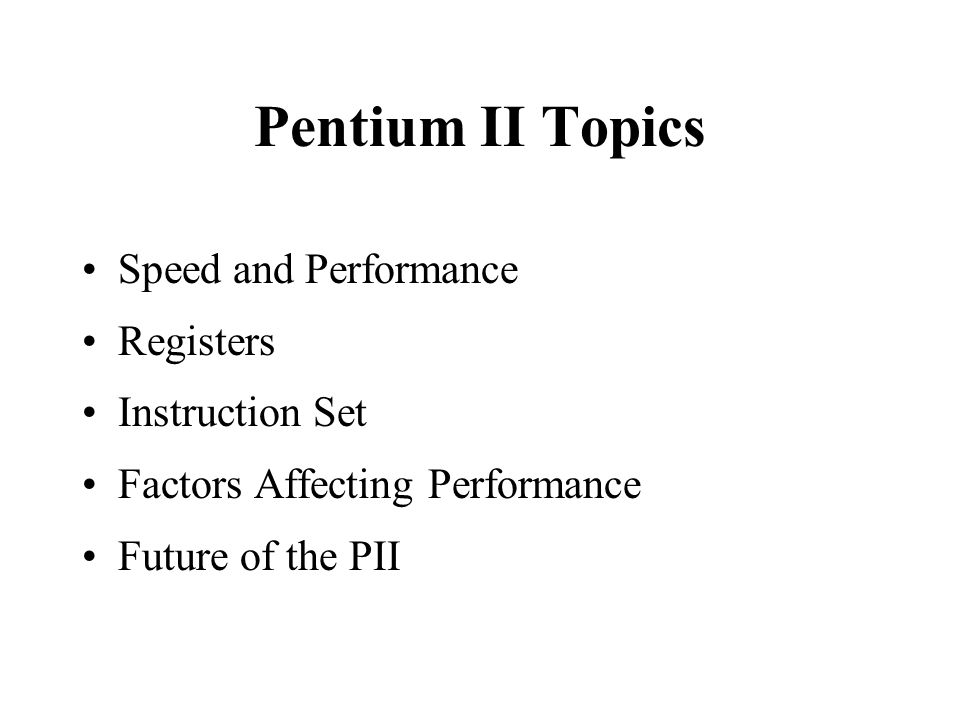

2. Pentium II Topics Speed and Performance Registers Instruction Set Factors Affecting Performance Future of the PII

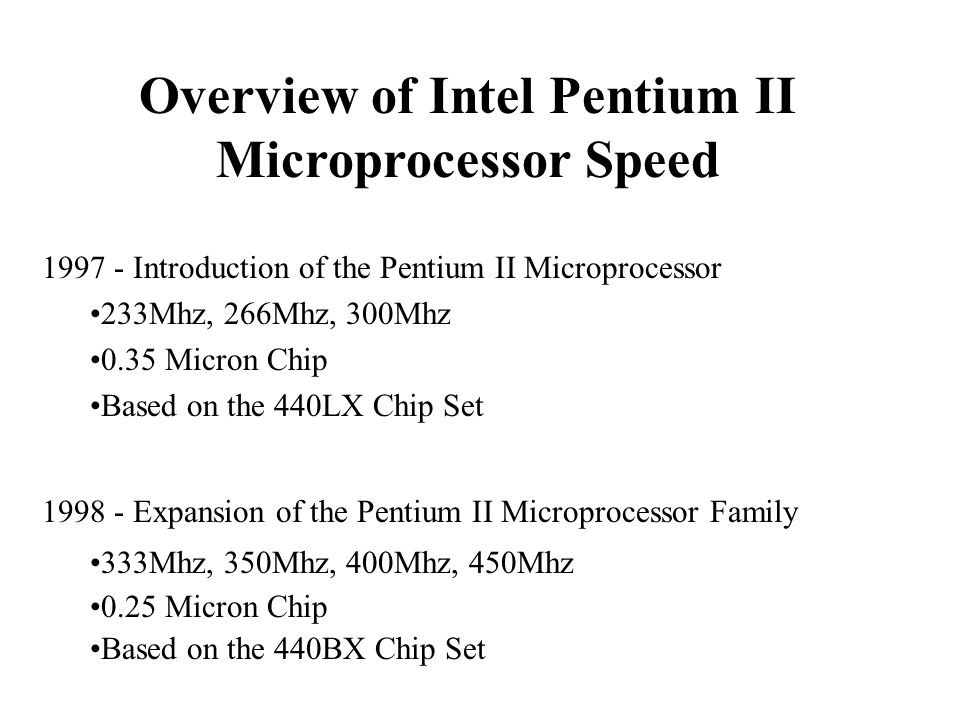

3. Overview of Intel Pentium II Microprocessor Speed 1997 - Introduction of the Pentium II Microprocessor 233Mhz, 266Mhz, 300Mhz 0.35 Micron Chip Based on the 440LX Chip Set 1998 - Expansion of the Pentium II Microprocessor Family 333Mhz, 350Mhz, 400Mhz, 450Mhz 0.25 Micron Chip Based on the 440BX Chip Set

4. The Advantage of 0.25 Micron Technology Increased Processor Speeds by 60% Lowered of voltage across the processor Doubled the Density of the 0.35 Micron Chip More transistors per chip The Advantage of the 440BX Chip Set One basic motherboard design: Supported all Pentium II processor speeds of 233MHz and higher Supported both 100-MHz or 66-MHz system and memory bus designs.

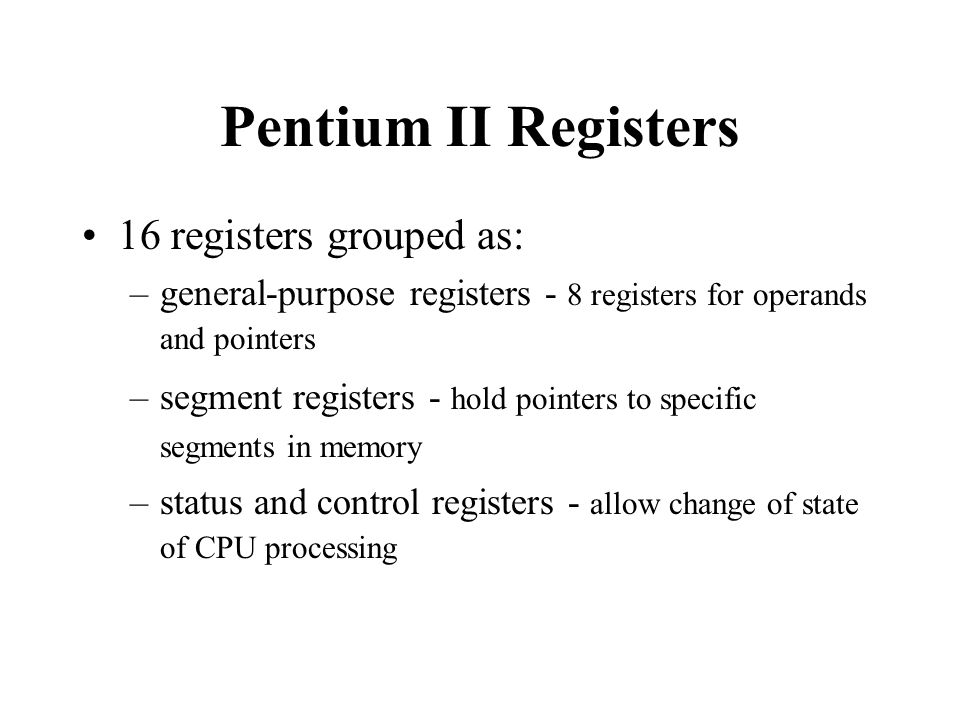

5. Pentium II Registers 16 registers grouped as: –general-purpose registers - 8 registers for operands and pointers –segment registers - hold pointers to specific segments in memory –status and control registers - allow change of state of CPU processing

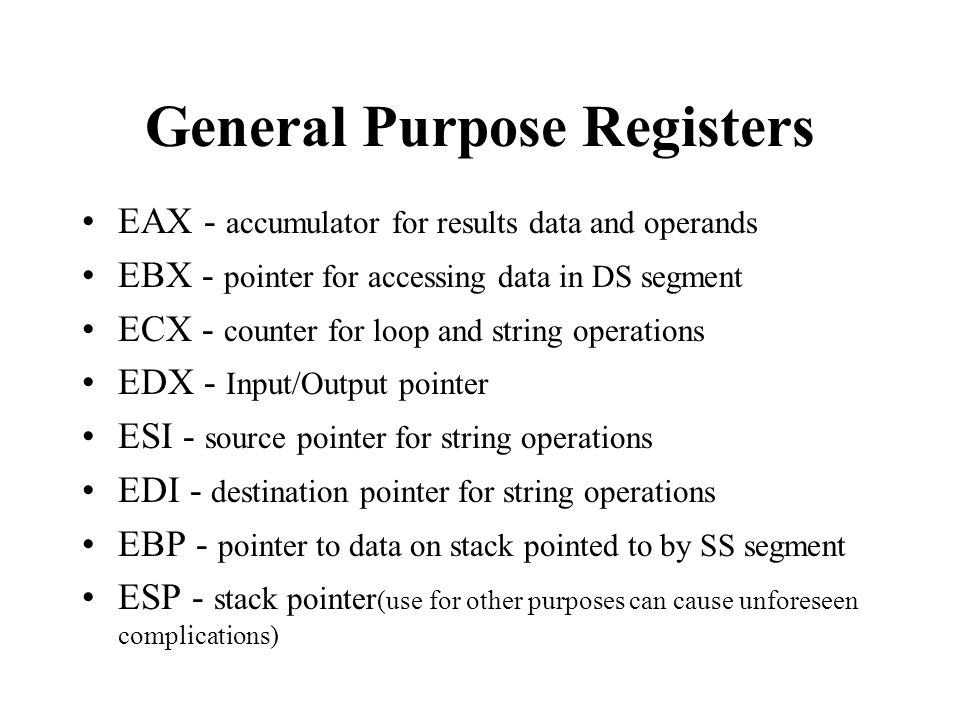

6. General Purpose Registers EAX - accumulator for results data and operands EBX - pointer for accessing data in DS segment ECX - counter for loop and string operations EDX - Input/Output pointer ESI - source pointer for string operations EDI - destination pointer for string operations EBP - pointer to data on stack pointed to by SS segment ESP - stack pointer (use for other purposes can cause unforeseen complications)

7. Segment Registers 16-bit registers that hold pointers called segment selectors that point to specific segments in memory These segment registers are called CS, DS, SS, ES, FS, and GS

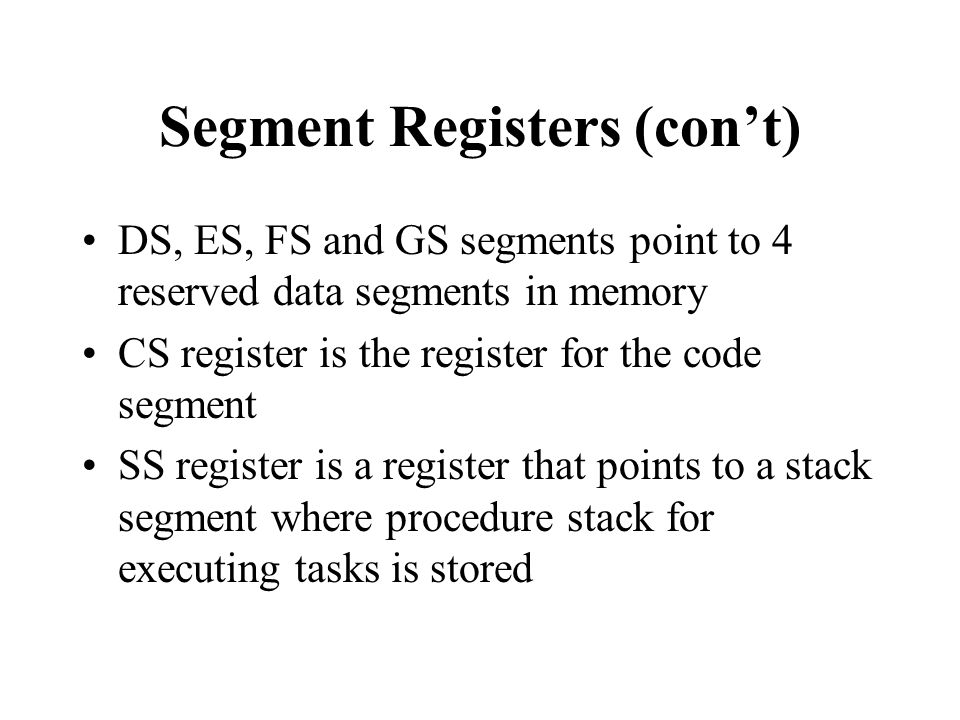

8. Segment Registers (con’t) DS, ES, FS and GS segments point to 4 reserved data segments in memory CS register is the register for the code segment SS register is a register that points to a stack segment where procedure stack for executing tasks is stored

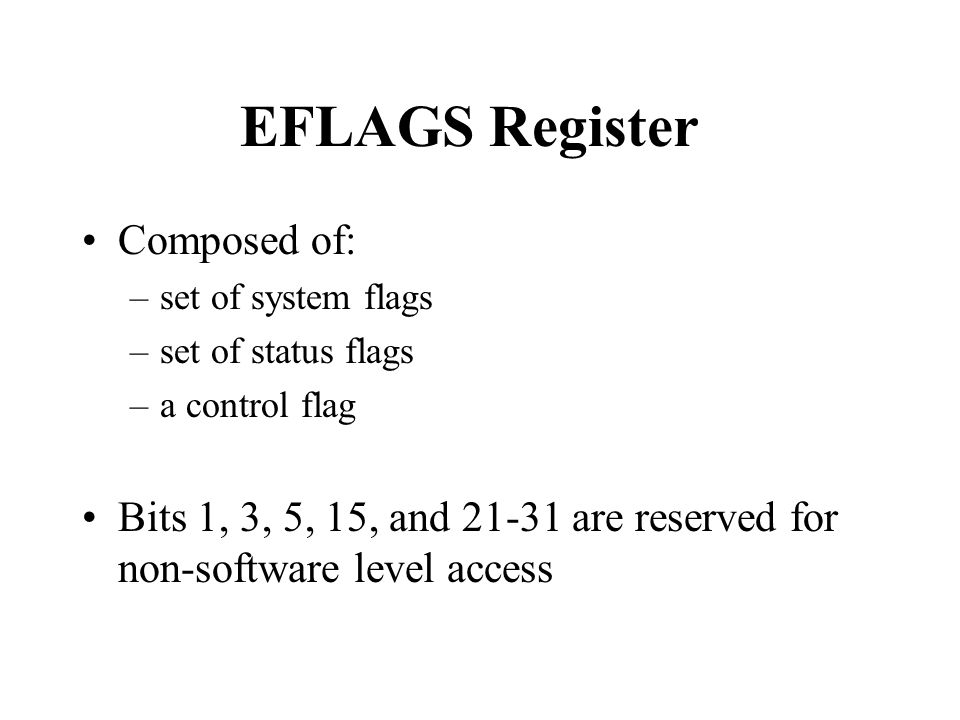

9. EFLAGS Register Composed of: –set of system flags –set of status flags –a control flag Bits 1, 3, 5, 15, and 21-31 are reserved for non-software level access

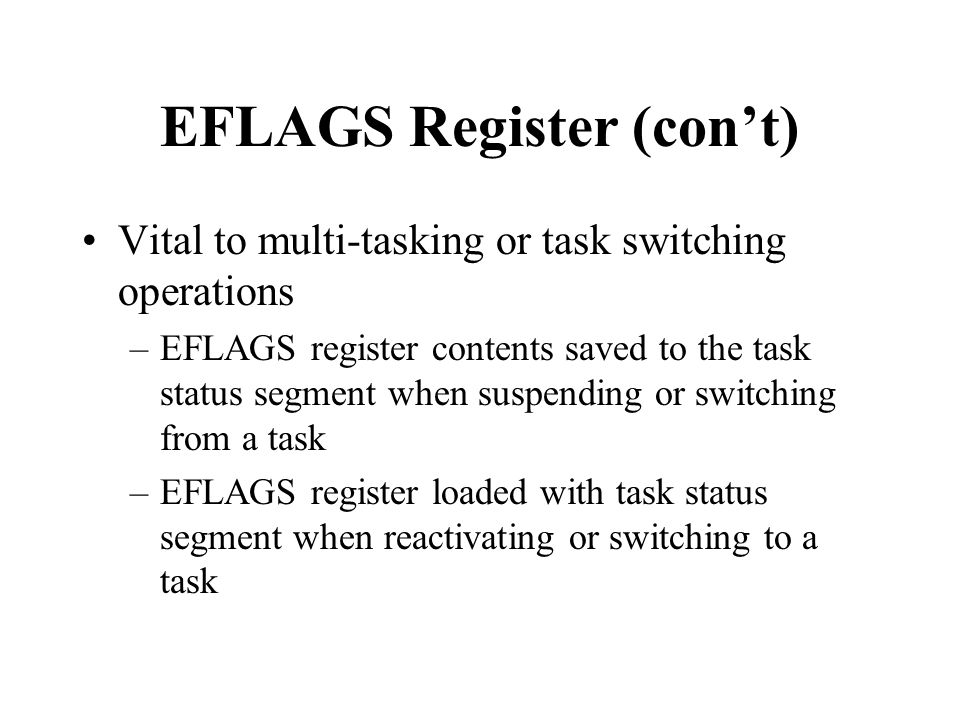

10. EFLAGS Register (con’t) Vital to multi-tasking or task switching operations –EFLAGS register contents saved to the task status segment when suspending or switching from a task –EFLAGS register loaded with task status segment when reactivating or switching to a task

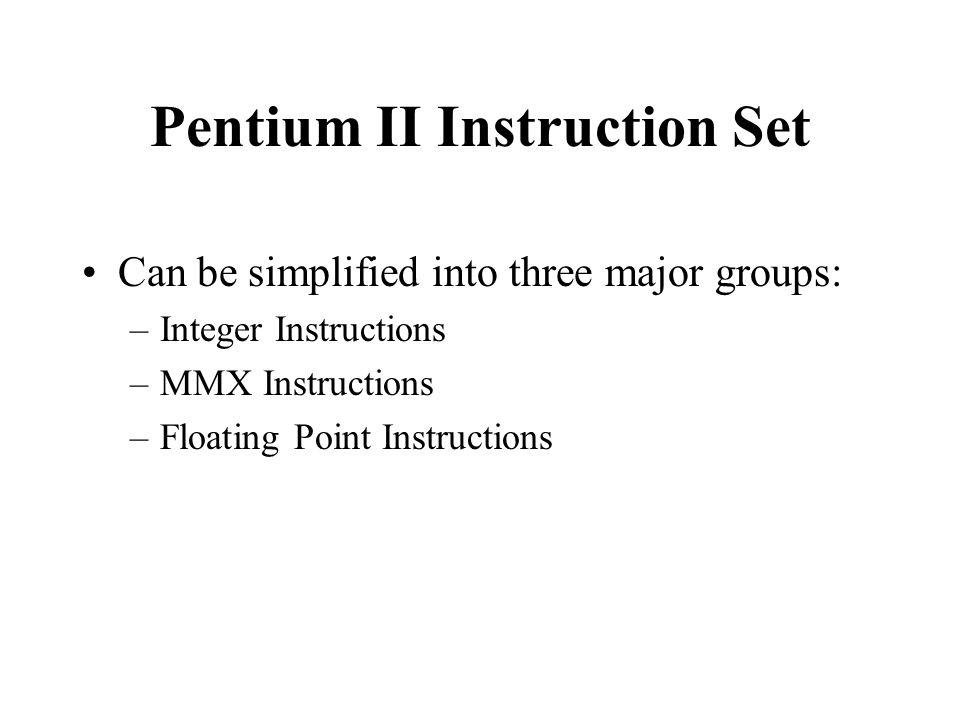

11. Pentium II Instruction Set Can be simplified into three major groups: –Integer Instructions –MMX Instructions –Floating Point Instructions

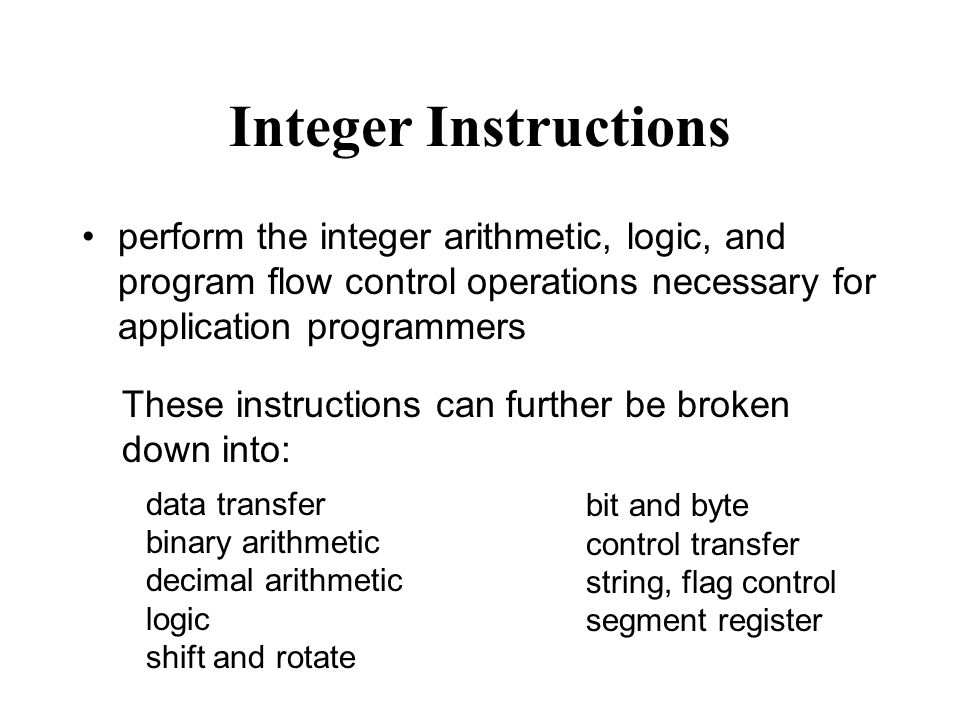

12. Integer Instructions perform the integer arithmetic, logic, and program flow control operations necessary for application programmers data transfer binary arithmetic decimal arithmetic logic shift and rotate bit and byte control transfer string, flag control segment register These instructions can further be broken down into:

13. MMX Instruction Set New instructions added with creation of late P5 model and Pentium II processors utilized by multimedia applications providing enhanced performance Consists of these sub-categories: –MMX data transfer, MMX conversion, MMX packed arithmetic, MMX comparison, MMX logic, MMX shift and rotate, and MMX state management

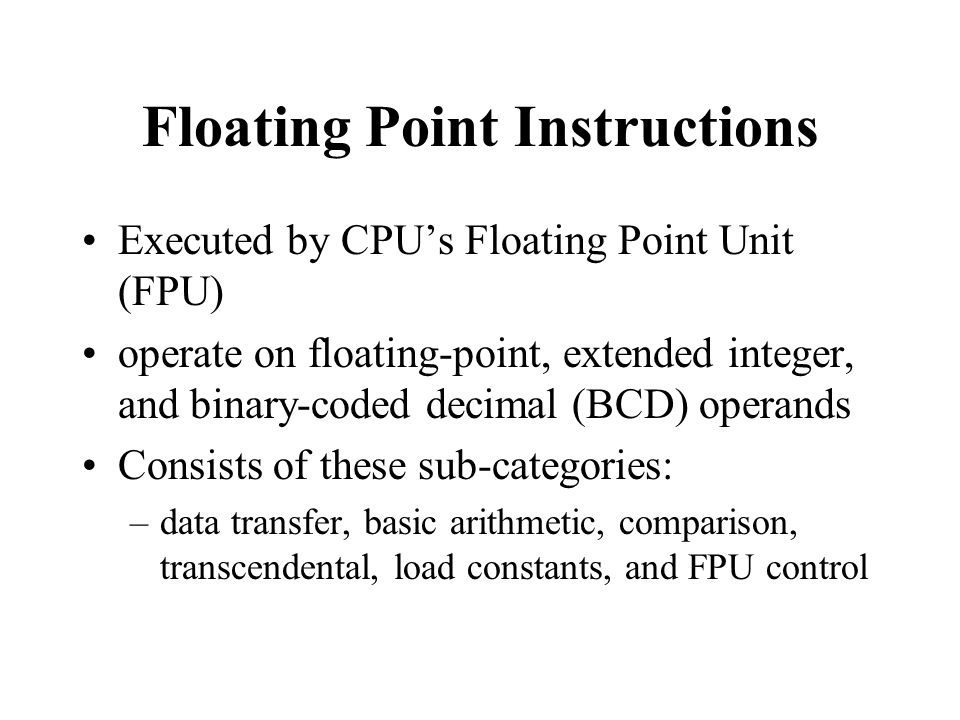

14. Floating Point Instructions Executed by CPU’s Floating Point Unit (FPU) operate on floating-point, extended integer, and binary-coded decimal (BCD) operands Consists of these sub-categories: –data transfer, basic arithmetic, comparison, transcendental, load constants, and FPU control

15. Factors Affecting Performance Three-way Superscalar Architecture Pipelining Architecture Dynamic Execution

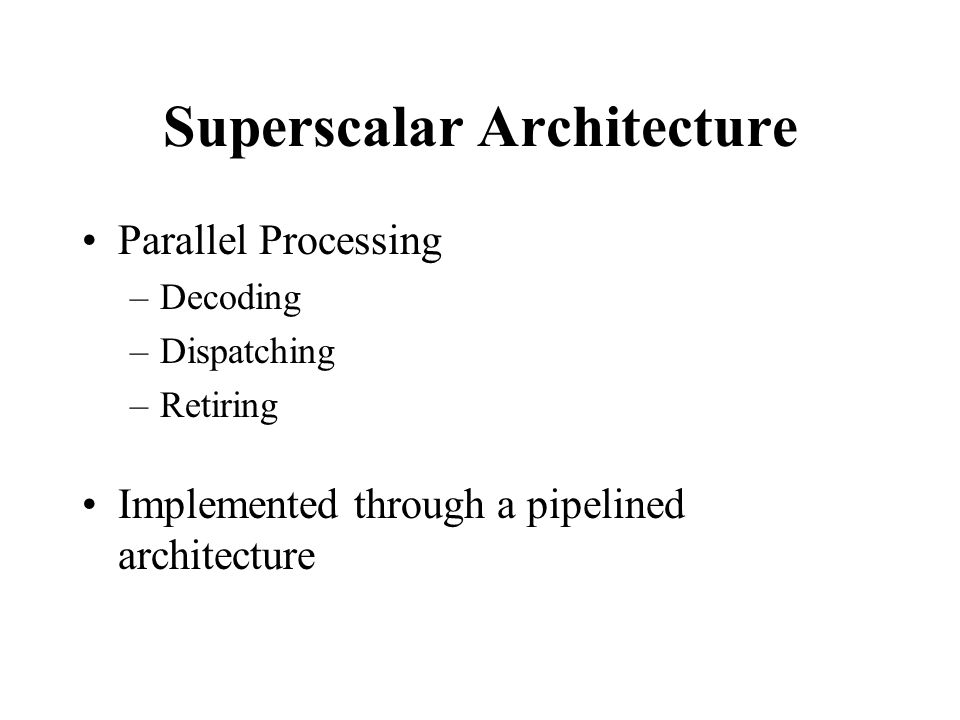

16. Superscalar Architecture Parallel Processing –Decoding –Dispatching –Retiring Implemented through a pipelined architecture

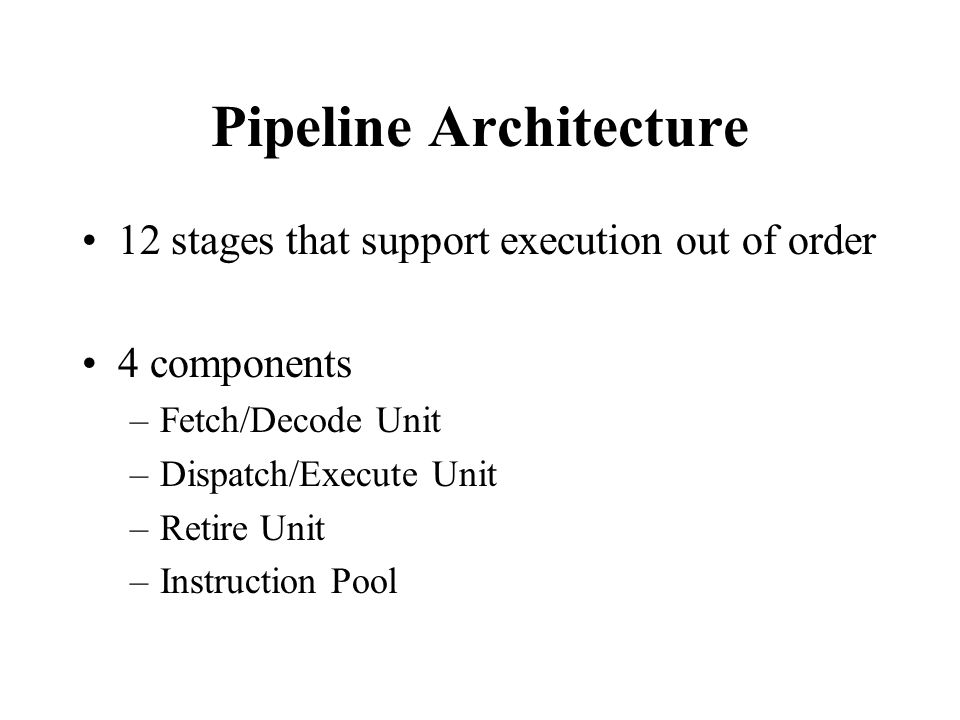

17. Pipeline Architecture 12 stages that support execution out of order 4 components –Fetch/Decode Unit –Dispatch/Execute Unit –Retire Unit –Instruction Pool

18. Pipeline Architecture

19. Dynamic Execution Consists of three facets: –Branch Prediction –Dynamic Data Flow Analysis –Speculative Execution Keeps Pipeline full and improves performance

20. Branch Prediction Keeps processing pipeline full Decoding of instructions beyond the current instruction set Follows instruction through calls and returns

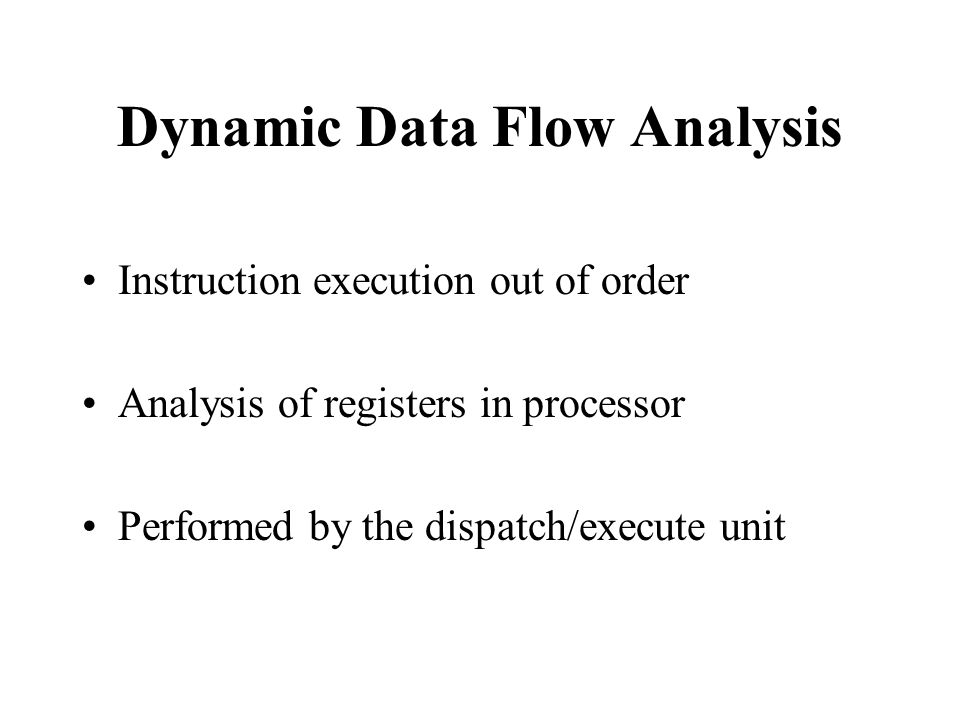

21. Dynamic Data Flow Analysis Instruction execution out of order Analysis of registers in processor Performed by the dispatch/execute unit

22. Speculative Execution Ties two previous facets together Maintains the integrity of instructions Instructions are committed in the correct order

23. First quarter of 1999 Introduction of a processor code named "Katmai” targeted at the desktop market segment 450Mhz, 500MHz Mid to Late-1999 600Mhz “Coppermine” Pentium II chip - will scale up towards 800Mhz with.18 micron process 700Mhz Pentium II Xeon chip - designed for demanding server use The Future of Pentium II Microprocessor
