1. New and active ways to bind to your design by Kaiming Ho Fraunhofer IIS

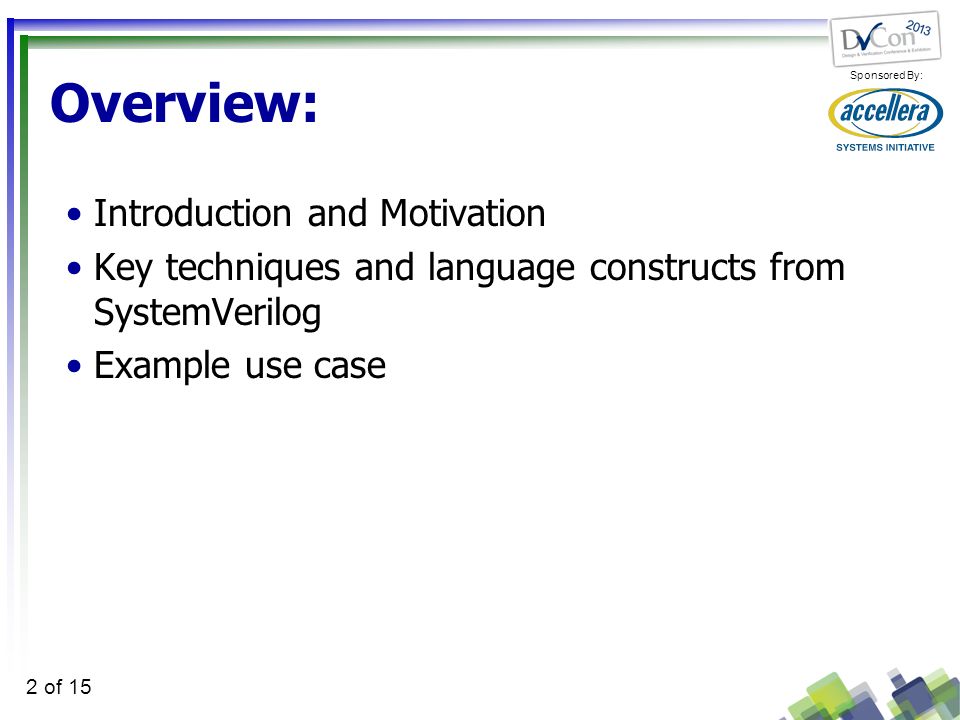

2. Sponsored By: 2 of 15 Overview: Introduction and Motivation Key techniques and language constructs from SystemVerilog Example use case

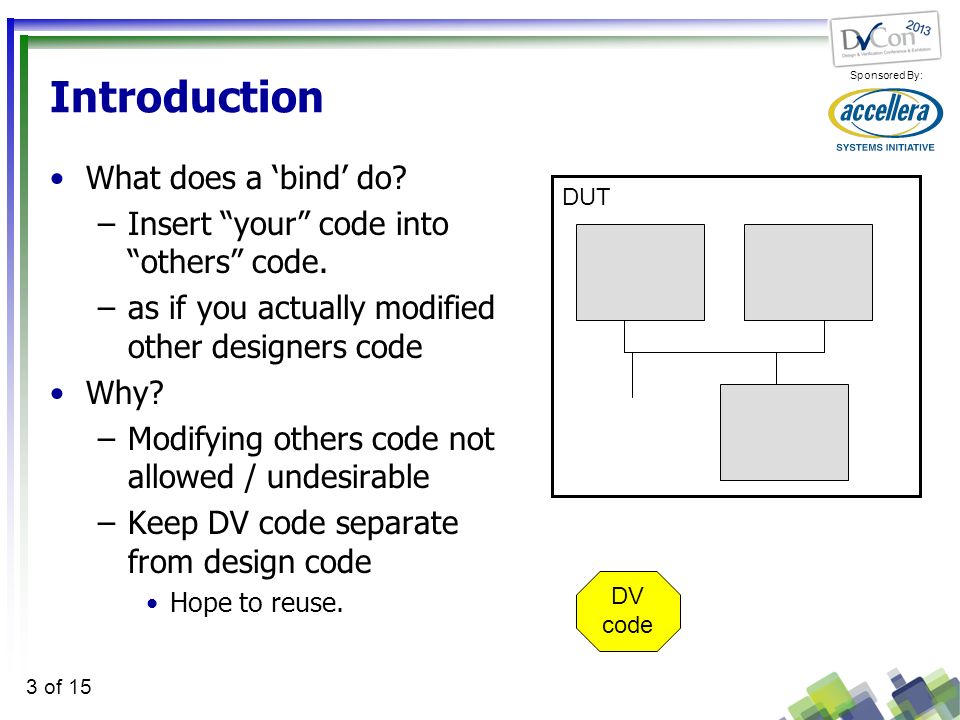

3. Sponsored By: 3 of 15 Introduction What does a ‘bind’ do? –Insert “your” code into “others” code. –as if you actually modified other designers code Why? –Modifying others code not allowed / undesirable –Keep DV code separate from design code Hope to reuse. DV code DUT

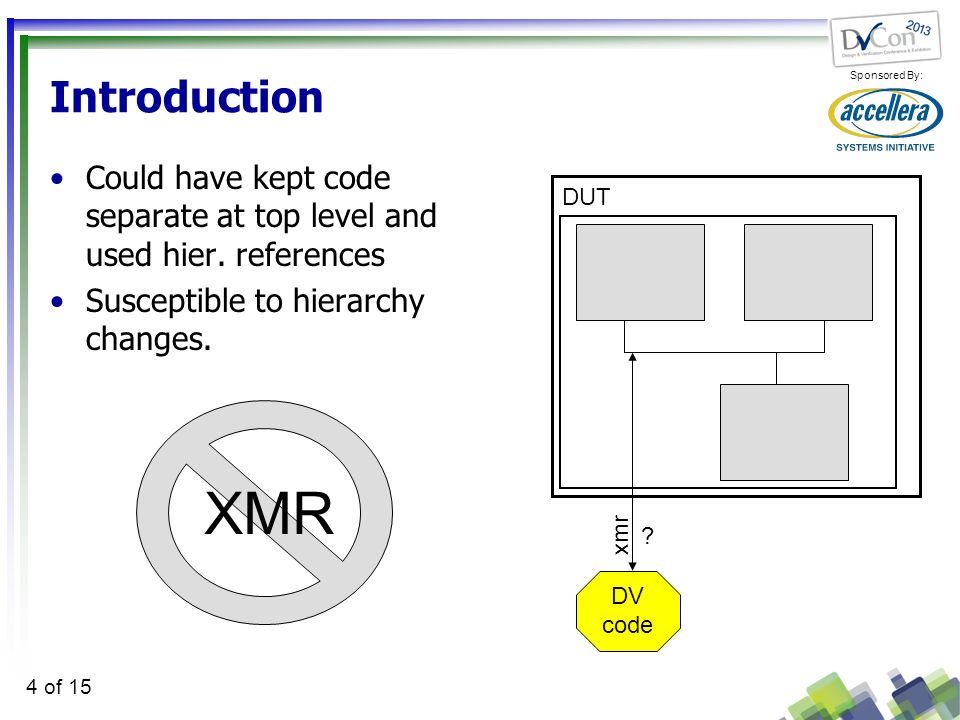

4. Sponsored By: 4 of 15 Introduction Could have kept code separate at top level and used hier. references Susceptible to hierarchy changes. DUT DV code xmr XMR ?

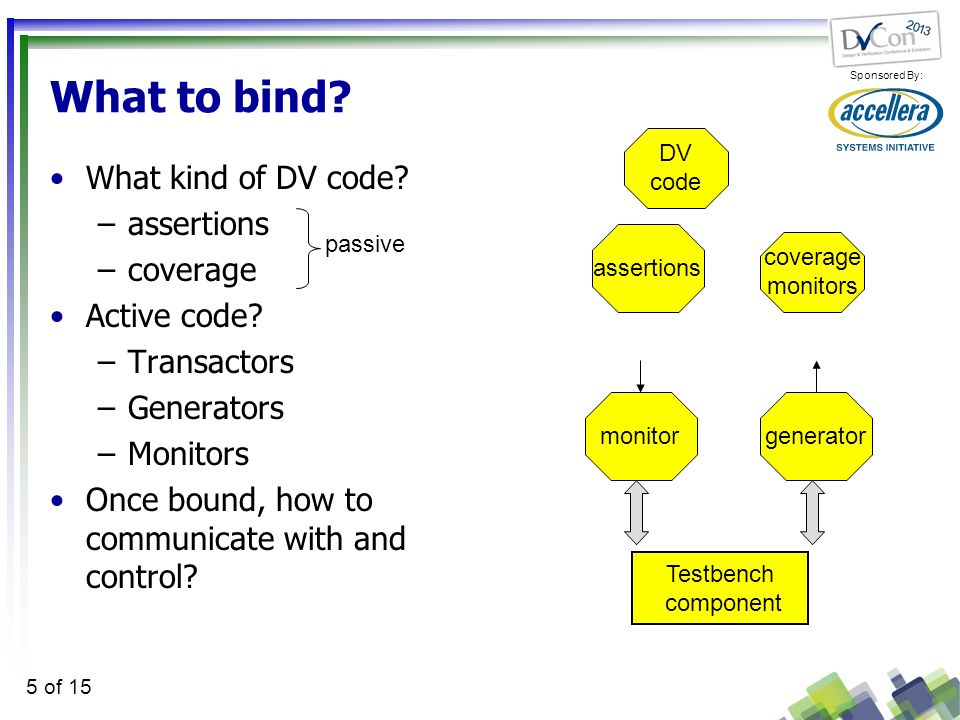

5. Sponsored By: 5 of 15 What to bind? What kind of DV code? –assertions –coverage Active code? –Transactors –Generators –Monitors Once bound, how to communicate with and control? DV code assertions coverage monitors passive monitor generator Testbench component

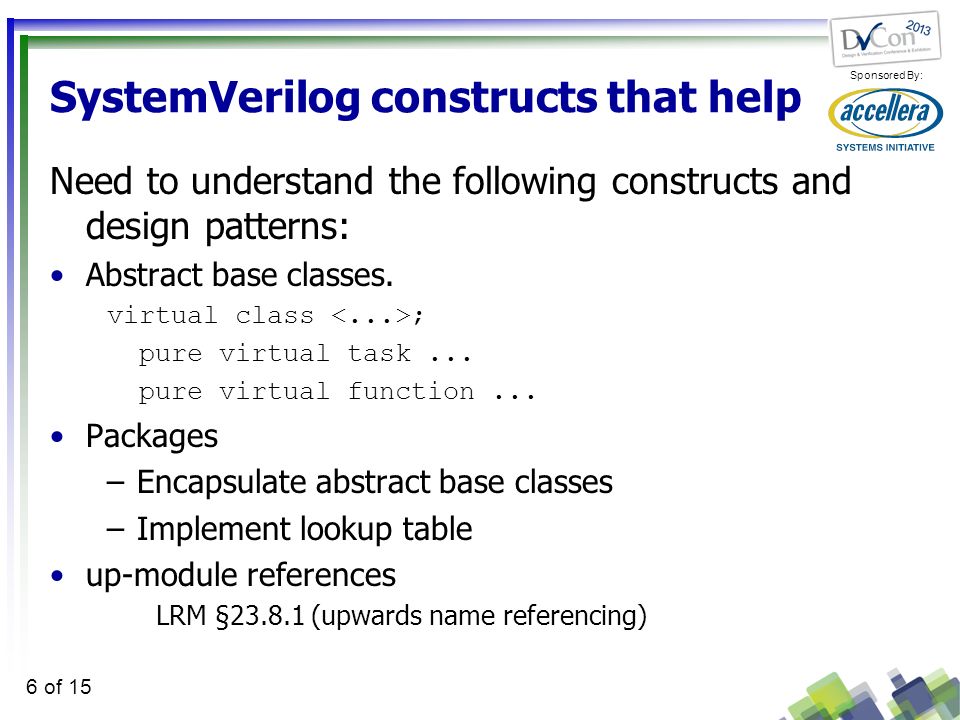

6. Sponsored By: 6 of 15 SystemVerilog constructs that help Need to understand the following constructs and design patterns: Abstract base classes. virtual class ; pure virtual task... pure virtual function... Packages –Encapsulate abstract base classes –Implement lookup table up-module references LRM §23.8.1 (upwards name referencing)

7. Sponsored By: 7 of 15 All transactors have an API. –Translate your wishes into signal wiggles. Define tasks/functions which make up API. Implement as pure virtual class in package. virtual class xactor_api; task drive_transaction(...); function T wait_for_transaction(); Implement transactor. –Map signal wiggles to API & vice versa. –Extend base class. Construct an object. –Register object. Abstract base classes pure virtual

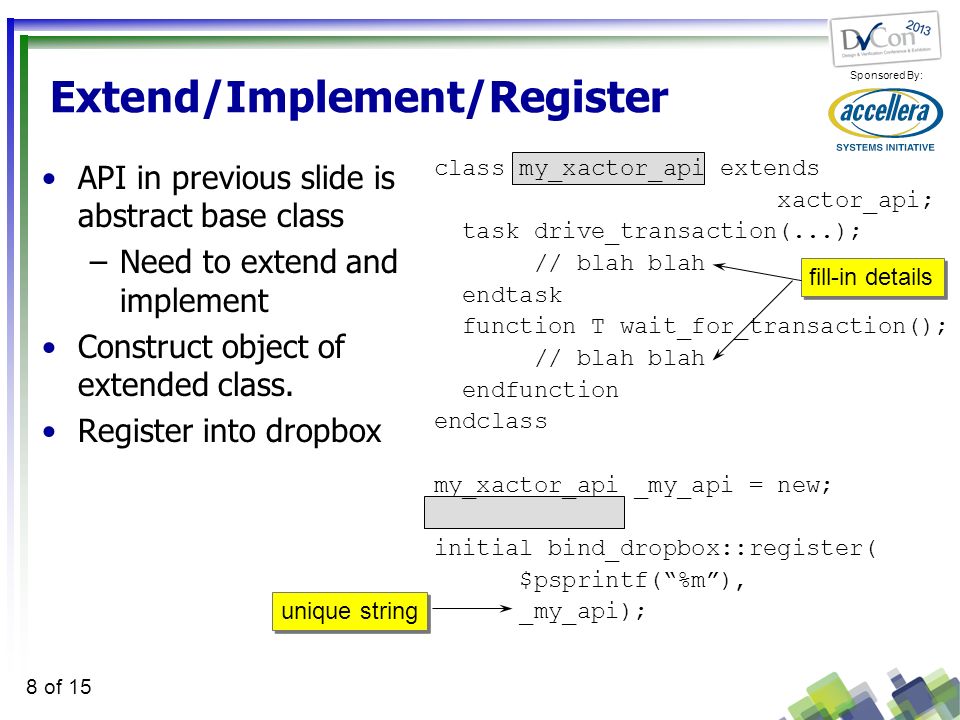

8. Sponsored By: 8 of 15 API in previous slide is abstract base class –Need to extend and implement Construct object of extended class. Register into dropbox Extend/Implement/Register fill-in details unique string class my_xactor_api extends xactor_api; task drive_transaction(...); // blah blah endtask function T wait_for_transaction(); // blah blah endfunction endclass my_xactor_api _my_api = new; initial bind_dropbox::register( $psprintf(“%m”), _my_api);

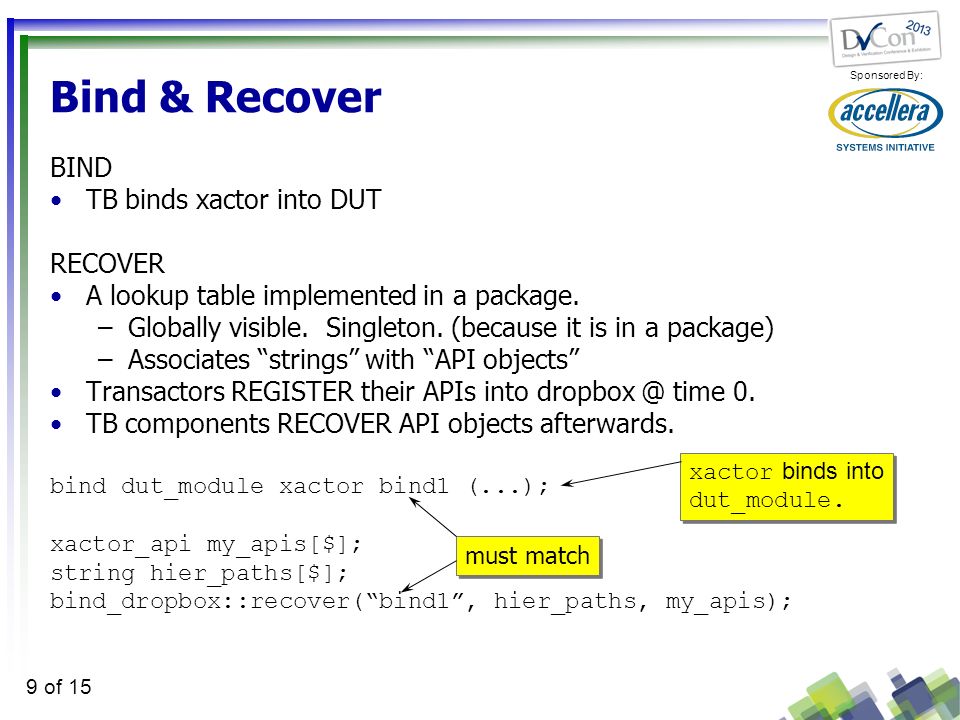

9. Sponsored By: 9 of 15 BIND TB binds xactor into DUT RECOVER A lookup table implemented in a package. –Globally visible. Singleton. (because it is in a package) –Associates “strings” with “API objects” Transactors REGISTER their APIs into dropbox @ time 0. TB components RECOVER API objects afterwards. bind dut_module xactor bind1 (...); xactor_api my_apis[$]; string hier_paths[$]; bind_dropbox::recover(“bind1”, hier_paths, my_apis); Bind & Recover xactor binds into dut_module. xactor binds into dut_module. must match

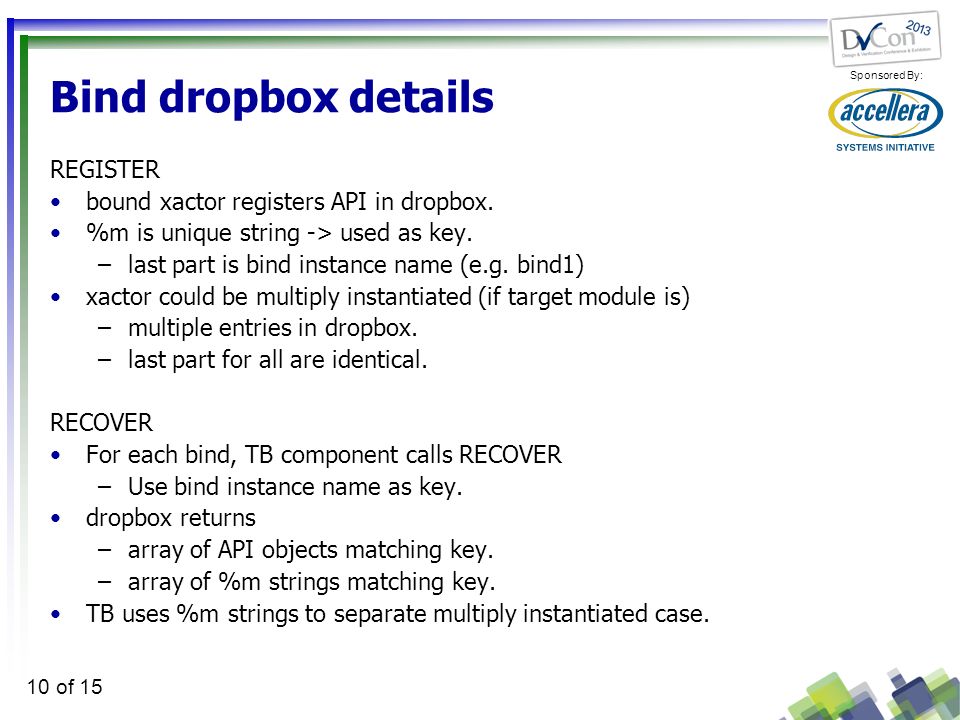

10. Sponsored By: 10 of 15 REGISTER bound xactor registers API in dropbox. %m is unique string -> used as key. –last part is bind instance name (e.g. bind1) xactor could be multiply instantiated (if target module is) –multiple entries in dropbox. –last part for all are identical. RECOVER For each bind, TB component calls RECOVER –Use bind instance name as key. dropbox returns –array of API objects matching key. –array of %m strings matching key. TB uses %m strings to separate multiply instantiated case. Bind dropbox details

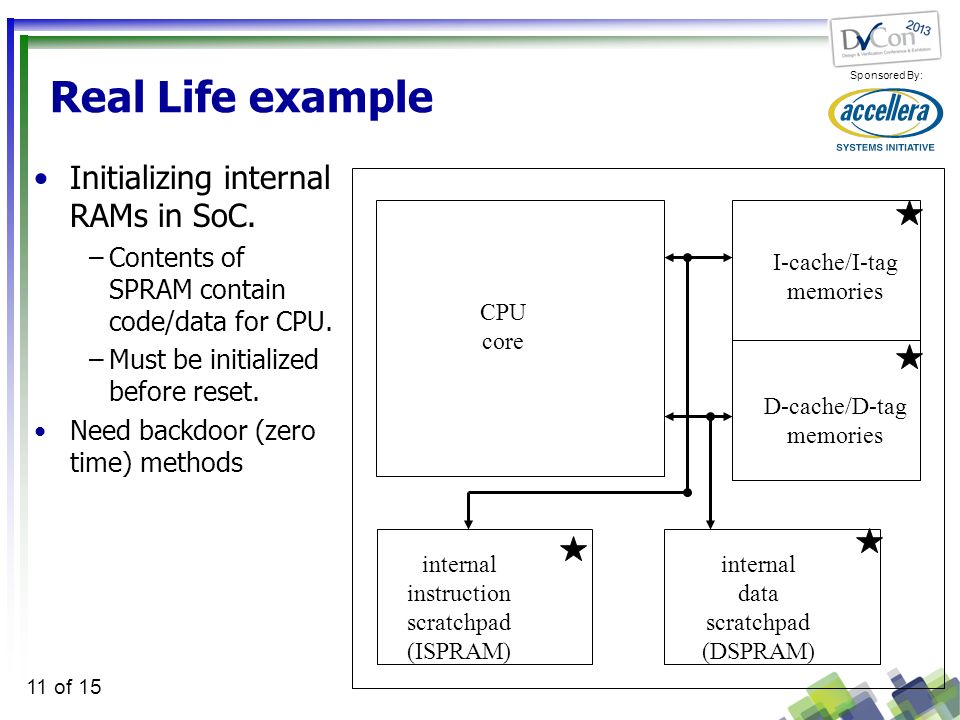

11. Sponsored By: 11 of 15 Real Life example Initializing internal RAMs in SoC. –Contents of SPRAM contain code/data for CPU. –Must be initialized before reset. Need backdoor (zero time) methods CPU core I-cache/I-tag memories D-cache/D-tag memories internal data scratchpad (DSPRAM) internal instruction scratchpad (ISPRAM)

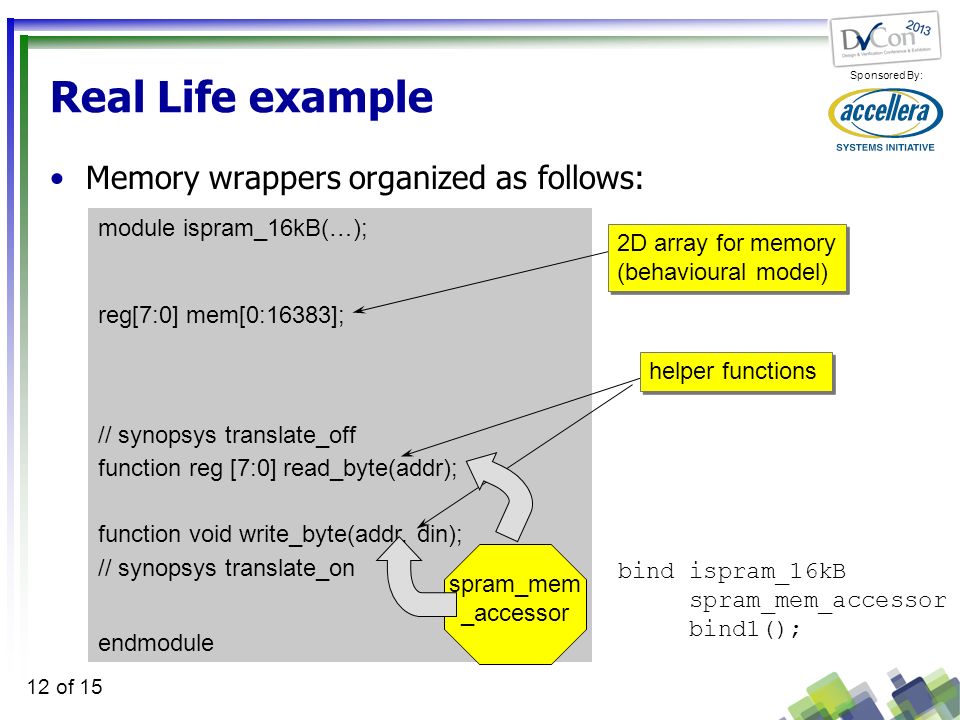

12. Sponsored By: 12 of 15 Memory wrappers organized as follows: module ispram_16kB(…); reg[7:0] mem[0:16383]; // synopsys translate_off function reg [7:0] read_byte(addr); function void write_byte(addr, din); // synopsys translate_on endmodule Real Life example 2D array for memory (behavioural model) 2D array for memory (behavioural model) helper functions spram_mem _accessor bind ispram_16kB spram_mem_accessor bind1();

13. Sponsored By: 13 of 15 spram_mem_accessor uses up-module reference. module spram_accessor(); function reg [7:0] _read_byte(addr); return read_byte(addr); endfunction function void _write_byte(addr, din); write_byte(addr,din); endfunction class my_mem_accessor extends mem_accessor_base;... my_mem_accessor _api = new initial bind_dropbox::register(...); endmodule Up-module reference up-module ref. into host module. up-module ref. into host module. abstract base class CREATE/R EGISTER

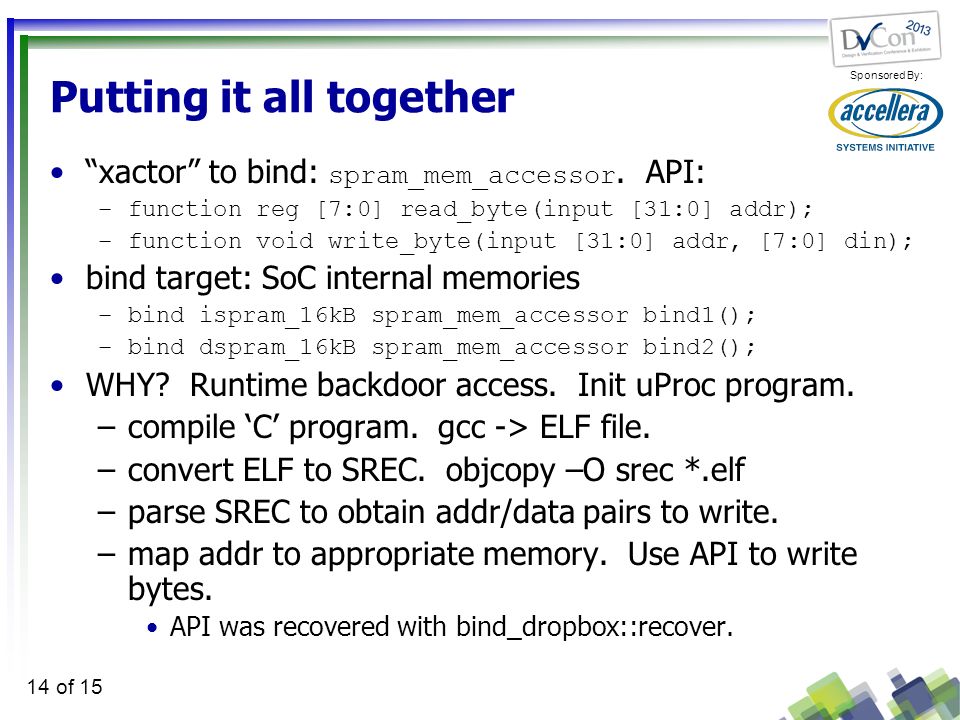

14. Sponsored By: 14 of 15 Putting it all together “xactor” to bind: spram_mem_accessor. API: –function reg [7:0] read_byte(input [31:0] addr); –function void write_byte(input [31:0] addr, [7:0] din); bind target: SoC internal memories –bind ispram_16kB spram_mem_accessor bind1(); –bind dspram_16kB spram_mem_accessor bind2(); WHY? Runtime backdoor access. Init uProc program. –compile ‘C’ program. gcc -> ELF file. –convert ELF to SREC. objcopy –O srec *.elf –parse SREC to obtain addr/data pairs to write. –map addr to appropriate memory. Use API to write bytes. API was recovered with bind_dropbox::recover.

15. Sponsored By: 15 of 15 Conclusion Presented binding transactors which can be actively controlled at runtime. Key concepts: –Abstract base classes –Packages –bind dropbox –upwards name referencing. Example use-case –Loading ‘C’ programs into full-chip SoC simulations. –integrated hardware/software verification

16. Sponsored By: 16 of 15 Thank you! QUESTIONS?

17. Sponsored By: 17 of 15 Comparison with UVM UVM uses interfaces. –top level testbench instantiates interface –agents require virtual version of interface Exchange of virtual interface objects through resource db –very similar in to bind_dropbox –uvm_resource_db#(virtual serial_intf)::set (“interfaces”, “vif”, hier.path.to.intf); –uvm_resource_db#(virtual serial_intf)::read_by_name (“interfaces”, “vif”, vif); Virtual interfaces are problematic when parameters exist. vintf
