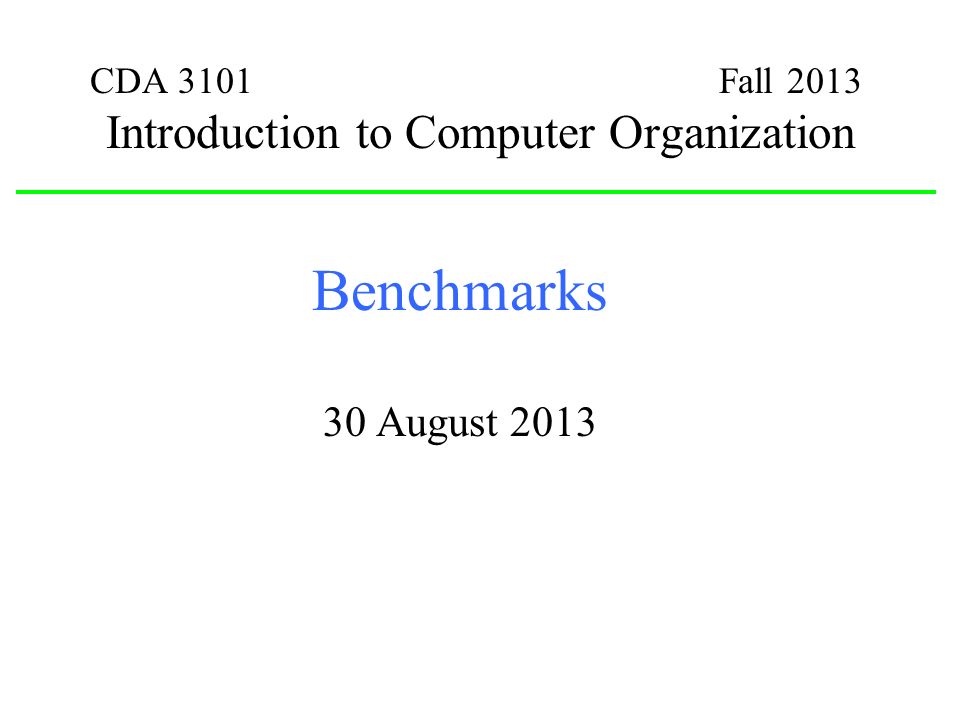

1. CDA 3101 Fall 2013 Introduction to Computer Organization Benchmarks 30 August 2013

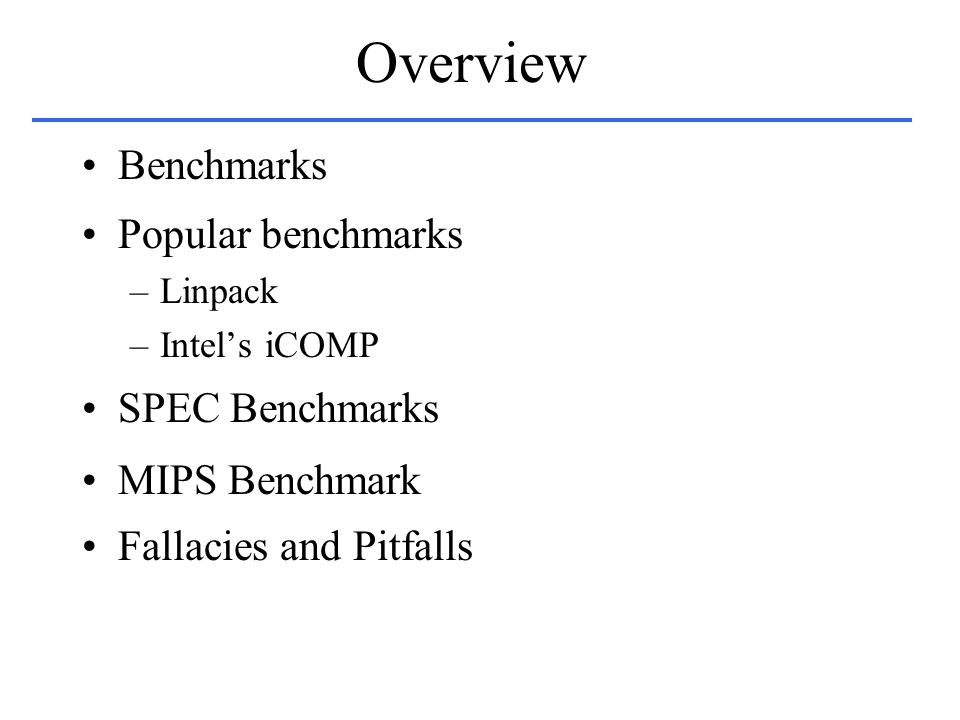

2. Overview Benchmarks Popular benchmarks –Linpack –Intel’s iCOMP SPEC Benchmarks MIPS Benchmark Fallacies and Pitfalls

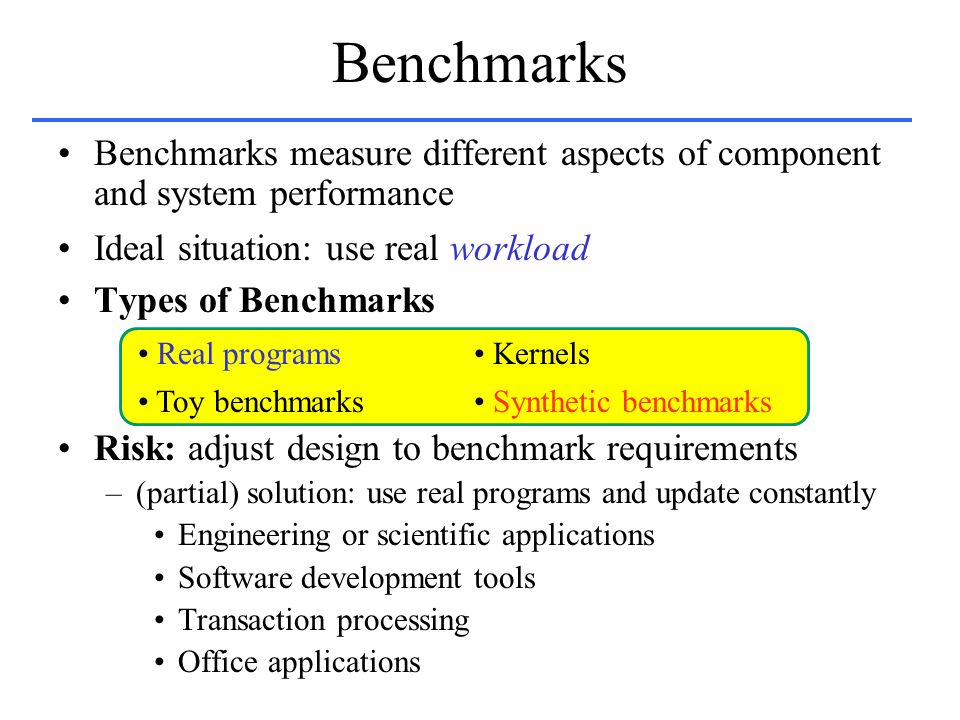

3. Benchmarks Benchmarks measure different aspects of component and system performance Ideal situation: use real workload Types of Benchmarks Risk: adjust design to benchmark requirements –(partial) solution: use real programs and update constantly Engineering or scientific applications Software development tools Transaction processing Office applications Real programs Kernels Toy benchmarks Synthetic benchmarks

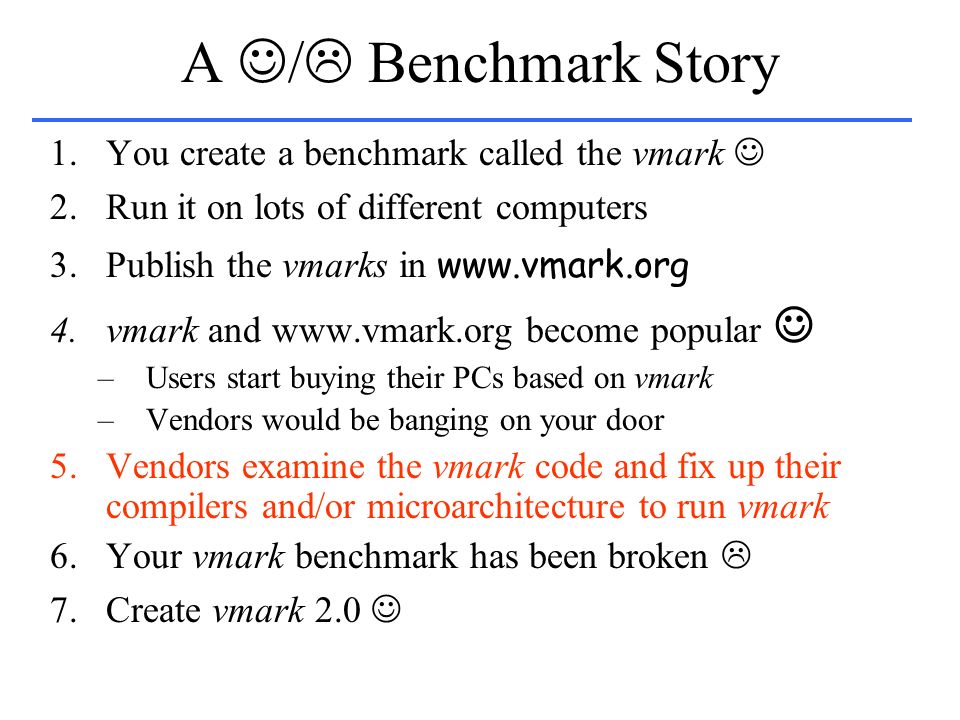

4. A /  Benchmark Story 1.You create a benchmark called the vmark 2.Run it on lots of different computers 3.Publish the vmarks in www.vmark.org 4.vmark and www.vmark.org become popular –Users start buying their PCs based on vmark –Vendors would be banging on your door 5.Vendors examine the vmark code and fix up their compilers and/or microarchitecture to run vmark 6.Your vmark benchmark has been broken  7.Create vmark 2.0

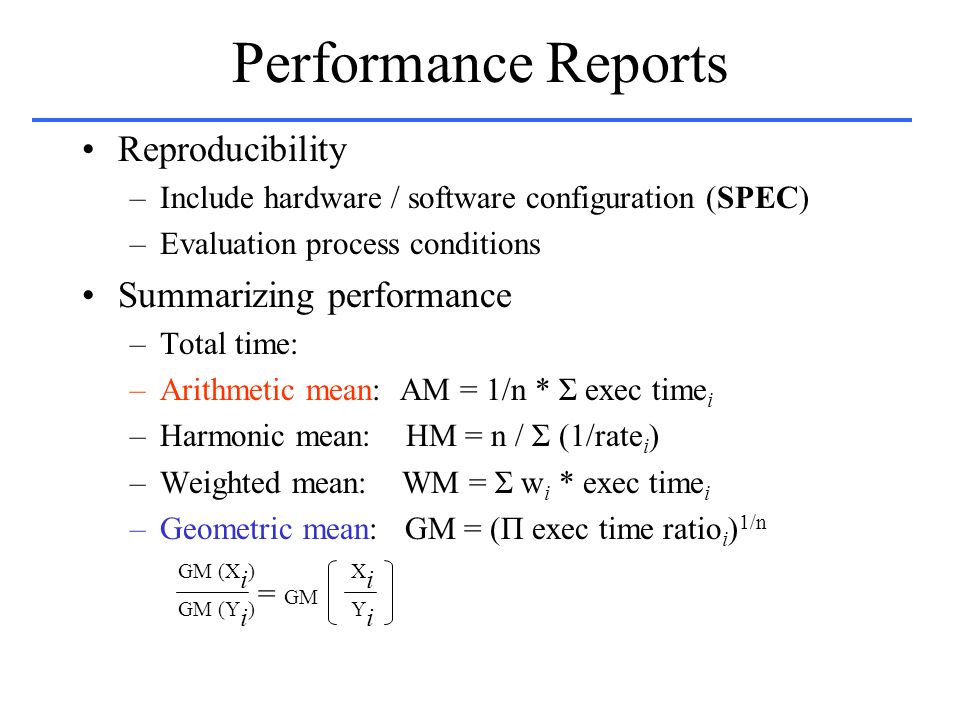

5. Performance Reports Reproducibility –Include hardware / software configuration (SPEC) –Evaluation process conditions Summarizing performance –Total time: –Arithmetic mean: AM = 1/n * Σ exec time i –Harmonic mean: HM = n / Σ (1/rate i ) –Weighted mean: WM = Σ w i * exec time i –Geometric mean: GM = (Π exec time ratio i ) 1/n GM (X i ) X i GM (Y i ) Y i = GM

6. Ex.1: Linpack Benchmark “Mother of all benchmarks” Time to solve a dense systems of linear equations DO I = 1, N DY(I) = DY(I) + DA * DX(I) END DO Metrics –R peak : system peak Gflops –N max : matrix size that gives the highest Gflops –N 1/2 : matrix size that achieves half the rated R max Gflops –R max : the Gflops achieved for the N max size matrix Used in http://www.top500.org

7. Ex.2: Intel’s iCOMP Index 3.0 New version (3.0) reflects: Mix of instructions for existing and emerging software. Increasing use of 3D, multimedia, and Internet software. Benchmarks 2 integer productivity applications (20% each) 3D geometry and lighting calculations (20%) FP engineering and finance programs and games (5%) Multimedia and Internet application (25%. ) Java application (10%) Weighted GM of relative performance –Baseline processor: Pentium II processor at 350MHz

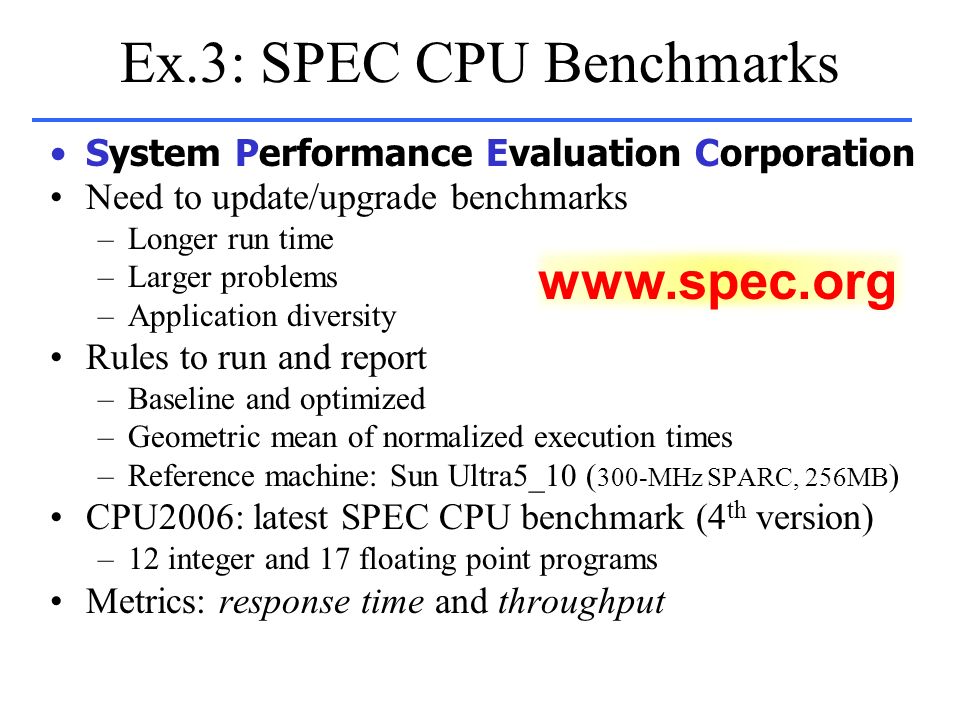

8. Ex.3: SPEC CPU Benchmarks System Performance Evaluation Corporation Need to update/upgrade benchmarks –Longer run time –Larger problems –Application diversity Rules to run and report –Baseline and optimized –Geometric mean of normalized execution times –Reference machine: Sun Ultra5_10 ( 300-MHz SPARC, 256MB ) CPU2006: latest SPEC CPU benchmark (4 th version) –12 integer and 17 floating point programs Metrics: response time and throughput www.spec.org

9. Ex.3: SPEC CPU Benchmarks 1989-2006 Previous Benchmarks, now retired

10. Ex.3: SPEC CPU Benchmarks Observe: We will use SPEC 2000 & 2006 CPU benchmarks in this set of notes. Task: However, you are asked to read about SPEC 2006 CPU benchmark suite, described at www.spec.org/cpu2006 www.spec.org/cpu2006 Result: Compare SPEC 2006 with SPEC 2000 data www.spec.org/cpu2000 to answer the extra-credit questions in Homework #2.www.spec.org/cpu2000

11. SPEC CINT2000 Benchmarks 1.164.gzip CCompression 2.175.vpr CFPGA Circuit Placement and Routing 3.176.gcc CC Programming Language Compiler 4.181.mcf CCombinatorial Optimization 5.186.crafty CGame Playing: Chess 6.197.parser CWord Processing 7.252.eon C++Computer Visualization 8.253.perlbmk CPERL Programming Language 9.254.gap CGroup Theory, Interpreter 10.255.vortex CObject-oriented Database 11.256.bzip2 CCompression 12.300.twolf CPlace and Route Simulator

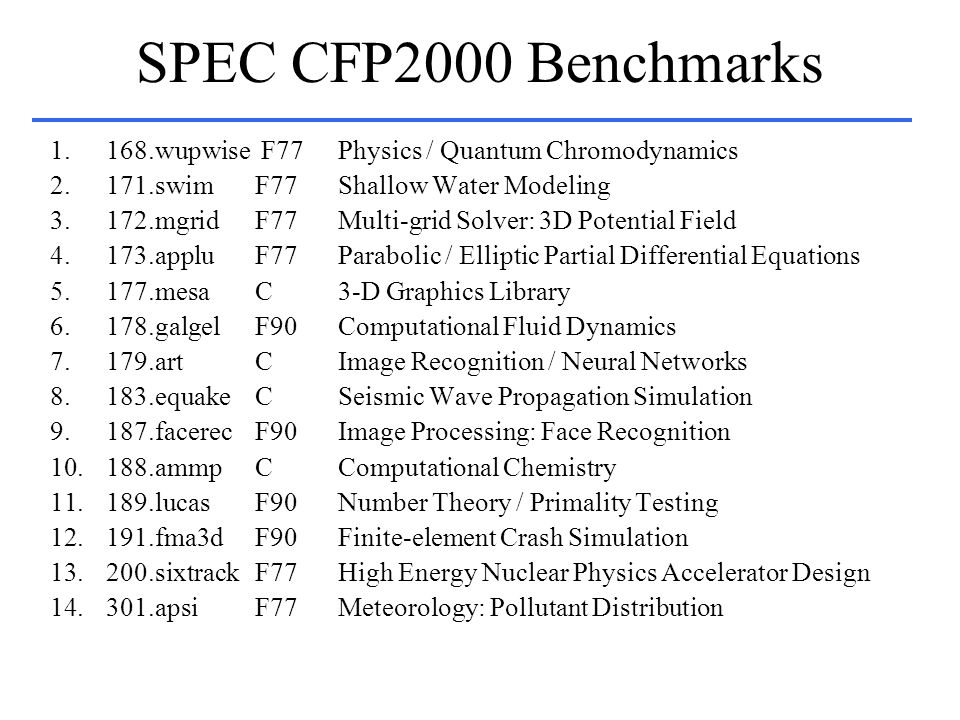

12. SPEC CFP2000 Benchmarks 1.168.wupwise F77Physics / Quantum Chromodynamics 2.171.swim F77Shallow Water Modeling 3.172.mgrid F77Multi-grid Solver: 3D Potential Field 4.173.applu F77Parabolic / Elliptic Partial Differential Equations 5.177.mesa C3-D Graphics Library 6.178.galgel F90Computational Fluid Dynamics 7.179.art CImage Recognition / Neural Networks 8.183.equake CSeismic Wave Propagation Simulation 9.187.facerec F90Image Processing: Face Recognition 10.188.ammp CComputational Chemistry 11.189.lucas F90Number Theory / Primality Testing 12.191.fma3d F90Finite-element Crash Simulation 13.200.sixtrack F77High Energy Nuclear Physics Accelerator Design 14.301.apsi F77Meteorology: Pollutant Distribution

13. SPECINT2000 Metrics SPECint2000: The geometric mean of 12 normalized ratios (one for each integer benchmark) when each benchmark is compiled with "aggressive" optimization SPECint_base2000: The geometric mean of 12 normalized ratios when compiled with "conservative" optimization SPECint_rate2000: The geometric mean of 12 normalized throughput ratios when compiled with "aggressive" optimization SPECint_rate_base2000: The geometric mean of 12 normalized throughput ratios when compiled with "conservative" optimization

14. SPECint_base2000 Results Alpha/Tru64 21264 @ 667 MHz Mips/IRIX R12000@ 400MHz Intel/NT 4.0 PIII @ 733 MHz

15. SPECfp_base2000 Results Alpha/Tru64 21264 @ 667 MHz Mips/IRIX R12000@ 400MHz Intel/NT 4.0 PIII @ 733 MHz

16. Effect of CPI: SPECint95 Ratings Microarchitecture improvements CPU time = IC * CPI * clock cycle

17. Effect of CPI: SPECfp95 Ratings Microarchitecture improvements

18. SPEC Recommended Readings  SPEC 2006 – Survey of Benchmark Programs http://www.spec.org/cpu2006/publications/CPU2006benchmarks.pdf  SPEC 2006 Benchmarks - Journal Articles on Implementation Techniques and Problems http://www.spec.org/cpu2006/publications/SIGARCH-2007-03/  SPEC 2006 Installation, Build, and Runtime Issues http://www.spec.org/cpu2006/issues/

19. Another Benchmark: MIPS  Millions of Instructions Per Second MIPS = IC / (CPUtime * 10 6 ) Comparing apples to oranges Flaw: 1 MIPS on one processor does not accomplish the same work as 1 MIPS on another –It is like determining the winner of a foot race by counting who used fewer steps –Some processors do FP in software (e.g. 1FP = 100 INT) –Different instructions take different amounts of time Useful for comparisons between 2 processors from the same vendor that support the same ISA with the same compiler (e.g. Intel’s iCOMP benchmark)

20. Fallacies and Pitfalls Ignoring Amdahl’s law Using clock rate or MIPS as a performance metric Using the Arithmetic Mean of normalized CPU times (ratios) instead of the Geometric Mean Using hardware-independent metrics –Using code size as a measure of speed Synthetic benchmarks predict performance –They do not reflect the behavior of real programs The geometric mean of CPU times ratios is proportional to the total execution time [NOT!!]

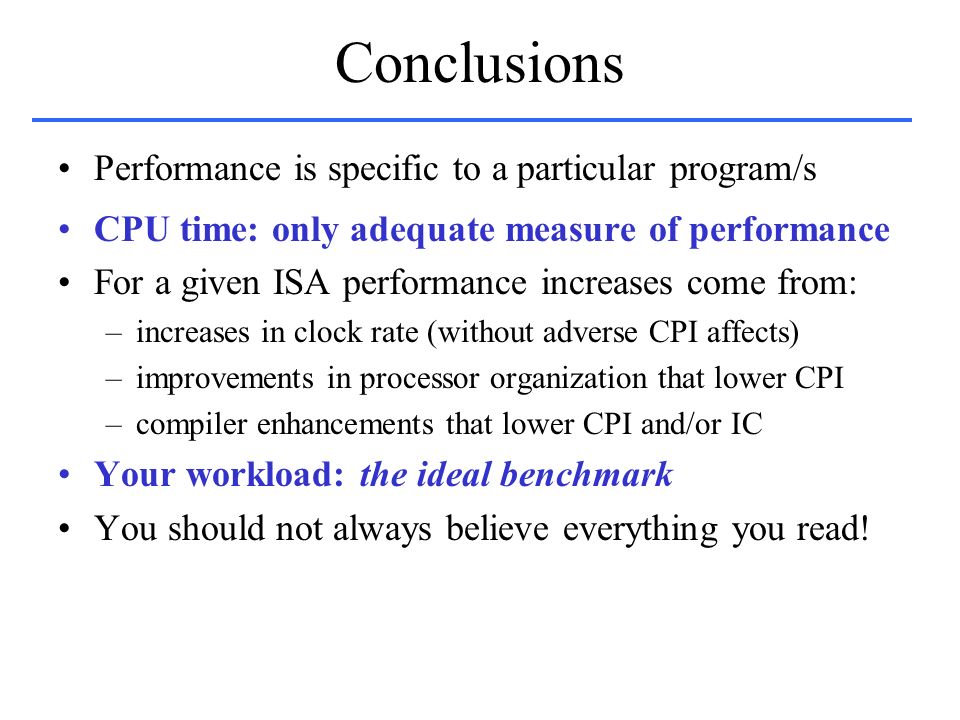

21. Conclusions Performance is specific to a particular program/s CPU time: only adequate measure of performance For a given ISA performance increases come from: –increases in clock rate (without adverse CPI affects) –improvements in processor organization that lower CPI –compiler enhancements that lower CPI and/or IC Your workload: the ideal benchmark You should not always believe everything you read!
