1. Railway History Railways or rail Roads are a development of “Tramways” and “Plateways”.

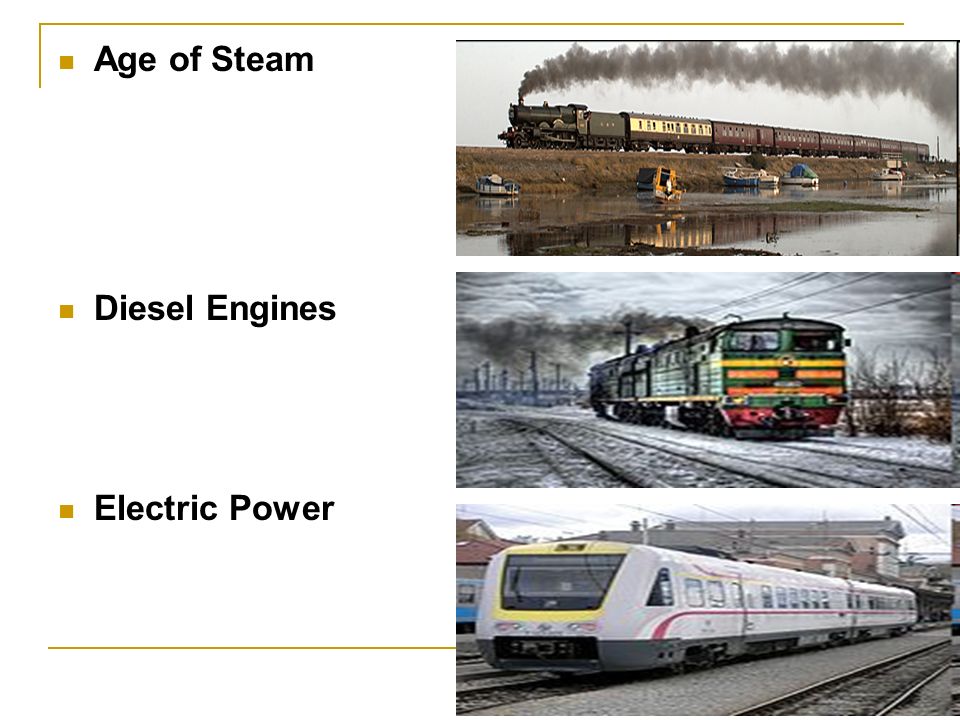

2. Age of Steam Diesel Engines Electric Power

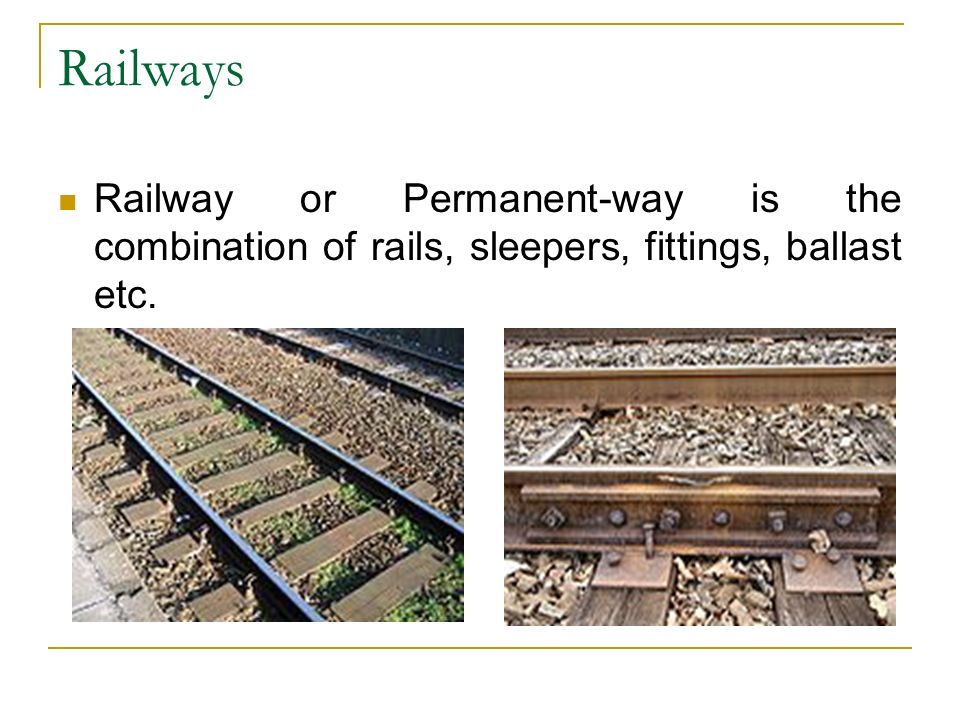

3. Railways Railway or Permanent-way is the combination of rails, sleepers, fittings, ballast etc.

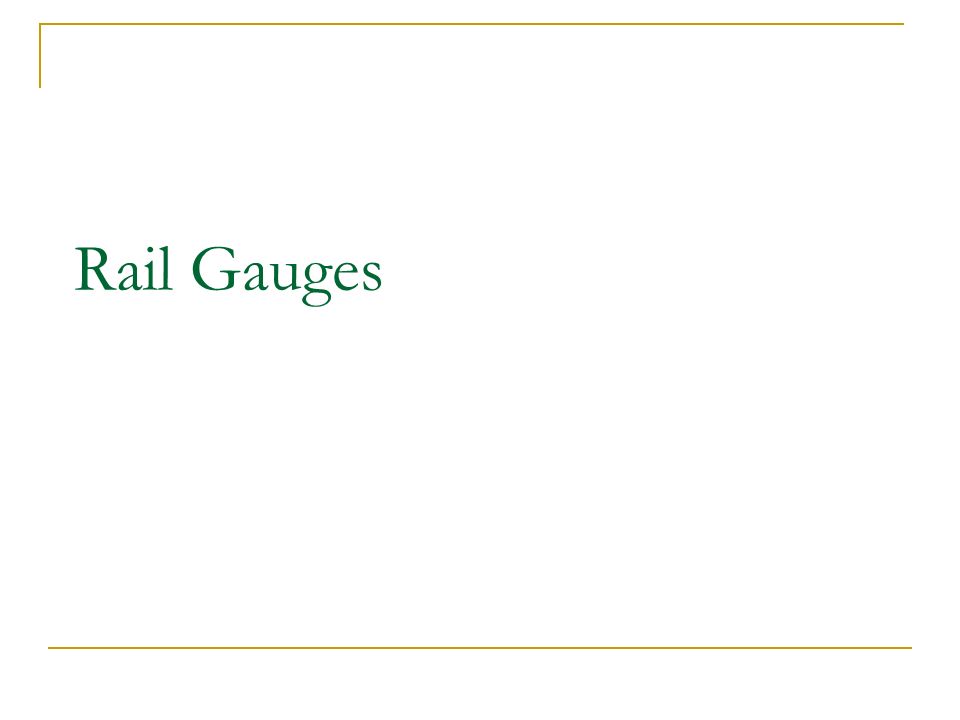

4. Rail Gauges

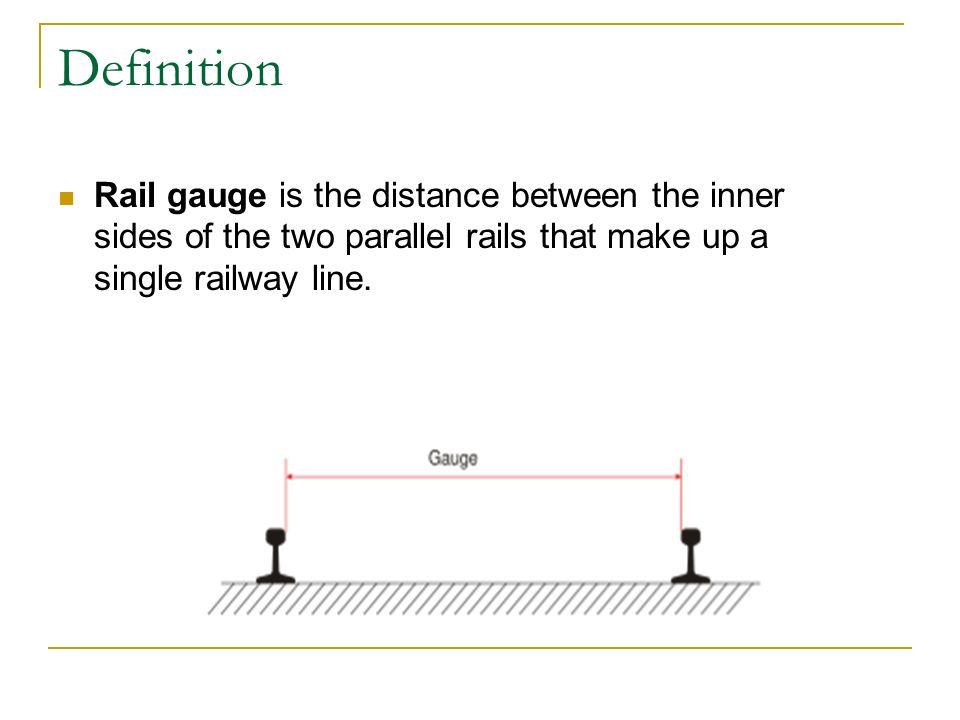

5. Definition Rail gauge is the distance between the inner sides of the two parallel rails that make up a single railway line.

6. ft' in"mm 5' 6"1676 5' 5.85"1668 5' 3"1600 5'1524 4' 11.85"1520 4' 8.5"1435 4' 6"1372 3' 6"1067 3' 5.35"1050 3' 3.37"1000 3' 4.1"950 3'914 2' 6"762 2' 5.55"750 2'610 1' 11.6"600 Dominant gauges

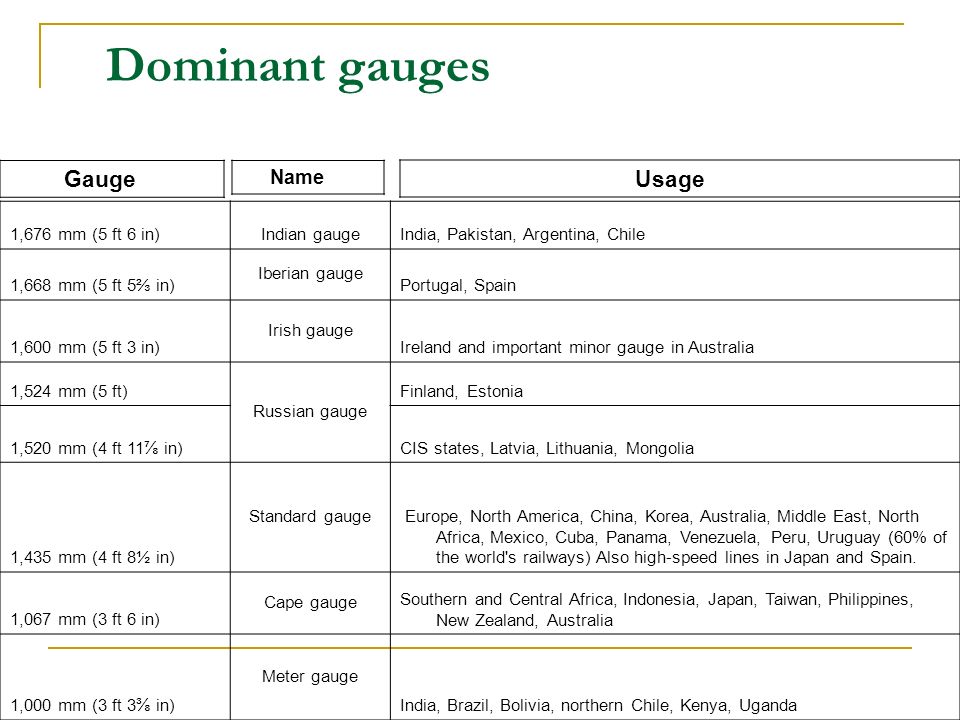

7. 1,676 mm (5 ft 6 in)Indian gaugeIndia, Pakistan, Argentina, Chile 1,668 mm (5 ft 5⅔ in) Iberian gauge Portugal, Spain 1,600 mm (5 ft 3 in) Irish gauge Ireland and important minor gauge in Australia 1,524 mm (5 ft) Russian gauge Finland, Estonia 1,520 mm (4 ft 11⅞ in)CIS states, Latvia, Lithuania, Mongolia 1,435 mm (4 ft 8½ in) Standard gauge Europe, North America, China, Korea, Australia, Middle East, North Africa, Mexico, Cuba, Panama, Venezuela, Peru, Uruguay (60% of the world's railways) Also high-speed lines in Japan and Spain. 1,067 mm (3 ft 6 in) Cape gauge Southern and Central Africa, Indonesia, Japan, Taiwan, Philippines, New Zealand, Australia 1,000 mm (3 ft 3⅜ in) Meter gauge India, Brazil, Bolivia, northern Chile, Kenya, Uganda Gauge Name Usage Dominant gauges

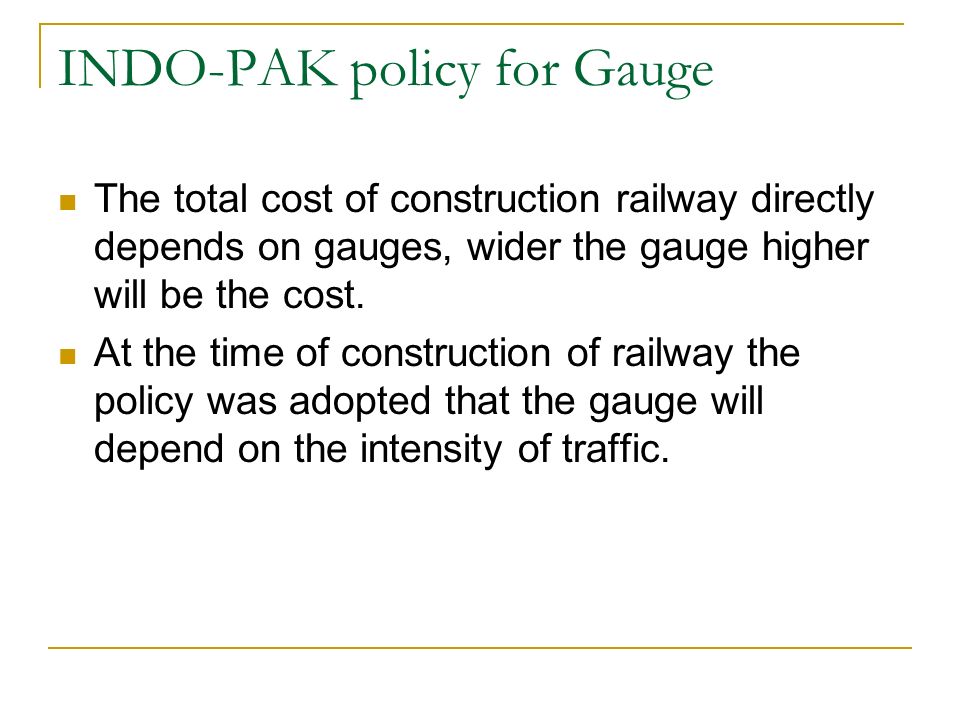

8. INDO-PAK policy for Gauge The total cost of construction railway directly depends on gauges, wider the gauge higher will be the cost. At the time of construction of railway the policy was adopted that the gauge will depend on the intensity of traffic.

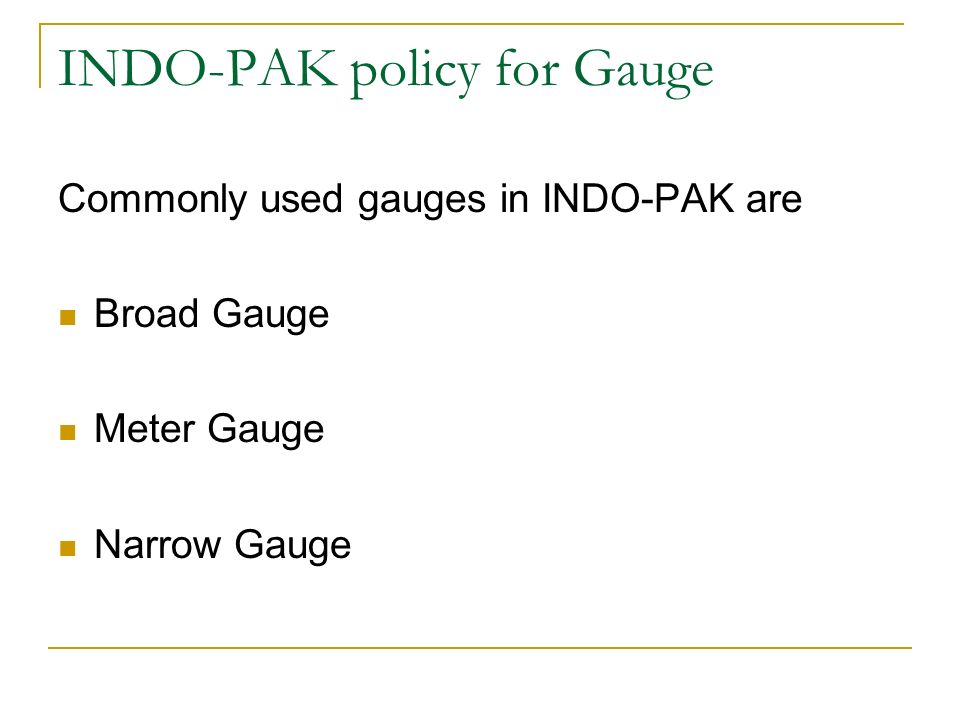

9. INDO-PAK policy for Gauge Commonly used gauges in INDO-PAK are Broad Gauge Meter Gauge Narrow Gauge

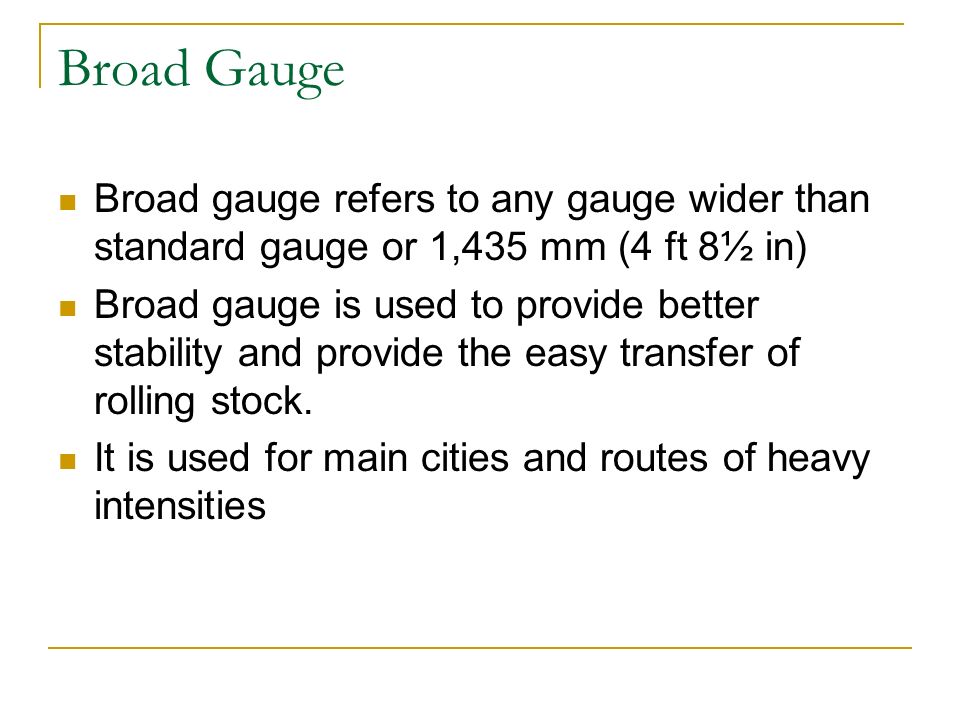

10. Broad Gauge Broad gauge refers to any gauge wider than standard gauge or 1,435 mm (4 ft 8½ in) Broad gauge is used to provide better stability and provide the easy transfer of rolling stock. It is used for main cities and routes of heavy intensities

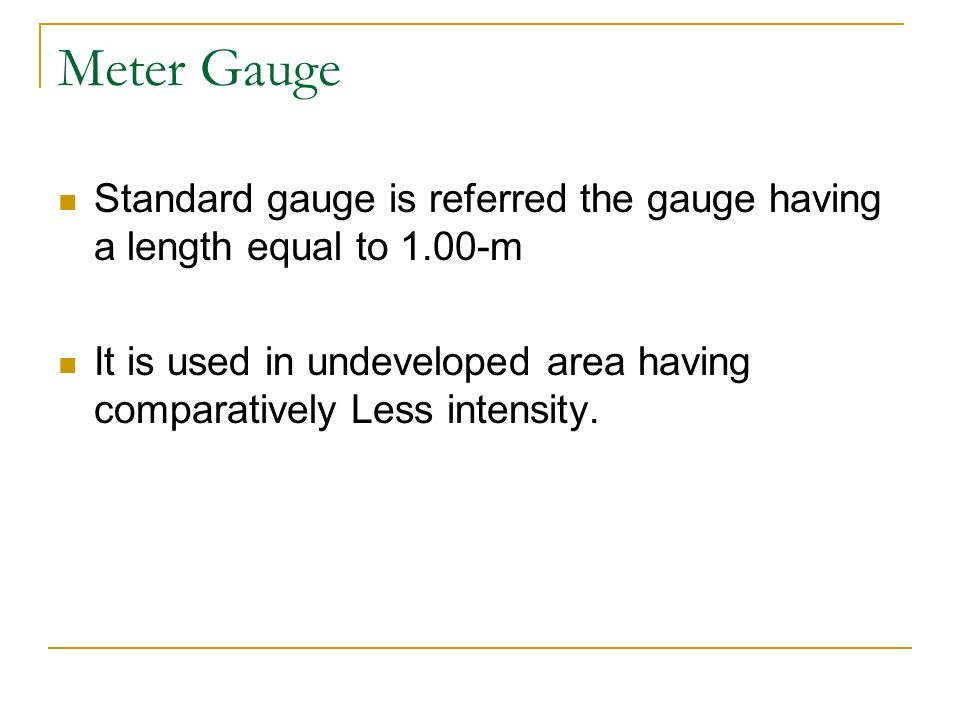

11. Meter Gauge Standard gauge is referred the gauge having a length equal to 1.00-m It is used in undeveloped area having comparatively Less intensity.

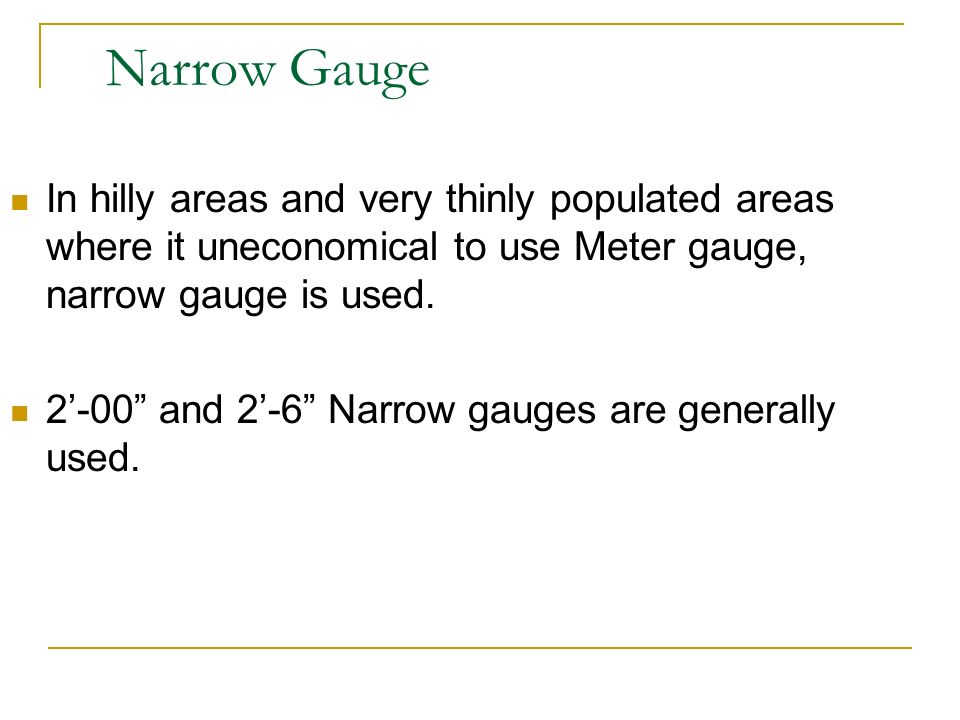

12. Narrow Gauge In hilly areas and very thinly populated areas where it uneconomical to use Meter gauge, narrow gauge is used. 2’-00” and 2’-6” Narrow gauges are generally used.

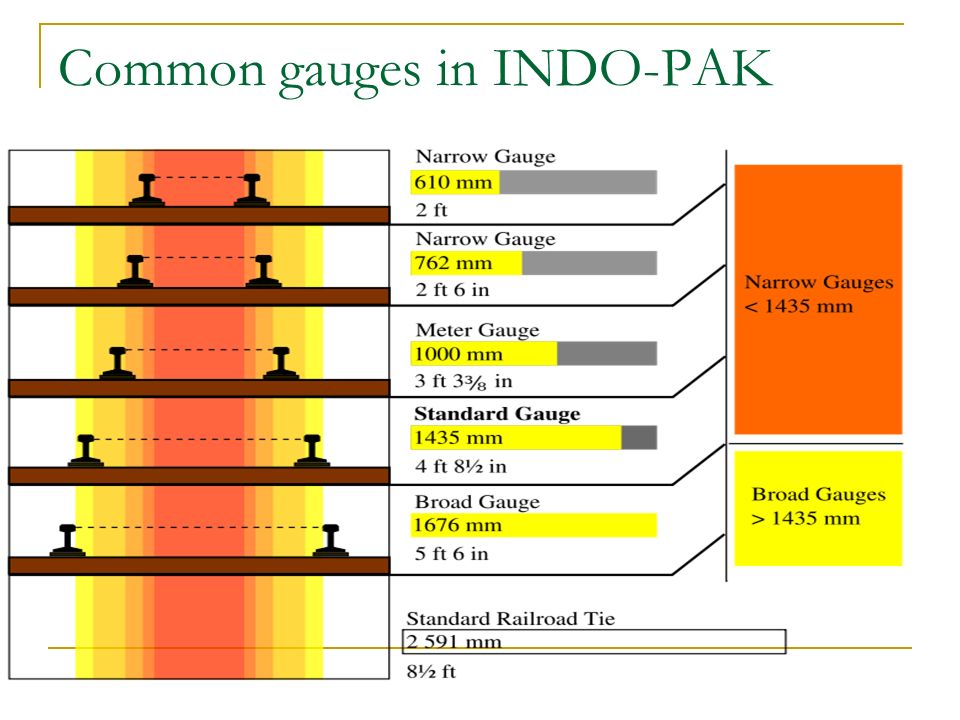

13. Common gauges in INDO-PAK

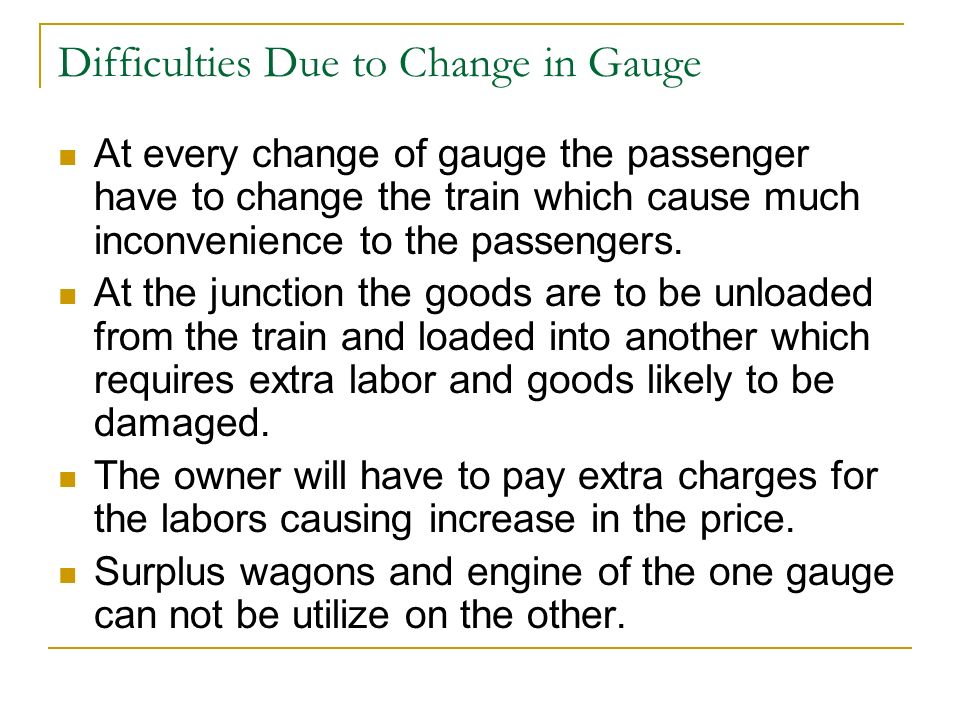

14. Difficulties Due to Change in Gauge At every change of gauge the passenger have to change the train which cause much inconvenience to the passengers. At the junction the goods are to be unloaded from the train and loaded into another which requires extra labor and goods likely to be damaged. The owner will have to pay extra charges for the labors causing increase in the price. Surplus wagons and engine of the one gauge can not be utilize on the other.

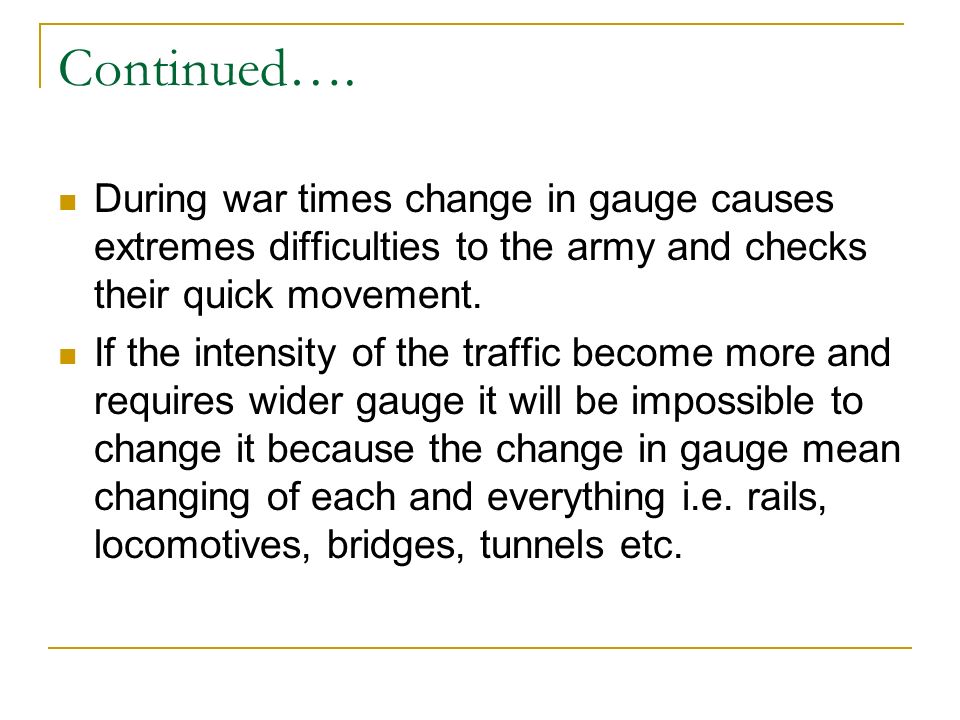

15. Continued…. During war times change in gauge causes extremes difficulties to the army and checks their quick movement. If the intensity of the traffic become more and requires wider gauge it will be impossible to change it because the change in gauge mean changing of each and everything i.e. rails, locomotives, bridges, tunnels etc.
