1 DNA Technologies

2 Recombinant DNA methods
Restriction enzymes Enzymes from bacteria Used to cut DNA molecules in specific places Enable researchers to cut DNA into manageable segments Vector molecule carrier of DNA fragment into cell Transformation: uptake of foreign DNA into cells

3 Cutting DNA with a restriction enzyme

4 Splicing foreign DNA into a vector
Foreign DNA and plasmid DNA cut with same restriction enzyme Produces linear molecules with complementary single-stranded ends Recombinant DNA created by mixing so sticky ends pair DNA ligase forms covalent bonds, linking the two fragments

5 Plasmids

6 Genomic library Chromosome library cDNA library
Collection of DNA fragments that represent all the DNA in the genome Chromosome library All the DNA fragments in that specific chromosome cDNA library Produced using reverse transcriptase Makes DNA copies of mature mRNA

7 Producing a genomic or chromosome library

8 Genetic probes Segments of single-stranded DNA that can hybridize to complementary base sequences in target gene Southern blot technique

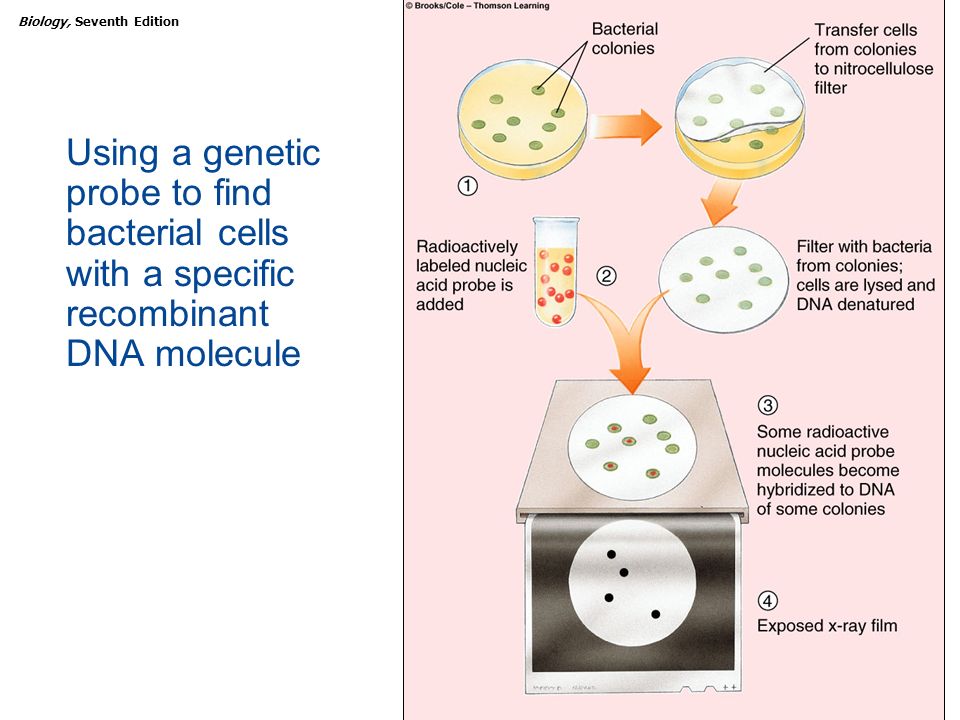

9 Using a genetic probe to find bacterial cells with a specific recombinant DNA molecule

10 Amplifying DNA in vitro by PCR
Small amount of double-stranded DNA DNA precursors Specific nucleic acid primers Taq DNA polymerase DNA is denatured Primers attach to primer-binding site on each DNA strand Each strand acts as template for DNA synthesis

11 Amplification of DNA by PCR

12 DNA sequencing Based on chain termination method
Yields information about Structure of gene Probable amino acid sequences of its encoded proteins

13 Chain termination method of DNA sequencing

14 Applications of DNA technology
Gene therapy Tissue engineering DNA typing

15 DNA typing

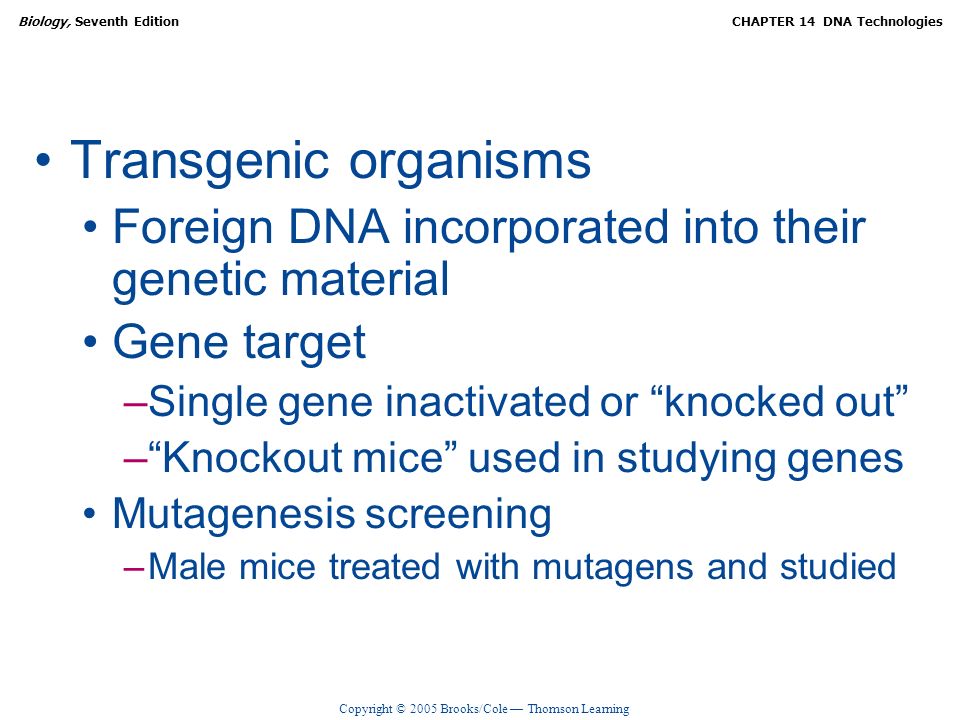

16 Transgenic organisms Foreign DNA incorporated into their genetic material Gene target Single gene inactivated or “knocked out” “Knockout mice” used in studying genes Mutagenesis screening Male mice treated with mutagens and studied

17 A transgenic mouse Mouse on right is normal; mouse on left is transgenic animal expressing rat growth hormone

18 Transgenic rice “Golden rice” shown intermixed with white rice contain high concentrations of beta-carotene

19 Safety guidelines Safety concerns Safety measures
Introduction of transgenic organisms into the environment Health effects on humans from consuming GM crops Safety measures Special facilities designed to hold pathogenic organisms Science of risk assessment
