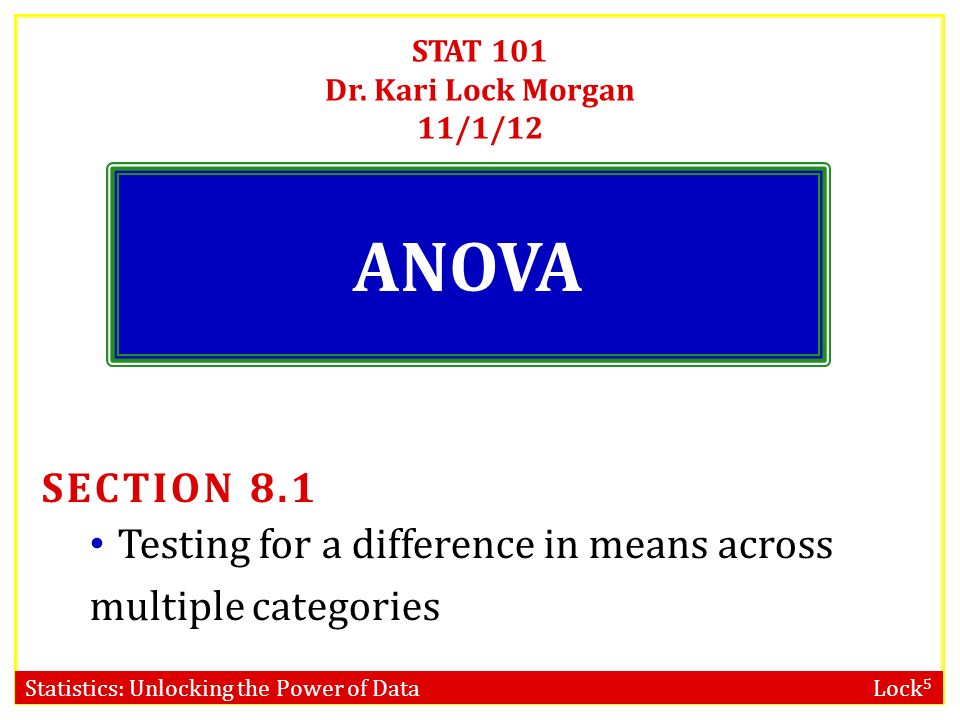

2. Statistics: Unlocking the Power of Data Lock 5 STAT 101 Dr. Kari Lock Morgan 11/1/12 ANOVA SECTION 8.1 Testing for a difference in means across multiple categories

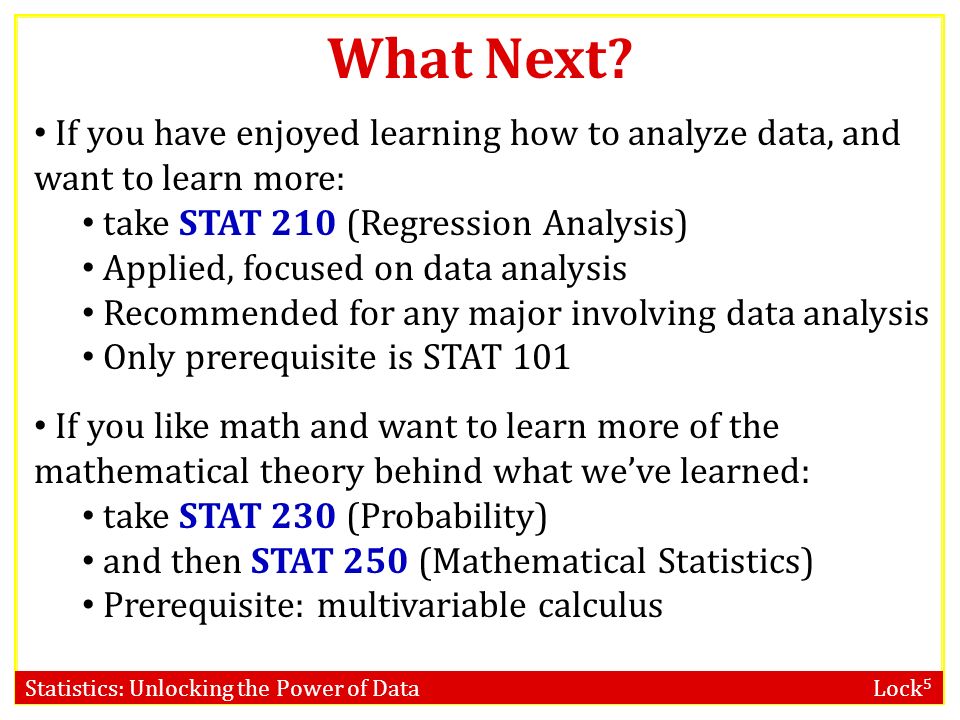

3. Statistics: Unlocking the Power of Data Lock 5 What Next? If you have enjoyed learning how to analyze data, and want to learn more: take STAT 210 (Regression Analysis) Applied, focused on data analysis Recommended for any major involving data analysis Only prerequisite is STAT 101 If you like math and want to learn more of the mathematical theory behind what we’ve learned: take STAT 230 (Probability) and then STAT 250 (Mathematical Statistics) Prerequisite: multivariable calculus

4. Statistics: Unlocking the Power of Data Lock 5 Two Options for p-values We have learned two ways of calculating p-values: The only difference is how to create a distribution of the statistic, assuming the null is true: 1)Simulation (Randomization Test): Directly simulate what would happen, just by random chance, if the null were true 2)Formulas and Theoretical Distributions: Use a formula to create a test statistic for which we know the theoretical distribution when the null is true, if sample sizes are large enough

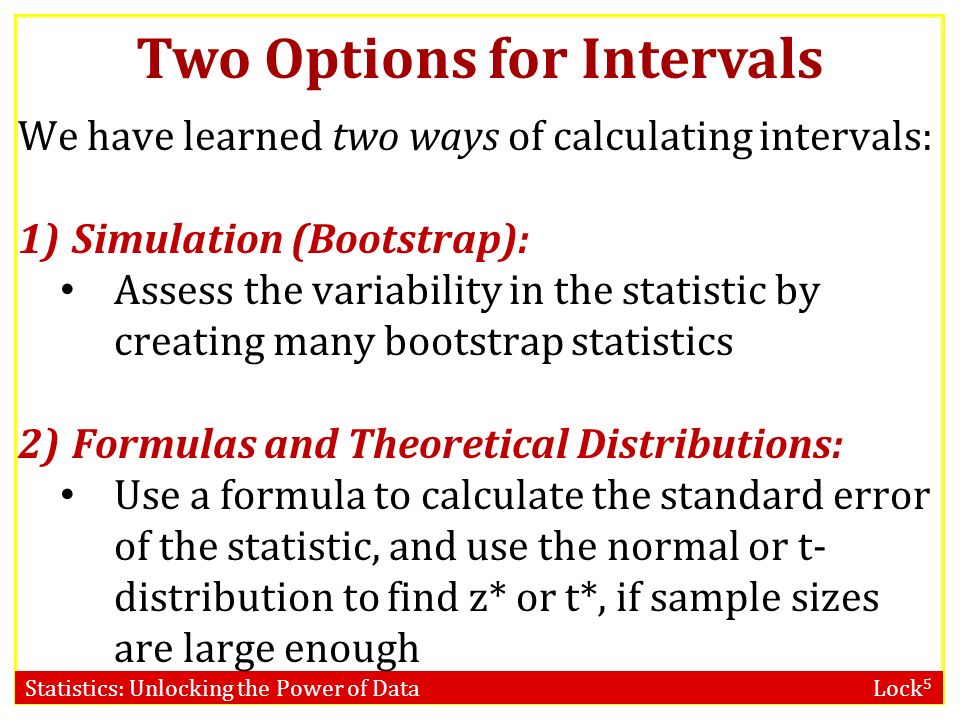

5. Statistics: Unlocking the Power of Data Lock 5 Two Options for Intervals We have learned two ways of calculating intervals: 1)Simulation (Bootstrap): Assess the variability in the statistic by creating many bootstrap statistics 2)Formulas and Theoretical Distributions: Use a formula to calculate the standard error of the statistic, and use the normal or t- distribution to find z* or t*, if sample sizes are large enough

6. Statistics: Unlocking the Power of Data Lock 5 Inference Which way did you prefer to learn inference? a)Simulation methods b)Formulas and theoretical distributions

7. Statistics: Unlocking the Power of Data Lock 5 Inference Which way gave you a better conceptual understanding of confidence intervals and p-values? a)Simulation methods b)Formulas and theoretical distributions

8. Statistics: Unlocking the Power of Data Lock 5 Inference Which way do you prefer to do inference? a)Simulation methods b)Formulas and theoretical distributions

9. Statistics: Unlocking the Power of Data Lock 5 Pros and Cons 1)Simulation Methods PROS: Methods tied directly to concepts, emphasizing conceptual understanding Same procedure for every statistic No formulas or theoretical distributions to learn and distinguish between Works for any sample size Minimal math needed CONS: Need entire dataset (if quantitative variables) Need a computer Newer approach, so different from the way most people do statistics

10. Statistics: Unlocking the Power of Data Lock 5 Pros and Cons 2)Formulas and Theoretical Distributions PROS: Only need summary statistics Only need a calculator The approach most people take CONS: Plugging numbers into formulas does little for conceptual understanding Many different formulas and distributions to learn and distinguish between Harder to see the big picture when the details are different for each statistic Doesn’t work for small sample sizes Requires more math and background knowledge

11. Statistics: Unlocking the Power of Data Lock 5 Two Options If the sample size is small, you have to use simulation methods If the sample size is large, you can use whichever method you prefer It is redundant to use both methods, unless you want to check your answers

12. Statistics: Unlocking the Power of Data Lock 5 Accuracy The accuracy of simulation methods depends on the number of simulations (more simulations = more accurate) The accuracy of formulas and theoretical distributions depends on the sample size (larger sample size = more accurate) If the sample size is large and you have generated many simulations, the two methods should give essentially the same answer

13. Statistics: Unlocking the Power of Data Lock 5 Multiple Categories So far, we’ve learned how to do inference for a difference in means IF the categorical variable has only two categories Today, we’ll learn how to do hypothesis tests for a difference in means across multiple categories

14. Statistics: Unlocking the Power of Data Lock 5 Hypothesis Testing 1.State Hypotheses 2.Calculate a statistic, based on your sample data 3.Create a distribution of this statistic, as it would be observed if the null hypothesis were true 4.Measure how extreme your test statistic from (2) is, as compared to the distribution generated in (3) test statistic

15. Statistics: Unlocking the Power of Data Lock 5 Cuckoo Birds Cuckoo birds lay their eggs in the nests of other birds When the cuckoo baby hatches, it kicks out all the original eggs/babies If the cuckoo is lucky, the mother will raise the cuckoo as if it were her own http://opinionator.blogs.nytimes.com/2010/06/01/c uckoo-cuckoo / Do cuckoo birds found in nests of different species differ in size?

16. Statistics: Unlocking the Power of Data Lock 5 Length of Cuckoo Eggs

17. Statistics: Unlocking the Power of Data Lock 5 Notation k = number of groups n j = number of units in group j n = overall number of units = n 1 + n 2 + … + n k

18. Statistics: Unlocking the Power of Data Lock 5 Cuckoo Eggs k = 5 n 1 = 15, n 2 = 60, n 3 = 16, n 4 = 14, n 5 = 15 n = 120 BirdSample Mean Sample SD Sample Size Pied Wagtail22.901.0715 Pipit22.500.9760 Robin22.580.6816 Sparrow23.121.0714 Wren21.130.7415 Overall22.461.07120

19. Statistics: Unlocking the Power of Data Lock 5 Hypotheses To test for a difference in means across k groups:

20. Statistics: Unlocking the Power of Data Lock 5 Test Statistic Why can’t use the familiar formula to get the test statistic? More than one sample statistic More than one null value We need something a bit more complicated…

21. Statistics: Unlocking the Power of Data Lock 5 Difference in Means Whether or not two means are significantly different depends on How far apart the means are How much variability there is within each group

22. Statistics: Unlocking the Power of Data Lock 5 Difference in Means

23. Statistics: Unlocking the Power of Data Lock 5 Analysis of Variance Analysis of Variance (ANOVA) compares the variability between groups to the variability within groups Total Variability Variability Between Groups Variability Within Groups

24. Statistics: Unlocking the Power of Data Lock 5 Analysis of Variance If the groups are actually different, then a)the variability between groups should be higher than the variability within groups b)the variability within groups should be higher than the variability between groups If the groups are different, there will be high variability between the groups.

25. Statistics: Unlocking the Power of Data Lock 5 Discoveries for Today How to measure variability between groups? How to measure variability within groups? How to compare the two measures? How to determine significance?

26. Statistics: Unlocking the Power of Data Lock 5 Discoveries for Today How to measure variability between groups? How to measure variability within groups? How to compare the two measures? How to determine significance?

27. Statistics: Unlocking the Power of Data Lock 5 Sums of Squares We will measure variability as sums of squared deviations (aka sums of squares) familiar?

28. Statistics: Unlocking the Power of Data Lock 5 Sums of Squares Total Variability Variability Between Groups Variability Within Groups overall mean data value i overall mean mean in group j i th data value in group j Sum over all data valuesSum over all groups Sum over all data values

29. Statistics: Unlocking the Power of Data Lock 5 Deviations Group 1 Group 2 Overall Mean Group 1 Mean

30. Statistics: Unlocking the Power of Data Lock 5 Sums of Squares Total Variability Variability Between Groups Variability Within Groups SST (Total sum of squares) SSG (sum of squares due to groups) SSE (“Error” sum of squares)

31. Statistics: Unlocking the Power of Data Lock 5 Cuckoo Birds

32. Statistics: Unlocking the Power of Data Lock 5 Source Groups Error Total df k-1 n-kn-k n-1 Sum of Squares SSG SSE SST Mean Square MSG = SSG/(k-1) MSE = SSE/(n-k) ANOVA Table The “mean square” is the sum of squares divided by the degrees of freedom variability average variability

33. Statistics: Unlocking the Power of Data Lock 5 ANOVA Table Fill in the beginnings of the ANOVA table based on the Cuckoo birds data. Source Groups Error Total df k-1 n-kn-k n-1 Sum of Squares SSG SSE SST Mean Square MSG = SSG/(k-1) MSE = SSE/(n-k) BirdSample Mean Sample SD Sample Size Pied Wagtail22.901.0715 Pipit22.500.9760 Robin22.580.6816 Sparrow23.121.0714 Wren21.130.7415 Overall22.461.07120 SSG = 35.9 SSE = 101.20

34. Statistics: Unlocking the Power of Data Lock 5 Source Groups Error Total df 4 115 119 Sum of Squares 35.90 101.29 137.19 Mean Square 35.9/4 = 8.97 101.29/115 = 0.88 ANOVA Table Fill in the beginnings of the ANOVA table based on the Cuckoo birds data.

35. Statistics: Unlocking the Power of Data Lock 5 Discoveries for Today How to measure variability between groups? How to measure variability within groups? How to compare the two measures? How to determine significance?

36. Statistics: Unlocking the Power of Data Lock 5 F-Statistic The F-statistic is a ratio of the average variability between groups to the average variability within groups

37. Statistics: Unlocking the Power of Data Lock 5 Source Groups Error Total df k-1 n-kn-k n-1 Sum of Squares SSG SSE SST Mean Square MSG = SSG/(k-1) MSE = SSE/(n-k) F Statistic MSG MSE ANOVA Table

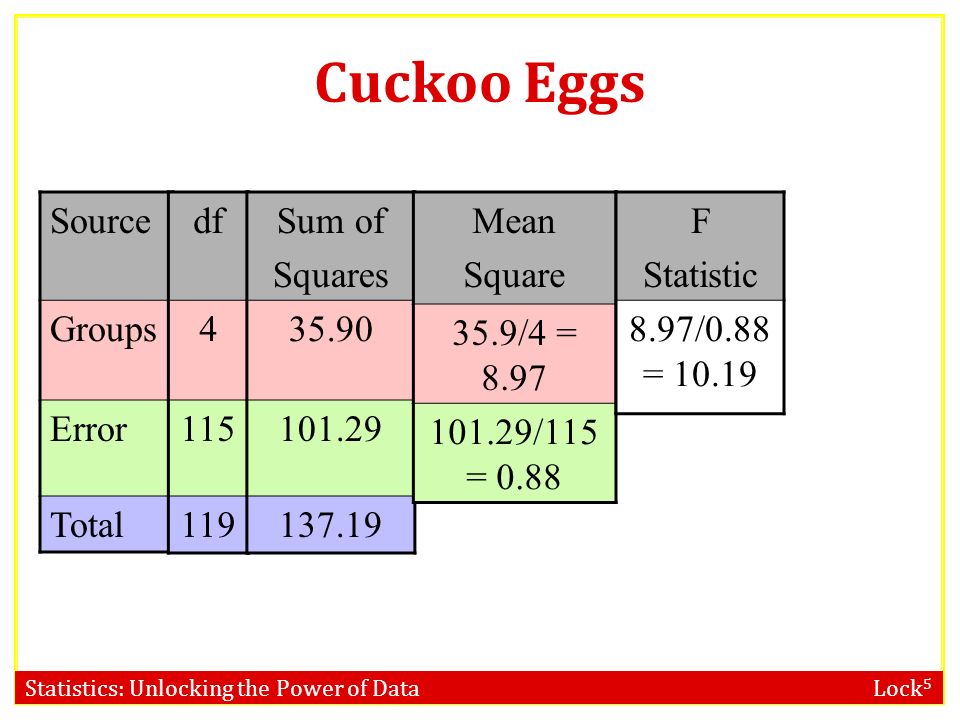

38. Statistics: Unlocking the Power of Data Lock 5 Cuckoo Eggs Source Groups Error Total df 4 115 119 Sum of Squares 35.90 101.29 137.19 Mean Square 35.9/4 = 8.97 101.29/115 = 0.88 F Statistic 8.97/0.88 = 10.19

39. Statistics: Unlocking the Power of Data Lock 5 F-statistic If there really is a difference between the groups, we would expect the F-statistic to be a)Higher than we would observe by random chance b)Lower than we would observe by random chance If the null hypothesis is true, what kind of F- statistics would we observe just by random chance? The numerator of the F-statistic measures between group variability, and the denominator measures within group. If there is a difference, we expect the between group variability to be higher.

40. Statistics: Unlocking the Power of Data Lock 5 Discoveries for Today How to measure variability between groups? How to measure variability within groups? How to compare the two measures? How to determine significance?

41. Statistics: Unlocking the Power of Data Lock 5 How to determine significance? We have a test statistic. What else do we need to perform the hypothesis test? A distribution of the test statistic assuming H 0 is true How do we get this? Two options: 1)Simulation 2)Distributional Theory

42. Statistics: Unlocking the Power of Data Lock 5 www.lock5stat.com/statkey Simulation Because a difference would make the F- statistic higher, calculate proportion in the upper tail An F-statistic this large would be very unlikely to happen just by random chance if the means were all equal, so we have strong evidence that the mean lengths of cuckoo birds in nests of different species are not all equal.

43. Statistics: Unlocking the Power of Data Lock 5 F-distribution

44. Statistics: Unlocking the Power of Data Lock 5 F-Distribution If the following conditions hold, 1.Sample sizes in each group are large (each n j ≥ 30) OR the data are relatively normally distributed 2.Variability is similar in all groups 3.The null hypothesis is true then the F-statistic follows an F-distribution The F-distribution has two degrees of freedom, one for the numerator of the ratio (k – 1) and one for the denominator (n – k)

45. Statistics: Unlocking the Power of Data Lock 5 Equal Variance The F-distribution assumes equal within group variability for each group As a rough rule of thumb, this assumption is violated if the standard deviation of one group is more than double the standard deviation of another group

46. Statistics: Unlocking the Power of Data Lock 5 F-distribution Can we use the F-distribution to calculate the p-value for the Cuckoo bird eggs? a)Yes b)No c)Need more information The equal variability condition is satisfied, but the sample sizes are small so we can only use the F-distribution if the data is normal. BirdSample Mean Sample SD Sample Size Pied Wagtail22.901.0715 Pipit22.500.9760 Robin22.580.6816 Sparrow23.121.0714 Wren21.130.7415 Overall22.461.07120

47. Statistics: Unlocking the Power of Data Lock 5 Length of Cuckoo Eggs

48. Statistics: Unlocking the Power of Data Lock 5 F-distribution p-values 1.StatKey – simulation or theoretical 2.RStudio: tail.p(“f”,stat,df1,df2,tail=“upper”) 3.TI-83: 2 nd  DISTR  7:Fcdf(  lower bound, upper bound, df1, df2 For F-statistics, the p-value (the area as extreme or more extreme) is always the upper tail

49. Statistics: Unlocking the Power of Data Lock 5 Source Groups Error Total df k-1 n-kn-k n-1 Sum of Squares SSG SSE SST Mean Square MSG = SSG/(k-1) MSE = SSE/(n-k) F Statistic MSG MSE p-value Use F k-1,n-k ANOVA Table

50. Statistics: Unlocking the Power of Data Lock 5 Cuckoo Eggs

51. Statistics: Unlocking the Power of Data Lock 5 Source Groups Error Total df 4 115 119 Sum of Squares 35.90 101.29 137.19 Mean Square 8.97 0.88 F Statistic 10.19 p-value 4.3 × 10 -7 ANOVA Table We have very strong evidence that average length of cuckoo eggs differs for nests of different species Equal variability Normal(ish) data

52. Statistics: Unlocking the Power of Data Lock 5 Can we use the F-distribution to calculate the p-value for whether there is a difference in average hours spent studying per week by class year at Duke? a)Yes b)No c)Need more information Study Hours by Class Year YearSample Mean Sample SD Sample Size First Year16.0610.3372 Sophomore17.519.2974 Upperclass19.3114.7452 The equal variability condition is satisfied, and the sample sizes are large enough (>30)

53. Statistics: Unlocking the Power of Data Lock 5 Study Hours by Class Year Is there a difference in the average hours spent studying per week by class year at Duke? (a)Yes (b)No (c)Cannot tell from this data (d)I didn’t finish The p-value is 0.29, which means we cannot reject the null, so cannot determine whether there is a difference. YearSample Mean Sample SD Sample Size First Year16.0610.3372 Sophomore17.519.2974 Upperclass19.3114.7452

54. Statistics: Unlocking the Power of Data Lock 5 Source Groups Error Total df 2 195 197 Sum of Squares 318 24984 20013.4 Mean Square 159 128.1 F- Statistic 1.24 ANOVA Table p-value 0.29

55. Statistics: Unlocking the Power of Data Lock 5 Summary Analysis of variance is used to test for a difference in means between groups by comparing the variability between groups to the variability within groups Sums of squares are used to measure variability The F-statistic is the ratio of average variability between groups to average variability within groups The F-statistic follows an F-distribution, if sample sizes are large (or data is normal), variability is equal across groups, and the null hypothesis is true

56. Statistics: Unlocking the Power of Data Lock 5 To Do Read Section 8.1 Complete the anonymous midterm evaluation by Monday, 11/5, 5pmmidterm evaluation Do Homework 6 (due Tuesday, 11/6)Homework 6
