Presentation on theme: "The Nervous System AP Biology Unit 6 Branches of the Nervous System There are 2 main branches of the nervous system Central Nervous System –Brain –Spinal."— Presentation transcript:

1

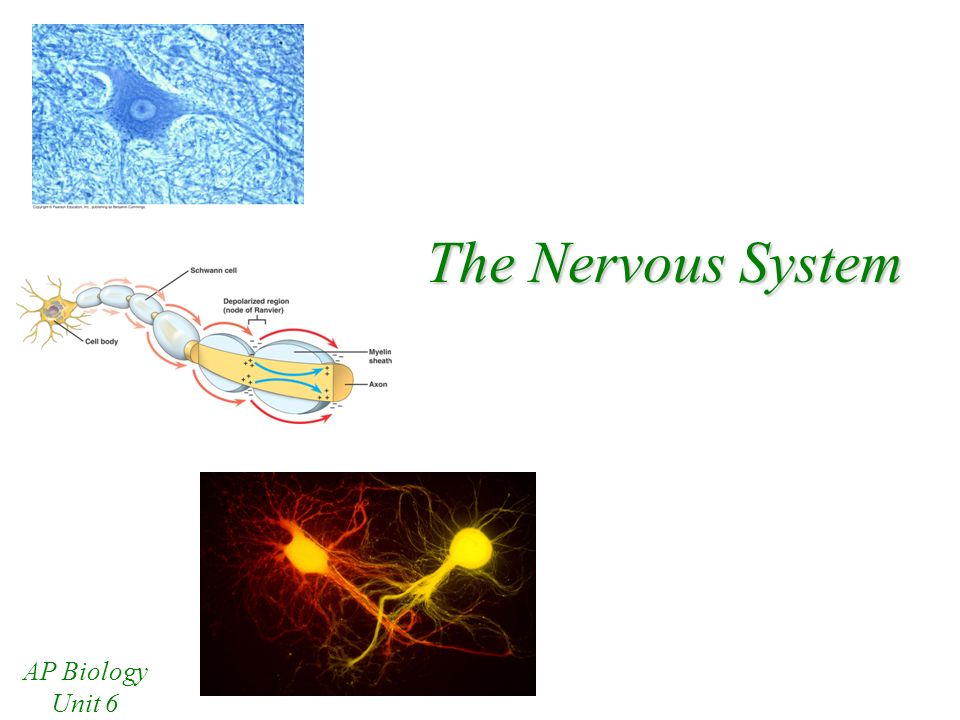

2 The Nervous System AP Biology Unit 6

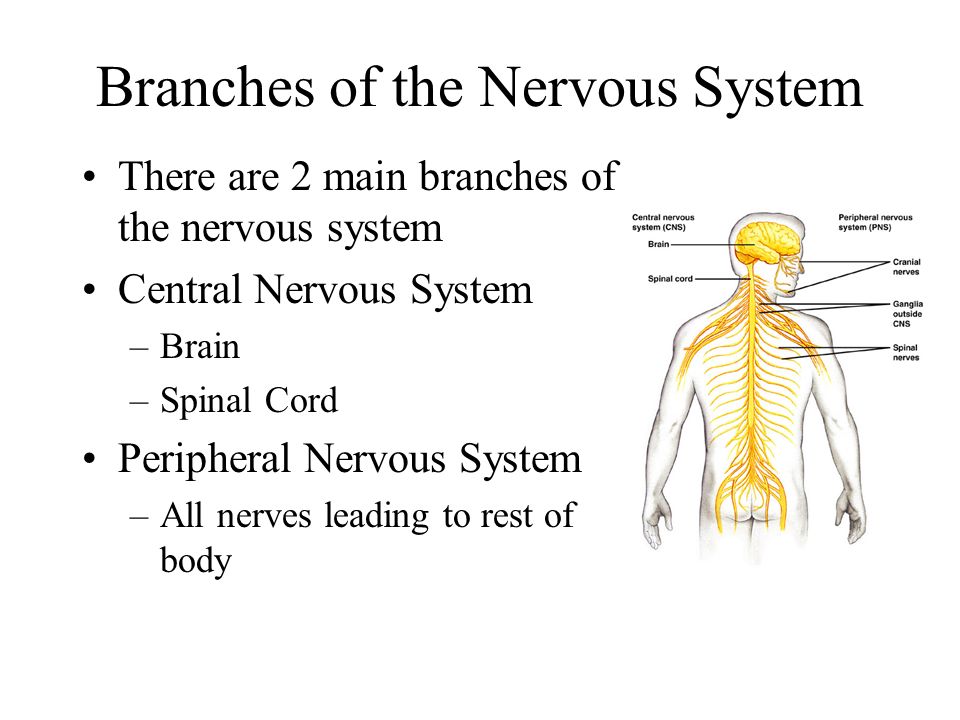

3 Branches of the Nervous System There are 2 main branches of the nervous system Central Nervous System –Brain –Spinal Cord Peripheral Nervous System –All nerves leading to rest of body

4 Anatomy of a Neuron Dendrites = where a signal is received by the neuron Cell body = contains the organelles, nucleus of the cell Axon = signal travels down this to get to the other end of the neuron

5 Anatomy of a Neuron Myelin = surrounds the axon to speed up the signal Synaptic Terminal = end of the neuron Synapse = gap/space between neurons

6 Question… What is the general pathway of a signal through a neuron? –Dendrites  cell body  Axon  Synaptic Terminals (then into the synapse to get to the next neuron or other cell)

7 Sending Signals The “signal” sent through a neuron is an electrical signal Based on the movement of ions into and out of the cell –Causes changes in the + and – charges inside the cell

8 A Neuron at Rest A neuron at rest (unstimulated) has a difference in charge (voltage) across the plasma membrane = -70 mV = resting potential –This means that it is more negative inside than outside The resting potential is caused by the distribution of ions on either side of the membrane

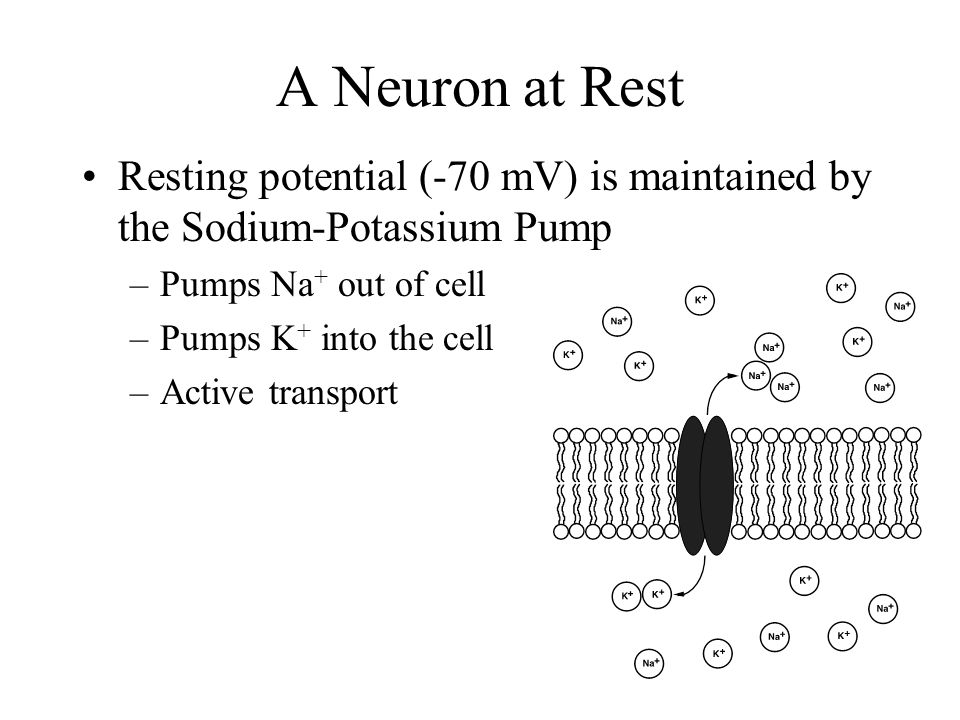

9 A Neuron at Rest Resting potential (-70 mV) is maintained by the Sodium-Potassium Pump –Pumps Na + out of cell –Pumps K + into the cell –Active transport

10 Ion Concentrations at Rest At rest, there are also open K + channels in the membrane  Allows some K + to escape Leaves negatively charged molecules behind (Cl - ions, etc.)  more negative on the inside than on the outside. IonInside neuronOutside neuron Na + LowerHigher Cl - LowerHigher K+K+ Lower

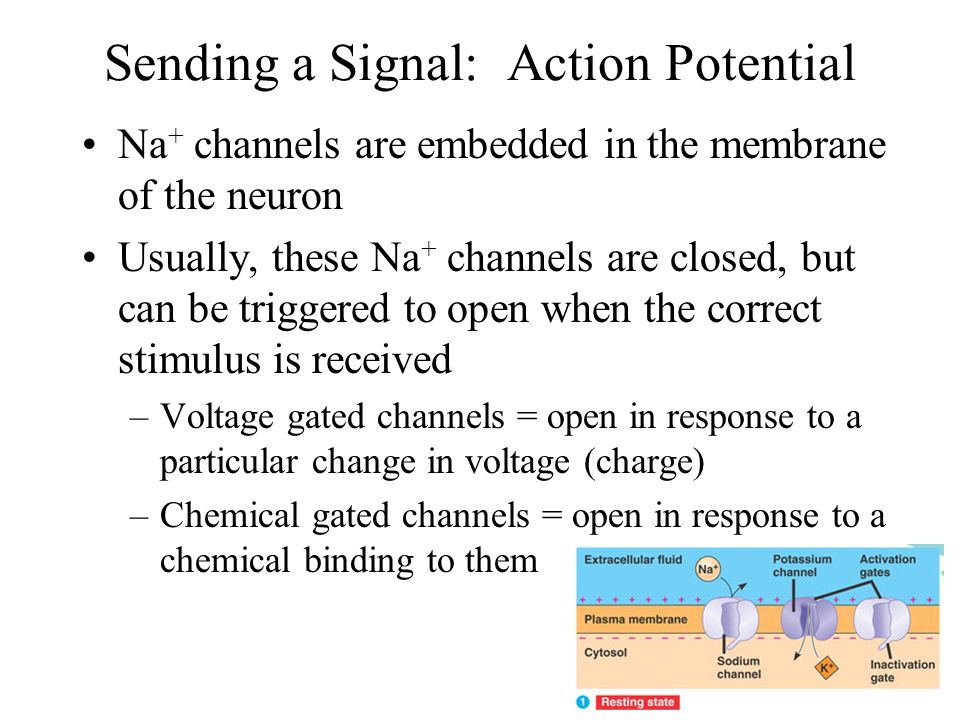

11 Sending a Signal: Action Potential Na + channels are embedded in the membrane of the neuron Usually, these Na + channels are closed, but can be triggered to open when the correct stimulus is received –Voltage gated channels = open in response to a particular change in voltage (charge) –Chemical gated channels = open in response to a chemical binding to them

12 Action Potential STEP 1: To start an action potential, some kind of stimulus (light, pressure, chemical, etc.) causes Na + channels in the dendrite to open. This causes Na + to flood into the neuron from outside  DEPOLARIZATION

13 Questions… Why does Na + diffuse in from the outside? –Higher concentration on the outside When depolarization occurs, how is the charge inside the neuron affected? –Becomes more positively charged inside What would happen if Cl - channels are also opened? –Cl- would also flow in– makes the inside more negative (cancels out the charge from Na+ coming in) -- HYPERPOLARIZED

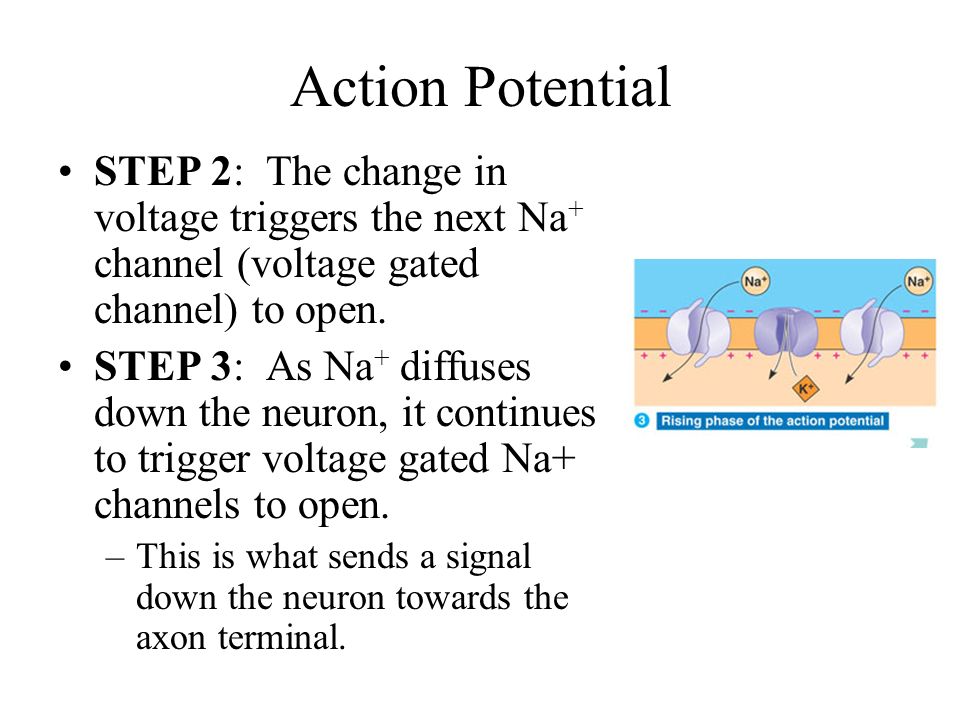

14 Action Potential STEP 2: The change in voltage triggers the next Na + channel (voltage gated channel) to open. STEP 3: As Na + diffuses down the neuron, it continues to trigger voltage gated Na+ channels to open. –This is what sends a signal down the neuron towards the axon terminal.

15 Action Potential STEP 4: Na + voltage gated channels only open temporarily. After a short period of time, they close and an inactivation gate opens to prevent them from opening again for a little while  REFRACTORY PERIOD

16 Action Potential STEP 5: The neuron is “reset” (REPOLARIZED) by the opening of voltage gated K + channels. K + flows OUT of the neuron, making the inside more negative again. –Why does K + flow out? –Higher K+ concentrations inside neuron The Na + /K + pump also helps reestablish resting potential.

17 Saltatory Conduction Depolarization & Repolarization happens over and over down the axon, so the nerve impulse travels. Myelin sheaths insulate the axon, keeping ions from flowing out except at Nodes of Ranvier.

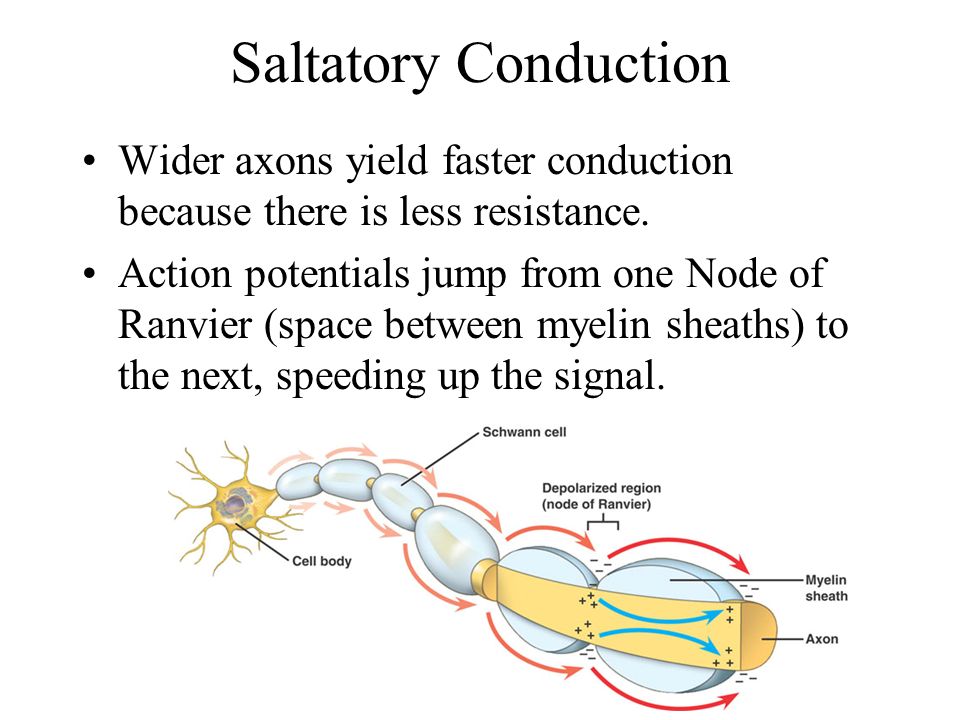

18 Saltatory Conduction Wider axons yield faster conduction because there is less resistance. Action potentials jump from one Node of Ranvier (space between myelin sheaths) to the next, speeding up the signal.

19 Communication between Neurons When the signal reaches the axon terminal, it triggers voltage gated Ca 2+ channels to open. This causes vesicles that contain neurotransmitter molecules to fuse with the plasma membrane and expel the neurotransmitters into the synaptic cleft (space between neurons)

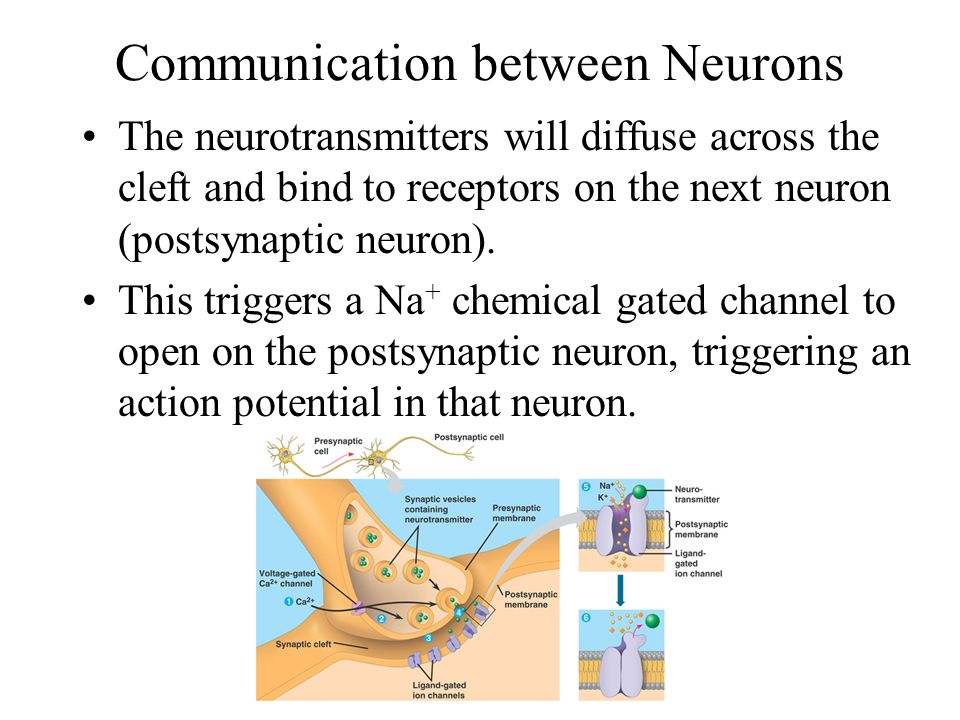

20 Communication between Neurons The neurotransmitters will diffuse across the cleft and bind to receptors on the next neuron (postsynaptic neuron). This triggers a Na + chemical gated channel to open on the postsynaptic neuron, triggering an action potential in that neuron.

21 Communication between Neurons After the signal has been sent, neurotransmitters are eliminated from the synaptic cleft by –Diffusion = diffuse away –Reuptake –Enzyme degradation

22 Communication between Neurons Reuptake –Neurotransmitters are actively transported back into the presynaptic neuron  repackaged into vesicles to be released again –Recycling neurotransmitters Enzyme degradation –Enzymes in the synaptic cleft break down the neurotransmitter

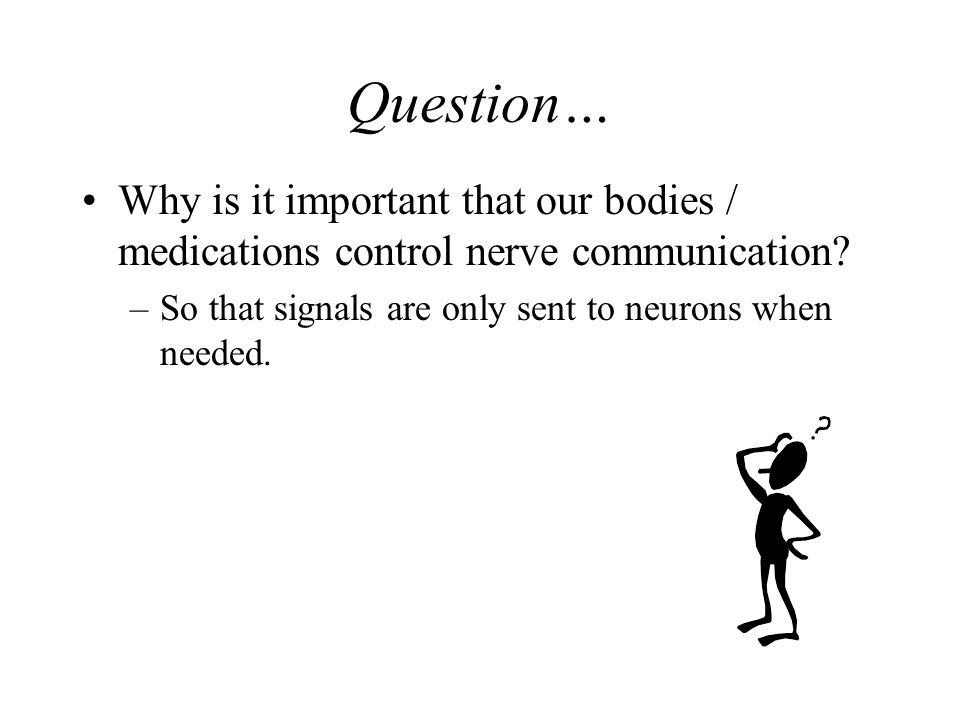

23 Question… Why is it important that our bodies / medications control nerve communication? –So that signals are only sent to neurons when needed.

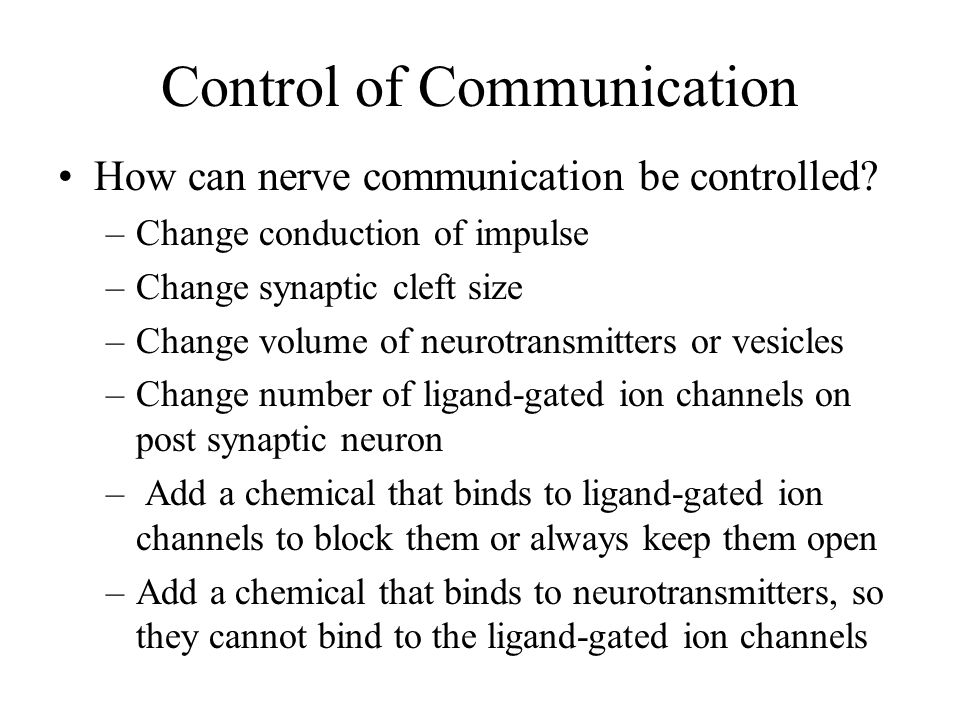

24 Control of Communication How can nerve communication be controlled? –Change conduction of impulse –Change synaptic cleft size –Change volume of neurotransmitters or vesicles –Change number of ligand-gated ion channels on post synaptic neuron – Add a chemical that binds to ligand-gated ion channels to block them or always keep them open –Add a chemical that binds to neurotransmitters, so they cannot bind to the ligand-gated ion channels

25 Brain Regions Brain = organ where nervous processes are centralized Cephalization = evolutionary trend in which most nervous processes are at head (anterior) region Different regions of the vertebrate brain have different functions –Ex. Vision, Movement, Memory

26 Overview of the Nervous System The neuron is the basic structure/cell of the nervous system. Action potentials are what send messages down a neuron. Pathway: Dendrites  Cell body  Axon  Synapse In order for a signal to be tranmitted across the synapse, neurotransmitters are used. Transmission along neurons and synapses results in response. –Responses can be stimulatory or inhibitory.
