1. SourceRank: Relevance and Trust Assessment for Deep Web Sources Based on Inter-Source Agreement Raju Balakrishnan, Subbarao Kambhampati Arizona State University Funding from

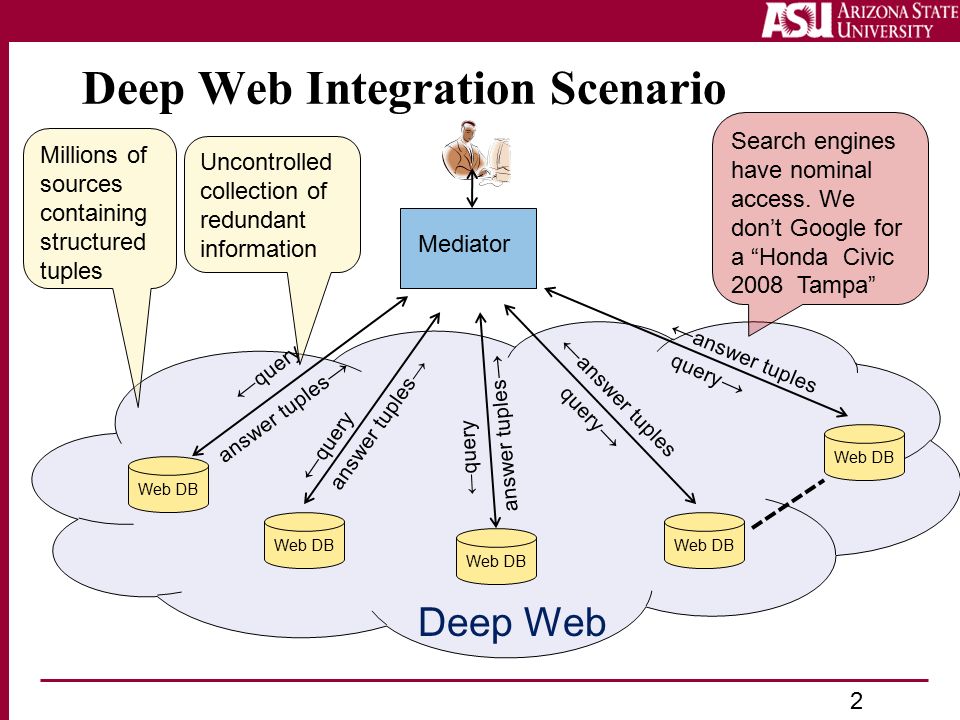

2. Deep Web Integration Scenario Web DB Mediator ← query Web DB Millions of sources containing structured tuples Uncontrolled collection of redundant information answer tuples → ← answer tuples ← query query → Deep Web Search engines have nominal access. We don’t Google for a “Honda Civic 2008 Tampa” 2

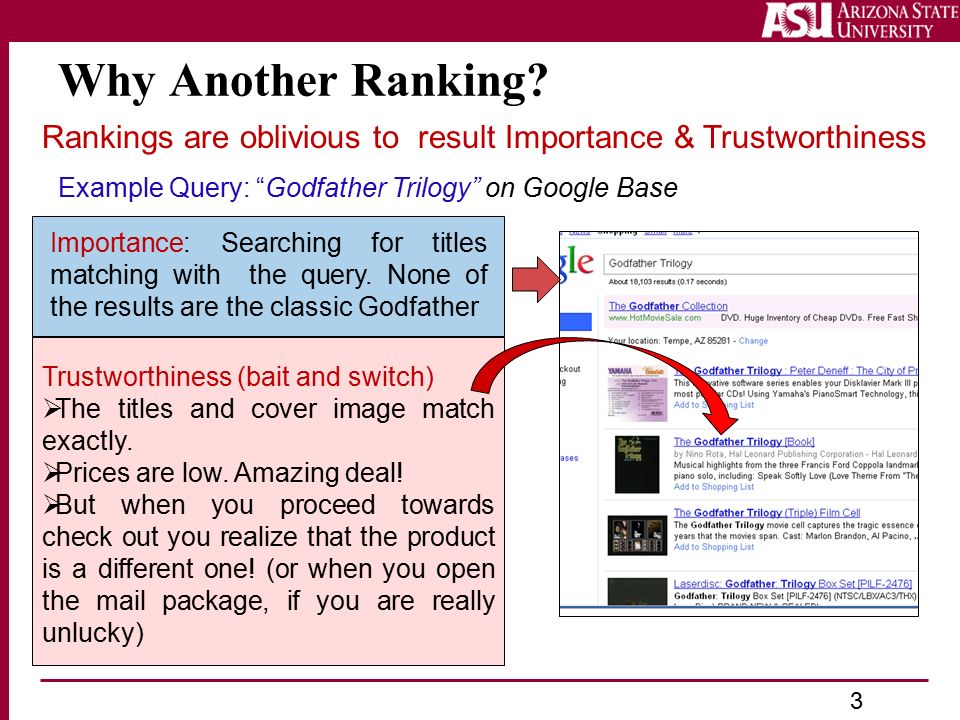

3. Why Another Ranking? Example Query: “Godfather Trilogy” on Google Base Importance: Searching for titles matching with the query. None of the results are the classic Godfather Rankings are oblivious to result Importance & Trustworthiness Trustworthiness (bait and switch)  The titles and cover image match exactly.  Prices are low. Amazing deal!  But when you proceed towards check out you realize that the product is a different one! (or when you open the mail package, if you are really unlucky) 3

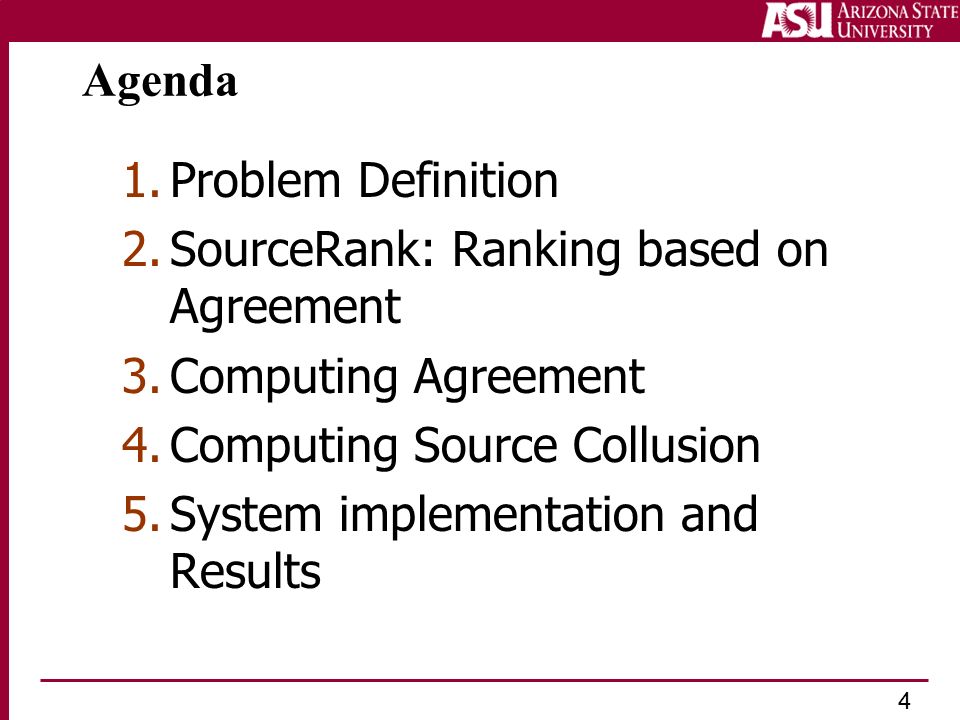

4. Agenda 1.Problem Definition 2.SourceRank: Ranking based on Agreement 3.Computing Agreement 4.Computing Source Collusion 5.System implementation and Results 4

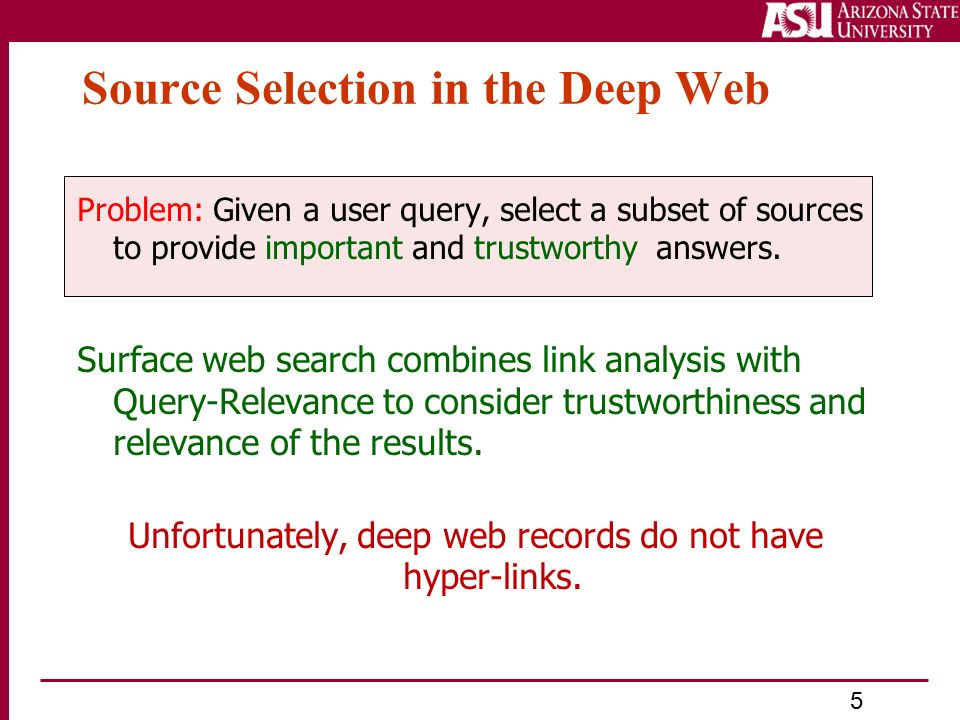

5. Problem: Given a user query, select a subset of sources to provide important and trustworthy answers. Surface web search combines link analysis with Query-Relevance to consider trustworthiness and relevance of the results. Unfortunately, deep web records do not have hyper-links. Source Selection in the Deep Web 5

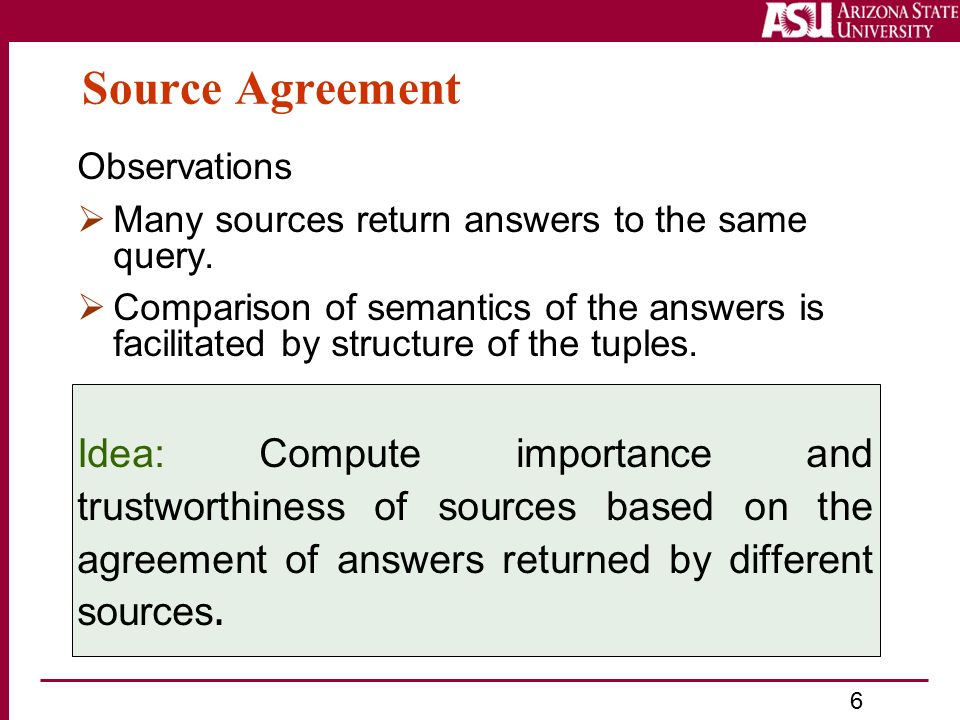

6. Observations  Many sources return answers to the same query.  Comparison of semantics of the answers is facilitated by structure of the tuples. Idea: Compute importance and trustworthiness of sources based on the agreement of answers returned by different sources. Source Agreement 6

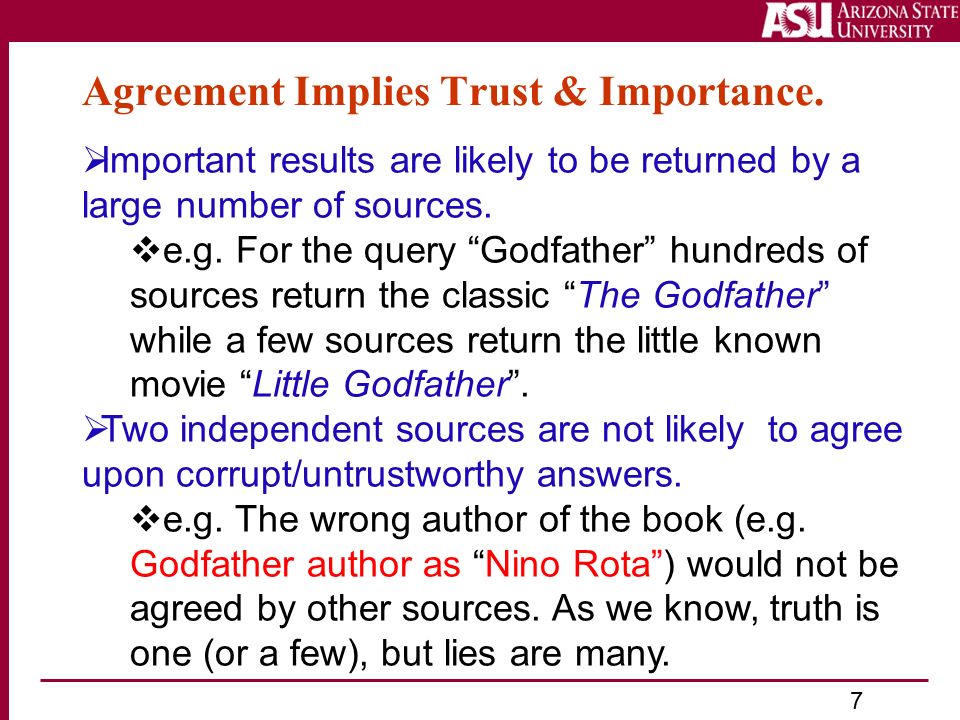

7. Agreement Implies Trust & Importance.  Important results are likely to be returned by a large number of sources.  e.g. For the query “Godfather” hundreds of sources return the classic “The Godfather” while a few sources return the little known movie “Little Godfather”.  Two independent sources are not likely to agree upon corrupt/untrustworthy answers.  e.g. The wrong author of the book (e.g. Godfather author as “Nino Rota”) would not be agreed by other sources. As we know, truth is one (or a few), but lies are many. 7

8. Which tire? Agreement is not just for the search 8

9. Agreement Implies Trust & Relevance Probability of agreement of two independently selected irrelevant/false tuples is Probability of agreement or two independently picked relevant and true tuples is 9

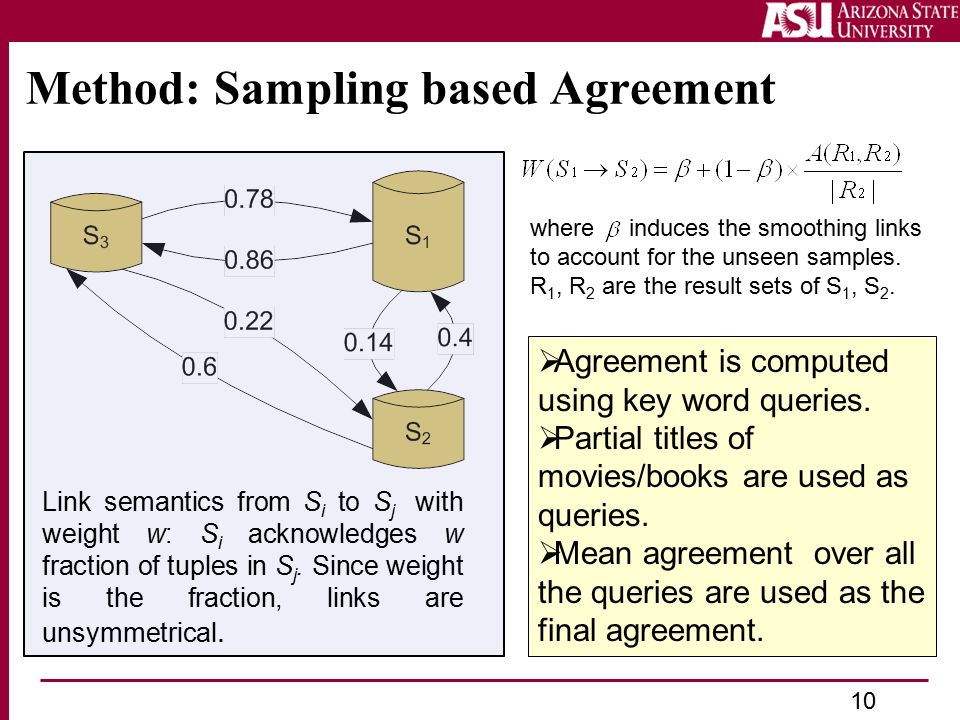

10. Method: Sampling based Agreement Link semantics from S i to S j with weight w: S i acknowledges w fraction of tuples in S j. Since weight is the fraction, links are unsymmetrical. where induces the smoothing links to account for the unseen samples. R 1, R 2 are the result sets of S 1, S 2.  Agreement is computed using key word queries.  Partial titles of movies/books are used as queries.  Mean agreement over all the queries are used as the final agreement. 10

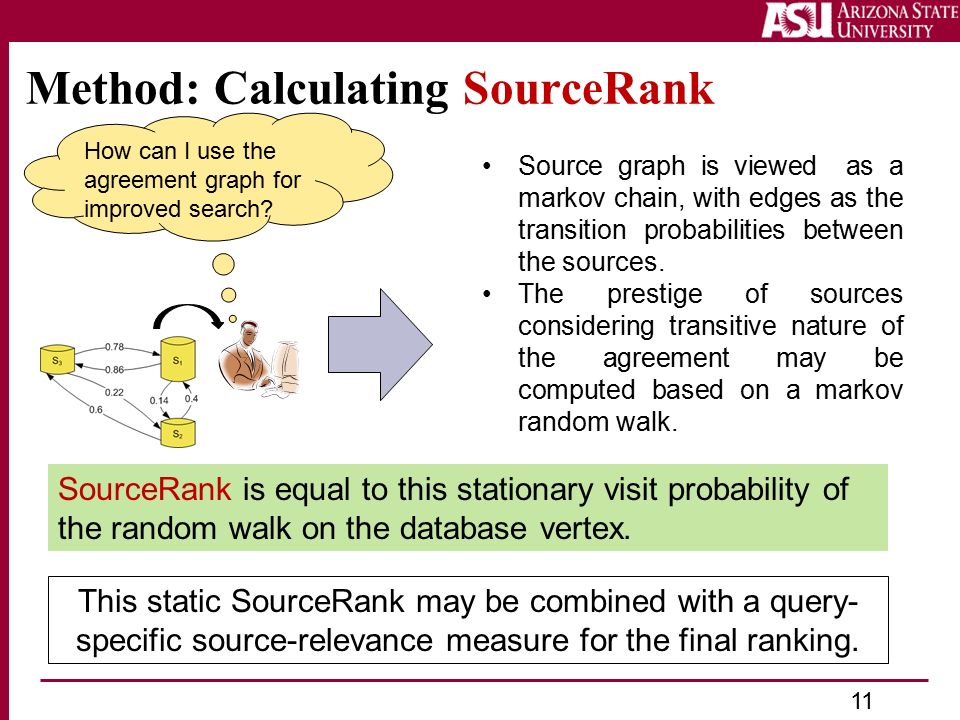

11. Method: Calculating SourceRank How can I use the agreement graph for improved search? Source graph is viewed as a markov chain, with edges as the transition probabilities between the sources. The prestige of sources considering transitive nature of the agreement may be computed based on a markov random walk. SourceRank is equal to this stationary visit probability of the random walk on the database vertex. This static SourceRank may be combined with a query- specific source-relevance measure for the final ranking. 11

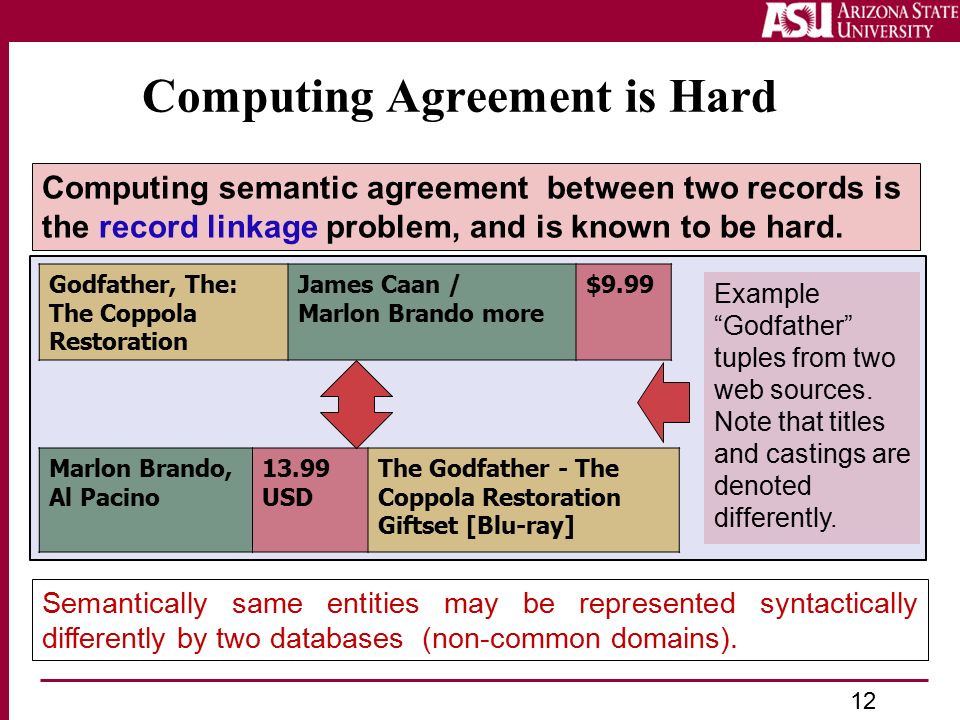

12. Computing Agreement is Hard Computing semantic agreement between two records is the record linkage problem, and is known to be hard. Semantically same entities may be represented syntactically differently by two databases (non-common domains). Godfather, The: The Coppola Restoration James Caan / Marlon Brando more $9.99 Marlon Brando, Al Pacino 13.99 USD The Godfather - The Coppola Restoration Giftset [Blu-ray] Example “Godfather” tuples from two web sources. Note that titles and castings are denoted differently. 12

13. Method: Computing Agreement Agreement Computation has Three levels. 1.Comparing Attribute-Value  Soft-TFIDF with Jaro-Winkler as the similarity measure is used. 2.Comparing Records.  We do not assume predefined schema matching.  Instance of a bipartite matching problem. Optimal matching is.  Greedy matching is used. Values are greedily matched against most similar value in the other record.  The attribute importance are weighted by IDF. (e.g. same titles (Godfather) is more important than same format (paperback)) 3.Comparing result sets.  Using the record similarity computed above, result set similarities are computed using the same greedy approach. 13

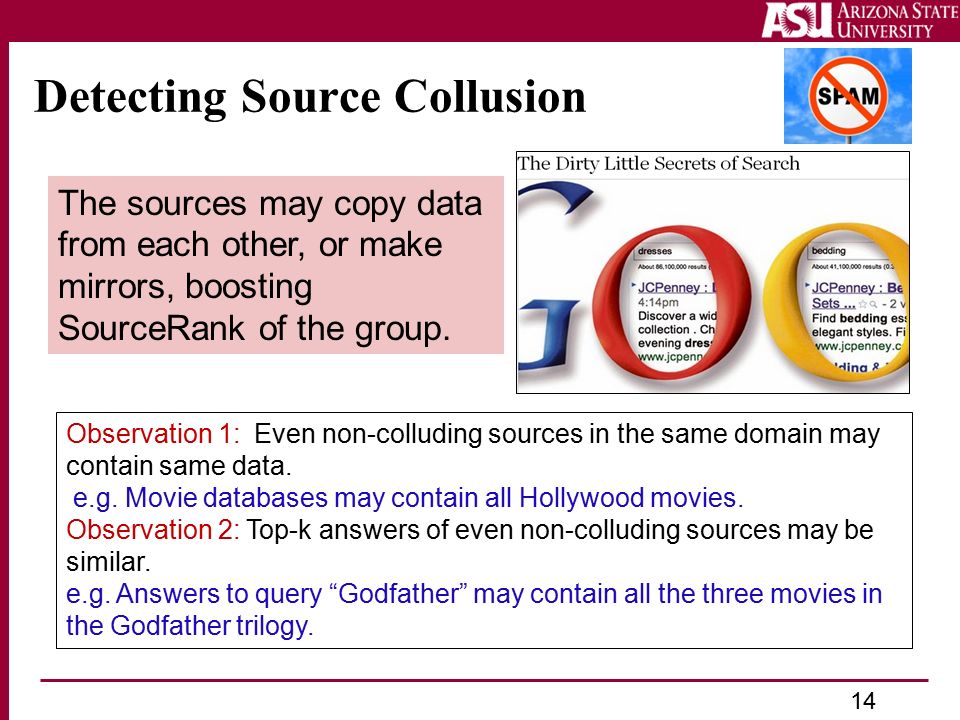

14. Detecting Source Collusion Observation 1: Even non-colluding sources in the same domain may contain same data. e.g. Movie databases may contain all Hollywood movies. Observation 2: Top-k answers of even non-colluding sources may be similar. e.g. Answers to query “Godfather” may contain all the three movies in the Godfather trilogy. The sources may copy data from each other, or make mirrors, boosting SourceRank of the group. 14

15. Source Collusion--Continued  Basic Method: If two sources return same top-k answers to the queries with large number of answers (e.g. queries like “the” or “DVD”) they are likely to be colluding.  We compute the degree of collusion of sources as the agreement on large answer queries.  Words with highest DF in the crawl is used as the queries.  The agreement between two databases are adjusted for collusion by multiplying by (1-collusion). 15

16. Factal: Search based on SourceRank http://factal.eas.asu.edu ”I personally ran a handful of test queries this way and got much better results [than Google Products] results using Factal” --- Anonymous WWW’11 Reviewer. 16

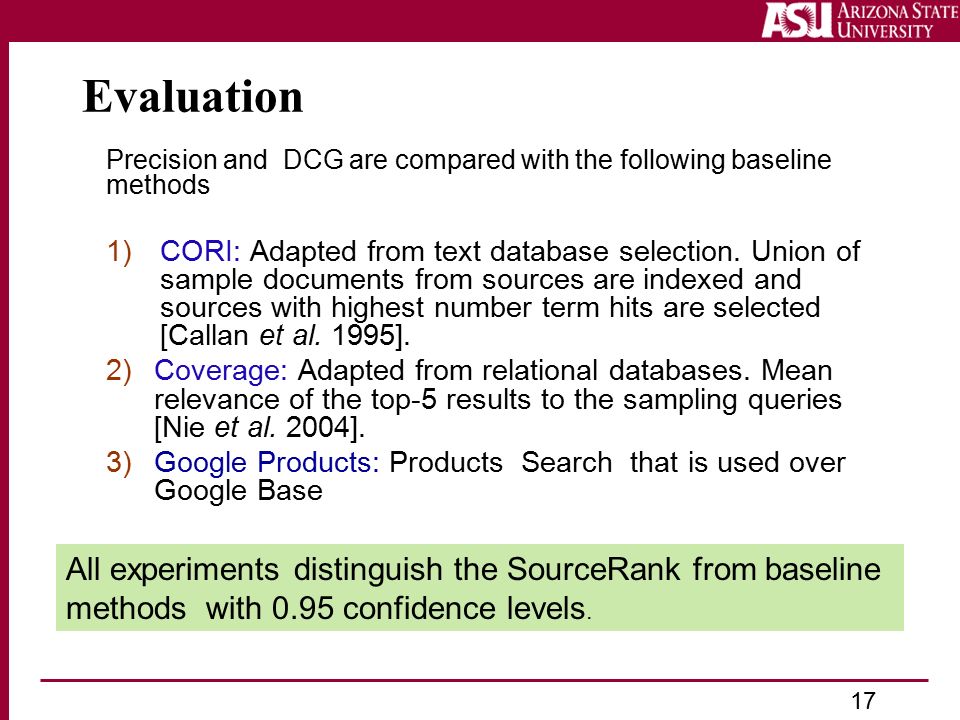

17. Evaluation Precision and DCG are compared with the following baseline methods 1)CORI: Adapted from text database selection. Union of sample documents from sources are indexed and sources with highest number term hits are selected [Callan et al. 1995]. 2)Coverage: Adapted from relational databases. Mean relevance of the top-5 results to the sampling queries [Nie et al. 2004]. 3)Google Products: Products Search that is used over Google Base All experiments distinguish the SourceRank from baseline methods with 0.95 confidence levels. 17

18. Online Top-4 Sources-Movies 29% Though combinations are not our competitors, note that they are not better: 1.SourceRank implicitly considers query relevance, as selected sources fetch answers by query similarity. Combining again with query similarity may be an “overweighting”. 2. Search is Vertical 18

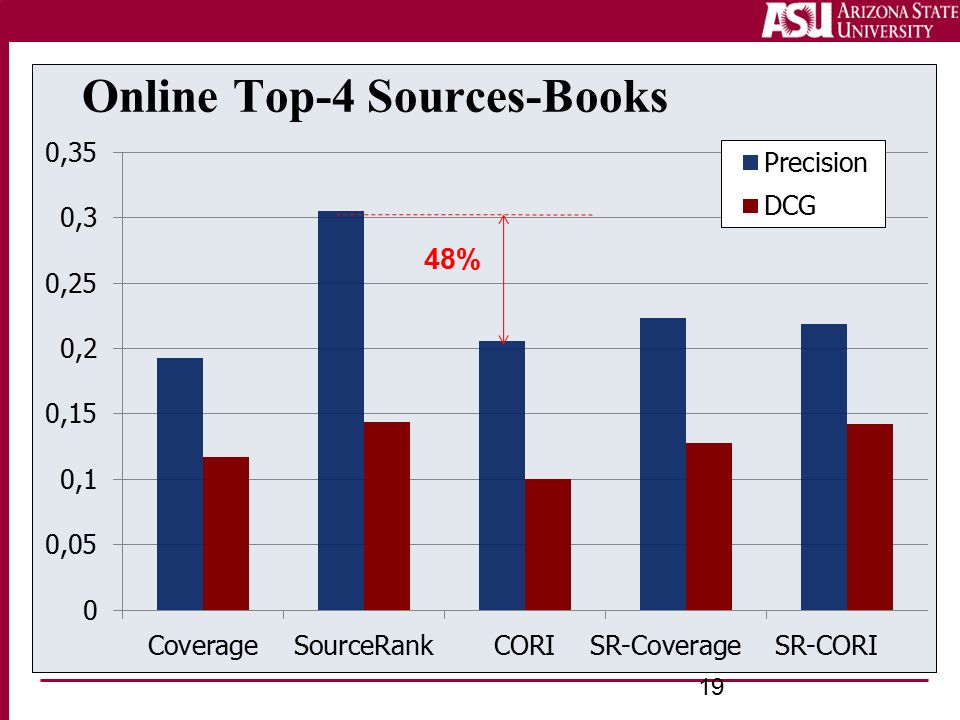

19. Online Top-4 Sources-Books 48% 19

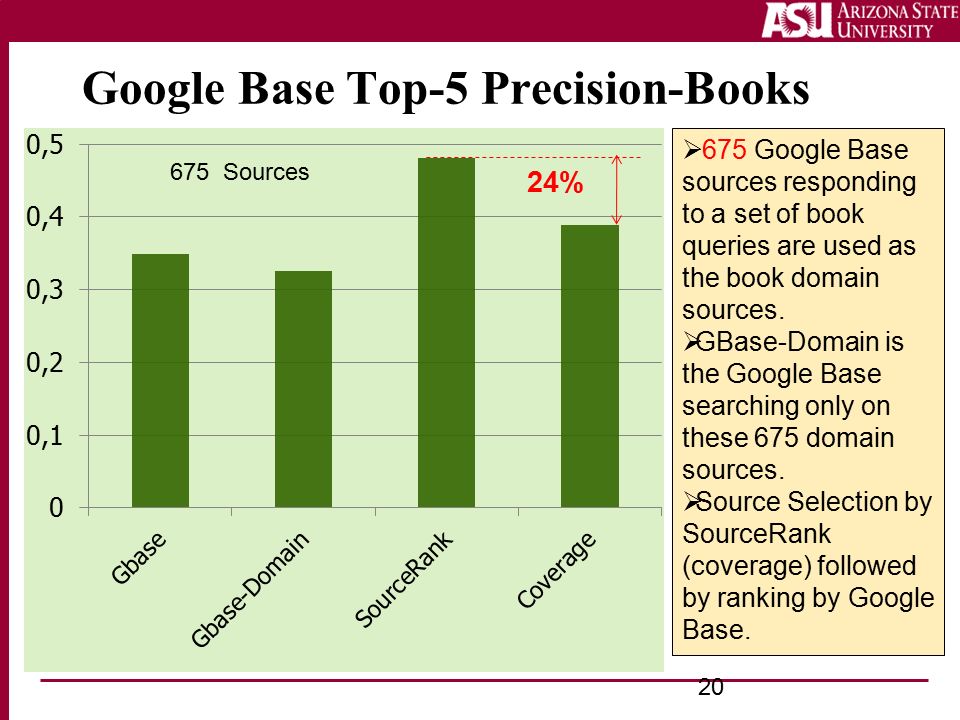

20. Google Base Top-5 Precision-Books 24%  675 Google Base sources responding to a set of book queries are used as the book domain sources.  GBase-Domain is the Google Base searching only on these 675 domain sources.  Source Selection by SourceRank (coverage) followed by ranking by Google Base. 675 Sources 20

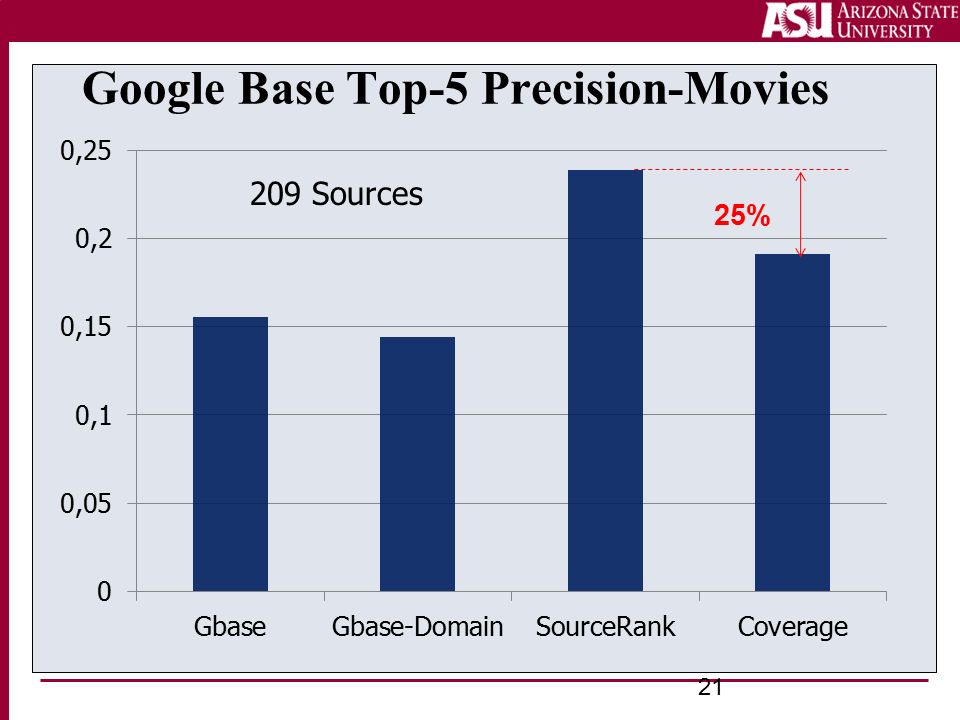

21. Google Base Top-5 Precision-Movies 25% 21

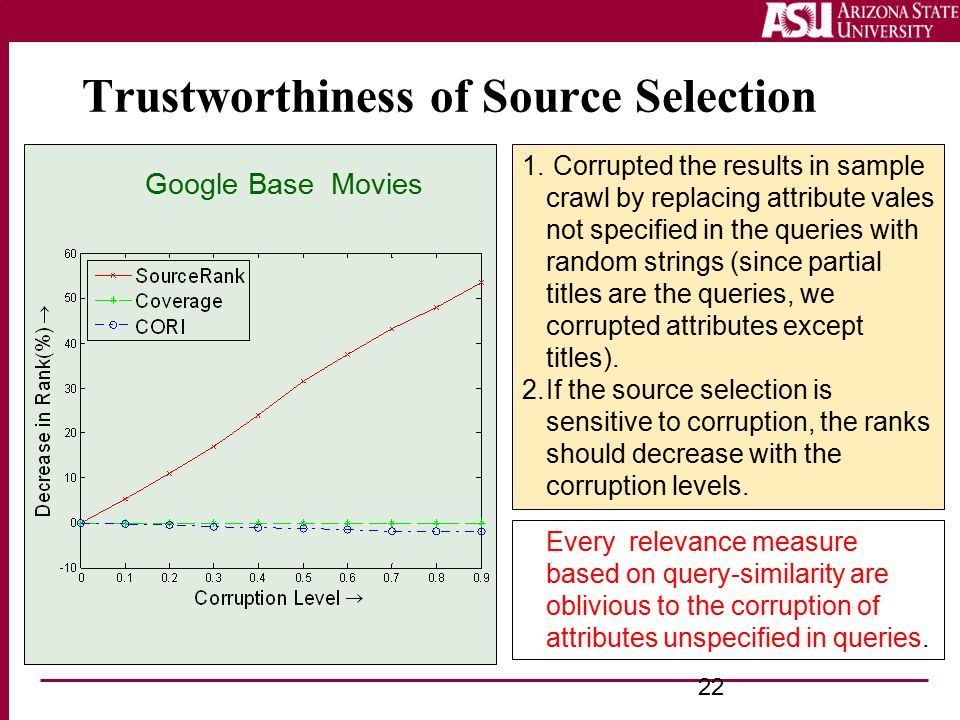

22. Trustworthiness of Source Selection Google Base Movies 1. Corrupted the results in sample crawl by replacing attribute vales not specified in the queries with random strings (since partial titles are the queries, we corrupted attributes except titles). 2.If the source selection is sensitive to corruption, the ranks should decrease with the corruption levels. Every relevance measure based on query-similarity are oblivious to the corruption of attributes unspecified in queries. 22

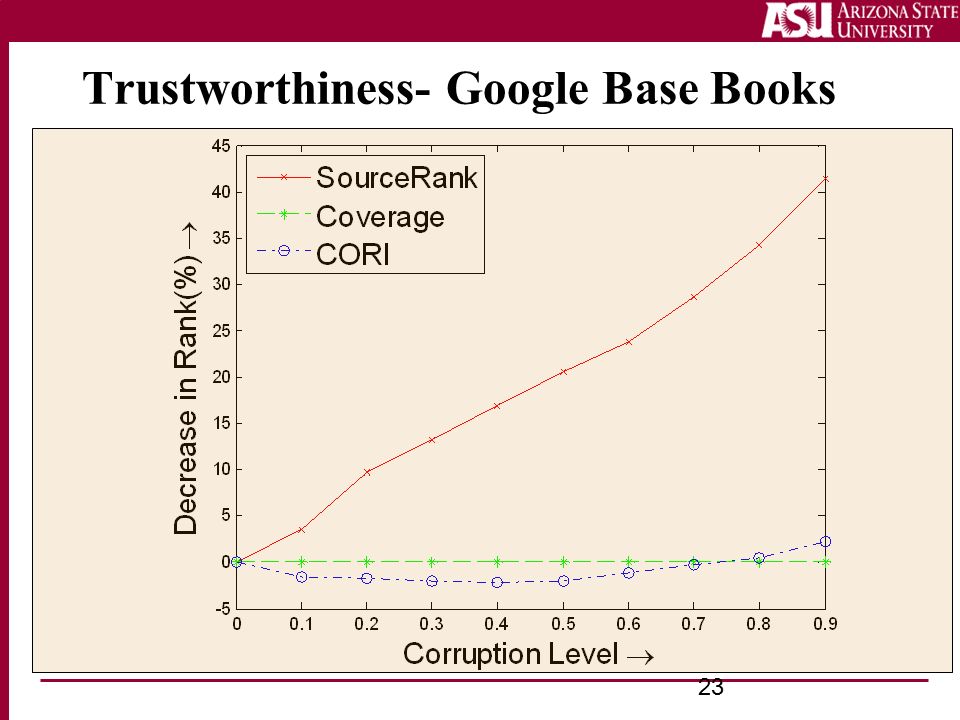

23. Trustworthiness- Google Base Books 23

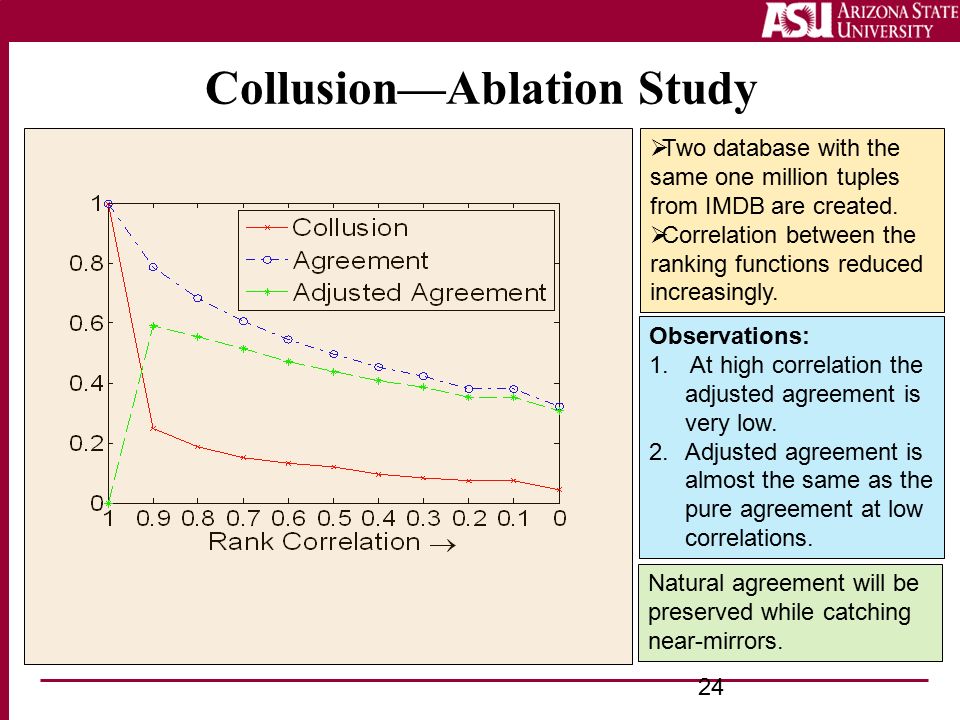

24. Collusion—Ablation Study  Two database with the same one million tuples from IMDB are created.  Correlation between the ranking functions reduced increasingly. Natural agreement will be preserved while catching near-mirrors. Observations: 1. At high correlation the adjusted agreement is very low. 2.Adjusted agreement is almost the same as the pure agreement at low correlations. 24

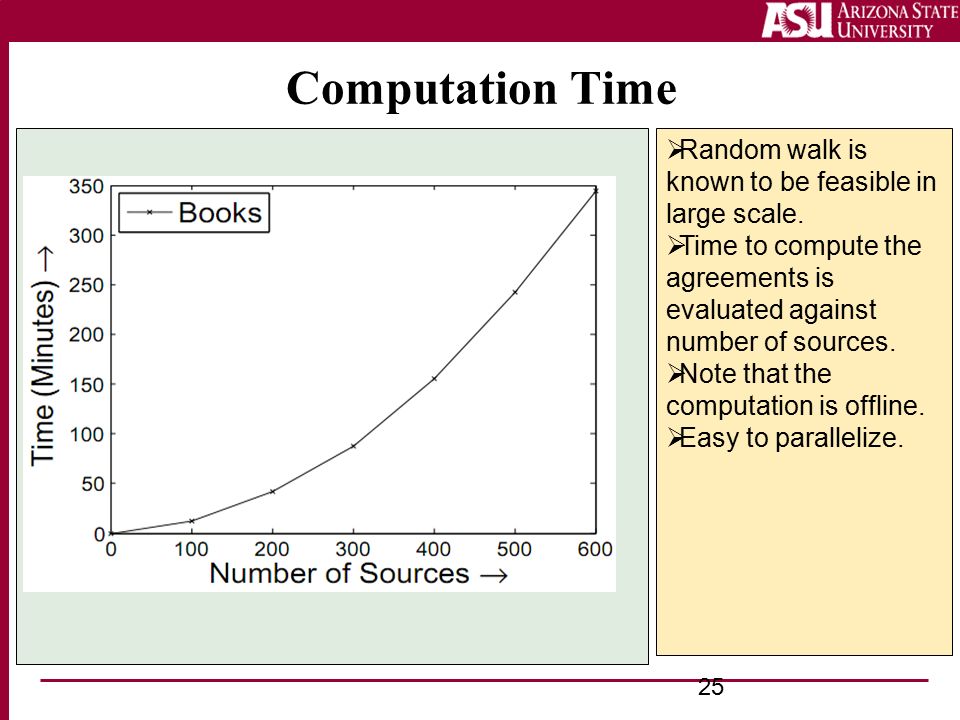

25. Computation Time  Random walk is known to be feasible in large scale.  Time to compute the agreements is evaluated against number of sources.  Note that the computation is offline.  Easy to parallelize. 25

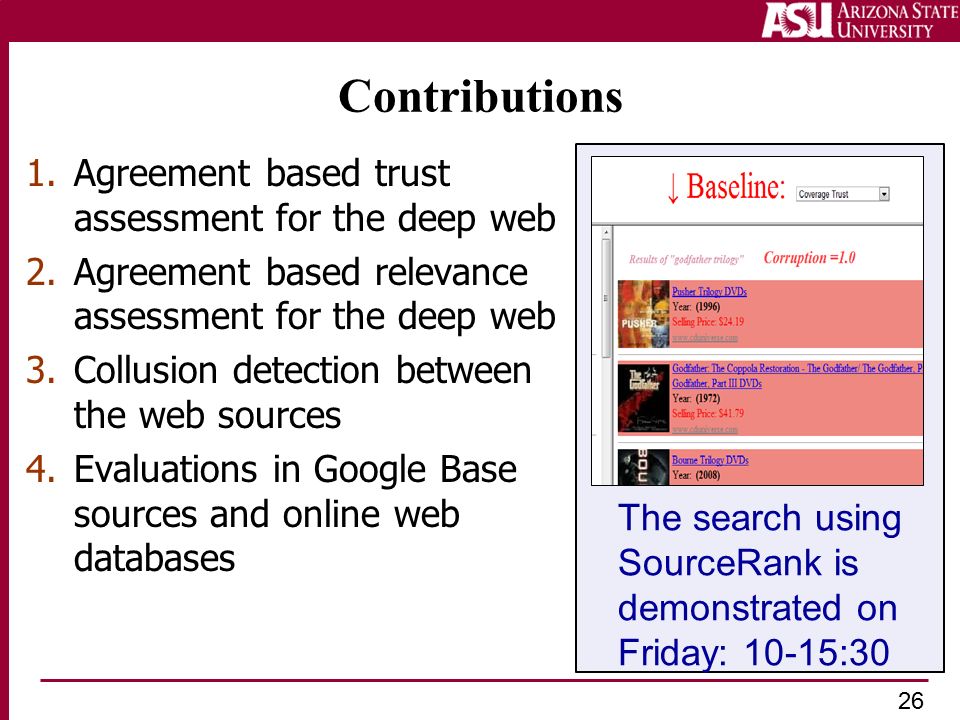

26. Contributions 1.Agreement based trust assessment for the deep web 2.Agreement based relevance assessment for the deep web 3.Collusion detection between the web sources 4.Evaluations in Google Base sources and online web databases 26 The search using SourceRank is demonstrated on Friday: 10-15:30
